PP16H44C (1993) Page 1 of 29
AGRI-FAB TRANSAXLE MODEL NUMBER 121431X
PP16H44C (1993) Page 2 of 29
AGRI-FAB TRANSAXLE MODEL NUMBER 121431X
Ref # Part Number Qty Description
1 532122614 Housing, Half L.H.
2 532122615 Housing, Half R.H.
3 532122616 Axle L.H.
4 532122620 Axle R.H.
5 532122621 Bearing, Ball
6 532122622 Washer, Flat 3/4 x 1-1/8 x .030
7 532122623 Gear, Miter
8 532122624 Gear, Miter
9 532122625 Nut, Hex Jam w/Patch 1/2-20
10 532122626 Shaft, Cross
11 532122688 Screw, Stud
12 532122629 Snap, Ring
13 532122631 Bearing, Thrust
14 532122633 Housing Assembly, Differential
15 532122634 Bearing, Flange
16 532122640 Gear, Differential 72 Tooth
17 532122641 Bolt, Torx Head 1/4-28 x 5/8"
18 532122642 Shaft, Input
19 532122643 Snap, Ring
20 532122644 Retaining Ring 7/16"
21 532122645 Housing, Input Bearing
22 532122646 Bearing, Needle
23 532122647 Bearing, Thrust
24 532122648 Washer, Flat 5/8 x 1-1/8 x .030
25 532122649 Key, Hi-Pro 3/32 x 5/8
26 532122650 Screw, Hex W/Patch 1/4-20 x 3/4
27 532122651 Gear, Input Pinion 17 Tooth
28 532123061 Washer, Flat .62 x 1 x .05
532122678 Washer, Flat .62 x 1.125 x .060 Not Shown.
532122654 Washer, Flat .62 x 1 x .040 Not Shown.
29 532122656 Pin, Cotter
30 532122653 Nut, Castle 5/16-24
31 532122659 Washer, Flat .343 x .88 x .062
32 532122660 Arm, Brake Actuator
33 532122662 Pin, Brake Actuating
34 532122663 Brake, Yoke
35 532122664 Disc, Brake
36 532123065 Key, Hi-Pro 3/16 x 5/8"
37 532122666 Screw, Hex 1/4-20 x 1.50
38 532122667 Plate, Puck
39 532122668 Puck, Brake
40 532123066 Screw, Hex w/Patch 1/4-20 x 2.00
41 532122670 Screw, Hex Self-Tap 1/4-20 x 2.00
42 532122671 Screw, Hex Self-Tap 1/4-20 x 3.00
43 532126982 Bearing, Ball
44 532122673 Bearing, Ball
45 532122674 Shaft, Pinion W/11 Tooth Gear
46 532122675 Shaft, Drive
47 532123059 Bearing, Needle
48 532123060 Bronze Thrust Brg. 5/8 x 1-1/4 x 7/64
49 532123061 Washer, Flat .62 x 1.0 x .050
532122654 Washer, Flat .62 x 1.0 x .040 Not Shown.
50 532122689 Spacer
51 532121839 Coupling
52 532126975 Gear, 60 and 17 Tooth
53 532122682 Nut, Hex 1/4-20
54 532122683 Gear, Drive Pinion 17 Tooth
55 532122684 Bolt, Square Head
PP16H44C (1993) Page 3 of 29
AGRI-FAB TRANSAXLE MODEL NUMBER 121431X
Ref # Part Number Qty Description
56 532122685 Washer 15/16 x .265 x .125
57 532122686 Washer, Spring Lock 1/4"
58 532122687 Pin, Roll 3/16" x 1/2"
59 532122652 Washer, Flat .62 x 1.0 x .030
60 532123062 Pin, Dowel 3/32 x 1/4
61 532123063 Seal, Grease
62 532126977 Washer, Head Spring Lock 1/4"
63 532126980 Assembly, Gear, Reduction
64 532126981 Assembly, Shaft, Input
65 532126976 Shell Durina-O Grease (20 oz.)
66 532137195 Kit, Input Shaft
532121431 Transaxle Assembly Complete Not Shown.
PP16H44C (1993) Page 4 of 29
CHASSIS AND ENCLOSURES
PP16H44C (1993) Page 5 of 29
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
5 532124998 Fender
9 532105511 Strap, Fender
11 532105531 Nut, Push
12 532105509 Bracket, Fender
13 532106082 Pad, Spacer
14 532123549 Cap, Fuel
15 532106020 Tank, Fuel
16 532124952 Bushing
17 532124951 Stem, Tank, Fuel
18 532123487 Clamp, Hose
19 532124953 Line, Fuel
21 532124118 Panel, Dash, L.H.
24 532124888 Footrest, L.H.
25 532124939 Bezel, Assembly
26 532106395 Lens
27 532133671 Pad, Footrest
28 532127866 Drawbar
29 819111212 Washer, 11/32 X 3/4 X 12 Ga.
30 874180512 Screw, Cr. Thd. 5/16-18 x 3/4
31 532127213 Chassis
32 532124889 Footrest, R.H.
33 532133748 Panel, Dash, R.H.
35 532110436 Grommet, Split
36 532124934 Grommet
37 532124766 Saddle
38 532124720 Bushing, Steering
40 532104805 Dash Assembly, Lower
41 532124252 Dash
42 532125004 Nut, Weld
43 532124769 Plate, Dash
44 532124978 Strap, Grill
46 532125353 Panel, Side, L.H.
47 817190412 Screw, Hex Wsh. Thd. Cut 1/4-20 X 3/4
48 819091016 Washer 9/32 X 5/8 X 16 Ga.
49 817490512 Screw, Hex Wsh Thdrol 5/16-18 X 3/4
50 532106784 Strap Assembly, Hinge, Rear
51 532104618 Strap Assembly, Hinge, Front
52 532125351 Hood
54 532124130 Support, Dash
55 532140181 Plate, Support, Battery
57 532125367 Panel, Side R.H.
64 532122100 Grill Assembly
65 532105529 Bolt, Shoulder 5/16-18
66 873680500 Nut, Lock 5/16-18
68 819091216 Washer 9/32 X 3/4 X 16 Ga.
70 873680600 Nut, Crownlock 3/8-16
71 817490608 Screw, Hex Washer Thread Rolling 3/8-16 x 1/2
72 817490612 Screw, Hex Washer Thread Rolling 3/8-16 x 3/4
74 872110606 Bolt, Carriage 3/8-16 x 3/4
75 817431008 Screw, Hex Self Tapping #10-16 x 1/2
76 874760616 Bolt, Hex 3/8-16 x 1
77 532121794 Cover, Access
80 873510400 Nut, Hex Keps
81 873220400 Nut, Hex 1/4-20
82 874760532 Bolt, Hex 5/16-18 x 2
83 873510500 Nut, Keps 5/16-18
88 532123481 Bolt, Shoulder 1/4-20
89 873680400 Crownlock Nut 1/4-20
PP16H44C (1993) Page 6 of 29
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
90 874191008 Screw, Pan Hd. Mach. #10-24 1/2
91 810071000 Washer, Lock #10
93 819131312 Washer 13/32 x 13/16 x 12 Ga.
94 873220400 Nut, Fin Hex 1/4-20 UNC
96 874760612 Bolt, Hex 3/8-16 x 3/4
98 532109808 Latch, Hood
99 873731000 Nut, Keps 10-24
100 532007206 Spacer, Split 10 x 3/4
101 819070818 Washer 7/32 x 1/2 x 18 Ga.
102 874981020 Screw, Mach. Cr. Pan 10-24 x 1-1/4
104 819111116 Washer 11/32 x 11/16 x 16 Ga.
109 532124996 Clip
110 532126471 Insulated Clip
116 532121236 Spacer
123 532120068 Adjustment Knob
124 819171912 Washer 17/32 x 1-3/16 x 12 Ga.
125 811050600 Washer Lock 3/8 Ext. Tooth
126 819131614 Washer 13/32 x 1 x 14 Ga.
130 532123198 Wing Nut
131 811050400 Washer, 1/4 Ext. Tooth
140 532123740 Spring. Compression
141 874641008 Screw, Pan Hd. #10-32
142 873951000 Nut, Keps #10
143 817211010 Screw, Hex WH HD Tap #10-16 X 5/8
144 532104755 "J" Fastener
147 532127018 Bolt, Shoulder 5/16-18 x .62
PP16H44C (1993) Page 7 of 29
DECALS
PP16H44C (1993) Page 8 of 29
DECALS
Ref # Part Number Qty Description
1 532138955 Decal Instruction Dash Eng
2 532132506 Decal HP Engine
3 532133898 Decal Hood RH
4 532133899 Decal Hood LH
5 532136834 Decal V-Belt
7 532133900 Decal Fender
8 532133796 Decal Caution Fender Eng
9 532125086 Decal Clutch/brake Eng
11 532127630 Decal Grille
13 532127646 Decal Steering Wheel Cap
532138311 Decal Lift Handle (Lift Handle) Not Shown.
532139618 Manual Owners, English Not Shown.
00LC02 42" Snow blade Not Shown.
00LC06 Tire Chains Not Shown.
00SB10 40" Snow Thrower Not Shown.
00LC05 33 lb. Weights (pairs) Not Shown.
00TS15 21" P.T.O. Tiller Not Shown.
PP16H44C (1993) Page 9 of 29
DRIVE
PP16H44C (1993) Page 10 of 29
DRIVE
Ref # Part Number Qty Description
1 532125890 Muffler
2 813200300 Elbow, STD 90 3/8-18NPT
4 813280336 Nipple, Pipe
6 532132782 Control, Choke
8 873610600 Nut, Fin Hex 3/8-24 UNF
9 874570512 Screw, Hex Socket 5/16-18 x 3/4
10 532128144 Tube Exhaust
12 532133024 Control, Throttle
14 532123461 V-Belt, Drive
15 532124996 Clip
16 532121187 Bracket, Mounting, Hydro T/A
17 532126649 Bracket, Transaxle
18 532123583 Key, Square 1/4 x 2
20 532121189 U-Bolt, 3/8-16 x 2-3/4
21 532121199 Spacer, Split
22 532121748 Washer 1-1/32 x 1-5/8 x 16 Ga,
29 872140506 Bolt 5/16-18 x 3/4
30 819111012 Washer 11/32 x 5/8 x 12 Ga.
31 873680500 Nut, Crownlock 5/16-18
32 532137140 Clutch, Electric
33 532140189 Pulley, Engine
35 874760644 Bolt, Hex 3/8-16 x 2-3/4
36 532123674 Idler, Flat
37 532004470 Spacer
38 819131312 Washer 13/32 x 13/16 x 12 Ga.
39 532109070 Keeper, Belt
40 532129921 Keeper, Belt Engine Lh Lt
44 532106888 Spring, Rod, Brake
45 532132654 Rod, Brake
46 532124872 Cover, Pedal
47 532120183 Bearing, Nylon
48 532122424 Shaft, Foot Pedal, Asm.
49 532124963 Pin, Roll 3/16 x 1
50 532071673 Cap, Plunger
51 532133261 Rod, Brake, Park
52 532105710 Link, Clutch
53 873680600 Locknut, 3/8-16
54 532123205 Retainer, Belt
55 812000039 Klip Ring
56 532110812 Washer, Hardened
57 532123789 Arm, Asm, Idler (Incl. Key No. 62)
58 532105709 Spring, Return, Clutch
60 874760624 Bolt, Hex, 3/8-16 x 1-1/2
61 532127783 Idler, V. Grove
62 532105706 Bearing
63 819211616 Washer, 21/32 x 1 x 16 Ga.
64 873800600 Nut
65 817720410 Screw, Hex Thread Cut 1/4-20 x 5/8
66 817490624 Screw. Thdrol 3/8-16 x 1-1/2
67 811050600 Washer, Lock Ext Tooth 3/8
68 874760612 Bolt, Hex 3/8-16 x 3/4
69 874760616 Bolt, Hex 3/8-16 x 1
71 876020412 Pin, Cotter, 1/8 x 3/4
72 817490612 Screw, Hex, Thdrol 3/8-16 X 3/4
82 532108236 Bracket, Switch
83 817021008 Screw, Tap. Hex Hd. #10-24 x 1/2 Type T
84 532110422 Spring, Brake Return
87 532125891 Shield Heat
PP16H44C (1993) Page 11 of 29
DRIVE
Ref # Part Number Qty Description
88 819060916 Washer
89 817030808 Screw Spiderlock Hex Hd #8 x 1/2
92 819131316 Washer, 13/32 X 13/16 X 16 Ga.
95 532122758 Clamp Muffler
97 532132920 Spark Arrestor
98 873350600 Nut, Hex Jam 3/8 X 16 UNC
99 532124788 Clip, Hairpin
PP16H44C (1993) Page 12 of 29
ELECTRICAL
PP16H44C (1993) Page 13 of 29
ELECTRICAL
Ref # Part Number Qty Description
1 532123198 Wing Nut 1/4-20
2 819091016 Washer 9/32 x 5/8 x 16 Ga
3 532102476 Guard, Terminal
4 872240460 Battery Bolt (Bolt, Carriage, Rd. Hd. Sq. Neck) 1/4-20 x
7-1/21
5 532121537 Battery
6 532124886 Battery Tray
7 532134026 Harness, Ignition (Includes item 8)
8 532109748 Relay
9 532124900 Ammeter
10 532136850 Harness, Light Socket
11 532004152 Bulb, Light
12 532100541 Tube, Battery Tray
13 532124756 Cable Tie
14 532109553 Switch, Interlock, Clutch
15 532124770 Cable, Battery (Battery to Solenoid)
16 532125104 Ignition Switch
17 532131708 Bracket, Ammeter
18 532124211 Nut, Ignition
19 532122147 Key
20 819070818 Washer 7/32 x 1/2 x 18 Gauge
21 532110712 Switch, Light
22 873680400 Nut, Crownlock 1/4-20
23 810101000 Washer, Lock
24 873911000 Nut
25 532138406 Solenoid
26 532131563 Terminal Cover
27 532124773 Cable, Battery (Battery to Ground)
28 810090400 Washer, Lock
29 873350400 Nut, Hex Jam 1/4 x 20 UNC
30 817021008 Screw, Tap. Hex Hd. #10-24 UNC
31 532124996 Clip, Fuel Line
32 532109596 Clamp, Hose
33 811150400 Washer, Lock Int. Tooth 1/4
34 532124780 Cable, Battery 6 Ga 11" red
35 874780408 Bolt, Hex 1/4-20 x 1/2 Gr. 5
36 873640400 Nut, Keps, Hex 1/4-20
37 874760412 Bolt, Hex i/4-20 x 3/4
38 819171216 Washer 17/32 x 3/4 x 16 Ga.
39 873220400 Nut, Hex 1/4-20
40 871110408 Hex Bolt 1/4-20 x 1/2
41 819121618 Washer 3/4 x 1 x 18 Ga.
43 810040400 Washer, Lock 1/4
45 532108824 Fuse, 30 Amp.
48 532108236 Bracket, Switch Clutch
51 532102501 Loop, Wire Tiller Attachment
52 532124995 Clip, Insulated
55 532126016 Switch PTO
56 532124932 Nut, Hex
57 532123620 Cover Serv Key
58 532121305 Switch, Plunger
61 532121264 Caps, Battery Set
PP16H44C (1993) Page 14 of 29
LIFT ADJUSTMENT
PP16H44C (1993) Page 15 of 29
LIFT ADJUSTMENT
Ref # Part Number Qty Description
1 532136971 Wire Asm Inner W/Plunger 20 56
2 532136969 Shaft Asm Lift RH w/Inf W/T
3 532138284 Pine Groove 1 500 Zinc
4 812000002 E Ring #5133-62
5 819211416 Washer 21/32 x 7/8 x 16 Ga.
6 532120183 Bearing Nylon Bld 629 Id
7 532109413 Grip Handle Fluted Blk
8 532124526 Button Plunger Black
10 532122512 Spring Cprsn 3 750 Oiled
11 532110448 Link, Lift LH
12 532110029 Link, Lift RH
13 532124961 Retainer Spring
14 532124670 Retainer Spring
15 819171516 Washer 17/32 x 15/16 x 16 Ga.
16 873360700 Nut Hex 7/16-20 UNF
17 532110447 Trunnion Lift
18 873710700 Nut, Crownlock 7/16-20
19 532121599 Arm Suspension LH 44"
20 532124670 Retainer Spring
21 819151216 Washer 15/32 x 3/4 x 16 Ga.
22 812000037 Ring Klip #t5304-37
23 532110807 Nut Special
24 819131016 Washer 13/32 x 5/8 x 16 Ga.
25 532124874 Spring 2-1/8"
26 876020308 Pin Cotter 3/32 x 1/2
27 532110729 Rod Adj Lift Zinc 9 00 Wrk Lg
28 873350600 Nut Hex Jam 3/8-16 Unc
29 532138057 Knob Inf 3/8-16 Unc Blk W/sym
30 532110810 Trunnion Dp Stop Dbl Thds PLT
31 532121598 Arm. Asm. Suspension RH 44"
32 873220800 Nut Hex 1/2-13 Unc
33 532106308 Trunnion Lift Lower
34 532124960 Retainer Spring
35 873980600 Nut Crownlock 3/8-16
36 532110739 Washer, Spring, Oiled
37 532105848 Bolt Shoulder 3/8-16
38 873680600 Nut, Crownlock 3/8-16
39 872140608 Bolt Carriage 3/8-16 x 1
40 532121252 Upstop Mower
PP16H44C (1993) Page 16 of 29
MOWER
PP16H44C (1993) Page 17 of 29
MOWER
Ref # Part Number Qty Description
1 873680600 Locknut 3/8 x 16
2 819131614 Washer 13/32 x 1 x 14 Ga.
3 532121316 Pulley, Idler
4 532106902 Spacer
6 532124858 Pulley, Idler
7 532106513 Washer, Wear
8 532121425 Arm, Idler
9 532109776 Pin, Pivot
10 532106523 Bar, Support, Idler
11 532106522 Brace, Idler, Deck
12 532121236 Spacer
13 819131316 Washer 13/32 x 13/16 x 16 Ga.
14 532136818 Mandrel, Secondary
15 532106214 Guard
16 532106085 V-Belt
17 873220600 Nut, Hex 3/8 x 16
18 810040600 Washer, Lock 3/8
19 532102932 Idler, Flat
20 532106526 Arm, Idler, Deck
21 532124885 Spring, Extension
22 532121704 Mandrel, Primary
23 810030600 Washer, Lock, Hvy. Helical
24 532109599 Bracket, Lift, LH
25 532105662 Link, Parallel
26 532124961 Retainer, Spring
27 532105744 Pin, Front, Hinge
28 532109835 Pin, Rear, Hinge
29 532109600 Bracket, Lift, RH
30 532108119 Guard, Belt, RH
32 532136321 Runner, RH
33 532121423 Housing, Mower
34 532105304 Cap, Sleeve
35 532123713 Spring
36 532110452 Nut, Push
37 532137607 Bracket, Deflector
38 532109785 Guard, Discharge
40 819111016 Washer 11/32 x 5/8 x 16 Ga.
42 532106735 Rod, Hinge
43 532106635 Blade
44 874610624 Bolt, Hex 3/8-24 x 1 1/2 Gr.5
45 819132012 Washer 13/32 x 1 1/4 x 12 Ga.
46 532125074 Runner, LH
47 532123807 Bracket, Suspension, Rear, RH
48 532123808 Bracket, Suspension, Rear, LH
51 872140614 Bolt, Carriage 3/8-16 x 1-3/4
52 872140608 Bolt, Carriage 3/8-16 x 1
53 872140612 Bolt, Carriage 3/8-16 x 1 1/2
54 874760620 Bolt, Hex 3/8-16 x 1-1/4
55 872140506 Bolt, Carriage 5/16-18 x 3/4
56 819111116 Washer 11/32 x 11/16 x 16 Ga.
57 873680500 Locknut 5/16-18
58 874760648 Bolt, Hex 3/8-16 x 3
59 874110632 Screw, Flat Head 3/8-16 x 2
60 874760616 Bolt, Fin. Hex 3/8-16 X 1
61 819111216 Washer 11/32 x 3/4 x 16 Ga.
62 874760580 Bolt, Hex 5/16-18 x 5
63 876020412 Pin, Cotter
64 819151616 Washer, 15/32 X 1X 16 Ga.
PP16H44C (1993) Page 18 of 29
MOWER
Ref # Part Number Qty Description
66 817490612 Screw, Hex Washer Thread Rolling 3/8-16x3/4
67 872140606 Bolt, Carriage 3/8-16 x 3/4
68 532102727 Spring, Extension
69 873930600 Nut.Centerlock 3/8-16
70 872110506 Bolt, Carriage 5/16-18 x 3/4
72 532124949 Locknut 5/16-18
73 532109729 Roller, Nose
74 819151610 Washer 15/32 x 1 x 10 Ga.
75 872140620 Bolt, Carriage 3/8-16 x 2-1/2
76 819131210 Washer 13/32 x 3/4 x 10 Ga.
77 819131410 Washer 13/32 x 7/8 x 10 Ga.
78 532121352 Keeper, L.H. Mandrel
79 872110505 Bolt, Carriage 5/16-18 x 5/8
80 532102403 Idler, Pulley
532121826 Deck, Mower Complete Not Shown.
PP16H44C (1993) Page 19 of 29
PUMP ASSEMBLY
PP16H44C (1993) Page 20 of 29
PUMP ASSEMBLY
Ref # Part Number Qty Description
1 532122756 Shaft, Pump
2 532122716 Ring, Retaining
3 532122745 Bearing, Ball
4 532122715 Spacer
5 532122700 Seal, Lip
6 532122699 Ring, Retaining
7 532121323 Reservoir, Oil
8 532122767 Bearing, Cradle
9 532139794 Diaphragm, Oil Reservoir
11 532122747 Bearing, Journal
12 532122717 Seal, Lip
13 532122748 Arm, Trunnion
14 532122749 Guide, Slot
15 532127146 Housing Kit, Transmission
17 532122770 Bearing, Thrust, Ball
18 532122771 Plug, Pipe
19 532127147 Center Section Kit
20 532122773 Bearing, Needle
21 532122722 Seal, Lip
22 532122750 Shaft, Motor
25 532127148 Swashplate, Variable
30 532122723 Seal, Lip
31 532127149 Block Kit, Cylinder
36 532127151 Plug, Plastic
37 532122786 Pin, Stainless, Headless
38 532122718 Gasket, Center Section
39 532122731 Filter
40 532122730 Washer, Thrust
41 532122728 Spring, Helical, Compression
42 532127152 Check Valve Kit
46 532122787 Plug, Stainless, Threaded
47 532122752 Screw, Socket Head, Cap
50 532122788 Washer, Thrust
51 532122789 Pin, Spiral
52 532122754 Plug, Stainless, Threaded
55 532127153 Bypass Valve Kit
58 532122790 Plug, Stainless, Threaded
59 532127154 Overhaul Seal Kit,BDU-10 (Inc. 2,4,5,6,12,21,
30,38;O-Rings for Check Valves&Bypass Valve)
60 532121430 Pump Assembly, Complete
PP16H44C (1993) Page 21 of 29
SEAT ASSEMBLY
PP16H44C (1993) Page 22 of 29
SEAT ASSEMBLY
Ref # Part Number Qty Description
1 532127440 Seat V-560 BLK/blk Std
2 532126656 Bracket Pivot Seat 8 720
5 532124996 Clip Line Fuel 13/32 Mtg Hole
6 873680600 Nut Crownlock 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817490508 Screw Hwsh Thdrol 5/16-18 x 1/2
9 819131614 Washer 13/32 X 1 X 14 Ga
10 532131451 Pan Seat
11 532121251 Strip Foam Gray Or Black
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050411 Bolt Rdhd Sht Nk 1/4-20x1-3/8
15 532121249 Spacer Split 28x 88 Yel Zinc
16 532123740 Spring Cprsn 1 310 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
18 874641008 Screw SLTD Pan Hd #10-32 X 1/2
19 873951000 Nut Keps #10-32 Unf
20 532124967 Clip Insulated 11/32 Mtg Hole
21 532105529 Bolt Shoulder 5/16-18 Unc Blkz
22 873680500 Nut Crown Lock 5/16-18
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga
25 532127018 Bolt Shoulder 5/16-18 X 62
26 532120068 Knob Seat 1/2-13unc Blk
29 532124238 Cap Spring Seat
PP16H44C (1993) Page 23 of 29
STEERING AND FRONT AXLE
PP16H44C (1993) Page 24 of 29
STEERING AND FRONT AXLE
Ref # Part Number Qty Description
1 532057079 Washer
2 532126805 Insert, Steering Wheel
3 873940800 Nut, Toplock, Jam 1/2-20
4 532100712 Washer
5 532121472 Wheel, Steering
6 532100711 Adapter, Steering Wheel
7 810040400 Washer, Lock 1/4
8 871070410 Screw, Hex, Socket 1/4-20 x 5/8
9 532124961 Spring, Retainer
10 532102670 Spring, Compression
12 873610600 Nut, Hex, Fin 3/8-24 UNF
14 532121274 Knob, Gearshift
15 532110845 Rod, Control
16 532121631 Spring, Torsion
17 532108196 Bracket, Control Rod
18 532128762 Shaft, Steering
20 532124035 Support, Shaft
21 532126684 Washer, Shim 1/4 x 5/8 x .062
22 532124036 Bracket, Steering
24 812000029 Ring, Klip
25 532124931 Bearing, Thrust
26 532127501 Shaft, Pitman
27 532108972 Washer, Phenolic
28 532136874 Gear, Sector
30 876020412 Pin, Cotter 1/8 x 3/4
31 873680600 Nut, Crownlock 3/8-16
32 532108200 Washer, Friction
33 817490612 Screw, Hex, Washer Thrdrol. 3/8-16 x 3/4
34 532108518 Bolt, Hex, Shoulder 3/8-16 x 1-3/8
35 819212016 Washer 21/32 x 1-1/4 x 16 Gauge
36 532108201 Spacer
37 532121202 Link, Control, Pump
38 532108844 Spring, Compression
39 819132012 Washer 13/32 x 1-1/4 x 12 Gauge
40 874760648 Bolt, Hex 3/8-16 x 3
41 532121209 Lever, Pump Control
43 874011056 Bolt, Hex 5/8-11 x 3-1/2
45 532130468 Link, Drag
46 810040600 Washer, Lock 3/8
47 810040500 Washer, Lock 5/16
48 532130467 Rod, Tie
49 873810500 Nut, Hex 5/16-24 UNF
50 532135227 Spindle, L.H.
51 819272016 Washer 27/32 x 1-1/4 x 16 Gauge
52 532110438 Spacer, Bearing
54 532124937 Bearing
55 873901000 Locknut, Flange 5/8-11
56 532108075 Axle, Front
57 532135228 Spindle, R.H.
64 873800600 Locknut, Hex w/Washer Insert 3/8-16 UNC
65 532108212 Trunnion
66 532121750 Rod, Control, Adjustable
67 532124788 Clip, Hairpin
68 532059904 Tube (Optional, Service Part)
72 532123186 Bracket, Chassis, Reinforcement, Hydro
73 532124836 Fitting, Grease
74 532121748 Washer 25/32 x 1-5/8 x 16 Gauge
78 532109816 Nyliner, Snap In
PP16H44C (1993) Page 25 of 29
STEERING AND FRONT AXLE
Ref # Part Number Qty Description
81 819131212 Washer 13/32 x 3/4 x 12 Gauge
82 532121749 Washer 25/32 x 1-1/4 x 16 Gauge
83 819111216 Washer 11/32 x 3/4 x 16 Gauge
84 819151516 Washer 15/32 x 15/16 x 16 Gauge
85 532110739 Washer, Spring
86 532121232 Cap, Spindle
87 532121217 Guide, Control
88 532121216 Bracket Control Guide
89 817490512 Screw, Hex, Washer Thrdrol. 5/16-18 x 3/4 Type TT
90 817021010 Screw, Hex Tap #10-24 UNC x .625
91 819070816 Washer 7/32 x 1/2 x 16 Gauge
92 874561014 Screw, Hex, Socket Head #10-24 UNC
93 532069180 Locknut #10-24 UNC
94 532121204 Bellcrank
95 532121206 Bracket, Bellcrank Pivot
96 532100536 Bolt, Shoulder
97 874760616 Bolt, Hex, Fin 3/8-16 UNC x 1
98 873680500 Nut, Crownlock 3/8-16 UNC x 1
99 532121190 Keeper, Centerspan
100 532132624 Pin, Axle
PP16H44C (1993) Page 26 of 29

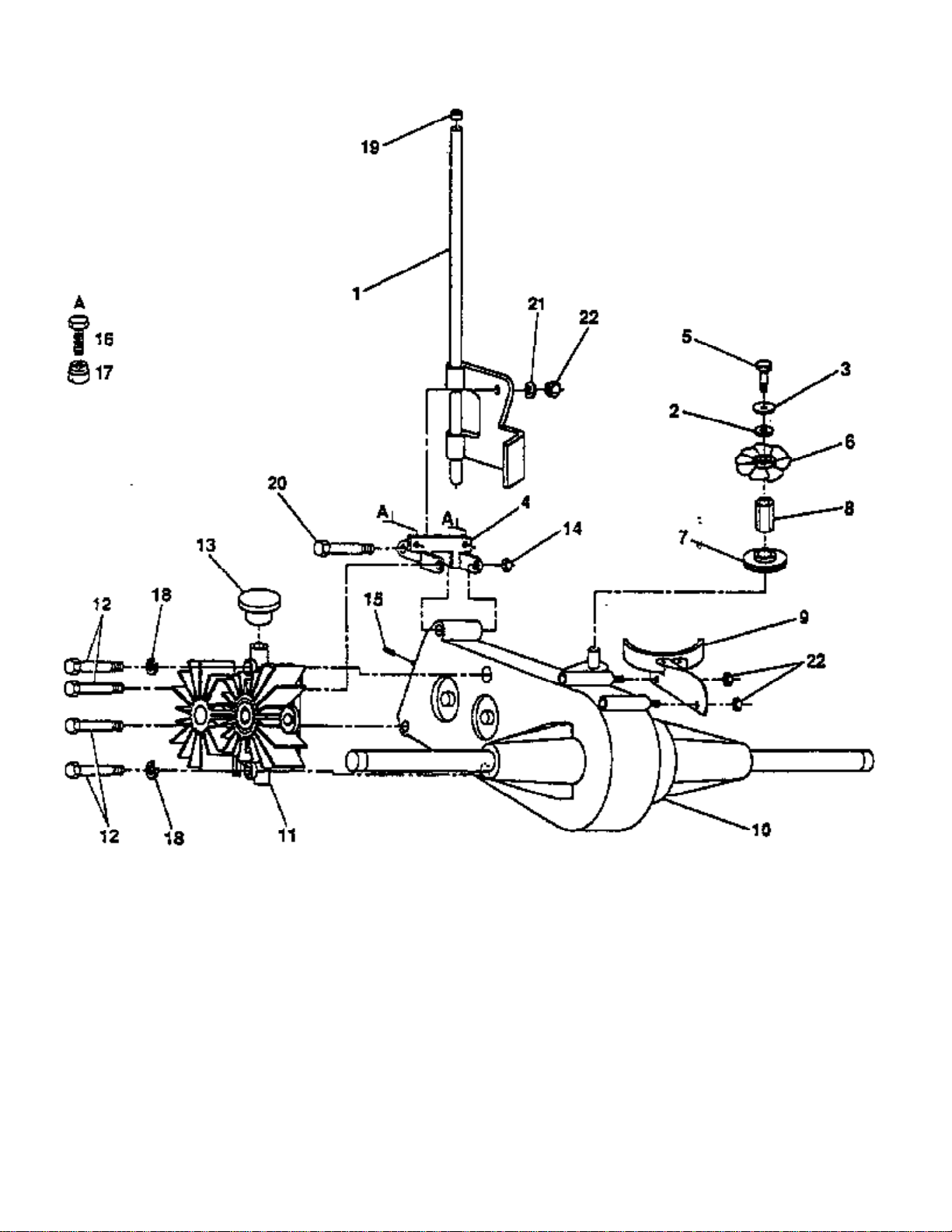

TRANSAXLE AND PUMP ASSEMBLY
PP16H44C (1993) Page 27 of 29
TRANSAXLE AND PUMP ASSEMBLY
Ref # Part Number Qty Description
1 532123634 Free Wheel Control Assembly
2 819092016 Washer 9/32 x 1-1/4 x 16 Gauge
3 810040400 Washer, Lock 1/4
4 532121188 Bracket, Pnt., Mounting, Differential
5 874780412 Bolt, Hex 1/4-20 UNC x 3/4
6 532121186 Fan, Hydro, 8"
7 532121180 Pulley, Transaxle
8 532121211 Standoff, Fan, Hydro
9 532121182 Guard Assembly, Belt
10 532121431 Differential Assembly
11 532121430 Pump Assembly
12 874760572 Bolt, Hex, Fin 5/16-18 UNC x 4-1/2
13 532121323 Reservoir, Pump
14 873680500 Nut, Crownlock 5/16-18
15 532121250 Spring, Compression
16 874760612 Bolt 3/8-16 x 3/4
17 873680600 Nut 3/8-16 UNC
18 810040500 Washer, Lock
19 532071673 Cap
20 532124815 Bolt, Shoulder 1/4-20 UNC
21 532120529 Washer, Nylon
22 873680400 Nut, Crownlock 1/4-20 UNC
PP16H44C (1993) Page 28 of 29
WHEELS & TIRES
PP16H44C (1993) Page 29 of 29
WHEELS & TIRES
Ref # Part Number Qty Description
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire Front
4 532059904 Tube Front (Service Item Only)
5 532124801 Rim Asm 6" front White Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532124723 Rim Asm 8"rear White Service
9 532122082 Tire R Ts 20 10-8 C Service
10 532007152 Tube Rear (Service Item Only)
11 532104757 Cap Axle
Loading...
