AYP PP1242A Parts List

Download
PP1242A (1993) Page 1 of 23 CHASSIS AND ENCLOSURES
PP1242A (1993) Page 2 of 23 CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 532135034 Chassis Wldmt 12 Ga 38/42 W/pvt 2 532137275 Drawbar, Stretch 3 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt 6 532139806 Saddle Slk 6sp LT Flat 7 817490608 Screw Thdrol 3/8-16x1/2 Ty-tt 8 532124996 Clip Line Fuel 13/32 Mtg Hole
PP1242A (1993) Page 3 of 23 DECALS
PP1242A (1993) Page 4 of 23 DECALS
Ref # Part Number Qty Description
1 532136794 Decal Instruction Dash Eng
2 532121549 Decal Caution Battery Ger
3 532138921 Decal Hood Lh
4 532138920 Decal Hood Rh
5 532127033 Decal HP Hood
6 532131425 Decal Speed/Deck Size Chassis
7 532133796 Decal Caution
8 532138922 Decal Fender/Grille
9 532136832 Decal V-Belt Schematic 10 532125086 Decal Clutch/brake Eng 13 532138917 Decal Strg Wheel Cap Berd/Iois 14 532120601 Decal, HP, Engine
532138311 Decal Height Adjust (Lift Handle) Not Shown. 532138196 Manual Owners Not Shown. 00CE42 Bagger Not Shown. 00BD20 42" Snow Blade Not Shown. 00SB20 40" Snow Thrower Not Shown. 0LA018 Tire Chains (18 x 9.5 x 8) Not Shown. 00LC05 33 lb. Wheel Weights (Pair) Not Shown. 0MK420 42" Mulcher Kit Not Shown.
PP1242A (1993) Page 5 of 23 DRIVE
PP1242A (1993) Page 6 of 23 DRIVE
Ref # Part Number Qty Description
1 532137363 Transaxle 6sp Dana LT Model No 4360-48
2 532110422 Spring Return Brake T/a Zinc
3 532123666 Pulley Transaxle 18"tires
4 812000028 Ring Retainer # 5100-62
5 532121520 Strap Torque 30 Degrees
6 817490512 Screw Thdrol 5/16-18 X 3/4 TYT
7 532130802 Plate Rod Shift T/a
8 532131679 Rod Shift Blk
9 819151216 Washer 15/32 X 3/4 X 16 Ga 10 876020416 Pin Cotter 1/8 X 1 Cad 11 532105701 Washer Plate Shf 388 Sq Hole 12 819091210 Washer 9/32 X 3/4 X 10 Ga 13 871040412 Bolt Fin Hex 1/4-28unfx3/4 Gr8 14 810040400 Washer Lock Hvy Helical 1/4 15 874760540 Bolt Fin Hex 5/16-18uncx 2-1/2 16 873680500 Nut Crown Lock 5/16-18 17 532121520 Strap Torque 30 Degrees 18 874760612 Bolt Fin Hex 3/8-16unc X 3/4 19 873680600 Nut Crownlock 3/8-16 Unc 20 817490512 Screw Thdrol 5/16-18 X 3/4 TYT 21 532106933 Knob Rd 1/2-13 Plstc Thds Blk 22 532130804 Rod Brake LT/YT 23 873800600 Nut Lock Hex W/wsh 3/8-16unc 24 873350600 Nut Hex Jam 3/8-16 Unc 25 532106888 Spring Rod Brake 2 00 Zinc 26 819131316 Washer 13/32 X 13/16 X 16 Ga 27 876020412 Pin Cotter 1/8 X 3/4 Cad 28 532128904 Rod Brake Parking LT 29 532071673 Cap Brake Parking Black 30 532130807 Bracket Transmission 31 532127275 Keeper Belt LH LT 14 Ga 32 874760512 Bolt Fin Hex 5/16-18 unc X 3/4 33 873680500 Nut Crownlock 5/16-18 Unc 34 532122424 Shaft Asm Pedal Foot 1 930 35 532120183 Bearing Nylon Blk 629 Id 36 819211616 Washer 21/32 X 1 X 16 Ga 37 532124963 Pin Roll 3/16 X 1" 38 532123674 Pulley Idler Flat 39 874760644 Bolt Fin Hex 3/8-16unc X 2-3/4 40 532124965 Spacer Split 395 X 59 Bzp 41 532109070 Keeper Belt Retainer 42 819131312 Washer 13/32 X 13/16 X 12 Ga 43 873680600 Nut Crownlock 3/8-16 Unc 44 532105706 Bearing Nyl 503 X 628 X 1 25 45 532110812 Washer Hardened 46 812000039 Ring Klip #t5304-50 47 532127783 Pulley Idler V Groove Plastic 48 532123789 Bellcrank Asm Clutch 49 532123205 Retainer Belt Style Spring 50 874760624 Bolt Hex Hd 3/8-16unc X 1-1/2 51 873680600 Nut Crownlock 3/8-16 Unc 52 819131316 Washer 13/32 X 13/16 X 16 Ga 53 532105710 Link Clutch 7 66 54 876020412 Pin Cotter 1/8 X 3/4 Cad 55 532105709 Spring Return Clutch 6 75 56 876020412 Pin Cotter 1/8 X 3/4 Cad 57 532138255 V-Belt Ground Drive 95 25 58 532127274 Keeper Belt RH LT Pnt/zinc 16g
PP1242A (1993) Page 7 of 23 DRIVE
Ref # Part Number Qty Description
59 532136715 Keeper Belt Chassis Span Ctr 60 819131312 Washer 13/32 X 13/16 X 12 Ga 61 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt 62 532124872 Cover Pedal Blk Round 63 532134825 Engine Pulley LT/YT 64 871170764 Bolt Hex 7/16-20x4 Gr 5 65 810040700 Washer Lock Hvy HlcI Spr 7/16 66 532129921 Keeper Belt Engine LH LT 67 874760616 Bolt Fin Hex 3/8-16unc X 1 68 819131312 Washer 13/32 X 13/16 X 12 Ga 69 873680600 Nut Crownlock 3/8-16 Unc 70 532134683 Guide Belt Mower Drive RH 71 874760616 Bolt Fin Hex 3/8-16unc X 1 72 819132012 Washer 13/32 X 1-1/4 X 12 Ga 73 873680600 Nut Crownlock 3/8-16 Unc 74 532109502 Spacer Axle 75 532121749 Washer 25/32 X 1 1/4 X 16 Ga 76 812000001 E-ring #5133-75 77 532123583 Key Square 2 0 X 1845/ 1865 78 532121748 Washer 25/32 X 1-5/8 X 16 Ga 83 817490612 Screw Thdrol 3/8-16 x 3/4

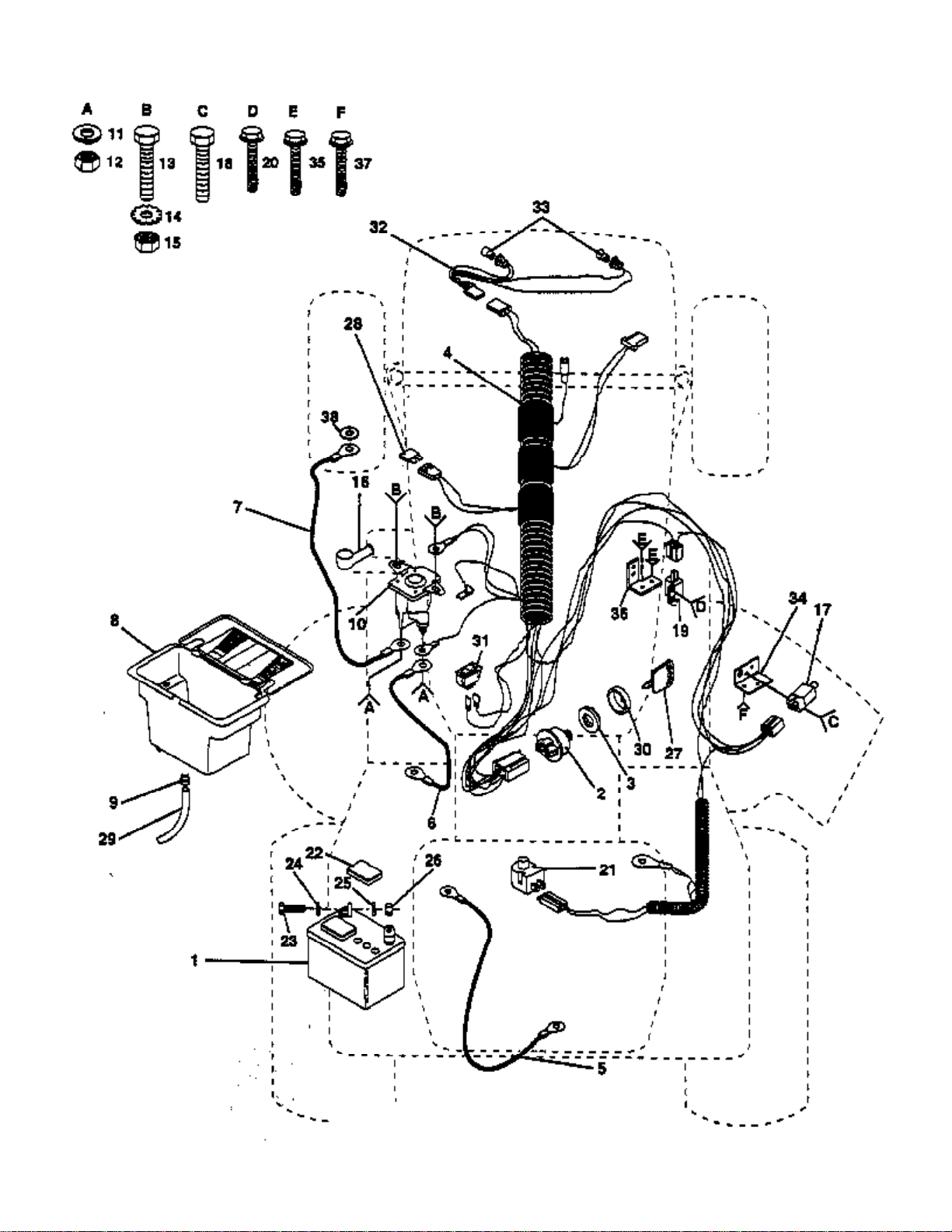

PP1242A (1993) Page 8 of 23 ELECTRICAL
PP1242A (1993) Page 9 of 23 ELECTRICAL
Ref # Part Number Qty Description
1 532121265 Battery 12v 25 AMP
2 532125104 Switch Ign 5 Term Wo/wash/nut
3 532124211 Nut Ignition
4 532132017 Harness Ign B&S Dash Hl
5 532124773 Cable Ground 6 Ga 12"black
6 532132202 Cable Battery 6 Ga 43"red
7 532124780 Cable Battery 6 Ga 11"red
8 532129965 Case Battery Hng Mech W/lid
9 532109596 CLAMP Hose Olive 10 532138406 Solenoid 11 810090400 Washer Lock 1/4 12 873350400 Nut Jam Hex 1/4-20 Unc 13 874780408 Bolt 14 811050400 Washer Lock Ext Tooth 1/4 15 873510400 Nut Keps Hex 1/4-20 Unc 16 532131563 Cover Terminal Red 17 532109553 Switch Intlk Clutch Red 4 Term 18 817021008 Screw Tap Hex #10-24unc X 1/2 19 532104445 Switch Intlk Clutch Red 2 Term 20 817021008 Screw Tap Hex #10-24unc X 1/2 21 532121305 Switch Plunger Nc Gray 22 532121264 Caps Battery 20/25/30 AMP 23 874760412 Bolt Hex Hd 1/4-20unc X 3/4 24 819091016 Washer 9/32 X 5/8 X 16 Ga 25 810040400 Washer Lock Hvy Helical 1/4 26 873220400 Nut Fin Hex 1/4-20 Unc 27 532122147 Key Ign Molded Generic 28 532108824 Fuse 30 AMP Auto Green 29 532109238 Tube-Plastic 12" 30 532123620 Cover Sw Key Blk 1 25 Text SLT 31 532110712 Switch Light Blk Blk Red 32 532136849 Harness Socket Light 33 532124893 Bulb Light #1141 34 532130890 Bracket Switch Interlock 35 817021008 Screw Tap Hex #10-24unc X 1/2 36 532108236 Bracket Switch Clutch 37 817021008 Screw Tap Hex #10-24unc X 1/2 38 811150400 Washer Lock Internal Tooth 1/4
PP1242A (1993) Page 10 of 23 ENGINE
PP1242A (1993) Page 11 of 23 ENGINE
Ref # Part Number Qty Description
1 532132771 Control Th/ch RH Blk Tee 15 10
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
6 532125593 Gasket Eng 1 313 Id Tin Plated
7 810040500 Washer Lock Hvy HlcI Spr 5/16
8 871070512 Screw Hexhd Cap 5/16-18x 3/4
9 813280324 Nipple Pipe 3/8 Npt X 3" 10 813200300 Elbow Std 90 Degree 3/8-18 Npt 11 811050600 Washer Lock Ext Tooth 3/8 12 817490620 Screw Thdrol 3/8-16x1-1/4 TYTT 13 532137348 Muffler LT B&S 12/12 5 HP 16 532128953 Shield Heat Browning LT/YT 17 817021008 Screw Tap Hex #10-24unc X 1/2 18 532137180 Kit Spark Arrestor (Flat Scrn) 19 532109202 Tank Fuel Front 1 25 20 532123549 Cap Asm Fuel W/sym Vented 21 532123487 Clamp Hose Blk 22 817490412 Screw Hexwsh Thdrol 1/4-20x3/4 23 819091416 Washer 9/32 X 7/8 X 16 Ga 24 532008548 Line Fuel 13" 25 532124028 Bushing Snap Nyl Blk Fuel Line

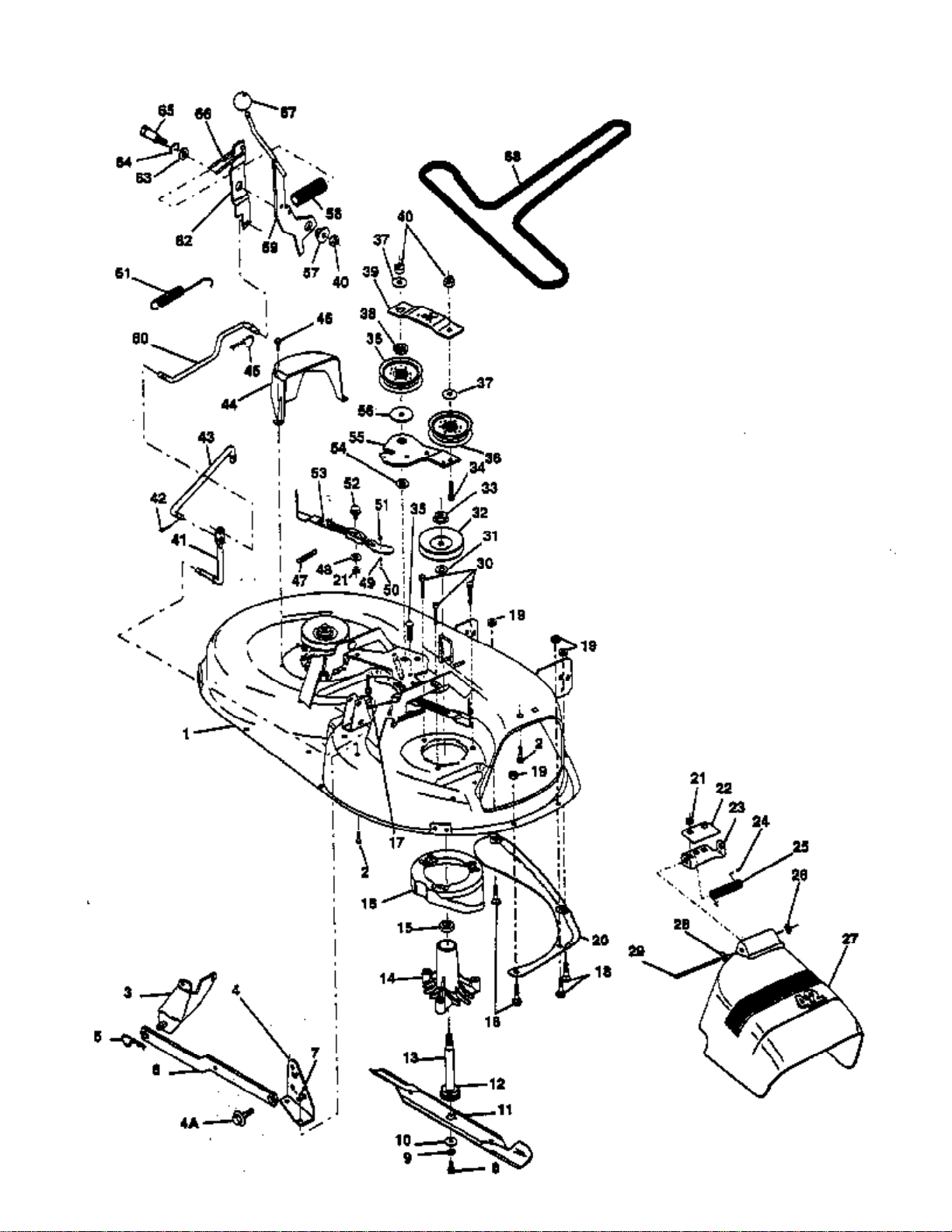

PP1242A (1993) Page 12 of 23 MOWER DECK 42"
PP1242A (1993) Page 13 of 23 MOWER DECK 42"
Ref # Part Number Qty Description
1 532138024 Mower Housing
2 872140506 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 532138017 Bracket Asm Fr Sway Bar 38/42
4 532138440 Bracket Asm Deck 42"sway Bar 4a 532132827 Bolt Shoulder
5 532124670 Retainer Spring
6 532130832 Arm Suspension Rear
7 873800500 Locknut-hex W/ins 5/16-18unc P
8 532850857 Bolt 3/8 - 24 X 1.25 Gr 8
9 810030600 Washer Lock Hvy 3/8 10 532129962 Washer Hard Blade Mower Vented 11 532138498 Blade Mower High Perf 42" 12 532129895 Bearing Ball #6024 (Mandrel) 13 532137645 Shaft Asm W/lower Bearing 14 532128774 Housing Mandrel Vented 15 532110485 Bearing Ball Mandrel 16 532136929 Stripper Mower Vented 17 872110618 Bolt Rdhd Sqnk 3/8-16 X 2-1/4 18 872140505 Bolt Rdhd Sqnk 5/16-18 X 5/8 19 873800500 Locknut-hex W/ins 5/16-18unc P 20 532136888 Baffle Vortex 42 21 873680500 Nut Crown Lock 5/16-18 22 532134753 Stiffener Bracket 42"deck 23 532131267 Bracket Deflector Mower 42" 24 532105304 Cap Sleeve 80x 112 Blk Mower 25 532123713 Spring Torsion Deflector 2 52 26 532110452 Nut Push Phos & Oil 27 532130968 Shield Deflector Mower 42" Blk 28 819111016 Washer 11/32 X 5/8 X 16 Ga 29 532131491 Rod Hinge 42"6 75 Wlg 30 532078158 Bolt 5/16-18 X 1 25 T/t 31 532129963 Washer Spacer Mower Vented 32 532129861 Pulley Mandrel 42" 33 532137266 Nut 9/16 Toplock Flng Oil Dip 34 872110614 Bolt Rdhd 3/8-16uncx1-3/4 Gr5 35 532133835 Fastner Christmas Tree 36 532131494 Pulley Idler Flat 3 060 37 819131612 Washer 13/32 X 1 X 12 Ga 38 532133502 Spacer Arm Idler Upper Hdn 42" 39 532133503 Stiffener Arm Idler Upper 42" 40 873680600 Nut Crownlock 3/8-16 Unc 41 532133551 Rod Pivot W/nibs 42 876020312 Pin Cotter 3/32 X 3/4 Cad 43 532133504 Rod Clutch Secondary W/nibs 44 532134236 Guard Mandrel LH Black 45 532124788 Spring Retainer 1" Zinc/cad 46 532137729 Screw Thdrol 1/4-20x5/8 T 47 532131335 Spring Extension 48 532133944 Washer Hardened Smaller 49 532133940 Roller Asm Cam Follower 42"dec 50 532131340 Bolt Shldr 10-24 Zinc Gr 5 42" 51 532069180 Nut Lock #10-24 Unc 52 532105529 Bolt Shoulder 5/16-18 Unc Blkz 53 532131845 Arm Asm Pad Brake 54 532133943 Washer Hardened 55 532133844 Arm Idler 42"mower LT/YT 56 532122052 Spacer Retainer Pm Mower 57 532127498 Bushing 747 Od X 794 Lg Brass
PP1242A (1993) Page 14 of 23 MOWER DECK 42"
Ref # Part Number Qty Description
58 532128759 Spring Clutch Mower 2 750 Zinc 59 532133573 Arm Asm Clutch Primary 60 532134666 Rod Clutch Primary 38/42 61 532131870 Spring Return 62 532127847 Arm Clutch Secondary 63 532121748 Washer 25/32 X 1-5/8 X 16 Ga 64 812000029 Ring Klip #t5304-75 65 532128903 Bolt Shoulder 3/8-16 Unc 1 44 66 532127845 Keeper Spring 4 000 67 532106932 Knob Rd 3/8-16 Plstc Thds Blk 68 532130969 V-Belt Mower 42" 92 40
532138357 Deck Serv 42"mch S Bar Eng/fr Not Shown. 532130794 Mandrel Asm Service (Includes Key Nos. 8-10, 12-15, 31
and 33)
PP1242A (1993) Page 15 of 23 SEAT ASSEMBLY
PP1242A (1993) Page 16 of 23 SEAT ASSEMBLY
Ref # Part Number Qty Description
1 532127427 Seat V350 Blk/blk Std
2 532126656 Bracket Pivot Seat 8 720
3 874760612 Bolt Fin Hex 3/8-16unc X 3/4
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532124996 Clip Line Fuel 13/32 Mtg Hole
6 873680600 Nut Crownlock 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817490616 Screw Thdrol 3/8-16 X 1 Ty-tt
9 819131614 Washer 13/32 X 1 X 14 Ga 10 532131451 Pan Seat 11 532121251 Strip Foam Gray Or Black 12 532121246 Bracket Mounting Switch 13 532121248 Bushing Snap Blk Nyl 50 Id 14 872050411 Bolt Rdhd Sht Nk 1/4-20x1-3/8 15 532134300 Spacer Split 28x 96 Yel Zinc 16 532121250 Spring Cprsn 1 27 Blk Pnt 17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc 18 874641008 Screw SL TD Pan Hd #10-32 X 1/2 19 873951000 Nut Keps #10-32 Unf 20 532124967 Clip Insulated 11/32 Mtg Hole 21 532105529 Bolt Shoulder 5/16-18 Unc Blkz 22 873680500 Nut Crown Lock 5/16-18 24 819171912 Washer 17/32 X 1-3/16 X 12 Ga 25 532127018 Bolt Shoulder 5/16-18 X 62 26 532120068 Knob Seat 1/2-13 Unc Blk
PP1242A (1993) Page 17 of 23 STEERING ASSEMBLY
PP1242A (1993) Page 18 of 23 STEERING ASSEMBLY
Ref # Part Number Qty Description
1 532121472 Wheel Steering Auto Blk
2 532133988 Axle Asm Fr LT W/gzks 38/42
3 532135227 Spindle Asm LH
4 532135228 Spindle Asm RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
7 819272016 Washer 27/32 X 1-1/4 X 16 Ga
8 812000029 Ring Klip #t5304-75
9 532124937 Bearing Col Strg Blk 10 532130468 Link Drag Sol Ball Jt 20 064 11 810040600 Washer Lock Hvy HlcI Spr 3/8 12 873610600 Nut Fin Hex 3/8-24 Unf 13 532110438 Spacer Bearing Axle Front 14 874011056 Bolt Hex 5/8-11 Unc X 3-1/2 15 873901000 Nut Lock Flange 5/8-11 Unc 16 532132624 Pin Axle 5/8 X 1 55/1 54 Lg 17 532132614 Shaft Asm Strg 5/8 X 15 19 LT 18 532057079 Washer Thrust 515x 750x 033 19 532124035 Support Shaft 20 532126684 Washer Shim 1/4 X 5/8 X 062 21 810040400 Washer Lock Hvy Helical 1/4 22 871070410 Screw Hex Socket 1/4-20 X 5/8 23 532127501 Shaft Asm Pittman 24 532109816 Nyliner Snap In 25 532124036 Bracket Steering 26 812000029 Ring Klip #t5304-75 27 532136874 Gear Sector 28 532124931 Bearing Race Thrust Harden 29 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt 30 810040600 Washer Lock Hvy HlcI Spr 3/8 31 873610600 Nut Fin Hex 3/8-24 Unf 32 532130465 Rod Tie Wire Form 19 75 Mech 33 532126847 Bushing Link Drag Blk LR 34 819131416 Washer 13/32 X 7/8 X 16 Ga 35 876020412 Pin Cotter 1/8 X 3/4 Cad 36 532132196 Bushing Strg 5/8 Id Dash 37 817431008 Screw Slftp #10-16 X 1/2 Ty-b 38 532126805 Insert Cap Strg Wheel Blk 39 819133808 Washer 13/32 X 2-3/8 X 8 Ga 40 532124701 Nut Lock Center 3/8-24unf 41 532104820 Adaptor Wheel Strg 640/ 635id 42 532124418 Boot Shaft Steering Blk 43 532121749 Washer 25/32 X 1 1/4 X 16 Ga 44 532121748 Washer 25/32 X 1-5/8 X 16 Ga 45 812000029 Ring Klip #t5304-75 46 532121232 Cap Spindle Fr Top Blk 47 532124836 Fitting Grease
PP1242A (1993) Page 19 of 23 TRANSAXLE DANA - MODEL NUMBER 4360-48
PP1242A (1993) Page 20 of 23 TRANSAXLE DANA - MODEL NUMBER 4360-48
Ref # Part Number Qty Description
1 138248 Housing, Upper
2 02274J Screw, Self-Tapping, Large 1/4-20 x .734
3 134400 Ball, Detent
4 105904X Spring, Detent
5 105905X Screw, Set
6 138235 Kit, Shifter Assembly
7 134399 Boot, Shifter
8 134791 Screw, Tapping w/Sealer
9 138241 Square Ring 10 02267J Ring, Retaining 11 134793 Assembly, Kit, Shim .625 Shaft Use in combinations to
maintain proper clearances.
12 138240 Bearing, Flange 13 120415X Washer, Plain .632 x 1.38 x .046 14 02257J Key, Woodruff, #9 15 138234 Assembly, Kit, Input Shaft 16 110078X Pinion, Bevel, 14 Teeth 17 105909X Ring, Retaining 18 105910X Chain, 24 Pitches 19 105911X Bearing, Flange 20 138242 Gear, Spur, 14 Teeth 21 138246 Collar, Clutch 22 138236 Assembly, Kit, Clutch Keys 23 73810500 Locknut 5/16-24 24 138243 Shaft, Intermediate 25 02244J Key, Woodruff, #61 26 105916X Ring, Retaining 27 120470X Sprocket, 18 Teeth 28 110070X Spacer 29 108977X Gear, Spur, 37 Teeth 30 109254X Gear, Spur, 35 Teeth 31 120405X Gear, Spur, 30 Teeth 32 108980X Gear, Spur, 25 Teeth 33 120406X Gear, Spur, 22 Teeth 34 134796 Gear, Spur, 19 Teeth 35 105925X Washer, Plain .640 x 1.37 x .061 36 02232J Washer, Plain .632 x 1.00 x .026 37 108978X Spacer .630 x 1.00 x .169 38 110079X Assembly, Gear, Combination of 12 Teeth and 35 Teeth 39 124639X Shaft, Idler 40 120472X Spacer .635 x .875 x .755 41 105928X Sprocket, 9 Teeth 42 110084X Gear, Bevel, 42 Teeth 43 134394 Assembly, Kit, Shim .750 Shaft Use in combinations to
maintain proper clearances.
44 120473X Shaft, Drive 45 105933X Gear, Spur, 12 Teeth 46 106151X Gear, Spur, 15 Teeth 47 120407X Gear, Spur, 20 Teeth 48 106589X Gear, Spur, 25 Teeth 49 120408X Gear, Spur, 28 Teeth 50 105937X Gear, Spur, 31 Teeth 51 02226J Washer, Plain .632 x 1.00 x .060 52 502134401 Washer, Neoprene 53 02264J Washer, Plain .758 x 1.25 x .031 54 120474X Axle, L.H. 55 110081X Gear, Miter, 15 Teeth
PP1242A (1993) Page 21 of 23 TRANSAXLE DANA - MODEL NUMBER 4360-48
Ref # Part Number Qty Description
56 105941X Ring, Retaining 57 110071X Gear, Spur, 32 Teeth 58 120952X Shaft, Cross 59 110082X Gear, Miter, 15 Teeth 60 120475X Axle, R.H. 61 138247 Housing, Lower 62 120961X Puck, Friction 63 07294J Disc, Brake 64 108989X Spacer 65 120953X Jaw, Brake 66 120954X Pin, Dowel 67 134799 Screw, Self-Tapping, Large 5/16-18 x 2.25 68 138244 Lever, Actuating 69 108996X Washer, Plain .321 x 1.00 x .055 70 120956X Bracket, Anti-Rotation 71 106596X Screw, Self-Tapping, Large 5/16-18 x 1.44 72 120951X Puck, Friction 73 120416X Grease
PP1242A (1993) Page 22 of 23 WHEELS & TIRES
PP1242A (1993) Page 23 of 23 WHEELS & TIRES
Ref # Part Number Qty Description
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532124801 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532124723 Rim Asm 8"rear Silver Service
9 532106268 Tire R Ts Service 10 532124926 Tube Rear (Service Item Only) 11 532104757 Cap Axle Blk 1 50 X 1 00
