Page 1
TRACTOR - - MODEL NUMBER PD22H42STA

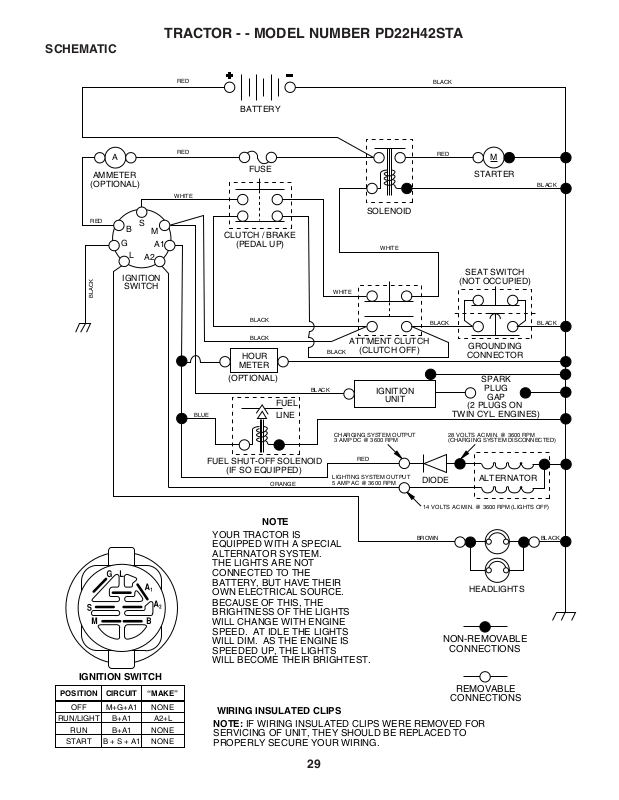

SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
WHITE
BLACK
BLACK
HOUR
ATT'MENT CLUTCH
BLACK
(CLUTCH OFF)
BLACK
BLACK
GROUNDING
CONNECTOR
METER
BLUE
(OPTIONAL)
FUEL
LINE
BLACK
IGNITION
UNIT
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
ORANGE
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
ALTERNATOR
BLACK
HEADLIGHTS
29
Page 2
TRACTOR - - MODEL NUMBER PD22H42STA
22
21
ELECTRICAL
42
24
41
33
30
27
43
27
25
27
27
26
40
16
16
10
11
D
.
C
.
A
M
P
E
R
E
S
52
29
27
45
28
12
2
1
8
12
30
Page 3
TRACTOR - - MODEL NUMBER PD22H42STA
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144927 Battery
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4
8 7603J Tray Battery
10 145211 Bolt Btr frt 1/4-20 x 7.5 zinc
11 150109 Holddown battery
12 145769 Nut Push Nylon 1/4
16 176138 Switch Interlock
21 183759 Harness Socket Light
22 4152J Bulb, Light # 1156
24 4799J Cable Battery
25 146148 Cable Battery 6 Ga. Red w/16 wire
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable Ground 21" Blk 6 Ga.
29 121305X Switch Plunger Nc Gray
30 175566 Switch Ign
33 140401 Key Ign Molded Generic
40 179720 Harness Ign
41 71110408 Bolt Fin Hex 1/4-20 unc x 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
45 121433X Ammeter Rectangular
52 141940 Protection Loop
55 17490508 Screw Thdrol 5/16-18 x 1/2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
Page 4
TRACTOR - - MODEL NUMBER PD22H42STA
CHASSIS
259
208
31
209
11
217
10
159
209
17
18
30
264
28
10
5
5
219
58
20
263
39
166
23
258
261
219
9
209
208
206
207
64
1
13
209
142
60
144
26
26
143
144
60
26
26
142
2
74
209
38
37
209
14
38
32
145
37
208
14
chassis_elite sv_pro_10
Page 5
TRACTOR - - MODEL NUMBER PD22H42STA
CHASSIS
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
5 155272 Bumper Hood/Dash
9 168337X012 Dash P/L
10 72140608 Bolt Carriage 3/8-16 x 1
11 174996 Panel Dash Lh
13 175255 Panel Dash Rh
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 183393X428 Hood
18 126938X Bumper Hood
20 180679 Plate Battery
23 124028X Bushing
26 73800600 Nut Lock Hex W/Ins 3/8-16 unc
28 183828 Grille/Lens Asm
30 179131X428 Fender Footrest STLT Pnt
31 139976 Bracket Fender
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
39 174714 Bracket Pivot
58 189350 Duct Air
60 72140606 Bolt RDHD Sqnk 3/8-16 unc x 3/4
64 154798 Dash Lower STLT
74 73680600 Nut Crownlock 3/8-16 unc
90 124346X Nut Self Thd Wsh - HD 1/4 Zinc
142 175702 Plate Reinforcement STLT
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Footrest Step-thru
145 156524 Rod Pivot Chassis/Hood
159 179950X428 Cupholder
166 171875 Screw Hwhd Hi-Lo #13-16 x 3/4
206 170165 Bolt Shoulder 5/16-18
207 17670508 Screw Thdrol 5/16-18 x 1/2
208 17670608 Screw Thdrol 3/8-16 x 1/2
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
217 179132X428 Console Fuel Window
219 17000512 Screw 5/16-18 x 3/4
258 183835X599 Lens Grille Pro RH
259 183834X599 Lens Grille Pro LH
261 183829Z428 Insert Grille
263 183832 Bezel Grille LH
264 183833 Bezel Grille RH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
Page 6
TRACTOR - - MODEL NUMBER PD22H42STA
DRIVE
13
84
90
16
77
14
112
85
197
11
52
80
85
30
32
89
81
10
8
170
21
57
120
59
159
14
163
51
52
82
158
165
5
18
6
161
198
32
112
113
30
169
18
4
3
6
79
6
162
83
156
62
168
166
35
61
36
56
41
38
39
34
37
269
63
66
65
64
27
49
47
120
50
212
263
70
116
55
202
150
48
151
51
145
96
26
25
29
28
22
26
36
35
27
drive-fender.stlt_29
53
24
19
26
26
2
77
74
78
1
75
76
34
Page 7
TRACTOR - - MODEL NUMBER PD22H42STA
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle Hydro Gear 314-0510
(Order Parts From Transaxle Manu-
facturer)
8 165866 Rod Shift
10 76020416 Pin Cotter 1/8 x 1 CAD
14 10040400 Washer Lock Hvy Helical
15 74490544 Bolt, Hex FLGHD 5/16-18 Gr. 5
16 73800500 Nut Lock Hex W/Ins 5/16-18 unc
19 73800600 Nut Lock Hex W/Wsh 3/8-16 unc
21 140845 Knob, Round 1/2-13
22 169498 Rod, Brake Hydro
24 73350600 Nut
25 106888X Spring, Brake Rod
26 19131316 Washer
27 76020412 Pin Cotter 1/8 x 3/4 CAD.
28 175765 Rod, Parking Brake
29 71673 Cap, Parking Brake
30 169592 Bracket, Transaxle
32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4
34 175578 Shaft, Foot Pedal
35 120183X Bearing, Nylon
36 19211616 Washer
37 1572H Pin, Roll
38 179114 Pulley, Composite
39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
41 175556 Keeper, Belt Idler
47 127783 Pulley, Idler, V-Groove
48 154407 Bellcrank Clutch Grnd Drv STL
49 123205X Retainer, Belt
50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 73680600 Nut Crownlock 3/8-16 unc
52 73680500 Nut Crownlock 5/16-18 unc
53 105710X Link, Clutch
55 105709X Spring, Return, Clutch
56 17060620 Screw 3/8-16 x 1-1/4
57 140294 V-Belt, Ground Drive
59 169691 Keeper, Center Span
61 17120614 Screw 3/8-16 x .875
62 8883R Cover, Pedal
63 175410 Pulley, Engine
64 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
65 10040700 Washer
KEY PART
NO. NO. DESCRIPTION
66 154778 Keeper Belt Engine
70 134683 Guide Belt
71 169183 Strap Torque Lh Hydro
73 169182 Strap Torque Rh Hydro
74 137057 Spacer, Axle
75 121749X Washer 25/32 x 1-1/4 x 16 Ga.
76 12000001 E-Ring
77 123583X Key, Square
78 121748X Washer 25/32 x 1-5/8 x 16 Ga.
81 165596 Shaft Asm. Cross Hydro
82 165711 Spring Torsion T/A
83 19171216 Washer 17/32 x 3/4 x 16 Ga.
84 169594 Link Transaxle
89 164890X428 Console, Shift
90 124346X Nut Self-Thd Wsh-HD 1/4 Zinc
95 170201 Control Asm Bypass Hydro
96 4497H Retainer Spring 1" Zinc/Cad
116 72140608 Bolt RDHD SQNK 3/8-16 unc x 1
120 73900600 Nut Lock Flg 3/8-16 unc
150 175456 Spacer Retainer
151 19133210 Washer 13/32 x 2 x 10 Ga.
156 166002 Washer Srrted 5/16 ID x 1.125
158 165589 Bracket Shift Mount
159 183900 Hub Shift
161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 73680400 Nut Crownlock 1/4-20 unc
163 74780416 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
164 19091210 Washer 9/32 x 3/4 x 10 Ga.
165 165623 Bracket Pivot Lever
166 17490510 Screw 5/16-18 x 5/8
168 165492 Bolt Shoulder 5/16-18 x .561
169 165580 Plate Fastening Lt
197 169613 Nyliner Snap-In 5/8" ID
198 169593 Washer Nyl 7/8 ID x .105
199 169612 Bolt Shoulder 5/16-18 unc
200 72140508 Bolt Rdhd Sqnk 5/16-18 unc x 1
202 72110614 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
212 145212 Nut Hex fl ange Lock
271 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
Page 8
TRACTOR - - MODEL NUMBER PD22H42STA
STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
44
51
91
43
29
15
steering_pl.lt_47
54
88
71
68
29
17
68
82
15
15
29
46
8
6
2
87
5
3
11
40
10
13
65
32
26
28
30
67
46
8
6
67
67
87
5
4
43
43
95
8
36
Page 9
TRACTOR - - MODEL NUMBER PD22H42STA
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 184704X428 Wheel Steering
2 184706 Axle Asm Cast Iron LT
3 169840 Spindle Asm LH
4 169839 Spindle Asm RH
5 6266H Bearing Race Thrust Harden
6 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring Klip #t5304-75
10 175121 Link Drag
11 10040600 Washer Lock Hvy Hlcl Spr 3/8
12 73940800 Nut Hex Jam Toplock 1/2-20 unf
13 136518 Spacer Brg Axle Front
15 145212 Nut Hex Flange Lock
17 180641 Shaft Asm Steering
26 126847X Bushing Link Drag
28 19131416 Washer 13/32 x 7/8 x 16 Ga.
29 17000612 Screw 3/8-16 x .75
30 76020412 Pin Cotter 1/8 x 3/4
32 130465 Rod Tie
36 155099 Bushing Strg
37 152927 Screw
38 159946X428 Insert Cap Strg Wh
39 19182411 Washer 9/16 x 1 1/20 x 11 Ga.
40 73540600 Crownlock nut
41 159945 Adaptor Wheel Strg
42 145054X428 Boot Steering Dash
43 121749X Washer 25/32 x 1 1/4 x 16 Ga.
44 180640 Extension Steering Shaft
46 121232X Cap Spindle Fr Top Blk
51 73540400 Nut Crownlock 1/4-28
54 71130420 Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8
65 160367 Spacer Brace Axle
67 72110618 Bolt RDHD SQNK 3/8-16 x 2 1/4
71 175146 Steering Asm
68 169827 Axle, Brace
82 169835 Bracket Susp Chassis Front
87 173966 Washer Flat .781 x 1-1/2 x .14
88 175118 Bolt Shoulder 7/16-20 unc
91 175553 Clip Steering
95 188967 Washer Harden .739 x 1.637 x 060
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
Page 10
TRACTOR - - MODEL NUMBER PD22H42STA
SEAT ASSEMBLY
14
10
1
8
9
7
8
9
7
5
6
22
24
16
25
15
11
13
17
KEY PART
NO. NO. DESCRIPTION
1 188720 Seat
2 140551 Bracket Pivot Seat 8 720
3 71110616 Bolt Fin Hex 3/8-16 unc x 1
4 19131610 Washer 13/32 x 1 x 10 Ga.
5 145006 Clip Push-In
6 73800600 Nut Hex w/Ins. 3/8-16 unc
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1.5 Smgml
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 182493 Pan Seat
11 166369 Knob Seat
12 121246X Bracket Mounting Switch
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
13 121248X Bushing Snap Blk Nyl 50 Id
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 134300 Spacer Split 28x 88
16 121250X Spring Cprsn
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 171852 Bolt Shoulder 5/16-18 unc
22 73800500 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x 62
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
21
38
Page 11
TRACTOR - - MODEL NUMBER PD22H42STA
DECALS
11
9
7
5
14
16
4
6
KEY PART
NO. NO. DESCRIPTION
1 157032 Decal Oper
3 186164 Decal Hood LH
4 189033 Decal Side Panel Logo
5 189489 Decal HP Engine
6 170563 Decal Warning, Keep Hand Away
7 189118 Decal Replacement Parts
8 179128 Decal Deck "B" 42"
9 172740 Decal Fender Logo
10 157140 Decal Fender Danger E/F
11 172743 Decal Ins Strg Whl
12 173587 Decal Fend Refl ector Rh
13 173589 Decal Fend Refl ector Lh
3
4
8
10
1
12
13
KEY PART
NO. NO. DESCRIPTION
14 160396 Decal V-Belt Schematic
16 186163 Decal Hood Rh
20 145005 Decal Bat Dan/Psn
- - 166960 Decal By Pass Lt Hydro
- - 184310X428 Pad Footrest LH
- - 184311X428 Pad Footrest RH
- - 138311 Decal Handle Lft Height Adjust
- - 188781 Manual Owner's (English)
- - 188782 Manual Owner's (French)
20
WHEELS AND TIRES
1
2
6
5,8
7
4,10
3,9
11
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F T 15 x 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6" front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel nly)
8 106108X421 Rim Asm 8" rear Service
9 122082X Tire R T 20 x 10-8 Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle Blk 1 50 x 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
Page 12
TRACTOR - - MODEL NUMBER PD22H42STA
ENGINE
2
1
3
13
81
5
72
31
25
26
32
14
38
17
17
33
8
10
6
29
41
33
112
OPTIONAL EQUIPMENT
Spark Arrester
engine-bs intek-twin_39
37
45
23
4
40
Page 13
TRACTOR - - MODEL NUMBER PD22H42STA
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 170771 Control, Throttle
2 17720408 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - Engine Briggs Model 407577
(Order Parts from Engine Mfg.)
4 149723 Muffl er, Asm. Twin Lo-Tone
5 160589 Pipe Exhaust Intek 20 RH
6 159955 Pipe Exhaust Intek 20 LH
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 162797 Shield Browing B&S Intek II
13 165391 Muffl er Gasket
14 148456 Tube Oil Drain
17 17060624 Screw 3/8-16 x 1-1/2
23 169837 Shield, Browning/Debris Guard
25 145996 Control Choke
26 73920600 Nut Keps 3/8-24 unf
29 137180 Arrester, Spark
31 179022 Tank, Fuel
32 179124X428 Cap Gauge, Fuel
33 123487X Clamp, Hose Blk
37 8543R Line, Fuel
38 181654 Plug Drain Oil Easy
41 139277 Stem Tank Fuel
45 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4
72 183906 Screw Socket Head 5/16-18 x 1
81 73510400 Nut Keps Hex 1/4-20 unc
112 3645J Bushing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
41
Page 14
TRACTOR - - MODEL NUMBER PD22H42STA
MOWER DECK
152
158
42_clutch_mod_7
116
117
134
135
119
113
136
67
118
2
185
5
1
142
147
68
40
37
36
40
132
103
104
105
106
143
159
46
44
53
52
48
142
147
21
140
34
2
144
40
56
55
54
138
146
30
59
31
150
184
33
32
45
37
145
148
21
2
21
95
132
139
21
18
21
94
118
21
119
117
106
105
104
103
21
102
101
102
182
183
91
5
134
136
116
23
24
25
3
5
6
19
42_deck_man-t-path_4.
26
113
16
15
149
4
21
14
18
13
11
10
9
8
20
18
28
29
27
42
Page 15
TRACTOR - - MODEL NUMBER PD22H42STA
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 182032X421 Mower Deck Assembly, 42"
2 72140506 Bolt
3 138017 Bracket Asm Fr. Sway Bar 3/42
4 165460 Bracket Asm Deck 42" Sway Bar
5 4939M Retainer Spring
6 178024 Bar Sway Deck
8 850857 Bolt 3/8-24 x 1.25 Gr. 8 patched
9 10030600 Washer, Lock
10 140296 Washer, Hardened
(The following Blades are available)
11 134149 Blade, Mulching 42” Std (for mulch-
ing mowers only)
- - 139775 Blade Mulching 42” Premium (For
better wear when mulching)
- - 138971 Blade Mower 42” Hi-Lift (for bagging
and discharging)
13 137645 Shaft As sem bly, Mandrel, Vented
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandrel
16 174493 Stripper, Mandrel Deck
18 72140505 Bolt, Carriage 5/16-18 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffl e, Vortex
21 73680500 Nut
23 177563 Bracket, Defl ector Mower 42"
24 105304X Cap, Sleeve 80 x 112 Blk Mower
25 123713X Spring, Torsion, Defl ector 2 52
26 110452X Nut, Push Phos & Oil
27 130968X428 Shield, Defl ector 42" Blk
28 19111016 Washer 11/32 x 5/8 x 16 Ga.
29 131491 Rod, Hinge 42" 6 75 W/G
30 173984 Screw Thdrol
31 187690 Washer, Spacer Mower Vented
32 173436 Pulley, Mandrel
33 178342 Nut, Toplock
34 72110612 Bolt Carr SH 3/8-16 x 1-1/2 Gr.5
36 173438 Pulley, Idler, Flat
40 73900600 Nut Lock 3/8-16
44 140088 Guard, Mandrel, LH
45 4497H Retainer
46 137729 Screw, Thdrol 1/4-20 x 5/8 T
48 133944 Washer, Hardened
52 139888 Bolt, Shoulder 5/16-18 unc
53 184907 Arm Assembly, Pad, Brake
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 122052X Spacer, Retainer
59 173442 Guard TUV Idler
67 171598 Knob Round
68 144959 V-Belt, 42" Mower
91 180532 Bracket Asm Noseroller LH
92 73800600 Nut Lock Hex w/Ins 3/8-16 unc
KEY PART
NO. NO. DESCRIPTION
94 132264 Roller Nose 38 & 42
95 180533 Bracket Asm Noseroller RH
101 136420 Mulcher Cover
102 71081010 Screw, Pan Hd Phillip 10-24 x 5/8
103 19061216 Washer, Flat
104 10071000 Washer, Lock
105 160793 Latch Assembly
106 2029J Nut, Weld
113 17060512 Screw 5/16-18 x 3/4
116 184219 Bolt, Shoulder
117 133957 Wheel, Gauge
118 73930600 Nut Centerlock 3/8-16
119 19121414 Washer 3/8 x 7/8 x 14 Ga.
129 19131312 Washer 13/32 x 13/16 x 12 Ga.
130 74780616 Bolt Fin HEx 3/8-16 unc x 1 Gr. 5
131 72140608 Bolt RDHD SQNK 3/8-16 unc x 1
132 17000612 Screw 3/8-16 x .75
134 156941 Pin Head Rivet
135 159765X421 Bracket Asm. Whl Ga. R LH
136 155986 Bar Adjusting Gauge Wheel
138 159763X421 Bracket Asm Whl Ga. R RH
139 159767X421 Bracket Asm. Whl Ga. F RH
140 159768X421 Bracket Asm Whl Ga. F LH
142 165890 Arm Spring Brake Mower
143 157109 Bracket Arm Idler 42"
144 173441 Keeper Belt 42" Clutch Cable
145 173437 Pulley Idler Flat
146 173443 Bolt Carriage Idler
147 131335 Spring Extension
148 169022 Spring Return Idler
149 165898 Retainer Spring Yellow
150 19091210 Washer 9/32 x 3/4 x 10 Ga.
152 169676 Clutch Cable 42"
158 17720408 Screw Hex Thd Cut 1/4-20 x 1/2
159 72140614 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
182 179126 Rod Roller Nose
183 163552 Retainer Spring
184 19131410 Washer 13/32 x 7/8 x 10 Ga.
185 188234 Head Asm Cable Clutch
- - 130794 Mandrel Assembly (Includes Housing Shaft and Shaft Hardware Only
- Pulley Not Included)
- - 184563 Replacement Mower, Complete
(Std. deck Order separately muk-
lcher cover, nose roller and gauge
wheel componants Key Nos. 101106, 91, 94, 95, 132, 182, 183 and
116-119)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
Page 16
TRACTOR - - MODEL NUMBER PD22H42STA
MOWER LIFT
37
38
29
40
41
36
28
13
27
25
24
23
7
8
5
49
30
1
3
50
13
13
11
19
31
32
31
32
4
12
19
26
6
2
6
5
4
13
20
15
17
16
18
20
20
20
15
lift-rh.1pc.stlt_10
44
Page 17
TRACTOR - - MODEL NUMBER PD22H42STA
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 159461 Wire Asm Inner/Sprg W/plunger
2 159476 Shaft Asm Lift RH w/Inf
3 178981 Pin Groove 2"
4 12000002 E Ring #5133-62
5 19211621 Washer 21/32 x 1 x 21 Ga.
6 120183X Bearing Nylon Blk 629 Id
7 125631X Grip Handle
8 124526X Button Plunger
11 139865 Link Lift LH Fixed Length
12 139866 Link Lift RH Fixed Length
13 4939M Retainer Spring
15 173288 Link Front
16 73350800 Nut Jam Hex 1/2-13 unc
17 175689 Trunnion
18 73800800 Nut Lock W/Wsh 1/2-13 unc
19 139868 Arm Suspension Rear
20 163552 Retainer Spring
23 110807X Nut Special
24 19131016 Washer 13/32 x 5/8 x 16 Ga.
25 2876H Spring 2-1/8"
26 169484 Retainer Clip
27 126971X Rod Adj Lift Zinc 7.49 Wrk Lg
28 73350600 Nut Hex Jam 3/8-16 unc
29 138057 Knob Inf 3/8-16 unc Blk W/sym
30 150233 Trunnion Infi n Height
31 169865 Bearing Pvt Lift
32 73540600 Nut Crownlock 3/8 - 24
36 155097 Pointer Height Indicator
37 123935X Plug Hole Blk 1.485/1.515 Dia.
38 17060516 Screw 5/16-18 x 1
40 19112410 Washer 11/32 x 1-1/2 10 Ga.
41 155098 Indicator Height STLT
49 145212 Nut Hex Flange Lock
50 110452X Nut PUsh Phos & Oi
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
Loading...
