Page 1

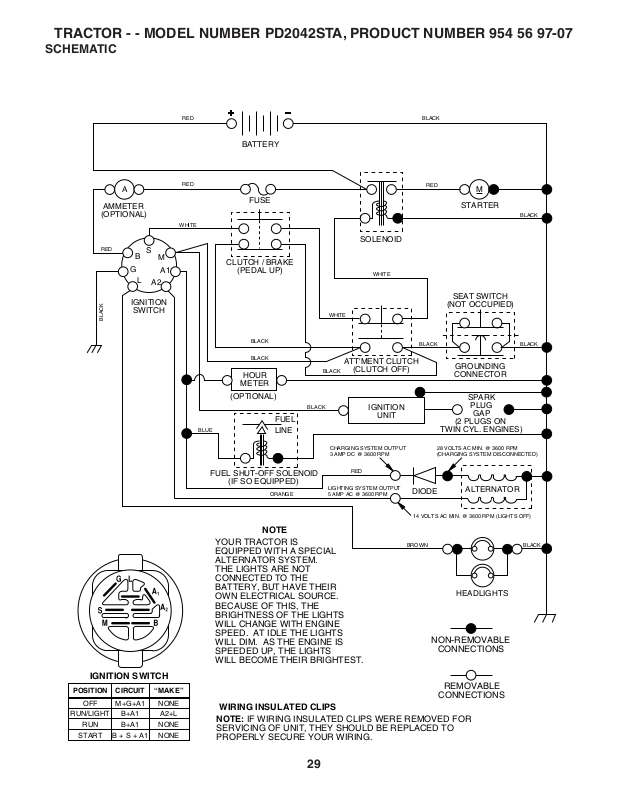

TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
WHITE
BLACK
BLACK
HOUR
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK
BLACK
GROUNDING
CONNECTOR
METER
BLUE
(OPTIONAL)
FUEL
LINE
BLACK
IGNITION
UNIT
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
ORANGE
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
ALTERNATOR
BLACK
HEADLIGHTS
29
Page 2
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
ELECTRICAL
22
21
42
24
41
33
30
27
43
27
25
27
27
26
40
16
16
D
.
C
.
A
M
P
E
R
E
S
8
52
29
45
28
27
2
90
1
30
Page 3
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144927 Battery 12 Volt 35 Amp
2 74760412 Bolt Hex Hd 1/4-20unc X 3/4
8 176689 Battery Box
16 176138 Switch Interlock Push-In
21 183759 Harness Socket Light
22 4152J Bulb, Light # 1156
24 4799J Cable Battery
25 146147 Cable Battery 6 Ga Red w/16 wire
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 Unc
28 4207J Cable Ground 6ga 12 black
29 121305X Switch Plunger Nc Gray
30 175566 Switch Ign
33 140401 Key Ign Molded Generic
40 179720 Harness Ign
41 71110408 Bolt Fin Hex 1/4-20uncx 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
45 121433X Ammeter Rectangular
52 141940 Protection Loop
90 180449 Cover Terminal
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
Page 4
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
CHASSIS AND ENCLOSURES
259
264
28
17
159
30
25
26
31
209
24
18
24
25
26
5
5
263
39
58
258
261
166
208
209
9
11
3
115
2
114
207
26
33
3
142
211
10
142
209
208
64
3
35
37
3
3
3
3
145
1
13
37
208
206
205
35
34
26
3
205
38
32
Page 5
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
3 17060612 Screw 3/8-16x.75
5 155272 Bumper Hood/Dash
9 168337X012 Dash P/L
10 72140608 Bolt Carriage 3/8-16 x 1
11 174996 Panel Dash Lh
13 175255 Panel Dash Rh
17 183393X428 Hood
18 184921 Bumper Hood
20 180679 Plate Mtg Battery Fuel Tank Fr
23 124028X Bushing
24 74780616 Bolt Fin Hex 3/8-16 x 1 Gr 5
25 19131312 Washer 13/32 X 13/16 X 12 Ga
26 73800600 Nut Lock Hex W/Ins 3/8-16 Unc
28 183828 Grille Asm.
30 169470X428 Fender Footrest STLT Pnt
31 136619 Bracket Support Fender
33 179716X428 Footrest Pnt Lh
34 179717X428 Footrest Pnt Rh
35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 175710 Bracket Asm. Pivot Mower Rear
39 174714 Bracket Pivot Laser
58 174930 Duct Air
64 154798 Dash Lower STLT
114 158112 Keeper Belt Rear Lh
115 17060620 Screw 3/8-16 x 1-1/4
142 175702 Plate Reinforcement STLT
145 156524 Rod Pivot Chassis/Hood
159 169473X428 Cupholder
166 171875 Screw HwHd Hi-Lo #13-16 x 3/4
205 17490608 Screw Thdrol 3/8-16 x 1-1/4
206 170165 Bolt Shoulder 5/16-18
207 17670508 Screw Thdrol 5/16-18 x 1/2
208 17670608 Screw Thdrol 3/8-16 x 1/2
209 17000612 Screw 3/8-16 x 3/4
211 145212 Nut Hex Flange Lock
219 17000512 Screw 5/16-18 x 3/4
258 183835X599 Lens Grille RH
259 183834X599 Lens Grille LH
261 183829X428 Insert Grille
263 183832 Bezel Grille LH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33

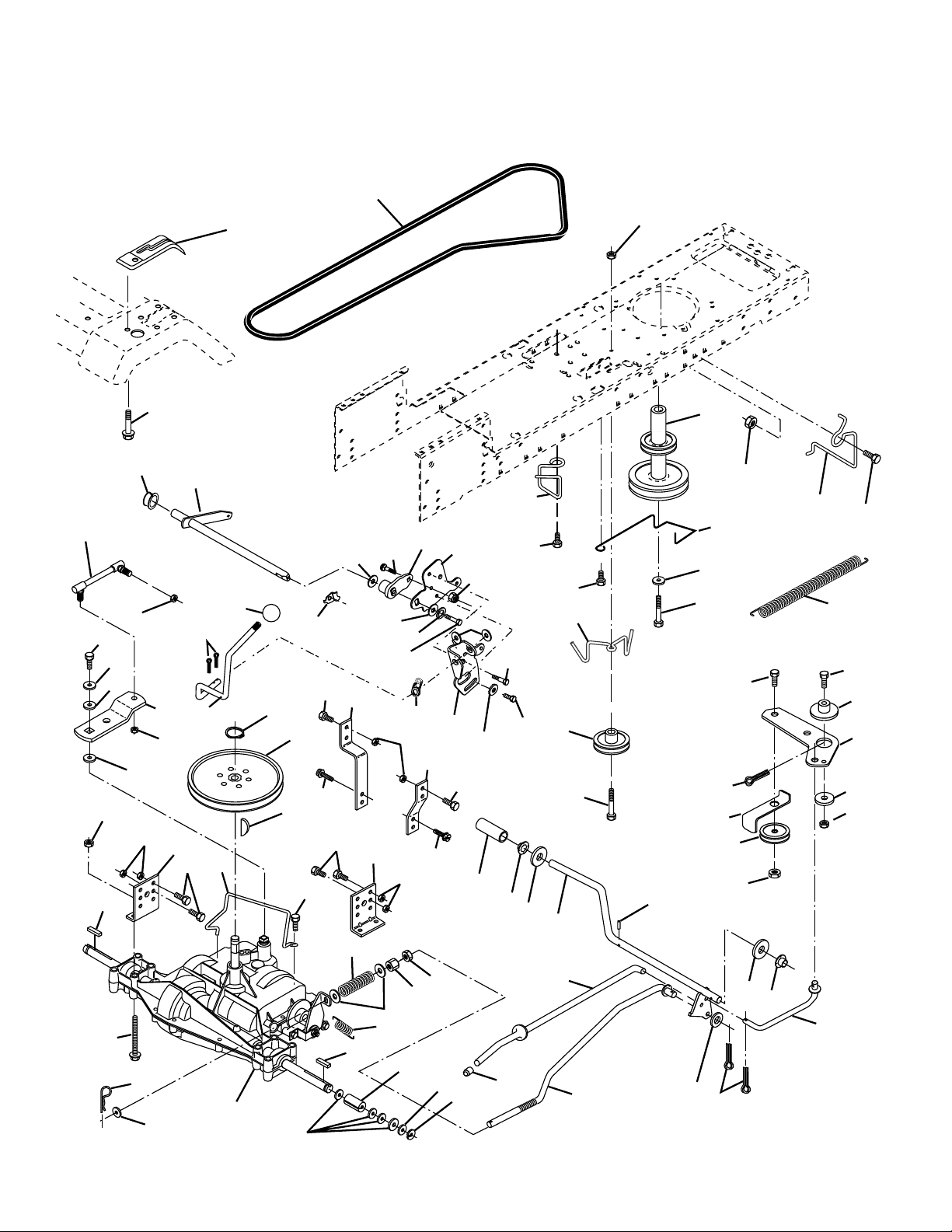

Page 6
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
DRIVE
57
84
13
16
77
14
112
85
197
11
52
69
80
85
30
32
81
10
8
170
89
21
51
63
212
59
66
159
14
51
82
158
162
83
165
156
5
18
6
62
161
198
169
18
4
3
6
79
6
164
163
113
32
30
52
168
166
35
61
36
38
34
56
41
39
65
64
50
27
49
47
120
37
70
116
55
202
150
48
151
51
145
96
26
25
24
19
26
2
77
1
75
74
78
76
29
28
22
26
27
36
35
53
34
Page 7
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle Peerless (206-545C)
(Order parts from transaxle manu-
facturer)
2 146682 Spring Return Brake T/a Zinc
3 123666X Pulley Transaxle 18" tires
4 12000028 Ring Retainer # 5100-62
5 121520X Strap Torque 30 Degrees
6 17060512 Screw 5/16-18 X 3/4
8 165619 Rod Shift Fender Adjust Lt
10 76020416 Pin Cotter 1/8 X 1 Cad
11 105701X Washer Plate Shf 388 Sq Hole
13 74550412 Bolt 1/4-28 Unf Gr 8 W/Patch
14 10040400 Washer Lock Hvy Helical
16 73800500 Nut Lock Hex w/ins 5/16-18
18 74780616 Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5
19 73800600 Nut Lock 3/8-16 Unc
21 106933X Knob
22 130804 Rod Brake Blk Zinc 26 840
24 73350600 Nut Hex Jam 3/8-16 Unc
25 106888X Spring Rod Brake 2 00 Zinc
26 19131316 Washer 13/32 X 13/16 X 16 Ga
27 76020412 Pin Cotter 1/8 X 3/4 Cad
28 175765 Rod Brake Parking LT/YT
29 71673 Cap Brake Parking
30 169592 Bracket Mtg Transaxle
32 74760512 Bolt Hex Hd 5/16-18unc X 3/4
34 175578 Shaft Asm Pedal Foot
35 120183X Bearing Nylon Blk 629 Id
36 19211616 Washer 21/32 X 1 X 16 Ga
37 1572H Pin Roll 3/16 X 1"
38 179114 Pulley Composite Flat
39 74760648 Bolt Fin Hex 3/8-16 unc X 3
41 175556 Keeper Belt Flat Idler
47 127783 Pulley Idler V Groove Plastic
48 154407 Bellcrank Asm
49 123205X Retainer Belt Style Spring
50 74760624 Bolt Hex Hd 3/8-16unc X 1-1/2
51 73680600 Nut Crownlock 3/8-16 Unc
52 73680500 Nut Crownlock 5/16-18 Unc
53 105710X Link Clutch
55 105709X Spring Return Clutch 6 75
56 17060620 Screw 3/8-16 x 1-1/4
57 130801 V-Belt Ground Drive 95 25
59 169691 Keeper Belt Span Ctr
61 17120614 Screw 3/8-16 x .875
62 8883R Cover Pedal Blk Round
63 175410 Engine Pulley
KEY PART
NO. NO. DESCRIPTION
64 71170764 Bolt Hex
65 10040700 Washer Lock Hvy Hlcl Spr 7/16
66 154778 Keeper Belt Engine Foolproof
69 142432 Screw Hex wsh HiLo 1/4 x 1/2 unc
70 134683 Guide Belt Mower Drive RH
74 137057 Spacer Axle
75 121749X Washer 25/32 X 1 1/4 X 16 Ga
76 12000001 E-ring #5133-75
77 123583X Key Square 2 0 X 1845/ 1865
78 121748X Washer 25/32 X 1-5/8 X 16 Ga
79 2228M Key Woodruff #9 3/16 x 3/4
80 145090 Arm Shift
81 165592 Shaft Asm Cross Tapered PMST/
20
82 123782X Spring Torsion T/a
83 19171216 Washer 17/32 X 3/4 X 16 Ga
84 166231 Link Transaxle PMST/20" Zinc
85 150360 Nut Lock Center 1/4 - 28 FNTHD
89 169372X428 Console Shift STLT
96 4497H Retainer Spring 1"
112 19091210 Washer 9/32 x 3/4 x 10 Ga.
113 127285X Strap Torque LT
116 72140608 Bolt Rdhd Sq Neck 3/8-16 x 1
120 73900600 Nut Lock Flg. 3/8-16 Unc
145 74490540 Bolt Hex FLGHD 5/16-18 Gr. 5
150 175456 Spacer Retainer
151 19133210 Washer 13/32 x 2 x 10
156 166002 Washer Srrted 5/16ID x 1.125
158 165589 Bracket Shift Mount
159 165494 Hub Tapered Flange Shift Lt
161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr
162 73680400 Nut Crownlock 1/4-20 Unc
163 74780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 19091010 Washer 5/8 x .281 x 10 Ga
165 165623 Bracket Pivot Lever
166 166880 Screw 5/16-18 x 5/8
168 165492 Bolt Shoulder 5/16-18 x .561
169 165580 Plate Fastening
170 178394 Keeper Belt Transaxle Gear
197 169613 Nyliner Snap-In
198 169593 Washer Nyliner
202 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
212 145212 Nut Hexfl ange Lock
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35

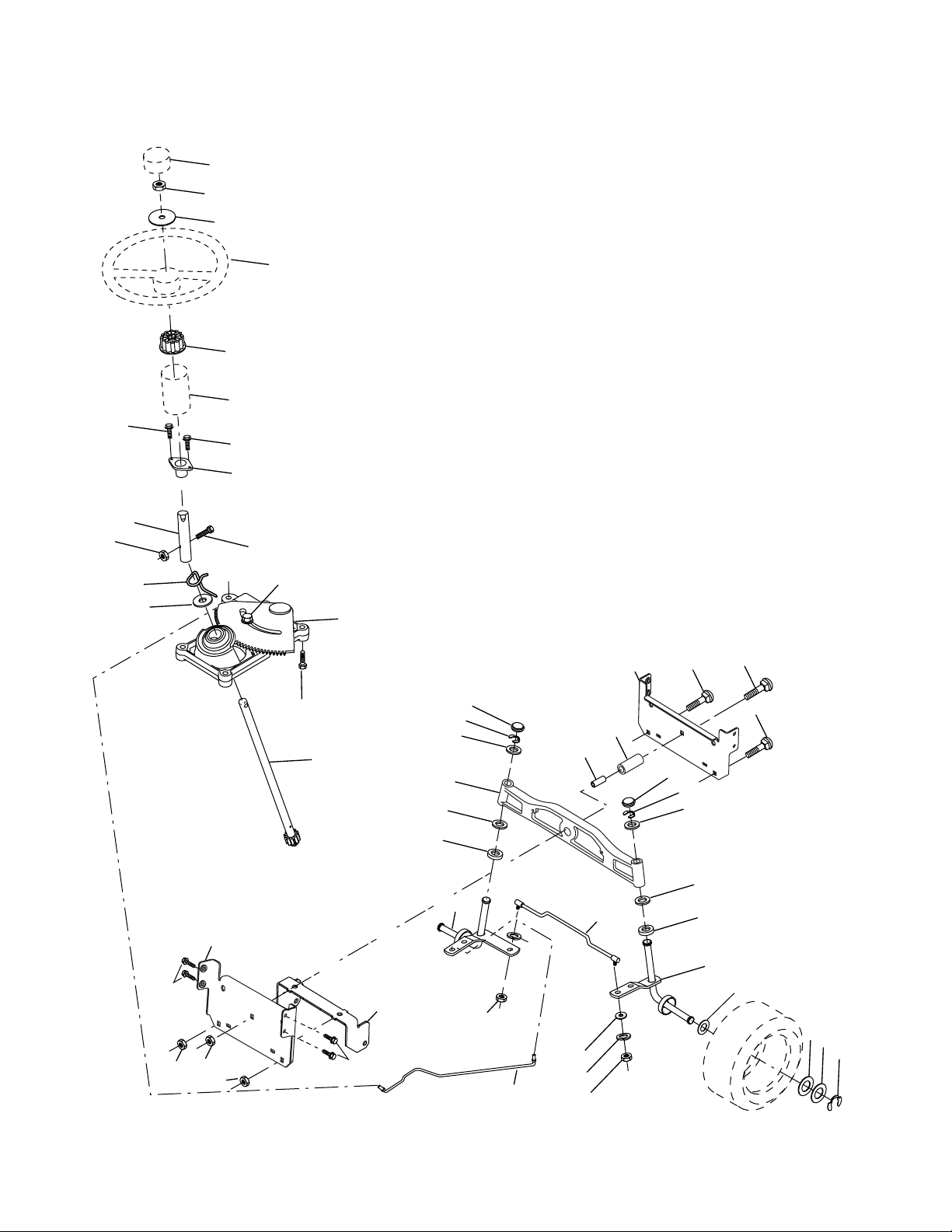

Page 8
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
44
51
91
43
29
15
15
54
88
71
68
29
17
68
82
29
15
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
36
Page 9
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 180656 Wheel Steering
2 172393 Axle Asm Cast Iron LT
3 169840 Spindle Asm LH
4 169839 Spindle Asm RH
5 6266H Bearing Race Thrust Harden
6 121748X Washer 25/32 X 1-5/8 X 16 Ga
8 12000029 Ring Klip #t5304-75
10 175121 Link Drag
11 10040600 Washer Lock Hvy Hlcl Spr 3/8
12 73940800 Nut 1/2-20 Unf
13 136518 Spacer Brg. Axle Front
15 145212 Nut Hex Flange Lock
17 180641 Shaft Asm. Steering
29 17060612 Screw 3/8-16x.75
32 171888 Rod Tie
33 19111216 Washer 11/32 x 3/4 x 16 Ga.
34 10040500 Washer Lock Hvy Hlcl Spr 5/16
35 73540500 Crownlock Nut 5/16-24
36 155099 Bushing Strg
37 152927 Screw
38 180657 Insert Cap Strg Wh Au
39 19182411 Washer 9/16 x 1-1/2
40 7810H Lock nut
41 159945 Adaptor Wheel Strg
42 145054X428 Boot Steering Dash
43 121749X Washer 25/32 X 1 1/4 X 16 Ga
44 180640 Extension Steering Shaft
46 121232X Cap Spindle Fr Top Blk
51 73540400 Nut 1/4-28
54 71130420 Bolt 1/4-28 x 1-1/4 Unf
65 160367 Brace Axle
67 72140618 Bolt Rdhd Sq 3/8-16 Unc x 2-1/4
68 169827 Axle, Brace
71 175146 Steering Asm.
82 169835 Bracket Susp. Chassis Front
87 173966 Washer Flat .781 x 1-1/2 x .14
88 175118 Bolt Shoulder 7/16-20 Unc
91 175553 Clip Steering
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
Page 10
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07

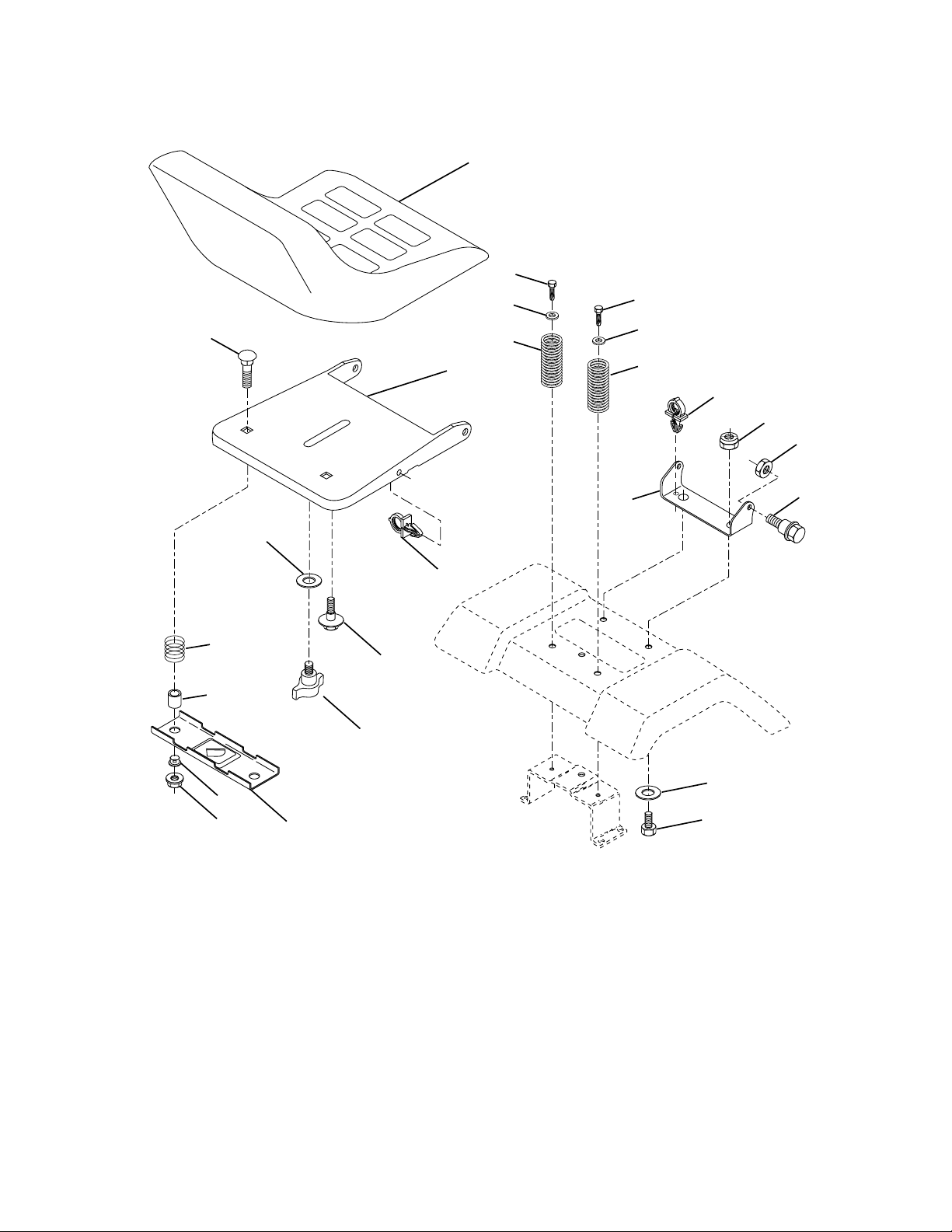

SEAT ASSEMBLY
1
8
8
9
7
5
6
22
14
9
7
10
24
16
25
15
11
13
17
KEY PART
NO. NO. DESCRIPTION
1 171683 Seat
2 140551 Bracket Pivot Seat 8 720
3 71110616 Bolt Fin Hex 3/8-16 Unc X 1
4 19131610 Washer 13/32 X 1 X 10 Ga
5 145006 Clip Push-In
6 73800600 Nut Hex w/Ins. 3/8-16 Unc
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 X 1.5
9 19131614 Washer 13/32 X 1 X 14 Ga.
10 182493 Pan Seat
11 166369 Knob Seat
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
12 121246X Bracket Mounting Switch
13 121248X Bushing Snap Blk Nyl 50 Id
14 72050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 134300 Spacer Split 28x 88
16 121250X Spring Cprsn
17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 171852 Bolt Shoulder 5/16-18 Unc
22 73800500 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 127018X Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
21
38
Page 11
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
DECALS
11
2
9
5
14
16
4
KEY PART
NO. NO. DESCRIPTION
1 156369 Decal Oper
2 176305 Decal Fender Side
3 186164 Decal Hood LH
4 185809 Decal Side Panel Logo
5 170851 Decal HP Engine
6 179128 Decal Deck "B" 42"
7 185439 Decal Repl. Parts
8 170563 Decal Warning Mult-Language
9 172740 Decal Fender Logo
WHEELS AND TIRES
1
2
6
5,8
4,10
7
3,9
7
4
8
6
3
18
19
10
1
2
KEY PART
NO. NO. DESCRIPTION
10 157140 Decal Fender Danger E/F
11 172743 Decal Ins Strg Whl
14 160396 Decal V-Belt Schematic
16 186163 Decal Hood Rh
18 173587 Decal Fender Refl ector RH
19 173589 Decal Fender Refl ector LH
20 145005 Decal Bat Dan/Psn
- - 179768X428 Pad Footrest LH
- - 179769X428 Pad Footrest RH
- - 138311 Decal Handle Lft Height Adjust
- - 185491 Manual Owner's (English)
- - 185492 Manual Owner's (French)
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 170455 Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6"front Service
11
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X421 Rim Asm 8"rear Service
9 170456 Tire R Ts 20x10-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
20
39
Page 12
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07

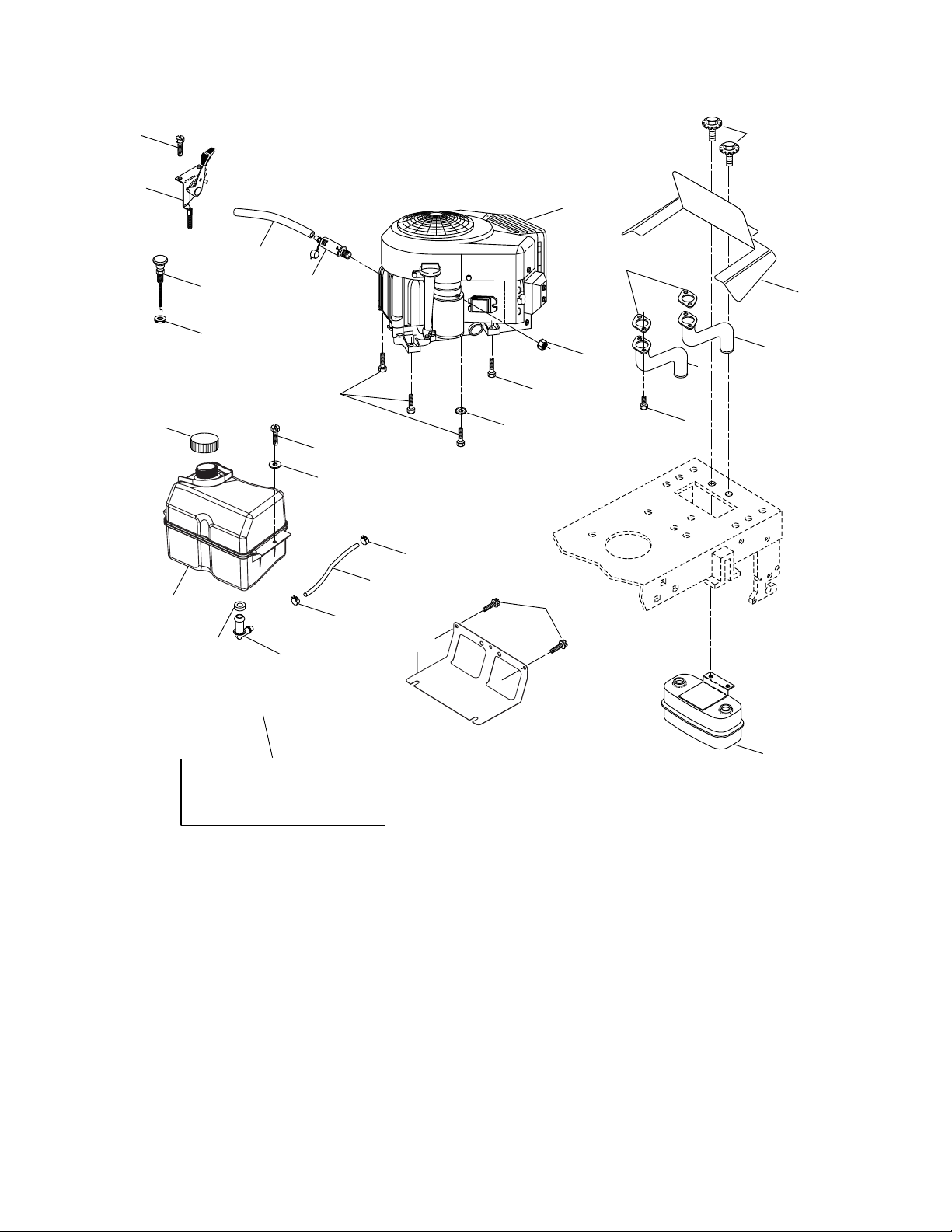

ENGINE
2
1
3
8
32
31
25
26
112
14
41
38
44
46
17
33
37
33
23
16
17
45
81
13
10
6
5
72
29
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 170771 Control Th/ch Flag
2 17720408 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine, Briggs Model 407777 (Order
Parts From Engine Manufacturer)
4 149723 Muffl er Exhaust
5 159955 Exhaust Tube LH
6 160589 Exhaust Tube RH
8 171877 Bolt 5/16-18 UNC x 3/4
10 162797 Shield Browning
11 10040500 Washer Lock 5/16
12 71070512 Screw Hex 5/16-18 x 3/4
13 165391 Gasket Muffl er
14 148456 Tube Drain Oil Easy
16 11050600 Washer Lock Ext Tooth 3/8
17 17060624 Screw 3/8-16 x 1-1/2
23 169837 Shield Brn/Dbr Guard
25 145996 Control Choke
4
KEY PART
NO. NO. DESCRIPTION
26 73920600 Nut Keps 3/8-24 Unf
29 137180 Arrestor Spark
31 185534 Tank Fuel Front 2 00
32 140527 Cap Fuel
33 123487X Clamp Hose Black
37 137040 Line Fuel 20"
38 181654 Plug Oil Drain
41 139277 Stem Tank Fuel
44 17670412 Screw Hex wsh Thdrol 1/4-20x3/4
45 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4
46 19091416 Washer 9/32 X 7/8 X 16 Ga
72 183906 Screw Socket Head 5/16-18 x 1
81 73510400 Nut Keps Hex 1/4-20 Unc
112 3645J Bushing
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
40
Page 13
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07

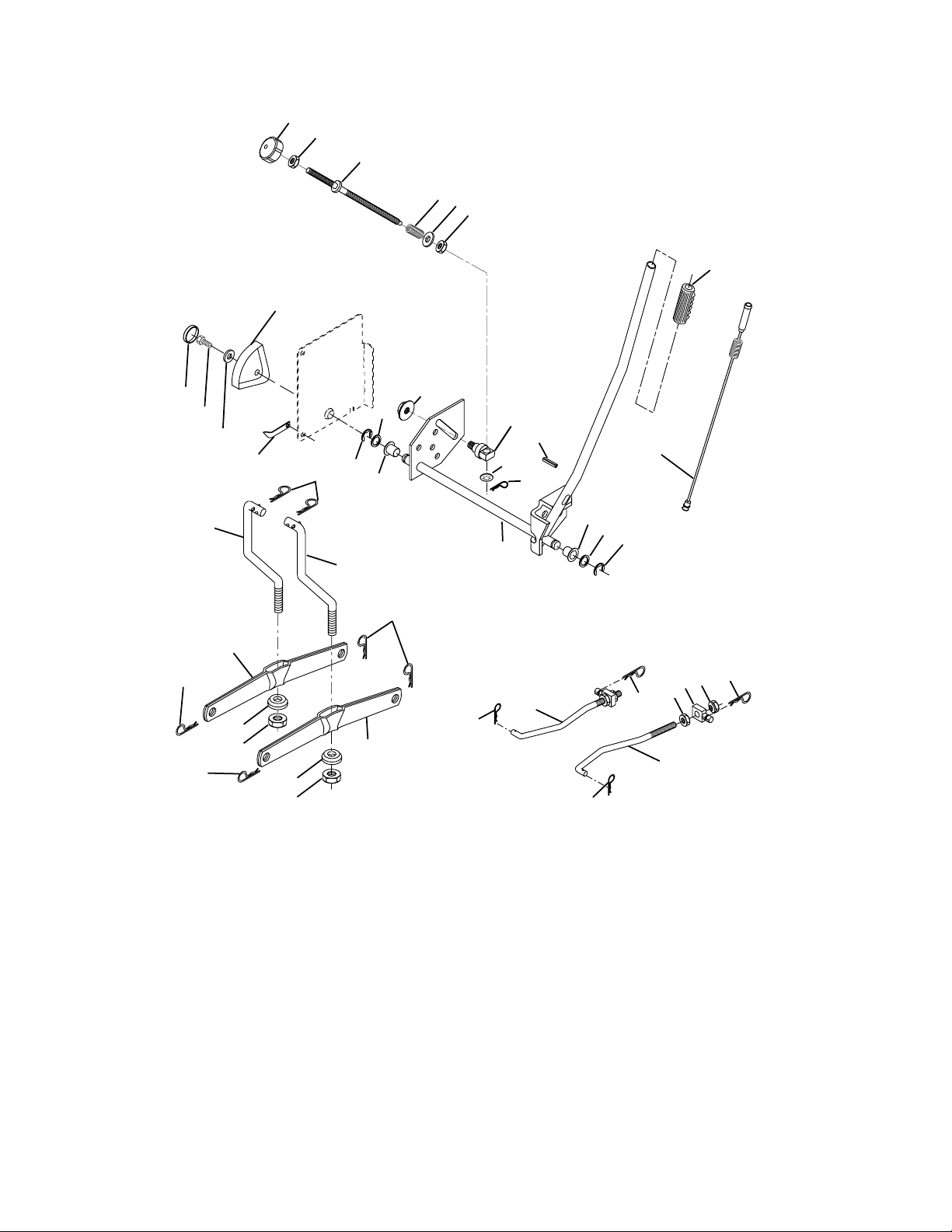

MOWER LIFT
29
28
27
25
24
23
7
41
37
38
40
36
11
19
13
31
32
13
31
32
4
13
12
19
49
5
6
13
KEY PART
NO. NO. DESCRIPTION
1 184432 Wire Asm
2 159476 Shaft Asm Lift RH w/Inf
3 178981 Pin Groove 2" Zinc
4 12000002 E Ring #5133-62
5 19211621 Washer 21/32 X 1 X 21 Ga
6 120183X Bearing Nylon Blk 629 Id
7 175830 Grip Handle
8 170770 Button Plunger Yellow
11 139865 Link Lift LH Fixed Length
12 139866 Link Lift RH Fixed Length
13 4939M Retainer Spring
15 173288 Link Front
16 73350800 Nut Jam Hex 1/2-13 Unc
17 175689 Trunnion Blk Zinc
18 73800800 Nut Lock w/Wsh 1/2-13 Unc
19 139868 Arm Suspension Rear
20 163552 Retainer Spring
23 110807X Nut Special
30
3
50
26
6
5
2
15
20
20
1
4
20
18
17
16
20
15
KEY PART
NO. NO. DESCRIPTION
24 19131016 Washer 13/32 X 5/8 X 16 Ga
25 2876H Spring 2-1/8"
26 169484 Retainer Clip
27 126971X Rod Adj Lift Zinc 7.49 Wrk Lg
28 73350600 Nut Hex Jam 3/8-16 Unc
29 138057 Knob Inf 3/8-16 Unc Blk W/sym
30 150233 Trunnion Infi n Height
31 169865 Bearing Pvt Lift
32 73540600 Nut Crownlock 3/8 - 24
36 155097 Pointer Height Indicator
37 123935X Plug Hole Blk 1.485/1.515 Dia.
38 17060516 Screw Thdrol 5/16-18 x 1
40 19112410 Washer 11/32 x 1-1/2 10 Ga.
41 155098 Indicator Height STLT
49 145212 Nut Hex Flange Lock
50 110452X Nut PUsh Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
Page 14
REPAIR PARTS
132
95
94
182
91
183
132
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07

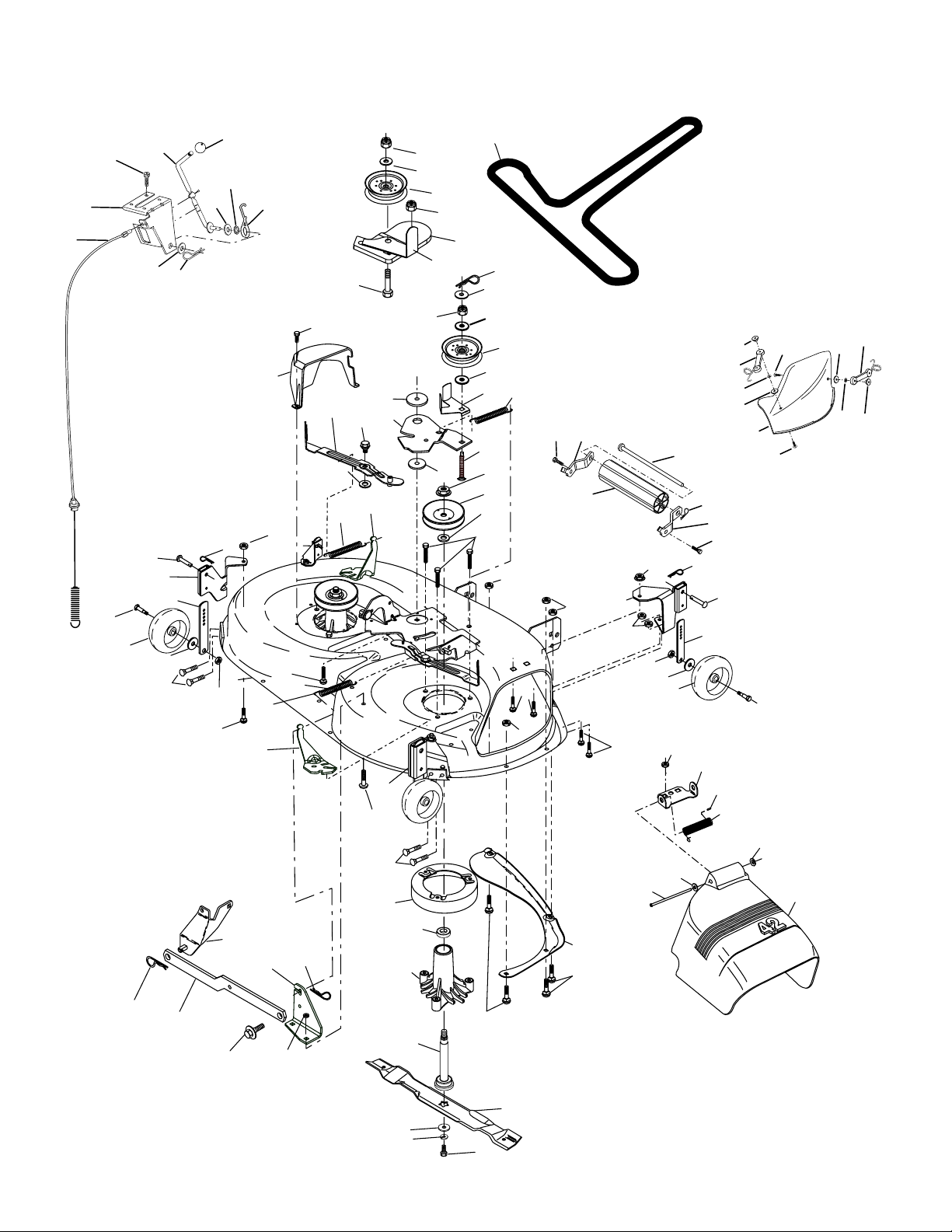

MOWER DECK
68
143
45
150
152
151
158
153
157
154
153
156
67
155
40
37
36
40
144
159
116
117
134
135
119
113
136
18
118
46
44
53
52
48
142
147
21
5
1
140
34
147
142
2
40
56
55
54
138
59
146
30
31
184
33
32
37
145
21
148
21
105
106
102
103
105
104
103
101
104
106
102
21
5
139
21
21
118
119
18
117
21
2
134
136
116
23
24
25
3
5
6
19
42_deck_man-t-path_4.
26
113
16
15
149
4
21
10
14
9
18
13
11
8
20
18
29
28
27
42
Page 15
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 182032X421 Mower Deck Assembly, 42"
2 72140506 Bolt
3 138017 Bracket Asm Fr. Sway Bar 3/42
4 165460 Bracket Asm Deck 42" Sway Bar
5 4939M Retainer Spring
6 178024 Bar Sway Deck
8 850857 Bolt 3/8-24 x 25 Grade 8 patched
9 10030600 Washer, Lock
10 140296 Washer, Hardened
(The following blades are available)
11 134149 Blade, 42" Mulching Std (For
mulching mowers only)
- - 139775 Blade, 42" Mulching Premium (For
better wear when mulching
- - 138971 Blade, 42" Hi-Lift (For bagging or
discharging)
13 137645 Shaft As sem bly, Mandrel, Vented
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandrel
16 174493 Stripper, Mandrel Deck
18 72140505 Bolt, Carriage 5/16-18 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffl e, Vortex
21 73680500 Nut
23 177563 Bracket, Defl ector Mower 42"
24 105304X Cap, Sleeve 80 x 112 Blk Mower
25 123713X Spring, Torsion, Defl ector 2 52
26 110452X Nut, Push Phos & Oil
27 130968X428 Shield, Defl ector 42" Blk
28 19111016 Washer 11/32 x 5/8 x 16 Gauge
29 131491 Rod, Hinge 42" 6 75 W/G
30 173984 Screw Thdrol Washer Head
31 129963 Washer, Spacer Mower Vented
32 173436 Pulley, Mandrel
33 178342 Nut, Toplock 9/16 Flange
34 72110614 Bolt
36 173438 Pulley, Idler, Flat
37 19131316 Washer 13/32 x 13/16 x 16 Gauge
40 73680600 Nut
44 140088 Guard, Mandrel, LH
45 4497H Retainer
46 137729 Screw, Thdrol 1/4-20 x 5/8 T
48 133944 Washer, Hardened
52 139888 Bolt, Shoulder 5/16-18 UNC
53 184907 Arm Assembly, Pad, Brake
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 122052X Spacer, Retainer
59 173442 Guard TUV Idler
67 171598 Knob
KEY PART
NO. NO. DESCRIPTION
68 144959 V-Belt, 42" Mower
91 180532 Bracket Asm. Noseroller LH
94 132264 Roller, Nose
95 180533 Bracket Asm. Noseroller RH
101 136420 Mulcher Cover
102 71081010 Screw
103 19061216 Washer, Flat
104 10071000 Washer, Lock
105 160793 Latch Assembly
106 2029J Nut, Weld
113 17060512 Screw 5/16-18 x 3/4
116 137644 Bolt, Shoulder
117 133957 Wheel, Gauge
118 73930600 Nut Centerlock 3/8-16
119 19121414 Washer 3/8 x 7/8 x 14 Ga.
132 17000612 Screw 3/8-16 x .75
134 156941 Pin Head Rivet
135 159765X421 Bracket Asm. Whl. Ga. Rear LH
136 155986 Bar Adjusting Gauge Wheel
138 159763X421 Bracket Asm. Whl. Ga. Rear RH
139 159767X421 Bracket Asm. Whl. Ga. Front RH
140 159768X421 Bracket Asm. Whl. Ga. Front LH
142 165890 Arm Spring Brake Mower
143 157109 Bracket Arm Idler 42"
144 173441 Keeper Belt 42" Clutch Cable
145 173437 Pulley Idler Flat
146 173443 Bolt Carriage Idler
147 131335 Spring Extension
148 169022 Spring Return Idler
149 165898 Retainer Spring Yellow
150 19091216 Washer 9/32 x 3/4 x 16 Ga.
151 169670 Bracket Clutch Cable
152 169676 Clutch Cable 42"
153 169674 Washer Flat 3/8" Type B
154 169675 Spring Retainer
155 169671 Spring Retention LVR CLTCH
CAB
156 169672 Spacer Clutch Cable
157 169669 Rod Clutch Cable 3/8"
158 17720408 Screw Hex Thd Cut 1/4-20 x 5/8
159 72140614 Bolt Rdhd Sqn 3/8-16 UNC x 1-
3/4
182 179126 Rod Roller Nose
183 163552 Retainer Spring
- - 130794 Mandrel Assembly (Includes
Housing, Shaft and Shaft Hard-
ware Only-Pulley Not Included)
- - 184563 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
Loading...
