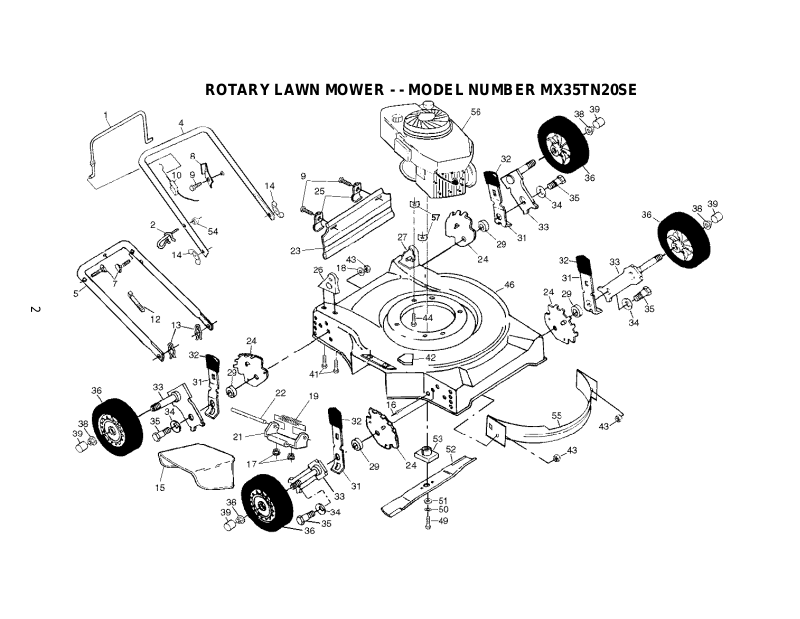

ROTARY LAWN MOWER - - MODEL NUMBER MX35TN20SE

2

ROTARY LAWN MOWER - - MODEL NUMBER MX35TN20SE

KEY PART
NO. NO. DESCRIPTION

1 131696 Control Bar
2 132001 Rope Guide
4 166860X479 Upper Handle
5 151590X479 Lower Handle
7 131959 Handle Bolt 5/16-18 x 1-3/4
8 850733X004 Up-Stop Bracket

9 750097 Hex Washer Head Screw #10-24 x 1/2
10 164322 Engine Zone Control Cable
12 66426 Wire Ties

3

13 51793 Hairpin Cotter
14 128638 Wing Nuts
15 752052 Discharge Guard
16 128415 Rivet
17 63601 Nut
18 61537 Washer
19 851855 Torsion Spring
21 88602 Hinge Deflector
22 150215 Hinge Rod
23 140543 Rear Deflector
24 750085X007 Wheel Adjusting Bracket
25 87584X004 Deflector Bracket
26 170345X479 Handle Bracket Assembly (Right)
27 170346X479 Handle Bracket Assembly (Left)
29 146630 Spacer
31 700331X004 Selector Spring
32 87877 Selector Knob
33 145935X004 Axle Arm Assembly

KEY PART
NO. NO. DESCRIPTION

34 62335 Belleville Washer
35 142748 Shoulder Bolt
36 800060 Wheel and Tire Assembly
38 83923 Flanged Locknut
39 800090 Hubcap
41 149741 Thread Cutting Screw 5/16-18 x 3/4
42 141846 Danger Decal
43 751592 Locknut 3/8-16
44 150406 Hex Head Thread Rolling Screw 3/8-16 x 1
46 174542 Lawn Mower Housing
49 851084 Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8)
50 850263 Helical Lock Washer 3/8
51 851074 Hardened Washer
52 850972 Blade 20"
53 850977 Blade Adapter
54 63601 Locknut
55 700839X479 Front Baffle
56 - - - Engine, Tecumseh

(Order parts from engine manufacturer)

57 851201X004 Washer

- - 161058 Warning Decal (Not Shown)

- - 172777 Operator's Manual (English)

- - 172779 Operator's Manual (Spanish)

- - 179399 Replacement Parts Manual
NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm
