MJC455A (1999 & Before) Page 1 of 7
22" REAR BAGGER
MJC455A (1999 & Before) Page 2 of 7
22" REAR BAGGER
Ref # Part Number Qty Description
1 137076 CONTROL.DRIVE
2 74189 NUT
3 750029 SCREW
4 700875 BOLT.1/4-20X2.0
5 77400 HUB CAP
6 85179 RETAINER CLIP PM
7 52160 WASHER
8 850690 WHEEL &TIRE ASSY
9 12000057 SUB= 12000058
10 137054 PINION.GEAR
11 88080 DUST SHROUD PM
12 87877 KNOB PM
13 751809 SUB= 151207
14 751810 SUB= 151206
15 88118 WASHER PM
16 63601 SUB= 73800400
17 850848 HI PRO KEY
18 137089 SPRING.RETURN
19 68038 SUB= 73850400
20 137090 SPRING.TENSION
21 67725 WASHER FLUT
22 700347 SUB= 48367
23 137052 PULLEY.DRIVEN
24 132010 LOCKNUT
27 137081 "COVER.DRIVE 22""RD"
28 87866 SUB= 146072
29 136797 SUB= 149746
30 133413 CATCHER FRAME
31 135200 GRASSBAG.PM.
32 137078 SUB= 157769
33 REFER TO IMAGE
38 86012 DRV SHAFT TUBE PM
39 88446 BUSHING.HEX
107921X NLA
MJC455A (1999 & Before) Page 3 of 7
22" REAR BAGGER
MJC455A (1999 & Before) Page 4 of 7
22" REAR BAGGER
Ref # Part Number Qty Description
2 851509 CONTROL BAR
3 132649X479 SUB= 160223X479
4 63601 SUB= 73800400
5 130861 "CABLE,ENG ZONE CO"
6 85723 WASHER PM
7 700654 CNTL.THROT.47.5
8 86055 SUB= 144929
9 128638 "NUT,WING PM"
10 83816 SCREW PM
11 213146 CABLE CLAMP
12 48137 SUB= 91848137
13 750097 TAPPING SCREW
14 87930 GUIDE CLIP PM
17 107339X DECAL HYT
18 86344 SCREW PM
19 73510400 NUT
20 85543 ENGINE PULLEY PM
21 87677 HI PRO KEY PM
22 59708 SCREW
23 133040X479 REAR BAFFLE
24 128796 SUB= 140540
25 700365X479 BAFFLE.SIDE
26 700361X479 PLATE.BACK.22RD
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 66426 SUB= 7192J
32 84676X479 SUB= 151516X479
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
36 85179 RETAINER CLIP PM
37 52160 WASHER
38 851071 SUB= 148446
39 84921 SUB= 142748
40 62335 "WASHER, BELLEVIL."
41 85021X004 AXLE ARM
42 850855X004 SUB= 700331X004
43 87877 KNOB PM
45 84920 SUB= 146630
46 850955 SUB= 750085X007
47 55187 SCREW
50 700915X419 SUB= 150956
51 700913X419 SUB= 150956
52 751592 LOCKNUT PM
54 851201X004 WASHER
55 850998 SCREW
56 135030 DEBRIS SHLD RET
57 132255X479 SUB= 144964
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 134768 SUB= 141114
63 851514 ADAPTOR.BLADE.LM
64 700956 "KIT.HSG.22""RD"
65 CHECK WITH SUPPLIER
68 88652 HINGE SCREW
69 133170X479 MULCHER PLATE
MJC455A (1999 & Before) Page 5 of 7
22" REAR BAGGER
Ref # Part Number Qty Description
70 134612 SUB= 48283
700480 "MANUAL,OP"
701960 MANUAL.P.MJC455A
MA36 CLIPPING DEFL
MJC455A (1999 & Before) Page 6 of 7

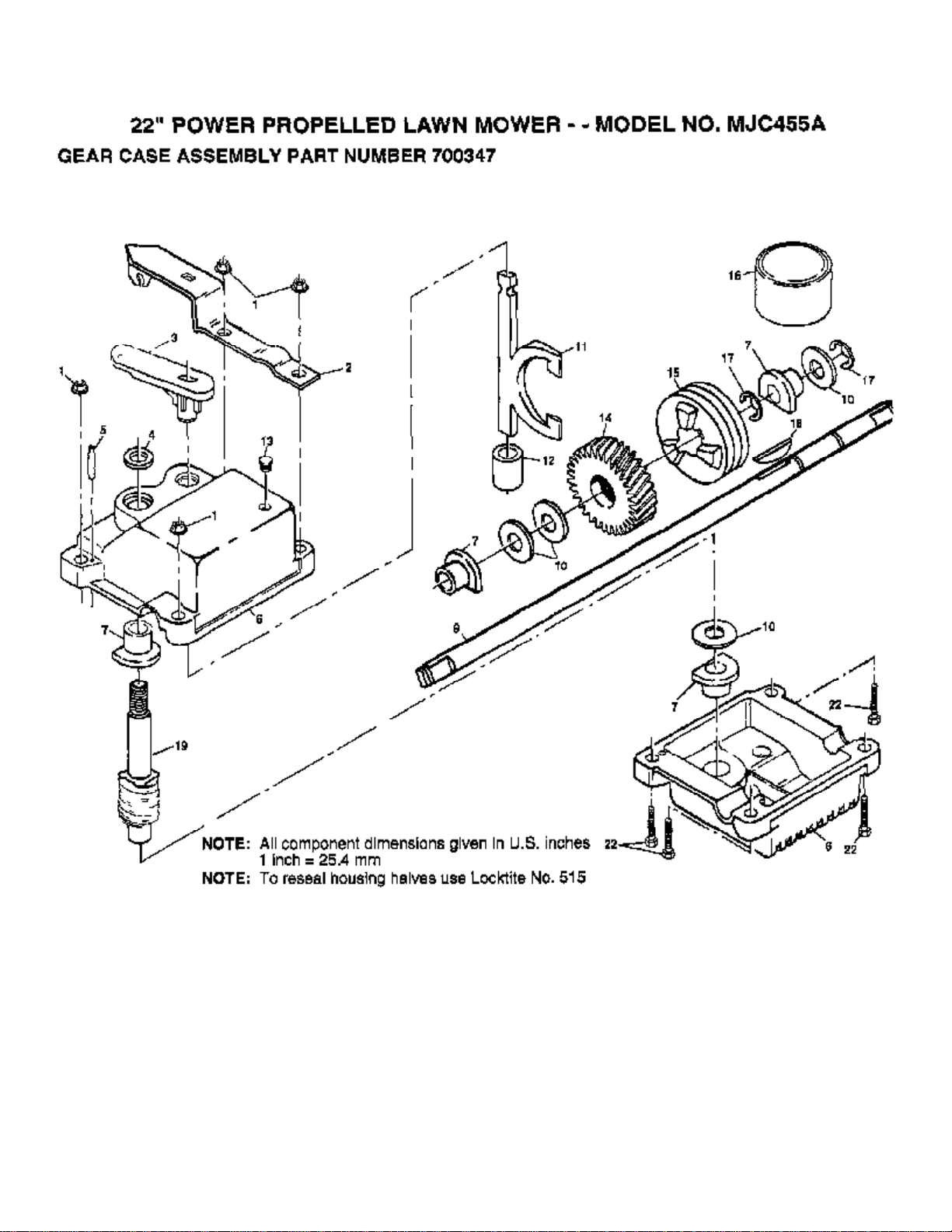

GEAR CASE ASSEMBLY
MJC455A (1999 & Before) Page 7 of 7
GEAR CASE ASSEMBLY
Ref # Part Number Qty Description
1 73510400 NUT
2 137055 SUB= 137055X004
3 137053 SHIFTER
4 57072 SEAL
5 57388 DRIVE LOK PIN
6 48281 GEARCASE KIT
7 77881 BEARING
9 137074 SHAFT.DRIVE
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750355 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 137051 SHAFT.WORM
22 17490416 SCREW.1/4-20
