LT4218C (1995) Page 1 of 25
CHASSIS
LT4218C (1995) Page 2 of 25
CHASSIS
Ref # Part Number Qty Description
1 145501 CHASSIS.WLD.11GA
2 140356 SUB= 145009
3 17490612 SCREW
6 145206 SUB= 145206X431
8 126471X "CLIP,INSULATOR"
9 145203 DASH.PLASTIC.BLK
10 72140608 SUB= 72110608
11 145218 PANEL.DASH.LH.
13 145223 PANEL.DASH.RH.NOT
16 73510400 NUT
17 123801X550 HOOD/GRILLE ASM
20 140181 PLATE.SUPT.BATTER
24 74780616 BOLT
25 19131312 WASHER
26 73800800 NUT.LK.W/WSH.1/2.
28 140671 GRILLE ASM WELD
29 110898X LENS T
30 140001X550 FENDER PNT
31 139976 BRACKET SUPT FEND
33 145244X500 FOOTREST.LH.LT/GT
34 145243X500 FOOTREST.RH.LT/GT
35 72110606 BOLT
36 108067X PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
41 139978 PLATE EXTEN FEND
45 132257 SUB= 918132257
50 124046X "BAFFLE,HOOD"
59 110436X SUB= 9151R
60 72140606 BOLT
61 19171416 WASHER
64 145095 SUB= 150272
66 140942X011 PLATE DASH SILKSC
71 73640400 NUT HXKEP 1/4X20
72 110350X550 STRAP FENDER ASM
86 123764X550 PANEL SIDE RH ASM
87 123765X550 PANEL SIDE LH ASM
90 19091216 WASHER PM
100 109458X FOAM STRIP T
102 2751R CLIP T
114 145349 BRACKET.SUPT.DASH
115 121794X COVER ACCESS
117 144283 WASHER.SERRATED.
118 145595 BRACKET.CLUTCH.MC
123 144712 SUB= 149036
124 144713 BRACKET.PICK.RH
125 74180412 SCREW
127 120579X PAL NUT
128 124201X SCREW SPECIAL
LT4218C (1995) Page 3 of 25
DECALS
LT4218C (1995) Page 4 of 25
DECALS
Ref # Part Number Qty Description
1 141901 DECAL INST OP DAS
2 136832 DECAL
3 143219 DECAL LOGO GRILLE
4 146463 DECAL.INST.WHL.ST
5 140837 DECAL BRAK PARK
6 141898 DECAL CAUT FEND
7 141897 DECAL CLUT/BRAKE
8 143220 DECAL FEND QUICK
10 143214 DECAL HD RH
11 141872 DECAL DANGER CT/F
12 143216 DECAL CHASSIS KGR
13 143303 SUB= 272270
14 135429 DECAL.ENG.272757
15 143215 DECAL HD LH
18 139443 DECAL.ENG.272101
19 139697 SUB= 272629
20 143221 DECAL DECK MULCH
138311 DECAL HANDLE LIFT
133671 FOOTREST PAD
148173 MANUAL.O.LT4218C
148174 MANUAL.O.LT4218C
C42 GRASS CATCHER
LC05 WHEEL WTS.
MK420 MULCHING KIT W/BLADES
LSB42 SNOW THROWER
LBD48 SNOW BLADE
CH208 TIRE CHAINS
LT4218C (1995) Page 5 of 25
DRIVE
LT4218C (1995) Page 6 of 25
DRIVE
Ref # Part Number Qty Description
1 145600 TRANSAXLE
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
6 17490512 SCREW
8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
54 2751R CLIP T
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 137057 SPACER AXLE
75 121749X WASHER
LT4218C (1995) Page 7 of 25
DRIVE
Ref # Part Number Qty Description
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
79 2228M SUB= 2228M1
80 145090 "ARM.SHIFT.20""TIRE"
81 145092 SUB= 156049
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 145643 "ROD.TIE.20""P930LT"
85 73530400 NUT 1/4-28
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 139964 SUB= 918139964
90 124346X NUT
96 4497H RETAINER M
100 19111216 WASHER M
110 74780612 BOLT
112 19091210 WASHER LT
113 127285X "STRAP,TORQUE"
LT4218C (1995) Page 8 of 25
ELECTRICAL
LT4218C (1995) Page 9 of 25
ELECTRICAL
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
5 121264X "CAP,BATTERY "
6 73220400 SUB= 50675
7 7697J "DRAIN TU T, BATT"
8 7603J "TRAY T, BATTERY"
9 109596X HOSE CLAMP T
10 145211 SUB= 150177
11 145209 SUB= 150109
12 145769 SUB= 150177
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 146148 CABLE.6GA.22W/16W
25 4799J "CABLE T, BATTERY"
26 108824X FUSE HYT
28 145491 CABLE.GRND.6GA.21
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 145489 HARNESS.IGN.DASH.
41 71110412 BOLT.HX.1/4-20
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73800400 NUT
45 121433X SUB= 122822X
49 11151000 LOCKWASHER
55 17490508 SCREW LT
70 140413 HARNESS ENG DUAL
LT4218C (1995) Page 10 of 25
ENGINE
LT4218C (1995) Page 11 of 25
ENGINE
Ref # Part Number Qty Description
1 143443 CONTROL.THT.FLG.
2 17720410 SCREW LT
3 422707 ENGINE B&S 18HP
4 108373X MUFFLER HYT
7 138129 CLAMP.TUBE.DBL.EN
11 10040400 LOCKWASHER
12 74780412 SUB= 74780414
13 8545J SUB= 272250
14 13280336 PIPE NIPPLE LT
15 13200300 ELBOW
16 11050600 LOCKWASHER
17 17490624 SCREW LT
25 138672 "CONTROL.CHOKE.51"""
26 73610600 SUB= 7810H
27 17541008 SCREW.10-24X1/2
28 73680600 SUB= 73690600
29 137180 SUB= 532137180
31 141291 TANK FUEL 1.9 NAT
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
37 8543R FUEL LINE T
38 CHECK WITH SUPPLIER
39 126564X "STRIP,FORM"
42 140020 STRAP TANK FUEL
43 140019 STRAP TANK FRONT
44 17490612 SCREW
47 100229L EXHAUST TUBE T
48 135029 MUFFLER GUARD
49 17490612 SCREW
50 19131616 WASHER HYT
51 72110608 BOLT D
52 73510600 NUT
81 73510400 NUT
LT4218C (1995) Page 12 of 25
MOWER
LT4218C (1995) Page 13 of 25
MOWER
Ref # Part Number Qty Description
1 144393 DECK.WELD.42.
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
68 144200 BELT.V.T-PATH
71 142427 ROD CLUTCH 38/42
72 146927 SPRING.EXT.RETURN
73 127847 CLUTCH ARM SECOND
74 121748X WASHER
LT4218C (1995) Page 14 of 25
MOWER
Ref # Part Number Qty Description
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140333 SUB= 140333X431
79 127498 BUSHING
80 128759 SUB= 918128759
81 73350600 NUT
82 142028 TRUNION ADJ
83 120958X WASHER
84 144394 SUB= 156084
85 72140600 BOLT RDHD SQNK 3/8-16X2-1/2
92 73800600 NUT
130794 MANDREL ASM
144783 SUB= 164962
LT4218C (1995) Page 15 of 25
MOWER LIFT
LT4218C (1995) Page 16 of 25
MOWER LIFT
Ref # Part Number Qty Description
1 136971 WIRE.ASM.INNER
2 136968 SHAFT.ASM.LIFT.RH
3 138284 PIN GROOVE
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
LT4218C (1995) Page 17 of 25
PEERLESS TRANSAXLE
LT4218C (1995) Page 18 of 25
PEERLESS TRANSAXLE
Ref # Part Number Qty Description
1 772108A TRANSAXLE COVER
2 780086 BEARING, NEEDLE
3 770102A TRANSAXLE CASE
4 776260 SHAFT, COUNTER
5 776219B OUTPUT SHAFT AND PINION
6 778139 GEAR, OUTPUT
7 778136 GEAR, SPUR, 15 TEETH
8 792136A SHIFT KEY
9 784352 COLLAR, SHIFTER
10 784355 ROD & FORK ASSY, SHIFT
11 778229 GEAR, BEVEL, 42 TEETH
12 778113A BEVEL PINION, INPUT
13 778221 GEAR, BEVEL
14 778068 GEAR, BEVEL, PINION
15 778260 GEAR, RING
17 786139 PIN, DRIVE
18 786102 SPACER, NEUTRAL
20 792077 BALL STEEL, 5/16" DIA.
21 792078 SCREW, 3/8-16 X 3/8"
22 792079 SPRING
23 788061 RING, SEAL
25 792073 SCREW, 1/4-20 X 1-1/4
26 792125 RING RETAINER
27 792035 RING, RETAINER
28 788040 RETAINING RING
29 780072 WASHER THRUST
30 780108 WASHER THRUST
31 780001 WASHER
32 792001 "O" RING
33 788051 SEAL, SQUARE CUT
34 780105A BUSHING, FLANGED
35 780118A BUSHING, FLANGED
36 790003 DISK, BRAKE
37 790007 PLATE BRAKE PAD
38 799021 BRAKE PAD
39 786026 PIN DOWEL
40 792076A WASHER
41 790079 BRAKE LEVER
42 792073 SCREW, 1/4-20 X 1-1/4
42A 792085A SCREW, 1/4-20 X 2-1/4
43 792075 LOCKNUT 5/16-24
44 790025 HOLDER BRAKE PAD
45 786066 SPACER
46 786086 BRKT BRAKE LEVER
47 774690 AXLE
48 774691 AXLE
49 778215 GEAR, SPUR, 37 TEETH
50 778125 GEAR, SPUR, 35 TEETH
51 778124A GEAR, SPUR, 30 TEETH
52 778123A GEAR, SPUR, 25 TEETH
53 778122A GEAR, SPUR, 22 TEETH
54 778273 GEAR, SPUR, 19T
56 778230 GEAR, SPUR, 12 TEETH
57 778151 GEAR, SPUR, 15 TEETH
58 778126A GEAR, SPUR, 20 TEETH
59 778127A GEAR, SPUR, 25 TEETH
60 778128A GEAR, SPUR, 28 TEETH
61 778163 GEAR, SPUR, 31 TEETH
LT4218C (1995) Page 19 of 25
PEERLESS TRANSAXLE
Ref # Part Number Qty Description
65 780109 WASHER, THRUST
66 776135 SHAFT, INPUT
67 776315A SHAFT, BRAKE, 4 KEYED
68 786116 DISK
69 780051 WASHER THRUST
70 786118 SPACER
71 788069 SEAL SQUARE CUT
72 792165 THREADED PLUG 9/16-18
72A 788091 "O" RING
76 780090 WASHER, THRUST
77 788078A INVERTED RETAINING RING
79 792144 SPRING
81 786081 CHAIN, ROLLER
82 786082 SPROCKET 9T
83 786123 SPROCKET 18T (REV)
90 788067B GREASE BENTONITE, 32 OZ.
103 792166 SCREW
104 792167 LOCKNUT
150 510334 GASKET ELIMINATOR
LT4218C (1995) Page 20 of 25
SEAT
LT4218C (1995) Page 21 of 25
SEAT
Ref # Part Number Qty Description
1 127429X SUB= 140121
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73680500 SUB= 73690500
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
LT4218C (1995) Page 22 of 25
STEERING
LT4218C (1995) Page 23 of 25
STEERING
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 128758 STEERING SHAFT
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126487X SUB= 532126487
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
31 138171 BRKT.PVT.MAN.LVR.
32 130465 TIE ROD
36 145207 BUSHING.STRG.3/4
37 17541008 SCREW.10-24X1/2
38 145207 BUSHING.STRG.3/4
39 100712K WASHER
40 73940800 SUB= 73360800
41 100711L ADAPTER LT
42 140216 BOOT SHAFT STEER
43 121749X WASHER
45 106933X KNOB T (1/2-HOLE)
46 121232X CAP
47 6855M ZERK M
48 146841 LEVER.ASM.CLUTCH
49 131291 LINK CLTCH W/NUTS
52 106451X "BOLT, SHOULDER LT"
53 73680600 SUB= 73690600
LT4218C (1995) Page 24 of 25

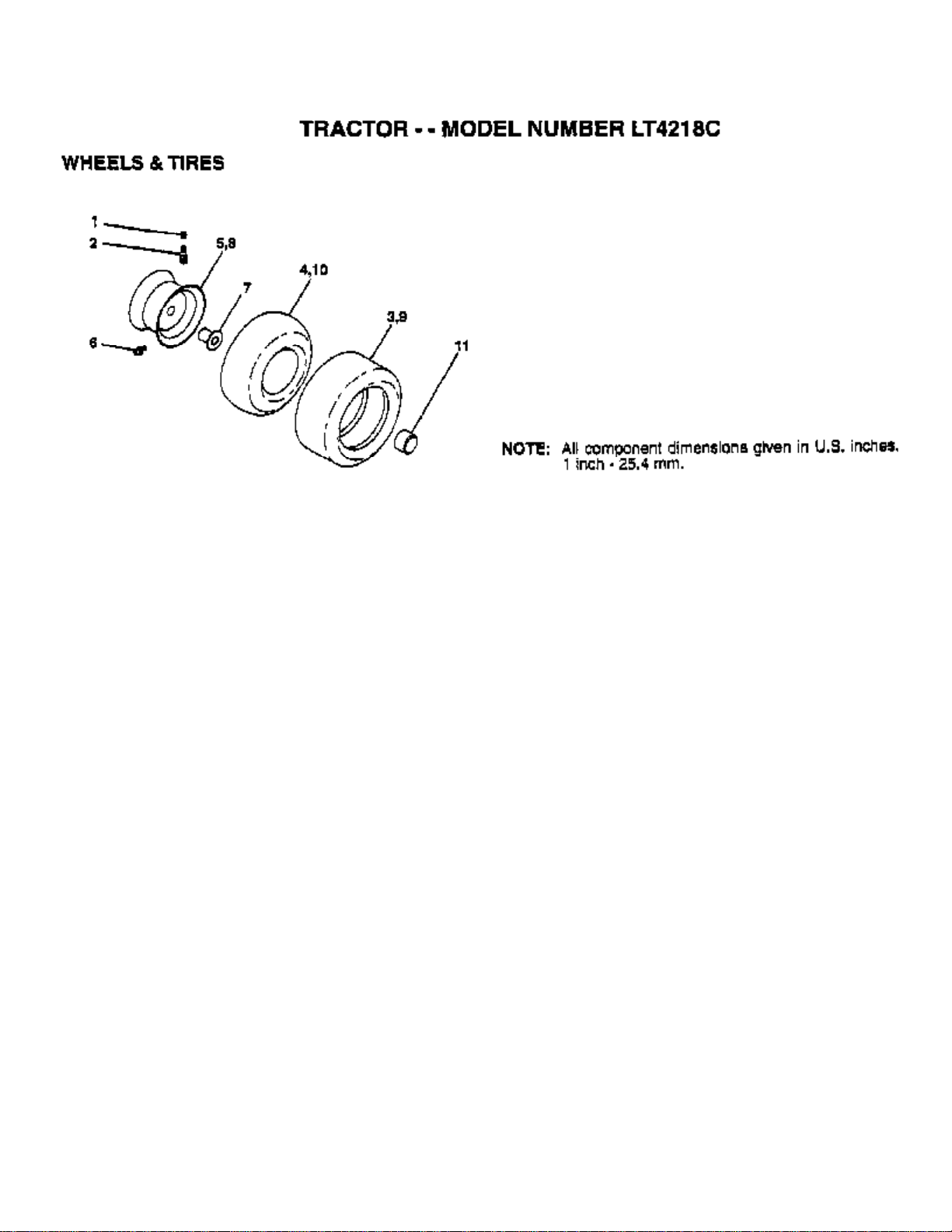

WHEELS AND TIRES
LT4218C (1995) Page 25 of 25
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X551 "RIM FRT 6"" ASM"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X551 "RIM REAR 8"" ASM"
9 138468 TIRE.20X8-8
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
