AYP LT4218B Parts List

LT4218B (1995) Page 1 of 25
CHASSIS

LT4218B (1995) Page 2 of 25
CHASSIS

Ref # Part Number Qty Description

1 140341 SUB= 145501
2 140356 SUB= 145009
3 17490612 SCREW
6 127543 SUB= 127543X011
8 126471X "CLIP,INSULATOR"

9 145203 DASH.PLASTIC.BLK
10 72140608 SUB= 72110608
11 136967 PANEL.DASH.LH
13 136952 PANEL DASH RH NOT
15 74180512 SCREW
16 73510400 NUT
17 123801X550 HOOD/GRILLE ASM
20 140181 PLATE.SUPT.BATTER
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 140671 GRILLE ASM WELD
29 110898X LENS T
30 140001X550 FENDER PNT
31 139976 BRACKET SUPT FEND
33 105465X500 SUB= 145244X500
34 105464X500 SUB= 145243X500
35 72110606 BOLT
36 108067X PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
41 139978 PLATE EXTEN FEND
43 19171416 WASHER
45 132257 SUB= 918132257
50 124046X "BAFFLE,HOOD"
56 72140606 BOLT
59 110436X SUB= 9151R
63 121236X SPACER
64 143118 DASH LOWER
65 74760532 BOLT
66 140942X011 PLATE DASH SILKSC
71 73640400 NUT HXKEP 1/4X20
72 110350X550 STRAP FENDER ASM
86 123764X550 PANEL SIDE RH ASM
87 123765X550 PANEL SIDE LH ASM
90 19091216 WASHER PM
96 73800500 NUT
99 74760616 BOLT

100 109458X FOAM STRIP T
102 2751R CLIP T
114 139915 BRACKET.ASM.SUPT.
115 121794X COVER ACCESS
117 144283 WASHER.SERRATED.
118 110923X BRACKET LT
123 144712 SUB= 149036
124 144713 BRACKET.PICK.RH
125 74180412 SCREW
126 19131614 WASHER
127 120579X PAL NUT
128 124201X SCREW SPECIAL

LT4218B (1995) Page 3 of 25
DECALS

LT4218B (1995) Page 4 of 25
DECALS

Ref # Part Number Qty Description

1 141901 DECAL INST OP DAS

2 136832 DECAL

3 143219 DECAL LOGO GRILLE

5 140837 DECAL BRAK PARK

6 141898 DECAL CAUT FEND

7 141897 DECAL CLUT/BRAKE

8 143220 DECAL FEND QUICK
10 143214 DECAL HD RH
11 141872 DECAL DANGER CT/F
12 143216 DECAL CHASSIS KGR
13 143303 SUB= 272270
14 135429 DECAL.ENG.272757
15 143215 DECAL HD LH
18 139443 DECAL.ENG.272101
19 139697 SUB= 272629
20 143221 DECAL DECK MULCH

138311 DECAL HANDLE LIFT
133671 FOOTREST PAD
146111 MANUAL.O.LT4218B
146112 MANUAL.O.LT4218B
C42 GRASS CATCHER
LC05 WHEEL WTS.
MK420 MULCHING KIT W/BLADES
LSB42 SNOW THROWER
LBD48 SNOW BLADE
CH208 TIRE CHAINS

LT4218B (1995) Page 5 of 25
DRIVE

LT4218B (1995) Page 6 of 25
DRIVE

Ref # Part Number Qty Description

1 142607 SUB= 145605

2 110422X SUB= 146682

3 123666X PULLEY TRANS

4 12000028 SUB= 2267J

5 121520X STRAP TORQUE

6 17490512 SCREW

8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
18 74760616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 133261 BRAKE PARK ROD
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73800600 NUT
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73800500 NUT
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
70 134683 KEEPER BELT ENG

LT4218B (1995) Page 7 of 25
DRIVE

Ref # Part Number Qty Description

72 19132012 WASHER
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
80 131487 ARM SHIFT TRANS
81 136933 SHAFT ASM.SHIFT
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 132183 TIE ROD
85 73530400 NUT 1/4-28
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 139964 SUB= 918139964
90 124346X NUT

100 19111216 WASHER M

LT4218B (1995) Page 8 of 25
ELECTRICAL

LT4218B (1995) Page 9 of 25
ELECTRICAL

Ref # Part Number Qty Description

1 121265X SUB= 123899X

2 74760412 BOLT LT

3 19091016 WASHER

4 10040400 LOCKWASHER

5 121264X "CAP,BATTERY "

6 73220400 SUB= 50675

7 7697J "DRAIN TU T, BATT"

8 7603J "TRAY T, BATTERY"

9 109596X HOSE CLAMP T
10 72240460 BOLT
11 102476X SUB= 150109
12 123198X SUB= 146525
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
23 11150400 LOCKWASHER
24 4207J CABLE T
25 4206J CABLE-BATTERY T
26 108824X FUSE HYT
28 4799J "CABLE T, BATTERY"
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 140417 HARNESS IGNITION
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 138406 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
45 121433X SUB= 122822X
70 140413 HARNESS ENG DUAL

LT4218B (1995) Page 10 of 25

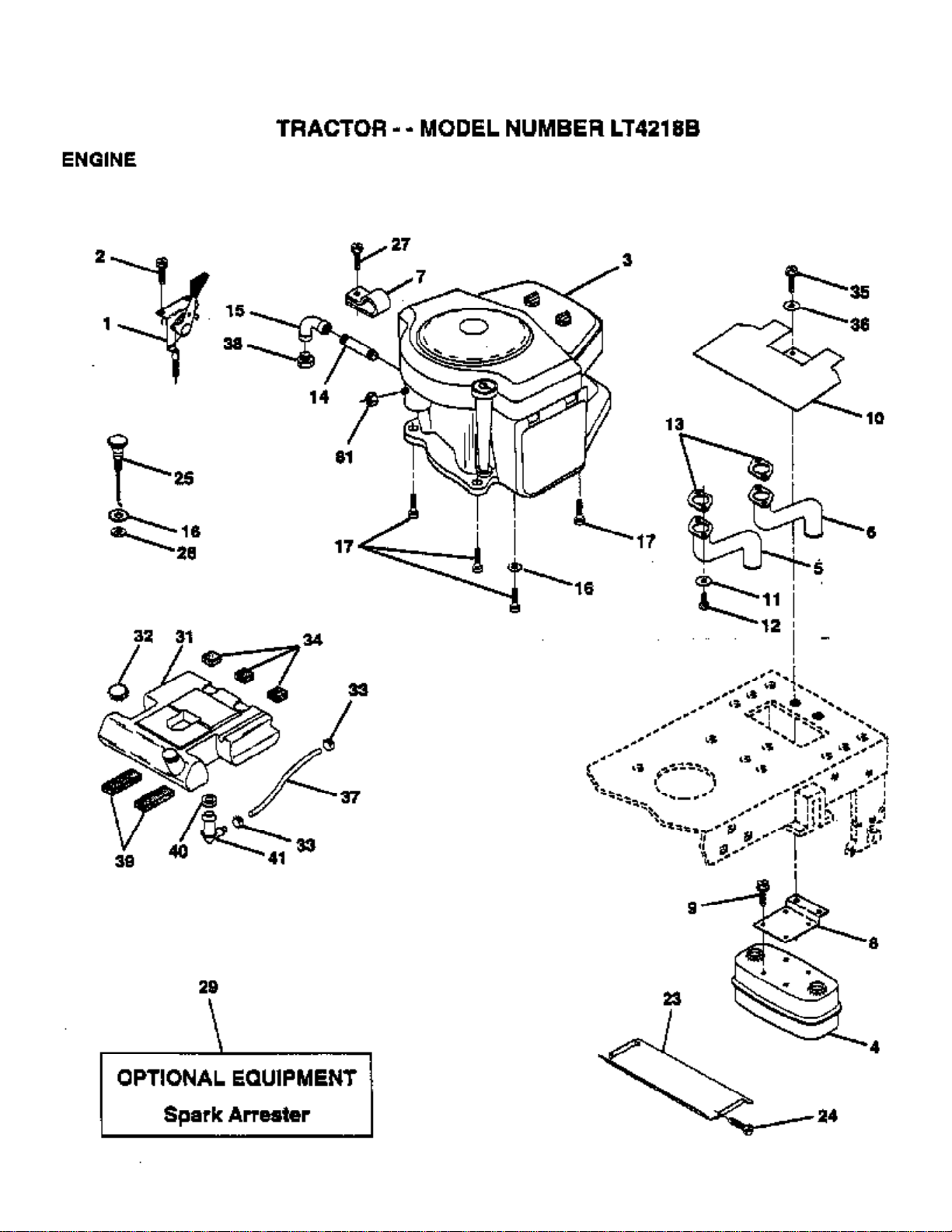

ENGINE

LT4218B (1995) Page 11 of 25
ENGINE

Ref # Part Number Qty Description

1 143443 CONTROL.THT.FLG.

2 17720410 SCREW LT

3 422707 ENGINE B&S 18HP

4 108373X MUFFLER HYT

7 138129 CLAMP.TUBE.DBL.EN
11 10040400 LOCKWASHER
12 74780412 SUB= 74780414
13 8545J SUB= 272250
14 13280336 PIPE NIPPLE LT
15 13200300 ELBOW
16 11050600 LOCKWASHER
17 17490624 SCREW LT
25 132779 CHOKE CONTROL
26 73610600 SUB= 7810H
27 17541008 SCREW.10-24X1/2
28 73510600 NUT
29 137180 SUB= 532137180
31 141291 TANK FUEL 1.9 NAT
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
37 137040 LINE FUEL
38 CHECK WITH SUPPLIER
39 126564X "STRIP,FORM"
42 140020 STRAP TANK FUEL
43 140019 STRAP TANK FRONT
44 17490612 SCREW
47 100229L EXHAUST TUBE T
48 135029 MUFFLER GUARD
49 17490612 SCREW
50 19131616 WASHER HYT
51 72110608 BOLT D
52 73510600 NUT

LT4218B (1995) Page 12 of 25

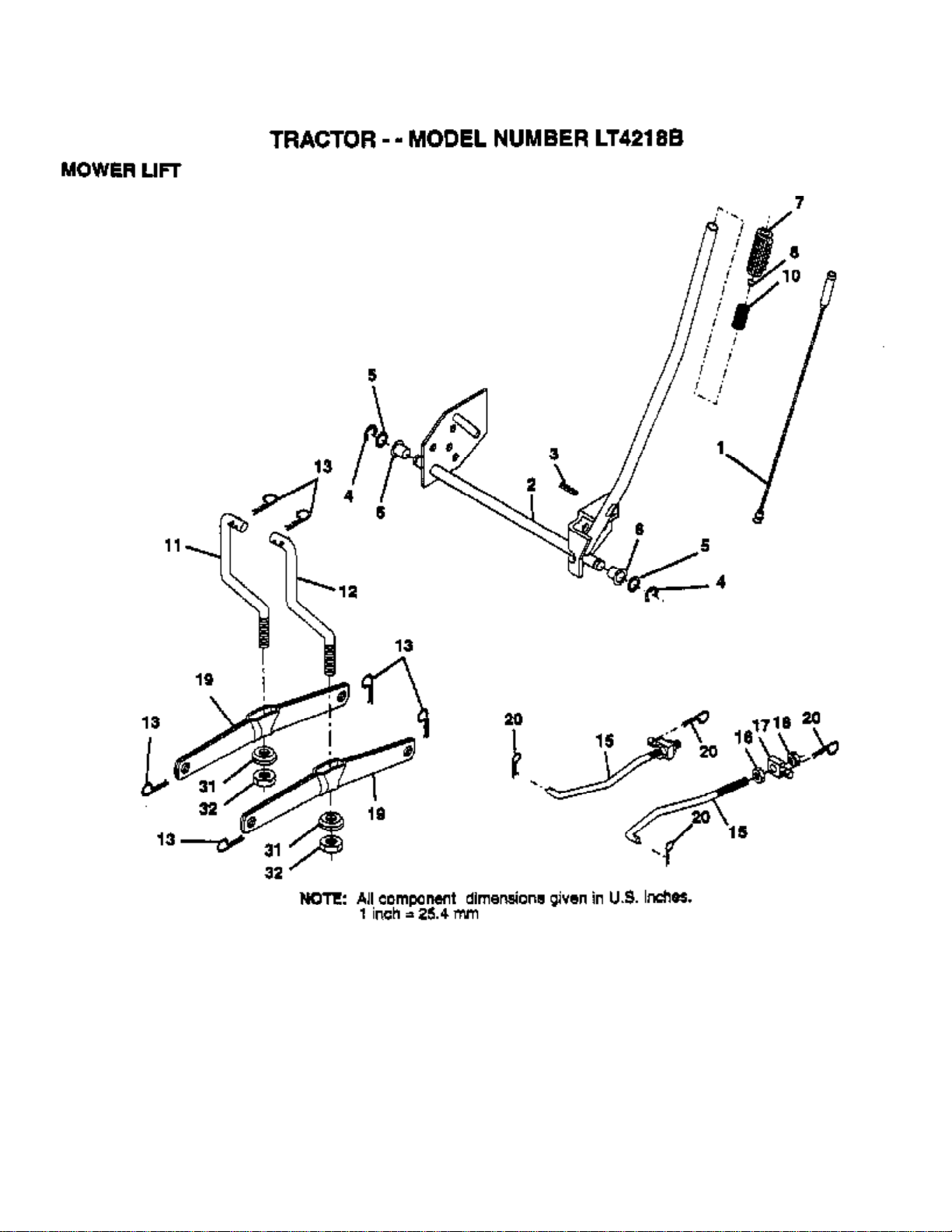

LIFT

LT4218B (1995) Page 13 of 25
LIFT

Ref # Part Number Qty Description

1 136971 WIRE.ASM.INNER

2 136968 SHAFT.ASM.LIFT.RH

3 138284 PIN GROOVE

4 12000002 SUB= 2225J

5 19211621 WASHER

6 120183X NYLON BEARING

7 109413X GRIP

8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73810600 NUT.LOCK.3/8-24

LT4218B (1995) Page 14 of 25

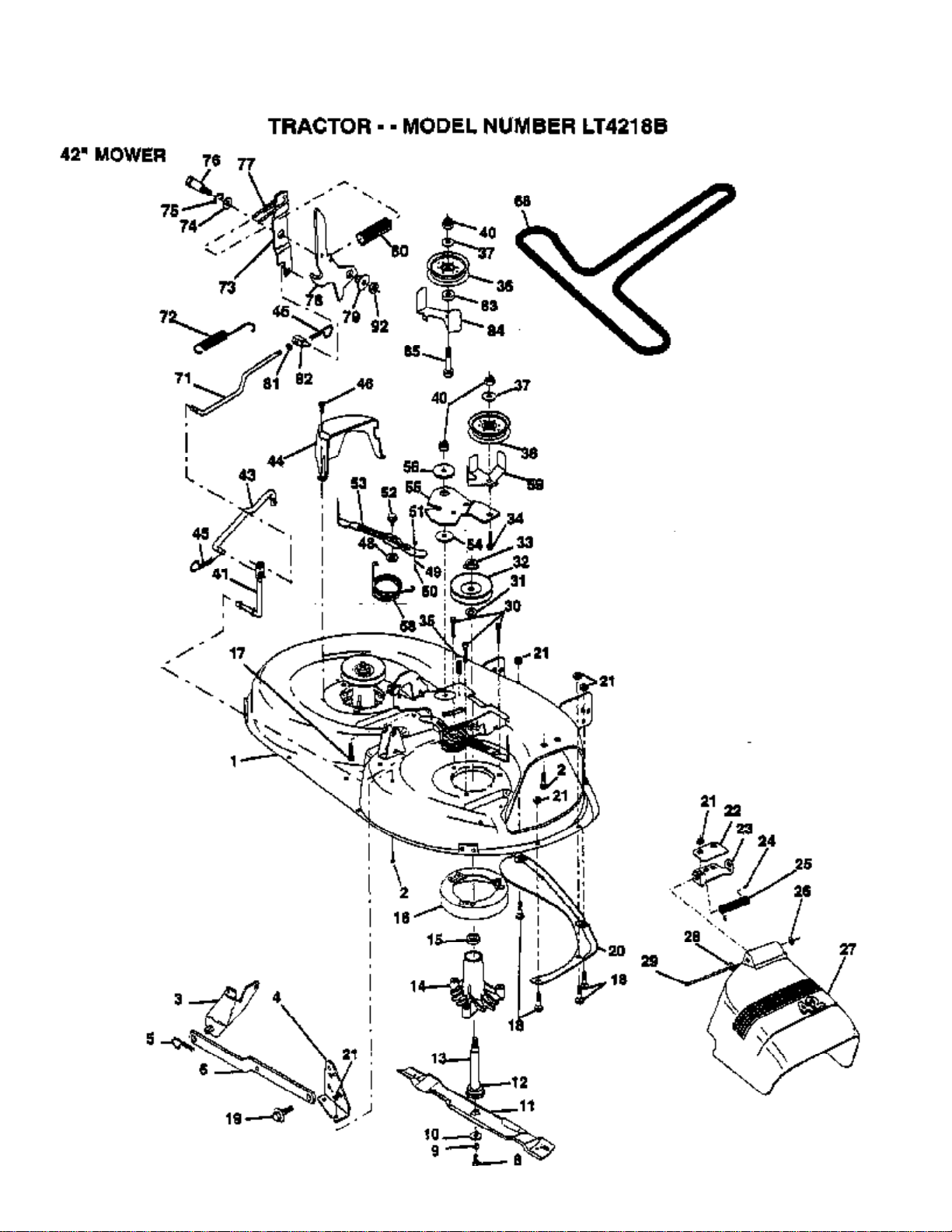

MOWER

LT4218B (1995) Page 15 of 25
MOWER

Ref # Part Number Qty Description

1 144393 DECK.WELD.42.

2 72140506 BOLT

3 138017 BRKT ASM SWAY BAR

4 138440 BRKT DECK SW BAR

5 4939M SUB= 85902

6 130832 SUB= 130833

8 850857 BLADE BOLT

9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 136929 SUB= 140329
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73800500 NUT
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73800600 NUT
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
68 140067 BELT-V MWR 82.625
71 142427 ROD CLUTCH 38/42
72 133435 SPRING EXT
73 127847 CLUTCH ARM SECOND
74 121748X WASHER

LT4218B (1995) Page 16 of 25
MOWER

Ref # Part Number Qty Description

75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140333 SUB= 140333X431
79 127498 BUSHING
80 128759 SUB= 918128759
83 106933X KNOB T (1/2-HOLE)
84 144394 SUB= 156084
90 140090 KEEPER BELT LH 42
92 140086 SPRING TORSN BRAK
94 73350600 NUT
95 142028 TRUNION ADJ

130794 MANDREL ASM
140475 SUB= 145411

LT4218B (1995) Page 17 of 25

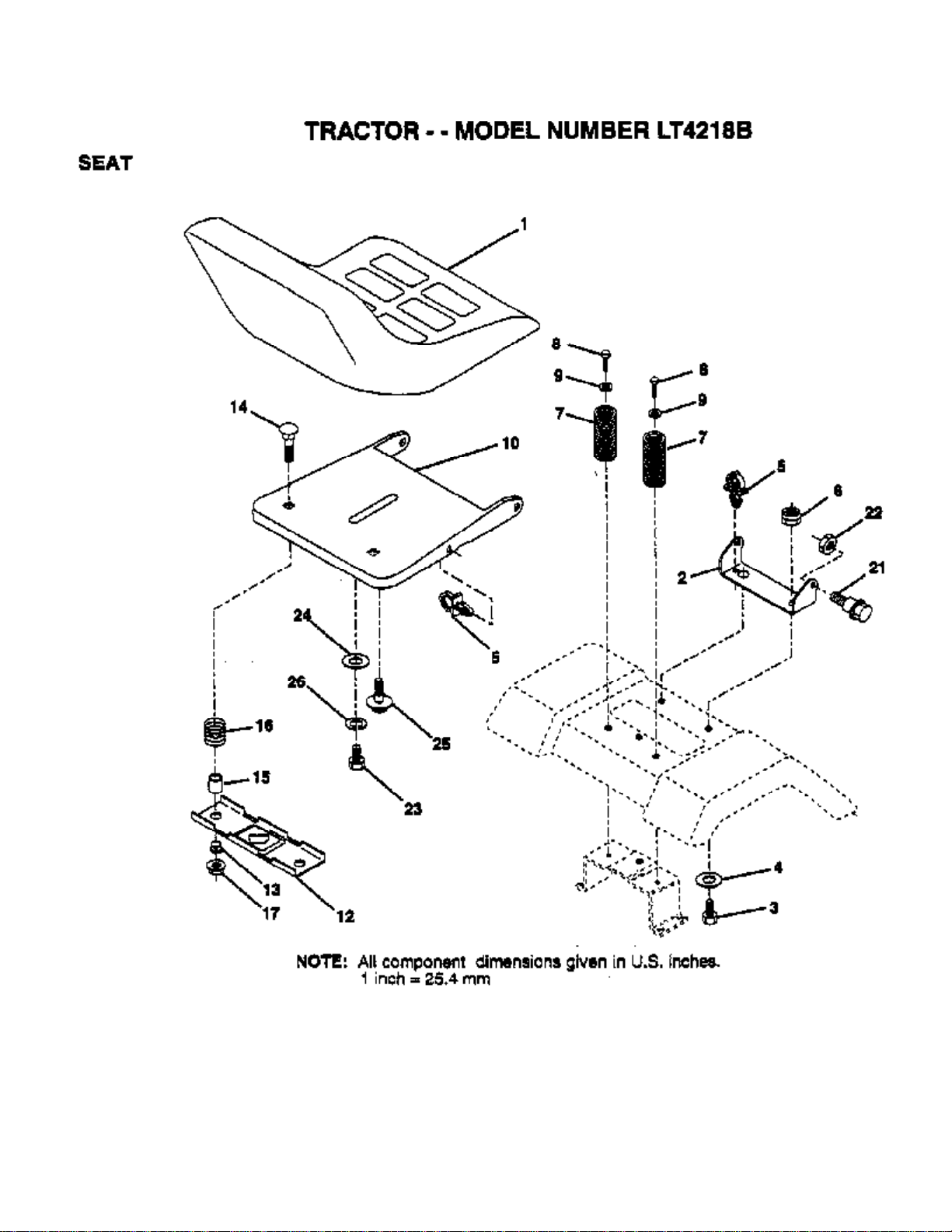

SEAT

LT4218B (1995) Page 18 of 25
SEAT

Ref # Part Number Qty Description

1 127429X SUB= 140121

2 140551 BRACKET PVT SEAT

3 74760616 BOLT

4 19131610 WASHER PM

5 145006 CLIP.PUSH-IN.HING

6 73800600 NUT

7 124181X SPRING COMPRESSIO

8 17490616 SCREW GTV

9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73680500 SUB= 73690500
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER

LT4218B (1995) Page 19 of 25

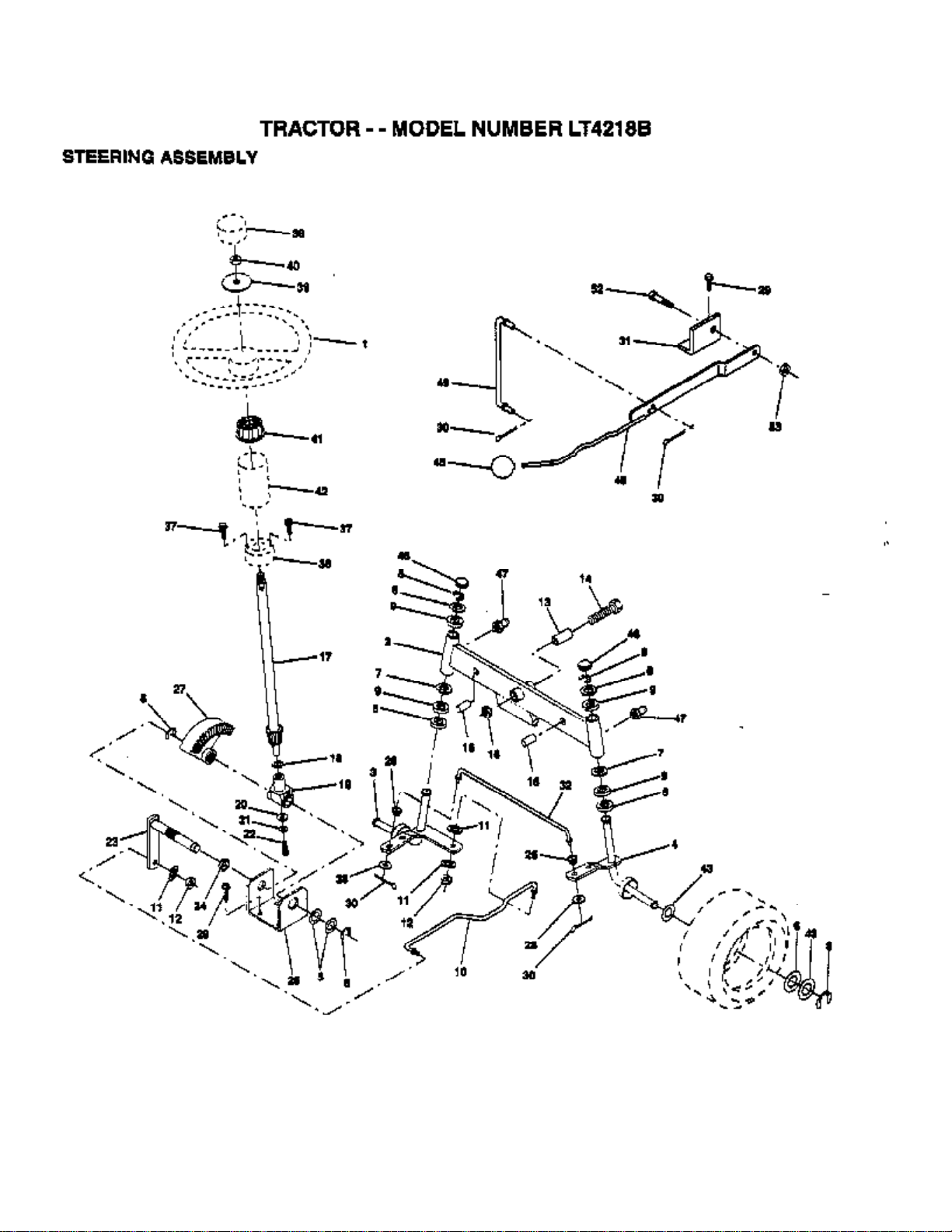

STEERING

LT4218B (1995) Page 20 of 25
STEERING

Ref # Part Number Qty Description

1 133741 SUB= 150547

2 142033 AXLE ASM FRONT

3 135227 SPINDLE LH

4 135228 SPINDLE RH

5 6266H WASHER .T

6 121748X WASHER

7 19272016 WASHER

8 12000029 RING

9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 128755 SHAFT&GEAR STR T
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126487X SUB= 532126487
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
31 138170 BRKT.PVT.MAN.LVR.
32 130465 TIE ROD
36 1554J SUB= 155108
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 100712K WASHER
40 73940800 SUB= 73360800
41 100711L ADAPTER LT
42 110709X COLUMN LT
43 121749X WASHER
45 106933X KNOB T (1/2-HOLE)
46 121232X CAP
47 6855M ZERK M
48 110924X LEVER ASSY T
49 131291 LINK CLTCH W/NUTS
50 76020412 COTTER PIN
52 106451X "BOLT, SHOULDER LT"
53 73680600 SUB= 73690600

LT4218B (1995) Page 21 of 25

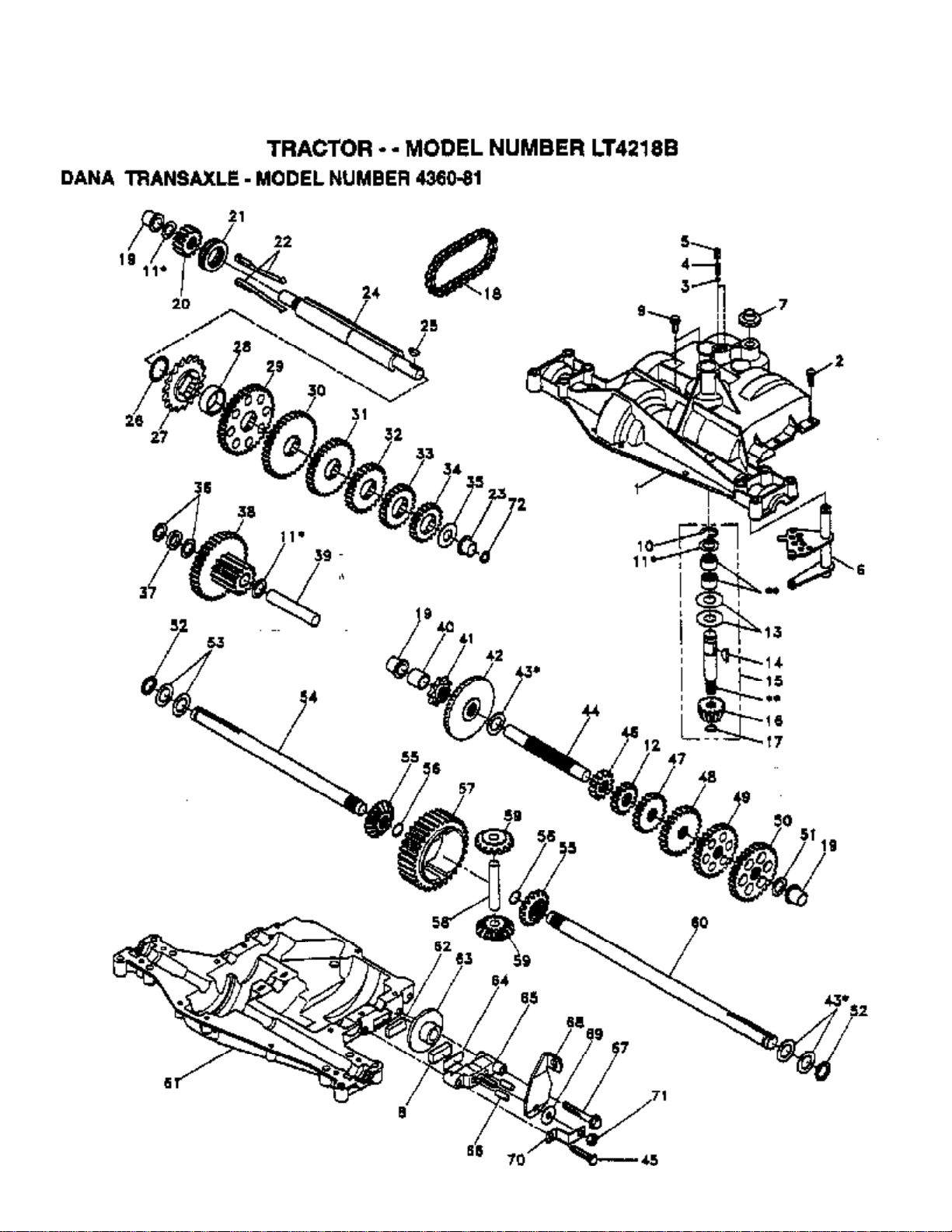

TRANSAXLE

LT4218B (1995) Page 22 of 25
TRANSAXLE

Ref # Part Number Qty Description

1 142671 HOUSING UPPER TRN

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 134788 SHIFTER.ASM.KIT.

7 134399 SHIFTER BOOT

8 120951X PUCK T

9 134791 SCREW TAP W/SEAL
10 142672 SUB= 2225J
11 134793 ASM KIT SHIM 4689
12 142679 GEAR SPUR 15 TTH
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 106846X SUB= 167148
16 106095X SUB= 95-8060-6F
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138237 KIT.ASM.CLUTCH KY
23 143051 SUB= 148268
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 106605X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 106596X "SCREW, TAPPING LT"
46 142678 GEAR SPUR 12 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 120409X GEAR LT
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T

LT4218B (1995) Page 23 of 25
TRANSAXLE

Ref # Part Number Qty Description

59 106592X "GEAR,MITER 15T YT"
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 143045 SEAL OIL DANA5416
73 120416X SUB= 126976X

LT4218B (1995) Page 24 of 25

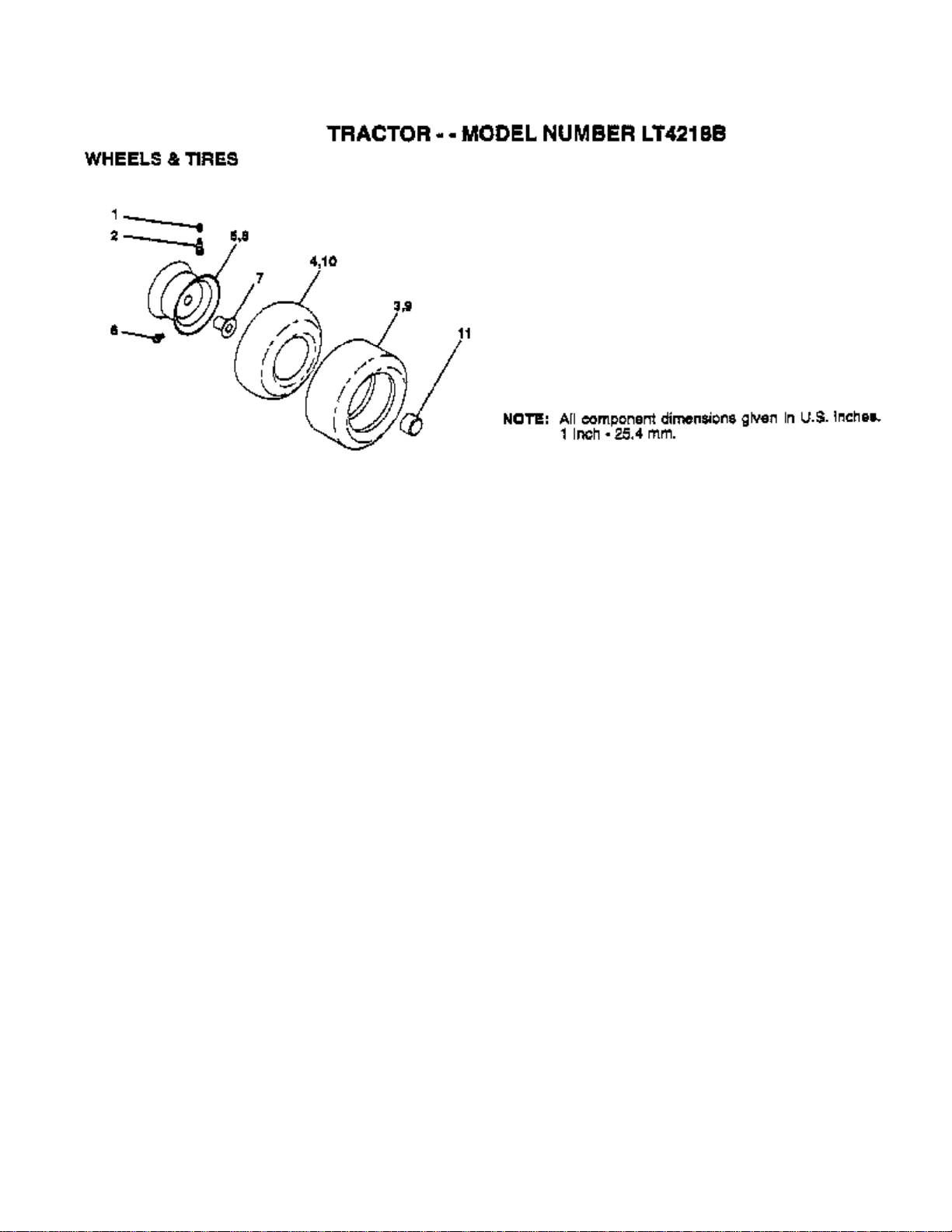

WHEELS AND TIRES

LT4218B (1995) Page 25 of 25
WHEELS AND TIRES

Ref # Part Number Qty Description

1 59192 VALVE CAP

2 65139 VALVE STEM LT

3 106222X SUB= 122073X

4 59904 TUBE.5.3/4.5/6

5 106732X551 "RIM FRT 6"" ASM"

6 278H FITTING LT

7 9040H "FLANGE, BEARING"

8 106108X551 "RIM REAR 8"" ASM"

9 138468 TIRE.20X8-8
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
