AYP LT4218A Parts List

LT4218A (1994) Page 1 of 28
CHASSIS

LT4218A (1994) Page 2 of 28
CHASSIS

Ref # Part Number Qty Description

1 140341 SUB= 145501
2 140356 SUB= 145009
3 17490612 SCREW
6 127543 SUB= 127543X011
7 17490616 SCREW GTV
8 2751R CLIP T

9 136696 SUB= 145203
11 136967 PANEL.DASH.LH
12 121794X COVER ACCESS
13 136952 PANEL DASH RH NOT
15 74180412 SCREW
16 73510400 NUT
17 123801X550 HOOD/GRILLE ASM
19 110898X LENS T
20 132257 SUB= 918132257
21 124201X SCREW SPECIAL
22 108067X PAL NUT LT
23 19131616 WASHER HYT
24 74760612 SUB= 74780612
25 19131312 WASHER
30 140001X550 FENDER PNT
31 139976 BRACKET SUPT FEND
32 17490612 SCREW
33 105465X500 SUB= 145244X500
34 105464X500 SUB= 145243X500
35 72110606 BOLT
36 73680600 SUB= 73690600
37 133671 FOOTREST PAD
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 72110608 BOLT D
41 74760616 BOLT
42 139915 BRACKET.ASM.SUPT.
43 19171416 WASHER
50 73800600 NUT
51 19091216 WASHER PM
52 121236X SPACER
53 72140608 SUB= 72110608
54 74760614 SUB= 74760616
55 74760532 BOLT
58 11050600 LOCKWASHER
59 110350X550 STRAP FENDER ASM
60 140671 GRILLE ASM WELD
61 123674X550 ASSY-PANEL SIDE
62 123765X550 PANEL SIDE LH ASM
64 143118 DASH LOWER
65 140942X011 PLATE DASH SILKSC
66 124046X "BAFFLE,HOOD"
69 140181 PLATE.SUPT.BATTER
70 110436X SUB= 9151R
76 137467 BRACKET.RH
77 137466 BRACKET.LH
78 109458X FOAM STRIP T
79 73800500 NUT
80 74180512 SCREW
81 73510500 NUT
82 19131614 WASHER
86 110923X BRACKET LT

LT4218A (1994) Page 3 of 28
CHASSIS

Ref # Part Number Qty Description

87 139977 SPACER FENDER LT
88 139978 PLATE EXTEN FEND

108 135029 MUFFLER GUARD
110 17490616 SCREW GTV

LT4218A (1994) Page 4 of 28
DECALS

LT4218A (1994) Page 5 of 28
DECALS

Ref # Part Number Qty Description

1 141901 DECAL INST OP DAS

2 136830 DECAL.V.BELT

3 143219 DECAL LOGO GRILLE

5 140837 DECAL BRAK PARK

6 141898 DECAL CAUT FEND

7 141897 DECAL CLUT/BRAKE

8 143220 DECAL FEND QUICK
10 143214 DECAL HD RH
11 141872 DECAL DANGER CT/F
12 143216 DECAL CHASSIS KGR
13 143303 SUB= 272270
14 135429 DECAL.ENG.272757
15 143215 DECAL HD LH
18 139443 DECAL.ENG.272101
19 139697 SUB= 272629
20 143221 DECAL DECK MULCH

138311 DECAL HANDLE LIFT
143489 MANUAL.O.LT4218A
143490 MANUAL.O.LT4218A
C42 GRASS CATCHER
LC05 WHEEL WTS.
MP42 SUB= MP42A
LSB42 SNOW THROWER
LBD48 SNOW BLADE
CH208 TIRE CHAINS

LT4218A (1994) Page 6 of 28
DRIVE

LT4218A (1994) Page 7 of 28
DRIVE

Ref # Part Number Qty Description

1 142607 SUB= 145605

2 110422X SUB= 146682

3 123667X "PULLEY,TRANSAXLE"

4 12000028 SUB= 2267J

5 121520X STRAP TORQUE

6 17490512 SCREW

8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 71040412 SUB= 74550412
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
16 73800500 NUT
17 121520X STRAP TORQUE
18 74760616 BOLT
19 73800600 NUT
20 17490512 SCREW
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
23 73800600 NUT
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 133261 BRAKE PARK ROD
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
33 73800500 NUT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73800600 NUT
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 19131316 WASHER
53 105710X "LINK, CLUTCH T"
54 76020412 COTTER PIN
55 105709X "SPRING, RETURN LT"
56 76020412 COTTER PIN
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
60 19131312 WASHER

LT4218A (1994) Page 8 of 28
DRIVE

Ref # Part Number Qty Description

61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
68 19131312 WASHER
69 73680600 SUB= 73690600
70 134683 KEEPER BELT ENG
71 74760616 BOLT
72 19132012 WASHER
73 73680600 SUB= 73690600
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
80 131487 ARM SHIFT TRANS
81 136933 SHAFT ASM.SHIFT
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 132183 TIE ROD
85 73530400 NUT 1/4-28
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 139964 SUB= 918139964
90 124346X NUT
95 17490612 SCREW

100 19111216 WASHER M

LT4218A (1994) Page 9 of 28
ELECTRICAL

LT4218A (1994) Page 10 of 28
ELECTRICAL

Ref # Part Number Qty Description

1 1212654 BATTERY

2 74760412 BOLT LT

3 19091016 WASHER

4 10040400 LOCKWASHER

5 121264X "CAP,BATTERY "

6 73220400 SUB= 50675

7 7697J "DRAIN TU T, BATT"

8 7603J "TRAY T, BATTERY"

9 109596X HOSE CLAMP T
10 72240460 BOLT
11 102476X SUB= 150109
12 123198X SUB= 146525
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
23 11150400 LOCKWASHER
24 4207J CABLE T
25 4206J CABLE-BATTERY T
26 108824X FUSE HYT
28 4799J "CABLE T, BATTERY"
29 121305X SWITCH SEAT
30 140399 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
37 104445X SWITCH-INTER. GT
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 140416 HARNESS IGN DASH
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 138406 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
45 121433X SUB= 122822X
70 140413 HARNESS ENG DUAL

LT4218A (1994) Page 11 of 28
ENGINE

LT4218A (1994) Page 12 of 28
ENGINE

Ref # Part Number Qty Description

1 137214 CONTROL.THROTTL

2 17720410 SCREW LT

3 422707 ENGINE B&S 18HP

4 73510600 NUT

5 11050600 LOCKWASHER

6 108373X MUFFLER HYT
11 10040400 LOCKWASHER
12 100229L EXHAUST TUBE T

12A 74780412 SUB= 74780414

13 8545J SUB= 272250
14 13280336 PIPE NIPPLE LT
15 13200300 ELBOW
17 17490624 SCREW LT
23 128953 HEAT SHIELD
24 17021008 SCREW
27 2751R CLIP T
29 137180 SUB= 532137180
31 141291 TANK FUEL 1.9 NAT
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
34 126564X "STRIP,FORM"
37 137040 LINE FUEL
38 CHECK WITH SUPPLIER
39 140020 STRAP TANK FUEL
40 140019 STRAP TANK FRONT
41 17490612 SCREW
42 132779 CHOKE CONTROL
43 73610600 SUB= 7810H

LT4218A (1994) Page 13 of 28
LIFT

LT4218A (1994) Page 14 of 28
LIFT

Ref # Part Number Qty Description

1 136971 WIRE.ASM.INNER

2 136968 SHAFT.ASM.LIFT.RH

3 138284 PIN GROOVE

4 12000002 SUB= 2225J

5 19211416 WASHER

6 120183X NYLON BEARING

7 109413X GRIP

8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73810600 NUT.LOCK.3/8-24

LT4218A (1994) Page 15 of 28
MOWER

LT4218A (1994) Page 16 of 28
MOWER

Ref # Part Number Qty Description

1 140081 SUB= 144393

2 72140506 BOLT

3 138017 BRKT ASM SWAY BAR

4 138440 BRKT DECK SW BAR

4A 132827 BOLT SHD 5/16-18

5 4939M SUB= 85902

6 130832 SUB= 130833

7 73800500 NUT

8 850857 BLADE BOLT

9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 134149 "BLADE.42"" MULCHER"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 136929 SUB= 140329
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 73800500 NUT
20 136888 SUB= 918136888
21 73800500 NUT
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73800600 NUT
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
68 140067 BELT-V MWR 82.625
71 142427 ROD CLUTCH 38/42
72 133435 SPRING EXT
73 127847 CLUTCH ARM SECOND
74 121748X WASHER

LT4218A (1994) Page 17 of 28
MOWER

Ref # Part Number Qty Description

75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140333 SUB= 140333X431
79 127498 BUSHING
80 128759 SUB= 918128759
83 106933X KNOB T (1/2-HOLE)
90 140090 KEEPER BELT LH 42
91 141043 GUARD IDLER TUV
92 140086 SPRING TORSN BRAK
94 73350600 NUT
95 142028 TRUNION ADJ

130794 MANDREL ASM
140475 SUB= 145411

LT4218A (1994) Page 18 of 28
SCHEMATIC

LT4218A (1994) Page 19 of 28
SCHEMATIC

Ref # Part Number Qty Description

REFER TO IMAGE

LT4218A (1994) Page 20 of 28

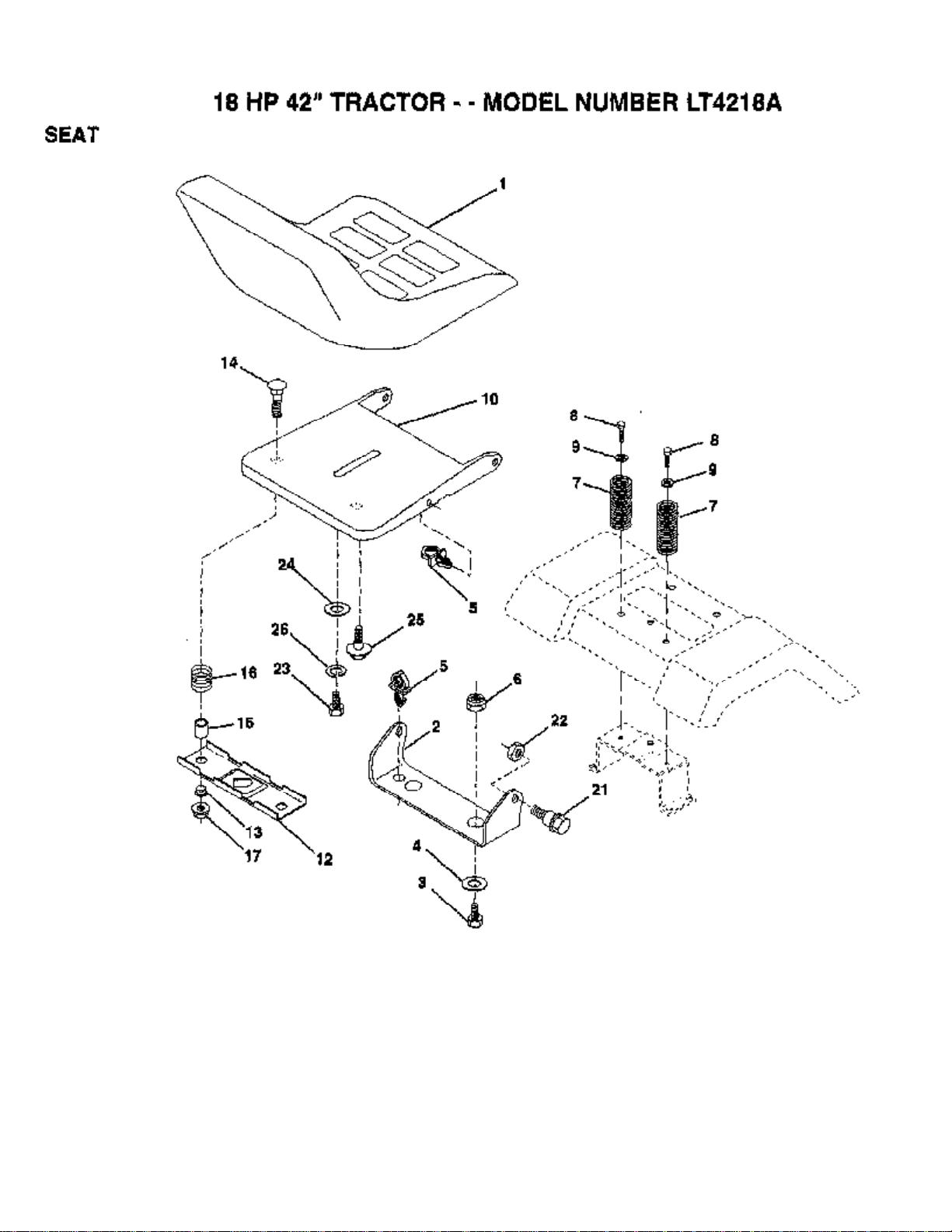

SEAT

LT4218A (1994) Page 21 of 28
SEAT

Ref # Part Number Qty Description

1 127429 SUB= 140121

2 140551 BRACKET PVT SEAT

3 74760616 BOLT

4 19131610 WASHER PM

5 140407 CLIP PUSH - IN

6 73800600 NUT

7 124181X SPRING COMPRESSIO

8 17490616 SCREW GTV

9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73680500 SUB= 73690500
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER

LT4218A (1994) Page 22 of 28
STEERING

LT4218A (1994) Page 23 of 28
STEERING

Ref # Part Number Qty Description

1 133741 SUB= 150547

2 142033 AXLE ASM FRONT

3 135227 SPINDLE LH

4 135228 SPINDLE RH

5 6266H WASHER .T

6 121748X WASHER

7 19272016 WASHER

8 12000029 RING

9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 128755 SHAFT&GEAR STR T
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 12000029 RING
27 136874 GEAR SECTOR
28 6266H WASHER .T
29 17490612 SCREW
30 10040600 LOCKWASHER
31 73610600 SUB= 7810H
32 130465 TIE ROD
33 126487 BUSHING LINK DRAG BLK
34 19131416 WASHER
35 76020412 COTTER PIN
36 1554J SUB= 155108
37 17431008 SUB= 98000165
38 133712 INSERT, CAP
39 100712K WASHER
40 73940800 SUB= 73360800
41 100711L ADAPTER LT
42 110709X COLUMN LT
43 121749X WASHER
44 121748X WASHER
45 12000029 RING
46 121232X CAP
47 6855M ZERK M
48 17490612 SCREW
49 131291 LINK CLTCH W/NUTS
50 76020412 COTTER PIN
51 110924X LEVER ASSY T
52 106451X "BOLT, SHOULDER LT"
53 73680600 SUB= 73690600
54 106933X KNOB T (1/2-HOLE)
55 138170 BRKT.PVT.MAN.LVR.

LT4218A (1994) Page 24 of 28
TRANSAXLE

LT4218A (1994) Page 25 of 28
TRANSAXLE

Ref # Part Number Qty Description

1 142671 HOUSING UPPER TRN

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 134788 SHIFTER.ASM.KIT.

7 134399 SHIFTER BOOT

8 120951X PUCK T

9 134791 SCREW TAP W/SEAL
10 142672 SUB= 2225J
11 134793 ASM KIT SHIM 4689
12 142679 GEAR SPUR 15 TTH
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 106846X SUB= 167148
16 106095X SUB= 95-8060-6F
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138237 KIT.ASM.CLUTCH KY
23 143051 SUB= 148268
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 106605X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 106596X "SCREW, TAPPING LT"
46 142678 GEAR SPUR 12 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 120409X GEAR LT
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T

LT4218A (1994) Page 26 of 28
TRANSAXLE

Ref # Part Number Qty Description

59 106592X "GEAR,MITER 15T YT"
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 143045 SEAL OIL DANA5416
73 120416X SUB= 126976X

LT4218A (1994) Page 27 of 28
WHEELS AND TIRES

LT4218A (1994) Page 28 of 28
WHEELS AND TIRES

Ref # Part Number Qty Description

1 59192 VALVE CAP

2 65139 VALVE STEM LT

3 106222X SUB= 122073X

4 59904 TUBE.5.3/4.5/6

5 106732X551 "RIM FRT 6"" ASM"

6 278H FITTING LT

7 9040H "FLANGE, BEARING"

8 106108X551 "RIM REAR 8"" ASM"

9 138468 TIRE.20X8-8
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
