LT4216D (1995) Page 1 of 27
42" MOWER DECK
LT4216D (1995) Page 2 of 27
42" MOWER DECK
Ref # Part Number Qty Description
1 144393 DECK.WELD.42.
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
67 106932X KNOB T(3/8 HOLE)
68 144200 BELT.V.T-PATH
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
LT4216D (1995) Page 3 of 27
42" MOWER DECK
Ref # Part Number Qty Description
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140334 SUB= 154810
79 127498 BUSHING
80 128759 SUB= 918128759
81 73350600 NUT
82 142028 TRUNION ADJ
83 120958X WASHER
84 144394 SUB= 156084
85 72140620 BOLT
92 73800600 NUT
130794 MANDREL ASM
144783 SUB= 164962
LT4216D (1995) Page 4 of 27
CHASSIS/ENCLOSURES
LT4216D (1995) Page 5 of 27
CHASSIS/ENCLOSURES
Ref # Part Number Qty Description
1 145501 CHASSIS.WLD.11GA
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 146077 SUB= 155272
6 145206 SUB= 145206X431
8 126471X "CLIP,INSULATOR"
9 146757X012 DASH.SLKSC.LT.1PC
10 72140608 SUB= 72110608
11 135464 DASH PANEL LH
13 124031X012 SUB= 155934X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 146460X550 HOOD/SD.PNLS.KGRO
18 126938X SUB= 532126938
20 145210 PLATE.MTG.BTRY.TK
23 124028X SUB= 532124028
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 133951 GRILLE.RALLY.BAR.
29 133805 SUB= 133954
30 140001X550 FENDER PNT
31 139976 BRACKET SUPT FEND
33 145244X500 FOOTREST.LH.LT/GT
34 145243X500 FOOTREST.RH.LT/GT
35 72110606 BOLT
36 108067X PAL NUT LT
37 17490508 SCREW LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
41 139978 PLATE EXTEN FEND
45 132257 SUB= 918132257
46 127316X RETAINER
60 72140606 BOLT
61 19171416 WASHER
62 141606 CLIP.WIRE
72 109745X550 STRAP.GRILLE.PNT.
5479J PLUG BUTTON T
LT4216D (1995) Page 6 of 27
DANA TRANSAXLE
LT4216D (1995) Page 7 of 27
DANA TRANSAXLE
Ref # Part Number Qty Description
1 142671 HOUSING UPPER TRN
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 138235 KIT SHIFTER ASM
7 134399 SHIFTER BOOT
8 120951X PUCK T
9 148266 SUB= 105911X
10 2225J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 143679 PLUG.PLASTIC
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 106846X SUB= 167148
16 106095X SUB= 95-8060-6F
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 148267 CLUTCH.COL.5467
22 138237 KIT.ASM.CLUTCH KY
23 148268 BEARING.FLNG.5511
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 124644X GEAR SPUR 30T
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 106605X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 106596X "SCREW, TAPPING LT"
46 142678 GEAR SPUR 12 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
LT4216D (1995) Page 8 of 27
DANA TRANSAXLE
Ref # Part Number Qty Description
59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 148269 SEAL.OIL.DAN.5508
73 120416X SUB= 126976X
LT4216D (1995) Page 9 of 27
DECALS
LT4216D (1995) Page 10 of 27
DECALS
Ref # Part Number Qty Description
REFER TO IMAGE
1 141901 DECAL INST OP DAS
2 146463 DECAL.INST.WHL.ST
3 143219 DECAL LOGO GRILLE
4 141898 DECAL CAUT FEND
5 141897 DECAL CLUT/BRAKE
6 143216 DECAL CHASSIS KGR
7 133671 FOOTREST PAD
8 143217 DECAL.HD.RH.KGRO
9 143218 DECAL.HOOD.LH.KGR
10 136832 DECAL
11 143222 DECAL.GRILLE.KGRO
12 143221 DECAL DECK MULCH
13 140837 DECAL BRAK PARK
16 143220 DECAL FEND QUICK
17 143303 SUB= 272270
18 141872 DECAL DANGER CT/F
138311 DECAL HANDLE LIFT
147954 MANUAL.O.LT4216C
147955 MANUAL.O.LT4216C
C42 GRASS CATCHER
LSB42 SNOW THROWER
MP42 SUB= MP42A
CH208 TIRE CHAINS
LBD48 SNOW BLADE
LC05 WHEEL WTS.
LT4216D (1995) Page 11 of 27
DRIVE
LT4216D (1995) Page 12 of 27
DRIVE
Ref # Part Number Qty Description
1 145605 SUB= 161899
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
54 2751R CLIP T
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
LT4216D (1995) Page 13 of 27
DRIVE
Ref # Part Number Qty Description
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
80 131487 ARM SHIFT TRANS
81 136933 SHAFT ASM.SHIFT
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 132183 TIE ROD
85 73530400 NUT 1/4-28
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 139964 SUB= 918139964
90 124346X NUT
100 19111216 WASHER M
LT4216D (1995) Page 14 of 27

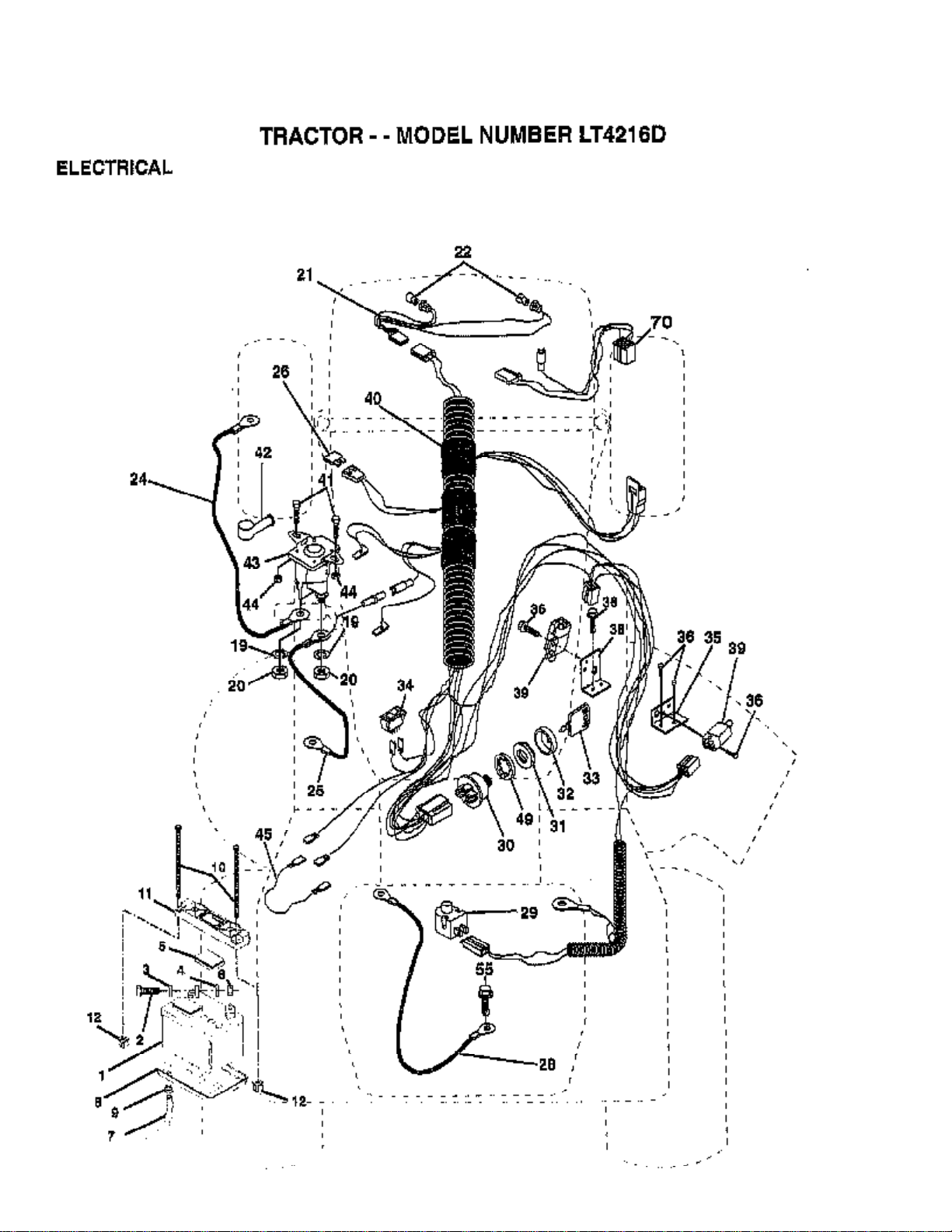

ELECTRICAL
LT4216D (1995) Page 15 of 27
ELECTRICAL
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
5 121264X "CAP,BATTERY "
6 73220400 SUB= 50675
7 7697J "DRAIN TU T, BATT"
8 7603J "TRAY T, BATTERY"
9 109596X HOSE CLAMP T
10 145211 SUB= 150177
11 145209 SUB= 150109
12 145769 SUB= 150177
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4206J CABLE-BATTERY T
25 146148 CABLE.6GA.22W/16W
26 108824X FUSE HYT
28 145491 CABLE.GRND.6GA.21
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 146057 HARNESS.IGN.DASH.
41 71110412 BOLT.HX.1/4-20
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73510400 NUT
45 140844 ADAPTER AMMETER
49 11151000 LOCKWASHER
55 17490508 SCREW LT
70 140413 HARNESS ENG DUAL
LT4216D (1995) Page 16 of 27

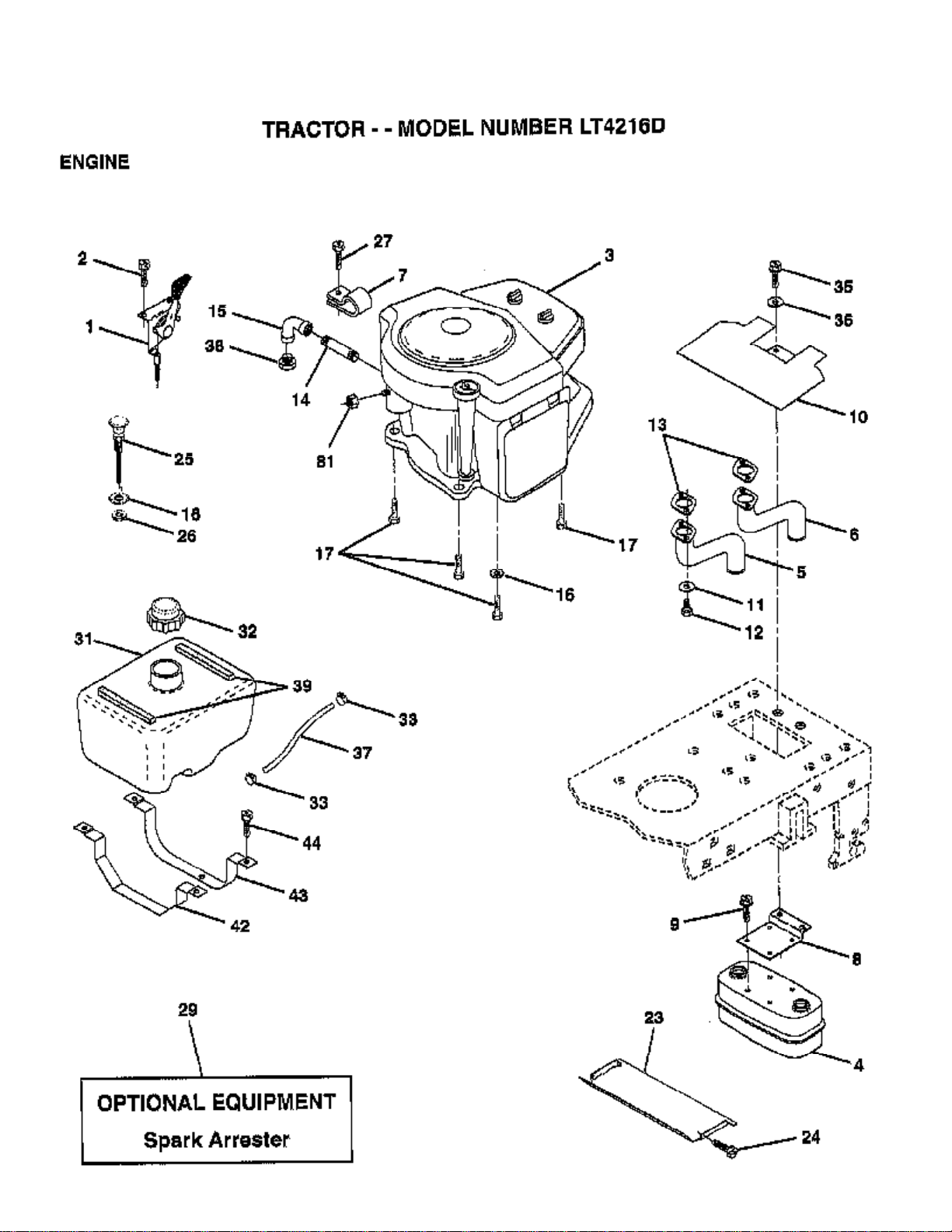

ENGINE
LT4216D (1995) Page 17 of 27
ENGINE
Ref # Part Number Qty Description
1 143443 CONTROL.THT.FLG.
2 17720410 SCREW LT
3 CHECK WITH SUPPLIER
4 137978 SUB= 149723
5 144069 EXHAUST.B&S.18.LH
6 144068 EXHAUST.B&S.18.RH
7 138129 CLAMP.TUBE.DBL.EN
8 122439X BRACKET MUFFLER
9 17190408 SCREW ST
10 145552 SHIELD.HEAT.
11 100040400 SUB= 10040400
12 74780412 SUB= 74780414
13 8545J SUB= 272250
14 13280336 PIPE NIPPLE LT
15 13200300 ELBOW
16 11050600 LOCKWASHER
17 17490624 SCREW LT
23 128953 HEAT SHIELD
24 17021008 SCREW
25 145996 CONTROL.CHOKE.37
26 73610600 SUB= 7810H
27 17541008 SCREW.10-24X1/2
29 137180 SUB= 532137180
31 141291 TANK FUEL 1.9 NAT
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
35 17490512 SCREW
36 19132012 WASHER
37 8548R FUEL LINE T
38 CHECK WITH SUPPLIER
39 126564X "STRIP,FORM"
42 140020 STRAP TANK FUEL
43 140019 STRAP TANK FRONT
44 17490612 SCREW
81 73510400 NUT
LT4216D (1995) Page 18 of 27

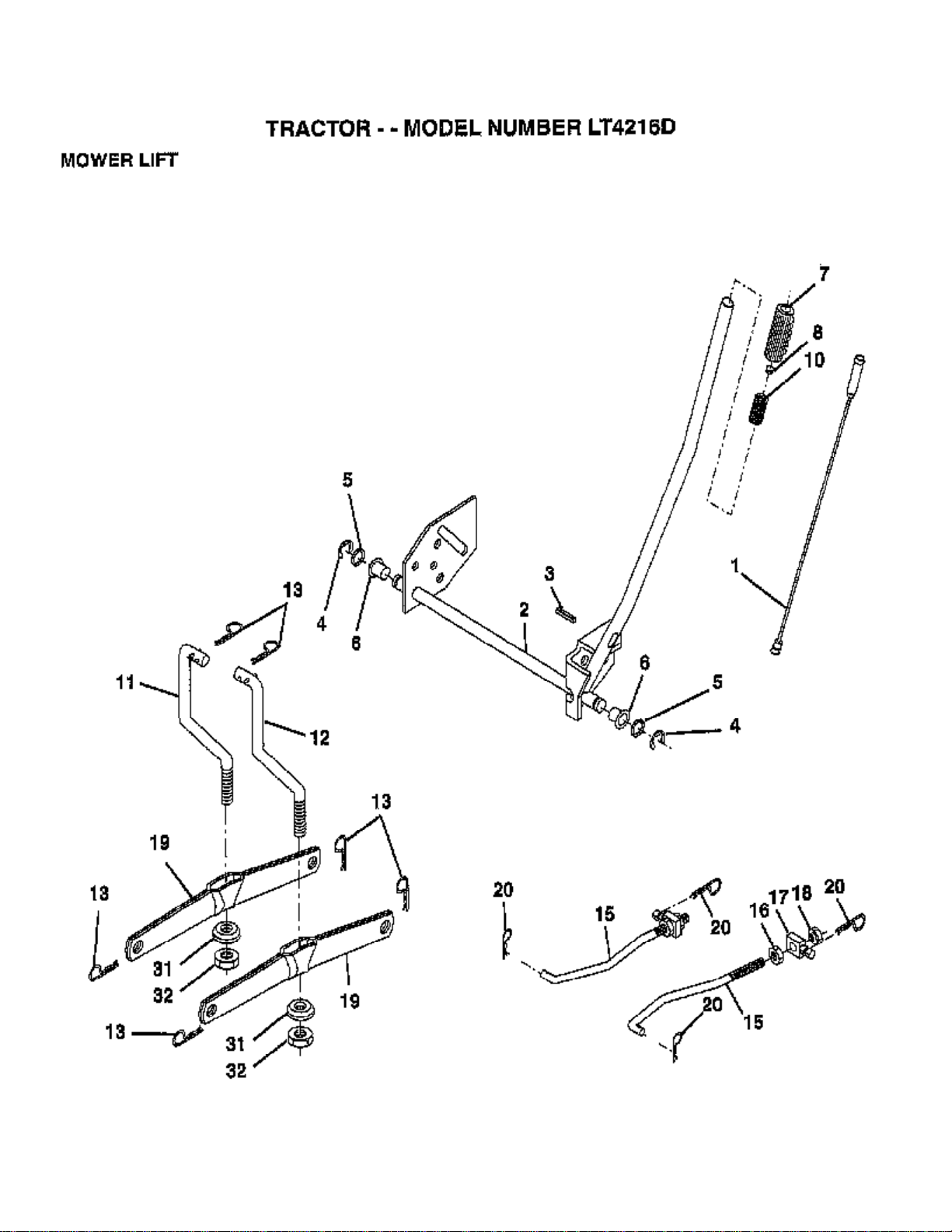

MOWER LIFT
LT4216D (1995) Page 19 of 27
MOWER LIFT
Ref # Part Number Qty Description
1 136973 WIRE ASM
2 122507X SUB= 145117
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
33 73540600 NUT.CROWNLOCK.3/8
LT4216D (1995) Page 20 of 27

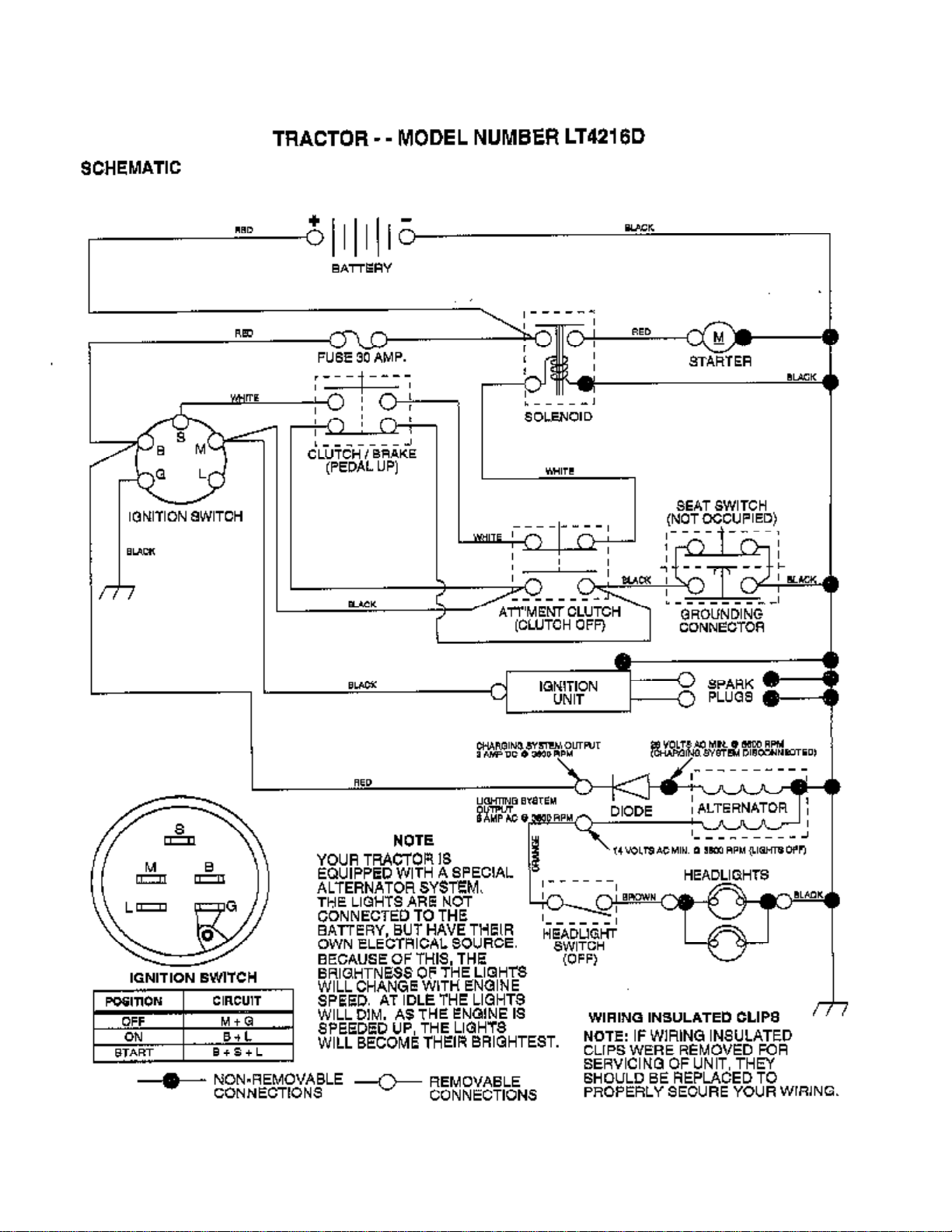

SCHEMATIC
LT4216D (1995) Page 21 of 27
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
LT4216D (1995) Page 22 of 27

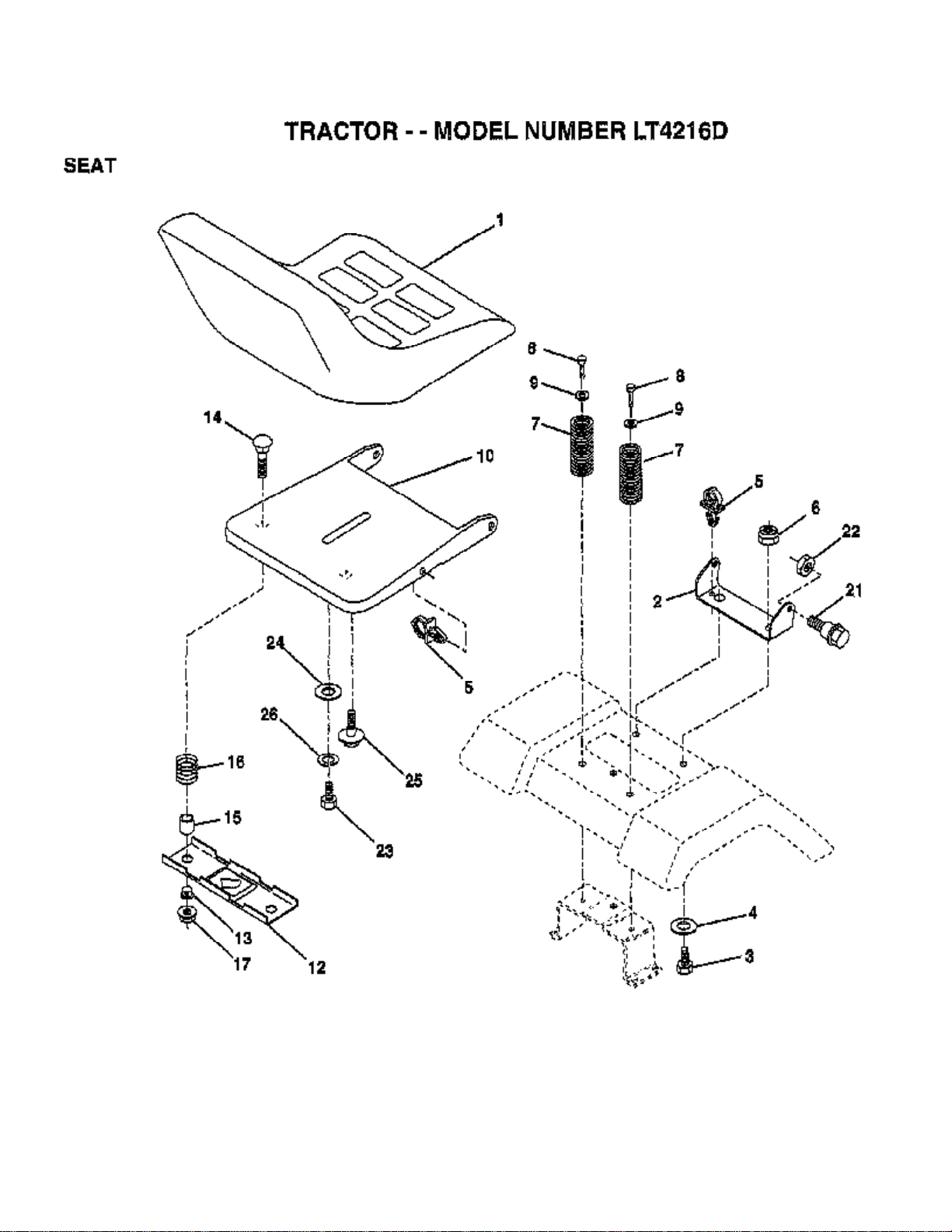

SEAT
LT4216D (1995) Page 23 of 27
SEAT
Ref # Part Number Qty Description
1 127428 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
LT4216D (1995) Page 24 of 27
STEERING ASSEMBLY
LT4216D (1995) Page 25 of 27
STEERING ASSEMBLY
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 132614 SHAFT ASM
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 132196 SUB= 155106
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
46 121232X CAP
47 6855M ZERK M
LT4216D (1995) Page 26 of 27
WHEELS/TIRES
LT4216D (1995) Page 27 of 27
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X551 "RIM FRT 6"" ASM"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X551 "RIM REAR 8"" ASM"
9 138468 TIRE.20X8-8
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
