LT150 (1999 & Before) Page 1 of 24
CHASSIS/ENCLOSURES
LT150 (1999 & Before) Page 2 of 24
CHASSIS/ENCLOSURES
Ref # Part Number Qty Description
1 532169830 CHASSIS STAMPING
2 532169061 DRAWBAR
3 817060612 SUB=17060612
5 532155272 SUB= 155272
9 532171708 DASH
10 872140608 BOLT CARRIAGE 3/8-16X1
11 532155927 SUB= 155927
13 532172108 PANEL DASH
17 532165378 HOOD
18 532126938 "BUMPER,HOOD T"
20 532156437 SUB= 156437
23 532124028 GROMMET T
25 819131312 WASHER
26 873800600 LOCKNUT
28 532165379 GRILLE
29 532165380 LENS
30 532171854 FENDER FOOTREST
31 532139976 SUB= 139976
37 817490508 SCREW, 5/16-18 X 1/2 HEX, SELF TAPPING
38 532169834 BRK ASM
51 873800400 NUT LOCK HEX W/INS 1/4-20
52 819091416 WASHER 9/32 X 7/8 X 16 GA
53 532150067 SUB= 150067X431
57 874780412 BOLT HEX 1/4-20 X 3/4
58 532150127 SUB= 150127
60 872140606 BOLT
64 532154798 SUB= 154798
68 873510400 LOCKNUT
71 873680400 NUT CROWNLOCK 1/4-20
74 873680600 NUT, CROWNLOCK 3/8-16
114 532158112 KEEPER BELT REAR
115 817060620 SCREW
129 819091016 WASHER 9/32 X 5/8 X 16 GA.
134 532160219 "ROD-SUPPORT,HOOD"
142 532165867 PLATE.REINFORCEMENT
143 532154966 SUB= 154966
144 532154207 SUB= 154207
145 532156524 SUB= 156524
206 532170165 BOLT SHOULDER
207 817670508 SCREW
208 817670608 SCREW
211 532145212 SUB= 145212
532005479 SUB= 5479J
LT150 (1999 & Before) Page 3 of 24
DECALS
LT150 (1999 & Before) Page 4 of 24
DECALS
Ref # Part Number Qty Description
1 532156368 DECAL.FENDER.ST.LT.OPER.INST
2 532168869 DECAL, TICK MARK
3 532155863 "DECAL HOOD,RH"
4 532155864 "DECAL HOOD,LH"
5 532171921 DECAL, HP ENGINE
6 532124433 SUB= 124433X
9 532150617 DECAL.FENDER.
10 532157002 "DECAL-FENDER,DANG"
12 532159713 SUB= 159713
14 532160396 "DECAL-SCHEM,BELT"
20 532145005 SUB= 145005
532171284 PAD FOOTREST
532171285 PAD FOOTREST
532138311 SUB= 138311
532173147 MANUAL OWNERS
LT150 (1999 & Before) Page 5 of 24
DRIVE
LT150 (1999 & Before) Page 6 of 24
DRIVE
Ref # Part Number Qty Description
1 SUPPLIER CHECK WITH SUPPLIER
2 532146682 SUB= 146682
3 532123666 SUB= 123666X
4 812000028 RING, RETAINER
5 532121520 SUB= 121520X
6 817060512 SCREW
8 532165866 ROD.SHIFT.FENDER.ADJ
10 876020416 PIN COTTER 1/8 X 1 CAD
11 5321025701 WASHER
13 874550412 BOLT 1/4-28 GR 8 W/PATCH
14 810040400 WASHER, LOCK 1/4
16 873800500 LOCKNUT
18 874780616 BOLT FIN HEX 3/8-16 X 1
19 873800600 LOCKNUT
21 532140845 SUB= 140845
22 532130804 SUB= 130804
24 873350600 NUT HEX JAM 3/8-16 UNC
25 532106888 SUB= 106888X
26 819131316 WASHER 13/32 X 13/16 X 16 GA
27 876020412 PIN COTTER 1/8 X 3/4 CAD
28 532145204 SUB= 145204
29 532071673 SUB= 71673
30 532169592 BRK MTG TRANSAXLE
32 874760512 BOLT, HEX 5/16-18 X 3/4
34 532155071 SUB= 155071
35 532120183 SUB= 120183X
36 819211616 WASHER 21/32 X 1 X 16 GA
37 532124963 SUB= 2882J
38 532131494 SUB= 131494
39 872110622 BOLT RDHD 3/8-16 X 2-3/4 GR 5
40 532124965 SUB= 4470J
41 532165838 SUB= 165838
42 819131312 WASHER
47 532127783 SUB= 139245
48 532154407 SUB= 154407
49 532123205 SUB= 123205X
50 874760624 BOLT HEX HD 3/8-16 X 1-1/2
51 873680600 NUT, CROWNLOCK 3/8-16
52 873680500 LOCKNUT, CROWN 5/16-18
53 532105710 SUB= 105710X
55 532105709 SUB= 105709X
56 874760620 BOLT, HEX 3/8-16 X 1-1/4
57 532130801 SUB= 138255
59 532169691 KEEPER BELT
61 817060612 SUB=17060612
62 532123533 SUB= 123533X
63 532140186 SUB= 140186
64 871170764 BOLT HEX
65 810040700 WASHER LOCK HVY HLCL SPR 7/16
66 532154778 SUB= 154778
70 532134683 SUB= 134683
72 819132012 WASHER 13/32 X 1-1/4 X 12 GA
74 532137057 SUB= 137057
75 532121749 SUB= 121749X
76 812000001 E-RING #5133-75
77 532123583 SUB= 123583X
78 532121748 SUB= 121748X
79 532125096 SUB= 2228M1
LT150 (1999 & Before) Page 7 of 24
DRIVE
Ref # Part Number Qty Description
80 532145090 SUB= 145090
81 532165592 SHAFT ASM CROSS TAPERED
82 532165711 SPRING
83 819171216 WASHER 17/32 X 3/4 X 16 GA
84 532166231 TRANSAXLE LINK
85 532150360 SUB= 150360
89 532166561 SUB= 158391X428
90 532124346 SUB= 124346X
96 532124788 SUB= 4497H
112 819091210 WASHER 9/32 X 3/4 X 10 GA
113 532127285 SUB= 127285X
116 872110610 BOLT RDHD SQ NECK 3/8-16 X 1.25
145 874490540 BOLT
150 532165850 BUSHING BELLCRANK
151 819133210 WASHER
156 532166002 WASHER.SORTED
158 532165589 BRKT.SHIFT.MOUNT
159 532165494 HUB.TAPERRED FLANGE SHIFT
161 872140406 BOLT, CARRIAGE 1/4-20 X 3/4
162 873680400 NUT CROWNLOCK 1/4-20
163 874780416 BOLT
164 819091010 WASHER
165 532165623 BRKT.PIVOT.LEVER
166 532166880 SCREW 5/16-18X5/8
168 532165492 BOLT SHOULDER 5/16-18X.561
169 532165580 PLATE.FASTENING.CROSS.SHAFT
170 532165849 KEEPER BELT
197 532169613 NYLINER SNAP-IN
198 532169593 WASHER
202 872110612 BOLT, CARRIAGE 3/8-16 X 1-1/2 GR.5
204 817060516 SCREW
LT150 (1999 & Before) Page 8 of 24
ELECTRICAL
LT150 (1999 & Before) Page 9 of 24
ELECTRICAL
Ref # Part Number Qty Description
1 532144925 SUB= 123899X
2 874760412 BOLT HEX HD 1/4-20 X 3/4
8 532156417 SUB= 156417
16 532153664 SUB= 153664
21 532166181 HARNESS ASM
22 532004152 SUB= 4152J
24 532124780 SUB= 4799J
25 532146147 SUB= 146147
26 532166180 FUSE.15 AMP
27 873510400 LOCKNUT
28 532124773 SUB= 4207J
29 532121305 SUB= 121305X
30 532163968 SUB= 163968
33 532140401 SUB= 140401
40 532170217 HARNESS IGN
41 871110408 BOLT BLK FIN HEX 1/4-20 X 1/2
42 532131563 SUB= 154336
43 532145673 SUB= 146154
45 532121433 SUB= 122822X
52 532141940 SUB= 141940
55 UNKNOWN
LT150 (1999 & Before) Page 10 of 24
ENGINE
LT150 (1999 & Before) Page 11 of 24
ENGINE
Ref # Part Number Qty Description
1 532140310 SUB= 140310
2 817720410 SCREW HEX THD CUT 1/4-20X5/8 T
3 SUPPLIER CHECK WITH SUPPLIER
4 532137352 SUB= 137352
13 532165291 SUB= 165291
14 813280324 NIPPLE PIPE 3/8 NPT X 3"
15 813200300 ELBOW STD 90 DEGREE 3/8-18 NPT
16 811050600 WASHER LOCK
23 532169837 SHIELD BRN/DBR GUARD
29 532137180 KIT.ARREST.SPARK (392-390)
31 532161911 SUB= 161911
32 532140527 SUB= 140527
33 532123487 SUB= 123487X
37 532137040 SUB= 137040
38 SUPPLIER CHECK WITH SUPPLIER
40 532124028 GROMMET T
44 817670412 SCREW
45 817000612 SCREW
46 819091416 WASHER 9/32 X 7/8 X 16 GA
62 810040500 WASHER, LOCK
72 871070512 SCREW HEXHD CAP 5/16-18X3/4
78 817060620 SCREW
81 873510400 LOCKNUT
LT150 (1999 & Before) Page 12 of 24
MOWER DECK
LT150 (1999 & Before) Page 13 of 24
MOWER DECK
Ref # Part Number Qty Description
1 532165892 DECK ASM
2 872140506 BOLT, CARRIAGE
3 532138017 SUB= 138017
4 532165460 BRKT ASM
5 532130832 SUB= 130833
6 532130832 SUB= 130833
8 532850857 SUB= 850857
9 810030600 WASHER LOCK HVY 3/8
10 532140296 SUB= 140296
11 532134149 SUB= 134149
12 532129895 SUB= 129895
13 532137645 SUB= 137646
14 532128774 SUB= 128774
15 532110485 SUB= 110485X
16 532140329 SUB= 140329
18 872140505 BOLT RDHD SQNK 5/16-18 X 5/8
19 532132827 SUB= 132827
20 532159770 SUB= 159770
21 873680500 LOCKNUT, CROWN 5/16-18
22 532134753 SUB= 134753
23 532131267 SUB= 131267
24 532105304 SUB= 105304X
25 532123713 SUB= 123713X
26 532110452 SUB= 110452X
27 532171859 SHIELD DEFLECTOR MOWER
28 819111016 WASHER 11/32 X 5/8 X 16 GA
29 532131491 SUB= 131491
30 532157722 SUB= 157722
31 532129963 SUB= 129963
32 532153535 SUB= 153535
33 532137266 SUB= 139729
34 872110614 BOLT
35 532133835 SUB= 133835
36 532131494 SUB= 131494
37 819131316 WASHER 13/32 X 13/16 X 16 GA
40 873680600 NUT, CROWNLOCK 3/8-16
44 532140088 SUB= 140088
45 532124788 SUB= 4497H
46 532137729 SUB= 137729
48 532133944 WASHER HARDENED SMALLER
49 532155066 SUB= 155066
50 532131340 SUB= 131340
51 532069180 SUB= 69180
52 532139888 SUB= 139888
53 532131845 SUB= 131845
54 532133943 SUB= 133943
55 532155046 SUB= 155046
56 532165723 SPACER
59 532141043 SUB= 141043
67 532106932 SUB= 106932X
68 532144959 SUB= 144959
90 874760616 BOLT FIN HEX 3/8-16 X 1
91 532132274 BRK ASM ROLLER LH
92 873800600 LOCKNUT
93 819171416 WASHER, 17/32 X 7/8 X 16 GA.
94 532132264 NOSE ROLLER
95 532132273 BRK ASM ROLLER RH
111 532155197 SUB= 155197
LT150 (1999 & Before) Page 14 of 24
MOWER DECK
Ref # Part Number Qty Description
112 532155198 SUB= 155198
113 817060512 SCREW
114 873510500 NUT, KEPS 5/16-18
115 872110504 BOLT
116 532124842 SUB= 4898H
117 532165746 WHEEL GAUGE
118 873930600 NUT, CENTER LOCK 3/8-16
119 819121414 WASHER 3/8 X 7/8 X 14 GA.
121 532143723 SUB= 143723
128 532153390 SUB= 153390
129 819131312 WASHER
130 874780616 BOLT FIN HEX 3/8-16 X 1
131 872140608 BOLT CARRIAGE 3/8-16X1
142 532165890 ARM SPRING BRAKE MOWER
143 532157109 BRKT ARM IDLER
144 532158634 KEEPER BELT
145 532165888 PULLEY IDLER FLAT
146 532165891 BOLT
147 532131335 SUB= 131335
148 532169022 SPRING
149 532169898 RETAINER
150 819091216 WASHER, 9/32 X 3/4 X 16 GA.
151 532169670 BRACKET CLUTCH CABLE
152 532169676 42" CLUTCH CABLE
153 532169674 WASHER
154 532169675 SPRING RETAINER
155 532169671 SPRING RETENTION LEVER
156 532169672 SPACER
157 532169669 ROD
158 817720410 SCREW HEX THD CUT 1/4-20X5/8 T
159 872140614 BOLT
532130794 SUB= 130794
532169583 DECK
LT150 (1999 & Before) Page 15 of 24
MOWER LIFT
LT150 (1999 & Before) Page 16 of 24
MOWER LIFT
Ref # Part Number Qty Description
1 532159460 SUB= 159460
2 532159471 SUB= 159471
3 532105767 SUB= 105767X
4 812000002 E RING #5133-62
5 819211621 WASHER PLTD 21/32 X 1 X 21 GA
6 532120183 SUB= 120183X
7 532125631 SUB= 125631X
8 532124526 SUB= 125925X
11 532139865 SUB= 145537
12 532139866 SUB= 151140
13 532124670 SUB= 85902
15 532167253 LINK FRT
16 873350800 NUT JAM HEX 1/2-13
17 532130171 SUB= 130171
18 873800800 NUT LOCK W/WSH 1/2-13
19 532139868 SUB= 139868
20 532163552 RETAINER SPRING
23 532110807 SUB= 110807X
24 819131016 WASHER, 13/32 X 5/8 X 16 GA.
25 532124874 SUB= 2876H
26 532169484 RETAINER CLIP
27 532126971 "ROD,ADJ"
28 873350600 NUT HEX JAM 3/8-16 UNC
29 532138057 SUB= 138057
30 532150233 SUB= 150233
31 532140302 SUB= 140302
32 873540600 NUT CROWNLOCK 3/8-24
36 532155097 SUB= 155097
37 532123935 SUB= 123935X
38 817060516 SCREW
40 819112410 WASHER 11/32X1.5X10 GA
41 532155098 SUB= 155098
49 532145212 SUB= 145212
50 532110452 SUB= 110452X
LT150 (1999 & Before) Page 17 of 24
SCHEMATIC
LT150 (1999 & Before) Page 18 of 24
SCHEMATIC
Ref # Part Number Qty Description
REFER REFER TO IMAGE
LT150 (1999 & Before) Page 19 of 24

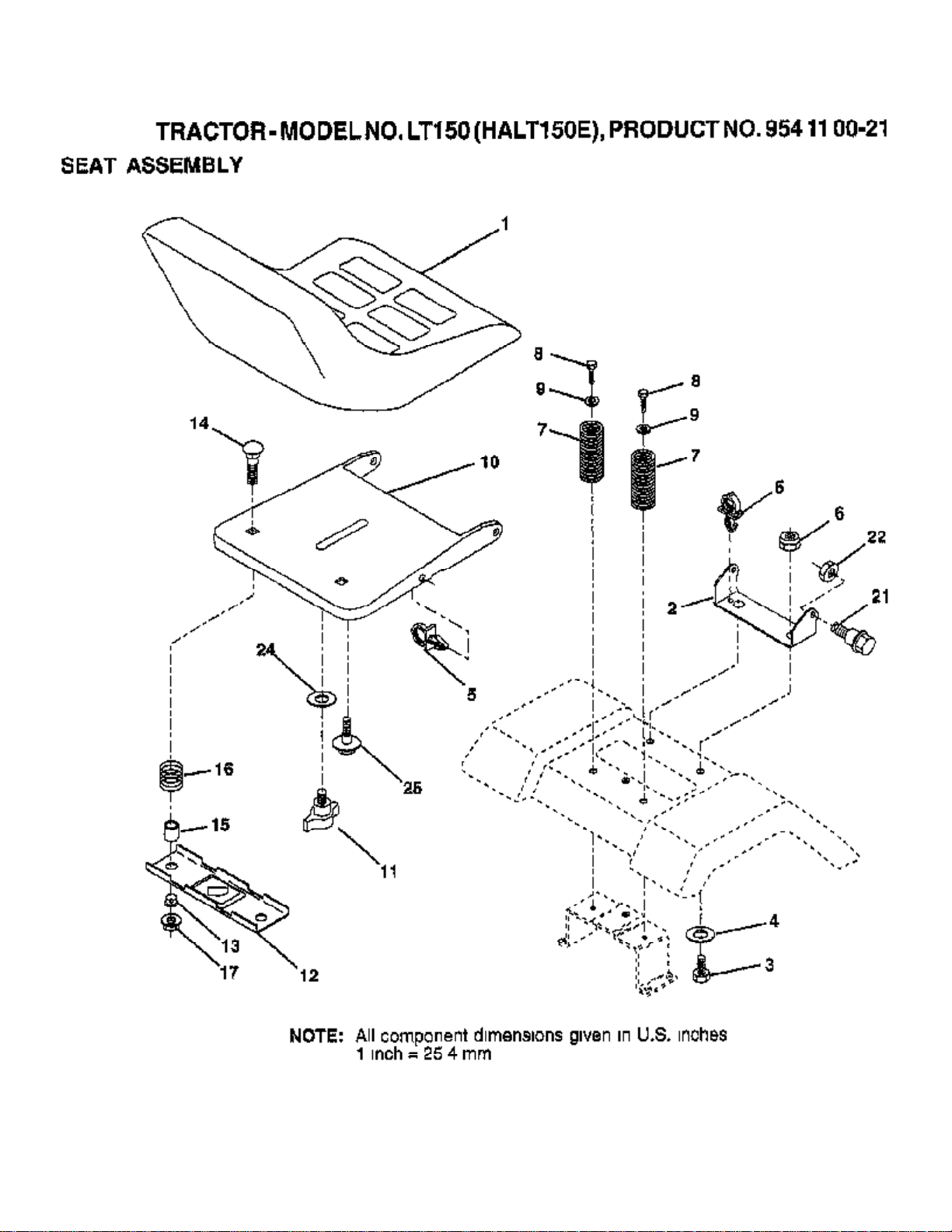

SEAT
LT150 (1999 & Before) Page 20 of 24
SEAT
Ref # Part Number Qty Description
1 532140839 SEAT.2400.GRY/BLK
2 532140551 SUB= 140551
3 874760616 BOLT FIN HEX 3/8-16 X 1
4 819131610 WASHER 13/32 X 1 X 10 GA
5 532145006 SUB= 145006
6 873800600 LOCKNUT
7 532124181 SUB= 124181X
8 817000616 SCREW
9 819131614 WASHER 13/32 X 1 X 14 GA
10 532155925 SUB= 155925
11 532166369 KNOB SEAT
12 532121246 SUB= 121246X
13 532121248 SUB= 121248X
14 872050412 BOLT, CARRIAGE 1/4-20 X 1-1/2
15 532134300 SUB= 134300
16 532121250 SUB= 121250X
17 532123976 SUB= 73900400
21 532171852 BOLT
22 873800500 LOCKNUT
24 819171912 WASHER 17/32 X 1-3/16 X 12 GA
25 532127018 SUB= 127018X
LT150 (1999 & Before) Page 21 of 24
STEERING
LT150 (1999 & Before) Page 22 of 24
STEERING
Ref # Part Number Qty Description
1 532124415 STEERING WHEEL
2 532165854 AXLE ASM
3 532169840 SPINDLE ASM
4 532169839 SPINDLE ASM
5 532124931 SUB= 6266H
6 532121748 SUB= 121748X
8 812000029 RING KLIP #T5304-75
10 532169832 LINK DRAG
11 810040600 WASHER LOCK HVY HLCL SPR 3/8
13 532136518 SUB= 136518
15 532145212 SUB= 145212
17 532156546 SUB= 156546
18 532057079 SUB= 57079
19 532160395 SUPPORT SHAFT
22 532165857 SCREW
23 532165851 SHAFT ASM PITTMAN
25 532154406 SUB= 154406
27 532136874 SUB= 136874
29 817060612 SUB=17060612
32 532171888 ROD TIE
33 819111216 WASHER 11/32 X 3/4 X 16 GA
34 810040500 WASHER, LOCK
35 873540500 CROWNLOCK NUT
36 532155099 SUB= 155099
37 532152927 SUB= 152927
38 532124416 "INSERT,STR WHEEL"
39 819133812 WASHER
40 532124701 SUB= 7810H
41 232100711 ADAPTER WHEEL STRG
42 532169634 BOOT STEERING SHAFT
43 532121749 SUB= 121749X
44 532153720 SUB= 153720
46 532121232 SUB= 121232X
47 532124836 SUB= 6855M
51 873800500 LOCKNUT
54 874780520 BOLT FIN HEX 5/16-18 UNC X 1-1/4
62 532167902 KIT
63 874780616 BOLT FIN HEX 3/8-16 X 1
65 532160367 SUB= 160367
66 532154404 SUB= 154404
67 872140618 BOLT RDHD SQ 3/8-16 X 2-1/4
68 532169827 AXLE
79 819132012 WASHER 13/32 X 1-1/4 X 12 GA
80 874950612 BOLT
82 532169635 BRKT
85 532133835 SUB= 133835
LT150 (1999 & Before) Page 23 of 24
WHEELS/TIRES
LT150 (1999 & Before) Page 24 of 24
WHEELS/TIRES
Ref # Part Number Qty Description
1 532059192 SUB= 59192
2 532065139 SUB= 65139
3 532106222 SUB= 122073X
4 PARTSIMAGE REFER TO PARTS IMAGE
4 532059904 SUB= 59904
5 532138336 SUB= 106732X417
8 532124957 SUB= 278H
7 532124959 SUB= 9040H
8 532138337 SUB= 106108X417
9 532122062 TIRE
10 PARTSIMAGE REFER TO PARTS IMAGE
10 532124926 SUB= 7152J
11 532104757 SUB= 104757X
532144334 SUB= 144334
Loading...
