LT1106B (1999 & Before) Page 1 of 25
38" MOWER DECK, BELT, BLADES
LT1106B (1999 & Before) Page 2 of 25
38" MOWER DECK, BELT, BLADES
Ref # Part Number Qty Description
1 106085X BELT-V.79.1.MWR
2 105689X SUB= 144725
3 8417J SUB= 128772
4 73680600 SUB= 73690600
5 19111216 WASHER M
8 110452X NUT PUSH M
10 106735X ROD-HINGE T
11 106736X DEFLECTOR-SHLD T
12 105814X DECAL.LT
13 105304X CAP-SLEEVE LT
14 105662X LINK.PARALLEL
16 4921H SPRING.RETAINER
17 105872X LINK STOP
18 105743X SUB= 109835X
21 109598X BRACKET RH LT
22 109597X BRACKET LH T
24 3713J DECAL INSTRUCTION CAUTION
25 109503X SUPPORT ARM T
26 109504X STOP T
27 109984X NLA
28 106461X SUB= 126756X
29 74760636 BOLT
30 108832X SUB= 127163X
31 106902X SPACER RETAINER
32 102403X IDLER-FLAT T
33 106513X "WASHER, WEAR LT"
34 102669X BELT KEEPER LT
35 105891X SUB= 121687X
36 100668L SUPPORT PLATE LT
39 106634X SUB= 25036
40 19132012 WASHER
41 10030600 SUB= 10040600
42 74310624
43 108250X SPRING LT
44 108235X ROD LT
45 4921H SPRING.RETAINER
46 76020312 SUB= 3145
47 109892X ROCKSHAFT T
48 76020616 SUB= 76020624
49 108247X ROD BRAKE LT
52 108243X BRACKET LT
53 108241X BRACKET LT
54 105857X "BRKT,SUSP RH T"
55 108673X "BRKT,SUSP REAR LH"
56 106578X BRAKE LT
58 108249X ROD BRAKE LT
59 106456X "BRK,BRAKE,PVT LT"
60 100672K SPACER BRAKE LTV
61 100673L BRACKET SUPT LTV
65 7631J RUNNER-LH M
68 78850 SUB= 85463
70 19131316 WASHER
73 19132012 WASHER
74 106679X DECAL.WARNING.T
75 76020308 SUB= 3145
80 110445 PLATE SUPPORT
81 19131407 SUB= 55611
LT1106B (1999 & Before) Page 3 of 25
DRIVE GROUP, BELT
LT1106B (1999 & Before) Page 4 of 25
DRIVE GROUP, BELT
Ref # Part Number Qty Description
1 109070X BELT KEEPER LT
2 108236X BRACKET LT
4 105730X "KEEPER,BLT ENG LT"
5 105732X SUB= 125907X
6 19131312 WASHER
7 105864X "BRACKET, SUSPE T"
8 106444X "BRKT,BELLCRAN T"
9 108451X ROD ASSEM YT
12 109728X "T, BELLCRANK"
15 19171516 WASHER T
16 105863X SUB= 121599X
17 9135R SPRING H
18 4859J SUB= 123674X
19 73220800 NUT
20 106308X SUB= 130171
22 105862X SUB= 121598X
24 105731X SUB= 137326
25 74770728 BOLT RER
26 10040700 LOCKWASHER
27 74760644 BOLT
28 4470J SPACER T
29 106190X CLAMP LT
30 109370X SUB= 123770X
31 109368X SUB= 123662X
32 109369X SUB= 123663X
33 4921H SPRING.RETAINER
37 76020412 COTTER PIN
38 19131410 WASHER
39 5320R INSUL CLIP T
42 6404J SPACER T
LT1106B (1999 & Before) Page 5 of 25
DRIVE GROUP, REAR WHEEL
LT1106B (1999 & Before) Page 6 of 25
DRIVE GROUP, REAR WHEEL
Ref # Part Number Qty Description
1 106108X SUB= 106108X417
2 106268X SUB= 122074X
7152J TUBE.18X9.5-8
3 109502X SPACER LT
4 2703J SUB= 123583X
5 121083X TRANSAXLE LT
6 10040400 LOCKWASHER
7 19091210 WASHER LT
8 106933X KNOB T (1/2-HOLE)
9 76020412 COTTER PIN
10 106919X PLATE SHIFT LT
11 105699X SUB= 110458X
12 105700X SPRING LT
13 19151216 WASHER
14 76020416 PIN COTTER 1/8
15 105701X WASH-SHFT PLT LT
16 71040412 SUB= 74550412
20 106888X SPRING ROD LT
21 110437X BRAKE ROD LT
22 19131316 WASHER
23 106157X PLATE-STRAP LT
30 105842X "STRAP, TORQUE LT"
31 73350600 NUT
32 109167X BRACKET LT
34 12000028 SUB= 2267J
35 19252016 SUB= 121749X
36 2228M SUB= 2228M1
37 105703X SUB= 125478X
39 65139 VALVE STEM LT
41 12000001 E-RING LT
53 73680600 SUB= 73690600
74 104757X HUB CAP
76 19252616 SUB= 121748X
78 110422X SUB= 146682
LT1106B (1999 & Before) Page 7 of 25
ENCLOSURES, SEAT
LT1106B (1999 & Before) Page 8 of 25
ENCLOSURES, SEAT
Ref # Part Number Qty Description
1 11040400 WASHER, LOCK
2 109615X NLA
3 108442X388 SUB= 132637X505
4 108676X DECAL-DASH
5 108679X DASHBOARD T
6 104783X DASH ASSY LT
7 108456X SUB= 138955
9 106965X SUB= 140181
10 104786X SUPPORT ASSY LT
11 105037X FOAM-STRIP LT
12 104643X NLA
13 106784X SUB= 155013
14 104618X SUB= 155013
15 108370X388 SUB= 150301X505
16 104613X SUB= 147717
17 106395X LENS LT
18 104632X SUPPORT-GRILL LT
19 104801X NLA
20 104634X388 SUB= 105419X388
21 104633X NLA
22 104644X NLA
23 109641X GROMMET T
24 109613X388 SUB= 132636X505
25 106976X PANEL DASH RH YT
27 109512X CHASSIS T
28 102481X SUB= 145009
29 104808X NLA
32 105465X388 FOOTREST LH YT
34 73680500 SUB= 73690500
36 108263X012 SADDLE LT
37 19091216 WASHER PM
38 106301X SUB= 121440X
39 1554J SUB= 155108
40 106202X REFLECTOR-TAIL YT
42 104810X NLA
43 110839X SUB= 140119
44 121068X SPRING T
45 109640X388 FENDER
46 4900J DECAL T
47 8022J PLUG-DASH T
48 121067X SPRING T
49 73220400 SUB= 50675
50 74760612 SUB= 74780612
52 73680600 SUB= 73690600
53 74760616 BOLT
55 17211010 SCREW LT
56 104755X """J"" FASTENER LT"
57 17490612 SCREW
59 17490512 SCREW
60 7605J BOLT T
62 73680400 SUB= 73690400
63 74760620 SUB= 74780620
65 17490608 SCREW LT
66 121069X SUB= 155925
67 17490612 SCREW
72 17431008 SUB= 98000165
73 74780512 BOLT
74 73510500 NUT
LT1106B (1999 & Before) Page 9 of 25
ENCLOSURES, SEAT
Ref # Part Number Qty Description
75 105509X SUB= 137113
76 74180512 SCREW
77 5479J PLUG BUTTON T
78 17490412 SCREW HEX CRT
79 106974X SUB= 133796
80 106300X SUB= 121441X
81 105505X SUB= 121794X
85 109864X SUB= 108256X
89 109808X HOOD LATCH T
93 105511X SUB= 140675
94 105513X SUB= 140551
95 105529X SUB= 139888
98 109199X SUB= 146046
99 2751R CLIP T
100 73510500 NUT
LT1106B (1999 & Before) Page 10 of 25
HARDWARE
LT1106B (1999 & Before) Page 11 of 25
HARDWARE
Ref # Part Number Qty Description
37 19091216 WASHER PM
49 73220400 SUB= 50675
51 19131312 WASHER
52 73680600 SUB= 73690600
53 74760616 BOLT
83 19132012 WASHER
84 72140606 BOLT
86 74191008 SCREW
87 10071000 LOCKWASHER
88 2029J WELDNUT
90 74981020 SCREW
91 7206J SPACER LT
92 73731000 NUT
97 19070818 WASHER
101 19131614 WASHER
102 121094X BOLT T
103 19151616 SUB= 19171616
104 120068X "KNOB 1/2"" YT"
105 19171720 WASHER
106 71616 NLA
LT1106B (1999 & Before) Page 12 of 25
HARDWARE
LT1106B (1999 & Before) Page 13 of 25
HARDWARE
Ref # Part Number Qty Description
52 74760644 BOLT
53 73680600 SUB= 73690600
55 74760612 SUB= 74780612
58 17490512 SCREW
77 74760616 BOLT
LT1106B (1999 & Before) Page 14 of 25
HARDWARE
LT1106B (1999 & Before) Page 15 of 25
HARDWARE
Ref # Part Number Qty Description
3 17021008 SCREW
6 19131312 WASHER
11 73680600 SUB= 73690600
13 74760612 SUB= 74780612
14 72140606 BOLT
23 105848X "BOLT, SHOULDER LT"
34 74760512 BOLT
35 73680500 SUB= 73690500
36 74760616 BOLT
40 110739X WASHER T
41 73980600 NUT SPECIAL T
LT1106B (1999 & Before) Page 16 of 25
HARDWARE
LT1106B (1999 & Before) Page 17 of 25
HARDWARE
Ref # Part Number Qty Description
4 73680600 SUB= 73690600
5 19111216 WASHER M
6 72140505 BOLT
20 73680500 SUB= 73690500
23 72140506 BOLT
37 17490612 SCREW
38 17490620 SCREW
49 108247X ROD BRAKE LT
50 72140606 BOLT
64 74760684 BOLT
67 72140610 BOLT.3/8-14X1.25
76 72110506 SUB= 72270506
77 74760412 BOLT LT
78 109893X WASHER T
79 73680400 SUB= 73690400
LT1106B (1999 & Before) Page 18 of 25
POWER, MECHANICAL CONTROLS
LT1106B (1999 & Before) Page 19 of 25
POWER, MECHANICAL CONTROLS
Ref # Part Number Qty Description
673A223 SCREEN
1 8883R PEDAL COVER T
2 105724X SUB= 123102X
3 61159 KNOB
4 101336K SUB= 132753
5 8504J SUB= 9188504J
6 104800X SUPPORT-TANK LT
7 3615J SUB= 121280X
8 6999R SUB= 123487X
9 7833R HOSE T
10 281707 ENGINE 12 H.P. TYPE 0201-01
11 19131016 WASHER
12 109612X SUB= 101273M
13 1407J SUB= 272293
15 13240300 STREET ELBOW LT
16 13280328 PIPE NIPPLE
17 13200300 ELBOW
18 72140606 BOLT
19 104910X BAFFLE ASSY LT
20 102727X "SPRING.EXT.8.5"""
21 104598X ROD ASSY-LEVER LT
22 104777X SUB= 140312
23 74780572 BOLT YT
24 101496X SPACER LT
25 106983X HANDLE YT
26 4617J SUB= 532131861
27 104909X CLIP-MUFFLER LT
28 10040400 LOCKWASHER
29 19292016 WASHER
30 17490612 SCREW
31 109623X SUB= 133685
32 19131312 WASHER
33 17450808 SCREW LT
34 17490628 SCREW LT
35 105855X LINK LIFT LT
36 109037X FOOT SHAFT PEDAL
37 1572H SUB= 2882J
37A 106918X ARM BRAKE LT
38 2228M SUB= 2228M1
39 74780408 BOLT
40 106204X SUB= 132793
41 109991X SHAFT ASM T
42 73220600 NUT.HEX.3/8-16UNC
43 4939M SUB= 85902
44 109413X GRIP
45 105723X SUB= 125925X
46 2876H SPRING T
47 104597X LEVER ASSY LT
48 104799X BRACE-TANK LT
49 100734K SUB= 138057
51 104915X SUB= 105037X
52 101326L DEFLECTOR.222573
53 74780512 BOLT
54 73680500 SUB= 73690500
55 106298X SUB= 139245
56 73680600 SUB= 73690600
57 110029X LIFT LINK LT
58 110729X ROD LIFT LT
LT1106B (1999 & Before) Page 20 of 25
POWER, MECHANICAL CONTROLS
Ref # Part Number Qty Description
59 105706X "LY, BEARING"
60 106499X SUB= 123205X
61 74760624 SUB= 74930624
62 110812X WASHER LT
63 12000039 KLIP RING
64 105709X "SPRING, RETURN LT"
65 105710X "LINK, CLUTCH T"
66 76020412 COTTER PIN
69 105705X SUB= 125829X
70 74760624 SUB= 74930624
71 108056X BUSHING YT
72 19121612 WASHER LT
73 8330H KEY STD
74 23180606 SCREW
84 110810X TRUNION LT
85 19151216 WASHER
86 12000037 KLIP RING
88 17720408 SCREW
89 105844X SUB= 125637X
90 71673 PLUNGER CAP T
94 76020308 SUB= 3145
95 19252016 SUB= 121749X
99 12000029 RING
100 6431J PAD-SPACER T
101 19111416 WASHER
102 110457X SUB= 19091016
103 11050600 LOCKWASHER
104 73350600 NUT
105 110807X NUT T
106 101200K SPACER LT
107 13310300 STREET ELBOW LT
LT1106B (1999 & Before) Page 21 of 25
STEERING, FRONT AXLE, WHEELS
LT1106B (1999 & Before) Page 22 of 25
STEERING, FRONT AXLE, WHEELS
Ref # Part Number Qty Description
1 100710L INSERT-WHEEL LT
2 73940800 SUB= 73360800
3 100712K WASHER
4 100713N SUB= 150547
4A 100711L ADAPTER LT
5 109816X NYLINER T
6 12000029 RING
7 19252016 SUB= 121749X
8 9040H "FLANGE, BEARING"
9 106222X SUB= 122073X
59904 TUBE.5.3/4.5/6
10 106732X SUB= 106732X417
11 65139 VALVE STEM LT
12 59192 VALVE CAP
13 108075X FRONT AXLE
14 74761060 BOLT LT
15 105654X SUB= 130524
16 76020412 COTTER PIN
18 105715X ROD-TIE LT
19 6855M ZERK M
20 110438X BEARING
21 10040600 LOCKWASHER
22 73610600 SUB= 7810H
23 105727X LINK-DRAG LT
24 109556X SHAFT ASM T
25 74580 SHAFT SPACER LT
26 71208 BUSHING
27 109432X SUB= 110150X
28 108684X GEAR.SECTOR.HYT
29 106126X KEY-WOODRUFF LT
30 19212016 WASHER D
31A 2882J DRIVE PIN
32 6266H WASHER .T
33 108683X ROD STEERING T
34 105656X SPINDLE-LH LT
35 17490612 SCREW
36 73901000 "NUT-LOC,FLANGE LT"
37 105725X SUB= 110438X
40 3366R COL. SRTG. BEAR.
41 104590X DECAL - STEERING WHEEL
42 104757X HUB CAP
43 278H FITTING LT
44 19252616 SUB= 121748X
45 106943X SPACER LT
46 106944X TUBE LT
48 105664X SUPPORT.SADDLE.FT
49 105663X SUPPORT-SADDL T
50 17490508 SCREW LT
51 102792X SUB= 126847X
52 19131416 WASHER
54 108685X GEAR PINION T
55 101930X WASHER YTV
56 19272016 WASHER
LT1106B (1999 & Before) Page 23 of 25

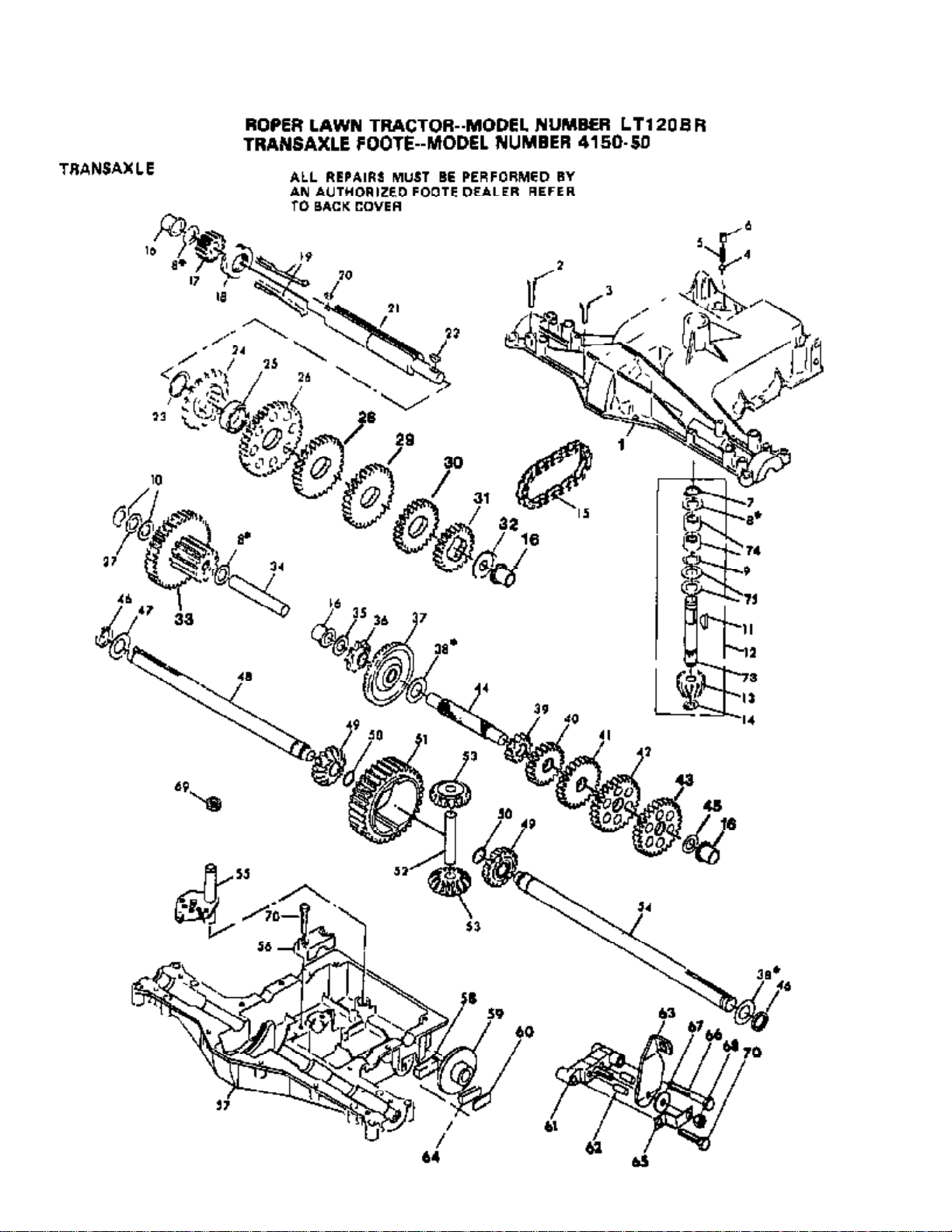

TRANSAXLE P/N BREAKOUT
LT1106B (1999 & Before) Page 24 of 25
TRANSAXLE P/N BREAKOUT
Ref # Part Number Qty Description
1 3655B HOUSING, UPPER
2 1360 SCREW 1/4-20 X 1.31
3 3396 SCREW 1/4-20 X .875
4 1151 BALL DETENT
5 3626 SPRING, DETENT
6 3623 SCREW, SET
7 1099 RING RETAINING
8 1441 WASHER PLAIN
8 1423 WASHER, PLAIN .632 X 1.00 X .026
8 1082 WASHER PLAIN
8 1424 WASHER PLAIN
8 1068 WASHER PLAIN
8 1425 WASHER PLAIN
8 1358 WASHER PLAIN
8 1145 WASHER, PLAIN .632 X 1.00 X .060
8 1319 WASHER PLAIN
9 3312 O-RING
10 1425 WASHER PLAIN
11 1374 KEY WOODRUFF #9
12 4134 ASSY KIT INPUT SHAFT
13 3590 PINION, BEVEL, 14 TEETH
14 3624 RING, RETAINING
15 3625 CHAIN, 24 PITCHES
16 1542 BEARING, FLANGE
17 3773 GEAR SPUR, 14 TEETH
18 3631 COLLAR CLUTCH
19 3676 KEY, CLUTCH
20 1369 KEY WOODRUFF #3
21 3663 SHAFT, INTERMEDIATE
22 1375 KEY, WOODRUFF, #61
23 3627 RING, RETAINING
24 3640 SPROCKET, 18T
25 3841 SPACER
26 3786 GEAR, SPUR, 37 TEETH
27 3422 SPACER .630 X 1.00 X .169
28 3867 GEAR, SPUR, 30 TEETH
29 3783 GEAR, SPUR, 25 TEETH
30 3741 GEAR SPUR
31 3715 SPACER
32 3628 WASHER, PLAIN .640 X 1.37 X .061
33 4286 ASSY GEAR COMB 12&35 TEETH
34 3658 SHAFT, IDLER
35 1959 WASHER PLAIN
36 3645 SPROCKET, 9 TEETH
37 3853 GEAR, BEVEL, 42 TEETH
38 3749 WASHER PLAIN
38 3652 WASHER PLAIN
38 3693 WASHER PLAIN
38 3653 WASHER PLAIN
38 3408 WASHER PLAIN
38 3732 WASHER PLAIN
38 3184 WASHER, PLAIN .758 X 1.25 X .031
38 3733 WASHER PLAIN
38 3198 WASHER PLAIN
38 3734 WASHER PLAIN
38 3735 WASHER PLAIN
38 3736 WASHER PLAIN
38 3180 WASHER PLAIN
LT1106B (1999 & Before) Page 25 of 25
TRANSAXLE P/N BREAKOUT
Ref # Part Number Qty Description
39 3646 GEAR, SPUR, 12 TEETH
40 3866 GEAR, SPUR, 20 TEETH
41 3719 GEAR, SPUR, 25 TEETH
42 3683 GEAR, SPUR, 31 TEETH
43 3714 SPACER
44 3657 SHAFT, DRIVE
45 1145 WASHER, PLAIN .632 X 1.00 X .060
46 3191 SEAL FELT
47 3184 WASHER, PLAIN .758 X 1.25 X .031
48 3846 AXLE
49 3780 GEAR, MITER, 15 TEETH
50 3656 RING, RETAINING
51 3839 GEAR, SPUR, 32 TEETH
52 3840 SHAFT, CROSS
53 3781 GEAR, MITER, 15 TEETH
54 3845 AXLE
55 4192 ASSY SHIFTER
56 3775 CAP, SUPPORT
57 3654B PUCK, FRICTION
58 3757 PUCK, FRICTION
59 3276 DISC, BRAKE
60 3758 SPACER
61 3862
62 3898 PIN, DOWEL
63 3768 LEVER, ACTUATING
64 3874 PUCK, FRICTION
65 3873 BRACKET, ANTI-ROTATION
66 3875 SCREW
67 3760 WASHER, PLAIN .321 X 1.00 X .055
68 3847 LOCKNUT 5/16-24
69 3789 V-RING
70 3724 SCREW TAPPING
71 3876 WASHER, PLAIN .632 X 1.38 X .046
72 4300 GREASE
73 REFER TO IMAGE
74 REFER TO IMAGE
Loading...
