AYP LR120AR Parts List

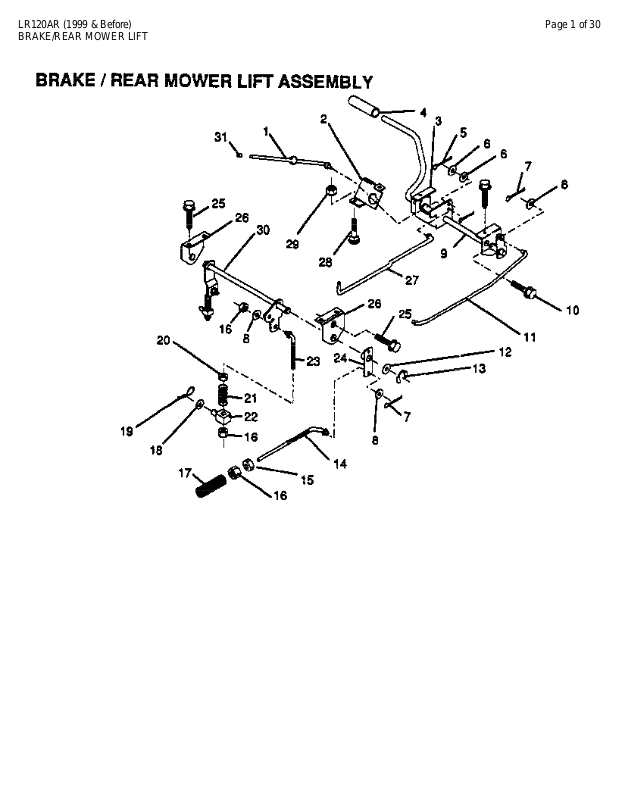

LR120AR (1999 & Before) Page 1 of 30
BRAKE/REAR MOWER LIFT

LR120AR (1999 & Before) Page 2 of 30
BRAKE/REAR MOWER LIFT

Ref # Part Number Qty Description

1 123436X "ROD,PARK BRAKE"
2 123437X "BRKT,PARK BRAKE"
3 122504X "BRKT,CLU PEDAL LH"
4 8883R PEDAL COVER T
5 76020312 SUB= 3145
6 19131016 WASHER
7 76020412 COTTER PIN
8 19131316 WASHER

9 124145X SUB= 139933
10 17490508 SCREW LT
11 123543X "ROD,FRT BRAKE"
12 19251816 WASHER T
13 12000034 KLIP RING
14 123546X SUB= 131461
15 73350600 NUT
16 73680600 SUB= 73690600
17 106888X SPRING ROD LT
18 19132012 WASHER
19 4921H SPRING.RETAINER
20 73930600 LOCKNUT
21 106888X SPRING ROD LT
22 106204X SUB= 132793
23 123672X "LINK.LIFT.3.5"""
24 123641X BRAKE PIVOT ARM
25 17490508 SCREW LT
26 121978X "BRKT,LIFT SHAFT"
27 123394X "ROD,CLUTCH"
28 72110506 SUB= 72270506
29 73510500 NUT
30 123547X REAR MOWER LIFT
31 71673 PLUNGER CAP T

LR120AR (1999 & Before) Page 3 of 30
DASH

LR120AR (1999 & Before) Page 4 of 30
DASH

Ref # Part Number Qty Description

1 122015X SUB= 141523

2 124540X SUB= 138392

3 123487X HOSE CLAMP

4 8548R FUEL LINE T

5 8544R SUB= 295J

6 17111312 SCREW

7 73510400 NUT

8 74760432 BOLT

9 2751R CLIP T
10 19091216 WASHER PM
11 19111116 WASHER
12 123494X SPACER SPLIT
13 2876H SPRING T
14 123493X HEIGHT ADJ
15 126115X KNOB
16 122023X ADJUSTER QUAD
17 124346X NUT
18 121789X SUPPORT DASH
19 122017X SNAP
20 72110404 BOLT
21 122016X "BRAKE,CROSS"

LR120AR (1999 & Before) Page 5 of 30
ELECTRICAL

LR120AR (1999 & Before) Page 6 of 30
ELECTRICAL

Ref # Part Number Qty Description

1 73510400 NUT

2 105002X CABLE LTV

3 7662J SUB= 4152J

4 110859X HARNESS T

5 110712X SWITCH LT

6 17021008 SCREW

7 108236X BRACKET LT

8 104445X SWITCH-INTER. GT

9 109553X SWITCH INTERLOCKT
10 17211008 SCREW
11 122147X KEY
12 123620X SUB= 141226
13 124211X NUT IGNITION
14 4406R SUB= STD365402
15 124083X COVER IGNITION SW
16 7192J WIRE TIE
17 121305X SWITCH SEAT
18 73510500 NUT
19 108824X FUSE HYT
20 596J SUB= 2955J
21 124190X HARNESS IGNITION
22 73350400 NUT
23 10090400 SUB= 10040400
24 74780408 BOLT
25 11050400 LOCKWASHER
26 719J SUB= 154336
27 109081X SUB= 146154
28 125760X STOP PLASTIC
29 74760412 BOLT LT
30 19091016 WASHER
31 10040400 LOCKWASHER
32 121264X "CAP,BATTERY "
33 123198X SUB= 146525
34 102476X SUB= 150109
35 73220400 SUB= 50675
36 72240460 BOLT
37 7603J "TRAY T, BATTERY"
38 121265X SUB= 123899X

123374X1E MANUAL OWNERS ENGLISH
125763X1F MANUAL OWNERS FRENCH
MS-9250 OPERATING AND MAINTENANCE MANUAL
125568X NLA
26436X PARTS LIAST FRENCH

LR120AR (1999 & Before) Page 7 of 30
ENGINE/THROTTLE

LR120AR (1999 & Before) Page 8 of 30
ENGINE/THROTTLE

Ref # Part Number Qty Description

1 17720408 SCREW

2 122014X SUB= 132752

3 124136X ENGINE BRIGGS AND STRATTON

4 120601X DECAL.ENG.271967

5 71070512 SCREW

6 10040500 LOCKWASHER

7 1407J SUB= 272293

8 121094X BOLT T

9 19101216 WASHER
10 10040400 LOCKWASHER
11 74780412 SUB= 74780414
12 123676X SUB= 137437
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 73510600 NUT
16 2751R CLIP T
17 11050600 LOCKWASHER
18 17490632 SCREW LT
19 17490624 SCREW LT
20 123401X SUB= 126636X

LR120AR (1999 & Before) Page 9 of 30
FENDER/CHASSIS

LR120AR (1999 & Before) Page 10 of 30
FENDER/CHASSIS

Ref # Part Number Qty Description

1 123650X STUD.1/4.TURN

2 19132012 WASHER

3 17490612 SCREW

4 124181X SPRING COMPRESSIO

5 122008X SUB= 122008X361

6 17490508 SCREW LT

7 123408X DECAL DRIVE

8 120822X DECAL

9 124144X PAD FOOTREST
10 123637X SUB= 138269
11 17490512 SCREW
12 126221X SUB= 126999X
13 124307X "SHIFT LOCK, BAR"
14 120579X PAL NUT
15 123645X FRAME ASS'Y
16 72140506 BOLT
17 123379X "BRACE,DRAWBAR "
18 73680500 SUB= 73690500
19 74760512 BOLT
20 121904X DRAWBAR
21 6798R SUB= 2751R
22 6794R SUB= 2751R
23 105839X RECEPTACLE LT
24 123689X NLA
25 124332X SUB= 124332X417
26 121549X DECAL
27 105838X RETAINER LT

LR120AR (1999 & Before) Page 11 of 30
FRONT AXLE

LR120AR (1999 & Before) Page 12 of 30
FRONT AXLE

Ref # Part Number Qty Description

1 121232X CAP

2 12000029 RING

3 121748X WASHER

4 121922X NYLINER

5 121914X AXLE FRONT

6 6266H WASHER .T

7 121919X SPINDLE RH

8 59192 VALVE CAP

9 65139 VALVE STEM LT
10 122394X SUB= 137237X427
11 9040H "FLANGE, BEARING"
12 59904 TUBE.5.3/4.5/6
13 123410X TIRE
14 121749X WASHER
15 12000029 RING
16 104757X HUB CAP
17 278H FITTING LT
18 76020412 COTTER PIN
19 19131316 WASHER
20 120754X SUB= 126847X
21 121924X ROD TIE
22 121916X SPINDLE LH
23 73680500 SUB= 73690500
24 121915X "BRKT,FRONT STAB"
25 74760540 BOLT

LR120AR (1999 & Before) Page 13 of 30
GROUND DRIVE

LR120AR (1999 & Before) Page 14 of 30
GROUND DRIVE

Ref # Part Number Qty Description

1 73680500 SUB= 73690500

2 74760512 BOLT

3 123448X KEEPER ENG BEL LH

4 123400X SUB= 135893

5 10040700 LOCKWASHER

6 74770720 SUB= 71130720

7 124525X BELT

8 123405X "KEEPER,DRIVE BELT"

9 74760624 SUB= 74930624
10 123396X "KEEP,IDLER DR BEL"
11 123395X SUB= 140911
12 4859J SUB= 123674X
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 2751R CLIP T
17 122052X SPACER RETAINER
18 123397X SUB= 131461
19 73510500 NUT
20 123891X "KEEPER,DR BELT "
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 123402X KEEPER ENG DR RH

LR120AR (1999 & Before) Page 15 of 30
HOOD

LR120AR (1999 & Before) Page 16 of 30
HOOD

Ref # Part Number Qty Description

1 122036X NLA

2 122035X LENS

3 123527X HOOD&GRILL ASS'Y

4 122037X NLA

5 122038X NLA

6 122550X "STRAP,GRILL"

7 120579X PAL NUT

8 19091016 WASHER

9 74780410 BOLT
10 124657X EXT SPRING
11 124312X BOLT SHOULDER
12 74780412 SUB= 74780414
13 123693X "BRACE,HOOD"
14 123840X "DUCT,AIR"
15 120537X FOAM STRIP LT
16 122548X BRKT HOOD LH
17 122549X BRKT HOOD RH
18 2751R CLIP T
19 17411310 SUB= 17521312
20 73680400 SUB= 73690400

LR120AR (1999 & Before) Page 17 of 30
MOWER DECK (Part 1)

LR120AR (1999 & Before) Page 18 of 30
MOWER DECK (Part 1)

Ref # Part Number Qty Description

1 109820X DECAL YT

2 105814X DECAL.LT

3 73680500 SUB= 73690500

4 122047X "BRKT,STAB LINK"

5 19171713 SUB= 146537

6 4921H SPRING.RETAINER

7 124636X STABILIZER MOWER

8 122045X "BRKT,FRT LIFT RH"

9 123661X "GUIDE,FRT MAN RH"
10 109984X NLA
11 123658X DECAL WARNING
12 123713X SPRING TORSION
13 105304X CAP-SLEEVE LT
14 123596X SUB= 532136631
15 19111016 WASHER
16 121980X HINGE ROD
17 110452X NUT PUSH M
18 72140505 BOLT
19 123486X SUB= 136244
20 125629X DEFL SUPT ASS'Y
21 17051007 SCREW PAN HD
22 74760512 BOLT
23 123649X DECAL WARNING
24 122043X "BRKT,REAR LIFT RH"
25 122044X "BRKT,REAR LIFT LH"

LR120AR (1999 & Before) Page 19 of 30
MOWER DECK (Part 2)

LR120AR (1999 & Before) Page 20 of 30
MOWER DECK (Part 2)

Ref # Part Number Qty Description

1 122028X SUB= 140064

2 76020312 SUB= 3145

3 73680600 SUB= 73690600

4 19131412 WASHER

5 121316X PULLEY IDLER

6 19132203 WASHER GT

7 123204X SUB= 126756X

8 123702X IDLER ARM ASS'Y

9 72110618 BOLT CARRIAGE
10 122049X ROD BRAKE
11 106578X BRAKE LT
12 124293X BELT.MOWER.79.75
13 124208X MANDREL ASS'Y
14 73680400 SUB= 73690400
15 121787X SUB= 144727
16 72140404 BOLT
17 100668L SUPPORT PLATE LT
18 17490614 SCREW
19 126338X "BLADE.36""HIGH LIF"
20 74610624 BOLT.3/8-24X1-1/2
21 10030600 SUB= 10040600
22 19132012 WASHER
23 17490620 SCREW
24 72140505 BOLT
25 73680500 SUB= 73690500
26 72110608 BOLT D
27 123439X "GUIDE,REAR BEL RH"
28 122051X "SUPT,IDLER ARM"
29 123673X GUIDE BELT LH
30 122052X SPACER RETAINER

LR120AR (1999 & Before) Page 21 of 30
MOWER LIFT LEVER

LR120AR (1999 & Before) Page 22 of 30
MOWER LIFT LEVER

Ref # Part Number Qty Description

1 2751R CLIP T

2 122018X BRKT CLUTCH

3 74780408 BOLT

4 73680600 SUB= 73690600

5 123417X CLUTCH LEVER AS

6 106451X "BOLT, SHOULDER LT"

7 123491X CLUTCH ARM ASS'Y

8 74760636 BOLT

9 121930X "BELLCRANK,LIFT"
10 76020312 SUB= 3145
11 19131316 WASHER
12 122027X GRIP HANDLE
13 122741X LIFT HANDLE ASS'Y
14 123496X SPRING COMPRESSIO
15 19131212 WASHER T
16 76020412 COTTER PIN
17 123654X LINK FRT LIFT
18 7078J SUB= 142028
19 73350600 NUT
20 74760644 BOLT
21 17490508 SCREW LT
22 121929X "BRKT,MOWER HGT"
23 76020416 PIN COTTER 1/8
24 19171616 WASHER
25 121933X TUBE SPACER
26 121934X "ROD,MOWER LIFT "
27 19131316 WASHER
28 4921R SUB= 4921H
29 121466X KNOB
30 123671X "LINK,MOWER LIFT"
31 73680400 SUB= 73690400

LR120AR (1999 & Before) Page 23 of 30
SEAT

LR120AR (1999 & Before) Page 24 of 30
SEAT

Ref # Part Number Qty Description

1 72170410 BOLT

2 121076X SUB= 140119

3 74641008 SUB= 71031008

4 73680500 SUB= 73690500

5 105529X SUB= 139888

6 4171R CLIP T

7 73951000 "NUT,KEPS"

8 74760612 SUB= 74780612

9 2751R CLIP T
10 105513X SUB= 140551
11 19131210 WASHER
12 73680600 SUB= 73690600
13 121144X SUB= 127018X
14 120068X "KNOB 1/2"" YT"
15 19171912 WASHER
16 121251X STRIP FORM
17 123976X SUB= 73900400
18 121248X BUSHING
19 121250X SPRING
20 121249X SPACER SPLIT
21 121246X BRKT SWITCH
22 121247X SUB= 155925

LR120AR (1999 & Before) Page 25 of 30
SECTOR GEAR/AXLE SUPPORT

LR120AR (1999 & Before) Page 26 of 30
SECTOR GEAR/AXLE SUPPORT

Ref # Part Number Qty Description

1 124093X SUB= 132566

2 74780828 "BOLT,HEX"

3 17490508 SCREW LT

4 121925X "PLATE,STR SUPT"

5 121926X GEAR SECTOR

6 121927X BUSHING

7 73030800 NUT

8 123434X CLIP WIRE

9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 120754X SUB= 126847X
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
16 72140622 BOLT
17 121912X "SUPT,FRT AXLE"
18 73220600 NUT.HEX.3/8-16UNC
19 73930600 LOCKNUT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500

LR120AR (1999 & Before) Page 27 of 30
STEERING WHEEL

LR120AR (1999 & Before) Page 28 of 30
STEERING WHEEL

Ref # Part Number Qty Description

1 123690X NLA

2 100710L INSERT-WHEEL LT

3 7810H GRIPCO NUT

4 19133808 WASHER T

5 100713N SUB= 150547

6 121897X SLEEVE STEERING

7 17431008 SUB= 98000165

8 102803X SUB= 918102803X

9 123651X SUB= 148966
10 124210X STEERING CLIP
11 123438X BUSHING STEER LWR
12 12000045 RING
13 19211616 WASHER LT
14 104820X ADAPTER-WHEEL LT

LR120AR (1999 & Before) Page 29 of 30
TRANSAXLE

LR120AR (1999 & Before) Page 30 of 30
TRANSAXLE

Ref # Part Number Qty Description

1 123385X PULLEY

2 12000028 SUB= 2267J

3 123483X SUB= 160851

4 2228M SUB= 2228M1

5 73680500 SUB= 73690500

6 72140506 BOLT

7 123378X "STRAP,TORQUE"

8 17490508 SCREW LT

9 110442X SUB= 146682
10 59192 VALVE CAP
11 65139 VALVE STEM LT
12 8134H TUBE.16X6.5/7.5-8
13 123411X TIRE.16X7.5-8
14 121749X WASHER
15 121748X WASHER
16 12000001 E-RING LT
17 104757X HUB CAP
18 123412X361 RIM
19 123409X SPACER
20 123583X SQUARE KEY
21 74760644 BOLT
22 72140506 BOLT
23 73680600 SUB= 73690600
24 123377X "BRKT,TRANSAXLE"
25 73680500 SUB= 73690500
26 17490512 SCREW
27 76020416 PIN COTTER 1/8
28 123393X EXT SPRING
29 123632X "LINK,SHIFT"
30 10040400 LOCKWASHER
31 71040412 SUB= 74550412
32 19091210 WASHER LT
33 122011X "KNOB,SHT CONTROL"
34 123692X KNOB RETAINER
35 123388X SUB= 125976X
36 73510500 NUT
37 105701X WASH-SHFT PLT LT
38 123484X ARM SHIFT
39 73810500 NUT.LOCK.5/16-24
