AYP L2500AR Parts List

L2500AR (1999 & Before) Page 1 of 32
CHASSIS AND ENCLOSURE

L2500AR (1999 & Before) Page 2 of 32
CHASSIS AND ENCLOSURE

Ref # Part Number Qty Description

1 110059X Seat
2 109866X SEAT PAN T
3 109871X BRKT.ASM.SEAT.P
5 109587X NLA
8 109593X366 FENDER

9 106202X REFLECTOR-TAIL YT
10 109323X NLA
14 105511X SUB= 140675
17 108885X GUARD MUFFLER HYT
18 105512X SPRING LT
19 105514X "CLAMP, SPRING LT"
21 105509X SUB= 137113
22 105531X NUT-PUSH YT
23 106020X SUB= 151346
24 109462X SUB= 158990
25 6999R SUB= 123487X
26 5277J SUB= 8543R
27 106082X PAD-SPACER LT
28 109512X CHASSIS T
29 102481X SUB= 145009
30 109665X SUB= 532132072
31 105505X SUB= 121794X
32 109666X SUB= 106976X
34 105465X366 FOOTREST - L.H.
35 105464X366 FOOTREST - R.H.
37 108256X PAD FOOTREST T
38 3645J BUSHING OUTLET T
40 109435X NLA
41 9151R SNAP BUSHING T
42 109867X SPRING T
45 104920X NLA
46 3607J366 SUB= 3607J419
47 109641X GROMMET T
50 5351J366 SUB= 5351J419
51 109673X NLA
52 109754X NLA
54 677A876 STRAP ASSY T
55 677A875 STRAP ASSY T
56 101235L SCREEN GRILL GTV
57 109671X LENS T
59 7606J366 SUB= 7606J361
60 7607J366 SUB= 7607J361
61 4900J DECAL T
62 109199X SUB= 146046
64 8710J FUEL TANK STEM GT
65 106974X SUB= 133796
71 677A432 STRAP ASSY-REAR T

L2500AR (1999 & Before) Page 3 of 32
DRIVE

L2500AR (1999 & Before) Page 4 of 32
DRIVE

Ref # Part Number Qty Description

1 106192X Pulley, Transaxle

2 12000028 SUB= 2267J

3 2228M SUB= 2228M1

4 109566X TRANSAXLE

5 109741X SUB= 123190X

8 109570X ENGINE

9 108373X MUFFLER HYT
10 100229L EXHAUST TUBE T
11 74780412 SUB= 74780414
12 10040400 LOCKWASHER
13 8545J SUB= 272250
14 13280328 PIPE NIPPLE
15 13300300 COUPLING LT
16 13290300 PLUG T
17 108310X SUB= 130969
18 13240300 STREET ELBOW LT
19 106933X KNOB T (1/2-HOLE)
20 105699X SUB= 110458X
21 106362X WASHER
22 19151216 WASHER
23 76020416 PIN COTTER 1/8
25 105730X "KEEPER,BLT ENG LT"
27 19131312 WASHER
28 73680600 SUB= 73690600
29 8883R PEDAL COVER T
30 109037X FOOT SHAFT PEDAL
31 1572H SUB= 2882J
32 19252016 SUB= 121749X
33 106918X ARM BRAKE LT
34 106301X SUB= 121440X
35 106300X SUB= 121441X
36 104777X SUB= 140312
37 109070X BELT KEEPER LT
38 4470J SPACER T
39 4859J SUB= 123674X
40 74760644 BOLT
41 105731X SUB= 137326
42 10040700 LOCKWASHER
43 74770720 SUB= 71130720
44 108331X SUB= 122067X
45 4921H SPRING.RETAINER
46 106296X SUB= 122066X
47 106190X CLAMP LT
48 71040412 SUB= 74550412
49 19091210 WASHER LT
53 106360X STRAP TORQUE LT
54 109167X BRACKET LT
55 106157X PLATE-STRAP LT
56 76020412 COTTER PIN
57 105844X SUB= 125637X
58 105752X SUB= 110437X
59 71673 PLUNGER CAP T
60 106888X SPRING ROD LT
61 19131316 WASHER
62 19252616 SUB= 121748X
63 105724X SUB= 123102X
65 106298X SUB= 139245
66 105705X SUB= 125829X

L2500AR (1999 & Before) Page 5 of 32
DRIVE

Ref # Part Number Qty Description

67 106499X SUB= 123205X
68 74760624 SUB= 74930624
69 207J WASHER T
70 12000039 KLIP RING
71 105709X "SPRING, RETURN LT"
72 105710X "LINK, CLUTCH T"
73 61159 KNOB
74 106678X THROTTLE CNTRL LT
76 59192 VALVE CAP
77 65139 VALVE STEM LT
78 106268X SUB= 122074X
79 7152J TUBE.18X9.5-8
80 106272X "RIM ASSY 10"" T"
81 105702X "SPACER, SPLIT LT"
82 19252016 SUB= 121749X
83 12000001 E-RING LT
85 2703J SUB= 123583X
86 108332X KEEPER BELT RH
90 105706X "LY, BEARING"
92 109569X PLATE T
93 105700X SPRING LT
96 73350600 NUT
99 104919X SUB= 109740X

L2500AR (1999 & Before) Page 6 of 32
ELECTRICAL

L2500AR (1999 & Before) Page 7 of 32
ELECTRICAL

Ref # Part Number Qty Description

1 7552H Key Molded

2 7661J HARNESS T

3 7662J SUB= 4152J

4 4406R SUB= STD365402

5 11151000 LOCKWASHER

6 3258J CONDUIT NUT L

7 4482J LIGHT SWITCH T

8 109081X SUB= 146154
14 719J SUB= 154336
15 109669X HARNESS T
16 4799J "CABLE T, BATTERY"
17 109670X CABLE LT
18 4207J CABLE T
19 7682R SWITCH PLATE LT
20 9138R SUB= 123899X
21 7320R NUT
22 104445X SWITCH-INTER. GT
23 17021008 SCREW
24 108824X FUSE HYT
25 74760412 BOLT LT
26 19091016 WASHER
27 10040400 LOCKWASHER
28 73220400 SUB= 50675
29 73490400 SUB= 146525
30 11030400 LOCKWASHER GT
31 102476X SUB= 150109
32 72240460 BOLT
33 9433R AMMETER T
34 6009J SUB= 532131708
35 19070818 WASHER
36 235R CLIPT
39 109553X SWITCH INTERLOCKT
40 73911000 NUT
41 10101000 SUB= 10071000
44 102501X SUB= 141940
45 109869X SWITCH T

101539X SHEET INSTR LT
109564X MANUAL T

L2500AR (1999 & Before) Page 8 of 32
HARDWARE (CHASSIS AND ENCLOSURE)

L2500AR (1999 & Before) Page 9 of 32
HARDWARE (CHASSIS AND ENCLOSURE)

Ref # Part Number Qty Description

4 105529X SUB= 139888

6 73680500 SUB= 73690500

7 73680600 SUB= 73690600
11 17490612 SCREW
12 19131312 WASHER
13 74760612 SUB= 74780612
15 19131216 WASHER
16 10040600 LOCKWASHER
20 19132012 WASHER
33 74760412 BOLT LT
36 72140606 BOLT
39 10040400 LOCKWASHER
44 19090816 WASHER
48 73680400 SUB= 73690400
49 17490608 SCREW LT
58 17990808 SCREW
63 74760616 BOLT
66 17490616 SCREW GTV
67 19131616 WASHER HYT
68 19131316 WASHER
69 17511208 SCREW
70 8019J SUB= 19071018
72 17411310 SUB= 17521312
73 7605J BOLT T
74 73220400 SUB= 50675
75 81328 SHOULDER BOLT ST

L2500AR (1999 & Before) Page 10 of 32
HARDWARE (DRIVE)

L2500AR (1999 & Before) Page 11 of 32
HARDWARE (DRIVE)

Ref # Part Number Qty Description

6 19111116 WASHER
24 17490612 SCREW
26 74760616 BOLT
27 19131312 WASHER
28 73680600 SUB= 73690600
50 74760512 BOLT
51 73680500 SUB= 73690500
52 74760544 SUB= 74780544
64 72140606 BOLT
75 17720408 SCREW
87 17490624 SCREW LT
89 74760612 SUB= 74780612
94 11050600 LOCKWASHER
95 73510600 NUT
97 19091016 WASHER
98 19132012 WASHER

L2500AR (1999 & Before) Page 12 of 32
HARDWARE (ELECTRICAL)

L2500AR (1999 & Before) Page 13 of 32
HARDWARE (ELECTRICAL)

Ref # Part Number Qty Description

4 4406R SUB= STD365402
10 73350400 NUT
11 74780408 BOLT
12 11050400 LOCKWASHER
13 73510400 NUT
23 17021008 SCREW
38 73680400 SUB= 73690400
42 71031008 SCREW
43 73951000 "NUT,KEPS"

L2500AR (1999 & Before) Page 14 of 32
HARDWARE (LIFT ADJUSTMENT)

L2500AR (1999 & Before) Page 15 of 32
HARDWARE (LIFT ADJUSTMENT)

Ref # Part Number Qty Description

3 73680600 SUB= 73690600

4 74760612 SUB= 74780612
23 74570632 SCREW LT
32 72140606 BOLT
36 105848X "BOLT, SHOULDER LT"
45 17021008 SCREW
46 74760624 SUB= 74930624
47 19131612 WASHER GT
48 108056X BUSHING YT
53 72140608 SUB= 72110608

L2500AR (1999 & Before) Page 16 of 32
HARDWARE (MOWER)

L2500AR (1999 & Before) Page 17 of 32
HARDWARE (MOWER)

Ref # Part Number Qty Description

6 74760612 SUB= 74780612

7 73680600 SUB= 73690600
11 72140506 BOLT
12 73680500 SUB= 73690500
13 19131614 WASHER
35 74760648 BOLT - HEX 3/8 - 16 X 3
36 72140608 SUB= 72110608
41 8198J SHOULDER BOLT Y
42 73930600 LOCKNUT
46 19111116 WASHER
47 74760520 BOLT
56 74760580 BOLT
68 17490612 SCREW
70 72140612 BOLT
74 72140614 BOLT
77 74760616 BOLT
78 19171616 WASHER
80 73220500 NUT.HEX.5/16-18
81 10040500 LOCKWASHER
83 72110505 BOLT
84 1685H SUB= 68478
85 72110506 SUB= 72270506

L2500AR (1999 & Before) Page 18 of 32
HARDWARE (STEERING ASSEMBLY)

L2500AR (1999 & Before) Page 19 of 32
HARDWARE (STEERING ASSEMBLY)

Ref # Part Number Qty Description

15 17490612 SCREW
22 74180512 SCREW
23 73680500 SUB= 73690500
25 73680600 SUB= 73690600
27 74760612 SUB= 74780612
38 17490608 SCREW LT
43 17490508 SCREW LT
55 17431008 SUB= 98000165
70 74760620 SUB= 74780620

L2500AR (1999 & Before) Page 20 of 32
LIFT ADJUSTMENT

L2500AR (1999 & Before) Page 21 of 32
LIFT ADJUSTMENT

Ref # Part Number Qty Description

1 4617J Grip - Handle

2 106983X HANDLE YT

3 73680600 SUB= 73690600

5 108451X ROD ASSEM YT

6 76020412 COTTER PIN

7 106308X SUB= 130171

8 109728X "T, BELLCRANK"

9 19292016 WASHER
10 106444X "BRKT,BELLCRAN T"
11 12000037 KLIP RING
12 100734K SUB= 138057
13 73350600 NUT
14 100735K ROD ADJUST LT
15 2876H SPRING T
16 19131016 WASHER
17 12000029 RING
19 104597X LEVER ASSY LT
20 674A249 NLA
21 105723X SUB= 125925X
22 109413X GRIP
24 105630X WASHER YT
25 6519J TRUNION T
26 19151216 WASHER
27 9135R SPRING H
28 4939M SUB= 85902
29 19171416 WASHER
30 105855X LINK LIFT LT
31 110029X LIFT LINK LT
33 23180606 SCREW
34 105864X "BRACKET, SUSPE T"
35 105863X SUB= 121599X
37 105862X SUB= 121598X
38 73220800 NUT
39 8330H KEY STD
40 76020308 SUB= 3145
41 58606 IDLER SPRING
42 19131312 WASHER
43 106854X SUB= 121252X
44 108236X BRACKET LT
49 102727X "SPRING.EXT.8.5"""
50 106204X SUB= 132793
51 73220600 NUT.HEX.3/8-16UNC
52 4921H SPRING.RETAINER
54 1913410 SUB= 19131410

L2500AR (1999 & Before) Page 22 of 32

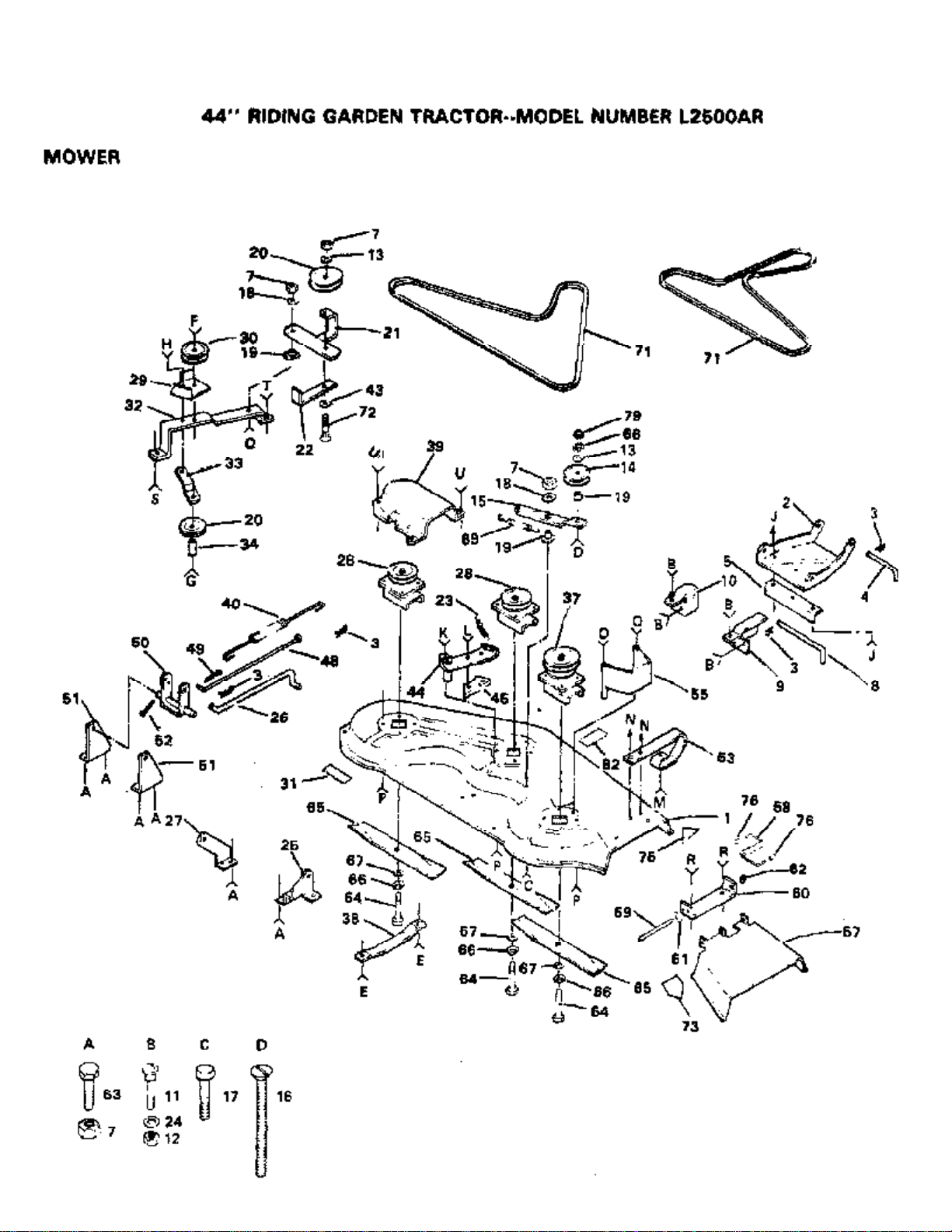

MOWER

L2500AR (1999 & Before) Page 23 of 32
MOWER

Ref # Part Number Qty Description

1 105690X Housing -Mower

2 105662X LINK.PARALLEL

3 4921H SPRING.RETAINER

4 105744X "ROD, FRT. PARAL T"

5 105872X LINK STOP

7 73680600 SUB= 73690600

8 105743X SUB= 109835X

9 106512X BRACKET RH YT
10 106511X BRACKET LH YT
11 72140506 BOLT
12 73680500 SUB= 73690500
13 19131614 WASHER
14 102932X IDLER.FLAT.GTV
15 106526X ARM-IDLER YT
16 74110632 SCREW YT
17 74760620 SUB= 74780620
18 106513X "WASHER, WEAR LT"
19 106902X SPACER RETAINER
20 102403X IDLER-FLAT T
21 106518X SUB= 121424X
22 106461X SUB= 126756X
23 106530X SPRING-EXT YT
24 19111216 WASHER M
25 109278X SUB= 123807X
26 108235X ROD LT
27 108359X SUB= 123808X
28 106037X SUB= 136819
29 106529X GUIDE-BELT YT
30 677A451 IDLER-INSIDE T
31 106223X DECAL YT
32 106523X "SUPPORT YT, BAR"
33 106522X BRACE-IDLER YT
34 106525X SPACER YT
37 106041X SUB= 121705X
38 7631J RUNNER-LH M
39 106214X GUARD YT
40 108395X NLA
43 19171912 WASHER
44 106606X BRAKE ARM LT
45 102951X BRAKE-BLOCK YTV
48 108394X ROD BRAKE YT
49 76020312 SUB= 3145
50 108242X SUB= 110384X
51 108393X SUPPORT SHAFT YT
52 76020616 SUB= 76020624
53 8418J SUB= 136321
55 102924X ASSY RH BELT GRD
57 109785X DEFLECTOR SHIELD
58 106734X SUB= 123713X
59 106735X ROD-HINGE T
60 109743X SUB= 137607
61 19111016 WASHER
62 5846R SUB= 110452X
63 72140606 BOLT
64 74610624 BOLT.3/8-24X1-1/2
65 106635X SUB= 25034
66 10040600 LOCKWASHER
67 19132012 WASHER

L2500AR (1999 & Before) Page 24 of 32
MOWER

Ref # Part Number Qty Description

69 100123L SPRING LT
71 106085X BELT-V.79.1.MWR
72 72140616 BOLT
73 78850 SUB= 85463
75 106975X DECAL - SAFETY STANDARD
76 105304X CAP-SLEEVE LT
79 73220600 NUT.HEX.3/8-16UNC
82 106679X DECAL.WARNING.T

L2500AR (1999 & Before) Page 25 of 32

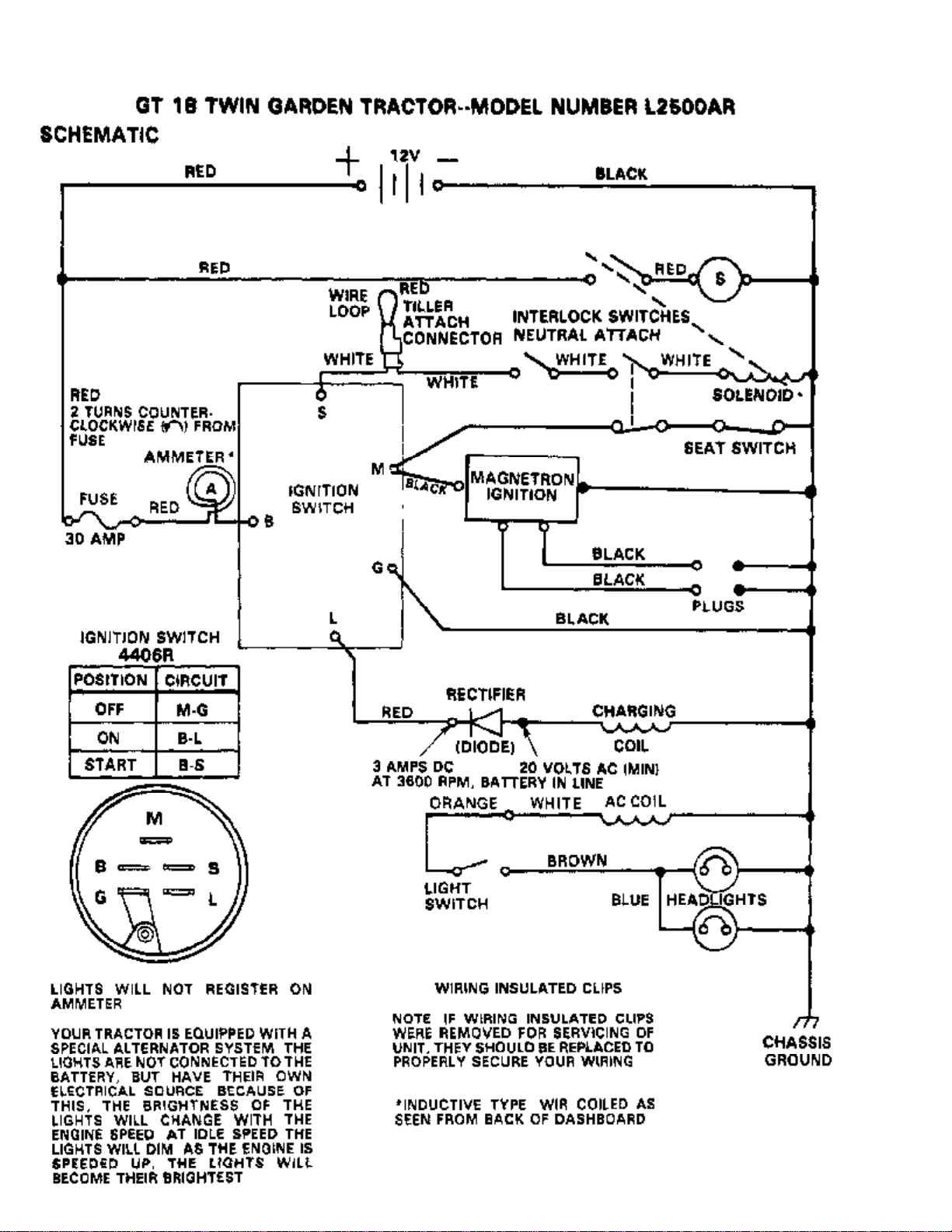

SCHEMATIC

L2500AR (1999 & Before) Page 26 of 32
SCHEMATIC

Ref # Part Number Qty Description

REFER TO IMAGE

L2500AR (1999 & Before) Page 27 of 32
STEERING ASSEMBLY

L2500AR (1999 & Before) Page 28 of 32
STEERING ASSEMBLY

Ref # Part Number Qty Description

1 109325X Decal Steering Wheel Insert

2 100710L INSERT-WHEEL LT

3 73360800 NUT

4 100712K WASHER

5 100713N SUB= 150547

6 100711L ADAPTER LT

7 100714L SLEEVE LTV

8 109577X DASH

9 109674X NLA
10 108705X SHAFT STR HYT
11 2882J DRIVE PIN
12 71208 BUSHING
13 109432X SUB= 110150X
14 108685X GEAR PINION T
16 108683X ROD STEERING T
17 12000029 RING
18 6266H WASHER .T
19 108684X GEAR.SECTOR.HYT
20 106126X KEY-WOODRUFF LT
21 109816X NYLINER T
24 109572X NLA
26 106965X SUB= 140181
28 7603J "TRAY T, BATTERY"
29 109596X HOSE CLAMP T
30 100541X SUB= 7697J
31 109836X SUB= 132779
32 19131316 WASHER
33 11050600 LOCKWASHER
34 8022J PLUG-DASH T
35 105669X SUB= 108075X
36 105663X SUPPORT-SADDL T
37 74761060 BOLT LT
39 105664X SUPPORT.SADDLE.FT
40 105725X SUB= 110438X
41 105726X SUB= 154391
42 73901000 "NUT-LOC,FLANGE LT"
44 105655X SPINDLE LH YT
45 105653X SUB= 130897
46 19252016 SUB= 121749X
47 106440X TIE ROD T
48 10040500 LOCKWASHER
49 73610500 NUT
50 3366R COL. SRTG. BEAR.
51 105727X LINK-DRAG LT
52 10040600 LOCKWASHER
53 73610600 SUB= 7810H
54 1554J SUB= 155108
56 104757X HUB CAP
57 2751R CLIP T
58 5320R INSUL CLIP T
59 59192 VALVE CAP
60 65139 VALVE STEM LT
61 278H FITTING LT
62 9040H "FLANGE, BEARING"
63 106732X SUB= 106732X417
64 106222X SUB= 122073X
65 59904 TUBE.5.3/4.5/6
66 101930X WASHER YTV

L2500AR (1999 & Before) Page 29 of 32
STEERING ASSEMBLY

Ref # Part Number Qty Description

67 8497J DECAL, INSTRUCTION
68 74580 SHAFT SPACER LT
69 19252616 SUB= 121748X

L2500AR (1999 & Before) Page 30 of 32
TRANSAXLE PEERLESS - MODEL NUMBER 143.801.047

L2500AR (1999 & Before) Page 31 of 32
TRANSAXLE PEERLESS - MODEL NUMBER 143.801.047

Ref # Part Number Qty Description

1 77071A Case, Transfer

2 778136 GEAR, SPUR, 15 TEETH

3 778200 GEAR, SPUR, 20T

4 778201 GEAR, SPUR, 25T

6 778216 GEAR, SPUR (41 TEETH)

7 778204 GEAR, SPUR (25 TEETH)

8 778205 GEAR, SPUR (30 TEETH)

9 778209 GEAR, SPUR, 19 TEETH
10 778208 GEAR, SPUR, 31T
11 778206 GEAR, SPUR (35 TEETH)
12 778154 GEAR, BEVEL, (42 TEETH)
13 784266 COLLAR, SHIFT
14 786083 SPROCKET (18 TEETH)
15 786082 SPROCKET 9T
16 776248 COUNTERSHAFT & GEAR
17 778176 BEVEL PINION, INPUT
18 786074 SPACER
19 778138 PINION, OUTPUT
20 778139 GEAR, OUTPUT
21 790003 DISK, BRAKE
22 792089A KEY (4 REQUIRED)
23 780071 THRUST BEARING
25 788040 RETAINING RING
26 780105A BUSHING, FLANGED
27 780118A BUSHING, FLANGED
28 786081 CHAIN, ROLLER
29 780072 WASHER THRUST
30 780122 BEARING, NEEDLE
31 792077 BALL STEEL, 5/16" DIA.
32 780139 WASHER
33 792078 SCREW, 3/8-16 X 3/8"
34 792079 SPRING
35 792073 SCREW, 1/4-20 X 1-1/4
36 780108 WASHER THRUST

36A 780145 WASHER

37 780121 BEARING, BALL
38 780113 WASHER, FLAT
39 780119 BEARING BALL
40 786113 SPACER (2-1/4" LONG)
41 788051 SEAL, SQUARE CUT
42 788057 "O" RING
43 780112 BEARING, NEEDLE
44 780114 WASHER, FLAT
46 788053 SEAL, SQUARE CUT
47 772082 COVER, TRANSAXLE
48 784290 ROD & FORK ASSY., SHIFT
49 776135 SHAFT, INPUT
50 776184A SHAFT, BRAKE
51 790007 PLATE BRAKE PAD
52 790006 PAD BRAKE
53 786026 PIN DOWEL
54 792075 LOCKNUT 5/16-24
55 792076 WASHER, FLAT
56 790038 LEVER, BRAKE
57 792073 SCREW, 1/4-20 X 1-1/4

57A 792085 SCREW FLNG HEX 1/4-20 X 2-1/4

58 790025 HOLDER BRAKE PAD
59 778175 GEAR ASSY DIFFERENTIAL (INCL. 2 OF #60)

L2500AR (1999 & Before) Page 32 of 32
TRANSAXLE PEERLESS - MODEL NUMBER 143.801.047

Ref # Part Number Qty Description

60 780064 BUSHING

60A 780120 BUSHING

61 778166 GEAR, BEVEL
62 778131 PINION, BEVEL
63 786034 PINE, DRIVE
64 780065 WASHER, THRUST
65 792125 RING RETAINER
66 792040 PIN, ROLL
67 780001 WASHER
68 774657 AXLE (15-1/8" LONG)
69 774658 AXLE (13-1/4" LONG)
70 792035 RING, RETAINER
71 792074 PLUG, THRDED, 9/16-18
72 786067 SPACER
73 788069 SEAL SQUARE CUT
74 786086 BRKT BRAKE LEVER
