L2400AR (1999 & Before) Page 1 of 30

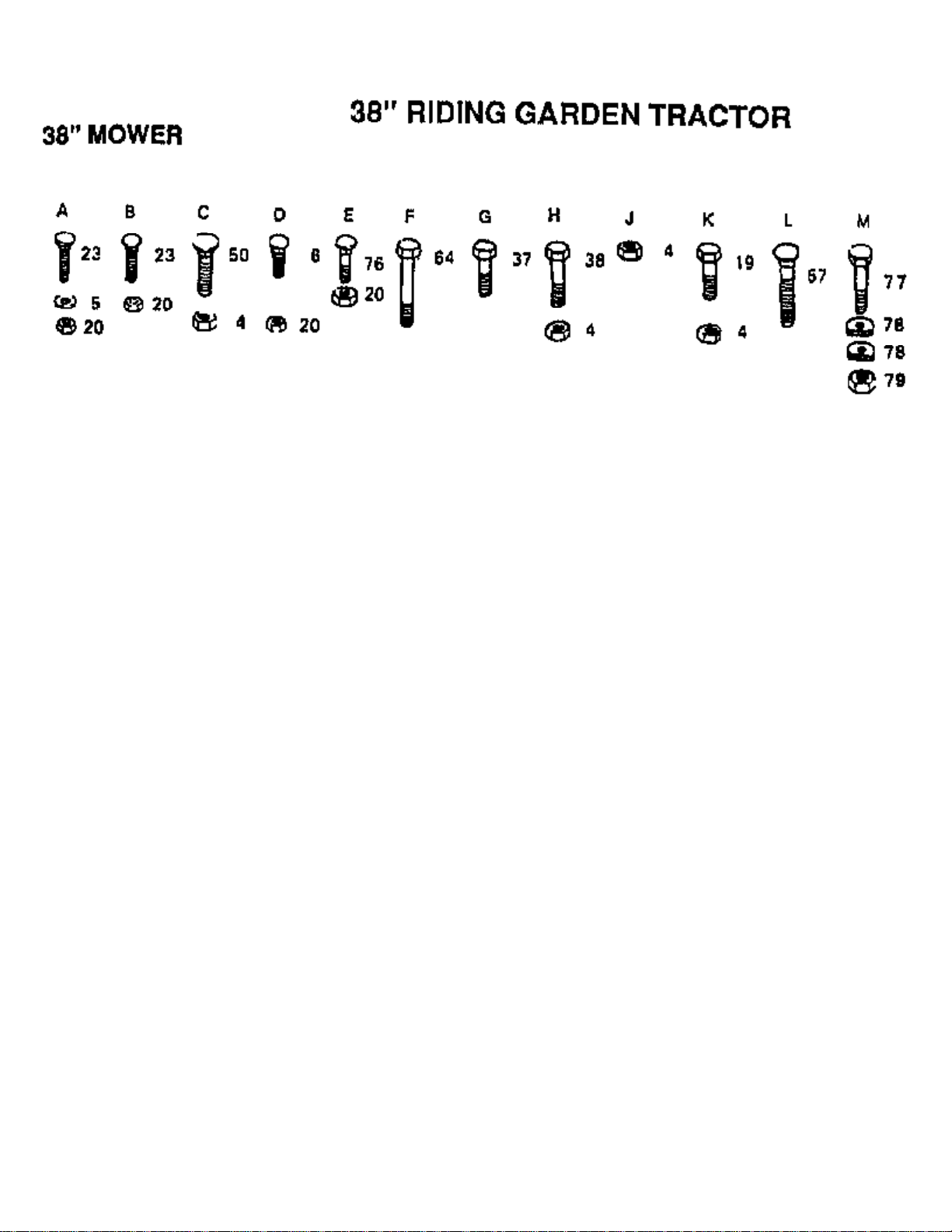

38" MOWER DECK, BELT, BLADES
L2400AR (1999 & Before) Page 2 of 30
38" MOWER DECK, BELT, BLADES
Ref # Part Number Qty Description
1 106085X BELT-V.79.1.MWR
2 121259X SUB= 144725
3 8417J SUB= 128772
4 73680600 SUB= 73690600
7 105896X SUB= 137607
8 110452X NUT PUSH M
9 106734X SUB= 123713X
10 106735X ROD-HINGE T
11 106736X DEFLECTOR-SHLD T
12 105814X DECAL.LT
13 105304X CAP-SLEEVE LT
14 105662X LINK.PARALLEL
15 105744X "ROD, FRT. PARAL T"
17 105872X LINK STOP
18 109835X HINGE PIN T
21 109598X BRACKET RH LT
22 109597X BRACKET LH T
24 3713J DECAL INSTRUCTION CAUTION
25 109503X SUPPORT ARM T
26 109504X STOP T
27 REFER TO IMAGE
28 123204X SUB= 126756X
29 74760632 SUB= 74930632
30 108832X SUB= 127163X
31 106902X SPACER RETAINER
32 121316X PULLEY IDLER
33 106513X "WASHER, WEAR LT"
34 102669X BELT KEEPER LT
35 121687X "JACKSHAFT.38""LT"
36 100668L SUPPORT PLATE LT
39 121263X "BLADE.38"" HI-LI"
40 19132012 WASHER
41 10030600 SUB= 10040600
42 74610624 BOLT.3/8-24X1-1/2
43 108250X SPRING LT
44 108235X ROD LT
45 4921H SPRING.RETAINER
46 76020312 SUB= 3145
47 109892X ROCKSHAFT T
48 76020616 SUB= 76020624
49 108247X ROD BRAKE LT
52 108243X BRACKET LT
53 108241X BRACKET LT
54 105857X "BRKT,SUSP RH T"
55 108673X "BRKT,SUSP REAR LH"
56 106578X BRAKE LT
57 106463X "ROD, BRAKE LH LT"
58 108249X ROD BRAKE LT
59 106456X "BRK,BRAKE,PVT LT"
60 100672K SPACER BRAKE LTV
61 100673L BRACKET SUPT LTV
63 19111016 WASHER
65 7631J RUNNER-LH M
66 19131614 WASHER
68 121343X DECAL WARING
70 122314X SPACER
75 76020308 SUB= 3145
80 110445X SUPPORT T
L2400AR (1999 & Before) Page 3 of 30
38" MOWER DECK, BELT, BLADES
Ref # Part Number Qty Description
81 19131316 WASHER
L2400AR (1999 & Before) Page 4 of 30
CHASSIS, SEAT, ENCLOSURES
L2400AR (1999 & Before) Page 5 of 30
CHASSIS, SEAT, ENCLOSURES
Ref # Part Number Qty Description
1 110731X SUB= 140119
2 121247X SUB= 155925
3 105513X SUB= 140551
5 109587X NLA
8 121642X366 SUB= 121642X419
9 106202X REFLECTOR-TAIL YT
10 109323X NLA
14 105511X SUB= 140675
15 19171912 WASHER
17 108885X GUARD MUFFLER HYT
21 105509X SUB= 137113
22 105531X NUT-PUSH YT
23 106020X SUB= 151346
24 121221X SUB= 158990
25 6999R SUB= 123487X
26 5277J SUB= 8543R
27 106082X PAD-SPACER LT
28 121277X CHASSIS ASSY
29 121306X SUB= 127866
30 109665X SUB= 532132072
31 121794X COVER ACCESS
32 106976X PANEL DASH RH YT
34 105465X366 FOOTREST - L.H.
35 105464X366 FOOTREST - R.H.
37 108256X PAD FOOTREST T
38 3645J BUSHING OUTLET T
40 123086X DECAL 14HP
41 9151R SNAP BUSHING T
42 121067X SPRING T
45 104920X NLA
46 3607J366 SUB= 3607J419
50 5351J366 SUB= 5351J419
51 109673X NLA
52 109754X NLA
53 109753X NLA
54 677A876 STRAP ASSY T
55 677A875 STRAP ASSY T
56 101235L SCREEN GRILL GTV
57 109671X LENS T
59 7606J366 SUB= 7606J361
60 7607J366 SUB= 7607J361
61 1133J SUB= 101892X
62 109199X SUB= 146046
64 8710J FUEL TANK STEM GT
65 126974X DECAL
71 677A432 STRAP ASSY-REAR T
77 121144X SUB= 127018X
78 74780816 BOLT
79 10040800 LOCKWASHER
80 2751R CLIP T
81 72170410 BOLT
82 121251X STRIP FORM
83 121249X SPACER SPLIT
84 121250X SPRING
85 121246X BRKT SWITCH
88 4171R CLIP T
89 73900400 NUT T
90 121248X BUSHING
L2400AR (1999 & Before) Page 6 of 30

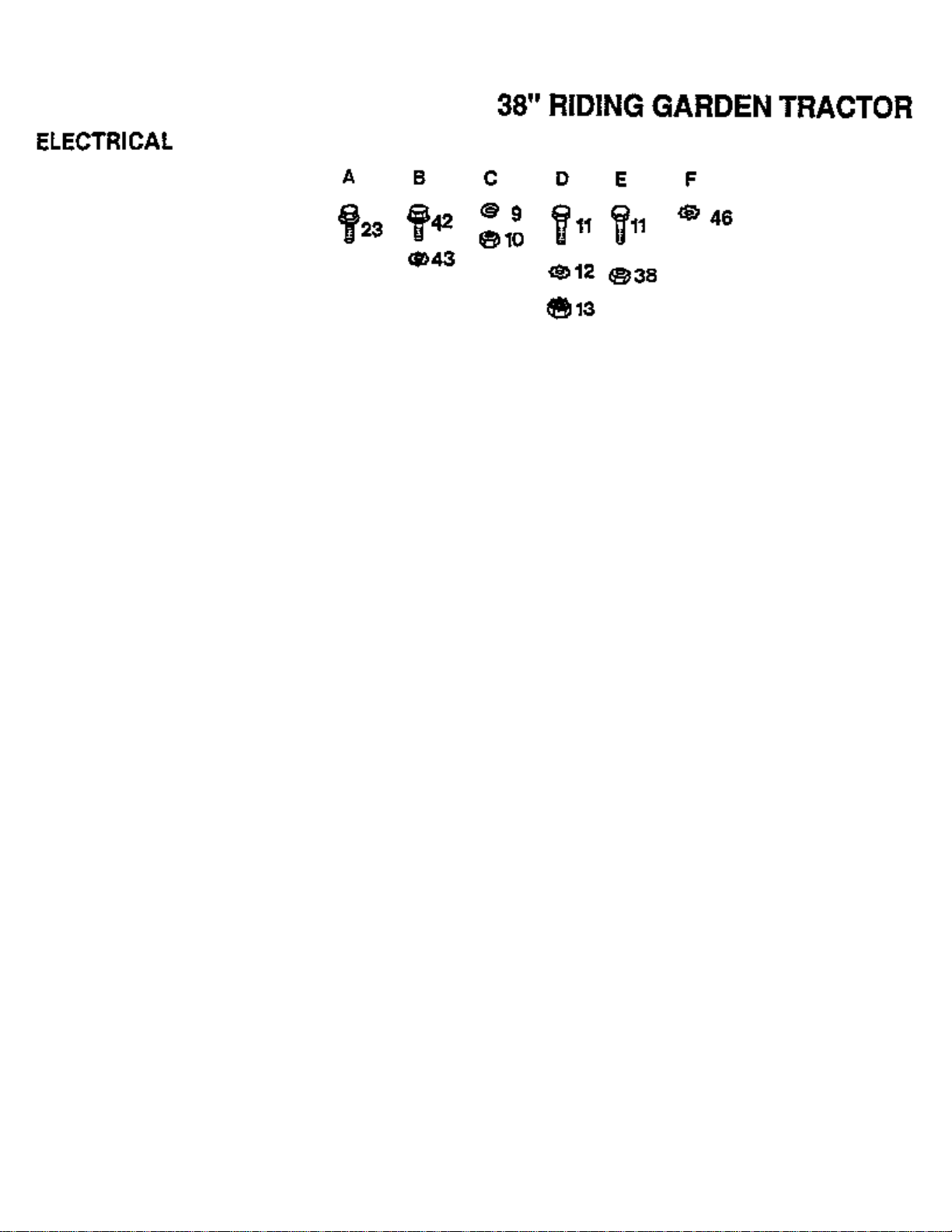

ELECTRICAL
L2400AR (1999 & Before) Page 7 of 30
ELECTRICAL
Ref # Part Number Qty Description
1 122147X KEY
2 110859X HARNESS T
3 7662J SUB= 4152J
4 4406R SUB= STD365402
6 109788X SUB= 124211X
7 110712X SWITCH LT
8 109081X SUB= 146154
14 719J SUB= 154336
15 122918X HARNESS
16 4799J "CABLE T, BATTERY"
17 109670X CABLE LT
18 4207J CABLE T
20 121537X SUB= 123899X
22 104445X SWITCH-INTER. GT
24 108824X FUSE HYT
25 74760412 BOLT LT
26 19091016 WASHER
27 10040400 LOCKWASHER
28 73220400 SUB= 50675
29 123198X SUB= 146525
31 102476X SUB= 150109
32 72240460 BOLT
33 121433X SUB= 122822X
36 235R CLIPT
39 109553X SWITCH INTERLOCKT
44 102501X SUB= 141940
45 121305X SWITCH SEAT
47 109787X SUB= 147626
48 121264X "CAP,BATTERY "
101539X SHEET INSTR LT
123155X OWNERS MANUAL
L2400AR (1999 & Before) Page 8 of 30
HARDWARE
L2400AR (1999 & Before) Page 9 of 30
HARDWARE
Ref # Part Number Qty Description
24 17490612 SCREW
26 74760616 BOLT
27 19131312 WASHER
28 73680600 SUB= 73690600
40 74760644 BOLT
50 74760512 BOLT
51 73680500 SUB= 73690500
64 72140606 BOLT
75 17720410 SCREW LT
87 17490624 SCREW LT
89 74760612 SUB= 74780612
94 11050600 LOCKWASHER
95 73510600 NUT
98 19132012 WASHER
101 17490512 SCREW
L2400AR (1999 & Before) Page 10 of 30
HARDWARE
L2400AR (1999 & Before) Page 11 of 30
HARDWARE
Ref # Part Number Qty Description
9 10090400 SUB= 10040400
10 73350400 NUT
11 74780408 BOLT
12 11050400 LOCKWASHER
13 73510400 NUT
23 17021008 SCREW
38 73680400 SUB= 73690400
42 71031008 SCREW
43 73951000 "NUT,KEPS"
46 11050600 LOCKWASHER
101539X SHEET INSTR LT
123155X OWNERS MANUAL
L2400AR (1999 & Before) Page 12 of 30
HARDWARE
L2400AR (1999 & Before) Page 13 of 30
HARDWARE
Ref # Part Number Qty Description
15 17490612 SCREW
22 74180512 SCREW
23 73510500 NUT
25 122819X SCREW SPECIAL
27 74760512 BOLT
38 17490608 SCREW LT
43 17490508 SCREW LT
55 17431008 SUB= 98000165
L2400AR (1999 & Before) Page 14 of 30
HARDWARE
L2400AR (1999 & Before) Page 15 of 30
HARDWARE
Ref # Part Number Qty Description
4 105529X SUB= 139888
6 73680500 SUB= 73690500
7 73680600 SUB= 73690600
11 17490612 SCREW
12 19131312 WASHER
13 74760612 SUB= 74780612
18 73510600 NUT
20 19131614 WASHER
33 74760412 BOLT LT
36 72140606 BOLT
39 10040400 LOCKWASHER
44 19090816 WASHER
48 73680400 SUB= 73690400
49 17490608 SCREW LT
58 17990808 SCREW
63 74760616 BOLT
66 17490616 SCREW GTV
67 19131616 WASHER HYT
68 19131316 WASHER
69 17511208 SCREW
70 8019J SUB= 19071018
72 17411310 SUB= 17521312
73 7605J BOLT T
74 73220400 SUB= 50675
75 81328 SHOULDER BOLT ST
86 74641008 SUB= 71031008
87 73951000 "NUT,KEPS"
L2400AR (1999 & Before) Page 16 of 30
HARDWARE
L2400AR (1999 & Before) Page 17 of 30
HARDWARE
Ref # Part Number Qty Description
4 73680600 SUB= 73690600
5 19111216 WASHER M
20 73680500 SUB= 73690500
32 121316X PULLEY IDLER
36 100668L SUPPORT PLATE LT
45 4921H SPRING.RETAINER
46 76020312 SUB= 3145
47 109892X ROCKSHAFT T
48 76020616 SUB= 76020624
55 108673X "BRKT,SUSP REAR LH"
56 106578X BRAKE LT
58 108249X ROD BRAKE LT
59 106456X "BRK,BRAKE,PVT LT"
L2400AR (1999 & Before) Page 18 of 30
HARDWARE
L2400AR (1999 & Before) Page 19 of 30
HARDWARE
Ref # Part Number Qty Description
4 73680600 SUB= 73690600
5 19111216 WASHER M
6 72140505 BOLT
19 74760612 SUB= 74780612
20 73680500 SUB= 73690500
23 72140506 BOLT
37 17490612 SCREW
38 17490620 SCREW
50 72140606 BOLT
64 74760688 BOLT
67 72140610 BOLT.3/8-14X1.25
76 72110506 SUB= 72270506
77 74760412 BOLT LT
78 109893X WASHER T
79 73680400 SUB= 73690400
L2400AR (1999 & Before) Page 20 of 30

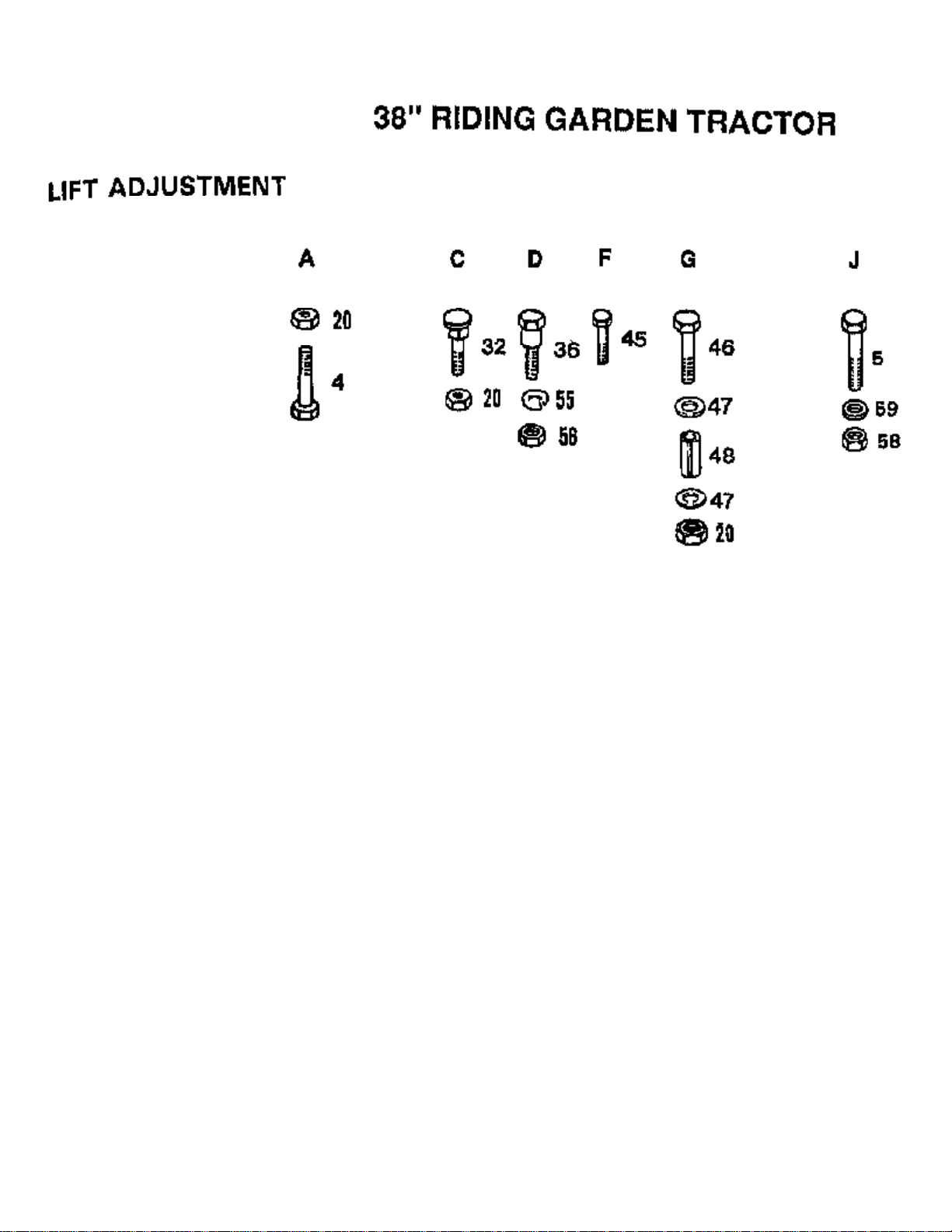

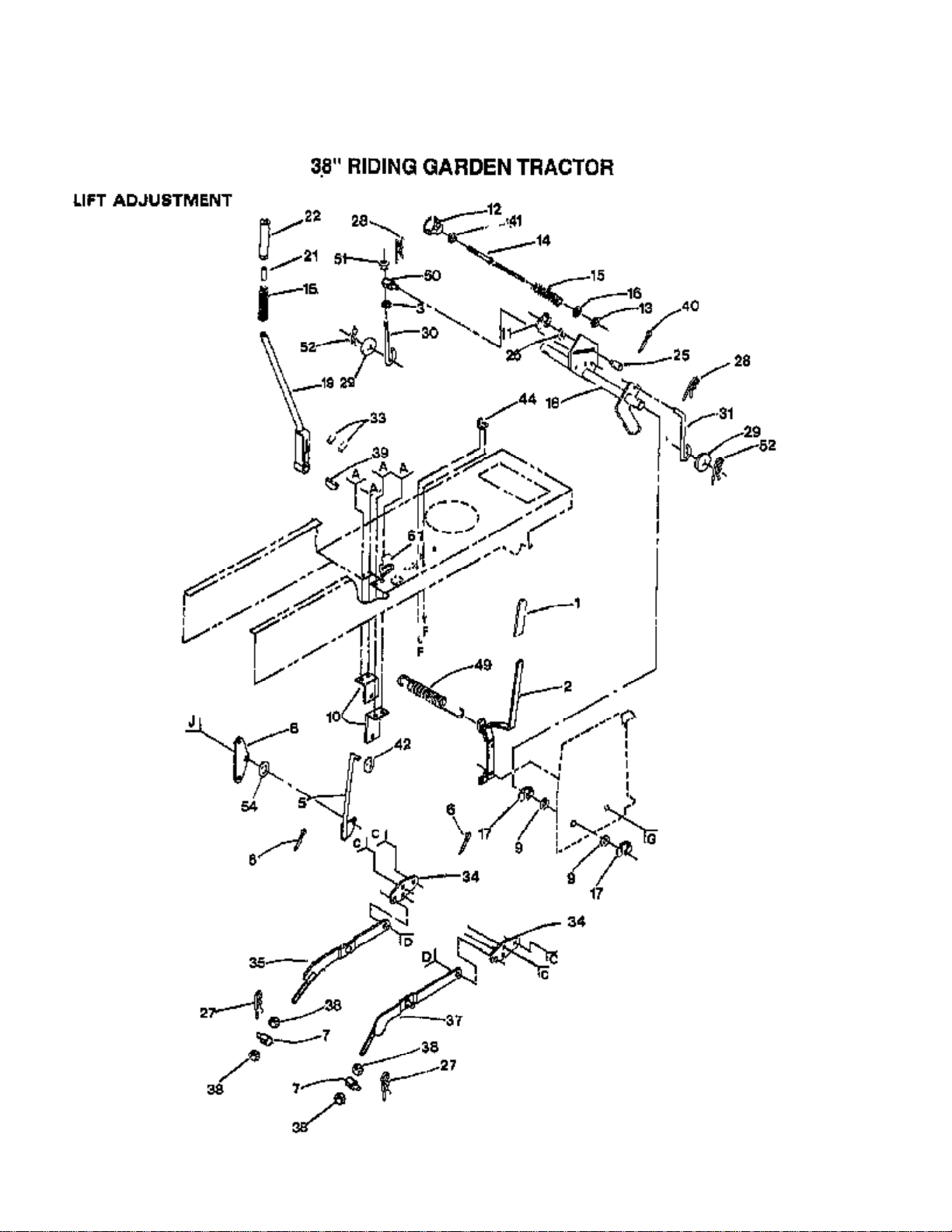

LIFT ADJUSTMENT ASSY
L2400AR (1999 & Before) Page 21 of 30
LIFT ADJUSTMENT ASSY
Ref # Part Number Qty Description
1 4617J SUB= 532131861
2 106983X HANDLE YT
3 73710700 NUT LOCK YTH
5 108451X ROD ASSEM YT
6 76020412 COTTER PIN
7 106308X SUB= 130171
8 109728X "T, BELLCRANK"
9 19292016 WASHER
10 106444X "BRKT,BELLCRAN T"
11 12000037 KLIP RING
12 100734K SUB= 138057
13 110807X NUT T
14 110729X ROD LIFT LT
15 2876H SPRING T
16 19131016 WASHER
17 12000022 E-RING
18 120174X SHAFT T
19 121718X LEVER LIFT
21 105723X SUB= 125925X
22 109413X GRIP
25 110810X TRUNION LT
26 19151216 WASHER
27 9135R SPRING H
28 4939M SUB= 85902
29 19171516 WASHER T
30 110448X PIVOT PIN T
31 110029X LIFT LINK LT
33 23180606 SCREW
34 105864X "BRACKET, SUSPE T"
35 121599X LH SUSP ARM ASM
37 121598X RH SUSP ARM ASM
38 73220800 NUT
39 8330H KEY STD
40 76020308 SUB= 3145
41 73350600 NUT
42 19131312 WASHER
44 108236X BRACKET LT
49 102727X "SPRING.EXT.8.5"""
50 110447X SUB= 132793
51 73360700 NUT
52 4921H SPRING.RETAINER
54 19131410 WASHER
61 5320R INSUL CLIP T
L2400AR (1999 & Before) Page 22 of 30

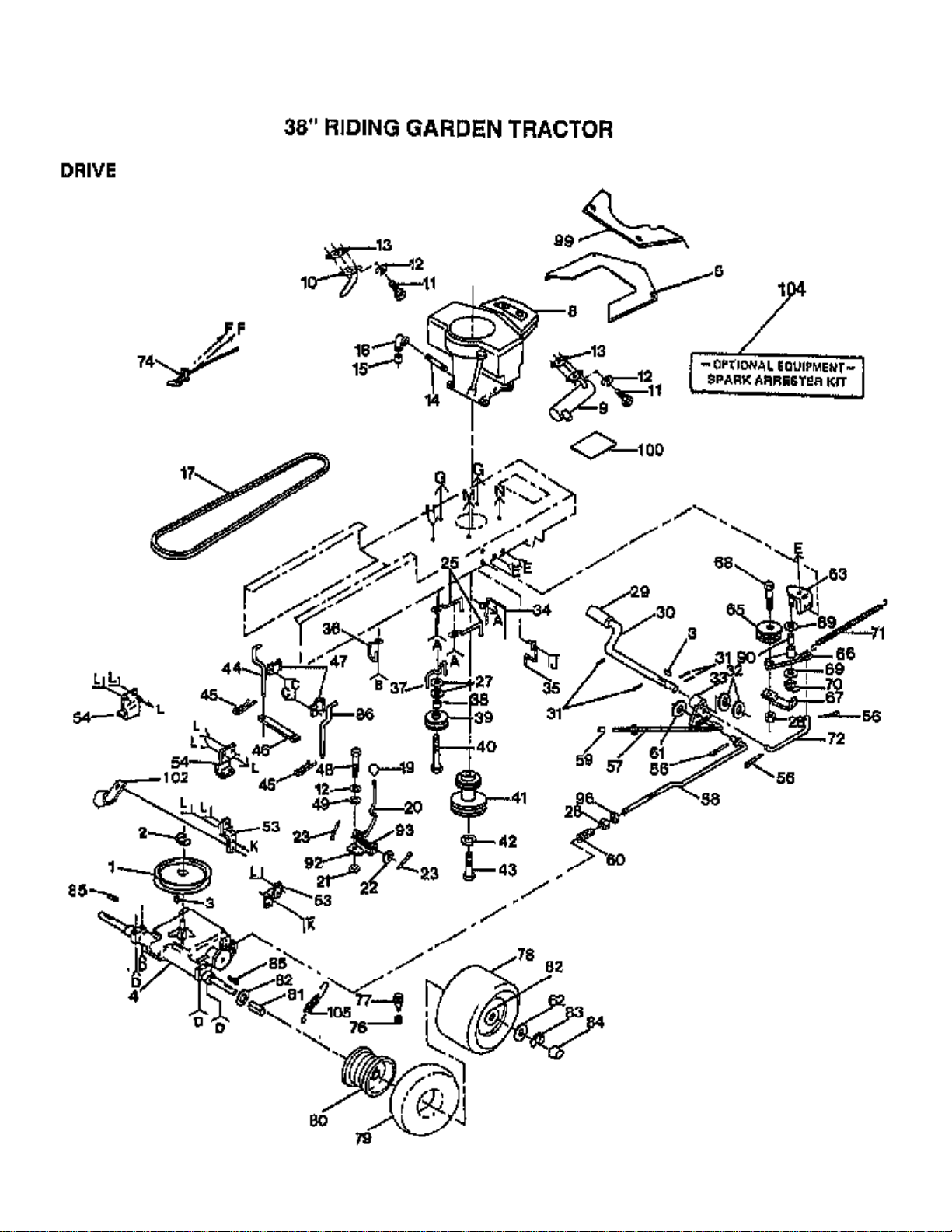

MAIN DRIVE, BELT, REAR WHEELS
L2400AR (1999 & Before) Page 23 of 30
MAIN DRIVE, BELT, REAR WHEELS
Ref # Part Number Qty Description
1 105703X SUB= 125478X
2 12000028 SUB= 2267J
3 2228M SUB= 2228M1
4 123156X SUB= 137367
5 109741X SUB= 123190X
8 123157X ENGINE
9 108373X MUFFLER HYT
10 100229L EXHAUST TUBE T
11 74780412 SUB= 74780414
12 10040400 LOCKWASHER
13 8545J SUB= 272250
14 13280328 PIPE NIPPLE
15 13300300 COUPLING LT
17 120302X SUB= 125907X
18 13240300 STREET ELBOW LT
19 106933X KNOB T (1/2-HOLE)
20 121728X ROD SHIFT
21 105701X WASH-SHFT PLT LT
22 19151216 WASHER
23 76020416 PIN COTTER 1/8
25 105730X "KEEPER,BLT ENG LT"
27 19131312 WASHER
28 73680600 SUB= 73690600
29 8883R PEDAL COVER T
30 109037X FOOT SHAFT PEDAL
31 1572H SUB= 2882J
32 121749X WASHER
33 106918X ARM BRAKE LT
34 121440X BELT GUIDE
35 121441X BELT GUIDE
36 104777X SUB= 140312
37 109070X BELT KEEPER LT
38 4470J SPACER T
39 4859J SUB= 123674X
40 74760644 BOLT
41 105731X SUB= 137326
42 10040700 LOCKWASHER
43 74770720 SUB= 71130720
44 109368X SUB= 123662X
45 4921H SPRING.RETAINER
46 109370X SUB= 123770X
47 106190X CLAMP LT
48 71040412 SUB= 74550412
49 19091210 WASHER LT
53 121520X STRAP TORQUE
54 109167X BRACKET LT
56 76020412 COTTER PIN
57 105844X SUB= 125637X
58 110437X BRAKE ROD LT
59 71673 PLUNGER CAP T
60 106888X SPRING ROD LT
61 19131316 WASHER
62 121748X WASHER
63 105724X SUB= 123102X
65 106298X SUB= 139245
66 105705X SUB= 125829X
67 106499X SUB= 123205X
68 74760624 SUB= 74930624
L2400AR (1999 & Before) Page 24 of 30
MAIN DRIVE, BELT, REAR WHEELS
Ref # Part Number Qty Description
69 110812X WASHER LT
70 12000039 KLIP RING
71 105709X "SPRING, RETURN LT"
72 105710X "LINK, CLUTCH T"
74 121732X SUB= 133439
76 59192 VALVE CAP
77 65139 VALVE STEM LT
78 106268X SUB= 122074X
79 7152J TUBE.18X9.5-8
80 106108X SUB= 106108X417
81 109502X SPACER LT
82 121749X WASHER
83 12000001 E-RING LT
84 104757X HUB CAP
85 2703J SUB= 123583X
86 109369X SUB= 123663X
90 105706X "LY, BEARING"
92 106919X PLATE SHIFT LT
93 105700X SPRING LT
96 73350600 NUT
99 109740X REAR BAFFLE T
100 121120X DECAL
102 2751R CLIP T
104 100091M SUB= 132922
105 110422X SUB= 146682
L2400AR (1999 & Before) Page 25 of 30

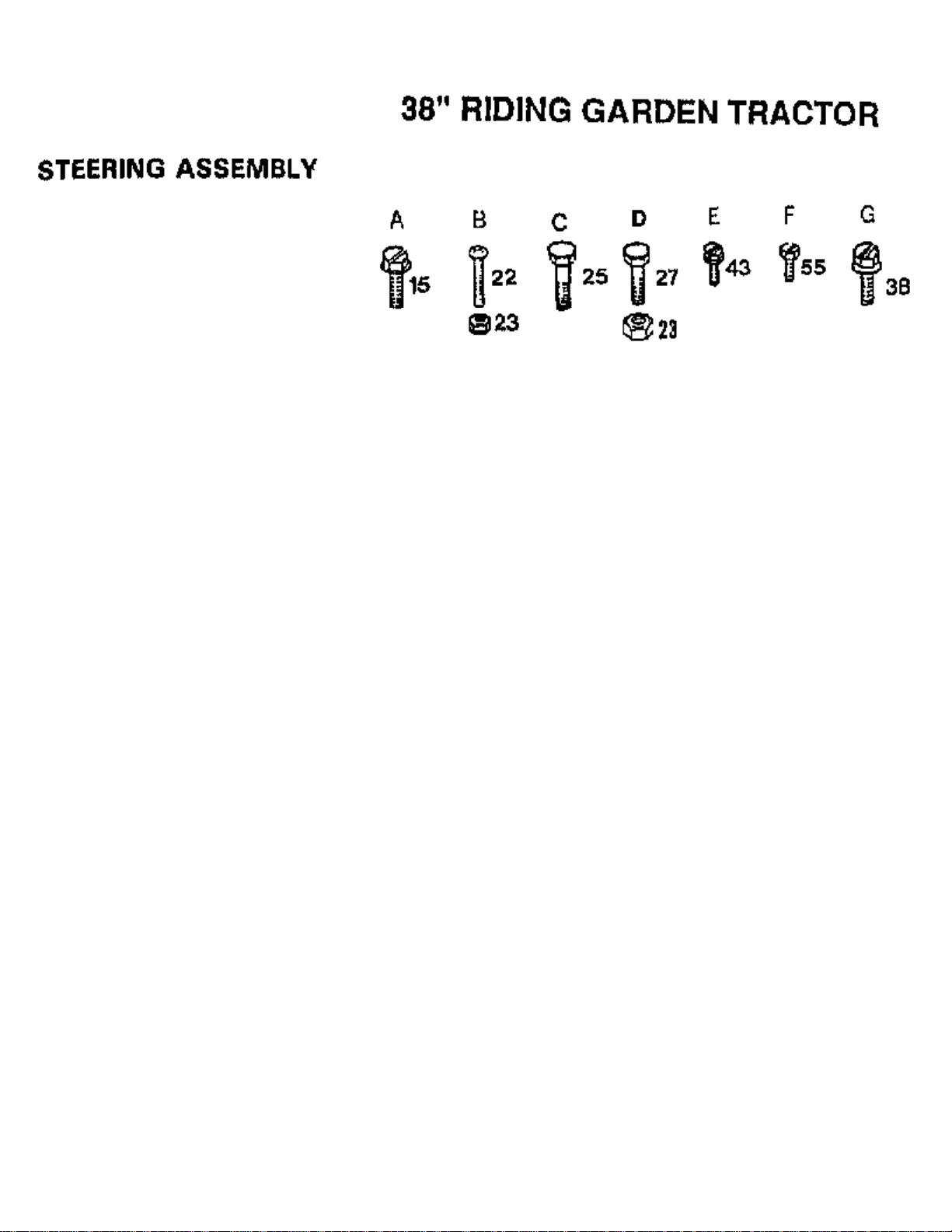

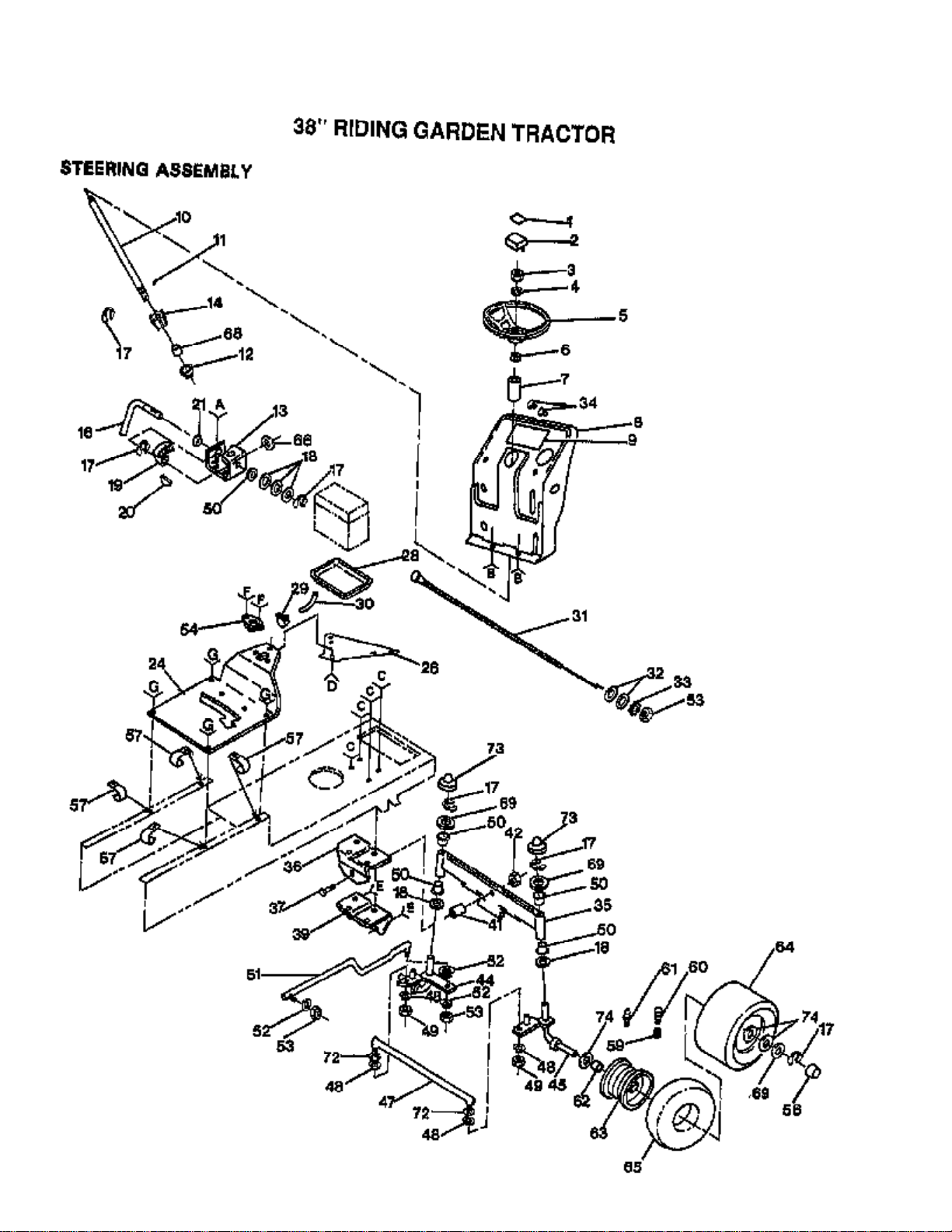

STEERING ASSY, FRONT WHEELS
L2400AR (1999 & Before) Page 26 of 30
STEERING ASSY, FRONT WHEELS
Ref # Part Number Qty Description
1 109325X SUB= 127075
2 100710L INSERT-WHEEL LT
3 73940800 SUB= 73360800
4 100712K WASHER
5 100713N SUB= 150547
6 100711L ADAPTER LT
7 100714L SLEEVE LTV
8 122341X DASH
9 123175X DECAL DASH
10 108705X SHAFT STR HYT
11 2882J DRIVE PIN
12 71208 BUSHING
13 109432X SUB= 110150X
14 108685X GEAR PINION T
16 108683X ROD STEERING T
17 12000029 RING
18 6266H WASHER .T
19 108684X GEAR.SECTOR.HYT
20 106126X KEY-WOODRUFF LT
21 109816X NYLINER T
24 108263X020 SADDLE
26 106965X SUB= 140181
28 7603J "TRAY T, BATTERY"
29 109596X HOSE CLAMP T
30 100541K SUB= 7697J
31 121525X SUB= 132779
32 19131316 WASHER
33 11050600 LOCKWASHER
34 8022J PLUG-DASH T
35 108075X FRONT AXLE
36 105663X SUPPORT-SADDL T
37 74761060 BOLT LT
39 105664X SUPPORT.SADDLE.FT
41 110438X BEARING
42 73901000 "NUT-LOC,FLANGE LT"
44 105656X SPINDLE-LH LT
45 105654X SUB= 130524
47 121321X SUB= 121334X
48 10040500 LOCKWASHER
49 73610500 NUT
50 3366R COL. SRTG. BEAR.
51 105727X LINK-DRAG LT
52 10040600 LOCKWASHER
53 73610600 SUB= 7810H
54 1554J SUB= 155108
56 104757X HUB CAP
57 2751R CLIP T
59 59192 VALVE CAP
60 65139 VALVE STEM LT
61 278H FITTING LT
62 9040H "FLANGE, BEARING"
63 106732X SUB= 106732X417
64 106222X SUB= 122073X
65 59904 TUBE.5.3/4.5/6
66 101930X WASHER YTV
68 74580 SHAFT SPACER LT
69 121748X WASHER
72 19111216 WASHER M
L2400AR (1999 & Before) Page 27 of 30
STEERING ASSY, FRONT WHEELS
Ref # Part Number Qty Description
73 121232X CAP
74 121749X WASHER
L2400AR (1999 & Before) Page 28 of 30

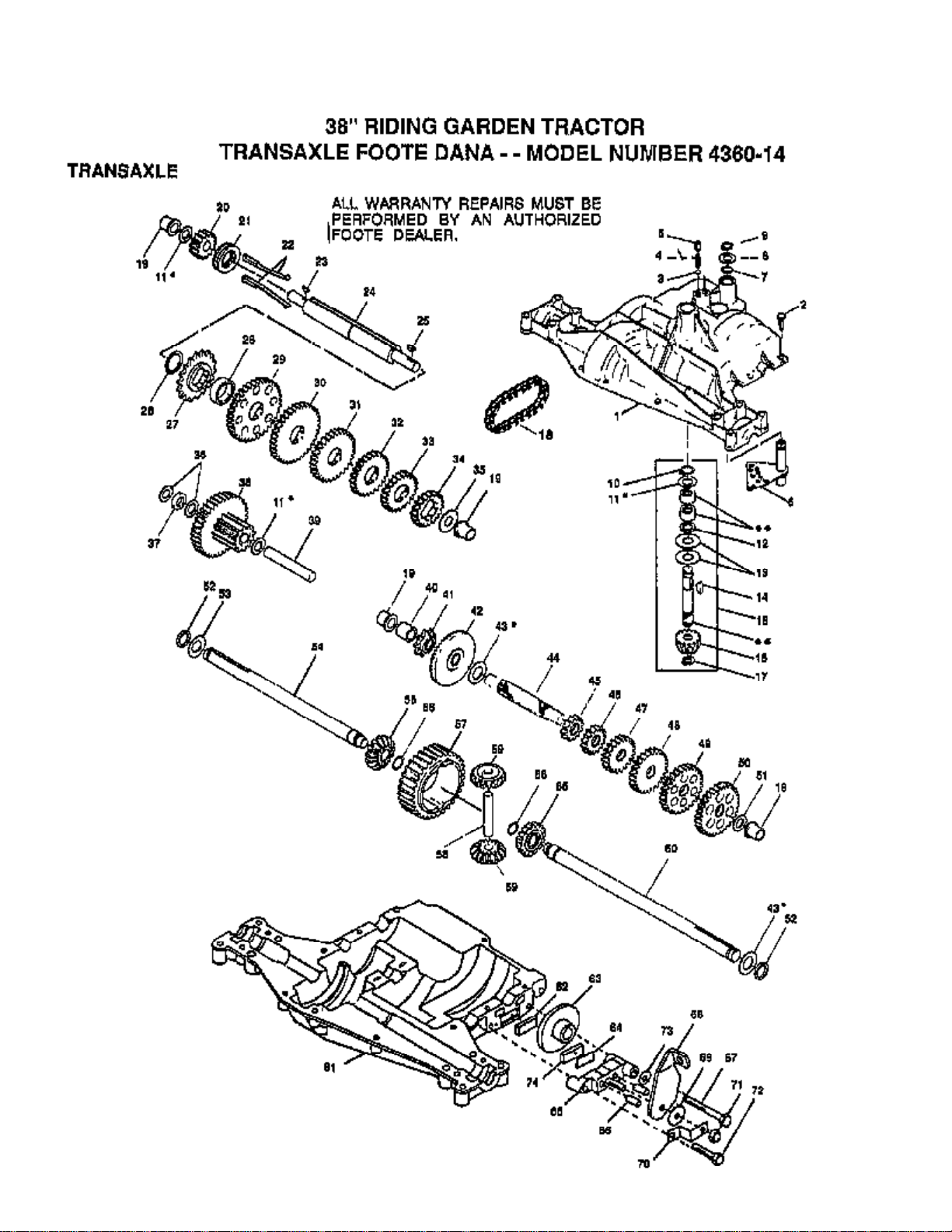

TRANSAXLE P/N BREAKOUT
L2400AR (1999 & Before) Page 29 of 30
TRANSAXLE P/N BREAKOUT
Ref # Part Number Qty Description
1 3865 HOUSING UPPER
2 1919 SCREW
3 1151 BALL DETENT
4 3626 SPRING, DETENT
5 3623 SCREW, SET
6 4336 ASSY SHIFTER
7 3884 O-RING
8 3885 WASHER PLAIN
8A 3886 WASHER PLAIN
8B 3887 WASHER PLAIN
8C 3888 WASHER PLAIN
8D 3889 WASHER PLAIN
8E 3121 WASHER PLAIN
8F 3890 WASHER PLAIN
9 1100 RING RETAINING
10 1099 RING RETAINING
11 1959 WASHER PLAIN
11A 1441 WASHER PLAIN
11B 1423 WASHER, PLAIN .632 X 1.00 X .026
11C 1082 WASHER PLAIN
11D 1424 WASHER PLAIN
11E 1068 WASHER PLAIN
11F 1425 WASHER PLAIN
11G 1358 WASHER PLAIN
11H 1145 WASHER, PLAIN .632 X 1.00 X .060
11I 1319 WASHER PLAIN
12 3312 O-RING
13 3876 WASHER, PLAIN .632 X 1.38 X .046
14 1374 KEY WOODRUFF #9
15 4134 ASSY KIT INPUT SHAFT
16 3590 PINION, BEVEL, 14 TEETH
17 3624 RING, RETAINING
18 3625 CHAIN, 24 PITCHES
19 1542 BEARING, FLANGE
20 3773 GEAR SPUR, 14 TEETH
21 3631 COLLAR CLUTCH
22 3828 KEY CLUTCH
23 1369 KEY WOODRUFF #3
24 3883 SHAFT INTERMEDIATE
25 1375 KEY, WOODRUFF, #61
26 3627 RING, RETAINING
27 3830 SPROCKET, 18 TEETH
28 3841 SPACER
29 3786 GEAR, SPUR, 37 TEETH
30 3785 GEAR, SPUR, 35 TEETH
31 3867 GEAR, SPUR, 30 TEETH
32 3783 GEAR, SPUR, 25 TEETH
33 3869 GEAR, SPUR, 22 TEETH
34 3741 GEAR SPUR
35 3628 WASHER, PLAIN .640 X 1.37 X .061
36 1423 WASHER, PLAIN .632 X 1.00 X .026
37 3422 SPACER .630 X 1.00 X .169
38 4286 ASSY GEAR COMB 12&35 TEETH
39 3877 SHAFT IDLER
40 3901 SPACER .635 X .875 X .755
41 3645 SPROCKET, 9 TEETH
42 3853 GEAR, BEVEL, 42 TEETH
43 3749 WASHER PLAIN
L2400AR (1999 & Before) Page 30 of 30
TRANSAXLE P/N BREAKOUT
Ref # Part Number Qty Description
43A 3652 WASHER PLAIN
43B 3693 WASHER PLAIN
43C 3653 WASHER PLAIN
43D 3408 WASHER PLAIN
43E 3732 WASHER PLAIN
43F 3184 WASHER, PLAIN .758 X 1.25 X .031
43G 3733 WASHER PLAIN
43H 3198 WASHER PLAIN
43I 3734 WASHER PLAIN
43J 3735 WASHER PLAIN
43K 3736 WASHER PLAIN
43L 3180 WASHER PLAIN
44 3882 SHAFT, DRIVE
45 3646 GEAR, SPUR, 12 TEETH
46 3707 GEAR SPUR, 15 TEETH
47 3866 GEAR, SPUR, 20 TEETH
48 3719 GEAR, SPUR, 25 TEETH
49 3868 GEAR, SPUR, 28 TEETH
50 3683 GEAR, SPUR, 31 TEETH
51 1145 WASHER, PLAIN .632 X 1.00 X .060
52 3191 SEAL FELT
53 3180 WASHER PLAIN
54 3880 AXLE LEFT HAND
55 3871 GEAR MITER 15 TEETH
56 3656 RING, RETAINING
57 3839 GEAR, SPUR, 32 TEETH
58 3919 SHAFT, CROSS
59 3726 GEAR, MITER, 15 TEETH
60 3881 AXLE, R.H.
61 3864 HOUSING LOWER
62 3920 PUCK, FRICTION
63 3276 DISC, BRAKE
64 3758 SPACER
65 3916 JAW, BRAKE
66 3843 PIN, DOWEL
67 3915 SCREW TAPPING
68 3768 LEVER, ACTUATING
69 3760 WASHER, PLAIN .321 X 1.00 X .055
70 3917 BRACKET, ANTI-ROTATION
71 3847 LOCKNUT 5/16-24
72 3724 SCREW TAPPING
73 3906 WASHER PLAIN
74 3907 PUCK, FRICTION
75 4300 GREASE
Loading...
