J2118AA (2004) Page 1 of 23
Chassis And Enclosures
J2118AA (2004) Page 2 of 23
Chassis And Enclosures
Ref # Part Number Qty Description
1 532174619 Chassis Wldmt.
2 532176554 Drawbar 12 Ga
9 532185337 Dash
10 872140608 Bolt Rd Hd Sqnk. 3/8-16 x 1
11 532167203 Panel Asm. Dash Lh
13 532178298 Panel Dash Rh
14 817490608 Screw Thdrol 3/8-16 x 1/2
17 532181351 Hood Pnt
20 532162026 Plate Mtg Battery
26 873800600 Nut Lock Hex w/Ins 3/8-16 Unc
28 532181352 Grill w/Clips
29 532179761 Lens Grille
30 532181353 Fender /Ftrest Pnt STL
31 532139976 Bracket Fender
37 817490508 Screw Thdrol 5/16-18 x 1/2
38 532175710 Bracket Asm. Pvt. Mwr. Rear
54 532161464 Screw Hex Wshd 8-18 x 7/8
58 532175351 Duct Air
59 532187495 Bushing Snap Split
60 872140606 Bolt Rdhd Sqnk 3/8-16 Unc x 3/4
64 532174997 Dash Lower
74 873680600 Nut, Crownlock 3/8-16 Unc
142 532175702 Plate Reinforcement STLT
143 532186689 Bracket Sway Bar
144 532175582 Bracket Footrest STLT
145 532156524 Rod Pivot Chassis/Hood
154 532161897 Bracket Dash STL RH
155 532161900 Bracket Dash STL LH
158 532162037 Bracket Parking Brake
159 532181355 Cupholder
161 532164655 Extrusion Bumper
166 532171875 Screw HWHD Hi Lo 13-16 x 3/4
206 532170165 Bolt Shoulder 5/16-18
209 817000612 Screw Hexwsh Thdr 3/8-16 x 3/4
J2118AA (2004) Page 3 of 23
Decals
J2118AA (2004) Page 4 of 23
Decals
Ref # Part Number Qty Description
1 532188876 Decal Hood Side Panel
2 532140837 Decal, Brake Parking Sandle
3 532183929 Decal, Hood, L. H. / R.H.
5 532160396 Decal, V-Belt Sch.
7 532182166 Decal, Mower Cutfinger Symbol
8 532183930 Decal, Logo, Fender
9 532180432 Decal, 100 DB/CE
10 532145498 Decal, Read Owners Manual
11 532145005 Decal, Bat Dan/Poi P/L Sym
12 532188837 Decal, Fender
13 532189154 Decal Engine
14 532179128 Decal, Deck "B" 42"
15 532185773 Decal, Logo Steering Wheel Cap
16 532159736 Decal, Chassis Hot Muffler
17 532159737 Decal, Brake/Clutch Symbol LT
532162598 Decal, Drawbar Load Limit
532166960 Decal, By-Pass Lt Hydro
532188252 Pad, Footrest LH
532188253 Pad, Footrest RH
532188428 Manual, Operator's (Euro)
532188429 Manual, Operators, (Scan)
J2118AA (2004) Page 5 of 23
Drive
J2118AA (2004) Page 6 of 23
Drive
Ref # Part Number Qty Description
1 Transaxle Hydro Gear 314-0510 Order parts from transaxle
manufacturer
8 532165866 Rod Shift Fender
9 532180220 Clutch Electric
10 876020416 Pin Cotter 1/8 x 1 CAD
14 810040400 Washer Lock Hvy Helical
15 874490544 Bolt Hex Flghd. 5/16-18 Gr.5
16 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P
17 532126197 Washer 1-1/2 OD x 15/32 ID x .250
19 873800600 Nut Lock Hex W/Wsh 3/8-16 Unc
20 532173937 Bolt, Hex 7/16-20 x 4 x Gr. 5-1.5
21 532130564 Knob Deluxe
22 532169498 Rod, Brake Hydro
23 532178289 Bracket Asm Anti Rot
24 873350600 Locknut
25 532106888 Spring, Brake Rod
26 819131316 Washer
27 876020412 Pin Cotter 1/8 x 3/4 CAD.
28 532175765 Rod, Parking Brake
29 532071673 Cap,Parking Brake
30 532169592 Bracket, Transaxle
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4
34 532175578 Shaft, Foot Pedal
35 532120183 Bearing, Nylon
36 819211616 Washer
37 532124963 Pin, Roll
38 532179114 Pulley, Composite, Flat
39 872110622 Bolt RDHD 3/8-16 UNC x 2-3/4 Gr. 5
41 532175556 Keeper, Belt Idler Flat
47 532127783 Pulley, Idler, V-Groove
48 532154407 Bellcrank Grnd Clutch
49 532123205 Retainer, Belt
50 872110612 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
51 873680600 Nut
52 873680500 Nut Crown Lock 5/16-18
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 817060620 Screw 3/8-16 x 1-1/4
57 532140294 V-Belt, Ground Drive
59 532169691 Keeper, Center Span
61 817120614 Screw 3/8-16 x .875 SMGML Tap/R.Z
62 532124872 Cover, Pedal
63 532174607 Pulley, Engine
65 810040700 Washer
66 532154778 Keeper Belt Engine Hydro
71 532169183 Strap Torque Lh Hydro
73 532169182 Strap Torque Rh Hydro
74 532137057 Spacer, Axle
75 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
76 812000001 E-Ring
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16 Ga.
81 532165596 Shaft Asm Cross Tapered 510 20"
82 532165711 Spring Torsion T/A
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532169594 Link Transaxle HB-0510
89 532166602 Console, Shift
J2118AA (2004) Page 7 of 23
Drive
Ref # Part Number Qty Description
90 532124346 Nut, Self Thd Wsh Hd 1/4 Zinc
95 532170201 Control Asm. Bypass Hydro
96 532124788 Retainer Spring 1" Zinc/Cad
116 872140608 Bolt Rd Hd Sqnk 3/8-16 Unc x 1
120 873900600 Nut Lock Flg 3/8-16
150 532175456 Spacer Retainer
151 819133210 Washer 13/32 x 2 x 10 Ga.
156 532166002 Washer Srrted 5/16ID x 1.125
158 532165589 Bracket Shift Mount
159 532183900 Hub Shift
161 872140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873680400 Nut Crownlock 1/4-20 Unc
163 874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819091210 Washer 9/32 x 3/4 x 10 Ga.
165 532165623 Bracket Pivot Lever
166 817490510 Screw 5/16-18 x 5/8
168 532165492 Bolt Shoulxder 5/16-18 x .561
169 532165580 Plate Fasteneing Lt
197 532169613 Nylinder Snap-In
198 532169593 Washer Nyl. 7/8 ID x .105"
199 532169612 Bolt Shoulder 5/16-18
200 872140508 Bolt Rdhd Sqnk 5/16-18 x 1
202 872110614 Bolt Rdhd 3/8-16 x 1-3/4 Gr 5
212 532145212 Nut Hex Flange Lock
271 817000612 Screw Hex Wsh Thdr 3/8-16 x 3/4 BL
J2118AA (2004) Page 8 of 23

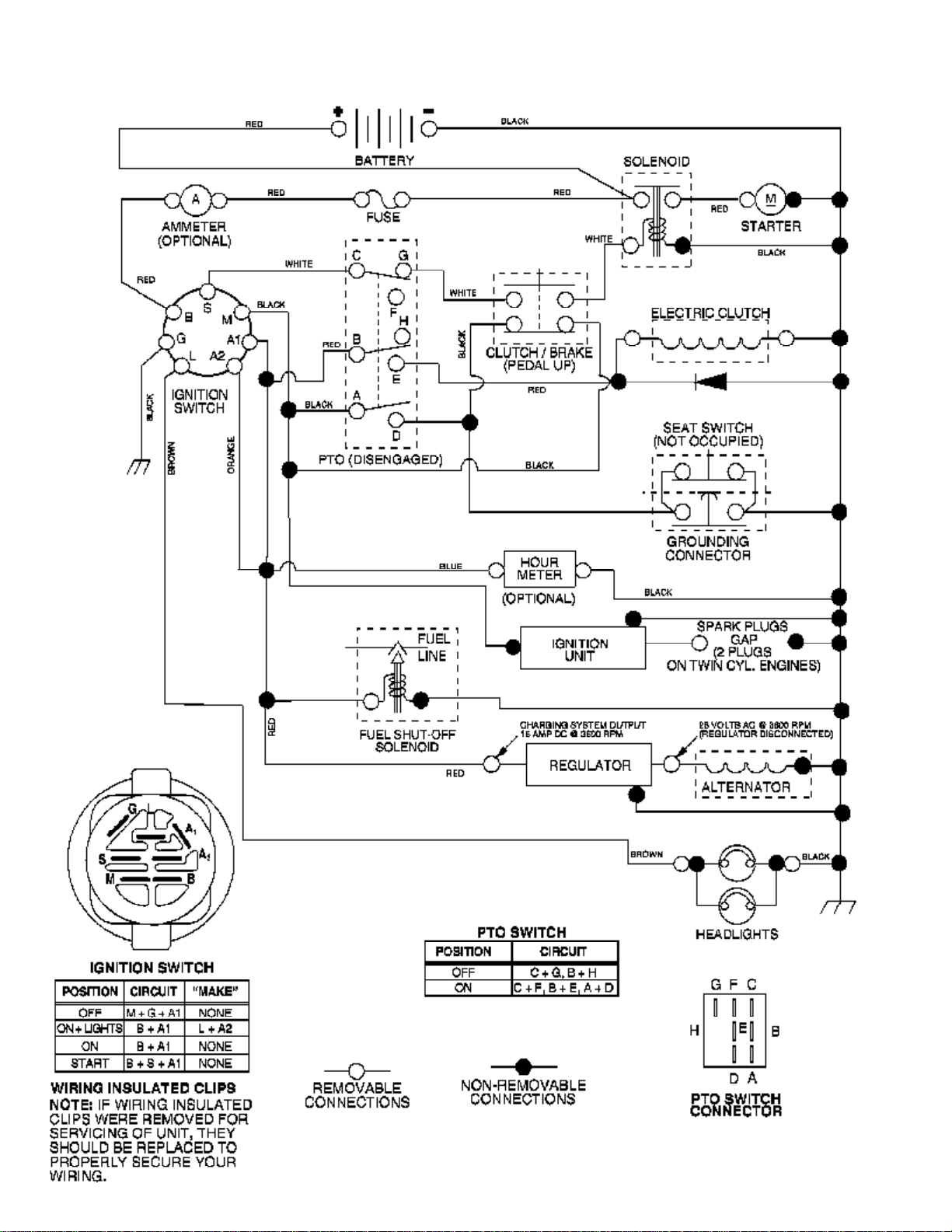

Electrical
J2118AA (2004) Page 9 of 23
Electrical
Ref # Part Number Qty Description
1 532144927 Battery
2 874760412 Bolt Hex Hd 1/4-20 Unc x 3/4
8 532124886 Tray Battery 7.80 x 5.25
10 532145211 Bolt Btr Frt 1/4-20 x 7.5
11 532150109 Holddown Battery Front
12 532145769 Nut Push Nylon 1/4
16 532176138 Switch Interlock Push-In
21 532175688 Harness Asm Light W/4152J
22 532004152 Bulb Light #1156
24 532008860 Cable Battery 6 Ga 11"red
25 532186846 Cable Battery 6 Ga W/pos wire
26 532175158 Fuse 20 AMP
27 873510400 Nut Keps Hex 1/4-20 Unc
28 532145491 Cable Ground
29 532160784 Switch Plunger Normal Op Olive
30 532175566 Switch Ignition Delta Push-In
33 532140401 Key Ign Molded Generic Delta
40 532188030 Harness Ign.
42 532154336 Cover Terminal Red
45 532177500 Ammeter Round Delta
46 532177501 Hourmeter Round Delta
50 532174651 Switch PTO
55 817490508 Screw Thdrol 5/16-18 x 1/2
79 532175242 Bulb Holder Asm
J2118AA (2004) Page 10 of 23
Engine
J2118AA (2004) Page 11 of 23
Engine
Ref # Part Number Qty Description
1 532178147 Control Th/ch CB EEC. 428
2 532171875 Screw HWHD Hi-Lo #13-16 x 3/4
3 Engine Kohl Model No. CV18S (Order parts from engine
manufacturer)
4 532149723 Muffler Asm.
5 532146699 Pipe Exhaust LH
6 532146700 Pipe Exhaust RH
8 532171877 Bolt 5/16-18 Unc x 3/4 w/Sems
10 532146629 Shield Heat Muffler
13 532186054 Gasket Eng
14 532148456 Tube Drain Oil Easy
16 811050600 Washer Lock Ext Tooth 3/8
17 817060624 Screw 3/8-16 x 1-1/2
23 532169837 Shield Browning/Debris Guard
25 532178148 Control Choke
26 873920600 Nut Keps 3/8-24 Unf
29 532137180 Kit Spark Arrestor
31 532157103 Tank Fuel
32 532140527 Cap Asm Fuel Top Vented N/Lang
33 532123487 Clamp Hose Black
34 532106082 Pad Spacer 1 x 1 x 1
37 532142158 Line Fuel
38 532181654 Plug Drain Oil Easy
39 532109227 Pad Idler 1.75 x .75 x .06
45 817000612 Screw 3/8-16 x .75 SMGML
101 532163305 Nut Flange M8-1.25
116 532184362 Nut Hex Flange Toplock M8-1.25
J2118AA (2004) Page 12 of 23
Mower Deck
J2118AA (2004) Page 13 of 23
Mower Deck
Ref # Part Number Qty Description
1 532165892 Housing Asm Mower 42"94 T-Path
2 872140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4
3 532138017 Bracket Asm Fr Sway Bar 38/42
4 532165460 Bracket Asm Deck 42"sway Bar
5 532124670 Retainer Spring
6 532178024 Bar Sway Deck
8 532850857 Bolt 3/8-24 x 1 25 Gr8 Patched
9 810030600 Washer Lock Hvy 3/8 Unplated
10 532140296 Washer Hard Blade Mower Vented
11 532138971 Blade Mower High Lift"
13 532137645 Shaft Asm W/lower Bearing
14 532128774 Housing Mandrel Vented(machd)
15 532110485 Bearing Ball Mandrel
16 532174493 Stripper Mower
18 872140505 Bolt Carr 5/16-18 x 5/8
19 532132827 Bolt Shoulder
20 532159770 Baffle Vortex 42
21 873680500 Nut Crown Lock 5/16-18
23 532177563 Bracket Deflector Mower 42"
24 532105304 Cap Sleeve 80x 112 Blk Mower
25 532123713 Spring Torsion Deflector 2 52
26 532110452 Nut Push Phos & Oil
27 532171859 Shield Deflector
28 819111016 Washer 11/32 x 5/8 x 16 Ga
29 532131491 Rod Hinge 42"6 75 Wlg
30 532173984 Screw Thd Rolling Hex
31 532187690 Washer Spacer
32 532153535 Pulley Mandrel
33 532178342 Nut 9/16top Lock Flng Cntr
34 872110612 Bolt Carr. Sh 3/8-16 x 1-1/2 Gr.5
36 532131494 Pulley Idler Flat 3 060
40 873900600 Nut Lock Flange 3/8-16 Unc
44 532140088 Guard Mandrel LH Black
45 532124788 Retainer Spring
46 532137729 Screw Thdrol 1/4-20 x 5/8
54 532178515 Washer Hardened
55 532155046 Arm Idler 42" mower LT/YT
56 532165723 Spacer Retainer Mower
59 532141043 Guard, Belt
61 532174882 Spring Ext. Elect
68 532180260 V-Belt Mower
91 532180532 Bracket Asm Noseroller LH
92 873800600 Nut Lock Hex w/ins. 3/8-16 Unc
94 532132264 Roller Nose 38 & 42
95 532180533 Bracket Asm Noseroller RH
111 532179292 Bracket Gauge Wheel Lh
112 532179293 Bracket Gauge Wheel Rh
113 817000510 Bolt 5/16-18 Hex Whs. Hd. LCKSERR
116 532124842 Bolt Shoulder
117 532165746 Wheel Gauge
118 873930600 Nut Centerlock 3/8-16 Unc
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
129 819131312 Washer 13/32 x 13/16 x 12 Ga.
130 874780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
131 872140608 Bolt Rdhd Sqnk 3/8-16 Unc x1
132 817000612 Screw 3/8-16 x .75
143 532157109 Bracket Arm Idler
144 532158634 Keeper Belt
J2118AA (2004) Page 14 of 23
Mower Deck
Ref # Part Number Qty Description
145 532165888 Pulley Idler Flat
146 532171977 Bolt Carriage Idler
148 532169022 Spring Return Idler
149 532165898 Retainer Spring Yellow
150 819091216 Washer 9/32 x 3/4 x 16
159 872140614 Bolt RDHD SQN 3/8-16 x 1-3/4
182 532179126 Rod Roller Nose Standard
183 532163552 Retainer Spring
184 819131410 Washer 13/32 x 7/8 x 10 Ga.
532181962 Replacement Deck, Complete
532130794 Mandrel Assembly (Includes Housing, Shaft and Shaft
Hardware Only - Pulley Not Included)
J2118AA (2004) Page 15 of 23
Mower Lift
J2118AA (2004) Page 16 of 23
Mower Lift
Ref # Part Number Qty Description
1 532159461 Wire Asm Inner/Sprg W/plunger LT
2 532159476 Shaft Asm Lift
3 532178981 Pin Groove
4 812000002 E Ring #5133-62
5 819211621 Washer 21/32 x 1 x 21 Ga.
6 532120183 Bearing Nylon Blk 629 Id
7 532125631 Grip Handle Fluted Blk
8 532122365 Button Plunger Red
11 53139865 Link Lift LH Mower
12 53139866 Link Lift RH Mower
13 53124670 Retainer Spring
15 53173288 Link Front
16 87350800 Nut Jam Hex 1/2-13 Unc
17 53175689 Trunnion Blk Zinc
18 87800800 Nut Lock W/wsh 1/2-13 Unc
19 53139868 Arm Suspension Rear
20 53163552 Retainer Spring
23 53110807 Nut Special
24 81131016 Washer 13/32 x 5/8 x 16 Ga.
25 53164024 Spring Comp Infinite
26 53169484 Retainer Clip
27 53164543 Rod Adj Lift
28 87350600 Nut Hex Jam 3/8-16 Unc
29 53138057 Knob Inf 3/8-16 Unc
30 53150233 Trunnion Inf. Height
31 53169865 Bearing Put Lift
32 87540600 Nut Crownlock 3/8-24
36 53155097 Pointer Height Ind
37 53123935 Plug Hole
38 81060516 Screw 5/16-18 x 1 SMGML Tap/R
40 81112410 Washer 11/32 x 1-1/2 x 10 Ga.
41 53155098 Ind Height STLT
49 53145212 Nut, Hex Flange Lock
50 53110452 Nut Push Phos & Oil
J2118AA (2004) Page 17 of 23
Schematic
J2118AA (2004) Page 18 of 23
Seat Assembly
J2118AA (2004) Page 19 of 23
Seat Assembly
Ref # Part Number Qty Description
1 532188706 Seat
2 532180166 Bracket Pivot
3 871110616 Bolt Hex 3/8-16unc x 1
4 819131610 Washer 13/32 x 1 x 10 Ga
5 532145006 Clip Push-In Hinged
6 873800600 Nut Lock Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817000616 Screw 3/8-16 x 1.5 SMGML
9 819131614 Washer 13/32 x 1 x 14 Ga
10 532180186 Pan Seat
11 532166369 Knob Seat Adj Wingnut
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
15 532121249 Spacer Split 28x 88 Zinc
16 532123740 Spring Cprsn 1 310 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532171852 Bolt Shoulder 5/16-18 Unc-2A
22 873800500 Nut Lock 5/16-18
24 819171912 Washer 17/32 x 1-3/16 x 12 Ga
J2118AA (2004) Page 20 of 23

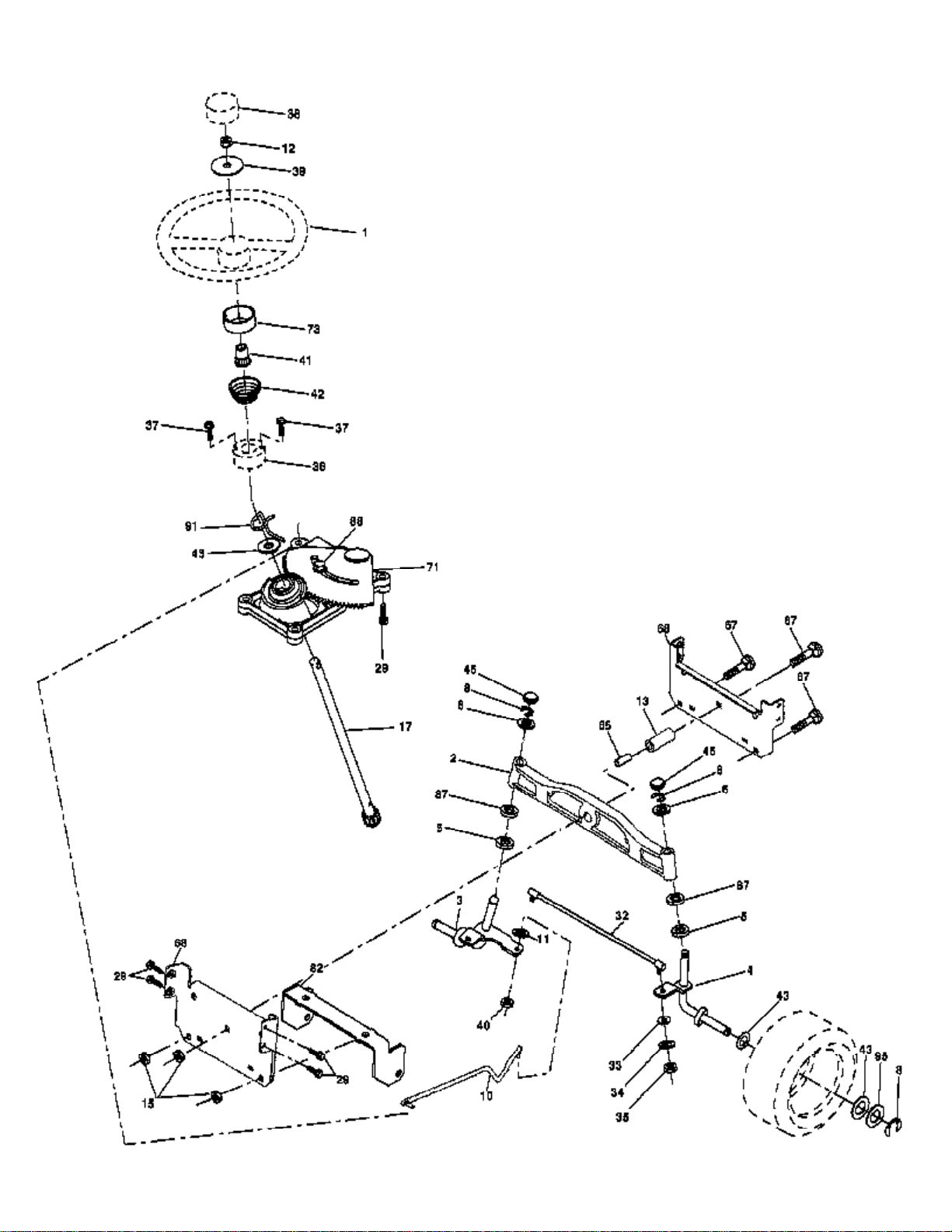

Steering Assembly
J2118AA (2004) Page 21 of 23
Steering Assembly
Ref # Part Number Qty Description
1 532172092 Wheel Steering
2 532184706 Axle Front Cast Iron
3 532169840 Spindle Asm LH
4 532169839 Spindle Asm Stmp RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 x 1-5/8 x 16 Ga
8 812000029 Ring Klip #t5304-75
10 532175121 Link Drag
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
12 873940800 Nut Hex Jam Top Lock 1/2-20
13 532136518 Spacer Bearing Axle Front
15 532145212 Nut Hex Flange Lock
17 532177883 Shaft Asm Strg
29 817000612 Screw 3/8-16 x .75 SMGML
32 532171888 Rod Asm Tie Ball J Solid
33 819111216 Washer 11/32 x 3/4 x 16 Ga.
34 810040500 Washer Lock Hvy HLCL Spr. 5/16
35 873540500 Nut Crown Lock 5/16-24
36 532155105 Bushing Strg
37 532152927 Screw TT #32.5 x 5 x 3/8 Flange
38 532172093 Cap Wheel Steer
39 819182411 Washer 9/16 ID x 1 1/2 OD. 11 G. Zin
40 873540600 Nut Crownlock 3/8-24
41 532159945 Adaptor Wheel Strg
42 532177149 Boot Dash Steering
43 532121749 Washer 25/32 x 1-1/4 x 16 Ga
46 532121232 Cap Spindle Fr Top Blk
65 532160367 Spacer
67 872110618 Bolt Rdhd Sqnk 3/8-16 x 2-1/4
68 532169827 Brace, Axle
71 532175146 Steering Asm
73 532181449 Extension Steering
82 532169835 Bracket Susp Chassis
87 532173966 Washer Flat .781 x 1-1/2 x .14
88 532175118 Bolt Shoulder 7/16-20
91 532175553 Clip Steering
95 532188967 Washer Harden .793 x 1 .637 x 060
J2118AA (2004) Page 22 of 23

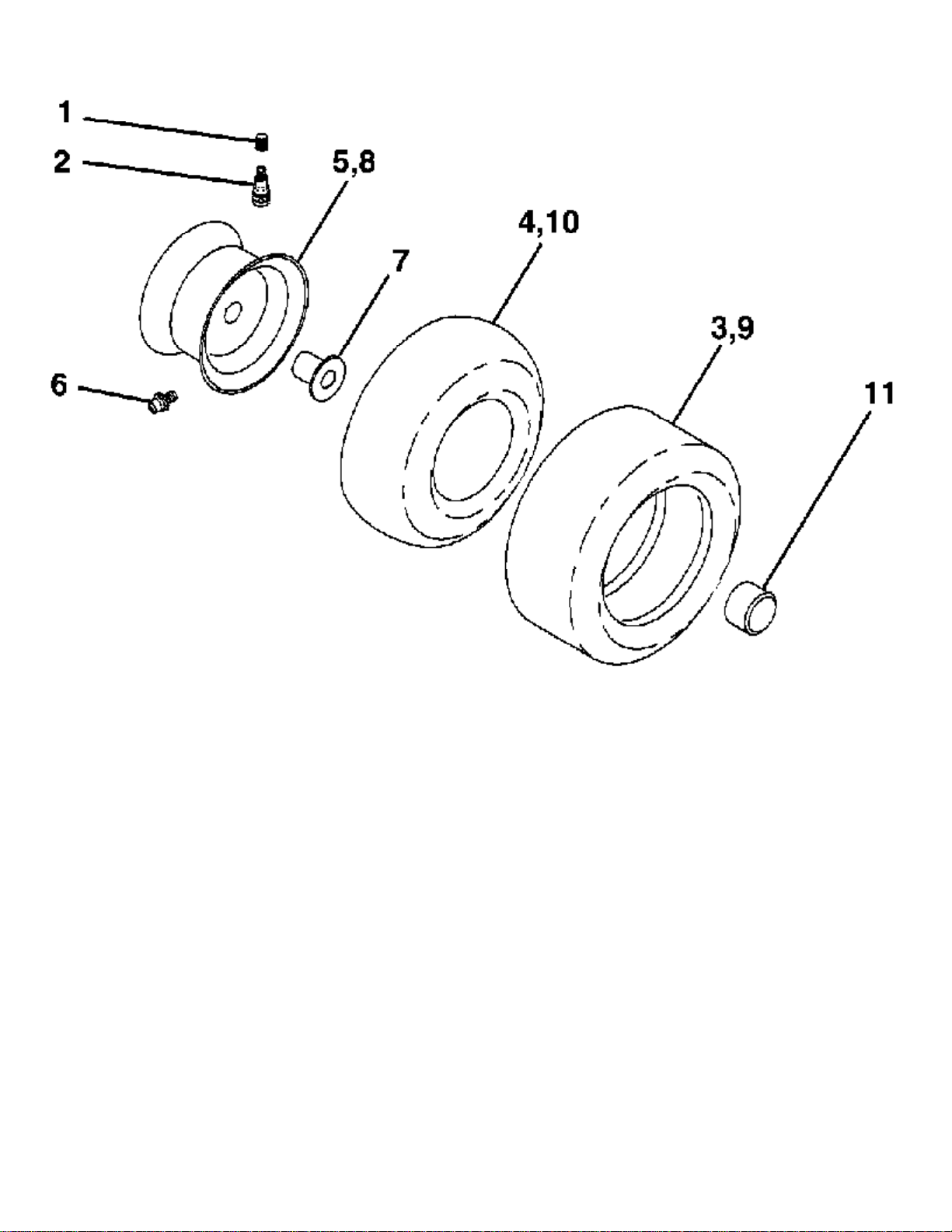

Wheels & Tires
J2118AA (2004) Page 23 of 23
Wheels & Tires
Ref # Part Number Qty Description
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 x 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532138336 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532138337 Rim Asm 8"rear Silver Service
9 532122082 Tire R Ts 20 x 10-8 C Service
10 532124926 Tube Rear (Service Item Only)
11 532175039 Cap Axle Blk 1 50 x 1 00
532144334 Sealant, Tire (10 oz. tube)
Loading...
