HWRBSP226A (1999) Page 1 of 5

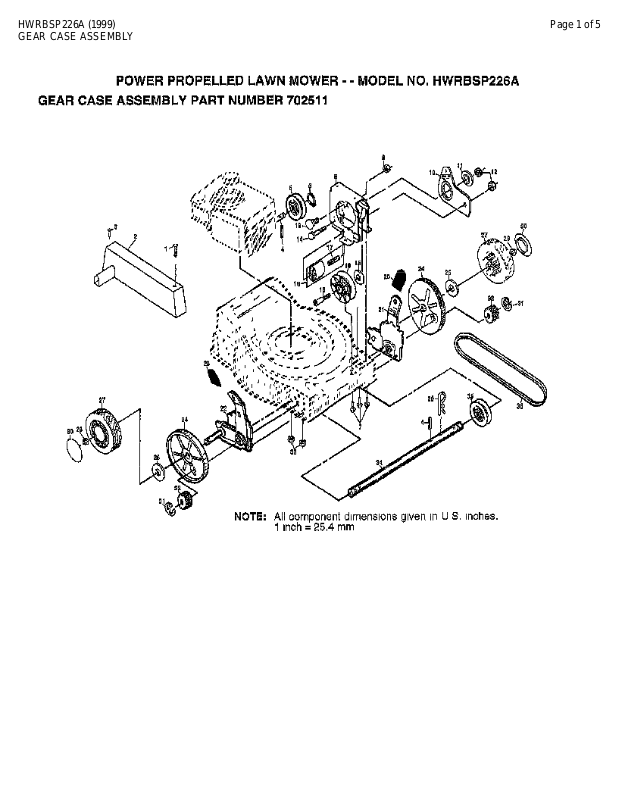

GEAR CASE ASSEMBLY
HWRBSP226A (1999) Page 2 of 5
GEAR CASE ASSEMBLY
Ref # Part Number Qty Description
702511 SUB= 48367
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137074 SHAFT.DRIVE
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
HWRBSP226A (1999) Page 3 of 5

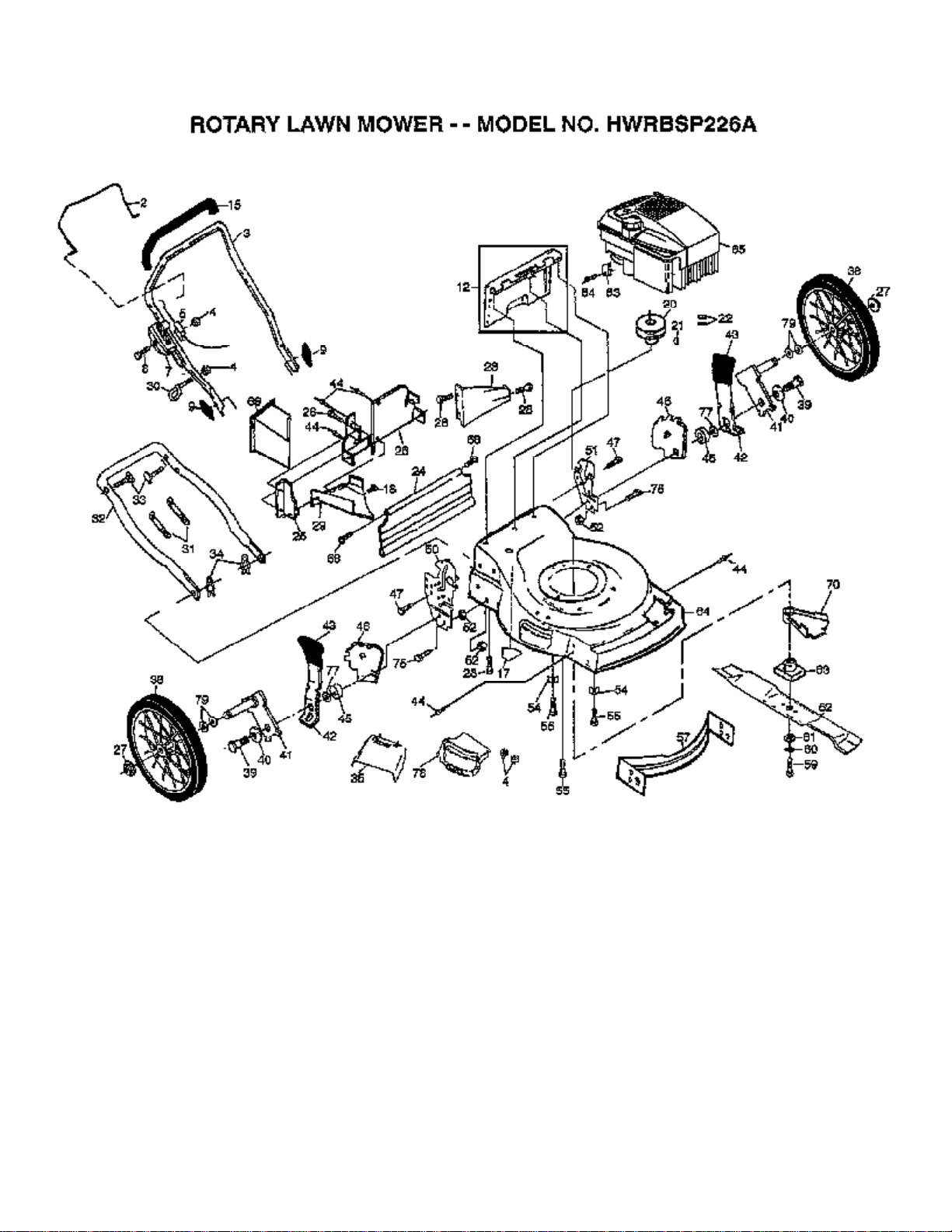

ROTARY MOWER
HWRBSP226A (1999) Page 4 of 5
ROTARY MOWER
Ref # Part Number Qty Description
2 145794 BAIL.CNTRL.DLX.
3 165542 HANDLE.UPPER.DLX.
4 63601 SUB= 73800400
5 130861 "CABLE,ENG ZONE CO"
7 700417 "CONTROL, THROTTLE"
8 144929 SCREW.HXHD.WASH.
9 136376 KNOB HANDLE
12 151023 KIT.DOOR.REAR
15 164265 GRIP.HANDLE.FOAM
17 141846 DECAL DANGER E/S
18 150050 SCREW.HXTAP.10-24
20 84596 ENGINE.PULLEY.FWG
21 87677 HI PRO KEY PM
22 2059708 SET SCREW 1/4-20 X 2-1/8
23 133040X479 REAR BAFFLE
24 140540 SKIRT.REAR.FGD.22
25 700365X479 BAFFLE.SIDE
26 156380X479 BACK PLATE
27 83923 HEX FLANGE LOCKNT
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 66426 SUB= 7192J
32 151721X479 LOWER HANDLE
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 145285 GUARD.DISCH.CLIPO
38 158447 WHEEL.14X2.ASM
39 142748 BOLT SHLD 3/8-16
40 61651 WASHER
41 750913X004 "AXLE ARM,REAR PM"
42 700331X004 SPRING SELECTOR
43 87877 KNOB PM
44 128415 BLIND RIVET
45 146630 SPACER.HEIGHT.ADJ
46 700325X007 BRACKET.ADJ.9POS.
47 150078 SCREW.HXWS.5/16
50 161812X479 HANDLE BRKT ASY R
51 161814X479 HANDLE BRKT ASY L
52 751592 LOCKNUT PM
54 851201X004 WASHER
55 150406 BOLT.ENG.3/8-16
57 144964 KIT.BAF.FRT.22RD
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 141114 "BLADE.MULCH.22"""
63 851514 ADAPTOR.BLADE.LM
64 162482 HOUSING ASSEMBLY
65 SUPPLIER CHECK WITH SUPPLIER
68 88652 HINGE SCREW
69 166649 PLUG.MULCH.22RD
70 134612 SUB= 48283
75 74760612 SUB= 74780612
77 88348 WASHER PM
78 147738 DOOR ASM.MULCHER
79 57143 WAVE WASHER
83 111190X CABLE CLAMP
HWRBSP226A (1999) Page 5 of 5
ROTARY MOWER
Ref # Part Number Qty Description
84 83816 SCREW PM
161058 DECAL.WARNING
145658 MANUAL.GEN.SP.E.
145661 MANUAL.OP.GEN.SPN
166905 MANUAL.P.HWRBSP226A
