HD2J772C (1997) Page 1 of 12
ROTARY LAWN MOWER
HD2J772C (1997) Page 2 of 12
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 146901 CONTROL BAR
2 153346X479 SUB= 166860X479
3 151590X479 HANDLE.LWR.DLX.20
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 151517 SUB= 7192J
8 144929 SCREW.HXHD.WASH.
9 148981 COMBI-KEY CONTROL
10 751152 LOCKNUT
11 145285 GUARD.DISCH.CLIPO
12 146392 CONTROL.DRV.20FBD
13 63601 SUB= 73800400
14 136376 KNOB HANDLE
15 51793 HAIRPIN COTTER
16 145281 DOOR.MULCH.COMBI
17 147286 ROD.HINGE.COMBI-C
18 152186 SPRING.HINGE
19 156444X479 BACK PLATE
20 700363X419 SUB= 700363X479
21 140657 SKIRT.PUSH.20RD
22 133169X479 MULCHER PLATE
23 147613 KIT.DOOR.RR.20STL
24 751592 LOCKNUT PM
25 151589X479 BRACKET.HDL.LH.
26 151588X479 BRACKET.HDL.RH.
27 150078 SCREW.HXWS.5/16
28 147775 BRACKET.HINGE.W/F
29 700325X007 BRACKET.ADJ.9POS.
30 146630 SPACER.HEIGHT.ADJ
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 145935X004 ARM.AXLE.ASM.BZP.
35 62335 "WASHER, BELLEVIL."
36 142748 BOLT SHLD 3/8-16
37 148444 WHEEL.8X2.RAD.YEL
38 83923 HEX FLANGE LOCKNT
40 77400 HUB CAP
42 53998 SUB= 19131216
43 54583 SCREW
45 850999 SCREW
46 141846 DECAL DANGER E/S
48 850988 ENGINE SPACER
51 144961 KIT.BAF.FRT.20RD
52 160836 "KIT-HOUSING,20""CC"
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 145106 BLADE.20.MULCH.AY
57 851514 ADAPTOR.BLADE.LM
67 149754 GRASSBAG.250B1.
68 149555 FRAME.CATCHER.2.5
70 REFER TO IMAGE
72 128415 BLIND RIVET
73 700063X479 REAR BAFFLE
74 133188X479 DISCHARGE GUARD
75 150050 SCREW.HXTAP.10-24
78 145669 GUIDE.CABLE.FWBD
HD2J772C (1997) Page 3 of 12
ROTARY LAWN MOWER
Ref # Part Number Qty Description
79 88652 HINGE SCREW
80 122147X KEY
81 111190X CABLE CLAMP
82 83816 SCREW PM
84 REFER TO IMAGE
145658 MANUAL.GEN.SP.E.
145661 MANUAL.OP.GEN.SPN
160811 MANUAL.P.HD2J772C
148048 DECAL.COMBI-C.WED
HD2J772C (1997) Page 4 of 12
ROTARY LAWN MOWER
HD2J772C (1997) Page 5 of 12
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 146901 CONTROL BAR
2 153346X479 SUB= 166860X479
3 151590X479 HANDLE.LWR.DLX.20
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 151517 SUB= 7192J
8 144929 SCREW.HXHD.WASH.
9 148981 COMBI-KEY CONTROL
10 751152 LOCKNUT
11 145285 GUARD.DISCH.CLIPO
12 146392 CONTROL.DRV.20FBD
13 63601 SUB= 73800400
14 136376 KNOB HANDLE
15 51793 HAIRPIN COTTER
16 145281 DOOR.MULCH.COMBI
17 147286 ROD.HINGE.COMBI-C
18 152186 SPRING.HINGE
19 156444X479 BACK PLATE
20 700363X419 SUB= 700363X479
21 140657 SKIRT.PUSH.20RD
22 133169X479 MULCHER PLATE
23 147613 KIT.DOOR.RR.20STL
24 751592 LOCKNUT PM
25 151589X479 BRACKET.HDL.LH.
26 151588X479 BRACKET.HDL.RH.
27 150078 SCREW.HXWS.5/16
28 147775 BRACKET.HINGE.W/F
29 700325X007 BRACKET.ADJ.9POS.
30 146630 SPACER.HEIGHT.ADJ
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 145935X004 ARM.AXLE.ASM.BZP.
35 62335 "WASHER, BELLEVIL."
36 142748 BOLT SHLD 3/8-16
37 148444 WHEEL.8X2.RAD.YEL
38 83923 HEX FLANGE LOCKNT
40 77400 HUB CAP
42 53998 SUB= 19131216
43 54583 SCREW
45 850999 SCREW
46 141846 DECAL DANGER E/S
48 850988 ENGINE SPACER
51 144961 KIT.BAF.FRT.20RD
52 160836 "KIT-HOUSING,20""CC"
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 145106 BLADE.20.MULCH.AY
57 851514 ADAPTOR.BLADE.LM
67 149754 GRASSBAG.250B1.
68 149555 FRAME.CATCHER.2.5
70 REFER TO IMAGE
72 128415 BLIND RIVET
73 700063X479 REAR BAFFLE
74 133188X479 DISCHARGE GUARD
75 150050 SCREW.HXTAP.10-24
78 145669 GUIDE.CABLE.FWBD
HD2J772C (1997) Page 6 of 12
ROTARY LAWN MOWER
Ref # Part Number Qty Description
79 88652 HINGE SCREW
80 122147X KEY
81 111190X CABLE CLAMP
82 83816 SCREW PM
84 REFER TO IMAGE
145658 MANUAL.GEN.SP.E.
145661 MANUAL.OP.GEN.SPN
160811 MANUAL.P.HD2J772C
148048 DECAL.COMBI-C.WED
HD2J772C (1997) Page 7 of 12
ROTARY LAWN MOWER

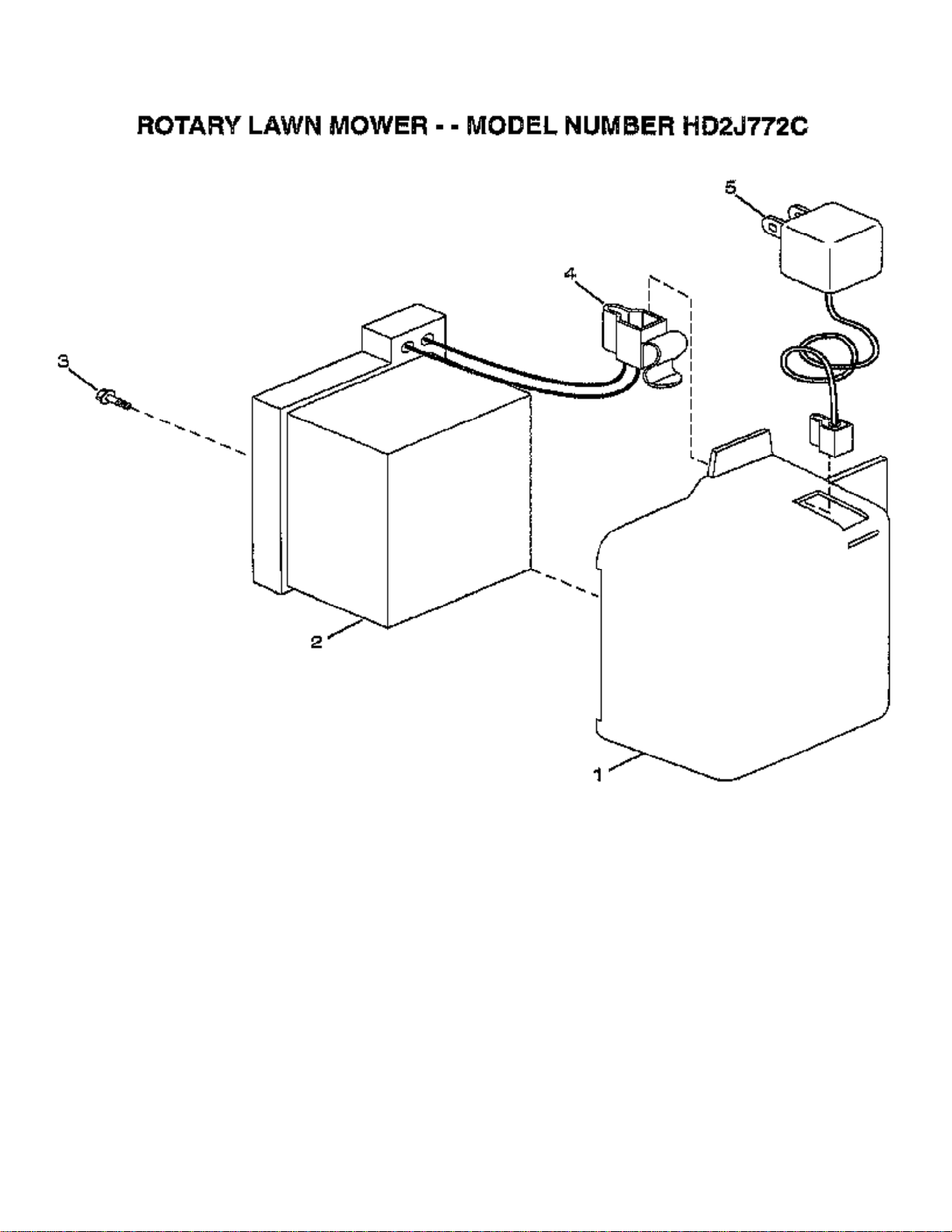

HD2J772C (1997) Page 8 of 12
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 157553 BRKT.BATTERY
2 750909 SUB= 48374
3 17411312 SCREW.HX.13X.750
4 86353 CONNECTOR PM
5 111546X KEY PM
HD2J772C (1997) Page 9 of 12
ROTARY LAWN MOWER
HD2J772C (1997) Page 10 of 12
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 157553 BRKT.BATTERY
2 750909 SUB= 48374
3 17411312 SCREW.HX.13X.750
4 86353 CONNECTOR PM
5 111546X KEY PM
HD2J772C (1997) Page 11 of 12
ROTARY MOWER
HD2J772C (1997) Page 12 of 12
ROTARY MOWER
Ref # Part Number Qty Description
1 141912 SCREW HXHD 10-24
2 154049 DRIVE COVER
3 701477 FASTNER PUSH DRCV
4 851980 DRIVE PAWL
5 88043 PULLEY PM
6 12000030 RETAINING RING ST
7 54583 SCREW
8 851947X004 "CLUTCH,FRAME"
9 50962 LOCKNUT
10 702631X004 LEVER.CLUTCH
11 88067 SPACER PM
12 750253 LOCKNUT
13 72070504 CARRIAGE BOLT
14 74350424 BOLT 1/4-20-1 1/2
15 88069 SPACER PM
16 48160 IDLER ASSY
17 88576 IDLER SPACER
18 88517 SHOULDER BOLT
19 88516 IDLER PULLEY
20 87877 KNOB PM
21 151521 WHEEL.ADJ.ASM.LH.
22 151520 WHEEL.ADJ.ASM.RH.
24 88080 DUST SHROUD PM
25 67725 WASHER FLUT
26 88446 BUSHING.HEX
27 701575 WHEEL.8X2.IGD.
28 145212 NUT.HXFLG.LOCK.
29 85179 RETAINER CLIP PM
30 77400 HUB CAP
31 12000058 E-RING.7/16.RE.
32 137054 PINION.GEAR
33 63601 SUB= 73800400
34 700537 SHAFT.DRIVE.17.81
35 88082 DRIVE PULLEY PM
36 111924X SUB= TH3H340
852000 "DECAL,CLEAN UNDER"
