Ayp HAGTH220B PARTS LIST

HAGTH220B (1999 & Before) Page 1 of 29
CHASSIS AND ENCLOSURES

HAGTH220B (1999 & Before) Page 2 of 29
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

1 532150253 SUB= 150253
2 532140506 SUB= 140506
3 532150478 SUB= 150189X422
4 873800700 NUT, LOCK HEX 7/16
5 532140452 DASHBOARD YP GRAY
6 532157882 SUB= 158007
7 817720408 SCREW, 1/4-20 X 1/2
8 532145166 SUB= 145166

9 532108067 SUB= 108067X
14 532150477 SUB= 150304X422
15 532157068 "LENS-HEADLIGHT,LH"
16 532121794 SUB= 121794X
17 817490612 SCREW THDROL 3/8-16X3/4 TY-TT
18 532157236 GRILLE ASM
19 819131312 WASHER
20 874760616 BOLT FIN HEX 3/8-16 X 1
21 873680600 NUT, CROWNLOCK 3/8-16
22 532150479 SUB= 150190X422
23 817490616 SCREW THDROL 3/8-16 X 1 TY-TT
24 532147202 SUB= 145243X418
25 532157069 "LENS-HEADLIGHT,RH"
27 873220400 NUT, HEX 1/4-20
28 532147203 SUB= 145244X418
29 532145205 SUB= 145205
30 532145052 SUB= 145052
31 532145183 SUB= 145183
32 532141315 SUB= 141315
33 532141314 SUB= 141314
34 532142131 SUB= 142131
35 819111116 WASHER 11/32 X 11/16 X 16 GA.
36 874780512 BOLT, FIN HEX 5/16-18 X 3/4
37 532141449 SUB= 140002X422
38 810040400 WASHER, LOCK 1/4
39 532136961 SUB= 136961
40 532156111 SUB= 156111
43 532136939 SUB= 136939
44 532136940 SUB= 136940
45 532154913 SUB= 154913
46 819091216 WASHER, 9/32 X 3/4 X 16 GA.
47 817490608 SCREW THDROL 3/8-16X1/2 TY-TT
50 532152728 SUB= 152728
52 873800500 LOCKNUT
54 873510500 NUT, KEPS 5/16-18
56 532154914 SUB= 154914
58 532137113 SUB= 137113
60 817490620 SCREW THDROL 3/8-16 X 1-1/4 TYTT
63 819131614 WASHER 13/32 X 1 X 14 GA
68 817490508 SCREW, 5/16-18 X 1/2 HEX, SELF TAPPING
70 532137159 SUB= 137159
72 874180512 SCREW MACHINE TRHD 5/16-18 X 3/4
74 874191008 SCREW, MACHINE #10-24
76 532125004 SUB= 2029J
79 874981020 SCREW, MACHINE #10-24 X 1/4
80 532007206 SUB= 7206J
82 873731000 NUT, #10-24
84 532142992 SUB= 142992
86 874760716 BOLT, FIN HEX 7/16-14 UNC X 1
90 811050600 WASHER LOCK

HAGTH220B (1999 & Before) Page 3 of 29
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

91 532156586 SUB= 156586
92 532157221 SUB= 156283X010
94 532100207 SUB= 100207K
95 532105531 SUB= 105531X
98 532140503 SUB= 140503
99 532140871 SUB= 140871

100 532124236 SUB= 124236X
101 817490628 SCREW, THDROL 3/8-16 X 1-3/4
102 532124788 SUB= 4497H
103 532142273 SUB= 142273
106 532138776 SUB= 157722
107 532109808 SUB= 109808X
108 532110356 SUB= 110356X
109 532110357 SUB= 110357X
110 532150200 PIVOT.ASM.GRL/HD
112 532060867 SUB= 60867
114 872140610 BOLT, CARRIAGE 3/8-16 X 1-1/4
115 532150300 SUB= 150300
116 532141461 SUB= 141461
117 REFER TO IMAGE
118 819131316 WASHER 13/32 X 13/16 X 16 GA
119 873680600 NUT, CROWNLOCK 3/8-16
120 819131616 WASHER
130 817521312 SCREW, SLTD HEX HD W/PL WASHER
131 532150195 SUB= 150195
132 874291006 SCREW, TRUSS HD #10-24 X 3/8

532125085 SUB= 8022J

HAGTH220B (1999 & Before) Page 4 of 29
DECALS

HAGTH220B (1999 & Before) Page 5 of 29
DECALS

Ref # Part Number Qty Description

1 532156835 DECAL, OPERATING INSTRUCTION

2 532150616 DECAL.GRILLE.HUSQ

3 532124433 SUB= 124433X

4 532155862 DECAL FENDER AUTO

5 532150619 DECAL.INST.HD.LH.

6 532150618 DECAL.INST.HD.RH.

8 532140837 SUB= 140837

9 532150617 DECAL.FENDER.
10 532157002 "DECAL-FENDER,DANG"
11 532125086 SUB= 4900J
12 532142342 SUB= 142342
14 532160397 "DECAL-SCHEM,BELT"
19 532145005 SUB= 145005
23 532106202 SUB= 106202X

532138311 SUB= 138311
532145246 SUB= 145246
532145247 SUB= 145247
532160848 MANUAL, OWNER'S (ENGLISH)
SH10 SLEEVE HITCH
TA128 TIRE CHAINS
GBD48 SNOW BLADE
TA321 55LB. WHEEL WTS.
EA20 ELECTRIC ASSIST KIT
GSB42 SNOW BLOWER

HAGTH220B (1999 & Before) Page 6 of 29

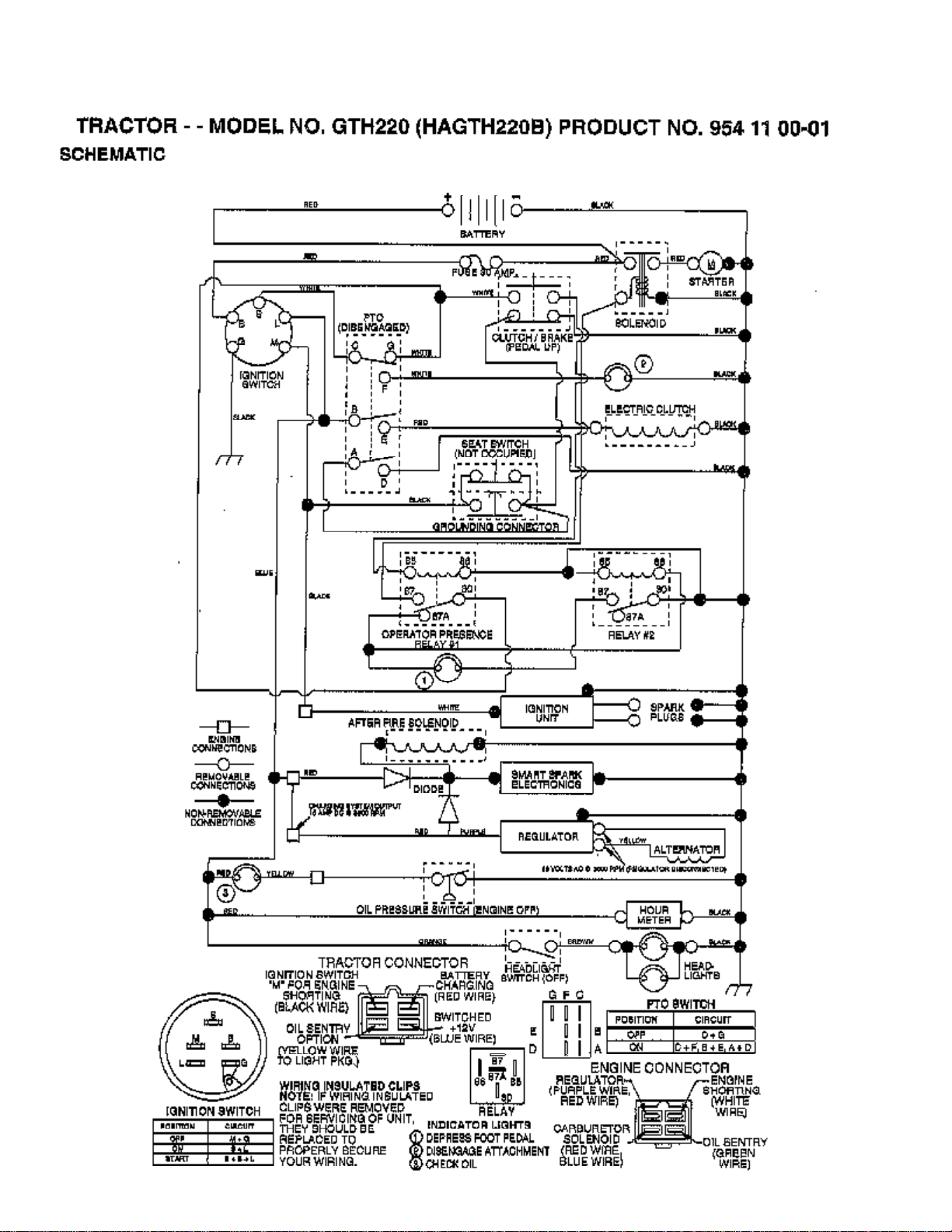

ELECTRICAL

HAGTH220B (1999 & Before) Page 7 of 29
ELECTRICAL

Ref # Part Number Qty Description

1 532144927 SUB= 125603X

2 874760412 BOLT HEX HD 1/4-20 X 3/4

3 810040400 WASHER, LOCK 1/4

4 819091016 WASHER 9/32 X 5/8 X 16 GA.

6 873220400 NUT, HEX 1/4-20

8 532124886 SUB= 7603J
10 532145211 SUB= 150177
11 532150109 SUB= 150109
12 532145769 SUB= 150177
16 532153664 SUB= 153664
19 810090400 WASHER LOCK 1/4
20 873350400 NUT JAM HEX 1/4-20 UNC
21 532136850 SUB= 136850
22 532004152 SUB= 4152J
24 532004014 SUB= 4014J
25 532146686 SUB= 146686
26 532108824 SUB= 108824X
28 532157899 CABLE GROUND
29 532160784 SUB= 160784
30 532140301 SUB= 140301
31 532124211 SUB= 124211X
32 532141226 SUB= 141226
33 532122147 SUB= 122147X
40 532160730 IGNITION HARNESS
41 817720408 SCREW, 1/4-20 X 1/2
42 532131563 SUB= 154336
43 532145673 SUB= 146154
46 532110940 SUB= 110940X
47 817011008 SCREW #10-24 X 1/2
50 532154959 SUB= 154959
51 532140405 SUB= 140405
61 532138101 SUB= 138101
62 532110143 SUB= 110143X
81 532109748 SUB= 109748X

HAGTH220B (1999 & Before) Page 8 of 29
ENGINE

HAGTH220B (1999 & Before) Page 9 of 29
ENGINE

Ref # Part Number Qty Description

1 CV22S ENGINE, KOHLER

2 532152947 MUFFLER VGT CYLINDER

5 813200300 ELBOW STD 90 DEGREE 3/8-18 NPT

7 532151396 SUB= 151396

8 532121361 SUB= 139123

9 532150828 SUB= 150828
10 532105432 SUB= 105432X
11 532140923 SUB= 150283
12 532143996 SUB= 143996
15 532151346 SUB= 151346
16 532109227 SUB= 109227X
17 532106082 SUB= 106082X
18 532140527 SUB= 140527
19 813290300 PLUG OIL DRAIN
20 532132747 SUB= 532132748
21 817720410 SCREW HEX THD CUT 1/4-20X5/8 T
22 532132781 SUB= 132781
23 819131316 WASHER 13/32 X 13/16 X 16 GA
24 811050600 WASHER LOCK
25 873920600 NUT, KEPS 3/8-24 UNF
26 532124952 SUB= 3645J
27 532139277 SUB= 139277
28 532124703 SUB= 8542R
29 532132920 SUB= 132920
30 532105037 SUB= 105037X
33 873800600 LOCKNUT
37 532123487 SUB= 123487X
38 874780624 BOLT, FIN HEX 3/8-16 UNC X 1-1/2
39 817490636 SCREW, TT 3/8-16 X 2-1/4 UNC
40 817490664 SCREW, TT 3/8-16 X 4 UNC
41 532126197 SUB= 126197X
42 810040700 WASHER LOCK HVY HLCL SPR 7/16
43 532150280 SUB= 150280
45 532128861 SUB= 128861
46 819131616 WASHER
47 532142040 SUB= 142040
48 819132007 WASHER, 13/32 X 1-1/4 X 7 GA.
51 532152946 PIPE CROSSOVER
54 819131414 WASHER, FLAT 13/32 X 7/8 X 14 GA.
55 813280336 NIPPLE, PIPE 4-1/2
56 813090308 NIPPLE, PIPE 3/8 NPT X 1.00
63 532145549 SUB= 145549
