GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 1 of 15
HARDWARE
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 2 of 15
HARDWARE
Ref # Part Number Qty Description
3 17490508 SCREW LT
6 10040500 LOCKWASHER
7 73220500 NUT.HEX.5/16-18
9 72140506 BOLT
10 1685H SUB= 68478
11 19111116 WASHER
14 17490612 SCREW
22 72110522 BOLT
34 72240606 BOLT
35 73680600 SUB= 73690600
50 74760622 BOLT
74 72240608 BOLT
90 6855M ZERK M
91 3700J BRACKET RH M
92 3701J BRACKET T
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 3 of 15
HARDWARE
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 4 of 15
HARDWARE
Ref # Part Number Qty Description
4 10040600 LOCKWASHER
61 74760612 SUB= 74780612
62 73680600 SUB= 73690600
63 17490612 SCREW
64 74780616 BOLT
65 74760616 BOLT
66 19131413 WASHER
67 73220600 NUT.HEX.3/8-16UNC
68 74930516 BOLT GT
69 100644K BUSHING LT
70 19111416 WASHER
71 73680500 SUB= 73690500
72 106615X SUB= 677A928
75 102933X SPLIT SPACER YTV
77 74760636 BOLT
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 5 of 15
MOWER DECK
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 6 of 15
MOWER DECK
Ref # Part Number Qty Description
1 110545X NLA
2 110543X COVER DECK T
4 7631J RUNNER-LH M
5 72110505 BOLT
8 120449X SUB= 136320
9 72140506 BOLT
10 1685H SUB= 68478
11 19111116 WASHER
12 677A344 MANDREL T
13 674A225 MANDREL T
15 3695J SUB = 25743
16 74780712 BOLT.7/16-14X3/4
17 10040600 LOCKWASHER
19 674A213 ARM ASSY GT
20 7834J SUB= 674A308
21 7835J SUB= 674A308
23 19111610 WASHER
24 102403X IDLER-FLAT T
25 74760624 SUB= 74930624
26 73220600 NUT.HEX.3/8-16UNC
27 104361X SPRING T
28 74780520 BOLT
29 19111216 WASHER M
30 8438J SPACER SPLIT LT
31 106224X SUB= 139346
32 105448X GUAGE WHL BRKT GT
33 105449X GUAGE WHL BRKT GT
34 72240606 BOLT
35 73680600 SUB= 73690600
36 105453X GUAGE WHL BAR GT
37 5565J SUB= 139031
38 4939M SUB= 85902
39 4898H BOLT M
40 105455X WHEEL.GAGE.BLK.PL
41 105433X SUSP BRKT GT
42 110237X SPACER GT
43 105434X SUSP BRACE GT
44 109778X SUB= 140741X431
45 109771X BRACKET.SUSPEN.AS
46 78850 SUB= 85463
46 107339X DECAL HYT
47 3146R RETAINER.SPRING
48 3703J V-BELT M
49 73680800 NUT LTV
51 105435X RELEASE PIN GT
52 3720R SPRING M
53 12000039 KLIP RING
54 19171612 WASHER GT
55 105440X CLEVIS PIN GT
56 105458X BRACKET T
57 109773X BRACKET T
58 110997X BRACKET T
59 120000X BRACKET T
60 73680500 SUB= 73690500
61 109776X PIVOT PIN T
62 19111016 WASHER
63 110509X DEFLECTOR
64 106734X SUB= 123713X
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 7 of 15
MOWER DECK
Ref # Part Number Qty Description
65 109743X SUB= 137607
66 106735X ROD-HINGE T
68 110452X NUT PUSH M
69 3713J DECAL INSTRUCTION CAUTION
70 109984X NLA
71 73220800 NUT
73 19171512 WASHER
75 109819X NLA
76 110885X NLA
77 19151610 WASHER T
78 105185X DECAL-INST YT
79 10040700 LOCKWASHER
80 109729X ROLLER T
83 76020412 COTTER PIN
84 19151616 SUB= 19171616
85 3681J SUB= 677A366
86 7710J PULLEY T
87 73611200 NUT - HEX
88 8330H KEY STD
89 23180608 SCR - HEX FGD SOCKET 3/8 X 16 X 1/2
93 120135X SPACER T
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 8 of 15

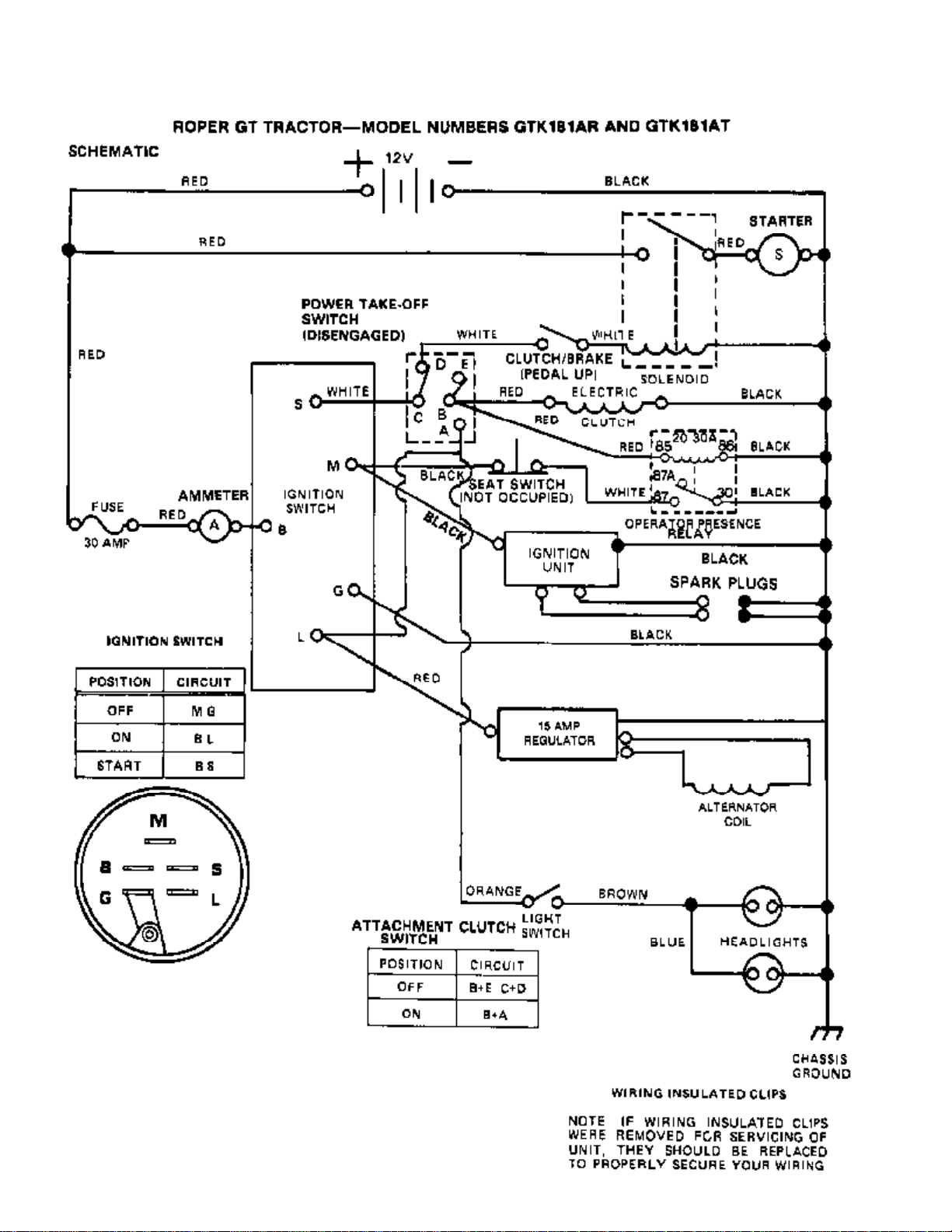

SCHEMATIC
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 9 of 15
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 10 of 15
STEERING
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 11 of 15
STEERING
Ref # Part Number Qty Description
1 104590X DECAL - STEERING WHEEL
2 100710L INSERT-WHEEL LT
3 74780616 BOLT
4 10040600 LOCKWASHER
5 19133808 WASHER T
6 100713N SUB= 150547
7 100711L ADAPTER LT
8 106943X SPACER LT
9 108540X TUBE
10 9038R "T, BEARING"
11 101274N SUPPORT ASSY T
12 73680800 NUT LTV
13 19172610 WASHER GT
14 104239X "FLANGE GT, BEAR."
15 12000034 KLIP RING
16 6266H WASHER .T
17 5213J FRAME BRACKET GT
18 102439X SUB= 144668
19 73610600 SUB= 7810H
20 120424X SECTOR T
21 74780880 BOLT T
22 104591X SHAFT STEERING GT
23 110497X LINK.DRAG.T
24 106046X SPINDLE ASSY T
25 74520632 BOLT, HEX 3/8 - 16 X 2
26 109849X TIE ROD T
27 9040H "FLANGE, BEARING"
28 106228X SUB= 106228X417
29 3938R SUB= 122075X
29A 8134H TUBE.16X6.5/7.5-8
30 12000029 RING
31 104757X HUB CAP
32 19252016 SUB= 121749X
33 59192 VALVE CAP
34 65139 VALVE STEM LT
35 278H FITTING LT
36 106045X SPINDLE RH T
38 108137X "T, BELLCRANK"
39 74781044 BOLT
40 1309H BRNG. T
41 6855M ZERK M
42 73221000 NUT X
43 10041000 WASHER
44 5298J SUB= 136518
45 674A243 AXLE ASSEMBLY
46 5292J SUB= 140342
48 5284J AXLE BRACKET T
49 19292016 WASHER
50 677A451 IDLER-INSIDE T
51 19132007 WASHER T
52 110946X STOP T
53 120542X IDLER BRKT T
54 7190J SPRING
55 108367X DECAL T
56 8922R SUB= 109851X
57 73700600 NUT
58 7919J SUB= 121159X
59 73360600 NUT
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 12 of 15
STEERING
Ref # Part Number Qty Description
60 8921R SUB= 109850X
62 73680600 SUB= 73690600
73 19252616 SUB= 121748X
74 74760632 SUB= 74930632
76 120195X SUB= 121177X
78 120200X NYLINER T
80 120448X CLAMP T
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 13 of 15
TRANSAXLE
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 14 of 15
TRANSAXLE
Ref # Part Number Qty Description
1 4197R SHAFT.AXLE.T
2 5845R SUB= 12000034
3 4199R FINAL GEAR T
4 4216R DIFF GEAR T
5 4215R DIFF PINION T
6 4217R DIFF CARRIER T
7 6256H WASHER T
8 74020652 BOLT
9 7392M SUB= 100482K
10 6272H SUB= 145359
11 4985R SHIFT FORK T
12 6266H WASHER .T
13 4212R RED PINION T
14 4196R GEAR SHAFT T
15 6276H SNAP RING T
16 633A63 GEAR T
17 8118M "T, BEARING"
18 8740H1 BEARING
19 6217H SUB= 122238X
20 4218R SPACER T
21 6252H1 PINION RS
22 7810H GRIPCO NUT
23 4986R SHIFT FORK T
24 7393R OIL SEAL STD
25 992R1 BRNG. T
26 6216H SHAFT T
27 6262H FORK T
28 101416X SHIFT SHAFT GTV
29 6269H SEAL T
30 5855H VALVE M
31 105406X SUB= 122162X
32 6277H PIN T
33 4225R NEEDLE BRNG T
34 7396H RACE T
35 4198R GEAR SHAFT T
36 4200R SUB= 532004200
37 7395H RACE T
38 6275H SUB= 121878X
39 105402X SUB= 122163X
40 13060400 SUB= 13320400
45 6271H SEAL T
46 13060200 SUB= 13020200
47 74780524 HEX BOLT
48 10140500 SUB= 10040500
49 4895H "TI, BEARING"
50 4222R NEEDLE BRNG T
51 1529R NEEDLE BRNG T
52 8119M "STD, BEARING"
53 4220R BRNG RACE
54 4209R RED PINION T
55 4213R RED GEAR T
56 4442R PINION SPACER T
57 4195R GEAR SHAFT T
58 4214R FINAL PINION T
59 4194R GEAR SHAFT T
60 7528R SPACER T
61 4208R RED PINION T
62 4207R RED GEAR T
GTK181AR PART 2 (CONTINED FROM PART 1) (1999 & Before) Page 15 of 15
TRANSAXLE
Ref # Part Number Qty Description
63 7398H RACE T
64 4203R LOW SPEED GEA T
65 4204R REVERSE GEAR T
66 2898J KEY T
67 4926H RING STD
68 4205R INTERMED GEAR T
69 4206R SUB= 532004206
70 1370H "T, BEARING"
71 633A69 CLUSTER GEAR T
72 208J INPUT SHAFT T
73 4201R LO SPEED PINION T
74 12000002 SUB= 2225J
75 1153R IDLER GEAR T
76 7392H WASHER T
77 3990H BRNG T
78 73220500 NUT.HEX.5/16-18
81 6270H SEAL STD
82 7384H SHAFT T
83 100196K SUB= 106932X
84 5384J GEAR SHIFT LVR T
85 2978J CAP T
86 633A85 COVER AND PIN T
87 8739H1 GUIDE BALL T
88 4924H SPRING TI
89 19151516 WASHER
90 110542X SEAL T
91 19181511 WASHER
92 75J GEAR SHIFT GA T
93 6274H GASKET T
94 76020412 COTTER PIN
95 10040500 LOCKWASHER
96 74760514 BOLT
97 633A109 GEAR SHFT LVR T
98 105474X TRANSAXLE GTV
