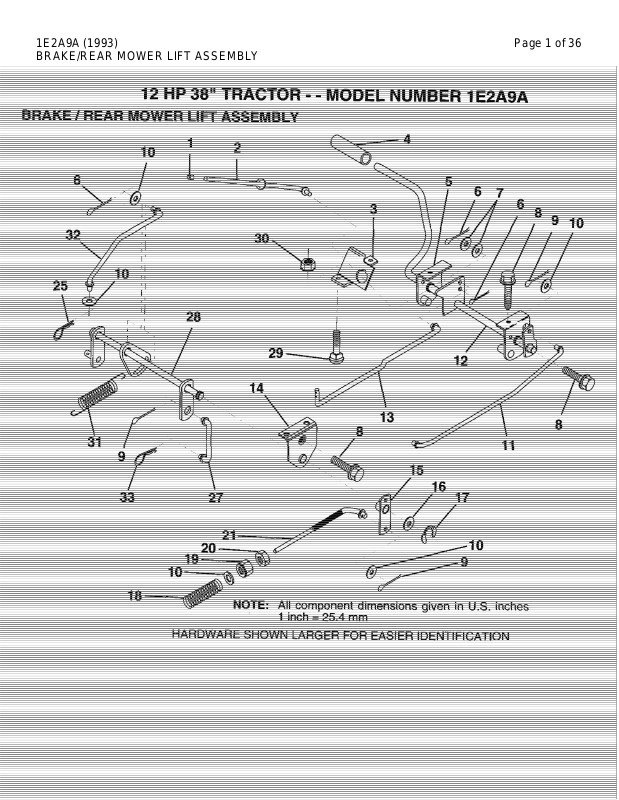

Ayp EST PARTS LIST

1E2A9A (1993) Page 1 of 36
BRAKE/REAR MOWER LIFT ASSEMBLY

1E2A9A (1993) Page 2 of 36
BRAKE/REAR MOWER LIFT ASSEMBLY

Ref # Part Number Qty Description

1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8883R PEDAL COVER T
5 132205 BRK ASM CLUT LH
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT

9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 136263 ASM CLUTCH/BRK PD
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 123641X BRAKE PIVOT ARM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73350600 NUT
20 73680600 SUB= 73690600
21 131460 SUB= 532131460
25 4921H SPRING.RETAINER
27 136780 LINK LIFT REAR LR
28 136779 LIFT ASM MWR RE
29 72110506 SUB= 72270506
30 73510500 NUT
31 133095 COUNTER SPRING
32 133721 LINK LIFT LEVER
33 4939M SUB= 85902

1E2A9A (1993) Page 3 of 36
DANA TRANAXLE 4360-51

1E2A9A (1993) Page 4 of 36
DANA TRANAXLE 4360-51

Ref # Part Number Qty Description

1 138248 SUB= 160951

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 138235 KIT SHIFTER ASM

7 134399 SHIFTER BOOT

8 134791 SCREW TAP W/SEAL

9 138241 SQUARE RING
10 2267J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 138240 "FLANGE, BEARING"
13 120415X WASHER T
14 2257J WOODRUFF KEY
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 138242 GEAR SPUR 14T
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 73810500 NUT.LOCK.5/16-24
24 138243 SHAFT INTERM
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 108977X KIT.GEAR.12/37TH
30 109254X SUB= 144893
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 105933X SUB= 108977X
46 106151X SUB= 144893
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031

1E2A9A (1993) Page 5 of 36
DANA TRANAXLE 4360-51

Ref # Part Number Qty Description

54 123907X SUB= 125595X
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
59 110082X GEAR 1ST T
60 123908X SUB= 125596X
61 138247 SUB= 160951
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 106596X "SCREW, TAPPING LT"
72 120951X PUCK T
73 120416X SUB= 126976X

1E2A9A (1993) Page 6 of 36
DASHBOARD

1E2A9A (1993) Page 7 of 36
DASHBOARD

Ref # Part Number Qty Description

1 132734 CAP.FUEL.N/VENT

2 138392 TANK.ASM.DASH.LR

3 123487X HOSE CLAMP

4 8544R SUB= 295J

5 8548R FUEL LINE T

6 73510400 NUT

7 2751R CLIP T

8 19091216 WASHER PM
17 72110404 BOLT
18 131886 SUPT ASM DASH
19 134744 CROSS BRACE
20 17060408 SCREW.1/4-20X1/2
21 134014 PLUG DOME

1E2A9A (1993) Page 8 of 36
DECALS

1E2A9A (1993) Page 9 of 36
DECALS

Ref # Part Number Qty Description

1 123637X SUB= 138269

2 127075 "DECAL,STR WHL"

3 135013 NLA

4 132627 GRILL DECAL

5 132928 IND HGT DECK DECA

6 120601X DECAL.ENG.271967

7 121549X DECAL

8 132628 FENDER DECAL

9 137259 "DECAL, WARNING"
10 133795 DECAL CAUTION
11 127033 "DECAL,HOOD"
12 130568 "DECAL,STP HD RH"
13 130569 "DECAL,STP HD LH"
14 138804 DECAL.FEND.QUICKS
15 136831 DECAL, V-BELT 38"

138573 MANUAL.OPERATOR
138571 MANUAL.O.1H2A9A E
139542 MANUAL.P.1E2A9A
CR38 GRASS CATCHER 38"

1E2A9A (1993) Page 10 of 36
ELECTRICAL

1E2A9A (1993) Page 11 of 36
ELECTRICAL

Ref # Part Number Qty Description

1 73510400 NUT

2 108423X CABLE ASM.

3 133909 SUB= 123899X

5 108236X BRACKET LT

6 104445X SWITCH-INTER. GT

7 109553X SWITCH INTERLOCKT

8 17021008 SCREW

9 122147X KEY
10 123620X SUB= 141226
11 124211X NUT IGNITION
12 4406R SUB= STD365402
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 132222 SUB= 532132222
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
23 11050400 LOCKWASHER
24 131563 SUB= 154336
25 138406 SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
31 7662J SUB= 4152J
32 136849 SUB= 136850
33 110712X SWITCH LT
35 11050600 LOCKWASHER
36 11150400 LOCKWASHER

1E2A9A (1993) Page 12 of 36

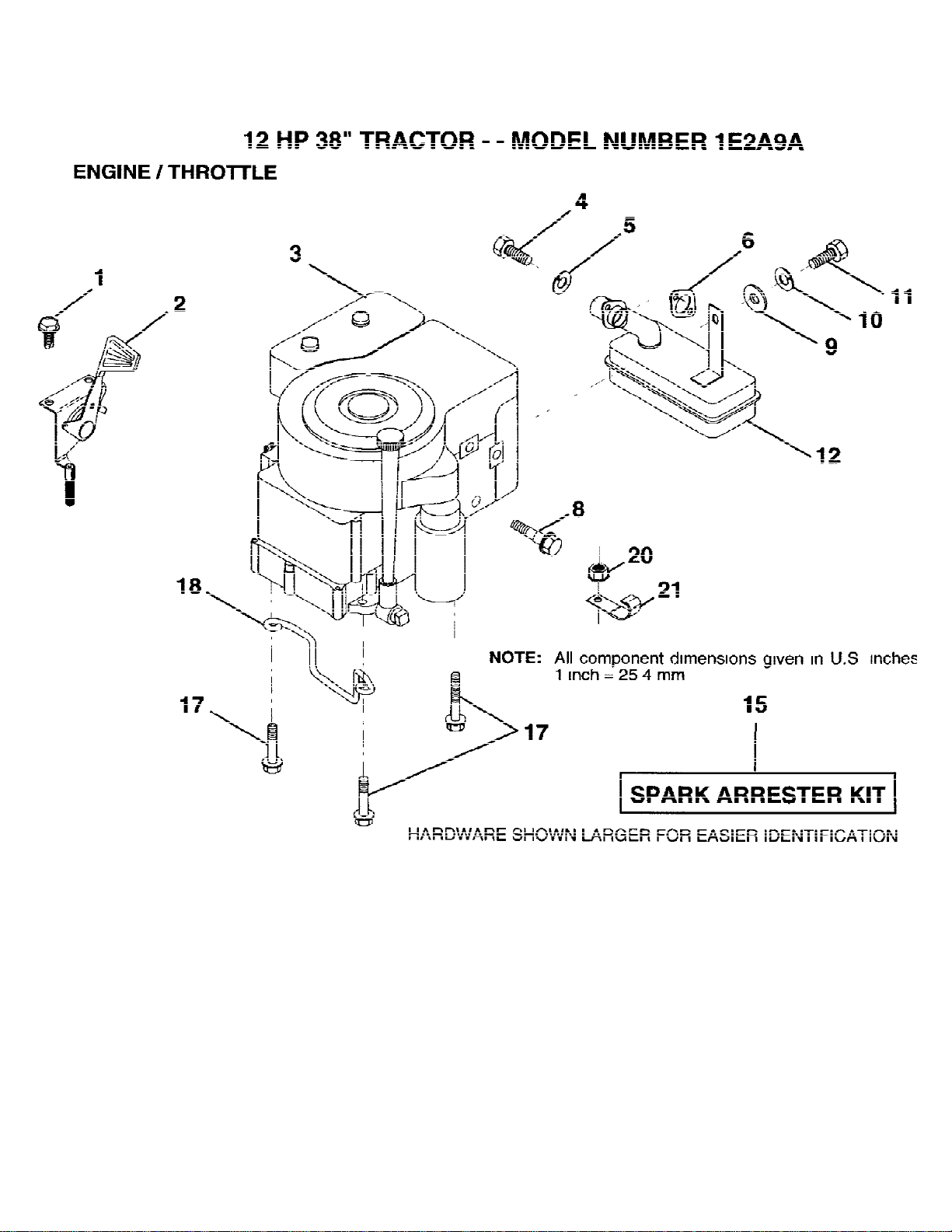

ENGINE/THROTTLE

1E2A9A (1993) Page 13 of 36
ENGINE/THROTTLE

Ref # Part Number Qty Description

1 17060408 SCREW.1/4-20X1/2

2 132521 THROTTLE CONTROL

3 REFER TO IMAGE

4 71070512 SCREW

5 10040500 LOCKWASHER

6 125593X SUB= 272293

8 121094X BOLT T

9 19101216 WASHER
10 10040400 LOCKWASHER
11 REFER TO IMAGE
12 137437 MUFFLER
15 137180 SUB= 532137180
17 17490624 SCREW LT
18 126636X "KEEPER,DR BELT GR"
20 73510600 NUT
21 2751R CLIP T

1E2A9A (1993) Page 14 of 36

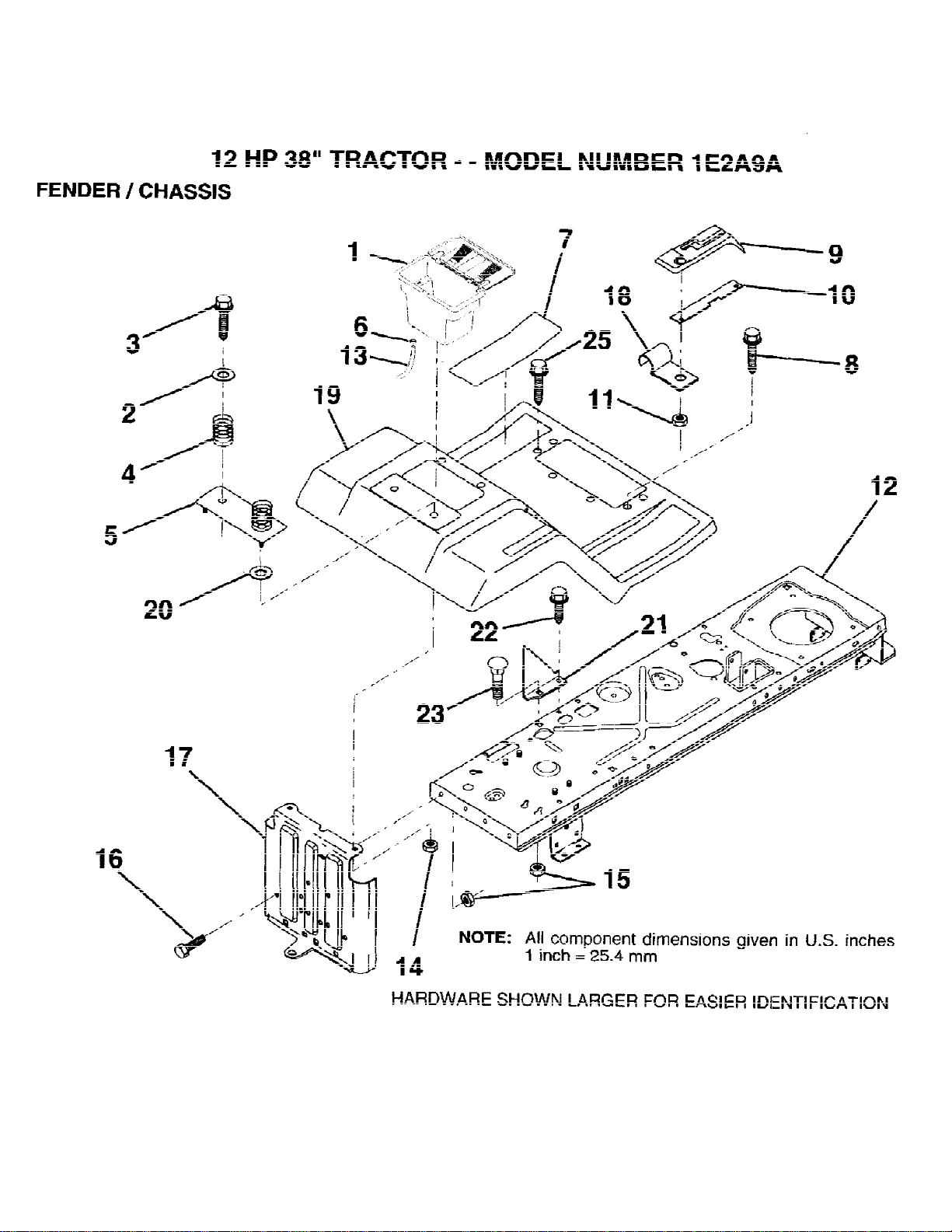

FENDER/CHASSIS

1E2A9A (1993) Page 15 of 36
FENDER/CHASSIS

Ref # Part Number Qty Description

1 129965 SUB= 156417

2 19132012 WASHER

3 17490612 SCREW

4 124181X SPRING COMPRESSIO

5 127115X505 BTRY FENDER PLATE

6 109596X HOSE CLAMP T

7 124144X PAD FOOTREST

8 17490512 SCREW

9 126995X SUB= 126995X428
10 124307X "SHIFT LOCK, BAR"
11 124346X NUT
12 137097 SUB= 139893
13 109238X TUBE T
14 73510400 NUT
15 73680500 SUB= 73690500
16 74760512 BOLT
17 127880 DRAWBAR
18 126470X "CLIP,INSULATOR"
19 132650X505 SUB= 140956X505
20 19091413 WASHER
21 132562 SUB= 140297
22 17490508 SCREW LT
23 72110506 SUB= 72270506
25 17490516 SCREW TI

1E2A9A (1993) Page 16 of 36

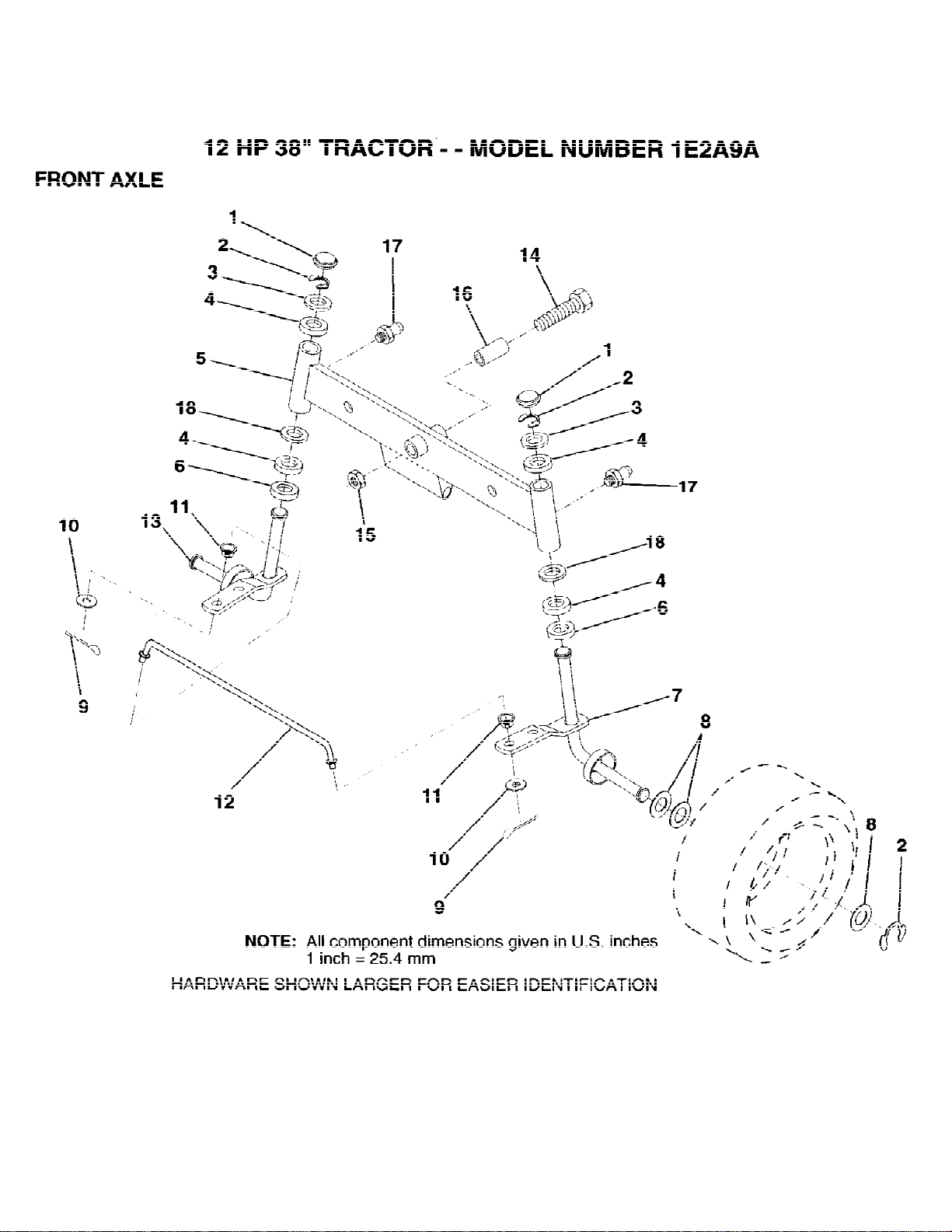

FRONT AXLE

1E2A9A (1993) Page 17 of 36
FRONT AXLE

Ref # Part Number Qty Description

1 121232X CAP

2 12000029 RING

3 121748X WASHER

4 3366R COL. SRTG. BEAR.

5 133988 SUB= 142033

6 6266H WASHER .T

7 137062 SPINDLE ASM RH

8 121749X WASHER

9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 130465 TIE ROD
13 137061 SPINDLE ASM LH
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 110438X BEARING
17 6855M ZERK M
18 19272016 WASHER

1E2A9A (1993) Page 18 of 36

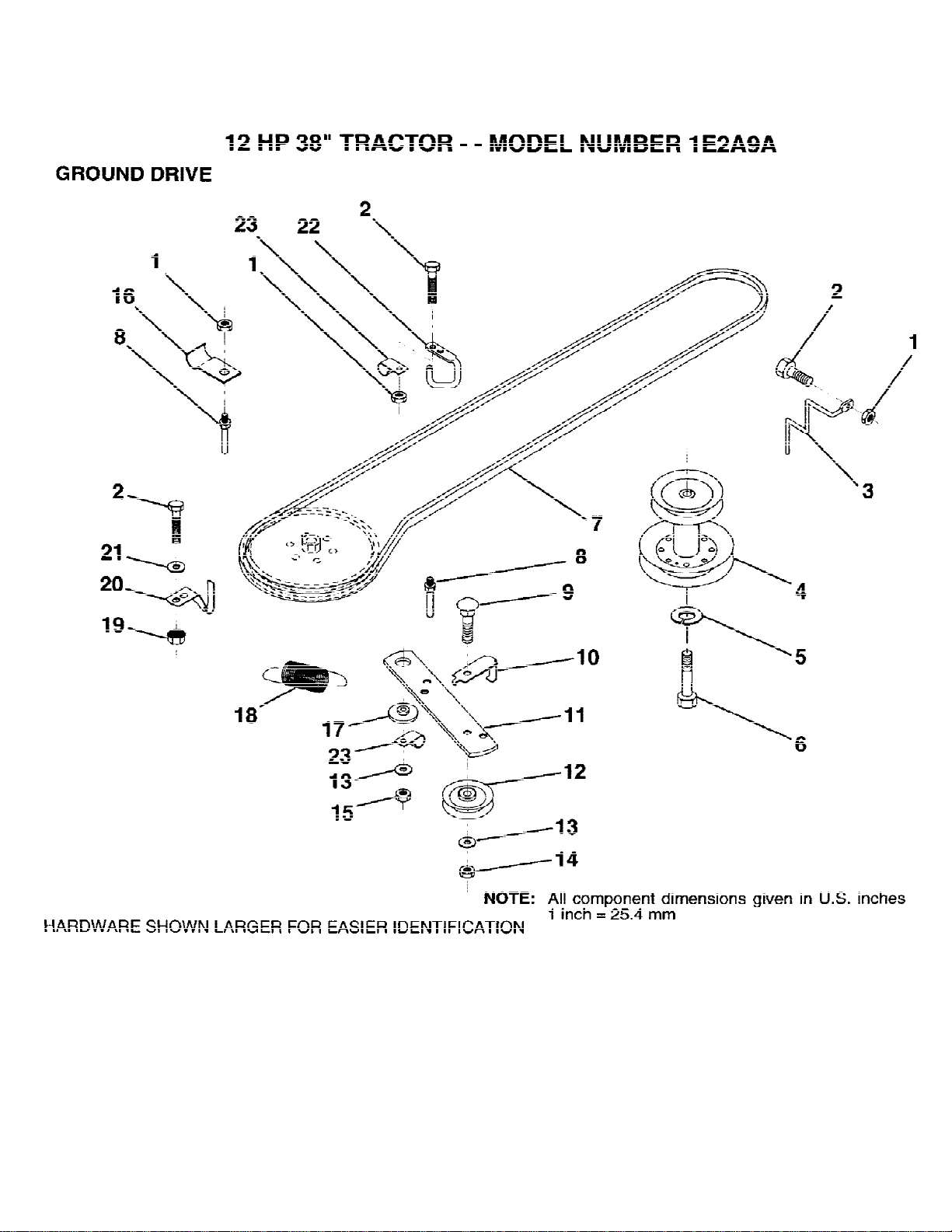

GROUND DRIVE

1E2A9A (1993) Page 19 of 36
GROUND DRIVE

Ref # Part Number Qty Description

1 73680500 SUB= 73690500

2 74760512 BOLT

3 132946 KEEPER MWR DR BLT

4 135036 SUB= 138029

5 10040700 LOCKWASHER

6 71130748 BOLT

7 124525X BELT

8 123405X "KEEPER,DRIVE BELT"

9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 123395X SUB= 140911
12 4859J SUB= 123674X
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 122052X SPACER RETAINER
18 131459 SUB= 532131459
19 73510500 NUT
20 123891X "KEEPER,DR BELT "
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"

1E2A9A (1993) Page 20 of 36

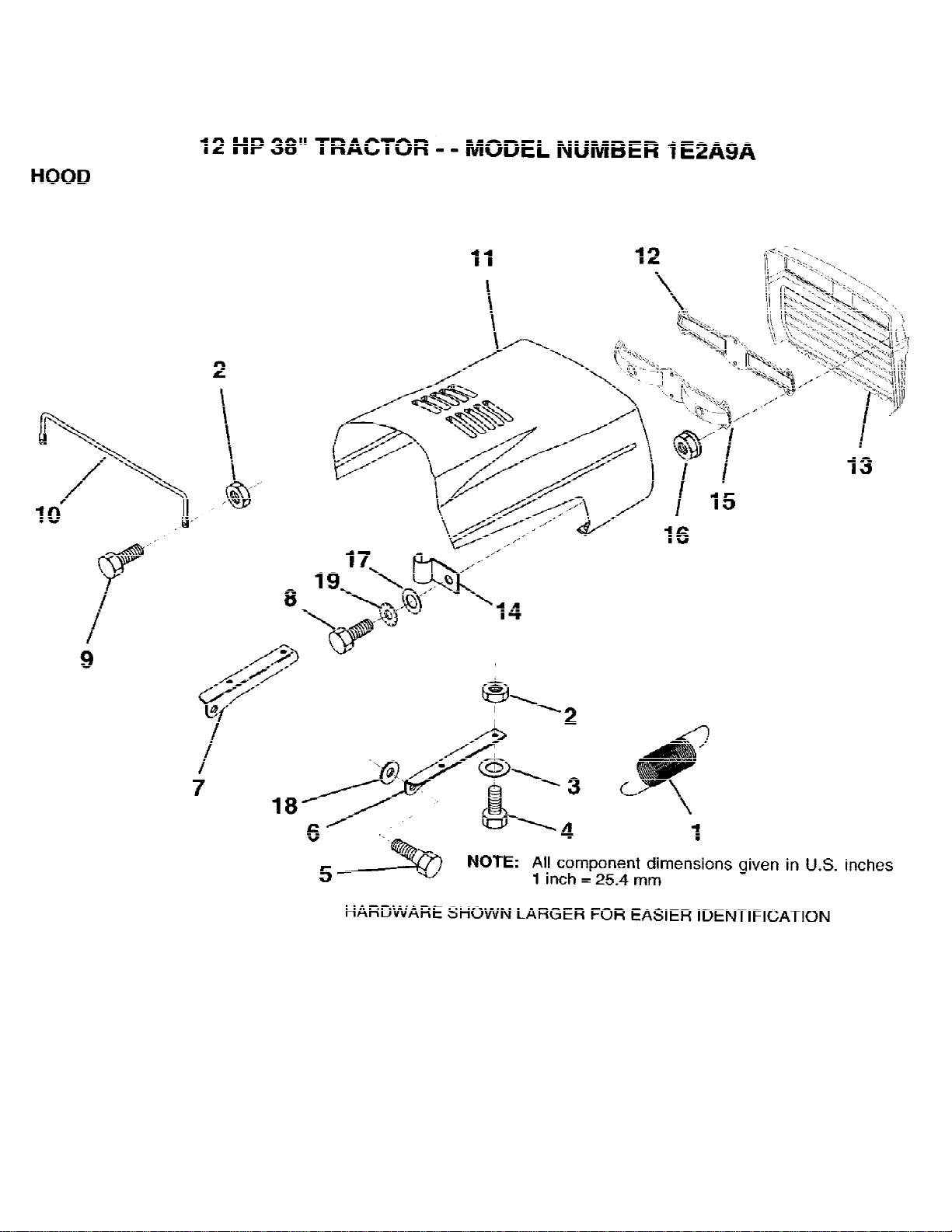

HOOD

1E2A9A (1993) Page 21 of 36
HOOD

Ref # Part Number Qty Description

1 124657X EXT SPRING

2 73510400 NUT

3 19091016 WASHER

4 74780410 BOLT

5 126675X SUB= 139888

6 122549X BRKT HOOD RH

7 122548X BRKT HOOD LH

8 17411310 SUB= 17521312

9 74780412 SUB= 74780414
10 123693X "BRACE,HOOD"
11 132918X505 HOOD
12 127178 LENS T
13 134232X428 GRILL (BLACK)
14 2751R CLIP T
15 127177X LIGHT BOX
16 124346X NUT
17 19091016 WASHER
18 19111116 WASHER
19 11030400 LOCKWASHER GT

1E2A9A (1993) Page 22 of 36
MOWER DECK

1E2A9A (1993) Page 23 of 36
MOWER DECK

Ref # Part Number Qty Description

1 138356 SUB= 142830

2 73680500 SUB= 73690500

3 72140506 BOLT

4 7631J RUNNER-LH M

5 110485X BEARING

6 128774 HSG ASM MANDREL

7 129895 BEARING.BALL

8 137645 SUB= 137646

9 138497 "BLADE.38"" HIPERF"
10 129962 WASHER BLADE
11 10030600 SUB= 10040600
12 850857 BLADE BOLT
13 136929 SUB= 140329
14 106736X DEFLECTOR-SHLD T
15 106735X ROD-HINGE T
16 137607 BRKT DEFLECTOR
17 110452X NUT PUSH M
18 123713X SPRING TORSION
19 19111016 WASHER
20 105304X CAP-SLEEVE LT
21 128772 RUNNER RH
22 19111216 WASHER M
23 78158 SUB= 17580520
24 4939M SUB= 85902
25 74600636 BOLT
26 19131612 WASHER GT
27 132556 "LINK ASM.,FRONT"
28 73350800 NUT
29 130171 TRUNION
30 73800800 NUT.LK.W/WSH.1/2.
31 132553 CLUTCH ROD PRI
32 73350600 NUT
33 132559 SUSP ARM REAR
34 133604 TRUNNION
35 132554 CLUTCH ROD SEC
36 19131316 WASHER
37 76020312 SUB= 3145
38 133840 IDLER ARM ASSY
39 129963 WASHER
40 129206 SUB= 153532
41 137266 SUB= 139729
42 131494 FLAT IDLER PULLEY
43 122052X SPACER RETAINER
44 19131612 WASHER GT
45 73680600 SUB= 73690600
46 131290 BELT-V.88.12.MW
47 133502 RETAINER SPACER
48 133503 IDLER ARM STIFF
49 13351 ROD PIVOT W/NIBS
50 131289 BRAKE ROD LH
51 130840 BRAKE ASM
52 17490512 SCREW
53 131288 BRAKE ROD RH

1E2A9A (1993) Page 24 of 36
MOWER DECK

Ref # Part Number Qty Description

54 72110614 BOLT
55 4921H SPRING.RETAINER
56 136782 PLATE ADJ LINK LH
57 72140606 BOLT
58 19131212 WASHER T
59 7380050 NUT LK HEX W/INS 5/16-18 UNC P
60 19111112 WASHER.34X.68X16
62 3146R RETAINER.SPRING
63 4497H RETAINER M

130794 MANDREL ASM
138422 SUB= 142862

1E2A9A (1993) Page 25 of 36

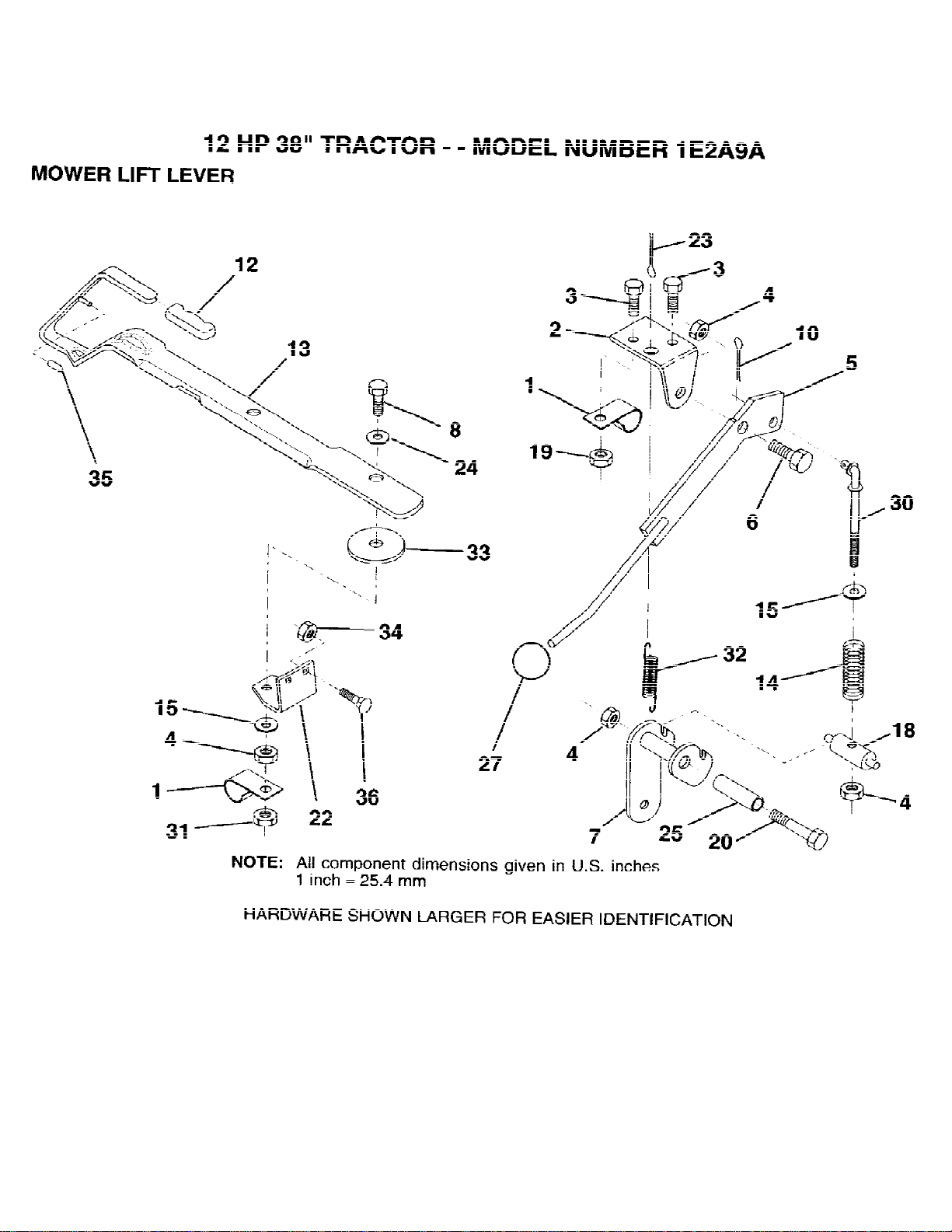

MOWER LIFT LEVER

1E2A9A (1993) Page 26 of 36
MOWER LIFT LEVER

Ref # Part Number Qty Description

1 126470X "CLIP,INSULATOR"

2 122018X BRKT CLUTCH

3 74780408 BOLT

4 73680600 SUB= 73690600

5 132552 CLUTCH LEVER AS

6 106451X "BOLT, SHOULDER LT"

7 135110 MWR CLUT ARM ASM

8 74930624 BOLT
10 76020412 COTTER PIN
12 122027X GRIP HANDLE
13 136658 LEVER LIFT LR
14 133939 COMP CLUTCH SPRNG
15 19131616 WASHER HYT
18 135107 TRUNNION
19 73680400 SUB= 73690400
20 74760644 BOLT
22 132561 LIFT LEVER BRKT
23 76020312 SUB= 3145
24 7672J WASHER
25 121933X TUBE SPACER
27 121466X KNOB
30 135039 ROD TENSION CLUTC
31 73930600 LOCKNUT
32 133435 SPRING EXT
33 62333 WASHER
34 73680500 SUB= 73690500
35 133603 VINYL CAP RED
36 72140506 BOLT

1E2A9A (1993) Page 27 of 36

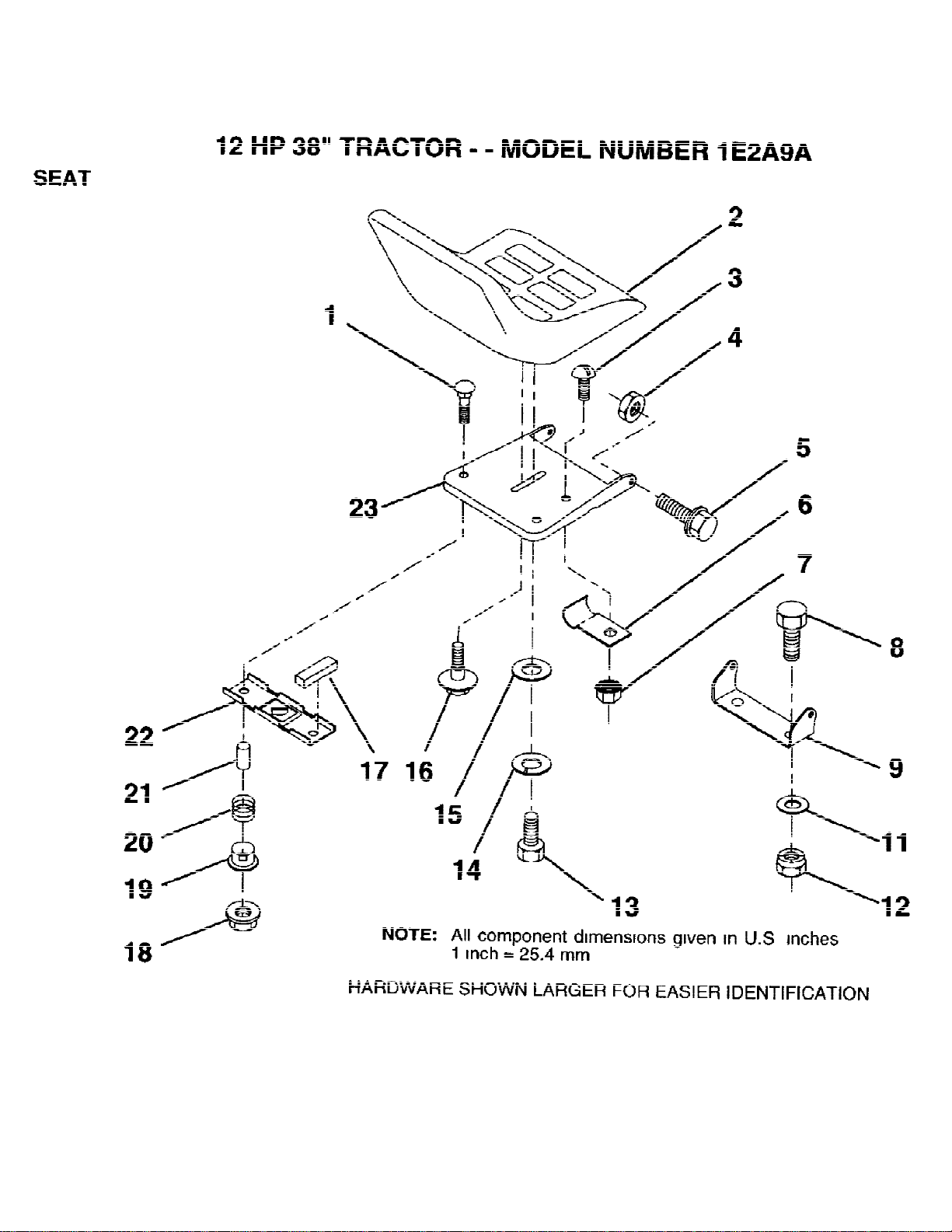

SEAT

1E2A9A (1993) Page 28 of 36
SEAT

Ref # Part Number Qty Description

1 72050411 SUB= 872050411

2 127427 SUB= 140119

3 74641008 SUB= 71031008

4 73680500 SUB= 73690500

5 105529X SUB= 139888

6 4171R CLIP T

7 73951000 "NUT,KEPS"

8 74760612 SUB= 74780612

9 126656X SUB= 140551
11 19133210 WASHER
12 73680600 SUB= 73690600
13 74780814 BOLT
14 10040800 LOCKWASHER
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
17 121251X STRIP FORM
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
21 134300 SPLIT SPACER
22 121246X BRKT SWITCH
23 131451 SUB= 155925

1E2A9A (1993) Page 29 of 36

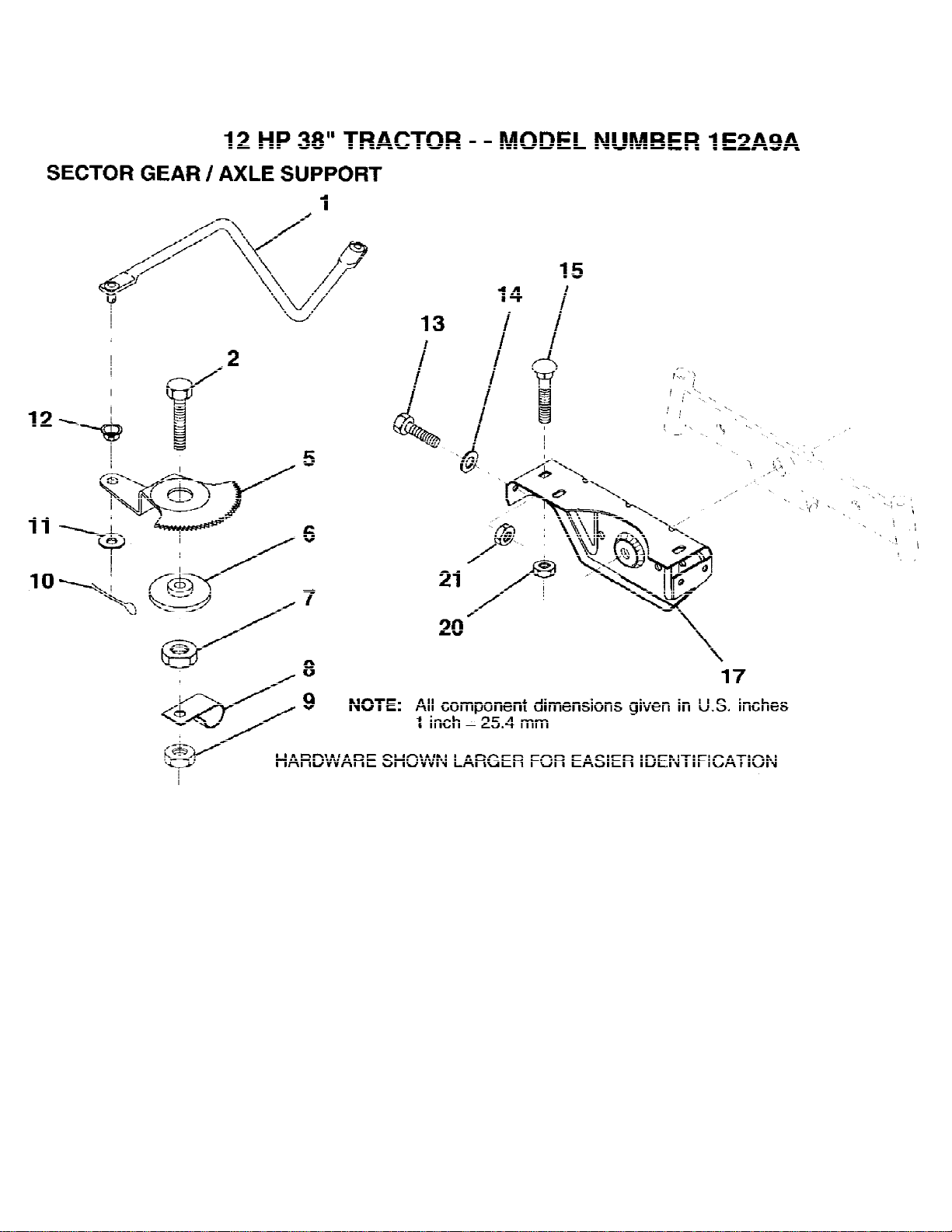

SECTOR GEAR/AXLE SUPPORT

1E2A9A (1993) Page 30 of 36
SECTOR GEAR/AXLE SUPPORT

Ref # Part Number Qty Description

1 132566 DRAG LINK

2 74780828 "BOLT,HEX"

5 121926X GEAR SECTOR

6 121927X BUSHING

7 73030800 NUT

8 126472X CLIP INSULATOR

9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
17 137096 SUPT AXLE FRONT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500

1E2A9A (1993) Page 31 of 36

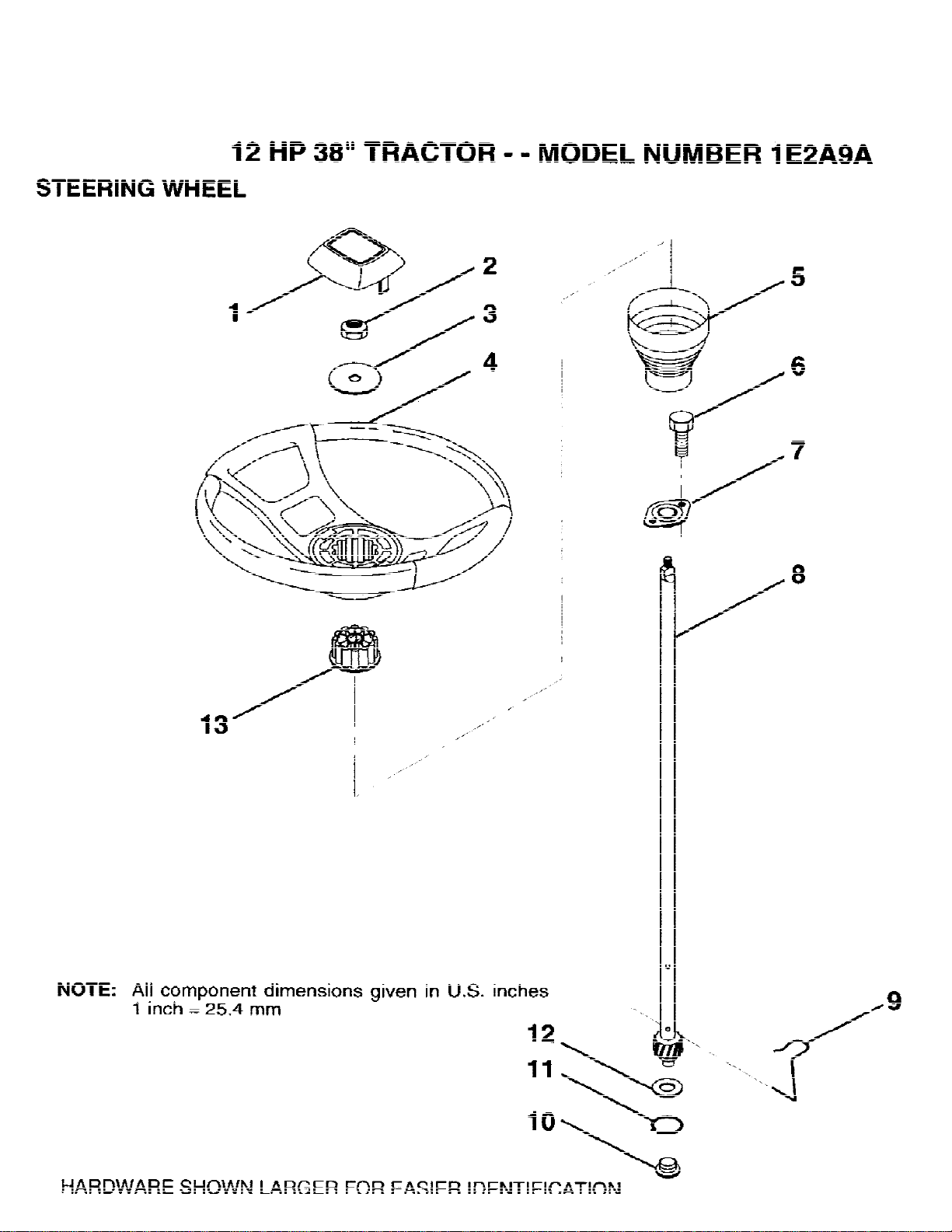

STEERING WHEEL

1E2A9A (1993) Page 32 of 36
STEERING WHEEL

Ref # Part Number Qty Description

1 133742 ST WHL INSERT CAP

2 7810H GRIPCO NUT

3 19133808 WASHER T

4 133741 SUB= 150547

5 121897X SLEEVE STEERING

6 17431008 SUB= 98000165

7 102803X SUB= 918102803X

8 123651X SUB= 148966

9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 104820X ADAPTER-WHEEL LT

1E2A9A (1993) Page 33 of 36

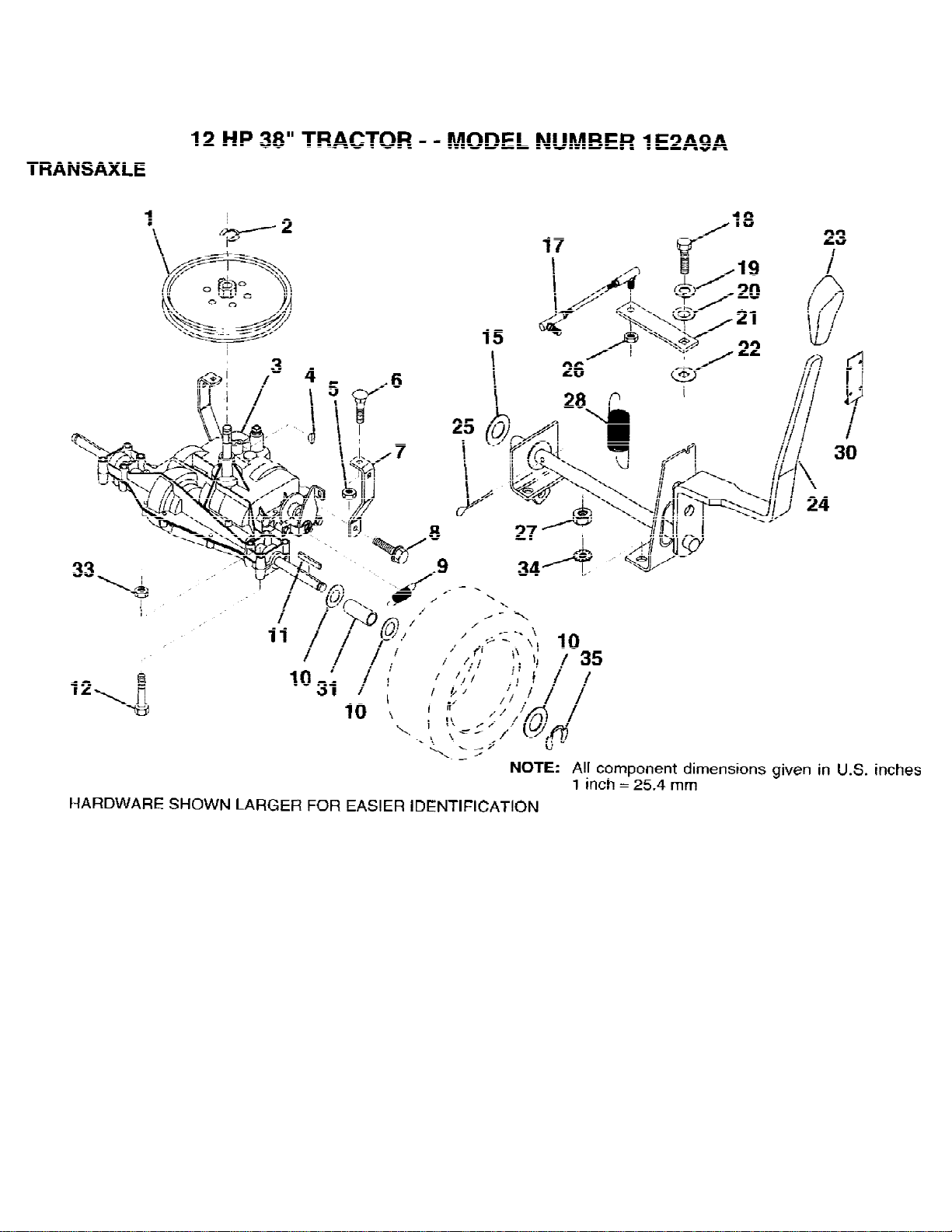

TRANSAXLE

1E2A9A (1993) Page 34 of 36
TRANSAXLE

Ref # Part Number Qty Description

1 123385X PULLEY

2 12000028 SUB= 2267J

3 REFER TO IMAGE

4 2228M SUB= 2228M1

5 73680500 SUB= 73690500

6 72140506 BOLT

7 123378X "STRAP,TORQUE"

8 17490512 SCREW

9 110422X SUB= 146682
10 121749X WASHER
11 123583X SQUARE KEY
12 74760644 BOLT
15 19171616 WASHER
17 123632X "LINK,SHIFT"
18 71040412 SUB= 74550412
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 123539X "ARM,SHIFT"
22 105701X WASH-SHFT PLT LT
23 122011X "KNOB,SHT CONTROL"
24 128202 SUB= 532128202
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
27 73510500 NUT
28 128085 "SPRING,EXT"
30 123692X KNOB RETAINER
31 123409X SPACER
33 73680600 SUB= 73690600
34 11050500 LOCKWASHER.5/16.E
35 12000001 E-RING LT

1E2A9A (1993) Page 35 of 36

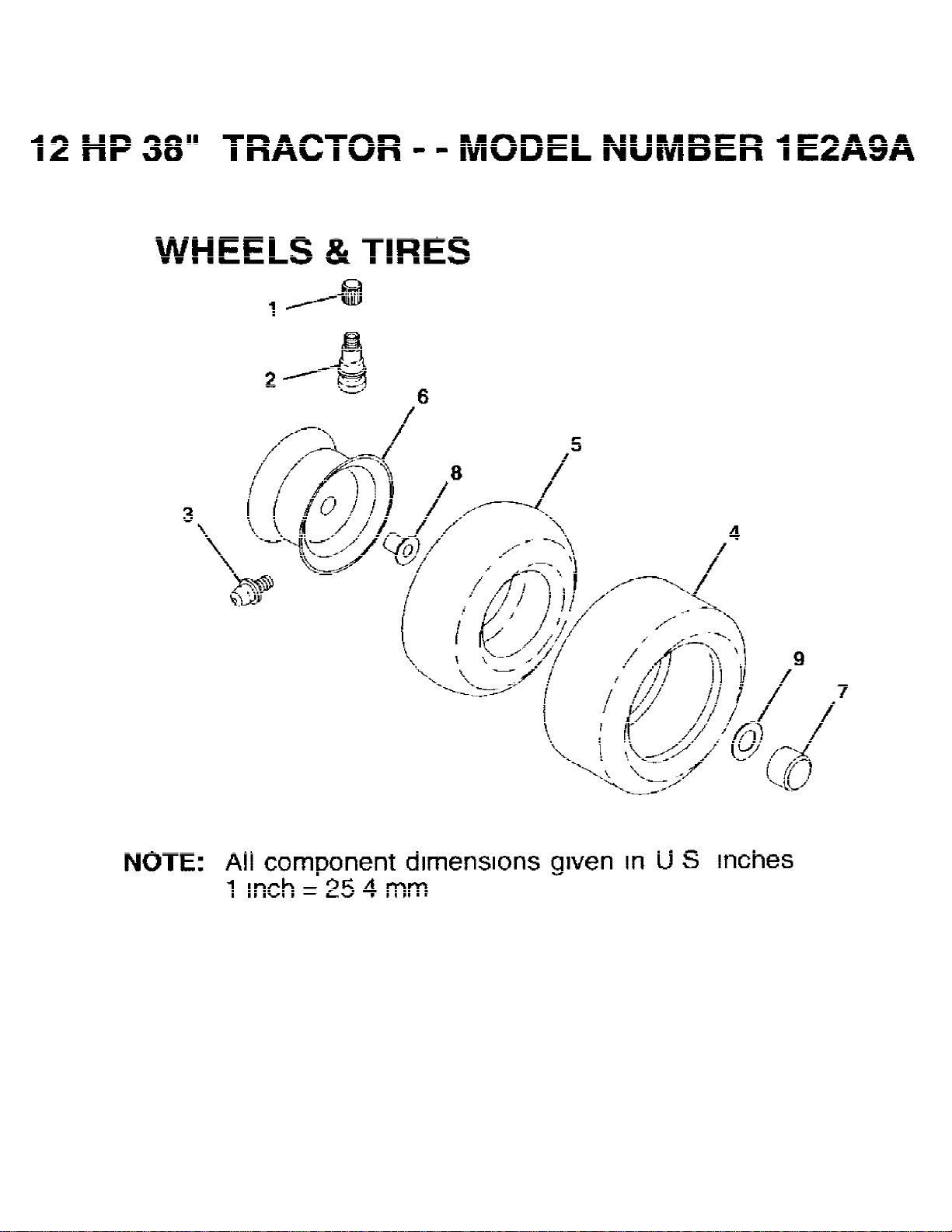

WHEELS/TIRES

1E2A9A (1993) Page 36 of 36
WHEELS/TIRES

Ref # Part Number Qty Description

1 59192 VALVE CAP

2 65139 VALVE STEM LT

3 278H FITTING LT

4 137422 SUB= 122073X

132703 SUB= 532132703

5 59904 TUBE.5.3/4.5/6

8134H TUBE.16X6.5/7.5-8

6 137237X311 SUB= 137237X427

123412X311 SUB= 123412X427
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
