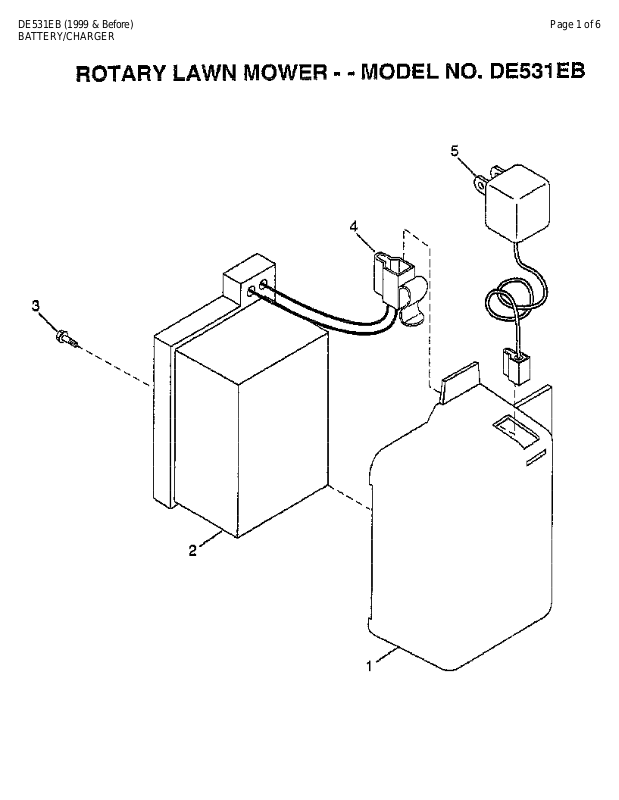

DE531EB (1999 & Before) Page 1 of 6
BATTERY/CHARGER
Page 2
DE531EB (1999 & Before) Page 2 of 6
BATTERY/CHARGER
Ref # Part Number Qty Description
1 161334 BATTERY BRACKET
2 750909 SUB= 48374
3 17411312 SCREW.HX.13X.750
4 86353 CONNECTOR PM
5 130024 "CHARGER, BATTERY"
Page 3
DE531EB (1999 & Before) Page 3 of 6
DRIVE/TRANSMISSION/WHEEL
Page 4
DE531EB (1999 & Before) Page 4 of 6
DRIVE/TRANSMISSION/WHEEL
Ref # Part Number Qty Description
1 161587 CABLE.DRIVE
2 161473 BAIL.CONTROL DRIVE
3 161478X004 BRACKET.DOWNSTOP.RT
4 83816 SCREW PM
5 161552 COVER DRIVE
6 750634 SCREW
7 160816 V.BELT.3-L
8 132010 LOCKNUT
9 163939 DRIVEN.PULLEY
10 160813X004 KEEPER.BELT
11 17541011 SCREW.HEX.WASHER 10-71
12 75192 SPRING
13 169611 TRANSMISSION AY
14 145354 PIN.SPRING.THRUST
15 57079 THRUST WASHER
16 161584 ROD CONNECTING
17 161602 SPRING EXTENSION
18 160477X004 SPRING.SELECTOR
19 161961 KNOB.SELECTOR.SPRING
20 12000022 E-RING
21 163365 BEARING SUPPORT
22 169911 BEARING BALL
23 161118X004 RETAINER DRIVE
24 57808 SCREW
25 170011 PAWL.DRIVE.ETCHED
26 166450 PINION
28 12000058 E-RING.7/16.RE.
29 88080 DUST SHROUD PM
30 67725 WASHER FLUT
32 162063 WHEEL 9X2
33 83923 HEX FLANGE LOCKNT
34 57143 WAVE WASHER
35 160785X004 ASSY. REAR SHAFT
36 160786X004 SHAFT.ASM.FRONT
37 161463 RETAINER.FRONT
38 163409 SCREW
39 700279 RETAINER CLIP
40 157178 WHEEL & TIRE ASM
41 150182 HUB CAP
42 52160 WASHER
43 19572216 WASHER
44 150181 HUBCAP
45 62335 "WASHER, BELLEVIL."
46 88118 WASHER PM
Page 5
DE531EB (1999 & Before) Page 5 of 6
HANDLE/ENGINE/BAG/DECK
Page 6
DE531EB (1999 & Before) Page 6 of 6
HANDLE/ENGINE/BAG/DECK
Ref # Part Number Qty Description
1 167163 HANDLE.UPPER.DL
2 161105X479 HANDLE.LOWER
3 131036 CONTROL BAR
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 66426 SUB= 7192J
7 131959 BOLT.HANDLE.LM
8 87692 KNOB PM
9 164265 GRIP.HANDLE.FOAM
10 161551 SQUARE.HEX.KEY
11 73990500 NUT LCK 5/16-18
12 51793 HAIRPIN COTTER
13 133107 ZONE CONTROL
14 850733X004 "BRKT,UPSTOP"
15 83816 SCREW PM
16 162085 KIT.DOOR.REAR.21
17 161548 SEAL.DOOR.21
18 165261 PLUG.MULCH.21RWGD.STATESIDE
19 167685 HOUSING KIT
20 161568X479 HANDLE.BRACKET.RH
21 168227X479 BRKT.HANDLE.ASM.RT21
22 150078 SCREW.HXWS.5/16
23 163183 SUB= 532163183
24 63124 SUB= 73690500
25 161333 DEFLECTOR.CLIPPING
26 163409 SCREW
29 134612 SUB= 48283
30 851514 ADAPTOR.BLADE.LM
31 159267 BLADE.21.MULCH.PREM.
32 851074 "WASHER,HARDEN"
33 850263 LOCKWASHER
34 851084 SCREW
35 84596 ENGINE.PULLEY.FWG
36 87677 HI PRO KEY PM
37 150406 BOLT.ENG.3/8-16
38 SUPPLIER CHECK WITH SUPPLIER
39 165844 GBAG.300A2.BLK.CE
40 161358 FRAME.GRASSCATCHER
41 144929 SCREW.HXHD.WASH.
42 163837 COMBI KEY CONTROL
43 145494 DECAL.DANGER.CUTF
44 54583 SCREW
69 111190X CABLE CLAMP
70 83816 SCREW PM
71 751152 LOCKNUT
72 122147X KEY
161057 DECAL.INTRN.DRIVE.COVER
173873 OPERATOR'S MANUAL-EURO
173882 REPAIR PARTS MANUAL
