DE11B36C (1999 & Before) Page 1 of 34
BRAKE/REAR MOWER LIFT
DE11B36C (1999 & Before) Page 2 of 34
BRAKE/REAR MOWER LIFT
Ref # Part Number Qty Description
1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8156H FOOT PEDAL COVER
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT
9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 139933 PEDAL ASM CL/BK36
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 133332 PVT BRAKE ARM ASM
16 19251816 WASHER T
17 12000034 KLIP RING
18 151332 SPRING ROD BRAKE
19 73350600 NUT
20 73800600 NUT
21 131460 SUB= 532131460
22 144585 TRUNNION.LIFT.
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 140776 LIFT ASM MOW REAR
29 72110506 SUB= 72270506
30 73510500 NUT
31 3146R RETAINER.SPRING
34 73680600 SUB= 73690600
DE11B36C (1999 & Before) Page 3 of 34
DASH
DE11B36C (1999 & Before) Page 4 of 34
DASH
Ref # Part Number Qty Description
1 141523 CAP BLK FUEL LR
2 138393 TANK.ASM.DASH.LR
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73640400 NUT HXKEP 1/4X20
7 2751R CLIP T
8 19091216 WASHER PM
9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 17060408 SCREW.1/4-20X1/2
21 134014 PLUG DOME
25 17720410 SCREW LT
DE11B36C (1999 & Before) Page 5 of 34
DECALS
DE11B36C (1999 & Before) Page 6 of 34
DECALS
Ref # Part Number Qty Description
1 159739 DECAL CLUTCH/BRAK
3 167523 DECAL.HOOD.RH
4 167524 DECAL.HOOD.LH
5 136830 DECAL.V.BELT
7 145498 DECAL.READ.O.MANU
8 145494 DECAL.DANGER.CUTF
10 167532 DECAL.DECK.MOWER
11 159736 "DECAL CHASSIS,HOT"
12 145005 DECAL.BATRY.3-3908
13 167531 DECAL.INST.STEERING
14 126187X SUB= 532126187
15 170843 DECAL, ENGINE
16 162598 DECAL.DRAWBAR.LDL
18 145437 DECAL.EURO.ST.CE.
19 167529 DECAL.FENDER.RH
20 167530 DECAL FENDER LH
138311 DECAL HANDLE LIFT
157065 MANUAL.OPERATOR'S
173068 MANUAL, REPAIR PARTS
DE11B36C (1999 & Before) Page 7 of 34
ELECTRICAL
DE11B36C (1999 & Before) Page 8 of 34
ELECTRICAL
Ref # Part Number Qty Description
1 73640400 NUT HXKEP 1/4X20
2 108423X CABLE ASM.
3 144924 SUB= 123899X
4 69180 LOCKNUT
5 108236X BRACKET LT
6 109553X SWITCH INTERLOCKT
7 146374 KEEPER.ACTUAT.LR.
8 17021008 SCREW
9 140402 KEY STEEL DELTA
10 141226 COVER KEY SWITCH
11 140400 SUB= 145774
12 163088 SWITCH.IGNITION
15 121305X SWITCH SEAT
17 166180 FUSE.15 AMP
18 128353 CABLE ASSY
19 170206 HARNESS, IGNITION
20 73350400 NUT
21 10090400 SUB= 10040400
22 71110408 BOLT HXHD FIN
24 131563 SUB= 154336
25 145673 SUB= 146154
26 74760412 BOLT LT
27 73510400 NUT
36 11150400 LOCKWASHER
39 141735 BRACKET SWT CLUTC
55 17490508 SCREW LT
DE11B36C (1999 & Before) Page 9 of 34
ENGINE/THROTTLE
DE11B36C (1999 & Before) Page 10 of 34
ENGINE/THROTTLE
Ref # Part Number Qty Description
1 17720410 SCREW LT
2 133025 SUB= 532133025
3 SUPPLIER CHECK WITH SUPPLIER
4 71070512 SCREW
5 10040500 LOCKWASHER
6 165291 SUB= 272293
7 11050600 LOCKWASHER
8 121094X BOLT T
9 19101216 WASHER
10 10040400 LOCKWASHER
11 SUPPLIER CHECK WITH SUPPLIER
12 137437 MUFFLER
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 137180 SUB= 532137180
16 127951 "STOP,DASH THROTT"
17 17490624 SCREW LT
18 UNKNOWN
19 UNKNOWN
39 73510400 NUT
DE11B36C (1999 & Before) Page 11 of 34
FENDER/CHASSIS
DE11B36C (1999 & Before) Page 12 of 34
FENDER/CHASSIS
Ref # Part Number Qty Description
1 156417 "CASE,BATTERY.MECH"
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 127115X598 PLATE, BATTERY
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126996X428 CONSOLE.SHT.4SP.
10 139783 PLATE LOCK SHIFT
11 124346X NUT
12 145190 CHASSIS.WELD.ASM.
15 73640400 NUT HXKEP 1/4X20
16 141736 SUB= 146613
17 140782 DRAWBAR ASM LR
18 126470X "CLIP,INSULATOR"
19 140955X598 FENDER.FOOTREST
20 19091413 WASHER
25 17060514 SCREW TAPPING
33 17190516 SCREW
DE11B36C (1999 & Before) Page 13 of 34
FRONT AXLE
DE11B36C (1999 & Before) Page 14 of 34

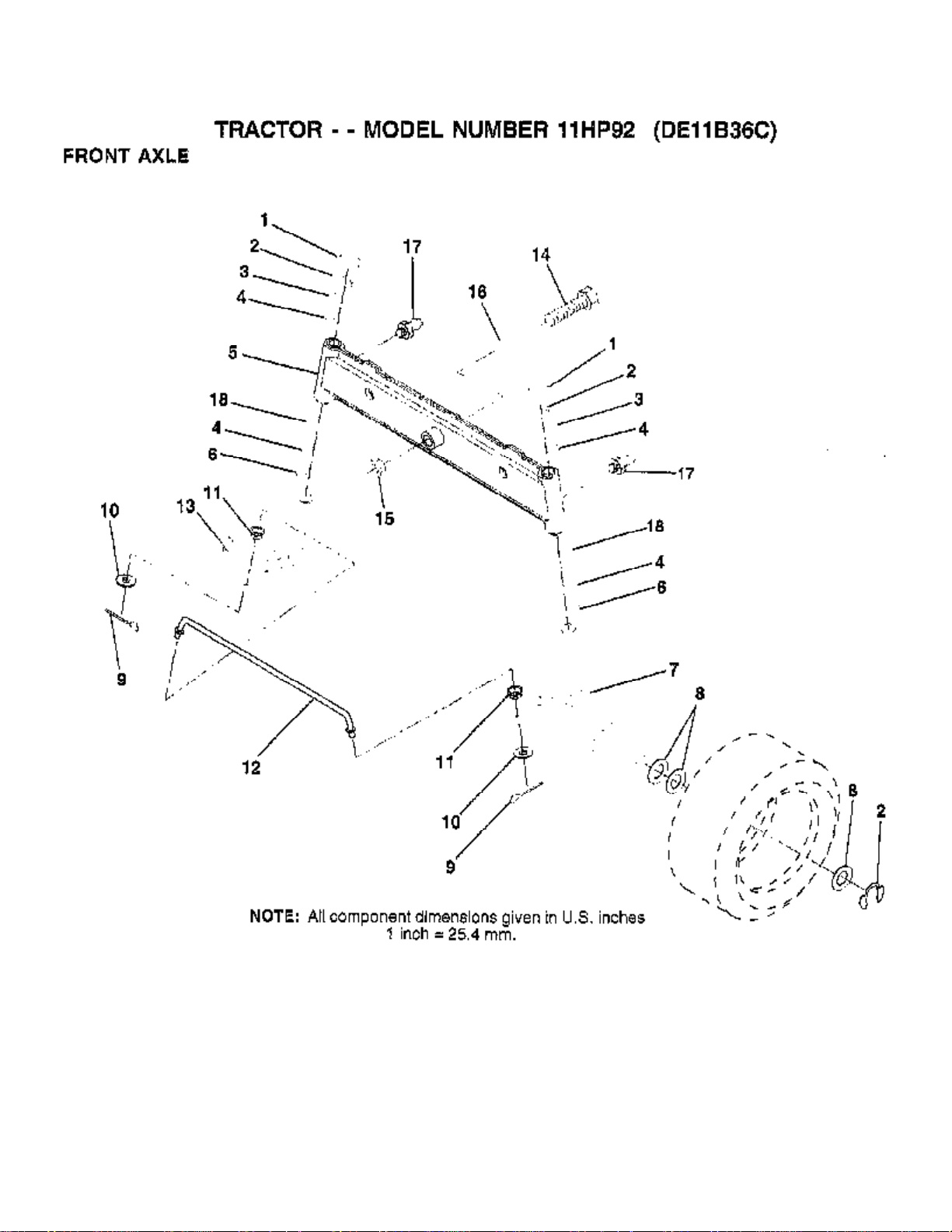

FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 3366R COL. SRTG. BEAR.
5 142033 AXLE ASM FRONT
6 6266H WASHER .T
7 161826 SPINDLE.ASSY.RH
8 121749X WASHER
9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 130465 TIE ROD
13 161827 SPINDLE.ASSY.LH
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 110438X BEARING
17 6855M ZERK M
18 19272016 WASHER
DE11B36C (1999 & Before) Page 15 of 34
GROUND DRIVE
DE11B36C (1999 & Before) Page 16 of 34
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 141342 KEEPER RH
4 138029 PULLEY.ENGINE.LR
5 10040700 LOCKWASHER
6 71170744 HEX BOLT
7 126520X V BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 150926 ARM-IDLER.DR.GRND
12 123674X PULLEY.IDLER.FLAT
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 150932 SPACER
18 131459 SUB= 532131459
19 73510500 NUT
20 139919 KEEPER.BELT.T/A
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 140916 KEEPER MOWER LH
24 17720408 SCREW
25 150935 BUSHING.NYLON
DE11B36C (1999 & Before) Page 17 of 34
HOOD
DE11B36C (1999 & Before) Page 18 of 34
HOOD
Ref # Part Number Qty Description
1 124657X EXT SPRING
2 73510400 NUT
3 19091416 WASHER
4 74780412 SUB= 74780414
5 139888 BOLT.SHLD.5/16-18
6 122549X BRKT HOOD RH
7 122548X BRKT HOOD LH
8 164863 "SCREW,HWHD.HI-LO#13-16X3/4"
9 73800400 NUT
10 123693X "BRACE,HOOD"
11 132918X598 HOOD.LR SAGE
12 140113X600 LENS.LR.JET.GRAY
13 140107X428 GRILLE.LR.BLACK
16 124346X NUT
18 19111116 WASHER
DE11B36C (1999 & Before) Page 19 of 34
MOWER DECK
DE11B36C (1999 & Before) Page 20 of 34
MOWER DECK
Ref # Part Number Qty Description
1 140064 SPRING CLUTCH MWR
2 165723 SPACER.RETAINER.MOWER
3 73680600 SUB= 73690600
4 130840 BRAKE ASM
5 131251 IDLER BELT GUIDE
6 121316X PULLEY IDLER
7 72110616 BOLT
8 19131410 WASHER
9 127744 SUB= 140092
10 72140610 BOLT.3/8-14X1.25
11 130841 BRAKE ROD
12 127356 "BRKT,LIFT REAR"
13 72140506 BOLT
14 73680500 SUB= 73690500
15 127357 "BRKT,LIFT REAR LH"
16 153298 "KEEPER-BELT,RH"
17 128508 MOWER LINK STAB
18 128511 "PIN,GROOVE"
19 127380 "BRKT,LINK STABILI"
20 138496 "BLADE.36"" HIPERF"
21 140296 WASHER.HARD.BLADE
22 10030600 SUB= 10040600
23 850857 BLADE BOLT
24 140329 STRIPPER RND MWR
25 157722 "SCREW-THD ROLL,WA"
27 156600 "HOUSING-MOWER,36"""
28 153531 PULLEY.MAND.36/46
29 137266 SUB= 139729
30 136631 SUB= 532136631
31 17490508 SCREW LT
32 122051X "SUPT,IDLER ARM"
33 131560X428 SHIELD, DEFLECTOR
36 121980X HINGE ROD
37 123713X SPRING TORSION
38 105304X CAP-SLEEVE LT
39 19111016 WASHER
40 110452X NUT PUSH M
41 131264 V-BELT.PRIM.78.5.
42 19171616 WASHER
43 3146R RETAINER.SPRING
44 140608 KEEPER BELT LH
45 110485X BEARING
46 128774 HSG ASM MANDREL
47 129895 BEARING.BALL
48 137645 SUB= 137646
49 133943 HARDENED WASHER
62 153390 WASHER.FELT.
130794 MANDREL ASM
156866 "DECK SERVICE.36"""
DE11B36C (1999 & Before) Page 21 of 34
MOWER LIFT LEVER
DE11B36C (1999 & Before) Page 22 of 34
MOWER LIFT LEVER
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 71110408 BOLT HXHD FIN
4 73680600 SUB= 73690600
5 145187 LEVER.ASM.CLUTCH
6 106451X "BOLT, SHOULDER LT"
7 135371 MWR CLUTCH ARM AS
8 74760636 BOLT
9 121930X "BELLCRANK,LIFT"
10 76020412 COTTER PIN
11 19131316 WASHER
12 131861 SUB= 532131861
13 139352 HANDLE.ASM.LIFT
14 123496X SPRING COMPRESSIO
16 4921H SPRING.RETAINER
17 127359 "LINK,LIFT FRT"
18 142028 TRUNION ADJ
19 73680400 SUB= 73690400
20 74760644 BOLT
23 76020416 PIN COTTER 1/8
24 19171612 WASHER GT
25 121933X TUBE SPACER
26 141470 ROD LIFT MOWER
27 106932X KNOB T(3/8 HOLE)
28 4497H RETAINER M
29 131655 CLUTCH LINK
30 73350600 NUT
31 19132012 WASHER
43 73900600 SUB= 83923
DE11B36C (1999 & Before) Page 23 of 34
SCHEMATIC
DE11B36C (1999 & Before) Page 24 of 34
SCHEMATIC
Ref # Part Number Qty Description
REFER REFER TO IMAGE
DE11B36C (1999 & Before) Page 25 of 34
SEAT
DE11B36C (1999 & Before) Page 26 of 34
SEAT
Ref # Part Number Qty Description
1 72050412 BOLT-RD HD SQ NK
2 127426X SUB= 140119
3 155925 PAN-SEAT
4 73800500 NUT
5 171852 BOLT
6 145006 CLIP.PUSH-IN.HING
8 74760616 BOLT
9 140551 BRACKET PVT SEAT
11 19133210 WASHER
12 73800600 NUT
13 74780814 BOLT
14 10040800 LOCKWASHER
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
17 121246X BRKT SWITCH
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
21 134300 SPLIT SPACER
DE11B36C (1999 & Before) Page 27 of 34
SECTOR GEAR/AXLE SUPPORT
DE11B36C (1999 & Before) Page 28 of 34

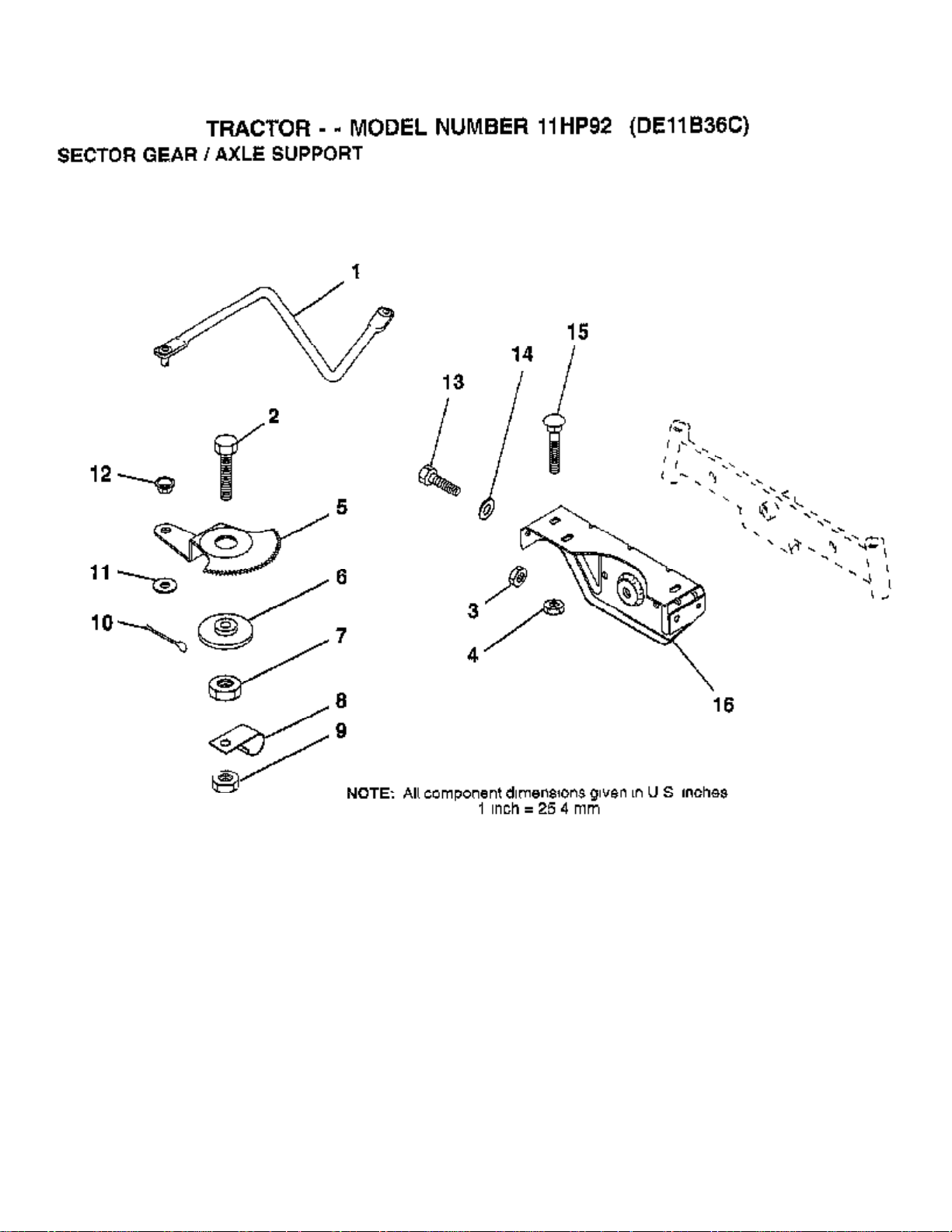

SECTOR GEAR/AXLE SUPPORT
Ref # Part Number Qty Description
1 132566 DRAG LINK
2 74780828 "BOLT,HEX"
3 73680500 SUB= 73690500
4 73680600 SUB= 73690600
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
16 137096 SUPT AXLE FRONT
DE11B36C (1999 & Before) Page 29 of 34
STEERING WHEEL
DE11B36C (1999 & Before) Page 30 of 34
STEERING WHEEL
Ref # Part Number Qty Description
1 140175 CAP WHEEL STEER
2 10040600 LOCKWASHER
3 19133808 WASHER T
4 139768 SUB= 150547
5 121897X SLEEVE STEERING
6 152927 "SCREW-TT,10-32 FL"
7 155104 BUSHING.STR.623
8 147391 SHAFT.STEERING.LR
9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 100711L ADAPTER LT
14 153720 EXT SHAFT STEERIN
15 74780520 BOLT
16 73800500 NUT
17 74780616 BOLT
DE11B36C (1999 & Before) Page 31 of 34
TIRES AND WHEELS
DE11B36C (1999 & Before) Page 32 of 34
TIRES AND WHEELS
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 124142X SUB= 123410X
4 124143X SUB= 122075X
5 PARTSIMAGE REFER TO PARTS IMAGE
5 59904 TUBE.5.3/4.5/6
5 8134H TUBE.16X6.5/7.5-8
6 137237X417 "RIM.FRT.6"".ASM"
6 140325X417 "RIM REAR 8"""
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
144334 SEALANT.TIRE 10 OZ. TUBE
DE11B36C (1999 & Before) Page 33 of 34
TRANSAXLE
DE11B36C (1999 & Before) Page 34 of 34
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 SUPPLIER CHECK WITH SUPPLIER
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
8 17060512 SCREW
9 146682 SPRING.BRAKE.RETU
10 121749X WASHER
11 123583X SQUARE KEY
15 19171616 WASHER
16 124600 SUPPORT HANDLE SHIFT LH
17 126293X LINK SHIFT
18 74550412 BOLT.1/4-28.W/PAT
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 126292X ARM SHIFT
22 105701X WASH-SHFT PLT LT
23 106933X KNOB T (1/2-HOLE)
24 128215 "ROD,SHIFT"
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
28 128085 "SPRING,EXT"
29 128084 "SUPT,HDLE RH"
31 137057 SPACER AXLE
35 12000001 E-RING LT
36 17720408 SCREW
38 74490540 BOLT.HEX.FLGHD
Loading...
