CTB1442A (1993) Page 1 of 27
42" MOWER DECK/14 HP
CTB1442A (1993) Page 2 of 27
42" MOWER DECK/14 HP
Ref # Part Number Qty Description
1 138024 SUB= 145338
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
4A 132827 BOLT SHD 5/16-18
5 4939M SUB= 85902
6 130832 SUB= 130833
7 73800500 NUT
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 129962 WASHER BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 136929 SUB= 140329
17 72110618 BOLT CARRIAGE
18 72140505 BOLT
19 73800500 NUT
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 78158 SUB= 17580520
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131612 WASHER GT
38 133502 RETAINER SPACER
39 133503 IDLER ARM STIFF
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
42 76020312 SUB= 3145
43 133504 CLUTCH ROD SECOND
44 134236 SUB= 140088
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
47 131335 SPRING EXTENSION
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 105529X SUB= 139888
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 133844 IDLER ARM
56 122052X SPACER RETAINER
57 127498 BUSHING
CTB1442A (1993) Page 3 of 27
42" MOWER DECK/14 HP
Ref # Part Number Qty Description
58 128759 SUB= 918128759
59 133573 CLUTCH ARM PRI AS
60 134666 "ROD, CLUTCH PRIM"
61 131870 RETURN SPRING
62 127847 CLUTCH ARM SECOND
63 121748X WASHER
64 12000029 RING
65 128903 SHOULDER BOLT
66 127845 SPRING KEEPER
67 7803J SUB= 106932X
68 130969 BELT-V.92.4.MWR
69 74760616 BOLT
70 132274 SUB= 532132274
71 73680600 SUB= 73690600
72 19171416 WASHER
73 132264 SUB= 532132264
80 4898H BOLT M
81 105455X WHEEL.GAGE.BLK.PL
83 73800600 NUT
84 74760512 BOLT
85 73510500 NUT
86 72110504 SUB= 872110504
87 132263 SUB= 155197
88 132262 SUB= 155198
89 132273 SUB= 532132273
138357 SUB= 145411
130794 MANDREL ASM
CTB1442A (1993) Page 4 of 27
CHASSIS AND ENCLOSURES/14 HP 42"
CTB1442A (1993) Page 5 of 27
CHASSIS AND ENCLOSURES/14 HP 42"
Ref # Part Number Qty Description
1 135034 SUB= 145501
2 137275 SUB= 145009
3 17490612 SCREW
6 130800X029 SADDLE
7 17490608 SCREW LT
8 2751R CLIP T
9 137411X012 DASH
10 5479J PLUG BUTTON T
11 122795X PANEL DASH LH
12 121794X COVER ACCESS
13 126276X SUB= 155936
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 133956X419 HOOD/GRILL ASM
18 126938X SUB= 532126938
19 133805 SUB= 133954
20 132257 SUB= 918132257
21 19091216 WASHER PM
22 108067X PAL NUT LT
24 74760612 SUB= 74780612
25 19131312 WASHER
26 73680600 SUB= 73690600
27 17490608 SCREW LT
30 109872X419 FENDER
31 136619 BRKT FENDER
32 17490612 SCREW
33 105476X419 FOOTREST LH
34 105475X419 FOOTREST
35 72110606 BOLT
36 73680600 SUB= 73690600
38 134774 PIVOT BRKT LH
39 134775 PIVOT BRKT RH
40 72140608 SUB= 72110608
50 73800600 NUT
51 19131216 WASHER
53 72140608 SUB= 72110608
54 74760614 SUB= 74760616
58 11050600 LOCKWASHER
CTB1442A (1993) Page 6 of 27
DECALS
CTB1442A (1993) Page 7 of 27
DECALS
Ref # Part Number Qty Description
REFER TO IMAGE
1 138955 DECAL.DASH.INST.
2 137964 DECAL.GRILLE
3 139981 DECAL.HOOD.14HP
4 129823 NLA
5 138654 DECAL.ENG.272613
6 133796 DECAL
7 4900J DECAL T
8 106202X REFLECTOR-TAIL YT
9 131425 CHASSIS DECAL
10 136832 DECAL
11 137995 DECAL.HOOD.RH
12 135013 NLA
13 137965 DECAL.STG.WHL.INS
14 137996 DECAL.HOOD.LH
16 137962 DECAL.FENDER
138311 DECAL HANDLE LIFT
137372 MANUAL
140004 MANUAL.P.CTB1442A
C42 GRASS CATCHER
BD20 42" SNOW BLOWER
SB20 40" SNOW THROWER
CH12 TIRE CHAINS
LC05 WHEEL WTS.
CTB1442A (1993) Page 8 of 27
DRIVE/14 HP 42"
CTB1442A (1993) Page 9 of 27
DRIVE/14 HP 42"
Ref # Part Number Qty Description
1 137369 SUB= 137367
2 110422X SUB= 146682
3 123667X "PULLEY,TRANSAXLE"
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
7 130802 SUB= 162240
8 131679 SHIFT ROD
9 19151216 WASHER
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19091210 WASHER LT
13 71040412 SUB= 74550412
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
16 73680500 SUB= 73690500
17 121520X STRAP TORQUE
18 74760612 SUB= 74780612
19 73680600 SUB= 73690600
20 17490512 SCREW
21 106279X CONTROL KNOB LT
22 130804 BRAKE ROD
23 73800600 NUT
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 128904 PARKING BRAKE ROD
29 7733J SUB= 71673
30 130807 TRANSAXLE MTG BKT
31 127289X SUB= 127289
32 74760512 BOLT
33 73680500 SUB= 73690500
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73680600 SUB= 73690600
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 19131316 WASHER
53 105710X "LINK, CLUTCH T"
54 76020412 COTTER PIN
55 105709X "SPRING, RETURN LT"
56 76020412 COTTER PIN
57 131006 BELT-V
58 127290 "KEEPER,BELT RH"
CTB1442A (1993) Page 10 of 27
DRIVE/14 HP 42"
Ref # Part Number Qty Description
59 136715 SUB= 140312
60 19131312 WASHER
61 17490612 SCREW
62 8883R PEDAL COVER T
63 134825 SUB= 136004
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
68 19131312 WASHER
69 73680600 SUB= 73690600
70 134683 KEEPER BELT ENG
71 74760616 BOLT
72 19132012 WASHER
73 73680600 SUB= 73690600
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
95 17490612 SCREW
100 19111216 WASHER M
CTB1442A (1993) Page 11 of 27
ELECTRICAL/14 HP 42"
CTB1442A (1993) Page 12 of 27
ELECTRICAL/14 HP 42"
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 102972X SUB= 918102972X
3 124211X NUT IGNITION
4 137702 IGN HARNESS
5 4207J CABLE T
6 132202 SUB= 146147
7 4799J "CABLE T, BATTERY"
8 129965 SUB= 156417
9 109596X HOSE CLAMP T
10 138406 SUB= 146154
11 10090400 SUB= 10040400
12 73350400 NUT
13 74780408 BOLT
14 11050400 LOCKWASHER
15 73510400 NUT
16 131563 SUB= 154336
17 109553X SWITCH INTERLOCKT
18 17021008 SCREW
19 104445X SWITCH-INTER. GT
20 17021008 SCREW
21 121305X SWITCH SEAT
22 121264X "CAP,BATTERY "
23 74760412 BOLT LT
24 19091016 WASHER
25 10040400 LOCKWASHER
26 73220400 SUB= 50675
27 122147X KEY
28 108824X FUSE HYT
29 109238X TUBE T
30 123620X SUB= 141226
31 110712X SWITCH LT
32 136850 "HARNESS,LIGHT SOC"
33 4152J HEADLAMP BULB
34 108236X BRACKET LT
35 17021008 SCREW
36 130890 SWITCH BRACKET
37 17021008 SCREW
38 11150400 LOCKWASHER
CTB1442A (1993) Page 13 of 27
ENGINE/14 HP 42"
CTB1442A (1993) Page 14 of 27
ENGINE/14 HP 42"
Ref # Part Number Qty Description
1 132771 THROTTLE CONTROL
2 17720410 SCREW LT
3 CHECK WITH SUPPLIER
6 125593X SUB= 272293
7 10040500 LOCKWASHER
8 71070512 SCREW
9 13280324 PIPE NIPPLE
10 13200300 ELBOW
11 11050600 LOCKWASHER
12 17490620 SCREW
13 137352 MUFFLER
16 128953 HEAT SHIELD
17 17021008 SCREW
18 137180 SUB= 532137180
19 109202X TANK.FUEL.LT.
20 123549X SUB= 158990
21 123487X HOSE CLAMP
22 17490412 SCREW HEX CRT
23 19091416 WASHER
24 8548R FUEL LINE T
25 124028X SUB= 532124028
26 CHECK WITH SUPPLIER
CTB1442A (1993) Page 15 of 27
LIFT/14 HP 42"
CTB1442A (1993) Page 16 of 27
LIFT/14 HP 42"
Ref # Part Number Qty Description
1 136973 WIRE ASM
2 122507X SUB= 145117
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124385X SUB= 125925X
10 122512X SUB= 532122512
11 134619 LINK LIFT LH
12 135388 LIFT LINK RH
13 4939M SUB= 85902
14 135563 "PIN,SPRING"
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 130832 SUB= 130833
20 3146R RETAINER.SPRING
21 19151216 WASHER
22 12000037 KLIP RING
23 110807X NUT T
24 19131016 WASHER
25 2876H SPRING T
26 76020308 SUB= 3145
27 126971X SUB= 532126971
28 73350600 NUT
29 138057 KNOB INF 3/8-16
30 110810X TRUNION LT
CTB1442A (1993) Page 17 of 27
SCHEMATIC/14 HP 42"
CTB1442A (1993) Page 18 of 27
SCHEMATIC/14 HP 42"
Ref # Part Number Qty Description
REFER TO IMAGE
CTB1442A (1993) Page 19 of 27
SEAT/14 HP 42"
CTB1442A (1993) Page 20 of 27
SEAT/14 HP 42"
Ref # Part Number Qty Description
1 127440 SUB= 140121
2 126656X SUB= 140551
3 74760612 SUB= 74780612
4 19131610 WASHER PM
5 2751R CLIP T
6 73680600 SUB= 73690600
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 131451 SUB= 155925
11 121251X STRIP FORM
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
18 74641008 SUB= 71031008
19 73951000 "NUT,KEPS"
20 4171R CLIP T
21 105529X SUB= 139888
22 73680500 SUB= 73690500
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 120068X "KNOB 1/2"" YT"
CTB1442A (1993) Page 21 of 27

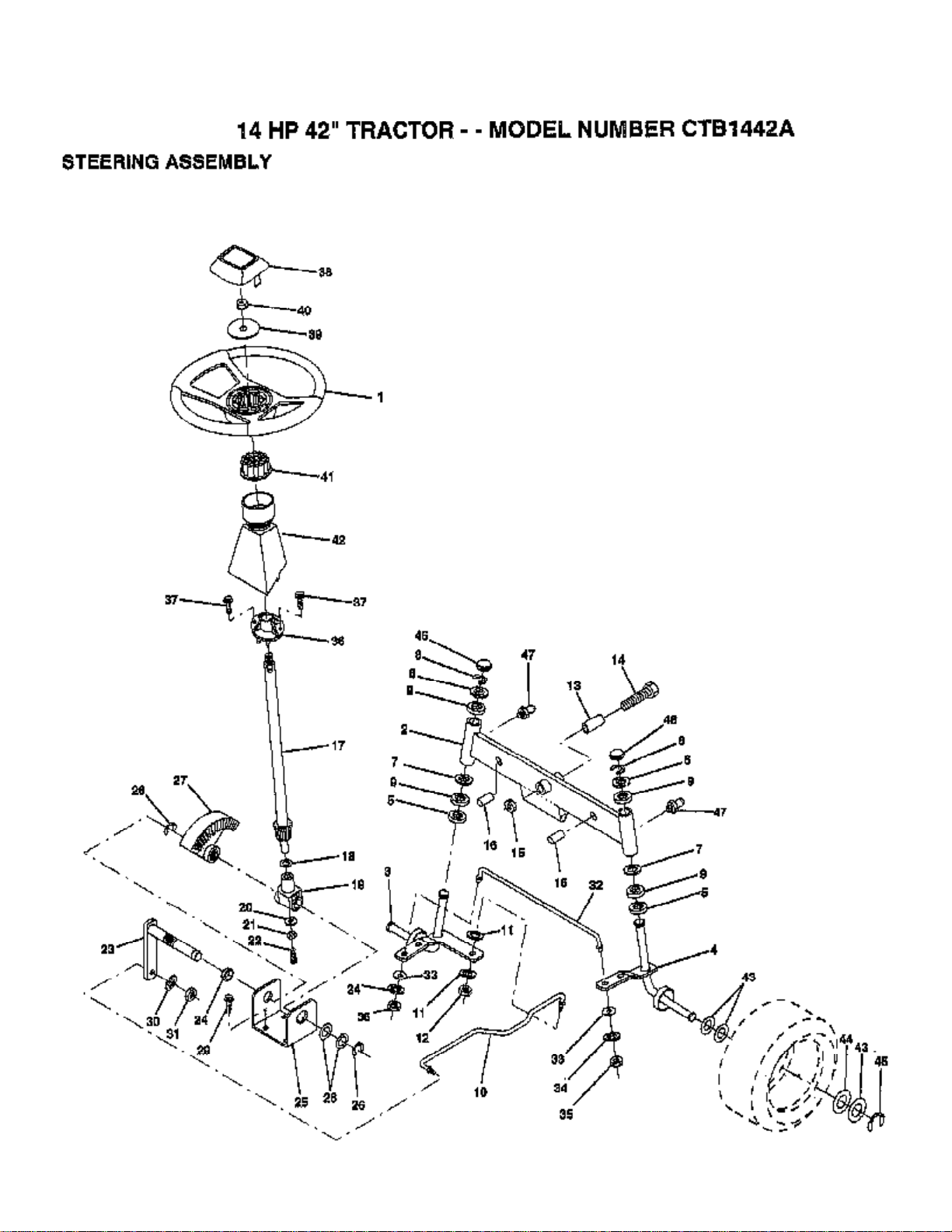

STEERING/14 HP 42"
CTB1442A (1993) Page 22 of 27
STEERING/14 HP 42"
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 133988 SUB= 142033
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 132614 SHAFT ASM
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 12000029 RING
27 136874 GEAR SECTOR
28 6266H WASHER .T
29 17490612 SCREW
30 10040600 LOCKWASHER
31 73610600 SUB= 7810H
32 130467 TIE ROD
33 19111216 WASHER M
34 10040500 LOCKWASHER
35 73810500 NUT.LOCK.5/16-24
36 132196 SUB= 155106
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
44 121748X WASHER
45 12000029 RING
46 121232X CAP
47 6855M ZERK M
56 19131210 WASHER
CTB1442A (1993) Page 23 of 27
TRANSAXLE/14 HP 42"
CTB1442A (1993) Page 24 of 27
TRANSAXLE/14 HP 42"
Ref # Part Number Qty Description
1 138248 SUB= 160951
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 134788 SHIFTER.ASM.KIT.
7 134399 SHIFTER BOOT
8 120951X PUCK T
9 134791 SCREW TAP W/SEAL
10 2267J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 106151X SUB= 144893
13 120415X WASHER T
14 2257J WOODRUFF KEY
15 106846X SUB= 167148
16 106095X SUB= 95-8060-6F
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 138242 GEAR SPUR 14T
21 138246 COLLAR CLUTCH
22 138237 KIT.ASM.CLUTCH KY
23 138240 "FLANGE, BEARING"
24 138243 SHAFT INTERM
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 108977X KIT.GEAR.12/37TH
30 109254X SUB= 144893
31 124644X GEAR SPUR 30T
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 106605X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 106596X "SCREW, TAPPING LT"
46 105933X SUB= 108977X
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 120409X GEAR LT
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
CTB1442A (1993) Page 25 of 27
TRANSAXLE/14 HP 42"
Ref # Part Number Qty Description
59 106592X "GEAR,MITER 15T YT"
60 120475X SUB= 154659
61 138247 SUB= 160951
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 138241 SQUARE RING
73 120416X SUB= 126976X
CTB1442A (1993) Page 26 of 27
WHEELS/TIRES
CTB1442A (1993) Page 27 of 27
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X311 SUB= 106732X427
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X311 SUB= 106108X427
9 138468 TIRE.20X8-8
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
Loading...
