CT5Y22SHA (1997) Page 1 of 7
GEAR CASE ASSEMBLY
CT5Y22SHA (1997) Page 2 of 7
GEAR CASE ASSEMBLY
Ref # Part Number Qty Description
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
5 702710 PIN GROOVED 1/8X5
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137077 SHAFT.DRIVE.SD
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
702510 SUB= 48366
CT5Y22SHA (1997) Page 3 of 7
ROTARY LAWN MOWER
CT5Y22SHA (1997) Page 4 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 157081X479 HANDLE LOWER
2 132001 ROPE GUIDE
3 63601 SUB= 73800400
4 131959 BOLT.HANDLE.LM
5 146900 BAIL.CNTRL.SRD.CM
6 151517 SUB= 7192J
7 144929 SCREW.HXHD.WASH.
8 700417 "CONTROL, THROTTLE"
10 130861 "CABLE,ENG ZONE CO"
11 145642X479 HANDLE.UP.STD.CMF
12 51793 HAIRPIN COTTER
13 136376 KNOB HANDLE
14 140539 SKIRT.REAR.22SD.
15 750097 TAPPING SCREW
16 151665X479 HDLE BRKT ASSY.RH
17 151667X479 HDLE BRKT ASSY LH
18 149741 SCREW 5/16-18X3/4
20 74760612 SUB= 74780612
21 751592 LOCKNUT PM
22 700325X007 BRACKET.ADJ.9POS.
23 146630 SPACER.HEIGHT.ADJ
24 87584X004 "BRKT,DEFL PM"
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 851119X004 AXLE ARM ASSY R
28 61651 WASHER
29 142748 BOLT SHLD 3/8-16
30 700735 ASM WHL & TIRE
31 57143 WAVE WASHER
32 83923 HEX FLANGE LOCKNT
33 850709 ROD SUPPORT
35 88348 WASHER PM
36 150406 BOLT.ENG.3/8-16
37 851201X004 WASHER
38 134612 SUB= 48283
39 132352X479 BAFFLE FRONT 22SD
40 153210 HOUSING KIT
41 54583 SCREW
42 111662X479 WHL SUPT BRKT RH
43 851084 SCREW
44 850263 LOCKWASHER
45 851074 "WASHER,HARDEN"
46 141114 "BLADE.MULCH.22"""
47 851514 ADAPTOR.BLADE.LM
48 147286 ROD.HINGE.COMBI-C
49 147775 BRACKET.HINGE.W/F
50 111661X479 WHL SUPT BRKT LH
51 152186 SPRING.HINGE
52 155890 SUB= 164265
54 145282 GUARD.DISCH.22SD.
55 87677 HI PRO KEY PM
56 59708 SCREW
57 84596 ENGINE.PULLEY.FWG
58 213146 CABLE CLAMP
59 83816 SCREW PM
60 74100412 SCREW
61 85463 DECAL-DANGER PM
62 128802-0889 ENGINE
CT5Y22SHA (1997) Page 5 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
83976X479 "BAFFLE,REAR"
145658 MANUAL.GEN.SP.E.
159120 MANL.P.CT5Y22SHA
GCK2200 SUB= GCK3200A
MK1000 "KIT, MULCHER 22"""
CT5Y22SHA (1997) Page 6 of 7
ROTARY LAWN MOWER

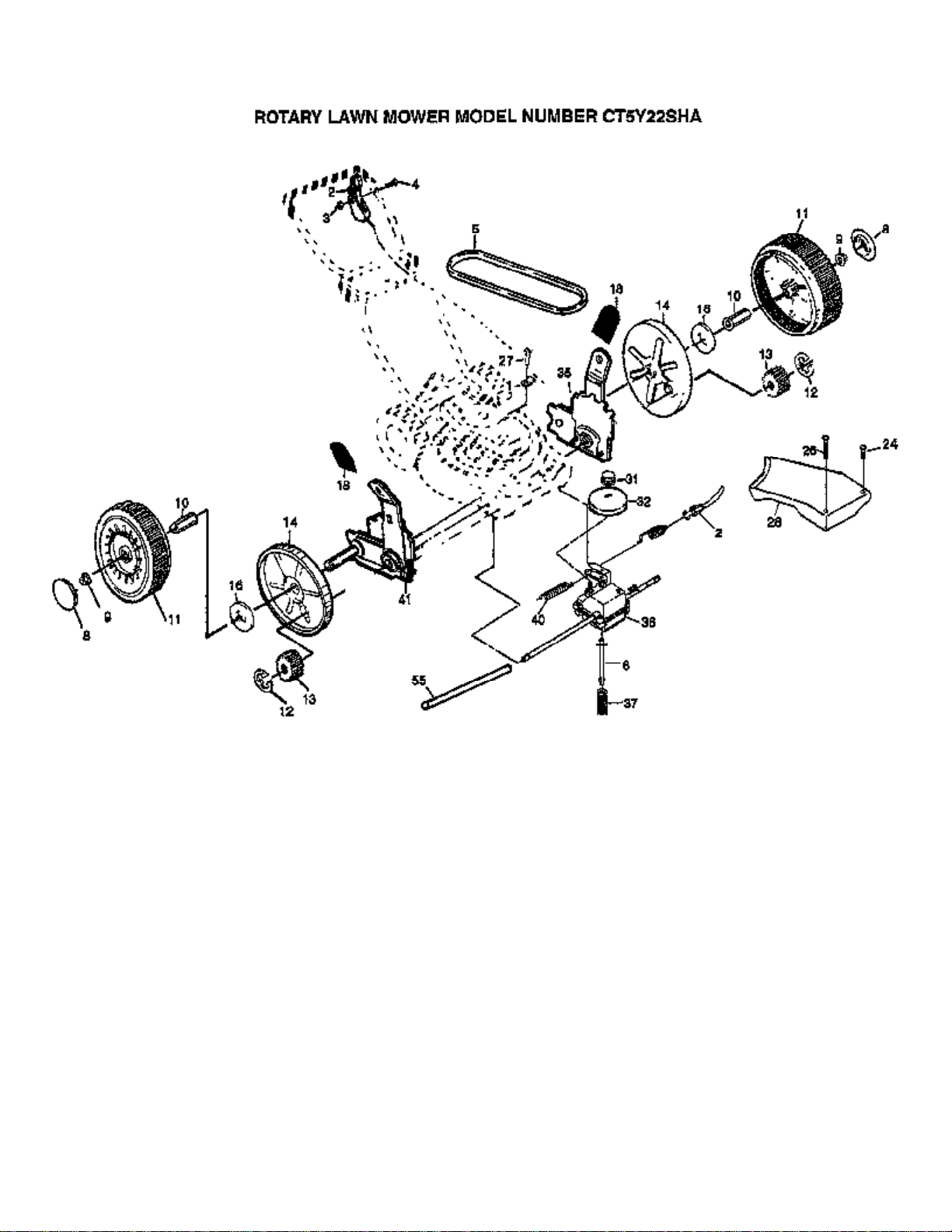

CT5Y22SHA (1997) Page 7 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
2 146323 CONTROL.DRV.56.25
3 63601 SUB= 73800400
4 144929 SCREW.HXHD.WASH.
5 146527 SUB= 157769
6 150495 SPRING.RETAINER.
8 77400 HUB CAP
9 145212 NUT.HXFLG.LOCK.
10 88446 BUSHING.HEX
11 700953 WHEEL.8X2.LP.PR
12 12000058 E-RING.7/16.RE.
13 137054 PINION.GEAR
14 88080 DUST SHROUD PM
16 67725 WASHER FLUT
18 87877 KNOB PM
24 149746 SCREW.SLOT.TORTX.
26 146072 SCREWL.SLOT.TORXT
28 137080 COVER DRIVE BLK
31 132010 LOCKNUT
32 137052 PULLEY.DRIVEN
35 151521 WHEEL.ADJ.ASM.LH.
36 702510 SUB= 48366
37 137090 SPRING.TENSION
40 75192 SPRING
41 151520 WHEEL.ADJ.ASM.RH.
55 86012 DRV SHAFT TUBE PM
158237 "DECAL COVER, DR"
