CT14542G (1999) Page 1 of 24

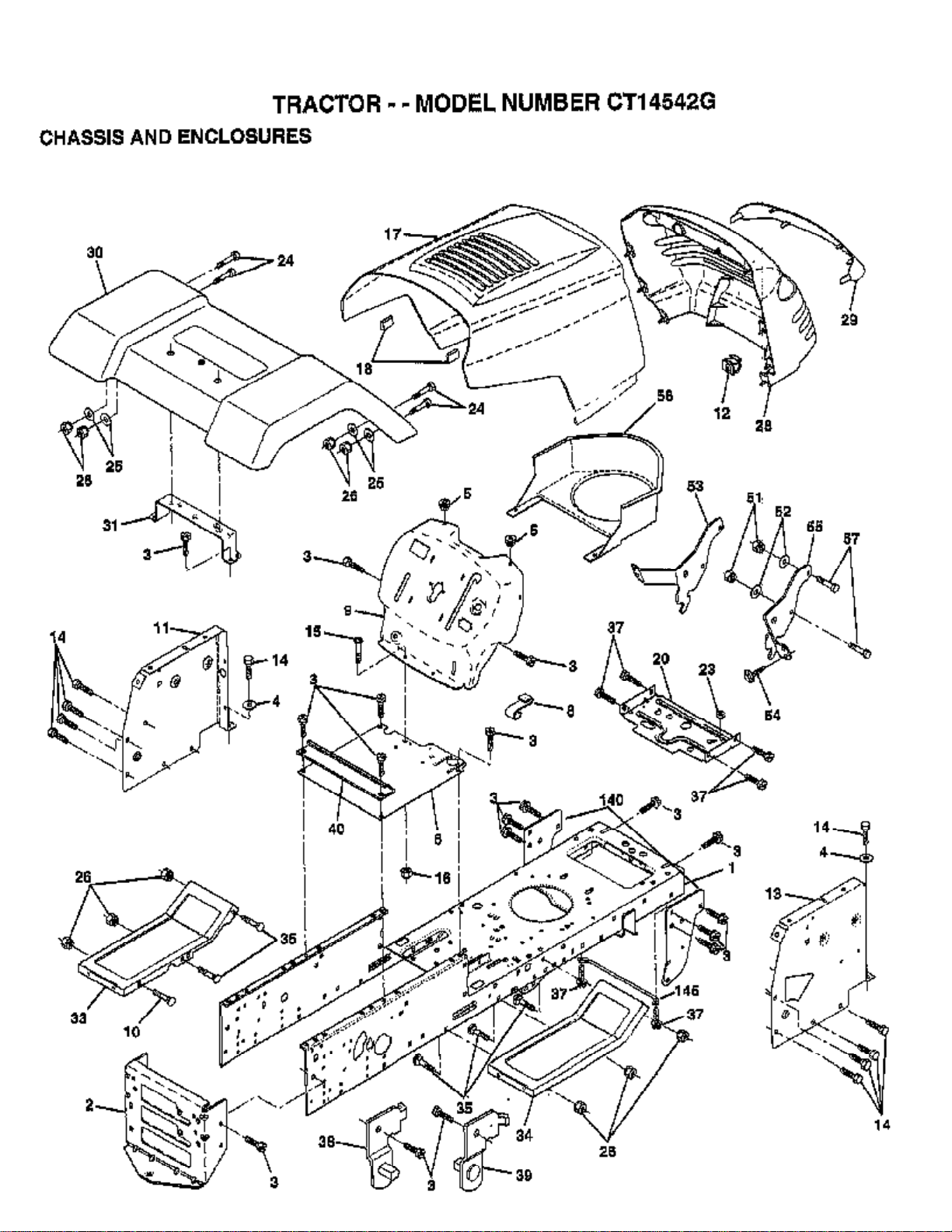

CHASSIS AND ENCLOSURES
CT14542G (1999) Page 2 of 24
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 165480 CHASSIS.STAMPING
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 155272 BUMPER-HOOD/DASH
6 155923 SADDLE
8 155138 CLIP.RETAINER
9 161937X011 DASH SILKSCREEN
10 72140608 SUB= 72110608
11 155927 "PANEL-DASH,LH"
12 145660 CLIP.TINNERMAN
13 169118 PANEL.ASM.DASH.RH
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 159639X550 HOOD.STEEL.ASSY
18 126938X SUB= 532126938
20 156437 "PLATE-MTG,BATT/FU"
23 124028X SUB= 532124028
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 157373 GRILLE-MS428
29 140273X599 LENS.GRILLE.PRIVATE LABEL
30 168744X550 FENDER.LTST.WLDMNT.W.SHIFT
31 139976 BRACKET SUPT FEND
33 105476X550 FOOTREST.LH.PERF.
34 105475X550 FOOTREST.RH.PERF.
35 72110606 BOLT
37 17490508 SCREW LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
51 73800400 NUT
52 19091416 WASHER
53 144697 BRACKET.GRILLE.LH
54 161464 SCREW.HEX.WS.HD
55 144696 BRACKET.GRILLE.RH
57 74780412 SUB= 74780414
58 150127 AIR DUCT
140 158418 BRKT SUSPENSION
145 156524 "ROD POVOT,CHASSIS"
5479J PLUG BUTTON T
CT14542G (1999) Page 3 of 24

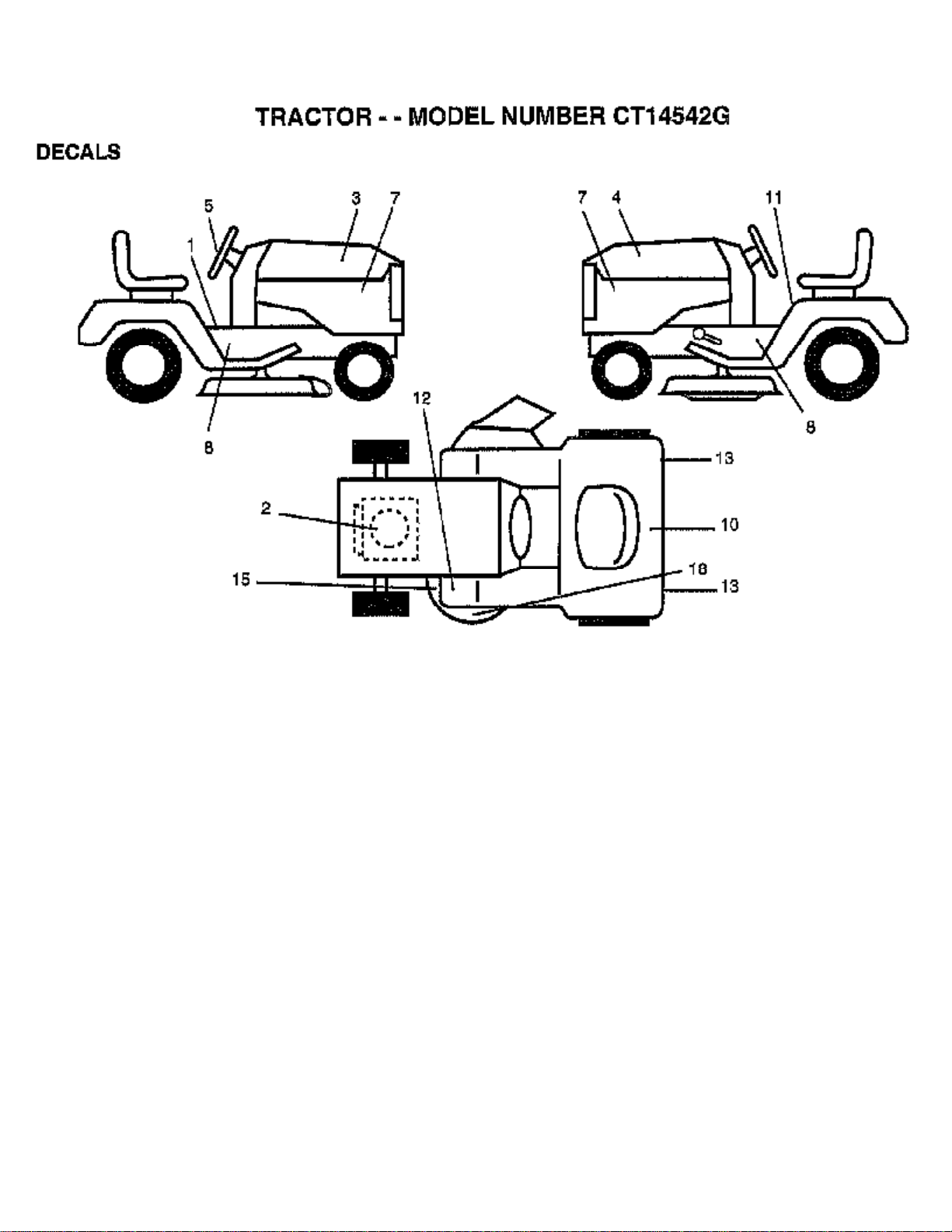

DECALS
CT14542G (1999) Page 4 of 24
DECALS
Ref # Part Number Qty Description
1 156867 "DECAL DASH,OPER."
2 165352 DECAL.ENGINE
3 168831 DECAL
4 168832 DECAL
5 158887 DECAL INST STG WH
7 159287 DECAL SIDE PANEL
8 159253 "DECAL CHASSIS 42"""
10 145005 DECAL.BATRY.3-3908
11 157002 "DECAL DANGER,FEND"
12 4900J DECAL T
13 106202X REFLECTOR-TAIL YT
15 160396 "DECAL-SCHEM,BELT"
18 134999 "DECAL,ENVIRO DECK"
138311 DECAL HANDLE LIFT
158124 MANUAL.GENERIC.42
168814 MANUAL, PARTS
CT14542G (1999) Page 5 of 24

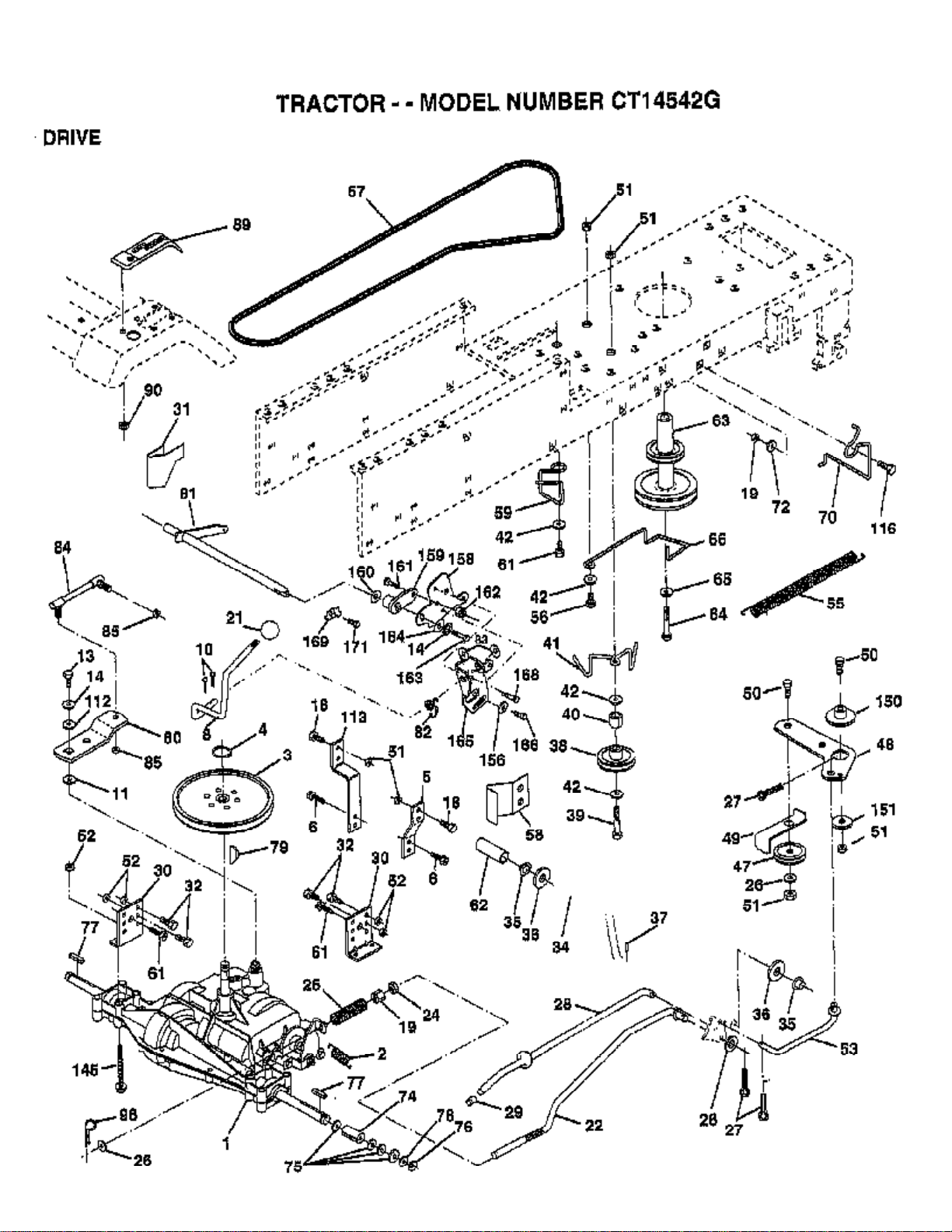

DRIVE
CT14542G (1999) Page 6 of 24
DRIVE
Ref # Part Number Qty Description
1 SUPPLIER CHECK WITH SUPPLIER
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
8 165619 ROD.SHIFT.FENDER.ADJ.LT.CRD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 131494 FLAT IDLER PULLEY
39 74760644 BOLT
40 4470J SPACER T
41 165838 "KEEPER,BELT.IDLER FLAT"
42 19131312 WASHER
47 127783 SUB= 139245
48 154407 BELLCRANK.CLUTCH
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 137057 SPACER AXLE
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
CT14542G (1999) Page 7 of 24
DRIVE
Ref # Part Number Qty Description
79 2228M SUB= 2228M1
80 145090 "ARM.SHIFT.20""TIRE"
81 165592 SHAFT.ASM.CROSS
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 166231 LINK.TRANSAXLE.PMST/DANA
85 150360 NUT.CNT.LOCK.1/4
89 139964X428 CONSOLE.SHIFT.SLT
90 124346X NUT
96 4497H RETAINER M
112 19091210 WASHER LT
113 127285X "STRAP,TORQUE"
116 72110610 BOLT RDHD 3/8-16
145 74490540 BOLT.HEX.FLGHD
150 165850 BUSHING.BELLCRANK.GRD.DR
151 19133210 WASHER
156 166002 WASHER.SRRTD.5/16
158 165589 BRKT.SHIFT.MOUNT
159 165494 HUB.SHIFT
160 19292016 WASHER
161 72140406 BOLT T
162 73680400 SUB= 73690400
163 74780416 NLA
164 19091010 WASHER.5/8X.281X10GA
165 165623 BRKT.PIVOT.LEVER
166 166880 SCREW.5/16-18X5/8
168 165492 BOLT.SHOULDER.5/16-18X.561
169 165581 PLATE.FASTENING
171 17490608 SCREW LT
CT14542G (1999) Page 8 of 24
ELECTRICAL
CT14542G (1999) Page 9 of 24
ELECTRICAL
Ref # Part Number Qty Description
1 144925 SUB= 123899X
2 74760412 BOLT LT
8 156417 "CASE,BATTERY.MECH"
16 153664 SWITCH INTERLOCK
19 10090400 SUB= 10040400
20 73350400 NUT
21 166181 HARNESS.ASM.LIGHT W/4152J
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 146147 CABLE.BTRY.6GA.RD
26 166180 FUSE.15 AMP
27 73510400 NUT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 140301 SWITCH IGN 4POS
31 124211X NUT IGNITION
32 141226 COVER KEY SWITCH
33 122147X KEY
40 166145 HARNESS.IGNITION
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
48 140844 ADAPTER AMMETER
52 141940 PROTECTION LOOP
70 166659 HARNESS.ENGINE.B&S
CT14542G (1999) Page 10 of 24
ENGINE
CT14542G (1999) Page 11 of 24
ENGINE
Ref # Part Number Qty Description
1 140310 CONTROL THROTTLE
2 17720410 SCREW LT
3 SUPPLIER CHECK WITH SUPPLIER
4 137352 MUFFLER
13 165291 SUB= 272293
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
23 159880 SHIELD.BRN/DBR.GD
29 137180 SUB= 532137180
31 161911 TANK.FUEL.FRONT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
35 17490512 SCREW
37 137040 LINE FUEL
38 SUPPLIER CHECK WITH SUPPLIER
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
46 19091416 WASHER
62 10040500 LOCKWASHER
72 71070512 SCREW
78 17490620 SCREW
81 128861 NUT
CT14542G (1999) Page 12 of 24
LIFT
CT14542G (1999) Page 13 of 24
LIFT
Ref # Part Number Qty Description
1 159460 WIRE ASM W.SPRING
2 159471 "SHAFT ASM LIFT,RH"
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73680800 NUT LTV
19 139868 ARM SUSP REAR
20 163552 RETAINER SPRING
23 110807X NUT T
24 19131016 WASHER
25 2876H SPRING T
26 76020308 SUB= 3145
27 126971X SUB= 532126971
28 73350600 NUT
29 138057 KNOB INF 3/8-16
30 150233 TRUNNION
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
49 145212 NUT.HXFLG.LOCK.
50 110452X NUT PUSH M
CT14542G (1999) Page 14 of 24
MOWER DECK
CT14542G (1999) Page 15 of 24
MOWER DECK
Ref # Part Number Qty Description
1 164961 "HOUSING ASSY.42"""
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 159770 BAFFLE VORTEX 42
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 157722 "SCREW-THD ROLL,WA"
31 129963 WASHER
32 153535 PULLEY.MANDREL.42
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 155066 ROLLER ASM-CAM
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 155046 ARM-IDLER
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
67 162132 KNOB.RD.7/16-14
68 144200 BELT.V.T-PATH
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
CT14542G (1999) Page 16 of 24
MOWER DECK
Ref # Part Number Qty Description
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 160570 LEVER.ASM.CLUTCH
79 127498 BUSHING
80 153701 SPRING.CLUTCH.MWR
81 73350600 NUT
82 142028 TRUNION ADJ
83 120958X WASHER
84 156084 "KEEPER-BELT,FIXED"
85 72140620 BOLT
90 7476016 BOLT, HEX 5/16-18 X 1-1/2
91 132274 SUB= 532132274
92 73800600 NUT
93 19171416 WASHER
94 132264 SUB= 532132264
95 132273 SUB= 532132273
111 155197 BRACKET.GWHL.LH.
112 155198 BRACKET.GWHL.RH.
113 17490512 SCREW
114 73510500 NUT
115 72110504 SUB= 872110504
116 4898H BOLT M
117 165746 WHEEL.GUAGE
118 73930600 LOCKNUT
119 19121414 WASHER
121 143723 BRACKET.EXTRD.GWL
128 153390 WASHER.FELT.
132 19132203 WASHER GT
141 6266H WASHER .T
130794 MANDREL ASM
164962 "DECK.MOWER SERV.42"" MECH"
CT14542G (1999) Page 17 of 24

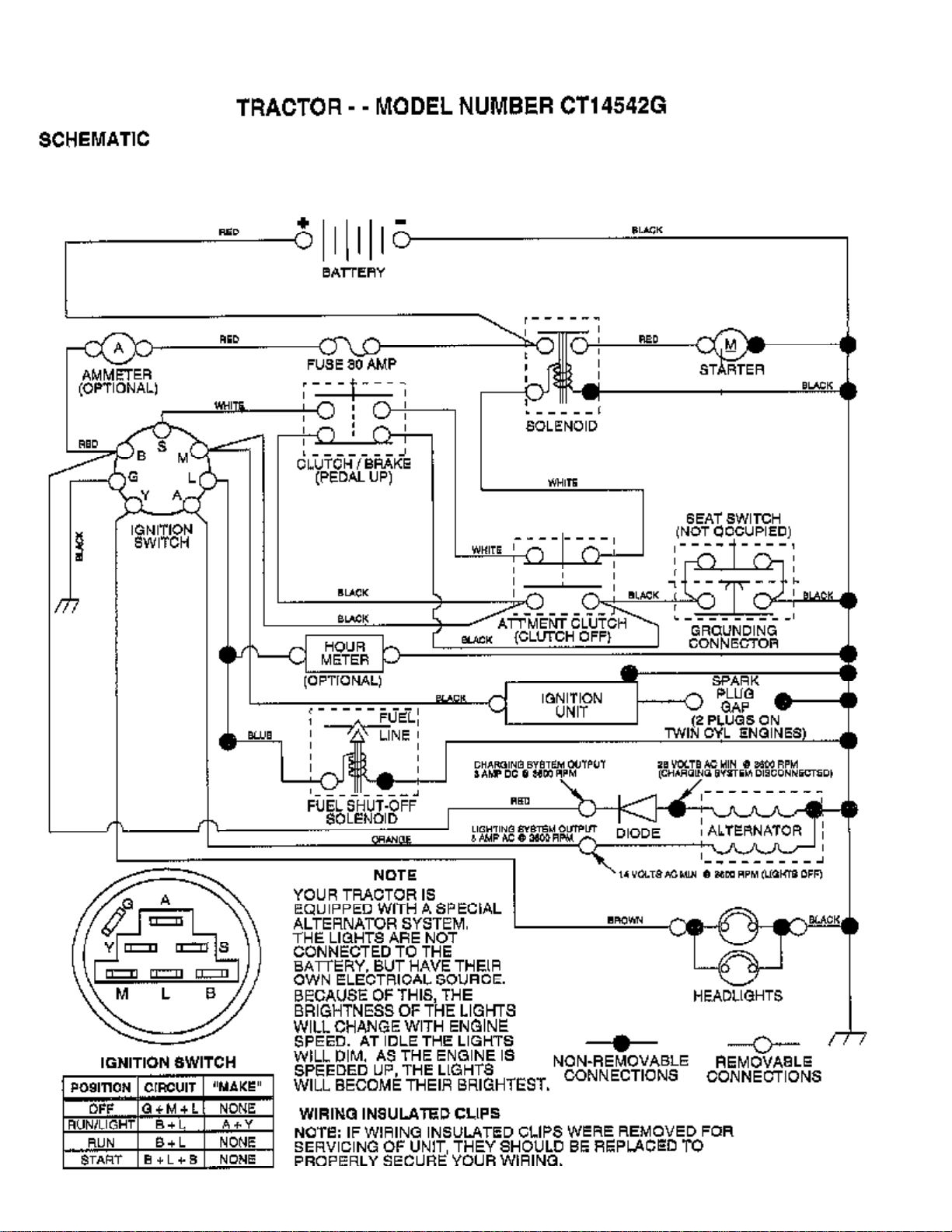

SCHEMATIC
CT14542G (1999) Page 18 of 24
SCHEMATIC
Ref # Part Number Qty Description
REFER REFER TO IMAGE
CT14542G (1999) Page 19 of 24

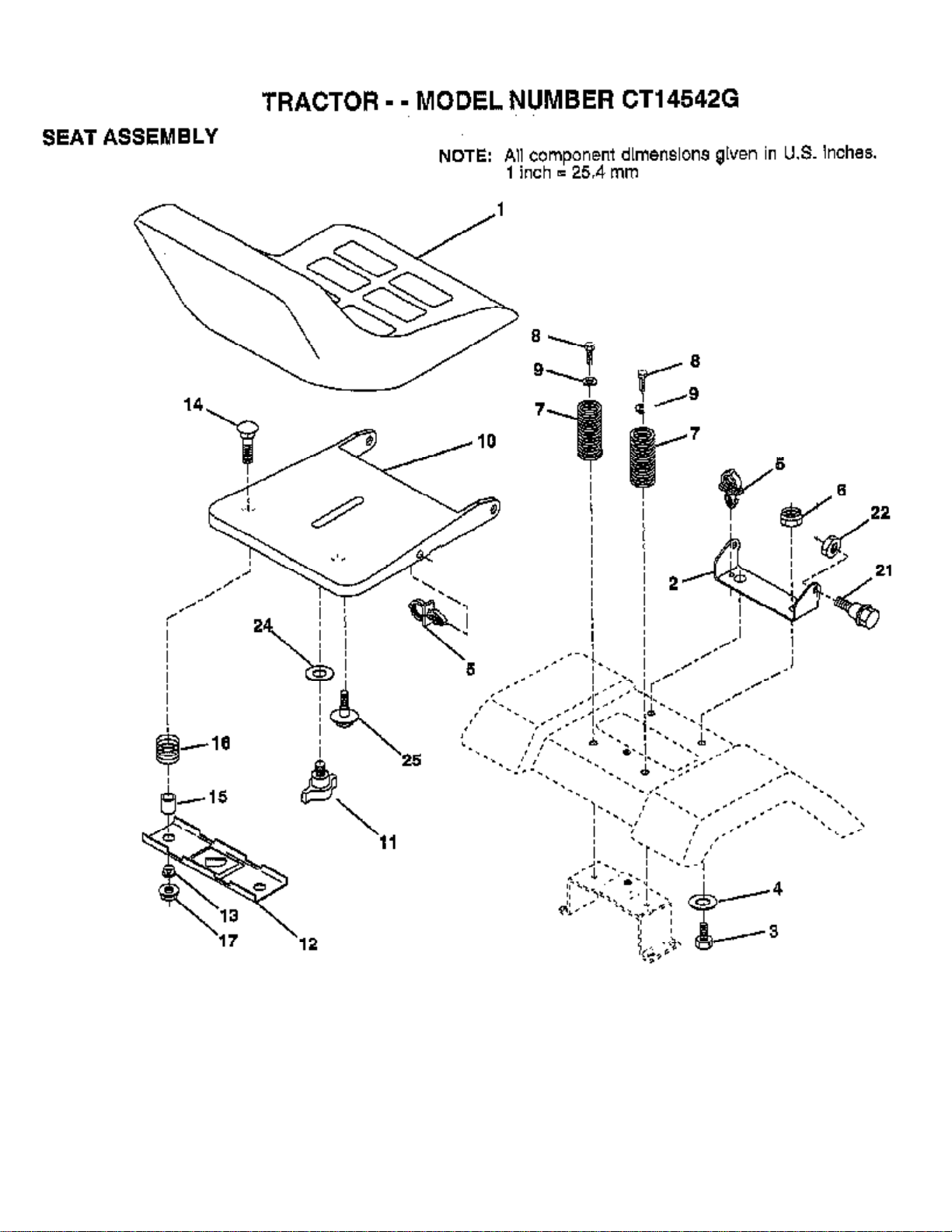

SEAT ASSEMBLY
CT14542G (1999) Page 20 of 24
SEAT ASSEMBLY
Ref # Part Number Qty Description
1 127444 SEAT
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 155925 PAN-SEAT
11 166369 KNOB.SEAT.ADJ.WINGNUT
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050412 BOLT-RD HD SQ NK
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
21 153236 "BOLT,SHOULDER"
22 73800500 NUT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
CT14542G (1999) Page 21 of 24

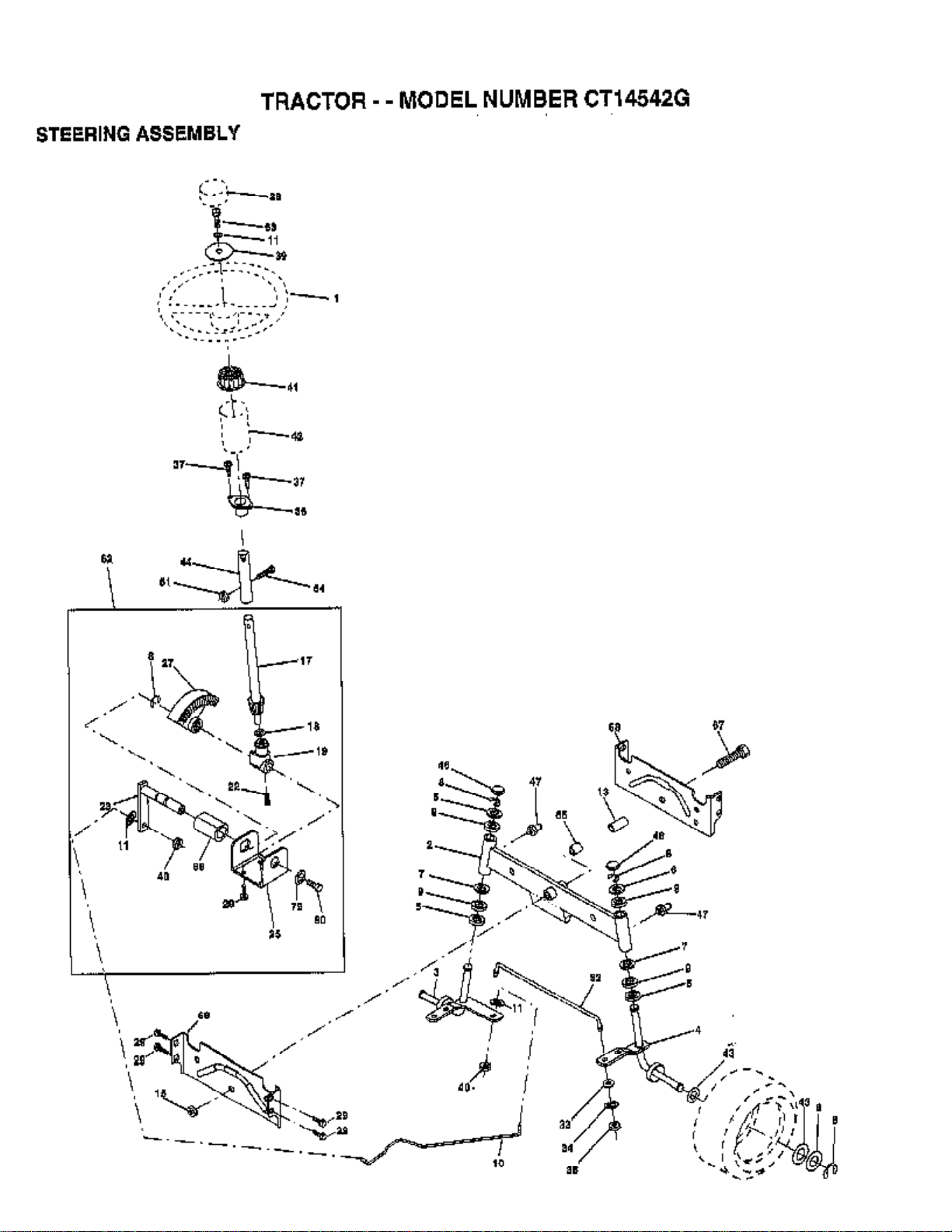

STEERING ASSEMBLY
CT14542G (1999) Page 22 of 24
STEERING ASSEMBLY
Ref # Part Number Qty Description
1 140044 WHEEL STR AYP BLK
2 154427 AXLE ASM
3 156483 SPINDLE.ASM.LH
4 157473 "SPINDLE ASM,RH"
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 156438 DRAGLINK-STAMPED
11 10040600 LOCKWASHER
13 154779 BEARING AXLE
15 73901000 "NUT-LOC,FLANGE LT"
17 156546 SHAFT ASM STEERIN
18 57079 THRUST WASHER
19 160395 SUPPORT.SHAFT.STEER
22 165857 SCREW.HX.WSH.HD
23 165851 SHAFT.ASM.PITMAN
25 154406 BRKT-STEERING
27 136874 GEAR SECTOR
29 17490612 SCREW
32 139929 ROD.TIE.19.75
33 19111216 WASHER M
34 10040500 LOCKWASHER
35 73810500 NUT.LOCK.5/16-24
36 155099 BUSHING.STEERING
37 152927 "SCREW-TT,10-32 FL"
38 140045 CAP STEER AYP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 100711L ADAPTER LT
42 145054 BOOT.STEER.PL
43 121749X WASHER
44 153720 EXT SHAFT STEERIN
46 121232X CAP
47 6855M ZERK M
51 73800500 NUT
54 74780520 BOLT
62 156594 KIT STEERING ASM
63 74780616 BOLT
65 154780 SPACER AXLE
66 154404 "BEARING-ARM,PITMA"
67 74781044 BOLT
68 154429 BRACE AXLE
79 19132012 WASHER
80 74950612 BOLT.HX.NYLON3/8-16X3/
CT14542G (1999) Page 23 of 24

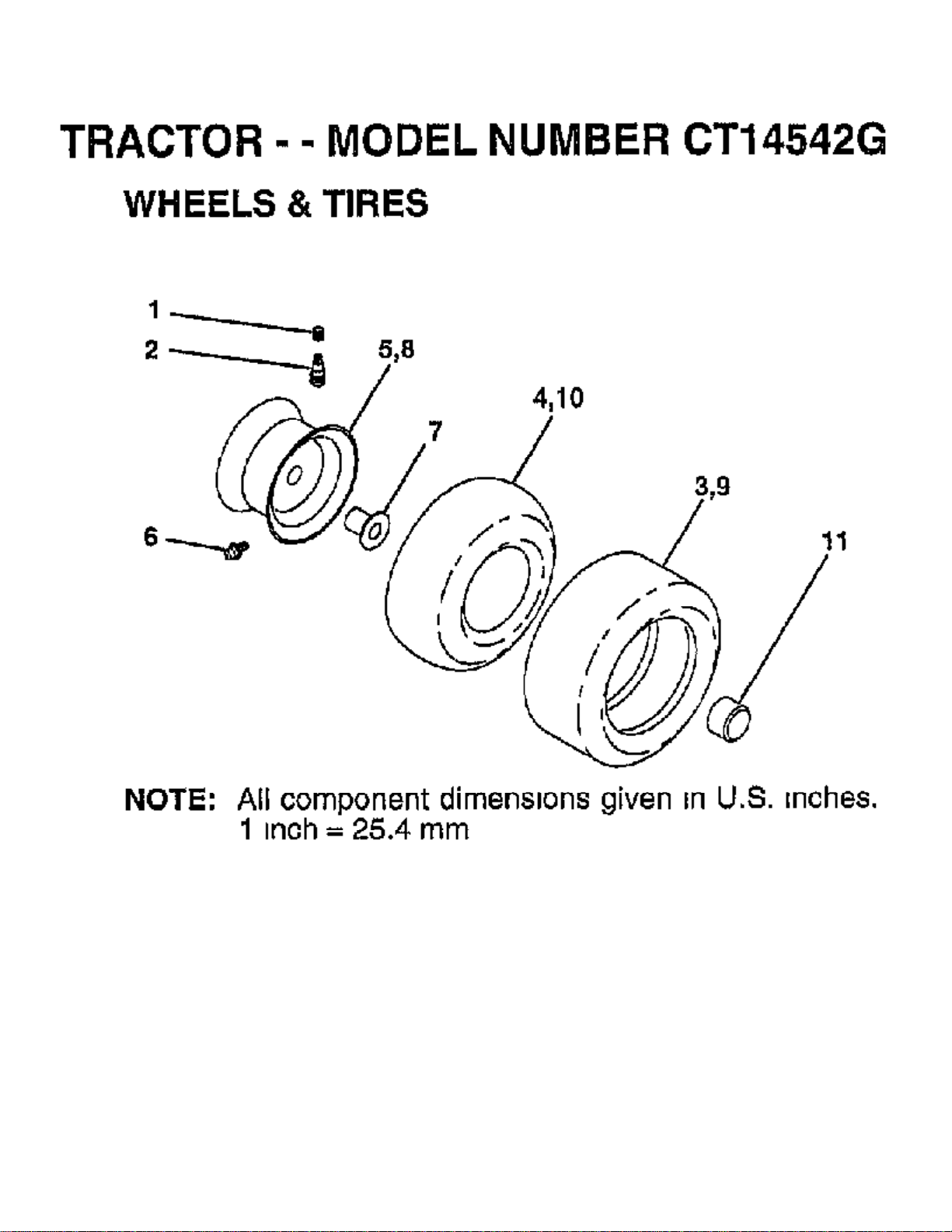

WHEELS AND TIRES
CT14542G (1999) Page 24 of 24
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X421 RIM.FRONT.6.YELLO
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X421 SUB= 106108X416
9 122082X SUB= 918122082X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
