CT14538B (1996) Page 1 of 27
CHASSIS
CT14538B (1996) Page 2 of 27
CHASSIS
Ref # Part Number Qty Description
1 145501 CHASSIS.WLD.11GA
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 146077 SUB= 155272
6 145208X016 SUB= 155924X015
8 126471X "CLIP,INSULATOR"
9 146757X011 DASH.SLKSC.LT.1PC
10 72140608 SUB= 72110608
11 146956 PANEL.DASH.LH.
13 146961X012 SUB= 155934X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 133956X505 HOOD/GRILL ASM
18 126938X SUB= 532126938
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
29 133954 LENS SERVICE KIT
30 109872X505 FENDER
31 136619 BRKT FENDER
33 105476X505 FOOTREST LH
34 105475X505 FOOTREST RH
35 72110606 BOLT
36 108067X PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
45 132257 SUB= 918132257
46 127316X RETAINER
5479J PLUG BUTTON T
CT14538B (1996) Page 3 of 27
DECALS
CT14538B (1996) Page 4 of 27
DECALS
Ref # Part Number Qty Description
1 138955 DECAL.DASH.INST.
2 132627 GRILL DECAL
4 129823 NLA
5 146644 DECAL.INS.HD.RALL
6 133796 DECAL
7 4900J DECAL T
8 132628 FENDER DECAL
9 127035 NLA
10 135013 NLA
12 141745 DECAL HOOD RH RLY
13 127075 "DECAL,STR WHL"
14 141746 DECAL HOOD LH RLY
15 146451 DECAL.BTRY.DANGER
16 140837 DECAL BRAK PARK
17 136832 DECAL
138311 DECAL HANDLE LIFT
145761 "MANUAL.OP.GEN.38"""
151985 MANUAL.P.CT14538B
LSB42 SNOW THROWER
LBD48 SNOW BLADE
LC05 WHEEL WTS.
CH11 TIRE CHAINS
MK380 KIT.MULCHER
C38 GRASS CATCHER
CT14538B (1996) Page 5 of 27
DRIVE
CT14538B (1996) Page 6 of 27
DRIVE
Ref # Part Number Qty Description
1 142603 SUB= 160664
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
7 130802 SUB= 162240
8 131679 SHIFT ROD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74490544 BOLT.HX.FLG.5/16
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 149001 SHAFT.PEDAL.FOOT
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
70 134683 KEEPER BELT ENG
CT14538B (1996) Page 7 of 27
DRIVE
Ref # Part Number Qty Description
72 19132012 WASHER
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
112 19091210 WASHER LT
116 72110610 BOLT RDHD 3/8-16
CT14538B (1996) Page 8 of 27
ELECTRICAL
CT14538B (1996) Page 9 of 27
ELECTRICAL
Ref # Part Number Qty Description
1 146139 SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
6 73220400 SUB= 50675
7 109238X TUBE T
8 144940 SUB= 156417
9 109596X HOSE CLAMP T
15 147688 FASTNER.SNAP-IN
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 146147 CABLE.BTRY.6GA.RD
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 146057 HARNESS.IGN.DASH.
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73350400 NUT
48 140844 ADAPTER AMMETER
49 11151000 LOCKWASHER
70 140422 HARNESS.ENG.DUAL
CT14538B (1996) Page 10 of 27
ENGINE
CT14538B (1996) Page 11 of 27
ENGINE
Ref # Part Number Qty Description
1 132771 THROTTLE CONTROL
2 17720410 SCREW LT
3 REFER TO IMAGE
4 137352 MUFFLER
13 272293 GASKET ENG 1 313 LD TIN PLATED
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
23 128953 HEAT SHIELD
24 17021008 SCREW
29 137180 SUB= 532137180
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
37 137040 LINE FUEL
38 REFER TO IMAGE
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
46 19091416 WASHER
62 10040500 LOCKWASHER
72 71070512 SCREW
78 17490620 SCREW
81 128861 NUT
CT14538B (1996) Page 12 of 27
MOWER
CT14538B (1996) Page 13 of 27
MOWER
Ref # Part Number Qty Description
1 142829 SUB= 145775
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138497 "BLADE.38"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
19 132827 BOLT SHD 5/16-18
21 73680500 SUB= 73690500
23 137607 BRKT DEFLECTOR
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 106736X DEFLECTOR-SHLD T
28 19111016 WASHER
29 106735X ROD-HINGE T
30 138776 SUB= 157722
31 129963 WASHER
32 153532 PULLEY.MANDREL.38
33 137226 NLA
36 131494 FLAT IDLER PULLEY
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 133504 CLUTCH ROD SECOND
45 4497H RETAINER M
53 130840 BRAKE ASM
54 133943 HARDENED WASHER
55 133840 IDLER ARM ASSY
56 122052X SPACER RETAINER
67 106932X KNOB T(3/8 HOLE)
68 144200 BELT.V.T-PATH
69 76020312 SUB= 3145
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140334 SUB= 154810
79 127498 BUSHING
80 128759 SUB= 918128759
81 73350600 NUT
82 142028 TRUNION ADJ
86 7631J RUNNER-LH M
87 128772 RUNNER RH
88 19111216 WASHER M
89 19131612 WASHER GT
92 73800600 NUT
107 133502 RETAINER SPACER
CT14538B (1996) Page 14 of 27
MOWER
Ref # Part Number Qty Description
108 133503 IDLER ARM STIFF
109 74760640 BOLT
110 142587 UPSTOP DECK FT 38
113 17490512 SCREW
122 131289 BRAKE ROD LH
123 131288 BRAKE ROD RH
124 72110614 BOLT
145758 DECK.SERV.38.HLMC
130794 MANDREL ASM
CT14538B (1996) Page 15 of 27
MOWER LIFT
CT14538B (1996) Page 16 of 27
MOWER LIFT
Ref # Part Number Qty Description
1 136973 WIRE ASM
2 122507X SUB= 145117
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
CT14538B (1996) Page 17 of 27
SCHEMATIC
CT14538B (1996) Page 18 of 27
SCHEMATIC
Ref # Part Number Qty Description
1 138955 DECAL.DASH.INST.
2 132627 GRILL DECAL
4 129823 NLA
5 146644 DECAL.INS.HD.RALL
6 133796 DECAL
7 4900J DECAL T
8 132628 FENDER DECAL
9 127035 NLA
10 135013 NLA
12 141745 DECAL HOOD RH RLY
13 127075 "DECAL,STR WHL"
14 141746 DECAL HOOD LH RLY
15 146451 DECAL.BTRY.DANGER
16 140837 DECAL BRAK PARK
17 136832 DECAL
138311 DECAL HANDLE LIFT
145761 "MANUAL.OP.GEN.38"""
151985 MANUAL.P.CT14538B
LSB42 SNOW THROWER
LBD48 SNOW BLADE
LC05 WHEEL WTS.
CH11 TIRE CHAINS
MK380 KIT.MULCHER
C38 GRASS CATCHER
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 124157X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 123969X TIRE.TS2.18X8.5
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
CT14538B (1996) Page 19 of 27
SEAT
CT14538B (1996) Page 20 of 27
SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 153236 "BOLT,SHOULDER"
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
CT14538B (1996) Page 21 of 27

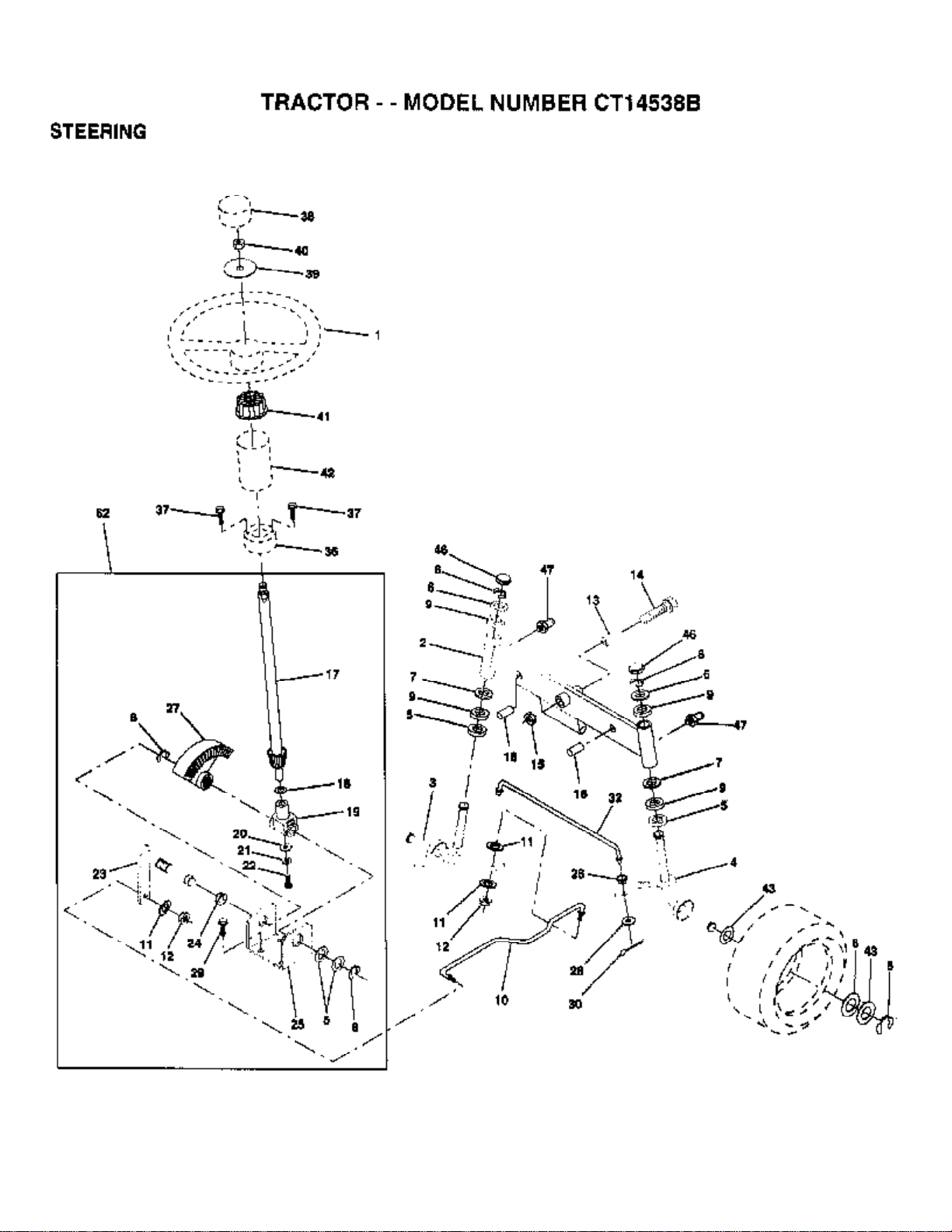

STEERING
CT14538B (1996) Page 22 of 27
STEERING
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 132614 SHAFT ASM
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71100410 SCREW.SCKTHD.CAP
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 132196 SUB= 155106
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
46 121232X CAP
47 6855M ZERK M
62 149684 SUB= 156593
CT14538B (1996) Page 23 of 27
TRANSAXLE
CT14538B (1996) Page 24 of 27
TRANSAXLE
Ref # Part Number Qty Description
1 142671 HOUSING UPPER TRN
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 138235 KIT SHIFTER ASM
7 134399 SHIFTER BOOT
8 134791 SCREW TAP W/SEAL
9 138241 SQUARE RING
10 142672 SUB= 2225J
1 134793 ASM KIT SHIM 4689
12 142673 BEARING FLAN-DANA
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 73810500 NUT.LOCK.5/16-24
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 120405X SUB= 124644X
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 142678 GEAR SPUR 12 TTH
46 142679 GEAR SPUR 15 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
59 110082X GEAR 1ST T
60 120475X SUB= 154659
CT14538B (1996) Page 25 of 27
TRANSAXLE
Ref # Part Number Qty Description
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 106596X "SCREW, TAPPING LT"
72 120951X PUCK T
73 120416X SUB= 126976X
CT14538B (1996) Page 26 of 27
WHEELS AND TIRES
CT14538B (1996) Page 27 of 27
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 124157X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 123969X TIRE.TS2.18X8.5
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
