CT1236D (1992) Page 1 of 35
BRAKE/REAR MOWER LIFT
CT1236D (1992) Page 2 of 35
BRAKE/REAR MOWER LIFT
Ref # Part Number Qty Description
1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8883R PEDAL COVER T
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT
9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 129567 SUB= 139933
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 123641X BRAKE PIVOT ARM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73800600 NUT
20 73350600 NUT
21 131460 SUB= 532131460
22 127378 SUB= 144585
23 73680600 SUB= 73690600
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 127358 SUB= 140776
29 72110506 SUB= 72270506
30 73510500 NUT
CT1236D (1992) Page 3 of 35
DASH
CT1236D (1992) Page 4 of 35
DASH
Ref # Part Number Qty Description
1 122015X SUB= 141523
2 130914 SUB= 138392
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73510400 NUT
7 2751R CLIP T
8 19091216 WASHER PM
9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 130722 SUB= 134744
20 18000408 SUB= 818000408
21 19090816 WASHER
CT1236D (1992) Page 5 of 35
DECALS
CT1236D (1992) Page 6 of 35
DECALS
Ref # Part Number Qty Description
1 126685X DECAL.B&S.272129
2 130569 "DECAL,STP HD LH"
3 130568 "DECAL,STP HD RH"
4 132627 GRILL DECAL
5 127033 "DECAL,HOOD"
6 132628 FENDER DECAL
7 120822X DECAL
8 123658X DECAL WARNING
9 109820X DECAL YT
10 127075 "DECAL,STR WHL"
11 123637X SUB= 138269
12 121549X DECAL
13 123649X DECAL WARNING
101539X SHEET INSTR LT
133626 OPERATORS MANUAL
134784 NLA
CT1236D (1992) Page 7 of 35
ELECTRICAL
CT1236D (1992) Page 8 of 35
ELECTRICAL
Ref # Part Number Qty Description
1 73510400 NUT
2 108423X CABLE ASM.
3 121265X SUB= 123899X
4 17211008 SCREW
5 108236X BRACKET LT
6 104445X SWITCH-INTER. GT
7 109553X SWITCH INTERLOCKT
8 17021008 SCREW
9 122147X KEY
10 123620X SUB= 141226
11 124211X NUT IGNITION
12 4406R SUB= STD365402
13 124083X COVER IGNITION SW
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 132222 SUB= 532132222
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
23 11050400 LOCKWASHER
24 131563 SUB= 154336
25 109081X SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
31 7662J SUB= 4152J
32 127441X SUB= 136850
33 110712X SWITCH LT
CT1236D (1992) Page 9 of 35
ENGINE/THROTTLE
CT1236D (1992) Page 10 of 35
ENGINE/THROTTLE
Ref # Part Number Qty Description
1 17720408 SCREW
2 132521 THROTTLE CONTROL
3 REFER TO IMAGE
4 71070512 SCREW
5 10040500 LOCKWASHER
6 125593X SUB= 272293
7 73220500 NUT.HEX.5/16-18
9 19101216 WASHER
10 10040400 LOCKWASHER
11 74780412 SUB= 74780414
12 124097X MUFFLER
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 121851X SUB= 532137180
16 11050600 LOCKWASHER
17 17490624 SCREW LT
18 126636X "KEEPER,DR BELT GR"
20 73510600 NUT
21 2751R CLIP T
22 17490632 SCREW LT
CT1236D (1992) Page 11 of 35
FENDER/CHASSIS
CT1236D (1992) Page 12 of 35
FENDER/CHASSIS
Ref # Part Number Qty Description
1 129965 SUB= 156417
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 127115X419 "PLATE, BATTERY"
6 109596X HOSE CLAMP T
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126995X SUB= 126995X428
10 124307X "SHIFT LOCK, BAR"
11 124346X NUT
12 123645X FRAME ASS'Y
14 73510400 NUT
15 73680500 SUB= 73690500
16 74760512 BOLT
17 127880 DRAWBAR
18 126470X "CLIP,INSULATOR"
19 128083X419 SUB= 140955X419
20 19091413 WASHER
CT1236D (1992) Page 13 of 35
FRONT AXLE
CT1236D (1992) Page 14 of 35
FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 121922X NYLINER
5 128543 "AXLE,FRT"
6 6266H WASHER .T
7 121919X SPINDLE RH
8 121749X WASHER
9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 121924X ROD TIE
13 121916X SPINDLE LH
CT1236D (1992) Page 15 of 35

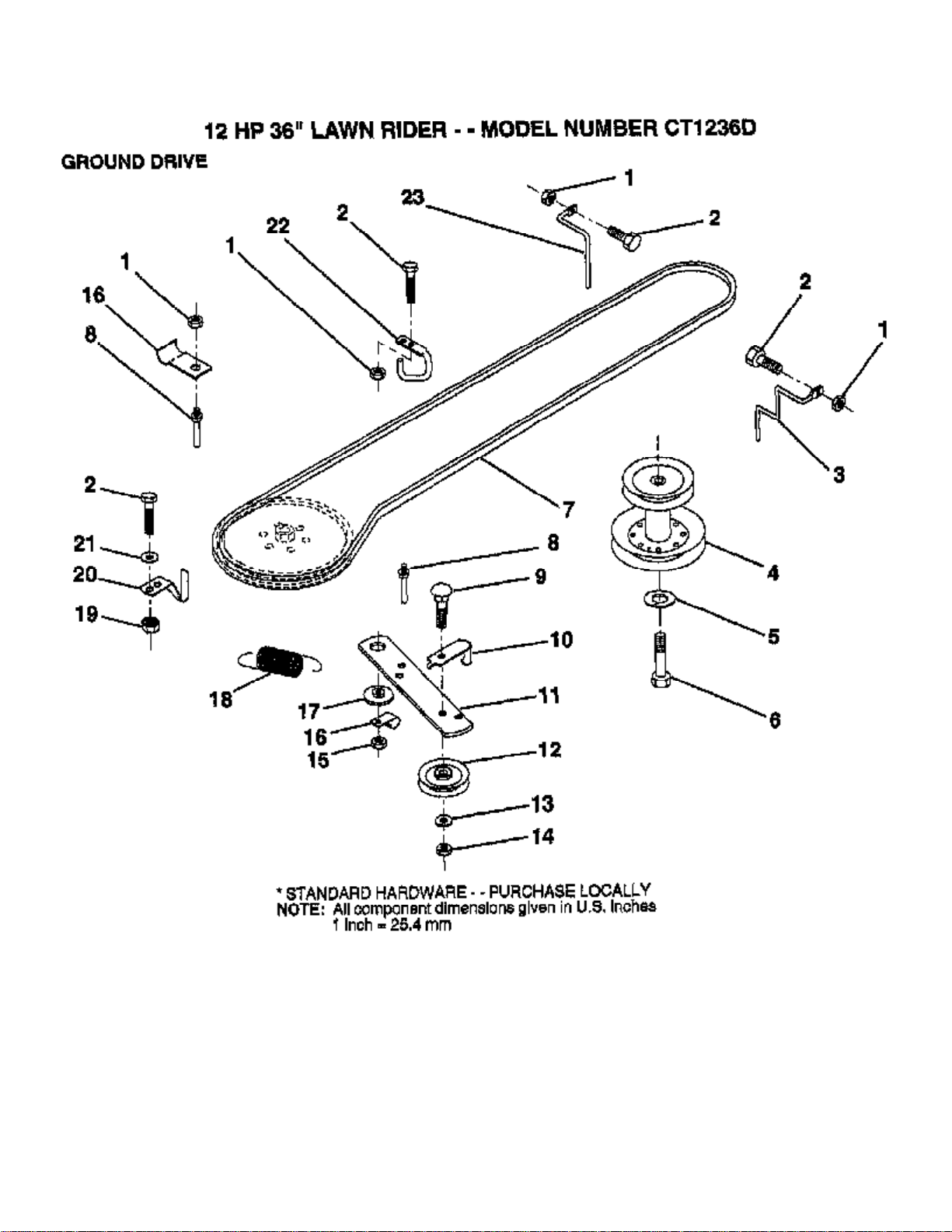

GROUND DRIVE
CT1236D (1992) Page 16 of 35
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 131205 SUB= 532131205
4 134828 SUB= 138029
5 10040700 LOCKWASHER
6 71170744 HEX BOLT
7 126520X V BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 123395X SUB= 140911
12 4859J SUB= 123674X
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 122052X SPACER RETAINER
18 131459 SUB= 532131459
19 73510500 NUT
20 123891X "KEEPER,DR BELT "
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 131204 SUB= 532131204
CT1236D (1992) Page 17 of 35
HOOD
CT1236D (1992) Page 18 of 35
HOOD
Ref # Part Number Qty Description
1 124657X EXT SPRING
2 73510400 NUT
3 19091016 WASHER
4 74780410 BOLT
5 126675X SUB= 139888
6 122549X BRKT HOOD RH
7 122548X BRKT HOOD LH
8 17411310 SUB= 17521312
9 74780412 SUB= 74780414
10 123693X "BRACE,HOOD"
11 122032X366 SUB= 132918X419
12 127178 LENS T
13 127176X SUB= 134232X428
14 2751R CLIP T
15 127177X LIGHT BOX
16 124346X NUT
CT1236D (1992) Page 19 of 35
MOWER DECK
CT1236D (1992) Page 20 of 35
MOWER DECK
Ref # Part Number Qty Description
1 127743 SUB= 140064
2 122052X SPACER RETAINER
3 73680600 SUB= 73690600
4 130840 BRAKE ASM
5 131251 IDLER BELT GUIDE
6 121316X PULLEY IDLER
7 72110616 BOLT
8 19131410 WASHER
9 127744 SUB= 140092
10 72110608 BOLT D
11 130841 BRAKE ROD
12 127356 "BRKT,LIFT REAR"
13 72140505 BOLT
14 73680500 SUB= 73690500
15 127357 "BRKT,LIFT REAR LH"
16 130837 SUB= 153298
17 128508 MOWER LINK STAB
18 128511 "PIN,GROOVE"
19 127380 "BRKT,LINK STABILI"
20 127841 SUB= 138496
21 129962 WASHER BLADE
22 10030600 SUB= 10040600
23 850857 BLADE BOLT
24 128961 SUB= 140329
25 78158 SUB= 17580520
26 129963 WASHER
27 129983 SUB= 156600
28 129207 SUB= 153531
29 73040900 SUB= 139729
30 126361X SUB= 532136631
31 17490508 SCREW LT
32 122051X "SUPT,IDLER ARM"
33 131560 SUB= 532131560
36 121980X HINGE ROD
37 123713X SPRING TORSION
38 105304X CAP-SLEEVE LT
39 19111016 WASHER
40 110452X NUT PUSH M
41 131264 V-BELT.PRIM.78.5.
42 19171616 WASHER
43 3146R RETAINER.SPRING
44 130836 SUB= 140608
45 110485X BEARING
46 130794 MANDREL ASM
47 129895 BEARING.BALL
48 128285 SUB= 137646
CT1236D (1992) Page 21 of 35
MOWER LIFT LEVER
CT1236D (1992) Page 22 of 35
MOWER LIFT LEVER
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 74780408 BOLT
4 73680600 SUB= 73690600
5 123417X CLUTCH LEVER AS
6 106451X "BOLT, SHOULDER LT"
7 123491X CLUTCH ARM ASS'Y
8 74760636 BOLT
9 121930X "BELLCRANK,LIFT"
10 76020412 COTTER PIN
11 19131316 WASHER
12 122027X GRIP HANDLE
13 127028 "HDLE,LIFT T"
14 123496X SPRING COMPRESSIO
15 19131212 WASHER T
16 4921H SPRING.RETAINER
17 127359 "LINK,LIFT FRT"
18 133205 TRUNION
19 73680400 SUB= 73690400
20 74760644 BOLT
21 17490508 SCREW LT
22 121929X "BRKT,MOWER HGT"
23 76020416 PIN COTTER 1/8
24 19171616 WASHER
25 121933X TUBE SPACER
26 121934X "ROD,MOWER LIFT "
27 121466X KNOB
28 76020312 SUB= 3145
29 123671X "LINK,MOWER LIFT"
CT1236D (1992) Page 23 of 35
SEAT
CT1236D (1992) Page 24 of 35
SEAT
Ref # Part Number Qty Description
1 72050411 SUB= 872050411
2 127423X SUB= 140119
3 74641008 SUB= 71031008
4 73680500 SUB= 73690500
5 105529X SUB= 139888
6 4171R CLIP T
7 73951000 "NUT,KEPS"
8 74760612 SUB= 74780612
9 126656X SUB= 140551
10 126471X "CLIP,INSULATOR"
11 19131210 WASHER
12 73680600 SUB= 73690600
13 120068X "KNOB 1/2"" YT"
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
17 121251X STRIP FORM
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
21 121249X SPACER SPLIT
22 121246X BRKT SWITCH
23 124294X SUB= 155925
CT1236D (1992) Page 25 of 35
SECTOR GEAR/AXLE SUPPORT
CT1236D (1992) Page 26 of 35
SECTOR GEAR/AXLE SUPPORT
Ref # Part Number Qty Description
1 124093X SUB= 132566
2 74780828 "BOLT,HEX"
3 17490508 SCREW LT
4 121925X "PLATE,STR SUPT"
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760516 SUB= 77394
14 19111416 WASHER
15 72110606 BOLT
16 72140622 BOLT
17 121912X "SUPT,FRT AXLE"
18 73220600 NUT.HEX.3/8-16UNC
19 73930600 LOCKNUT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500
CT1236D (1992) Page 27 of 35

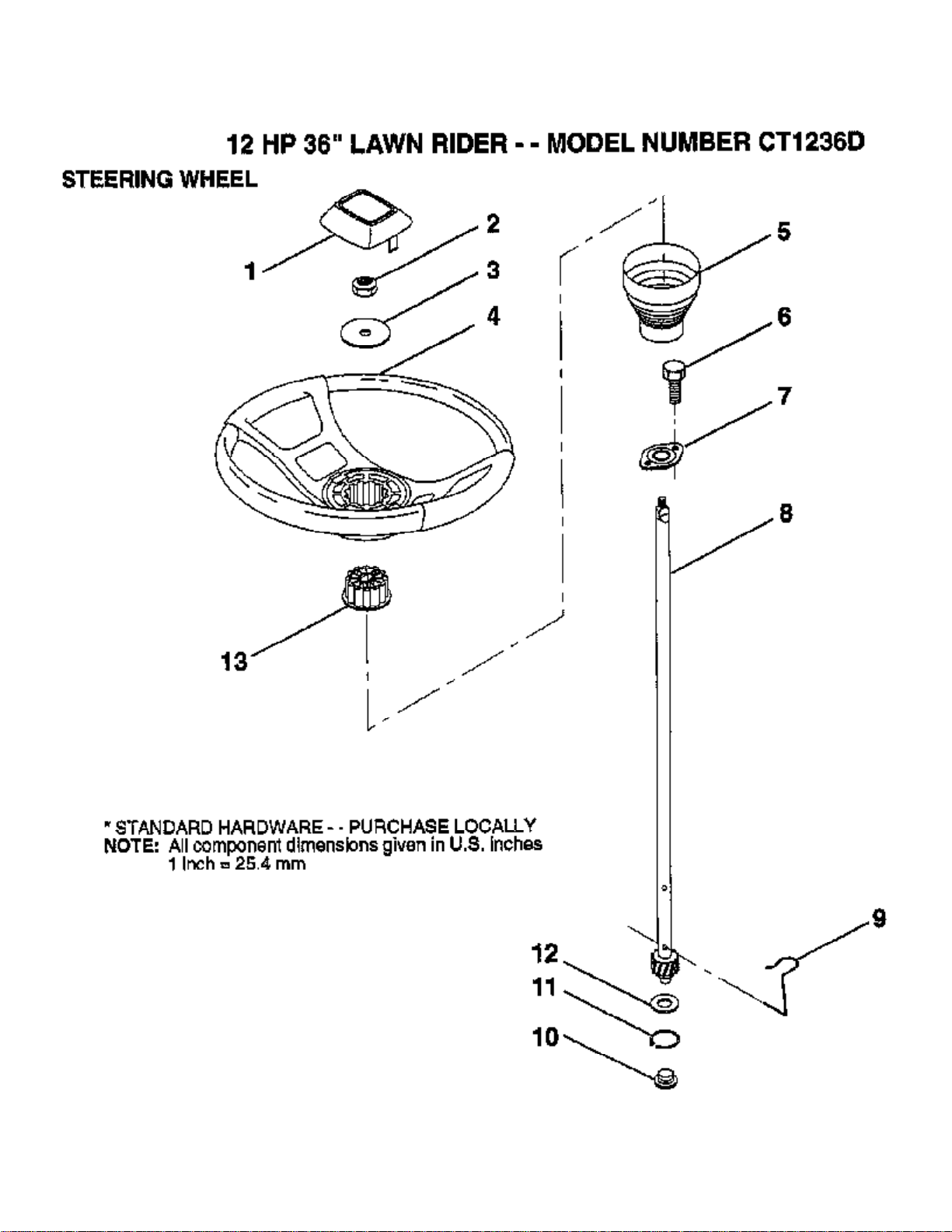

STEERING
CT1236D (1992) Page 28 of 35
STEERING
Ref # Part Number Qty Description
1 100710L INSERT-WHEEL LT
2 7810H GRIPCO NUT
3 19133808 WASHER T
4 100713N SUB= 150547
5 121897X SLEEVE STEERING
6 17431008 SUB= 98000165
7 102803X SUB= 918102803X
8 123651X SUB= 148966
9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 104820X ADAPTER-WHEEL LT
CT1236D (1992) Page 29 of 35
TRANSAXLE
CT1236D (1992) Page 30 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 772108 COVER, TRANSAXLE
2 780086 BEARING, NEEDLE
3 770102 CASE, TRANSAXLE
4 776260 SHAFT, COUNTER
5 776219 SHAFT, PINION ASSEMBLY, OUTPUT
6 778139 GEAR, OUTPUT
7 778136 GEAR, SPUR, 15 TEETH
8 792136 KEY
9 784352 COLLAR, SHIFTER
10 784355 ROD & FORK ASSY, SHIFT
11 778229 GEAR, BEVEL, 42 TEETH
12 778113A BEVEL PINION, INPUT
13 778221 GEAR, BEVEL
14 778068 GEAR, BEVEL, PINION
15 778260 GEAR, RING
17 786139 PIN, DRIVE
18 786102 SPACER, NEUTRAL
20 792077 BALL STEEL, 5/16" DIA.
21 792078 SCREW, 3/8-16 X 3/8"
22 792079 SPRING
23 788061 RING, SEAL
25 792073 SCREW, 1/4-20 X 1-1/4
26 792125 RING RETAINER
27 792035 RING, RETAINER
28 788040 RETAINING RING
29 780072 WASHER THRUST
30 780108 WASHER THRUST
31 780001 WASHER
32 792001 "O" RING
33 788051 SEAL, SQUARE CUT
34 780105A BUSHING, FLANGED
35 780118A BUSHING, FLANGED
36 790003 DISK, BRAKE
37 790007 PLATE BRAKE PAD
38 790006 PAD BRAKE
39 786026 PIN DOWEL
40 792076 WASHER, FLAT
40A 792128 WASHER FLAT
41 790047 LEVER BRAKE
42 792073 SCREW, 1/4-20 X 1-1/4
43 792075 LOCKNUT 5/16-24
44 790025 HOLDER BRAKE PAD
45 776315A SHAFT, BRAKE, 4 KEYED
46 776135 SHAFT, INPUT
47 774883 AXLE
48 774884 AXLE
49 778191 GEAR, SPUR, 37 TEETH
50 778125 GEAR, SPUR, 35 TEETH
51 778124A GEAR, SPUR, 30 TEETH
52 778123A GEAR, SPUR, 25 TEETH
53 778122A GEAR, SPUR, 22 TEETH
53A 778209 GEAR, SPUR, 19 TEETH
54 778230 GEAR, SPUR, 12 TEETH
55 778151 GEAR, SPUR, 15 TEETH
56 778126A GEAR, SPUR, 20 TEETH
57 778127A GEAR, SPUR, 25 TEETH
58 778128A GEAR, SPUR, 28 TEETH
59 778163 GEAR, SPUR, 31 TEETH
CT1236D (1992) Page 31 of 35
TRANSAXLE
Ref # Part Number Qty Description
60 786081 CHAIN, ROLLER
61 786082 SPROCKET 9T
62 786123 SPROCKET 18T (REV)
64 792074 PLUG, THRDED, 9/16-18
65 780109 WASHER, THRUST
66 786067 SPACER
67 792085 SCREW FLNG HEX 1/4-20 X 2-1/4
68 786086 BRKT BRAKE LEVER
69 780051 WASHER THRUST
70 786118 SPACER
71 788069 SEAL SQUARE CUT
75 786116 DISK
76 780090 WASHER, THRUST
77 788075 RING, RETAINING
90 788067B GREASE BENTONITE, 32 OZ.
CT1236D (1992) Page 32 of 35
TRANSAXLE
CT1236D (1992) Page 33 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 127054 TRANSAXLE
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
8 17490508 SCREW LT
9 110422X SUB= 146682
10 121749X WASHER
11 123583X SQUARE KEY
12 74760540 BOLT
13 123377X "BRKT,TRANSAXLE"
14 17490512 SCREW
16 12000001 E-RING LT
17 126293X LINK SHIFT
18 71040412 SUB= 74550412
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 126292X ARM SHIFT
22 105701X WASH-SHFT PLT LT
23 122011X "KNOB,SHT CONTROL"
24 128202 SUB= 532128202
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
27 73510500 NUT
28 128085 "SPRING,EXT"
30 123692X KNOB RETAINER
32 19111116 WASHER
34 11050500 LOCKWASHER.5/16.E
35 12000001 E-RING LT
CT1236D (1992) Page 34 of 35
WHEELS/TIRES
CT1236D (1992) Page 35 of 35
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 129257 SUB= 123410X
129258 SUB= 128850
5 59904 TUBE.5.3/4.5/6
8134H TUBE.16X6.5/7.5-8
6 122394X311 SUB= 137237X427
123412X311 SUB= 123412X427
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
Loading...
