CPR500D (1995) Page 1 of 14
DECALS
CPR500D (1995) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 135993 DECAL, LOGO
2 135992 DECAL, LOGO
3 135991 DECAL, LOGO
4 110655X NLA
5 120431X DECAL TI
6 102180X DECAL CRT
7 110593X SUB= 121858X
8 271948 DECAL, BRIGGS & STRATTON
9 120075X DECAL TI
10 135994 DECAL, PANEL CONTROL
147909 MAN.OWN.CPR500D.E
CPR500D (1995) Page 3 of 14
HANDLE
CPR500D (1995) Page 4 of 14
HANDLE
Ref # Part Number Qty Description
1 8389J GRIP TI
2 121248X BUSHING
3 71091008 SCREW
4 126949X419 SUB= 126949X500
5 72110514 BOLT CARRIAGE CRT
6 108281X ROD SHIFT CRT
7 72110608 BOLT D
8 4497H RETAINER M
9 109229X LOCK CRT
10 73930600 LOCKNUT
11 19131611 WASHER CRT
12 109228X LEVER LOCK CRT
13 121566X HANDLE
14 102162X CABLE.CLUTCH.CRT
15 9484R CONDIUT CLIP T
16 86777 SUB= 750097
17 102604X GRIP BAR CRT
21 108276X HANDLE BAR CRT
22 140526 GRIP HDLE NUBBED
23 73800500 NUT
24 73731000 NUT
25 127012X "CONT,THROTTLE"
26 5420J SUB= 146480
27 10040500 LOCKWASHER
CPR500D (1995) Page 5 of 14
MAINFRAME, LEFT
CPR500D (1995) Page 6 of 14
MAINFRAME, LEFT
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930568 BOLT TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 120938X SPACER
15 19111116 WASHER
16 100473M "SHEAVE 10"" CRT"
17 73220500 NUT.HEX.5/16-18
19 2649M KEY T
20 110653X GUARD CRT
21 145216 SPACER.SPLIT
22 104214X NUT TI
23 102190X TIRE.CHV.13X5.0-6
124258X RIM
795R SUB= 65139
24 126875X RIVET.DRILL.1.75
25 4497H RETAINER M
26 131159X418 "GUARD,BELT"
27 132672 BELT-V
28 104679X PULLEY-IDLER TI
29 12000032 KLIP RING
30 105611X SUB= 918105611X
31 102384X BOLT CRT
32 102141X SHIFT ARM CRT
33 74760616 BOLT
34 102383X COUNTERWEIGHT CRT
35 74760524 BOLT.HEX.5/16-1.5
36 102331X BRACKET LH CRT
37 130816 ENGINE SHEAVE
38 131558 BELT GUARD BRKT
39 140062 CAP PLUNGER BLACK
40 73800400 NUT
41 19091016 WASHER
CPR500D (1995) Page 7 of 14
MAINFRAME, RIGHT
CPR500D (1995) Page 8 of 14
MAINFRAME, RIGHT
Ref # Part Number Qty Description
1 73510500 NUT
2 102332X BRACKET RH CRT
3 74760524 BOLT.HEX.5/16-1.5
4 102173X COUNTERWEIGHT CRT
5 10040600 LOCKWASHER
6 73220600 NUT.HEX.3/8-16UNC
7 4497H RETAINER M
8 126875X RIVET.DRILL.1.75
9 102190X TIRE.CHV.13X5.0-6
124258X RIM
795R SUB= 65139
10 REFER TO IMAGE
CPR500D (1995) Page 9 of 14
TINE
CPR500D (1995) Page 10 of 14
TINE
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 132673 PIN.CLEVIS.SHEAR
3 6554J "TINE.LH.12"""
4 3146R RETAINER.SPRING
5 132727 HUB&PLATE ASM LH
6 73610600 SUB= 7810H
7 10040600 LOCKWASHER
8 74610616 BOLT
9 4460J SUB= 6555J
10 132728 HUB&PLATE ASM RH
11 6555J "TINE.RH.12"""
CPR500D (1995) Page 11 of 14

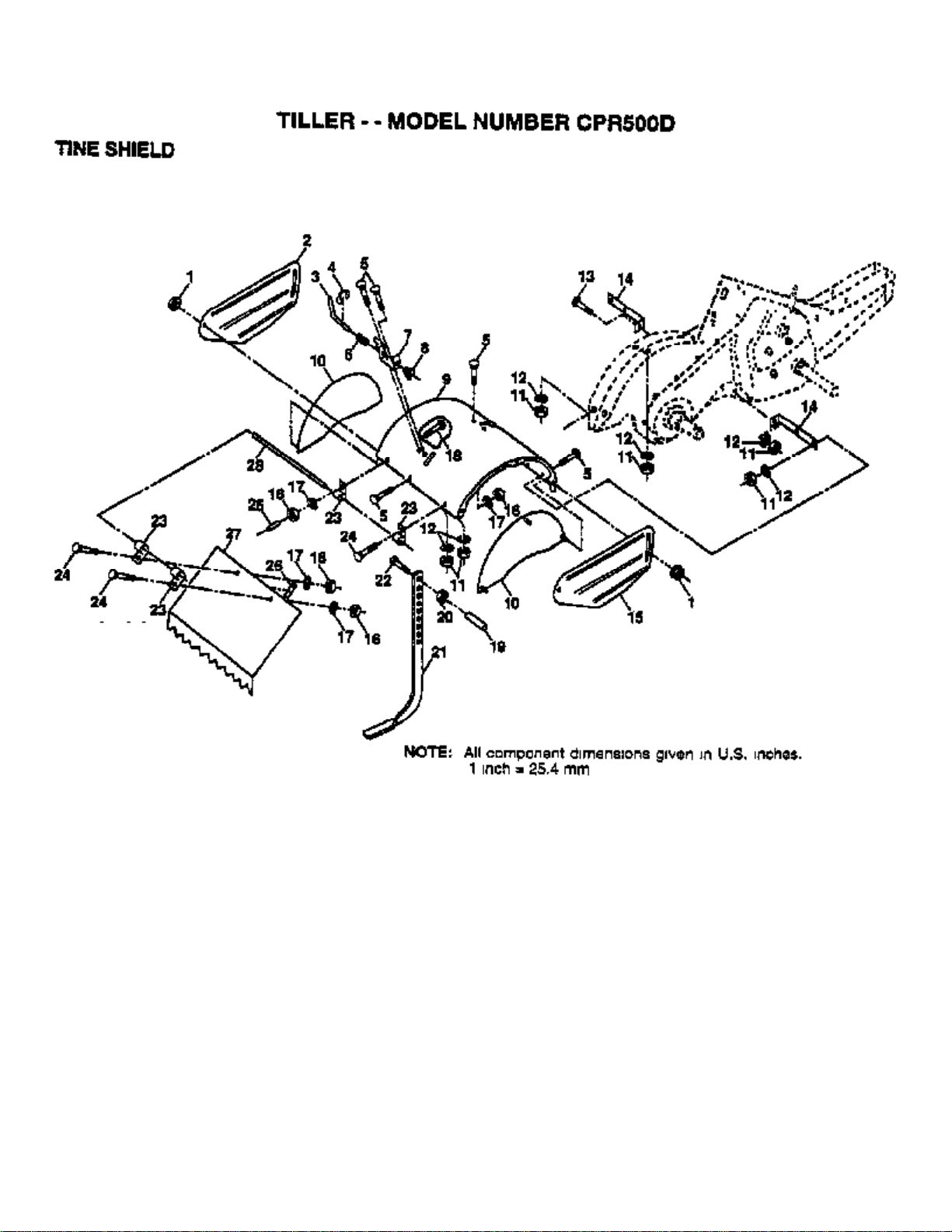

TINE SHIELD
CPR500D (1995) Page 12 of 14
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X505 SHIELD.SD.OUT.LH
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72140506 BOLT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 102326X505 "SHIELD, TINE"
10 104085X505 "SHIELD, SIDE"
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 72110510 BOLT
14 124343X BRKT SHIELD TINE
15 104101X505 SHIELD.SD.OUT.RH
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
18 72040410 BOLT
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X500 STAKE DEPTH 16
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X505 LEVELING SHIELD
28 120588X PIN HINGE
CPR500D (1995) Page 13 of 14

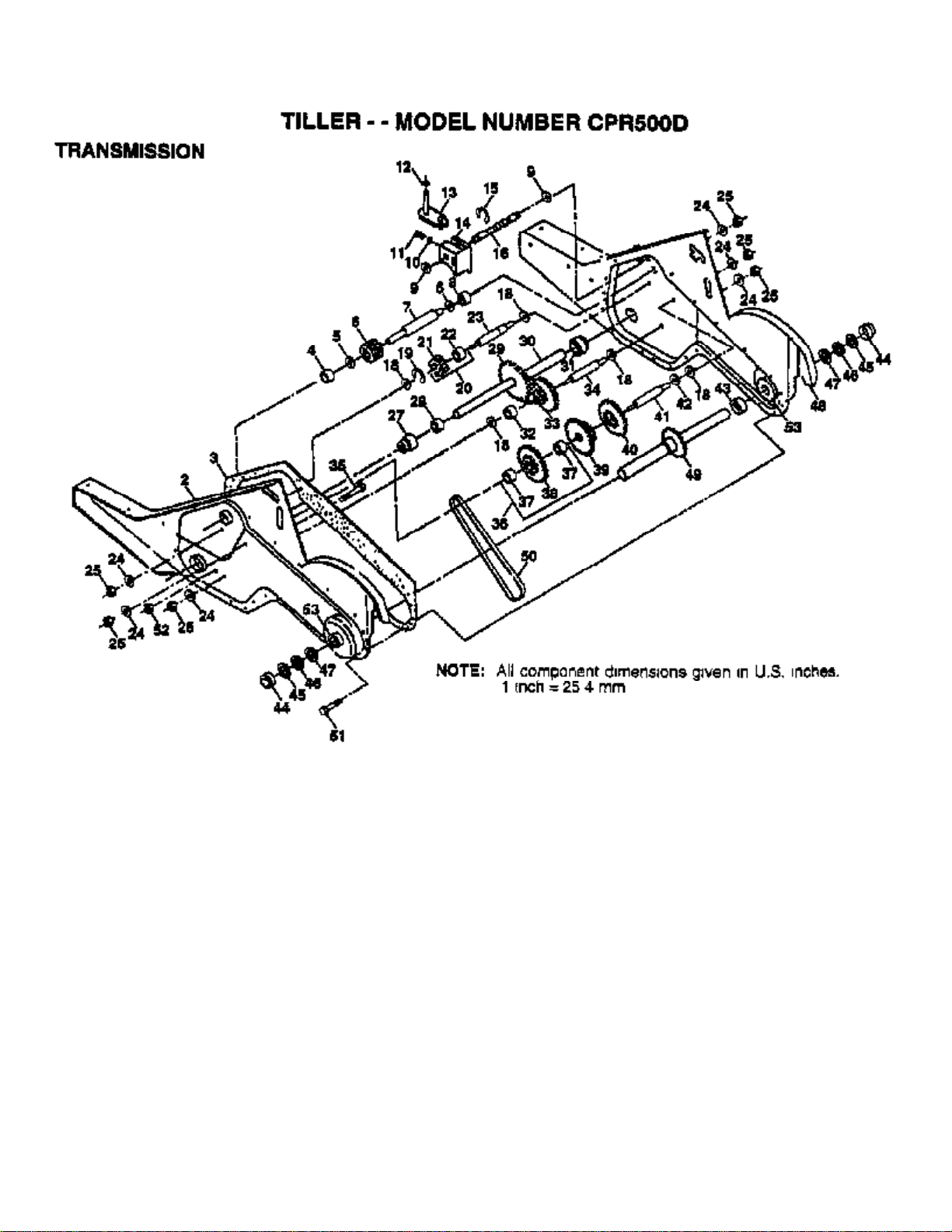

TRANSMISSION
CPR500D (1995) Page 14 of 14
TRANSMISSION
Ref # Part Number Qty Description
1 137555 SUB= 155112
2 139544 SUB= 150698
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 102113X PINION-INPUT CRT
7 102110X SHAFT-INPUT CRT
8 4895H "TI, BEARING"
9 102136X WASHER SEAL CRT
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 102107X ARM ASSY CRT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 102109X SHAFT SHIFT CRT
17 104159X SPACER SPLIT CRT
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
27 143009 BEARING.SHAFT.LH.
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 109204X SUB= 150737
31 143009 BEARING.SHAFT.LH.
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 137300 SPROCKET ASM.
37 4422J BEARING
38 137301 SUB= 137300
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 9672R CUP.FORMED.
45 102144X RING SPIRAL CRT
46 140576 SEAL RING RUBBER
47 7393R OIL SEAL STD
48 139546 SUB= 150700
49 132688 TINE SHAFT
50 106147X CHAIN.50 LINK TI
51 17580408 SCREW CRT
52 73220500 NUT.HEX.5/16-18
53 122204X SUB= 918122204X
6066J GREASE PREMIUM-1
