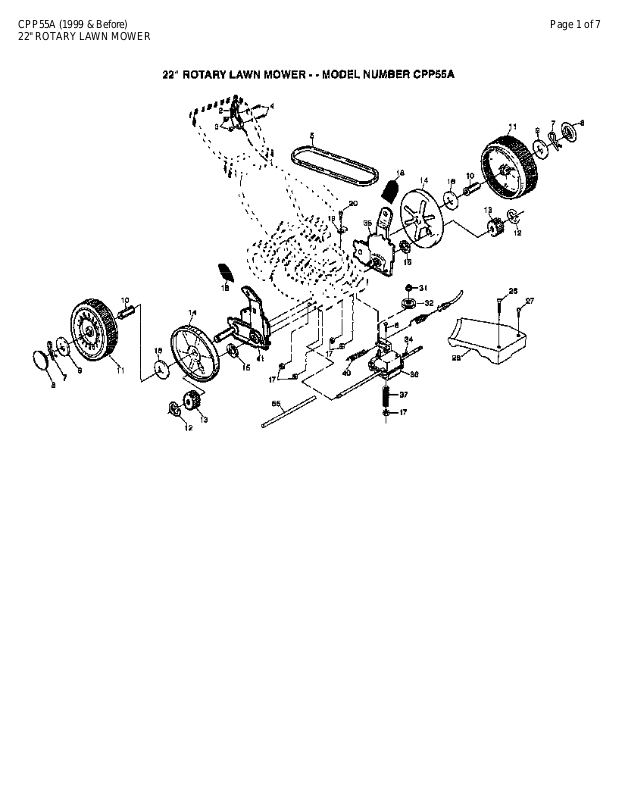

CPP55A (1999 & Before) Page 1 of 7
22" ROTARY LAWN MOWER
CPP55A (1999 & Before) Page 2 of 7
22" ROTARY LAWN MOWER
Ref # Part Number Qty Description
2 137076 CONTROL.DRIVE
3 69180 LOCKNUT
4 750029 SCREW
5 137078 SUB= 157769
6 700875 BOLT.1/4-20X2.0
7 85179 RETAINER CLIP PM
8 77400 HUB CAP
9 52160 WASHER
10 86960 BUSHING.ROUND
11 700953 WHEEL.8X2.LP.PR
12 12000058 E-RING.7/16.RE.
13 137054 PINION.GEAR
14 88080 DUST SHROUD PM
15 88118 WASHER PM
16 67725 WASHER FLUT
17 63601 SUB= 73800400
18 87877 KNOB PM
19 87930 GUIDE CLIP PM
20 750097 TAPPING SCREW
26 87866 SUB= 146072
27 136797 SUB= 149746
28 137080 COVER DRIVE BLK
31 132010 LOCKNUT
32 137052 PULLEY.DRIVEN
34 850848 HI PRO KEY
35 700339 SUB= 151228
36 702510 SUB= 48366
37 137090 SPRING.TENSION
40 75192 SPRING
41 700340 SUB= 151226
55 86012 DRV SHAFT TUBE PM
135689 "DECAL.DRIVE.22"""
CPP55A (1999 & Before) Page 3 of 7
22" ROTARY LAWN MOWER
CPP55A (1999 & Before) Page 4 of 7
22" ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 84676X479 SUB= 151516X479
2 132001 ROPE GUIDE
3 63601 SUB= 73800400
4 131959 BOLT.HANDLE.LM
5 851512 CONTROL BAR
6 66426 SUB= 7192J
7 85692 SUB= 74250434
8 700417 "CONTROL, THROTTLE"
9 85723 WASHER PM
10 130861 "CABLE,ENG ZONE CO"
11 850738X479 SUB= 145642X479
12 51793 HAIRPIN COTTER
13 128638 "NUT,WING PM"
14 128797 SUB= 140540
15 750097 TAPPING SCREW
16 701969X479 SUB= 150959
17 701971X479 SUB= 150959
18 55187 SCREW
19 59289 STEEL WASHER
20 73510400 NUT
21 751592 LOCKNUT PM
22 700325X007 BRACKET.ADJ.9POS.
23 84920 SUB= 146630
24 87584X004 "BRKT,DEFL PM"
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 85021X004 AXLE ARM
28 62335 "WASHER, BELLEVIL."
29 84921 SUB= 142748
30 800390 SUB= 146247
31 52160 WASHER
32 85179 RETAINER CLIP PM
33 77400 HUB CAP
34 851856 SCREW
36 850998 SCREW
37 851201X004 WASHER
38 134612 SUB= 48283
39 132352X479 BAFFLE FRONT 22SD
40 702226 KIT.HSG.22SD.FWGD
41 74100412 SCREW
43 851084 SCREW
44 850263 LOCKWASHER
45 851074 "WASHER,HARDEN"
46 850973 "BLADE.22"""
47 851514 ADAPTOR.BLADE.LM
48 851854 "ROD,HINGE "
49 851852X004 "BRKT,HSG"
51 851855 "SPRING,TORSION"
54 851750 SUB= 532851750
55 87677 HI PRO KEY PM
56 59708 SCREW
57 84596 ENGINE.PULLEY.FWG
58 213146 CABLE CLAMP
59 83816 SCREW PM
61 85463 DECAL-DANGER PM
62 REFER TO IMAGE
63 83731 PUSH ON SPEED NUT
64 851552 "SCREW,PAN HD"
CPP55A (1999 & Before) Page 5 of 7
22" ROTARY LAWN MOWER
Ref # Part Number Qty Description
83976X479 "BAFFLE,REAR"
140755 MANUAL OPR GEN SP
144640 MANUAL.P.CPP55A
135688 "DECAL.HSG.22"""
CPP55A (1999 & Before) Page 6 of 7
GEAR CASE
CPP55A (1999 & Before) Page 7 of 7
GEAR CASE
Ref # Part Number Qty Description
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
5 702710 PIN GROOVED 1/8X5
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137077 SHAFT.DRIVE.SD
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
