CP90A (1999 & Before) Page 1 of 9
22" REAR BAGGER MOWER
CP90A (1999 & Before) Page 2 of 9
22" REAR BAGGER MOWER
Ref # Part Number Qty Description
1 73510400 NUT
2 131081 BAIL.CONTROL.BLK.
3 851950X479 "HANDLE,UPPER"
4 63601 SUB= 73800400
6 85723 WASHER PM
7 700654 CNTL.THROT.47.5
8 701650 SCREW.1/4-20X3.00
9 136376 KNOB HANDLE
12 130452 SUB= 146358
13 750097 TAPPING SCREW
14 87930 GUIDE CLIP PM
17 107339X DECAL HYT
18 86344 SCREW PM
20 84596 ENGINE.PULLEY.FWG
21 87677 HI PRO KEY PM
22 59708 SCREW
23 133040X479 REAR BAFFLE
24 128796 SUB= 140540
25 700365X479 BAFFLE.SIDE
26 700361X479 PLATE.BACK.22RD
27 128415 BLIND RIVET
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 66426 SUB= 7192J
32 132813X479 SUB= 151721X479
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
36 85179 RETAINER CLIP PM
37 52160 WASHER
38 800390 SUB= 146247
39 142748 BOLT SHLD 3/8-16
40 62335 "WASHER, BELLEVIL."
41 85021X004 AXLE ARM
42 700331X004 SPRING SELECTOR
43 87877 KNOB PM
44 850724 SUB= 155890
45 84920 SUB= 146630
46 700326X007 BRACKET.ADJ.9.LH
47 55187 SCREW
48 135030 DEBRIS SHLD RET
50 701921X479 BRACKET.ASM.HD.RH
51 701923X479 BRKT.ASM.HDL.LH
52 751592 LOCKNUT PM
54 851201X004 WASHER
55 850998 SCREW
57 132255X479 SUB= 144964
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 134768 SUB= 141114
63 851514 ADAPTOR.BLADE.LM
64 144606 KIT.HSG.22RD.FWGD
65 REFER TO IMAGE
68 88652 HINGE SCREW
70 134612 SUB= 48283
71 133170X479 MULCHER PLATE
CP90A (1999 & Before) Page 3 of 9
22" REAR BAGGER MOWER
Ref # Part Number Qty Description
72 700327X007 BRACKET.ADJ.9.RH
73 213146 CABLE CLAMP
74 83816 SCREW PM
140755 MANUAL OPR GEN SP
144603 MANUAL.P.CP90A
CP90A (1999 & Before) Page 4 of 9
22" REAR BAGGER MOWER

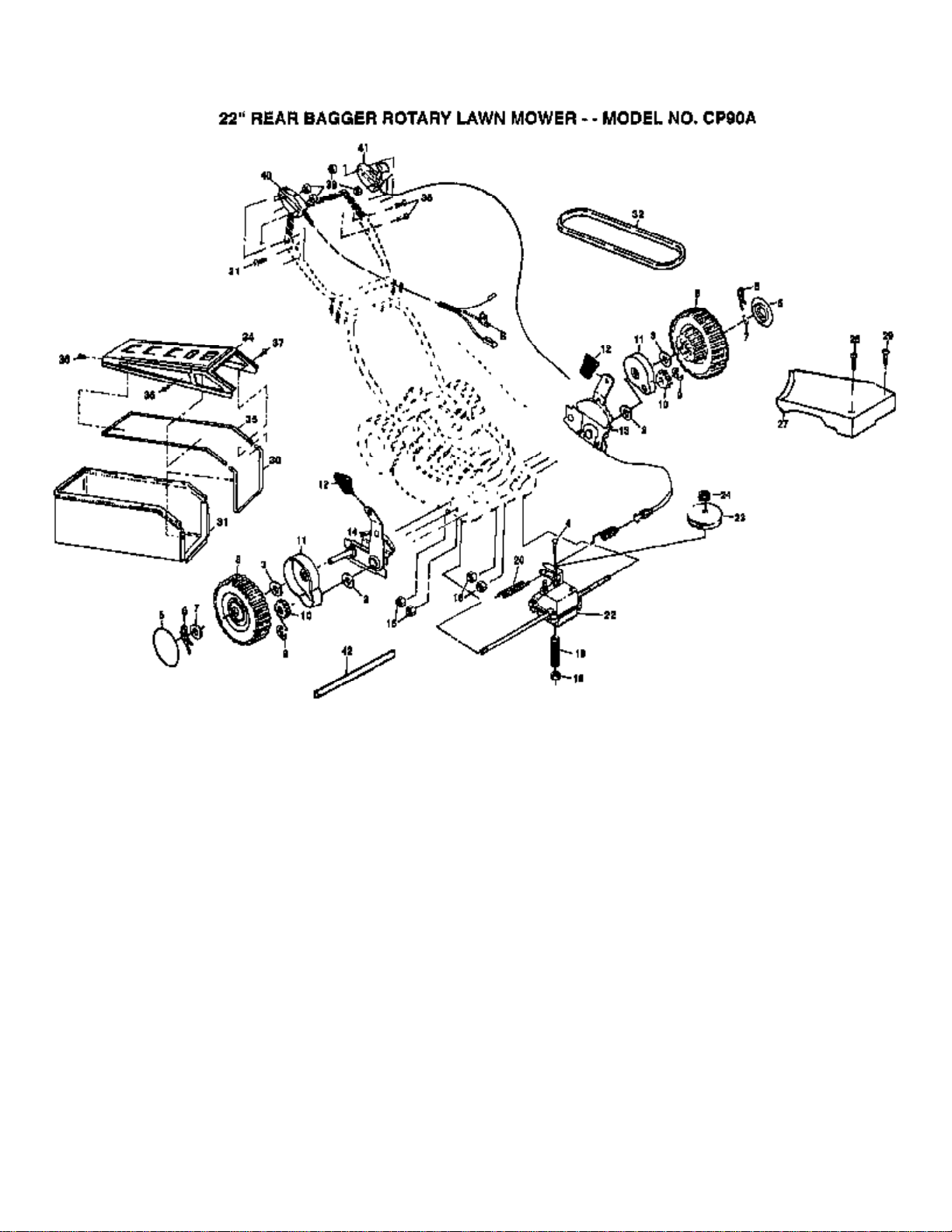

CP90A (1999 & Before) Page 5 of 9
22" REAR BAGGER MOWER
Ref # Part Number Qty Description
2 88118 WASHER PM
3 67725 WASHER FLUT
4 700875 BOLT.1/4-20X2.0
5 77400 HUB CAP
6 85179 RETAINER CLIP PM
7 52160 WASHER
8 700953 WHEEL.8X2.LP.PR
9 12000058 E-RING.7/16.RE.
10 137054 PINION.GEAR
11 88080 DUST SHROUD PM
12 87877 KNOB PM
13 700339 SUB= 151228
14 700340 SUB= 151226
16 63601 SUB= 73800400
18 137090 SPRING.TENSION
20 75192 SPRING
21 85692 SUB= 74250434
22 702511 SUB= 48367
23 137052 PULLEY.DRIVEN
24 132010 LOCKNUT
27 137081 "COVER.DRIVE 22""RD"
28 87866 SUB= 146072
29 136797 SUB= 149746
30 851735 "FRAME,CATCHER"
31 128061 "CATCHER,GRASS"
32 137078 SUB= 157769
34 851739 "TOP,CATCHER"
35 851658 "TUBE,CATCHER"
36 131029 SCREW
37 750634 SCREW
38 85692 SUB= 74250434
39 63601 SUB= 73800400
40 143977 CABLE.MZR.
41 700616 CONTROL.DRIVE
42 86012 DRV SHAFT TUBE PM
142665 DECAL.CATCHER.2.5
135689 "DECAL.DRIVE.22"""
CP90A (1999 & Before) Page 6 of 9
22" ROTARY LAWN MOWER
CP90A (1999 & Before) Page 7 of 9
22" ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 86334X479 BRACKET.BATTERY
2 86337X479 COVER.BATTERY
3 750909 SUB= 48374
4 750097 TAPPING SCREW
5 86353 CONNECTOR PM
6 111549X CHARGER PM
7 86649 "PAD PM, BATTERY"
8 134861 "WRAP, BATTERY"

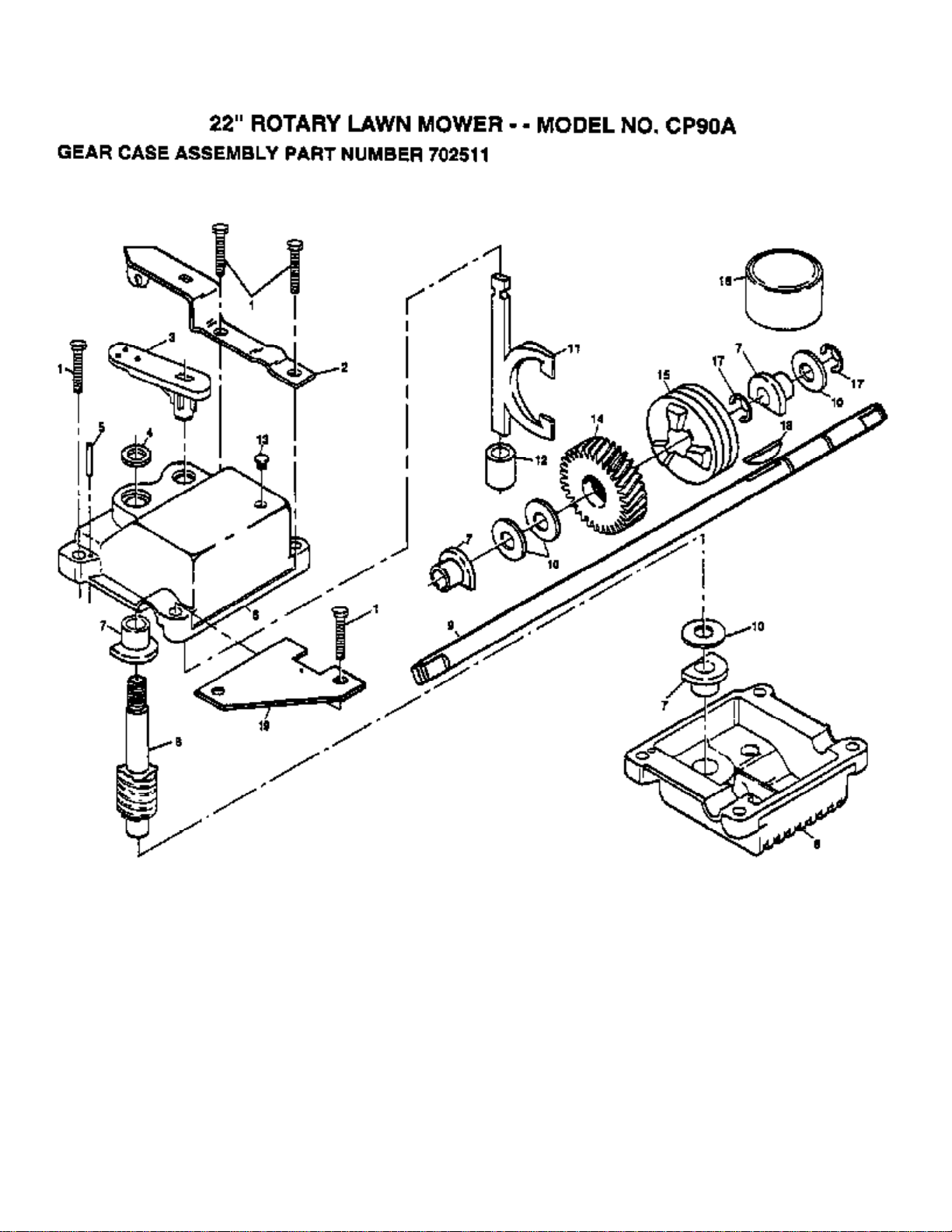

CP90A (1999 & Before) Page 8 of 9
GEAR CASE
CP90A (1999 & Before) Page 9 of 9
GEAR CASE
Ref # Part Number Qty Description
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
5 702710 PIN GROOVED 1/8X5
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137074 SHAFT.DRIVE
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
