CM1238A (1999 & Before) Page 1 of 24
CHASSIS/ENCLOSURES
CM1238A (1999 & Before) Page 2 of 24
CHASSIS/ENCLOSURES
Ref # Part Number Qty Description
1 169831 CHASSIS
2 169061 DRAWBAR
3 17060612 SCREW
5 155272 BUMPER-HOOD/DASH
6 155924X010 "SADDLE FLAT,SLKSC"
7 126842X "SHIELD,HEAT HOOD"
8 155138 CLIP.RETAINER
9 168655X010 DASH
10 72140608 SUB= 72110608
11 155927 "PANEL-DASH,LH"
13 172107X010 DASHBOARD
15 74180512 SCREW
16 73510500 NUT
17 154988X550 HOOD ASM PNT WELD SLOPE
18 126938X SUB= 532126938
19 164863 "SCREW,HWHD.HI-LO#13-16X3/4"
21 122933X "RIVET,PLASTIC"
22 124479X SUB= 532124479
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 140135X428 GRILLE BLK
29 124029X599 LENS HEADLIGHT
30 169465X550 FENDER
31 136619 BRKT FENDER
33 105476X428 FOOTREST LH
34 105475X428 FOOTREST RH
35 72110606 BOLT
37 17490508 SCREW LT
38 169834 BRKT ASM PIVOT MOWER REAR
54 161464 SCREW.HEX.WS.HD
145 156524 "ROD POVOT,CHASSIS"
161 161547 EXTRUSION HOOD
206 170165 BOLT SHOULDER
208 17670608 SCREW
5479J PLUG BUTTON T
CM1238A (1999 & Before) Page 3 of 24
DECALS
CM1238A (1999 & Before) Page 4 of 24
DECALS
Ref # Part Number Qty Description
1 171925 DECAL, HOOD
2 131265 DECAL LIGHTBOX
6 145498 DECAL.READ.O.MANU
7 145437 DECAL.EURO.ST.CE.
8 159736 "DECAL CHASSIS,HOT"
9 170832 DECAL, ENGINE
10 159737 DECAL-BRAKE/CLUTC
11 145494 DECAL.DANGER.CUTF
14 145006 CLIP.PUSH-IN.HING
15 136832 DECAL
17 126187X SUB= 532126187
19 140837 DECAL BRAK PARK
162598 DECAL.DRAWBAR.LDL
138311 DECAL HANDLE LIFT
171855 MANUAL, OPERATOR'S
171856 MANUAL, REPAIR PARTS
CM1238A (1999 & Before) Page 5 of 24
DRIVE
CM1238A (1999 & Before) Page 6 of 24
DRIVE
Ref # Part Number Qty Description
1 SUPPLIER CHECK WITH SUPPLIER
1 PARTSIMAGE REFER TO PARTS IMAGE
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17060512 SCREW
7 162240 BRKT.SADDLE.SHIFT
8 131679 SHIFT ROD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
32 74760512 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 131494 FLAT IDLER PULLEY
39 72110622 BOLT
40 4470J SPACER T
41 165838 "KEEPER,BELT.IDLER FLAT"
42 19131312 WASHER
47 127783 SUB= 139245
48 154407 BELLCRANK.CLUTCH
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
59 169691 KEEPER BELT SPAN CTR
61 17060612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 137057 SPACER AXLE
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
CM1238A (1999 & Before) Page 7 of 24
DRIVE
Ref # Part Number Qty Description
78 121748X WASHER
79 2228M SUB= 2228M1
96 4497H RETAINER M
112 19091210 WASHER LT
113 127285X "STRAP,TORQUE"
116 72110610 BOLT RDHD 3/8-16
145 74490540 BOLT.HEX.FLGHD
150 165850 BUSHING.BELLCRANK.GRD.DR
151 19133210 WASHER
170 165849 KEEPER.BELT.TRANSAXLE
202 72110612 BOLT.3/8-16X1.50
204 17060516 SCREW
CM1238A (1999 & Before) Page 8 of 24
ELECTRICAL
CM1238A (1999 & Before) Page 9 of 24
ELECTRICAL
Ref # Part Number Qty Description
1 144925 SUB= 123899X
2 74760412 BOLT LT
8 156417 "CASE,BATTERY.MECH"
16 153664 SWITCH INTERLOCK
21 166181 HARNESS.ASM.LIGHT W/4152J
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 146147 CABLE.BTRY.6GA.RD
26 166180 FUSE.15 AMP
27 73510400 NUT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 163968 SWITCH.IGN.
33 140401 KEY MLD GEN DELTA
40 170217 HARNESS IGN
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
48 140844 ADAPTER AMMETER
52 141940 PROTECTION LOOP
70 170242 HARNESS ENG
CM1238A (1999 & Before) Page 10 of 24
ENGINE
CM1238A (1999 & Before) Page 11 of 24
ENGINE
Ref # Part Number Qty Description
1 152141 CONTROL.THROTTLE
2 17720410 SCREW LT
3 SUPPLIER CHECK WITH SUPPLIER
4 137348 MUFFLER
13 165291 SUB= 272293
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
23 169837 SHIELD BROWNING
29 137180 SUB= 532137180
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
37 137040 LINE FUEL
38 SUPPLIER CHECK WITH SUPPLIER
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
45 17000612 SCREW
46 19091416 WASHER
62 10040500 LOCKWASHER
66 127951 "STOP,DASH THROTT"
72 71070512 SCREW
78 17060620 SCREW
81 73510400 NUT
CM1238A (1999 & Before) Page 12 of 24

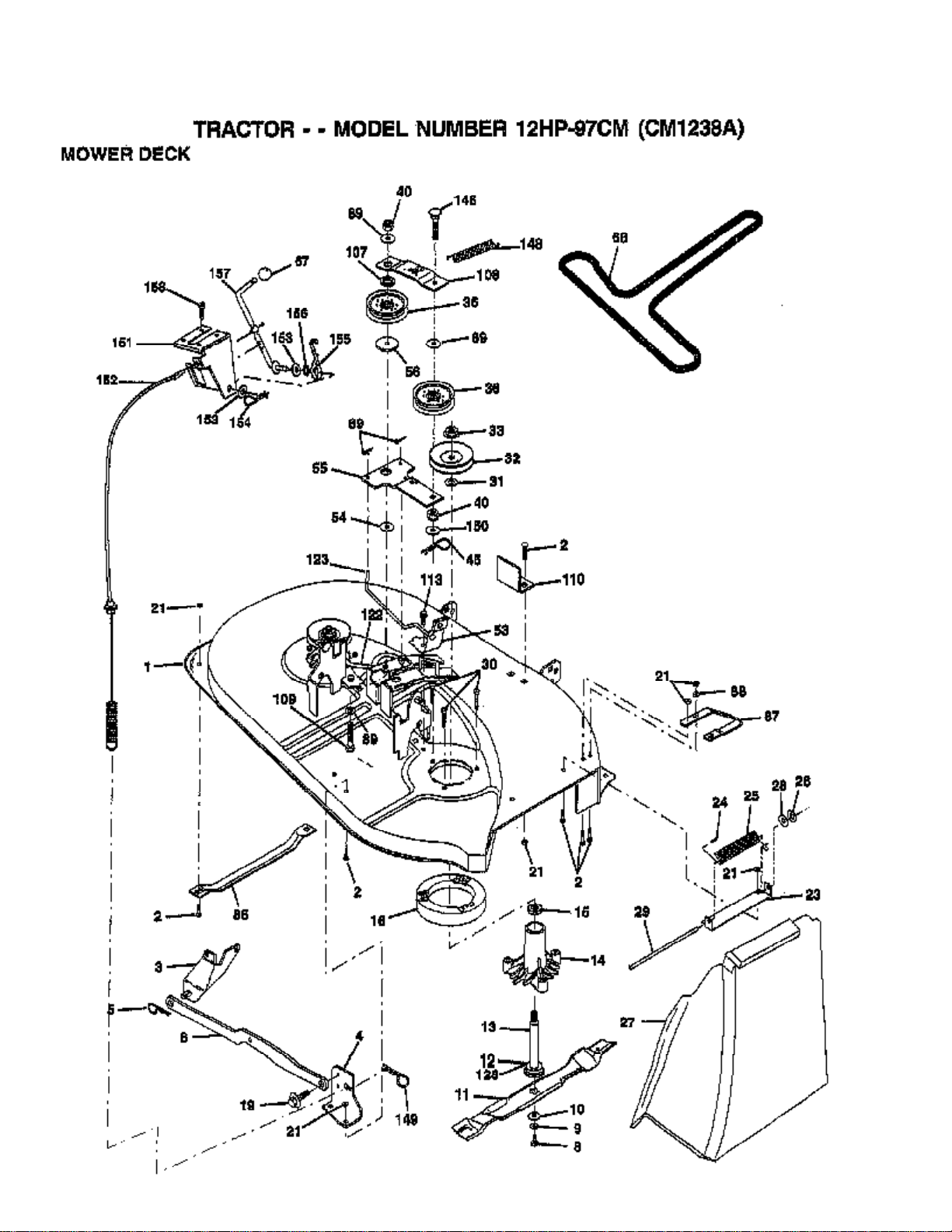

MOWER DECK
CM1238A (1999 & Before) Page 13 of 24
MOWER DECK
Ref # Part Number Qty Description
1 170280 MOWER HSG ASSY
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 169970 BRKT SWAY BAR DECK
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138497 "BLADE.38"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
19 132827 BOLT SHD 5/16-18
21 73680500 SUB= 73690500
23 137607 BRKT DEFLECTOR
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 106736X428 DEFLECTOR, SHIELD
28 19111016 WASHER
29 106735X ROD-HINGE T
30 157722 "SCREW-THD ROLL,WA"
31 129963 WASHER
32 153532 PULLEY.MANDREL.38
33 137266 SUB= 139729
36 131494 FLAT IDLER PULLEY
40 73680600 SUB= 73690600
45 4497H RETAINER M
53 130840 BRAKE ASM
54 133943 HARDENED WASHER
55 133840 IDLER ARM ASSY
56 165723 SPACER.RETAINER.MOWER
67 106932X KNOB T(3/8 HOLE)
68 144200 BELT.V.T-PATH
69 76020312 SUB= 3145
86 7631J RUNNER-LH M
87 128772 RUNNER RH
88 19111216 WASHER M
89 19131612 WASHER GT
107 133502 RETAINER SPACER
108 133503 IDLER ARM STIFF
109 74760640 BOLT
110 142587 UPSTOP DECK FT 38
113 17060512 SCREW
122 131289 BRAKE ROD LH
123 169971 ROD
128 153390 WASHER.FELT.
146 165891 BOLT
148 169022 SPRING RETURN IDLER
149 165898 RETAINER SPRING
150 19091216 WASHER PM
151 169670 BRKT CLUTCH CABLE
152 172758 CLUTCH CABLE
153 169674 WASHER FLAT
154 169675 SPRING RETAINER
CM1238A (1999 & Before) Page 14 of 24
MOWER DECK
Ref # Part Number Qty Description
155 169671 SPRING RETENTION LVR CLUTCH CAB
156 169672 SPACER
157 169669 ROD.CLUTCH.CABLE.3/8
158 17720410 SCREW LT
130794 MANDREL ASM
170317 MOWER DECK, COMPLETE
CM1238A (1999 & Before) Page 15 of 24

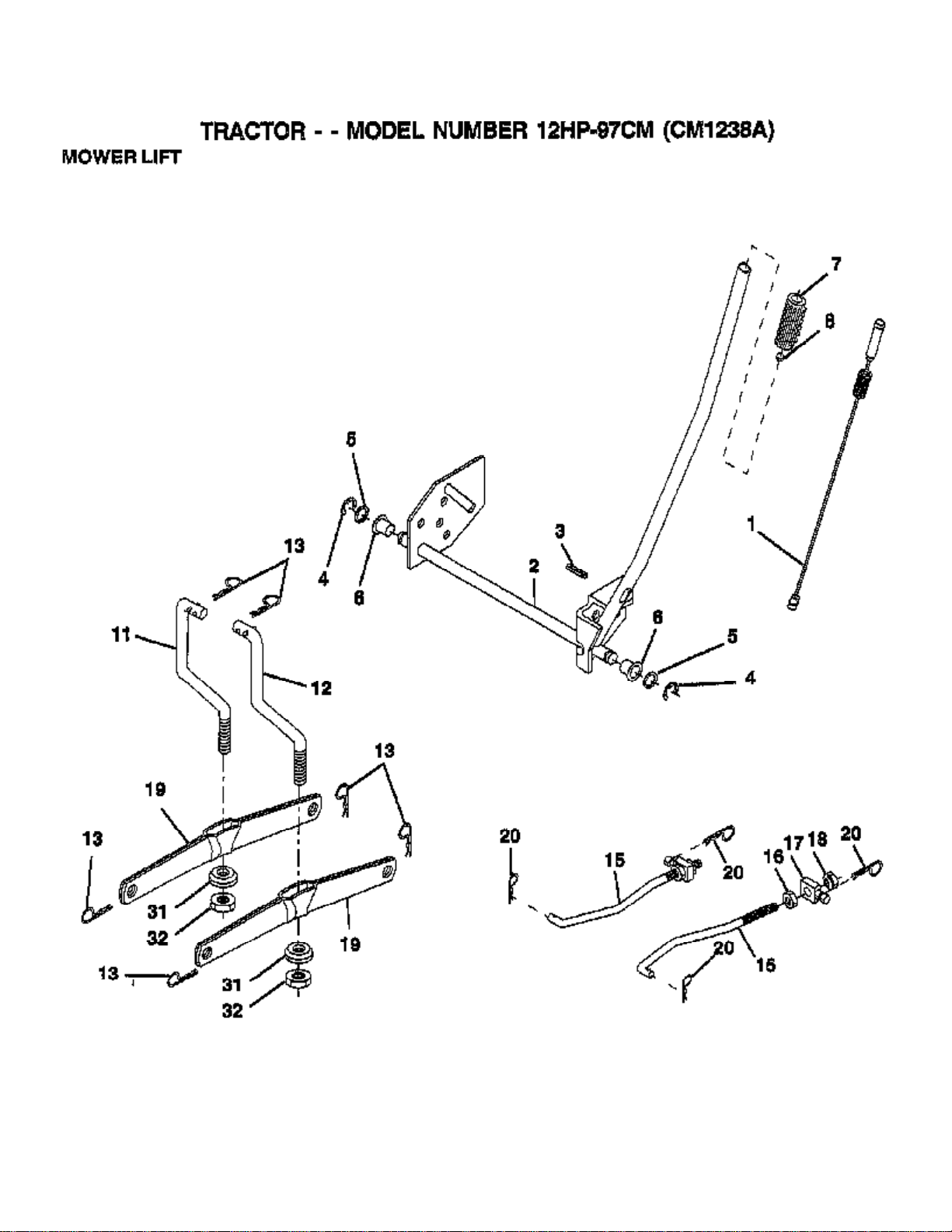

MOWER LIFT
CM1238A (1999 & Before) Page 16 of 24
MOWER LIFT
Ref # Part Number Qty Description
1 159460 WIRE ASM W.SPRING
2 159474 SHAFT ASM.LIFT
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 167253 LINK, FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 163552 RETAINER SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
CM1238A (1999 & Before) Page 17 of 24
SCHEMATIC
CM1238A (1999 & Before) Page 18 of 24
SCHEMATIC
Ref # Part Number Qty Description
REFER REFER TO IMAGE
CM1238A (1999 & Before) Page 19 of 24
SEAT
CM1238A (1999 & Before) Page 20 of 24
SEAT
Ref # Part Number Qty Description
1 127426X SUB= 140119
2 140551 BRACKET PVT SEAT
3 71110616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17000616 SCREW
9 19131614 WASHER
10 155925 PAN-SEAT
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050412 BOLT-RD HD SQ NK
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 171852 BOLT
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
CM1238A (1999 & Before) Page 21 of 24
STEERING WHEEL
CM1238A (1999 & Before) Page 22 of 24
STEERING WHEEL
Ref # Part Number Qty Description
1 140044 WHEEL STR AYP BLK
2 154427 AXLE ASM
3 169840 SPINDLE ASM
4 169839 SPINDLE ASM
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 169832 LINK DRAG
11 10040600 LOCKWASHER
13 136518 SPACER BEARING
15 145212 NUT.HXFLG.LOCK.
17 156545 SHAFT ASSM STEERN
18 57079 THRUST WASHER
19 160395 SUPPORT.SHAFT.STEER
22 165857 SCREW.HX.WSH.HD
23 165851 SHAFT.ASM.PITMAN
25 154406 BRKT-STEERING
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17060612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 155099 BUSHING.STEERING
37 152927 "SCREW-TT,10-32 FL"
38 140045 CAP STEER AYP
39 19133812 WASHER
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
46 121232X CAP
47 6855M ZERK M
62 167903 KIT.STEER.ASM
65 160367 "SPACER BRCAE,AXLE"
66 154404 "BEARING-ARM,PITMA"
67 72140618 BOLT RDHD 3/8-16
68 169827 BRACE AXLE
79 19132012 WASHER
80 74950612 BOLT.HX.NYLON3/8-16X3/
82 169835 BRKT SUSP CHASSIS FRT
85 133835 XMAS TREE FASTNER
CM1238A (1999 & Before) Page 23 of 24
TIRES/WHEELS
CM1238A (1999 & Before) Page 24 of 24
TIRES/WHEELS
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 124635X SUB= 126957X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
