AYP CHDR500A Parts List
CHDR500A (1997) Page 1 of 14
DECALS
CHDR500A (1997) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 157384 "DECAL PANEL,CTRL"
2 157387 "DECAL SHIELD,TINE"
3 157386 "DECAL GUARD, BELT"
4 110678X NLA
5 141907 DECAL.HAND.PLACE
6 110614X DECAL TI
7 110612X DECAL TI
8 271948 DECAL, BRIGGS & STRATTON
9 120076X SUB= 120075X
10 156199 DECAL REVERSE
11 272630 DECAL, 5 HP
159399 MANUAL.O.CHDR500A
159402 MANUAL.O.CHDR500A
CHDR500A (1997) Page 3 of 14
HANDLE ASSEMBLY
CHDR500A (1997) Page 4 of 14
HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 8389J GRIP TI
2 121248X BUSHING
3 71191008 SCREW.PNHD.10-24
4 126949X428 "BRKT,HDLE"
5 72110514 BOLT CARRIAGE CRT
6 108281X ROD SHIFT CRT
7 72110608 BOLT D
8 4497H RETAINER M
9 109229X LOCK CRT
10 73930600 LOCKNUT
11 19131611 WASHER CRT
12 109228X LEVER LOCK CRT
13 150217 HANDLE
14 145820 CABLE.CLUTCH.Z-BE
15 145821 BRACKET.CLUTCH.CA
17 102604X GRIP BAR CRT
18 150696 BOLT PIVOT
21 145829 BAR.ASM.CNTRL.VPL
22 150744 "GRIP,HANDLE"
24 73731000 NUT
25 127012X "CONT,THROTTLE"
26 146480 GROMMET.HANDLE.V27 10040500 LOCKWASHER
28 73800500 NUT
CHDR500A (1997) Page 5 of 14

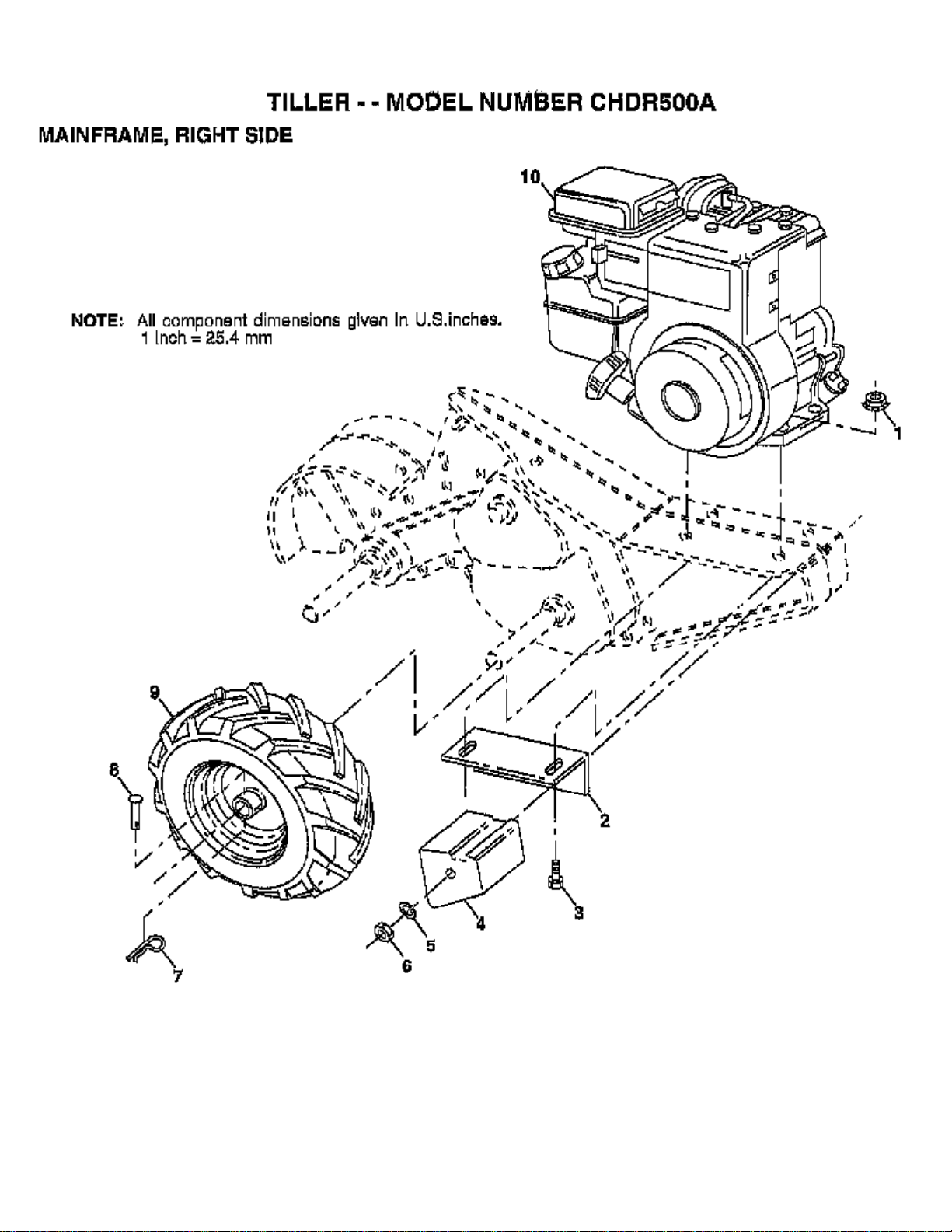

MAINFRAME LEFT SIDE
