REPAIR PARTS
HANDLE ASSEMBLY
TILLER - - MODEL NUMBER CHDF550F
KEY PART
NO. NO. DESCRIPTION
1 131268X428 Bracket, Handle
2 72140512 Bolt, Carriage 5/16-18 UNC x 1-1¦2
3 9266R Grip, Handle
4 166376 Handle, L.H.
5 73680500 Locknut, Crown 5/16-18
6 19111116 Washer 11/32 x 11/16 x 16 Ga.
7 19121414 Washer 3/8 x 7/8 x 14 Ga.
8 74760516 Bolt, Hex Hd 5/16-18 x 1
9 74760512 Bolt, Hex Hd 5/16-18 x 3/4
10 10040500 Washer, Lock 5/16
11 73220500 Nut, Hex 5/16-18
12 98000129 Nut, Flanged 5/16-18
13 72140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5
14 674A150428 Panel, Handle
16 166377 Handle, R.H.
KEY PART
NO. NO. DESCRIPTION
17 106932X Knob, Control, Reverse
18 166868 Cable, Control, Tine
19 151229 Control, Tine
20 154805 Pin, Pivot
21 12000027 Ring, Klip
22 167692 Rod, Reverse, Upper
23 1778E Pin, Retaining
24 2613J Rod, Reverse, Lower
25 19131316 Washer 13/32 x 13/16 x 16 Ga.
26 76020412 Pin, Cotter 1/8 x 3/4
27 76020308 Pin, Cotter 3/32 x 1/2
28 19131312 Washer 13/32 x 13/16 x 12 Ga.
29 12000059 Retaining, Ring
NOTE: All component dimensions are given in U.S.
inches. 1 inch = 25.4 mm
17
REPAIR PARTS
TILLER - - MODEL NUMBER CHDF550F
BELT GUARD AND PULLEY ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 166013 Assembly, Bracket, Belt Guard
2 9484R Clip, Cable
3 86777 Screw, Hex, Washer Hd., Slotted,
Thd. Cutting #10-24 x 1/2 Type D
4 74610812 Bolt, fin Hex 1/2-20 x 3/4
5 73220600 Nut, Hex 3/8-16
6 19131316 Washer 13/32 x 13/16 x 16 Ga.
7 2009J Pulley, Idler, Reverse
8 127180X Assembly, Arm, Reverse Idler
9 74760628 Bolt, Hex 3/8-16 x 1-3/4
10 156705X428 Guard, Belt
11 19091016 Washer 9/32 x 5/8 x 16 Ga.
12 104213X Nut, Cap 1/4- 20
13 72140406 Bolt, Carriage 1/4-20 x 3/4
14 133035 V-Belt (Forward Motion)
15 2614J V-Belt (Reverse)
16 12000028 Ring, Retainer
17 2649M Key, Square
18 151236 Sheave, Transmission, Flat Rev.
19 110550X Bolt, Belt Guard
KEY PART
NO. NO. DESCRIPTION
20 12000036 Ring, Klip
21 73350600 Nut, Hex, Jam 3/8-16
22 161806 Pulley, Idler
23 162290 Arm, Idler
24 74760620 Bolt, Hex 3/8-16 x 1-1/4
25 106968X Shaft, Idler Arm
26 73350500 Nut, Hex, Jam 5/16-18
27 73220400 Nut, Fin Hex 1/4-20
28 10040400 Washer Lock Hvy Helical 1/4
29 109227X Pad, Idler
30 23200404 Screw, Set , Socket, Headless
C.P. 1/4-20 x 1 /4
31 101189L Sheave, Engine
32 151223 Sheave, Transmission "D"
35 19091416 Washer 9/32 x 7/8 x16 Ga.
40 73510400 Nut Keps Hex 1/4-20
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
18
REPAIR PARTS
TILLER - - MODEL NUMBER CHDF550F
WHEEL AND DEPTH STAKE ASSEMBLY
KEY P A R T
NO. NO. DESCRIPTION
1 9194R Pin, Clevis
2 74760520 Bolt, Hex 5/16-18 x 1-1/4
3 74760512 Bolt, Hex 5/16-18 x 3/4
4 73220500 Nut, Hex 5/16-18
5 10040500 Washer, Lock 5/16
6 73800600 Locknut, w/washer 3/8-16
7 4921H Clip, Hairpin
8 1952J Support, Depth Stake, R.H.
9 122233X Stake, Depth
10 326J Pin , Clevis
11 74780628 Bolt, Hex, Fin 3/8-16 x 1-3/4
13 1951J Support, Depth Stake, L.H.
KEY P A R T
NO. NO. DESCRIPTION
15 5388J Spring, Stake
16 121117X Bolt, Shoulder
17 9188R Wheel
18 19131311 Washer 13/32 x 13/16 x 11 Ga.
19 9190R Bracket, Wheel
20 73680600 Locknut, Crown 3/8-16
21 74760516 Bolt, Hex 5/16-18 x 1
22 73800500 Locknut, w/insert 5/16-18
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
19
REPAIR PARTS
TINE ASSEMBLY
TILLER - - MODEL NUMBER CHDF550F
KEY PART
NO. NO. DESCRIPTION
1 156934 Tine, Outer, R.H.
2 3146R Retainer Spring
3 156932 Tine, Inner, R.H.
KEY PART
NO. NO. DESCRIPTION
4 156931 Tine, Inner, L.H.
5 156933 Tine, Outer, L.H.
6 4929H Pin, Clevis
20
REPAIR PARTS
TRANSMISSION
TILLER - - MODEL NUMBER CHDF550F
KEY P ART
NO . NO . DESCRIPTION
1 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
2 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4
3 19131311 Washer 13/32 x 13/16 x 11
5 73800600 Locknut, Hex, w/washer 3/8-16
6 9056R428 Shield, Tine
7 165835 Bracket, Engine, R.H.
8 1948J Bracket, Engine, L.H.
9 10040500 Washer, Lock 5/16
10 73220500 Nut, Hex 5/16-18
11 74760544 Bolt, Hex 5/16-18 x 2-3/4
12 151222 Transmission
KEY PART
NO. NO. DESCRIPTION
14 9173R Spacer, Split
15 73510500 Nut, Keps 5/16
16 19091412 Washer 9/32 x 7/8 x 12 Ga.
17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
18 10040400 Washer, Lock 1/4
19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5
2 0 - - - - - - - Engine Briggs Model 137202
(Order parts from engine
manufacturer)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21

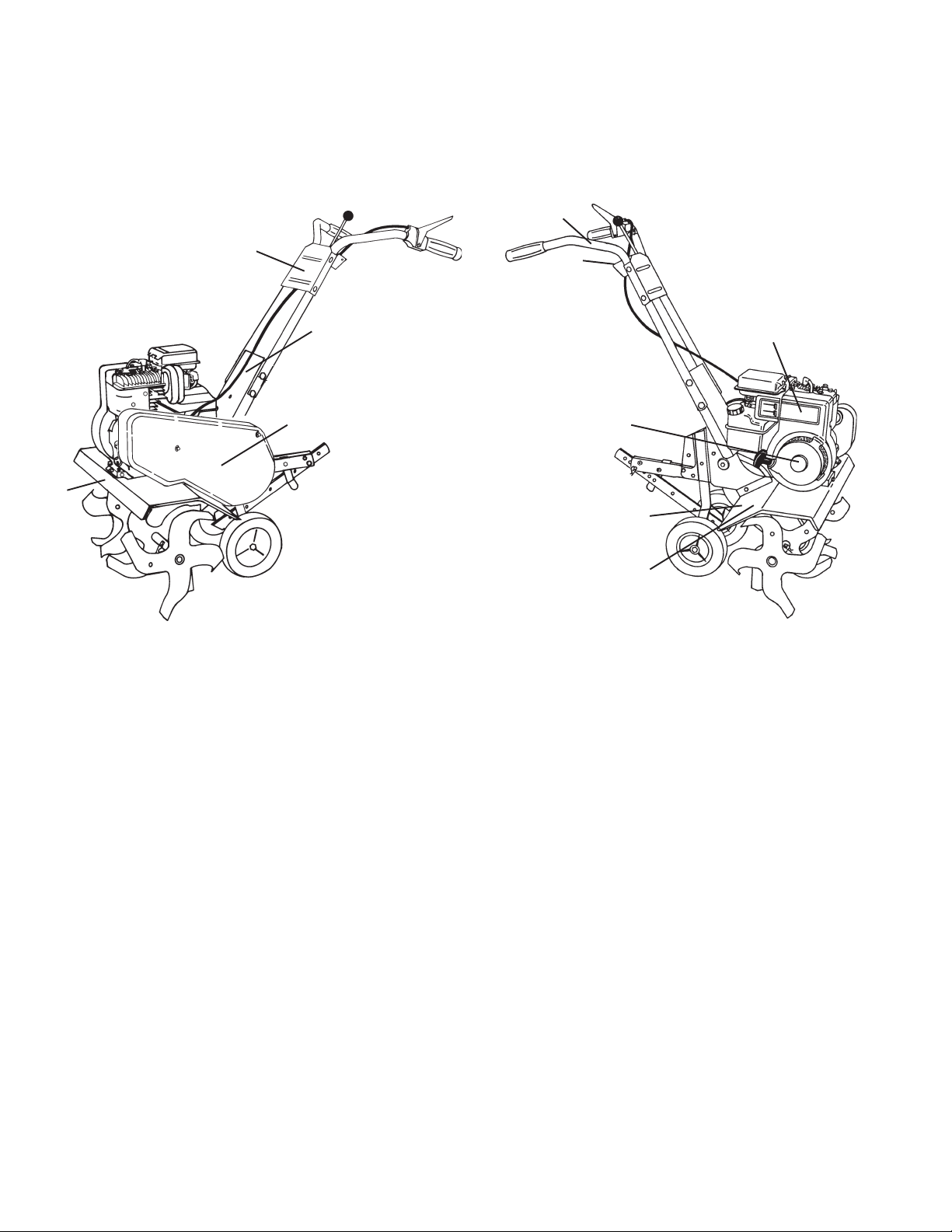

REPAIR PARTS
DECALS
TILLER - - MODEL NUMBER CHDF550F
6
1
4
2
3
5
8
10
9
11
KEY P A RT
NO. NO. DESCRIPTION
1 157377 Decal, Logo
2 157380 Decal, Logo
3 157381 Decal, Description
4 157378 Decal, Forward Reverse
5 121753X Decal, Reverse, Tine Control
6 110614X Decal, Hand Placement
8 171804 Decal, 5 HP
9 120076X Decal, Warning, Rotating Tines
10 171803 Decal, Briggs & Stratton
11 162384 Decal, Warning, Tilling
- - 174102 Manual, Owner’s (English)
- - 174103 Manual, Owner’s (French)
