Page 1

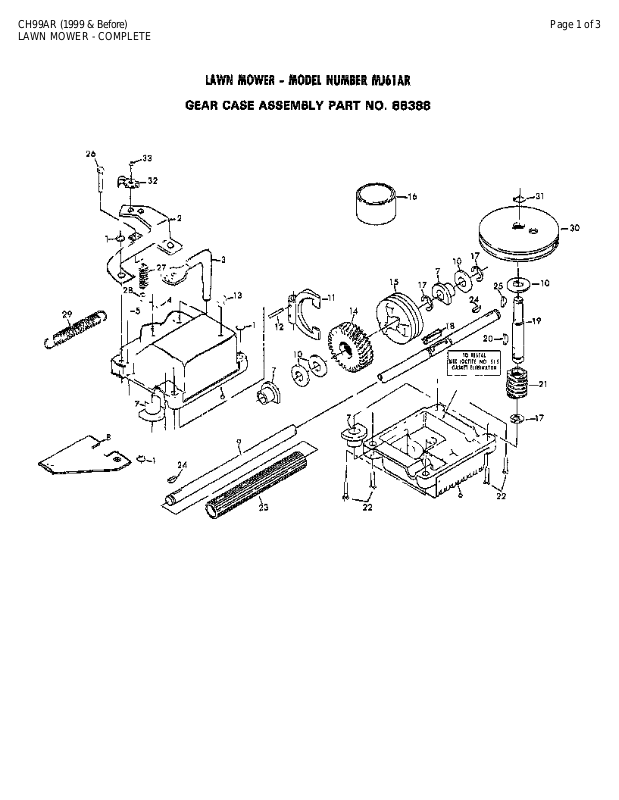

CH99AR (1999 & Before) Page 1 of 3
LAWN MOWER - COMPLETE
Page 2
CH99AR (1999 & Before) Page 2 of 3
LAWN MOWER - COMPLETE
Ref # Part Number Qty Description
1 REFER TO IMAGE
2 103568X BAIL ZONE PM
3 103244X SUB= 103075X479
4 84683 SUB= 84684X479
5 101632X GRIP COMFORT PM
6 107245X THROTTLE CNTRL PM
7 54138 SUB= 74760432
8 85723 WASHER PM
9 63601 SUB= 73800400
10 86874 SUB= 84047
11 800031 CABLE ASSY
12 83813 SCREW PM
13 103672X ROPER GUIDE PM
14 58714 SUB= 131959
15 63688 SUB= 136376
16 85827 CABLE CLIP PM
17 51793 HAIRPIN COTTER
18 111199X REAR SKIRT PM
19 81276 SCREW
20 111831X MOWER HOUSING ASSY
21 103511X SUB= 150959
22 103510X SUB= 150959
23 59289 STEEL WASHER
24 55187 SCREW
25 111726X SUB= 107607X479
26 111727X SUB= 107609X479
27 55912 SUB= 74780612
28 62336 SUB= 73800600
29 107611X ROD.SUPPORT.WB.
30 54583 SCREW
31 69478 SUB= 750085X007
32 84920 SUB= 146630
33 84888 SUB= 700331X004
34 77865 SUB= 532132800
35 107613X SUB= 107612X004
36 85022 SUB= 85021X004
37 61651 WASHER
38 62335 "WASHER, BELLEVIL."
39 84921 SUB= 142748
40 62336 SUB= 73800600
41 87912 SUB= 700929X479
42 85463 DECAL-DANGER PM
43 107795X WHEEL & TIRE PM
44 52160 WASHER
45 85179 RETAINER CLIP PM
46 8508J HUB CAP PM
47 100945R DISCHARGE GRD PM
48 53847 SUB= 19091214
49 53490 NUT
50 674A260 SUB= 800767
51 674A261 SUB= 800769
52 103673X HINGE ROD PM
53 100958L SPRING-TORSION PM
54 59349 PAL NUT PM
55 82626 SUB= 74940620
56 84942 WASHER.FLAT.3/8
57 103524X "BLADE 22"" PM"
58 107250X SUB= 851026
Page 3
CH99AR (1999 & Before) Page 3 of 3
LAWN MOWER - COMPLETE
Ref # Part Number Qty Description
59 68205 SCREW MACHINE H
60 800160 HOUSING NAME DECAL
61 65053 WOODRUFF KEY
62 107620X WHEEL & TIRE PM
63 111173X SHOULDER BOLT PM
64 74400 SUB= 73800600
65 88348 WASHER PM
800163 NLA
