CH79AR (1999 & Before) Page 1 of 5

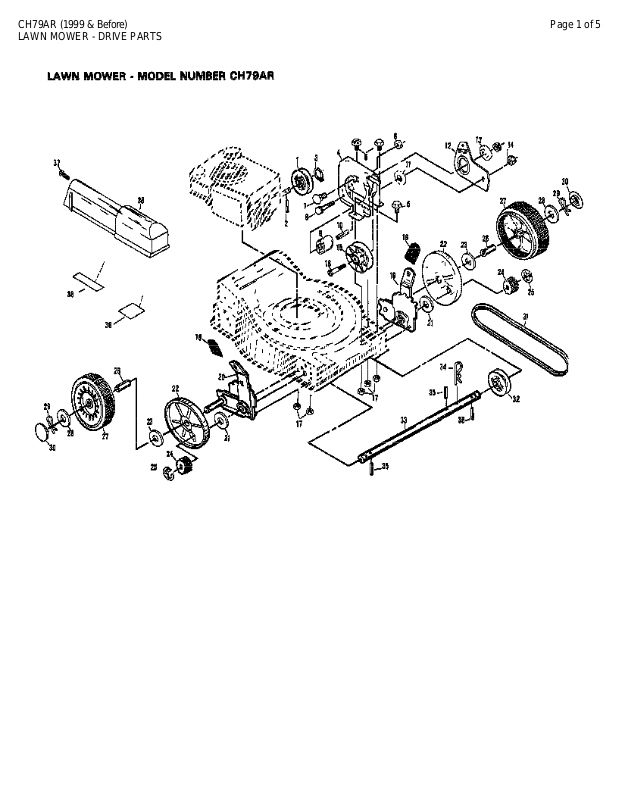

LAWN MOWER - DRIVE PARTS
CH79AR (1999 & Before) Page 2 of 5
LAWN MOWER - DRIVE PARTS
Ref # Part Number Qty Description
1 88043 PULLEY PM
2 88028 SUB= 851980
3 58334 SUB= 2286J
4 88064 SUB= 88063X004
5 65231 SCREW
6 50962 LOCKNUT
7 72907 BOLT
8 60924 SUB= 74780424
9 88575 SUB= 48160
10 88576 IDLER SPACER
11 88069 SPACER PM
12 88066 SUB= 702631X004
13 88067 SPACER PM
14 750253 LOCKNUT
15 88516 IDLER PULLEY
16 88517 SHOULDER BOLT
17 63601 SUB= 73800400
18 87877 KNOB PM
19 88044 SUB= 151207
20 88055 SUB= 151206
21 88118 WASHER PM
22 88080 DUST SHROUD PM
23 67725 WASHER FLUT
24 750003 PINION
25 53753 E-RING
26 88446 BUSHING.HEX
27 111923X SUB= 148439
28 52160 WASHER
29 55015 CLIP.RETAINER
35 88028 SUB= 851980
36 111925X COVER.DRIVE
37 36953 SCREW SELF TAP
38 850209 DECAL
39 850417 NLA
CH79AR (1999 & Before) Page 3 of 5
LAWN MOWER - MAIN ASSEMBLY
CH79AR (1999 & Before) Page 4 of 5
LAWN MOWER - MAIN ASSEMBLY
Ref # Part Number Qty Description
1 103389X UPPER HDLE
2 84677 SUB= 151516X479
3 750332 CONTROL BAR
4 850002 DRIVE CONTROL
5 78186 SCREW
6 74189 NUT
7 111123X SCREW PM
8 850547 ZONE CABLE
9 111930X THROTTLE CONTROL
10 54138 SUB= 74760432
11 85723 WASHER PM
12 63601 SUB= 73800400
13 103672X ROPER GUIDE PM
14 58714 SUB= 131959
15 8282J SUB= 128638
16 78090 SUB= 85768
17 77553 CABLE GUIDE
18 85827 CABLE CLIP PM
19 51793 HAIRPIN COTTER
20 88092 GUIDE PM
21 75695 SUB= 81958X479
22 81283 SCREW
23 81022 SUB= 81957X479
24 54583 SCREW
25 86779 HEX SCREW
26 87093 REAR SKIRT PM
27 87095 SUB= 87439X004
28 77524 SUB= 81959X479
29 77526 HINGE ROD
30 33750 SUB= 12000014
31 77527 SPRING
32 81962 SUB= 81962X479
33 86914 SUB= 150958
34 86915 SUB= 150958
35 55187 SCREW
36 63124 SUB= 73690500
37 39478 SUB= 750085X007
38 84920 SUB= 146630
39 88348 WASHER PM
40 87877 KNOB PM
41 84888 SUB= 700331X004
42 85022 SUB= 85021X004
43 62335 "WASHER, BELLEVIL."
44 84921 SUB= 142748
45 111922X SUB= 850690
46 52160 WASHER
47 55015 CLIP.RETAINER
48 77400 HUB CAP
49 61528 SUB= 74100412
50 63601 SUB= 73800400
51 53847 SUB= 19091214
52 53066 SUB= 54262
53 54583 SCREW
54 86779 HEX SCREW
55 85726 SUB= 74780534
56 50806 SUB= 19101216
57 63124 SUB= 73690500
58 88038 SUB= 144961
CH79AR (1999 & Before) Page 5 of 5
LAWN MOWER - MAIN ASSEMBLY
Ref # Part Number Qty Description
59 103523X "BLADE 20"""
60 82626 SUB= 74940620
61 850263 LOCKWASHER
62 107250X SUB= 851026
63 84942 WASHER.FLAT.3/8
64 88615 BRKT DRV COV
65 57155 SHOULDER SCREW
66 54509 SUB= 73731000
67 850439 HOUSING
68 85463 DECAL-DANGER PM
69 88040 SPACER PM
70 111190X CABLE CLAMP
71 107488X SCREW
72 70385 CABLE CLIP
73 83816 SCREW PM
74 111721X SUB= 111163X
75 77530 CATCHER FRAME
76 850438 YARDMASTER DECAL
77 107213X NLA
78 83935 DOOR SEAL
79 850426 ENGINE ASSY
850420 OWNERS MANUAL
