CB1136C (1999 & Before) Page 1 of 37
BAGGER
CB1136C (1999 & Before) Page 2 of 37
BAGGER
Ref # Part Number Qty Description
2 69180 LOCKNUT
3 127533 COVER.SCREEN.
4 140654 SUB= 161314
5 128598 CHUTE.UPPER.BAGGE
6 18021008 SPECIAL SCREW
7 140572 INDICATOR.DUMP.BG
8 87175 SUB= 74981020
9 19061216 WASHER #10
10 7206J SPACER LT
11 60867 ACORN NUT RB
12 10071000 LOCKWASHER
13 109808X HOOD LATCH T
14 2029J WELDNUT
15 74930516 BOLT GT
17 130758 SUB= 160793
18 128599 "CHUTE.LOWER.36"""
19 133841 ACORN NUT
20 71161010 SCREW
21 132796 SPRING.COVER.LH
22 133235 SPACER.COVER.BAGG
23 132983 SPRING COVER RH
24 127720X POST SUPPORT
25 63124 SUB= 73690500
26 4939M SUB= 85902
27 74760512 BOLT
28 130889 BRACKET.MTG.BAGGE
29 17490508 SCREW LT
30 131137 PIN.SUPT.POST
31 134496 CAP TUBING END
32 126919X FRAME. BAGGER
33 128600 HINGE PIN
34 127534 GASKET.COVER.BAGG
35 129585 CONTAINER.TOP.BAG
36 132431 CONTAINER BOTTOM
37 132256 SEAL.COVER.BAGGER
38 130895 LATCH HANDLE
39 135495 SUB= 155042X500
40 71141008 SCREW #10-24X12
41 73800600 NUT
42 137031 U-BOLT
43 123635X "WEIGHT,FRT WHEEL"
104419X SUB= 105070X
142001 MANUAL.OPER.BAGGE
CB1136C (1999 & Before) Page 3 of 37
BRAKE/REAR MOWER LIFT
CB1136C (1999 & Before) Page 4 of 37
BRAKE/REAR MOWER LIFT
Ref # Part Number Qty Description
1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8156H FOOT PEDAL COVER
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT
9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 139933 PEDAL ASM CL/BK36
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 133332 PVT BRAKE ARM ASM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73350600 NUT
20 73680600 SUB= 73690600
21 131460 SUB= 532131460
22 144585 TRUNNION.LIFT.
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 140776 LIFT ASM MOW REAR
29 72110506 SUB= 72270506
30 73510500 NUT
31 3146R RETAINER.SPRING
CB1136C (1999 & Before) Page 5 of 37
DASH
CB1136C (1999 & Before) Page 6 of 37
DASH
Ref # Part Number Qty Description
1 141523 CAP BLK FUEL LR
2 138392 TANK.ASM.DASH.LR
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73640400 NUT HXKEP 1/4X20
7 2751R CLIP T
8 19091216 WASHER PM
9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 17060408 SCREW.1/4-20X1/2
21 134014 PLUG DOME
CB1136C (1999 & Before) Page 7 of 37
DECALS
CB1136C (1999 & Before) Page 8 of 37
DECALS
Ref # Part Number Qty Description
1 144035 DECAL.ONL.SIDE
2 144027 DECAL.HD.RH.COOP
3 144028 DECAL.HD.LH.COOP
4 144038 DECAL.GRILLE.COOP
5 144040 DECAL.INS.WHL.STG
6 125690X DECAL
7 144039 DECAL.FEND.COOPER
10 145545 DECAL.OP.INST.SYM
11 145494 DECAL.DANGER.CUTF
12 145005 DECAL.BATRY.3-3908
13 145498 DECAL.READ.O.MANU
14 136830 DECAL.V.BELT
15 135013 NLA
17 145437 DECAL.EURO.ST.CE.
138311 DECAL HANDLE LIFT
147193 MANUAL.OP.GEN.EUR
147685 MANUAL.CB1136C
MK360 MULCHER, KIT
C36 REAR BAGGER
CB1136C (1999 & Before) Page 9 of 37
ELECTRICAL
CB1136C (1999 & Before) Page 10 of 37
ELECTRICAL
Ref # Part Number Qty Description
1 73640400 NUT HXKEP 1/4X20
2 108423X CABLE ASM.
3 144924 SUB= 123899X
5 108236X BRACKET LT
6 109553X SWITCH INTERLOCKT
8 17021008 SCREW
9 140402 KEY STEEL DELTA
10 141226 COVER KEY SWITCH
11 140400 SUB= 145774
12 144921 SUB= 163088
15 121305X SWITCH SEAT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 146064 HARNESS.IGN.LR.
20 73350400 NUT
21 10090400 SUB= 10040400
22 71110408 BOLT HXHD FIN
24 131563 SUB= 154336
25 145673 SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
30 73220400 SUB= 50675
31 4152J HEADLAMP BULB
32 136850 "HARNESS,LIGHT SOC"
33 110712X SWITCH LT
35 11050500 LOCKWASHER.5/16.E
36 11150400 LOCKWASHER
39 141735 BRACKET SWT CLUTC
55 17490508 SCREW LT
70 140413 HARNESS ENG DUAL
CB1136C (1999 & Before) Page 11 of 37
ENGINE/THROTTLE
CB1136C (1999 & Before) Page 12 of 37
ENGINE/THROTTLE
Ref # Part Number Qty Description
1 17060408 SCREW.1/4-20X1/2
2 133025 SUB= 532133025
3 28C707 ENGINE, B&S, 11HP
4 71070512 SCREW
5 10040500 LOCKWASHER
6 125593X SUB= 272293
7 11050600 LOCKWASHER
8 121094X BOLT T
9 19101216 WASHER
10 10040400 LOCKWASHER
11 74760416 BOLT
12 137437 MUFFLER
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 137180 SUB= 532137180
16 127951 "STOP,DASH THROTT"
17 17490624 SCREW LT
18 73510600 NUT
19 2751R CLIP T
39 73510400 NUT
CB1136C (1999 & Before) Page 13 of 37
FENDER/CHASSIS
CB1136C (1999 & Before) Page 14 of 37
FENDER/CHASSIS
Ref # Part Number Qty Description
1 129965 SUB= 156417
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 127115X505 BTRY FENDER PLATE
6 109596X HOSE CLAMP T
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126994X CONSOLE SHFT 5SP
10 139783 PLATE LOCK SHIFT
11 124346X NUT
12 145190 CHASSIS.WELD.ASM.
13 109238X TUBE T
14 73800500 NUT
15 73640400 NUT HXKEP 1/4X20
16 141736 SUB= 146613
17 140782 DRAWBAR ASM LR
18 126470X "CLIP,INSULATOR"
19 140955X505 FENDER/FOOT MS505
20 19091413 WASHER
25 17190516 SCREW
CB1136C (1999 & Before) Page 15 of 37
FRONT AXLE
CB1136C (1999 & Before) Page 16 of 37
FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 3366R COL. SRTG. BEAR.
5 142033 AXLE ASM FRONT
6 6266H WASHER .T
7 137062 SPINDLE ASM RH
8 121749X WASHER
9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 130465 TIE ROD
13 137061 SPINDLE ASM LH
14 74011056 BOLT HEX 5/8-11
15 7390100 SUB= 73901000
16 110438X BEARING
17 6855M ZERK M
18 19272016 WASHER
CB1136C (1999 & Before) Page 17 of 37

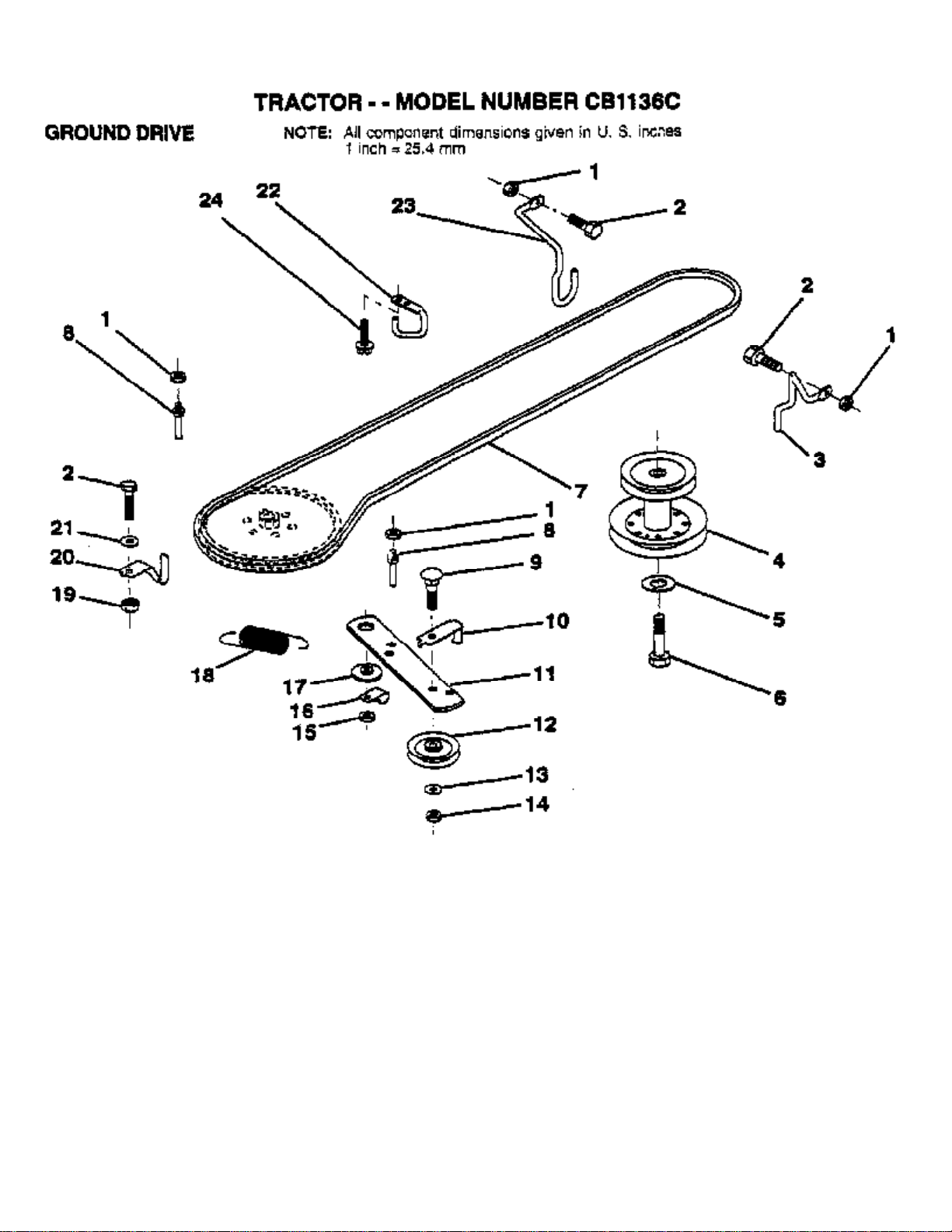

GROUND DRIVE
CB1136C (1999 & Before) Page 18 of 37
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 141342 KEEPER RH
4 138029 PULLEY.ENGINE.LR
5 10040700 LOCKWASHER
6 71170744 HEX BOLT
7 124525X BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 140911 ARM IDLER CLUT GD
12 123674X PULLEY.IDLER.FLAT
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 122052X SPACER RETAINER
18 131459 SUB= 532131459
19 73510500 NUT
20 139919 KEEPER.BELT.T/A
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 140916 KEEPER MOWER LH
24 17720408 SCREW
CB1136C (1999 & Before) Page 19 of 37
HOOD
CB1136C (1999 & Before) Page 20 of 37
HOOD
Ref # Part Number Qty Description
6 140051 BRACKET ASM HD RH
7 140050 BRACKET ASM HD LH
9 73800400 NUT
10 141321 ROD SUPT HOOD
11 141509 HOOD/GRILLE.505
12 139298 LENS.PL.BAR.CLEAR
20 19091016 WASHER
23 139969 LATCH.HOOD.LR
24 139158 BRACKET.PVT.HOOD
32 139624 DUCT.INTAKE.AIR
35 17490512 SCREW
37 74760412 BOLT LT
38 19092016 WASHER
CB1136C (1999 & Before) Page 21 of 37
MOWER DECK
CB1136C (1999 & Before) Page 22 of 37
MOWER DECK
Ref # Part Number Qty Description
1 140064 SPRING CLUTCH MWR
2 122052X SPACER RETAINER
3 73680600 SUB= 73690600
4 130840 BRAKE ASM
5 131251 IDLER BELT GUIDE
6 121316X PULLEY IDLER
7 72110616 BOLT
8 19131410 WASHER
9 127744 SUB= 140092
10 72140610 BOLT.3/8-14X1.25
11 130841 BRAKE ROD
12 127356 "BRKT,LIFT REAR"
13 72140506 BOLT
14 73680500 SUB= 73690500
15 127356 "BRKT,LIFT REAR"
16 140093 SUB= 153298
17 128508 MOWER LINK STAB
18 128511 "PIN,GROOVE"
19 127380 "BRKT,LINK STABILI"
20 138496 "BLADE.36"" HIPERF"
21 140296 WASHER.HARD.BLADE
22 10030600 SUB= 10040600
23 850857 BLADE BOLT
24 140329 STRIPPER RND MWR
25 138776 SUB= 157722
26 129963 WASHER
27 129983 SUB= 156600
28 129207 SUB= 153531
29 137266 SUB= 139729
30 136631 SUB= 532136631
31 17490508 SCREW LT
32 122051X "SUPT,IDLER ARM"
33 139083 SHIELD.DEFL.36TUV
36 121980X HINGE ROD
37 123713X SPRING TORSION
38 105304X CAP-SLEEVE LT
39 19111016 WASHER
40 110452X NUT PUSH M
41 131264 V-BELT.PRIM.78.5.
42 19171616 WASHER
43 3146R RETAINER.SPRING
44 140608 KEEPER BELT LH
45 110485X BEARING
46 128774 HSG ASM MANDREL
47 129895 BEARING.BALL
48 137645 SUB= 137646
49 133943 HARDENED WASHER
50 M720305016 BOLT M5X0.8X16
51 136383 GUARD.DFTR.MWR.36
52 19070718 NLA
53 M730705000 "NUT, M5X0.8"
130794 MANDREL ASM
144973 DECK.36.LR
CB1136C (1999 & Before) Page 23 of 37
MOWER LIFT
CB1136C (1999 & Before) Page 24 of 37
MOWER LIFT
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 71110408 BOLT HXHD FIN
4 73680600 SUB= 73690600
5 145187 LEVER.ASM.CLUTCH
6 106451X "BOLT, SHOULDER LT"
7 135371 MWR CLUTCH ARM AS
8 74760636 BOLT
9 121930X "BELLCRANK,LIFT"
10 76020412 COTTER PIN
11 19131316 WASHER
12 131861 SUB= 532131861
13 139352 HANDLE.ASM.LIFT
14 123496X SPRING COMPRESSIO
15 19131212 WASHER T
16 4921H SPRING.RETAINER
17 127359 "LINK,LIFT FRT"
18 142028 TRUNION ADJ
19 73680400 SUB= 73690400
20 74760644 BOLT
23 76020416 PIN COTTER 1/8
24 19171612 WASHER GT
25 121933X TUBE SPACER
26 141470 ROD LIFT MOWER
27 106932X KNOB T(3/8 HOLE)
28 76020312 SUB= 3145
29 131655 CLUTCH LINK
30 73350600 NUT
31 19132012 WASHER
CB1136C (1999 & Before) Page 25 of 37
SEAT
CB1136C (1999 & Before) Page 26 of 37
SEAT
Ref # Part Number Qty Description
1 72050411 SUB= 872050411
2 127428X SUB= 140121
4 73680500 SUB= 73690500
5 139888 BOLT.SHLD.5/16-18
6 145006 CLIP.PUSH-IN.HING
8 74760616 BOLT
9 140551 BRACKET PVT SEAT
10 126471X "CLIP,INSULATOR"
11 19133210 WASHER
12 73800600 NUT
13 74780814 BOLT
14 10040800 LOCKWASHER
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
22 121246X BRKT SWITCH
23 140552 SUB= 155925
CB1136C (1999 & Before) Page 27 of 37
SECTOR GEAR/AXLE SUPPORT
CB1136C (1999 & Before) Page 28 of 37
SECTOR GEAR/AXLE SUPPORT
Ref # Part Number Qty Description
1 132566 DRAG LINK
2 74780828 "BOLT,HEX"
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
17 137096 SUPT AXLE FRONT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500
CB1136C (1999 & Before) Page 29 of 37
STEERING
CB1136C (1999 & Before) Page 30 of 37
STEERING
Ref # Part Number Qty Description
1 133742 ST WHL INSERT CAP
2 7810H GRIPCO NUT
3 19133808 WASHER T
4 133741 SUB= 150547
5 121897X SLEEVE STEERING
6 17431008 SUB= 98000165
7 102803X SUB= 918102803X
8 123651X SUB= 148966
9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 104820X ADAPTER-WHEEL LT
CB1136C (1999 & Before) Page 31 of 37
TRANSAXLE
CB1136C (1999 & Before) Page 32 of 37
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 142602 SUB= 160851
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
8 17490512 SCREW
9 146682 SPRING.BRAKE.RETU
10 121749X WASHER
11 123583X SQUARE KEY
12 74760644 BOLT
15 19171616 WASHER
16 124600X "SUPT,HDLE SHT LH"
17 123632X "LINK,SHIFT"
18 74550412 BOLT.1/4-28.W/PAT
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 123484X ARM SHIFT
22 105701X WASH-SHFT PLT LT
23 106933X KNOB T (1/2-HOLE)
24 128215 "ROD,SHIFT"
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
28 128085 "SPRING,EXT"
29 128084 "SUPT,HDLE RH"
31 109502X SPACER LT
33 73680600 SUB= 73690600
35 12000001 E-RING LT
36 17720408 SCREW
CB1136C (1999 & Before) Page 33 of 37
TRANSAXLE
CB1136C (1999 & Before) Page 34 of 37
TRANSAXLE
Ref # Part Number Qty Description
1 142671 HOUSING UPPER TRN
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 138235 KIT SHIFTER ASM
7 134399 SHIFTER BOOT
8 120951X PUCK T
9 143045 SEAL OIL DANA5416
10 142672 SUB= 2225J
11 134793 ASM KIT SHIM 4689
12 143051 SUB= 148268
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 134791 SCREW TAP W/SEAL
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 120405X SUB= 124644X
31 108980X GEAR 25T LT
32 120406X GEAR SPUR 22 TT
33 134796 SPUR GEAR 19T
34 134797 SPACER
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 142678 GEAR SPUR 12 TTH
46 120407X SUB= 124641X
47 106589X "GEAR, SPUR 25T LT"
48 120408X GEAR 28T T
49 105937X "GEAR, SPUR 31T LT"
50 105936X SPACER LT
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
CB1136C (1999 & Before) Page 35 of 37
TRANSAXLE
Ref # Part Number Qty Description
59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 106596X "SCREW, TAPPING LT"
73 120416X SUB= 126976X
CB1136C (1999 & Before) Page 36 of 37
WHEELS & TIRES
CB1136C (1999 & Before) Page 37 of 37
WHEELS & TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 137422 SUB= 122073X
132703 SUB= 532132703
5 59904 TUBE.5.3/4.5/6
8134H TUBE.16X6.5/7.5-8
6 122394X473 RIM ASM FRONT 6
140325X473 "RIM ASM REAR 8"""
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
