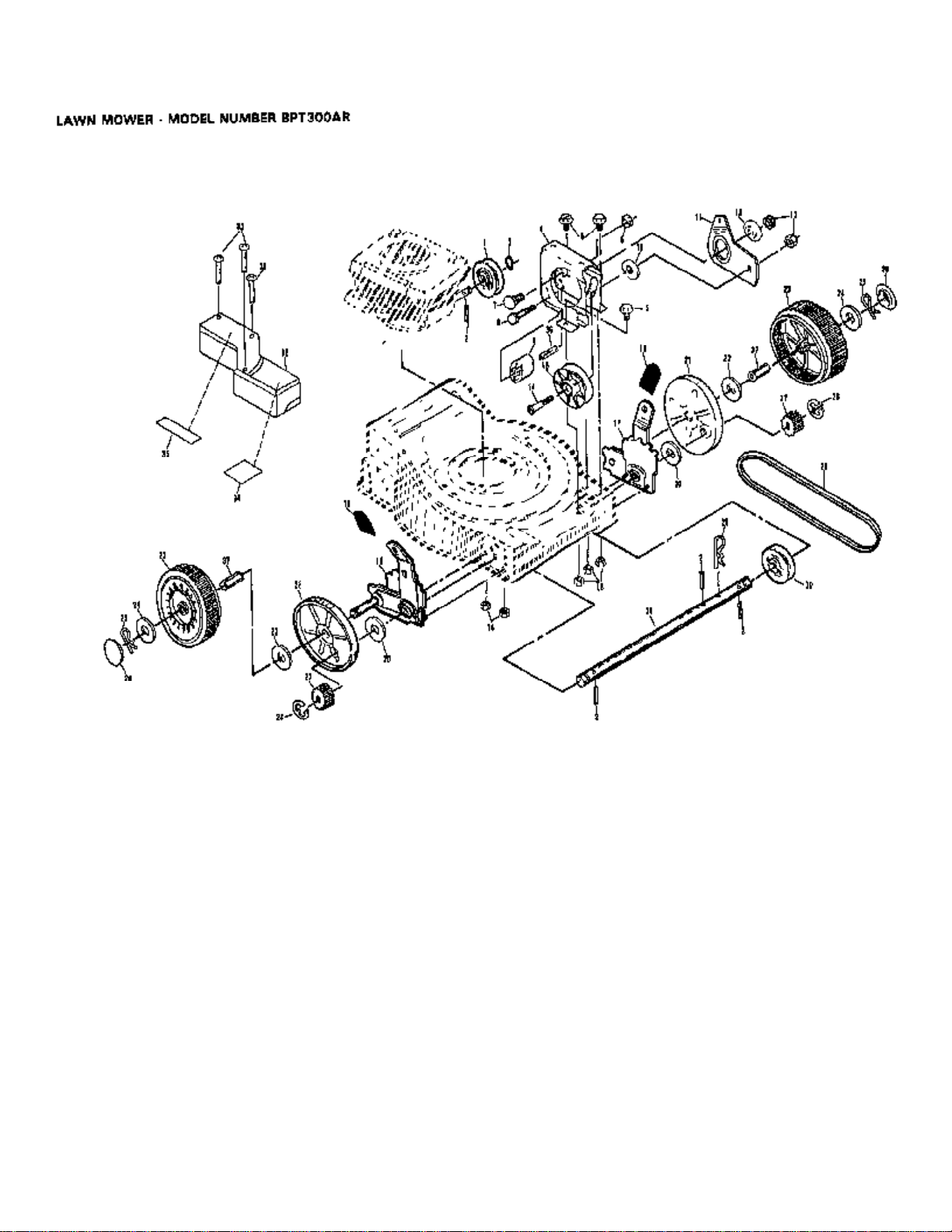

Page 1
BPT300AR (1999 & Before) Page 1 of 5
LAWN MOWER
Page 2
BPT300AR (1999 & Before) Page 2 of 5
LAWN MOWER
Ref # Part Number Qty Description
1 103389X UPPER HDLE
2 84677 SUB= 151516X479
3 750332 CONTROL BAR
4 850002 DRIVE CONTROL
5 78186 SCREW
6 74189 NUT
7 57155 SHOULDER SCREW
8 850548 ZONE CABLE
9 107245X THROTTLE CNTRL PM
10 107362X SUB= 103672X
11 54138 SUB= 74760432
12 85723 WASHER PM
13 63601 SUB= 73800400
14 8282J SUB= 128638
15 58714 SUB= 131959
16 77553 CABLE GUIDE
17 51793 HAIRPIN COTTER
18 88092 GUIDE PM
19 78090 SUB= 85768
20 81958 SUB= 81958X479
21 81283 SCREW
22 81957 SUB= 81957X479
23 86779 HEX SCREW
24 54583 SCREW
25 87093 REAR SKIRT PM
26 87095 SUB= 87439X004
27 77524 SUB= 81959X479
28 33750 SUB= 12000014
29 77526 HINGE ROD
30 77527 SPRING
31 81027 SUB= 81962X479
32 850084 HDLE BRKT L
33 850083 SUB= 150958
34 55187 SCREW
35 63124 SUB= 73690500
36 61528 SUB= 74100412
37 53066 SUB= 54262
38 68208 SCREW
39 50806 SUB= 19101216
40 69478 SUB= 750085X007
41 84920 SUB= 146630
42 88348 WASHER PM
43 84888 SUB= 700331X004
44 87877 KNOB PM
45 85022 SUB= 85021X004
46 62335 "WASHER, BELLEVIL."
47 84921 SUB= 142748
48 111923X SUB= 148439
49 55015 CLIP.RETAINER
50 52160 WASHER
51 77400 HUB CAP
52 88038 SUB= 144961
53 103523X "BLADE 20"""
54 850263 LOCKWASHER
55 82626 SUB= 74940620
56 107250X SUB= 851026
57 84942 WASHER.FLAT.3/8
58 850440 HOUSING
Page 3
BPT300AR (1999 & Before) Page 3 of 5
LAWN MOWER
Ref # Part Number Qty Description
59 85463 DECAL-DANGER PM
60 850072 NLA
61 850225 HOUSING STRIPE DECAL
62 111163X GRASS BAG PM
63 77530 CATCHER FRAME
64 88040 SPACER PM
65 87677 HI PRO KEY PM
66 111123X SCREW PM
67 85827 CABLE CLIP PM
68 63601 SUB= 73800400
69 54509 SUB= 73731000
70 850052 ENGINE ASSY
850055 MANUAL
Page 4
BPT300AR (1999 & Before) Page 4 of 5
LAWN MOWER - DRIVE PARTS
Page 5
BPT300AR (1999 & Before) Page 5 of 5
LAWN MOWER - DRIVE PARTS
Ref # Part Number Qty Description
1 88043 PULLEY PM
2 88028 SUB= 851980
3 58334 SUB= 2286J
4 88064 SUB= 88063X004
5 65231 SCREW
6 50962 LOCKNUT
7 72907 BOLT
8 60924 SUB= 74780424
9 88575 SUB= 48160
10 88069 SPACER PM
11 88066 SUB= 702631X004
12 88067 SPACER PM
13 68478 LOCKNUT
14 88517 SHOULDER BOLT
15 88516 IDLER PULLEY
16 63601 SUB= 73800400
17 88044 SUB= 151207
18 88055 SUB= 151206
19 87877 KNOB PM
20 88118 WASHER PM
21 88080 DUST SHROUD PM
22 67725 WASHER FLUT
23 111922X SUB= 850690
24 52160 WASHER
25 55015 CLIP.RETAINER
26 77400 HUB CAP
27 750003 PINION
28 53753 E-RING
29 850053 "DRIVE, BELT"
30 88082 DRIVE PULLEY PM
31 88081 DRIVE.SHAFT.PM
32 850075 DRIVE CVR
33 88411 SCREW PM
34 850054 NLA
35 850077 DECAL
36 88576 IDLER SPACER
37 88446 BUSHING.HEX
