Page 1
BP75B (1999 & Before) Page 1 of 7
22" REAR BAGGER
Page 2
BP75B (1999 & Before) Page 2 of 7
22" REAR BAGGER
Ref # Part Number Qty Description
1 851909 SUB= 133049
2 74189 NUT
3 78186 SCREW
4 54338 SUB= 74760444
5 77400 HUB CAP
6 85179 RETAINER CLIP PM
7 52160 WASHER
8 850986 WHL & TIRE ASS'Y
9 53753 E-RING
10 74507 PINION.10.TEETH
11 76401 DUST COVER
12 87877 KNOB PM
13 851032 SUB= 48175
14 851031 SUB= 48174
15 61528 SUB= 74100412
16 63601 SUB= 73800400
17 65692 WOODRUFF KEY
18 83632 SUB= 137090
19 68038 SUB= 73850400
20 75192 SPRING
21 57076 WOODRUFF KEY
22 751001 SUB= 48281
23 83681 PULLEY.DRIVE.LM
24 74976 RETAINER RING
25 750108 SCREW WASHER HD
26 83700 CABLE CLAMP
27 107181X DRIVE COVER PM
28 75725 SCREW
29 69411 SCREW
30 851734 "FRAME,CATCHER"
31 851730 SUB= 130214
32 83691 V-BELT.LM.DRIVE
33 REFER TO IMAGE
851812 NLA
Page 3
BP75B (1999 & Before) Page 3 of 7
22" REAR BAGGER
Page 4
BP75B (1999 & Before) Page 4 of 7
22" REAR BAGGER
Ref # Part Number Qty Description
1 850724 SUB= 155890
2 851660 "BAR,CONT"
3 851708X479 SUB= 145640X479
4 63601 SUB= 73800400
5 851809 CABLE.CONT.ENG
6 85723 WASHER PM
7 851464 CONTROL.THROTTLE
8 86261 SUB= 74250434
9 128628 SUB= 128638
10 83816 SCREW PM
11 213146 CABLE CLAMP
12 129898 SUB= 146358
13 750097 TAPPING SCREW
14 87930 GUIDE CLIP PM
15 36953 SCREW SELF TAP
16 851738 HINGE ROD
17 107339X DECAL HYT
18 93705 SUB= 69485
19 223389 MUFFLER DEFLECTOR
20 84596 ENGINE.PULLEY.FWG
21 87677 HI PRO KEY PM
22 59708 SCREW
23 83972X004 BACKING STRIP
24 88366 SUB= 130444
25 850247X479 "BAFFLE,SIDE"
26 850009X419 SUB= 850009X479
27 128415 BLIND RIVET
28 54583 SCREW
29 55505 SCREW
30 800357 SUB= 132001
31 85827 CABLE CLIP PM
32 851710X479 SUB= 151721X479
33 58714 SUB= 131959
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
36 85179 RETAINER CLIP PM
37 52160 WASHER
38 851071 SUB= 148446
39 84921 SUB= 142748
40 62335 "WASHER, BELLEVIL."
41 85021X004 AXLE ARM
42 850855X004 SUB= 700331X004
43 87877 KNOB PM
44 88348 WASHER PM
45 84920 SUB= 146630
46 850904 SUB= 750085X007
47 55187 SCREW
48 63124 SUB= 73690500
49 54583 SCREW
50 851768X419 SUB= 851768X479
51 851769X419 SUB= 851769X479
52 751592 LOCKNUT PM
53 66238 SUB= 72140505
54 851201X004 WASHER
55 850998 SCREW
56 851000 BELT SNUBBER
57 77508X479 SUB= 144964
58 75449 SPEED NUT
Page 5
BP75B (1999 & Before) Page 5 of 7
22" REAR BAGGER
Ref # Part Number Qty Description
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 850973 "BLADE.22"""
63 851514 ADAPTOR.BLADE.LM
64 129897 SUB= 128419
65 REFER TO IMAGE
128078 MANUAL
851869 PARTS MANUAL
851811 NLA

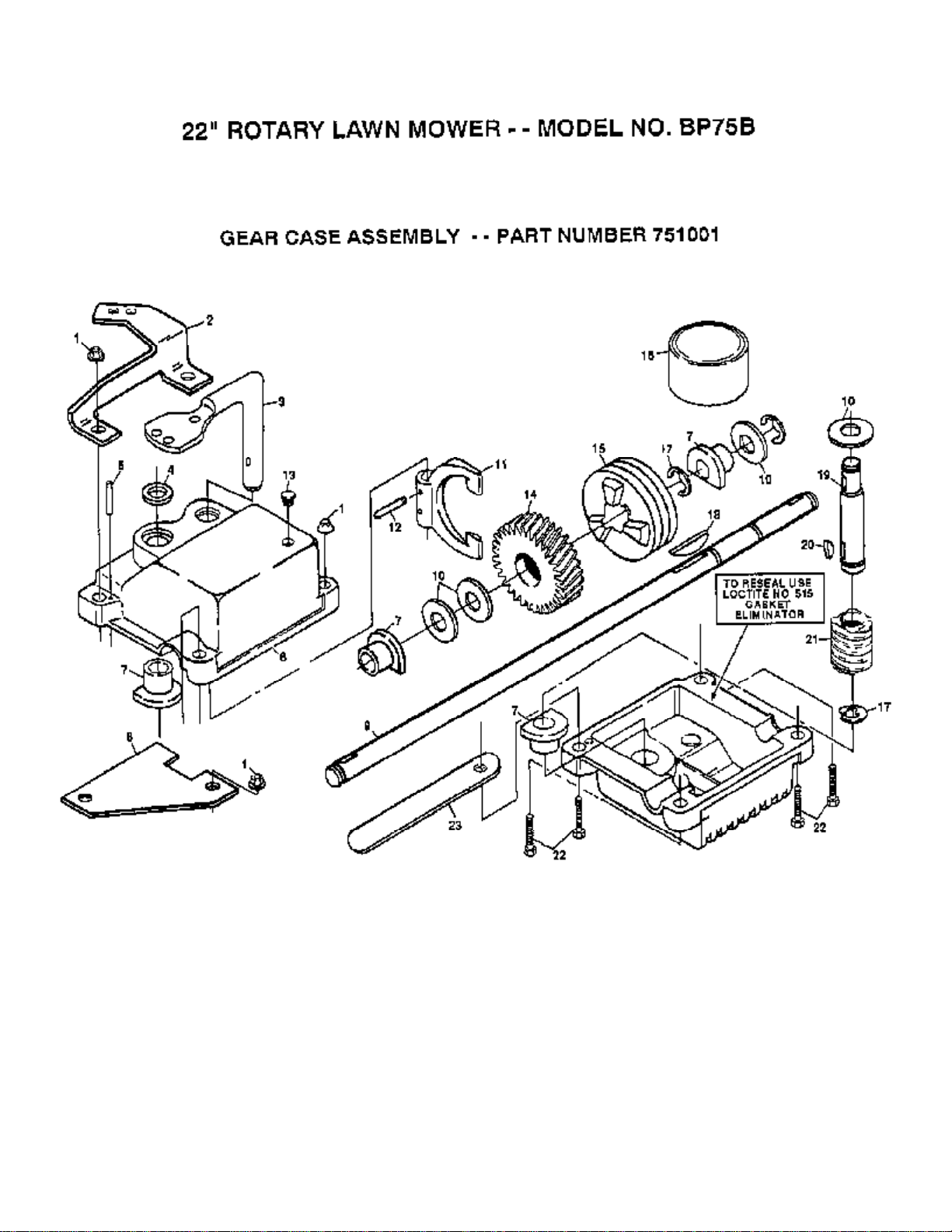

Page 6
BP75B (1999 & Before) Page 6 of 7
22" ROTARY LAWN MOWER
Page 7
BP75B (1999 & Before) Page 7 of 7
22" ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 53838 SUB= 73510400
2 85178 SUB= 85177X004
3 88386 SHIFTER PM
4 57072 SEAL
5 57388 DRIVE LOK PIN
6 48032 CASE HALF KIT PM
7 77881 BEARING
8 77039 SUB= 81585X004
9 750430 DRIVE SHAFT
10 57079 THRUST WASHER
11 75144 NLA
12 87822 GROOVE PIN PM
13 86447 PLUG PM
14 83659 SUB= 133804
15 750436 SUB= 750436X
16 750355 SUB= 6066J
17 53753 E-RING
18 850848 HI PRO KEY
19 83720 WORM SHAFT
20 65692 WOODRUFF KEY
21 83680 WORM
22 50950 SUB= 2276J
23 751046 IDENT. TAG
