AYP BM55HTO53A Parts List

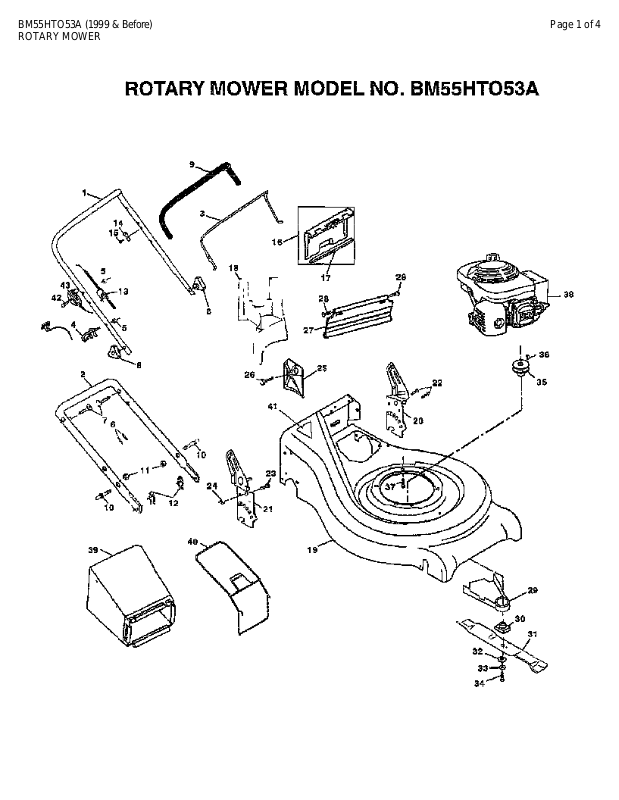

BM55HTO53A (1999 & Before) Page 1 of 4
ROTARY MOWER

BM55HTO53A (1999 & Before) Page 2 of 4
ROTARY MOWER

Ref # Part Number Qty Description

1 165542 HANDLE.UPPER.DLX.
2 161105X479 HANDLE.LOWER
3 131036 CONTROL BAR
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 66426 SUB= 7192J
7 131959 BOLT.HANDLE.LM
8 87692 KNOB PM

9 164265 GRIP.HANDLE.FOAM
10 161551 SQUARE.HEX.KEY
11 73990500 NUT LCK 5/16-18
12 51793 HAIRPIN COTTER
13 133107 ZONE CONTROL
14 850733X004 "BRKT,UPSTOP"
15 83816 SCREW PM
16 162085 KIT.DOOR.REAR.21
17 161548 SEAL.DOOR.21
18 165261 PLUG.MULCH.21RWGD.STATESIDE
19 162084 HOUSING KIT
20 161568X558 HDLE BRKT ASM LEFT
21 161569X558 HDLE BRKT ASM RIGHT
22 150078 SCREW.HXWS.5/16
23 163183 SUB= 532163183
24 63124 SUB= 73690500
25 161333 DEFLECTOR.CLIPPING
26 163409 SCREW
27 161550 SKIRT.21.RWGD
28 88652 HINGE SCREW
29 134612 SUB= 48283
30 851514 ADAPTOR.BLADE.LM
31 159267 BLADE.21.MULCH.PREM.
32 851074 "WASHER,HARDEN"
33 850263 LOCKWASHER
34 851084 SCREW
35 84596 ENGINE.PULLEY.FWG
36 87677 HI PRO KEY PM
37 150406 BOLT.ENG.3/8-16
38 PARTSIMAGE REFER TO PARTS IMAGE
38 SUPPLIER CHECK WITH SUPPLIER
39 162083 GRASS CATCHER BAG
40 161358 FRAME.GRASSCATCHER
41 145494 DECAL.DANGER.CUTF
42 144929 SCREW.HXHD.WASH.
43 147551 CONTROL.THRTL.AXL

167470 MANUAL.OPER.EURO
167469 MANUAL.P.BM55HT053A
