AYP B112G Parts List

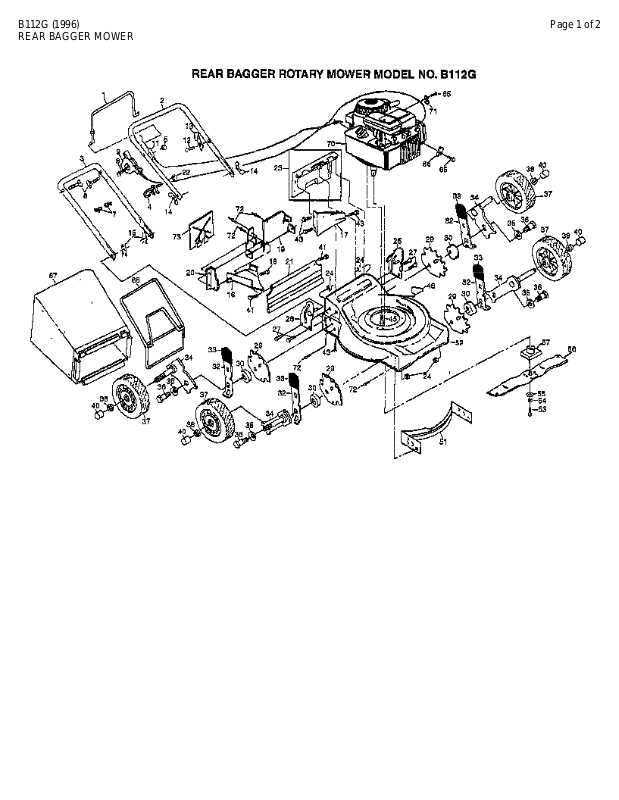

B112G (1996) Page 1 of 2
REAR BAGGER MOWER

B112G (1996) Page 2 of 2
REAR BAGGER MOWER

Ref # Part Number Qty Description

1 131696 CONTROL BAR
2 149637X479 SUB= 154480X479
3 151590X479 HANDLE.LWR.DLX.20
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 151517 SUB= 7192J
8 144929 SCREW.HXHD.WASH.

9 851462 CONTROL THROTTLE
11 130861 "CABLE,ENG ZONE CO"
12 750097 TAPPING SCREW
13 850733X004 "BRKT,UPSTOP"
14 128638 "NUT,WING PM"
15 51793 HAIRPIN COTTER
16 133188X479 DISCHARGE GUARD
17 700063X479 REAR BAFFLE
18 150050 SCREW.HXTAP.10-24
19 700356X479 PLATE.BACK.20RD
20 700363X479 BAFFLE.SIDE
21 140657 SKIRT.PUSH.20RD
22 73510400 NUT
23 147613 KIT.DOOR.RR.20STL
24 751592 LOCKNUT PM
25 151589X479 BRACKET.HDL.LH.
26 151588X479 BRACKET.HDL.RH.
27 150078 SCREW.HXWS.5/16
29 700325X007 BRACKET.ADJ.9POS.
30 146630 SPACER.HEIGHT.ADJ
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 145935X004 ARM.AXLE.ASM.BZP.
35 62335 "WASHER, BELLEVIL."
36 142748 BOLT SHLD 3/8-16
37 800220 WHEEL.ASM
38 83923 HEX FLANGE LOCKNT
40 800090 HUB CAP-PLASTIC
41 88652 HINGE SCREW
43 54583 SCREW
45 150406 BOLT.ENG.3/8-16
46 107339X DECAL HYT
51 132198X479 SUB= 144961
52 149071 KIT.HSG.20RD.PUSH
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 134871 SUB= 145106
57 850977 BLADE ADAPTOR
65 83816 SCREW PM
66 213146 CABLE CLAMP
67 149596 GRASSBAG.250B1.BL
68 149555 FRAME.CATCHER.2.5
70 REFER TO IMAGE
71 87930 GUIDE CLIP PM
72 128415 BLIND RIVET
73 133169X479 MULCHER PLATE

145655 MANUAL.OP.GEN.PUS
154184 MANUAL.P.B112G
MA36 CLIPPING DEFL
