AYP8228A69 (1996) Page 1 of 39
CHASSIS AND ENCLOSURES
AYP8228A69 (1996) Page 2 of 39
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 150253 "RAIL,FRAME RH"
2 140506 DRAWBAR GT
3 150302X418 "PANEL,ASM SIDE LH"
4 73800700 NUT.7/16
5 140398 DASHBOARD BLACK
6 150273 "DASH AS.,LOWER"
7 17720408 SCREW
8 145166 SUPPORT.DASH.BTRY
9 108067X PAL NUT LT
14 150301X418 "HOOD ASM.,PNT"
15 146459 LENS.BAR.CLEAR
16 121794X COVER ACCESS
17 17490612 SCREW
18 150198 GRILLE
19 19131312 WASHER
20 74760616 BOLT
21 73680500 SUB= 73690500
22 150303X418 PANEL ASM.SIDE RH
23 17490616 SCREW GTV
24 145243X418 FOOTREST.RH.LT/GT
27 73220400 SUB= 50675
28 145244X418 FOOTREST.LT.LT/GT
29 145205 DASH.SUPT.YP/HUSQ
30 145052 SADDLE.HYDRO.95
31 145183 BRAKET.SUPT.STEER
32 141315 BRACKET ASM FRAME
33 141314 BRACKET ASM FRAME
34 142131 BRACKET.ENG.SUPT.
35 19111116 WASHER
36 74780512 BOLT
37 140002X418 FENDER.YT/GT
38 10040400 LOCKWASHER
39 136961 BRACKET.AXLE.FRT.
40 142132 SUB= 156111
43 136939 BRACKET.SUS.FT.LH
44 136940 BRACKET.SUS.FT.RH
45 138460 SUB= 155887
46 19091216 WASHER PM
47 17490608 SCREW LT
50 136575 BRACKET.CHASSIS.
51 17580408 SCREW CRT
52 73680500 SUB= 73690500
54 73510500 NUT
56 138461 SUB= 155886
58 137113 BRKT.ASM.FENDER
60 17490620 SCREW
61 147717 BEZEL.ASM.
63 19131614 WASHER
68 17490508 SCREW LT
70 137159 GUIDE.BELT.MID.SP
71 144916X418 STRAP.GRILL
72 74180512 SCREW
74 74191008 SCREW
75 10071000 LOCKWASHER
76 2029J WELDNUT
79 74981020 SCREW
80 7206J SPACER LT
82 73731000 NUT
AYP8228A69 (1996) Page 3 of 39
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
84 142992 STOP.OVER.CENTER
86 74760716 BOLT
90 11050600 LOCKWASHER
91 144735 SUB= 151630
92 140299X012 PLATE SLKSCR YP
94 100207K CLIP GTV
95 105531X NUT-PUSH YT
98 140503 BRACKET SKID CHAS
99 140871 ROD BYPASS
100 124236X CAP
101 17490628 SCREW LT
102 4497H RETAINER M
103 142273 LOCK BYPASS BRKT
106 138776 SUB= 157722
107 109808X HOOD LATCH T
108 110356X SNAP CAP LT
109 110357X WASHER LT
112 60867 ACORN NUT RB
114 72140610 BOLT.3/8-14X1.25
115 150300 BUMPER.ASM
116 141461 BRACKET.EXT.BUMP.
117 143679 PLUG.PLASTIC
118 19131316 WASHER
119 73680600 SUB= 73690600
120 19131616 WASHER HYT
122 17030814 SUB= 91817030814
131 150195 BKT.SPT.HOOD/PANL
8022J PLUG-DASH T
AYP8228A69 (1996) Page 4 of 39
DECALS
AYP8228A69 (1996) Page 5 of 39
DECALS
Ref # Part Number Qty Description
1 138955 DECAL.DASH.INST.
2 143388 NAMEPLATE.HD.WIZA
3 151253 DECAL.HD.RH.WIZRD
4 151255 DECAL.HD.LH.WIZRD
5 140837 DECAL BRAK PARK
6 141517 DECAL DECK WIZ +
7 146451 DECAL.BTRY.DANGER
8 142336 DECAL SADLE HYDRO
9 127520 NLA
10 133796 DECAL
11 4900J DECAL T
12 142342 DECAL D-BAR CNTRL
13 141587 DECAL CHASSIS 50
14 139346 "DECAL.V.BELT.44"""
15 151260 DECAL.PNL.SD.KOHL
17 146615 DECAL.FENDER.WIZ
18 141619 DECAL INS STG WHL
23 106202X REFLECTOR-TAIL YT
133671 FOOTREST PAD
138311 DECAL HANDLE LIFT
151250 MANUAL.O.AYP8228
AYP8228A69 (1996) Page 6 of 39
ELECTRICAL
AYP8228A69 (1996) Page 7 of 39
ELECTRICAL
Ref # Part Number Qty Description
1 146141 SUB= 125603X
2 74760412 BOLT LT
3 10040400 LOCKWASHER
4 19091016 WASHER
6 73220400 SUB= 50675
7 7697J "DRAIN TU T, BATT"
8 7603J "TRAY T, BATTERY"
9 109596X HOSE CLAMP T
10 145211 SUB= 150177
11 145209 SUB= 150109
12 145769 SUB= 150177
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4014J CABLE.BATY.22.RED
25 146686 CABLE.BATRY.4GA.
26 108824X FUSE HYT
28 6408R CABLE.BATRY.4GA.
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140401 KEY MLD GEN DELTA
34 110712X SWITCH LT
39 109553X SWITCH INTERLOCKT
40 146071 HARNESS.IGN.95.GT
41 17720408 SCREW
42 131563 SUB= 154336
43 145673 SUB= 146154
45 122822X AMMETER
49 11151000 LOCKWASHER
50 140404 SUB= 154959
51 140405 RING RETAIN PTO
53 71031008 SCREW
54 73951000 "NUT,KEPS"
AYP8228A69 (1996) Page 8 of 39
ENGINE
AYP8228A69 (1996) Page 9 of 39
ENGINE
Ref # Part Number Qty Description
1 CV22S ENGINE, KOHLER
2 144636 SUB= 161062
5 13200300 ELBOW
7 143599 SUB= 151396
8 121361X SUB= 139123
9 145109 SUB= 150828
10 105432X BUSHING.
11 140923 SUB= 150283
12 143996 PULLEY.ENG.CLUTCH
15 141069 SUB= 151346
16 109227X PAD IDLER TI
18 140527 CAP ASM FUEL
19 13290300 PLUG T
20 132747 SUB= 532132748
21 17720410 SCREW LT
22 132781 CHOKE CONTROL
23 19131316 WASHER
24 11050600 LOCKWASHER
25 73610600 SUB= 7810H
26 3645J BUSHING OUTLET T
27 139277 STEM.TANK.FUEL
28 7834R SUB= 8542R
29 132920 SPARK ARREST KIT
30 105037X FOAM-STRIP LT
33 73800600 NUT
37 123487X HOSE CLAMP
38 74780624 "BOLT,HEX"
39 17490636 SCREW.3/8-16X2.25
40 17490664 SCREW.TT.3/8-16X4
41 126197X WASHER
42 10040700 LOCKWASHER
43 150280 BOLT.7/16-20X4.25
45 128861 NUT
46 19131616 WASHER HYT
47 142040 SPACER.ENGINE
188 19132007 WASHER T
51 140787 SUB= 918140787
54 19131414 WASHER
55 13090336 SUB= 13280336
56 13090308 NIPPLE.PIPE
63 145549 HEAT.SHIELD.VGT.
AYP8228A69 (1996) Page 10 of 39
GROUND DRIVE
AYP8228A69 (1996) Page 11 of 39
GROUND DRIVE
Ref # Part Number Qty Description
2 7070E KEY 1/4 X 2.5
23 7563R WASHER T
5 73680600 SUB= 73690600
6 76020412 COTTER PIN
7 140507 HUB WHEEL ASM
9 140080 BOLT.HUB.WHL.REAR
15 19131316 WASHER
17 140921 SPRING ROD BRAKE
20 73940800 SUB= 73360800
22 140498 SHAFT ARM ASM
23 121274X KNOB.DUCKHEAD.1/2
28 73350600 NUT
29 140494 ROD BRAKE
30 19131616 WASHER HYT
32 73220700 NUT
33 12000053 E RING HYT
34 124236X CAP
35 137648 ROD BRAKE PART GT
36 149412 SPRING.GRND.DRIVE
37 121749X WASHER
38 150035 BUSHING.NYLINER
39 74321016 SCREW
40 5304J ACT-SWITCH T
41 73631000 SUB= 69180
42 8883R PEDAL COVER T
43 74760412 BOLT LT
44 104601X BRKT SWITCH GT
45 73800400 NUT
46 145170 RETAINER.SPRING
47 138228 ROD.CLUTCH
48 72110612 BOLT.3/8-16X1.50
49 19131413 WASHER
50 131494 FLAT IDLER PULLEY
51 73680600 SUB= 73690600
52 139123 PULLEY.IDLER.V.GR
53 207J WASHER T
54 138390 ARM.ASM.IDLER.CLU
55 105706X "LY, BEARING"
56 140218 BELT-V 84.5
58 74760724 BOLT
61 140488 PULLEY TRANSAXLE
64 137649 SUB= 154752
65 67609 AXLE BOLT
66 140296 WASHER.HARD.BLADE
67 19131312 WASHER
68 5142H ROLL PIN STD
69 123800X WASHER
70 139989 SUB= 153762
71 140927 PLATE CONSOLE S
72 73680500 SUB= 73690500
73 74780548 BOLT FIN HEX 5/16
74 142432 SCREW HEXWSH H-L
75 73800700 NUT.7/16
76 140481 BRACKET TRAN VGTH
77 74760716 BOLT
78 19111212 WASHER
79 72110505 BOLT
80 140484 BRACKET TORQUE RH
AYP8228A69 (1996) Page 12 of 39
GROUND DRIVE
Ref # Part Number Qty Description
81 17490612 SCREW
82 140482 SUB= 154561
83 140479 STRAP TORQUE MID
84 140490 SPACER
85 17541020 SCREW YTV
86 140462 "FAN 7"" HYDRO"
87 140491 ADAPTER FAN
88 140492 SUB= 161592
89 73680700 NUT GTV
90 140489 KEEPER BELT
91 17490644 SCREW.HXWSH.3/8
92 74760520 BOLT
93 140502 LINK ASM SHIFT
94 133835 XMAS TREE FASTNER
95 23200528 SCREW SET 5/16
96 141103 WASHER NICKEL PLT
97 126874X BEARING THRUST
98 141004 BRACKET SHIFT
99 17490624 SCREW LT
100 126881X WASHER COMPRESSIN
101 59285 WASHER
102 73560500 NUT HEX NYLOCK
103 73350500 JAM NUT TI
104 140480 BRACKET IDLER
105 17580408 SCREW CRT
106 142576 SUB= 142922
107 142577 SUB= 142918
108 142578 SUB= 142917
109 140929 SPRING BRAKE
110 88652 HINGE SCREW
140343 SUB= 150073
AYP8228A69 (1996) Page 13 of 39
KOHLER ENGINE
AYP8228A69 (1996) Page 14 of 39
KOHLER ENGINE
Ref # Part Number Qty Description
1 24-318-11 HEAD ASSEMBLY
2 24-755-76 KIT, VALVE COVER, BREATHER
3 25-313-02 GROMMET, RUBBER
4 24-033-03 KIT, BREATHER COVER WITH GASKET
5 24-041-23 GASKET, BREATHER
6 24-096-15 COVER, BREATHER
7 M-0645020 SCREW HEX FLANGE
9 X-426-9 CLAMP, HOSE
10 24-326-14 HOSE, BREATHER
11 12-755-03 KIT, RETAINER
12 12-173-01 CAP, VALVE SPRING
13 24-089-02 SPRING, VALVE
14 235011 RETAINER, SPRING
15 24-016-01 VALVE, EXHAUST, STANDARD SIZE
24-016-02 VALVE, EXHAUST, .25 OVERSIZE
16 24-017-01 VALVE, INTAKE, STANDARD SIZE
24-017-02 VALVE, INTAKE, .25 OVERSIZE
17 24-032-05 SEAL, VALVE STEM
18 24-294-06 FITTING
19 24-326-13 HOSE,BREATHER
20 12-351-01 LIFTER, VALVE
21 24-411-05 ROD, PUSH
22 24-041-08 GASKET, CYLINDER HEAD
23 24-318-12 HEAD ASSEMBLY
24 24-755-66 KIT, VALVE TRAIN
25 25-186-01 ARM, ROCKER
26 24-599-01 PIVOT, ROCKER ARM
27 M-0640034 SCREW, ROCKER ARM
28 24-755-74 KIT, VALVE COVER, PLAIN
29 24-153-12 O-RING
30 24-086-32 SCREW
31 12-086-16 SCREW
32 24-455-01 STRAP, LIFTING
33 24-755-57 KIT, BREATHER SEPARATOR
34 24-112-12 SPACER
35 24-126-44 BRACKET, BREATHER SEPARATOR
36 25-313-02 GROMMET, RUBBER
37 24-445-02 STRAP, BREATHER SEPARATOR
38 M-0545016 SCREW
1 24-522-05 CYLINDER BLOCK
2 24-294-03 FITTING
3 24-067-05 CONNECTING ROD
24-067-06 CONNECTING ROD
4 12-380-03 PIN, DOWEL LOCATING
5 52-139-09 PLUG, CUP
6 24-874-01 PISTON WITH RING SET
24-874-02 PISTON WITH RING SET
24-874-03 PISTON WITH RING SET
7 24-108-01 RING SET
24-108-02 RING SET
24-108-03 RING SET
8 24-018-01 RETAINER, PISTON PIN
9 12-422-10 SHIM, CAMSHAFT, YELLOW
12-422-09 SHIM, CAMSHAFT,RED
12-422-13 SHIM, CAMSHAFT, BLACK
12-422-07 SHIM, CAMSHAFT, WHITE
12-422-08 SHIM, CAMSHAFT, BLUE
12-422-11 SHIM, CAMSHAFT, GREEN
AYP8228A69 (1996) Page 15 of 39
KOHLER ENGINE
Ref # Part Number Qty Description
12-422-12 SHIM, CAMSHAFT, GREY
10 24-010-03 CAMSHAFT
11 24-144-01 SHAFT, GOVERNOR CROSS
12 M0631005 WASHER, PLAIN
13 12-032-01 SEAL ,GOVERNOR CROSS SHAFT
14 X-25-102 WASHER
15 12-380-04 PIN
16 M-0545010 SCREW, MOUNTING
17 24-018-04 RETAINER, REED
18 24-402-05 REED, BREATHER
19 24-032-01 SEAL, OIL, FRONT
20 12-153-01 O-RING, LOWER OIL FILL TUBE
21 12-123-04 TUBE, OIL FILL
22 24-126-19 BRACKET, OIL FILL TUBE
23 M-0545016 SCREW
24 12-153-02 O-RING, UPPER OIL FILL TUBE
25 24-038-04 DOPSTICK ASSEMBLY
26 25-755-13 KIT, OIL FILL CAP
27 12-153-03 O-RING, DIPSTICK
AYP8228A69 (1996) Page 16 of 39
KOHLER ENGINE

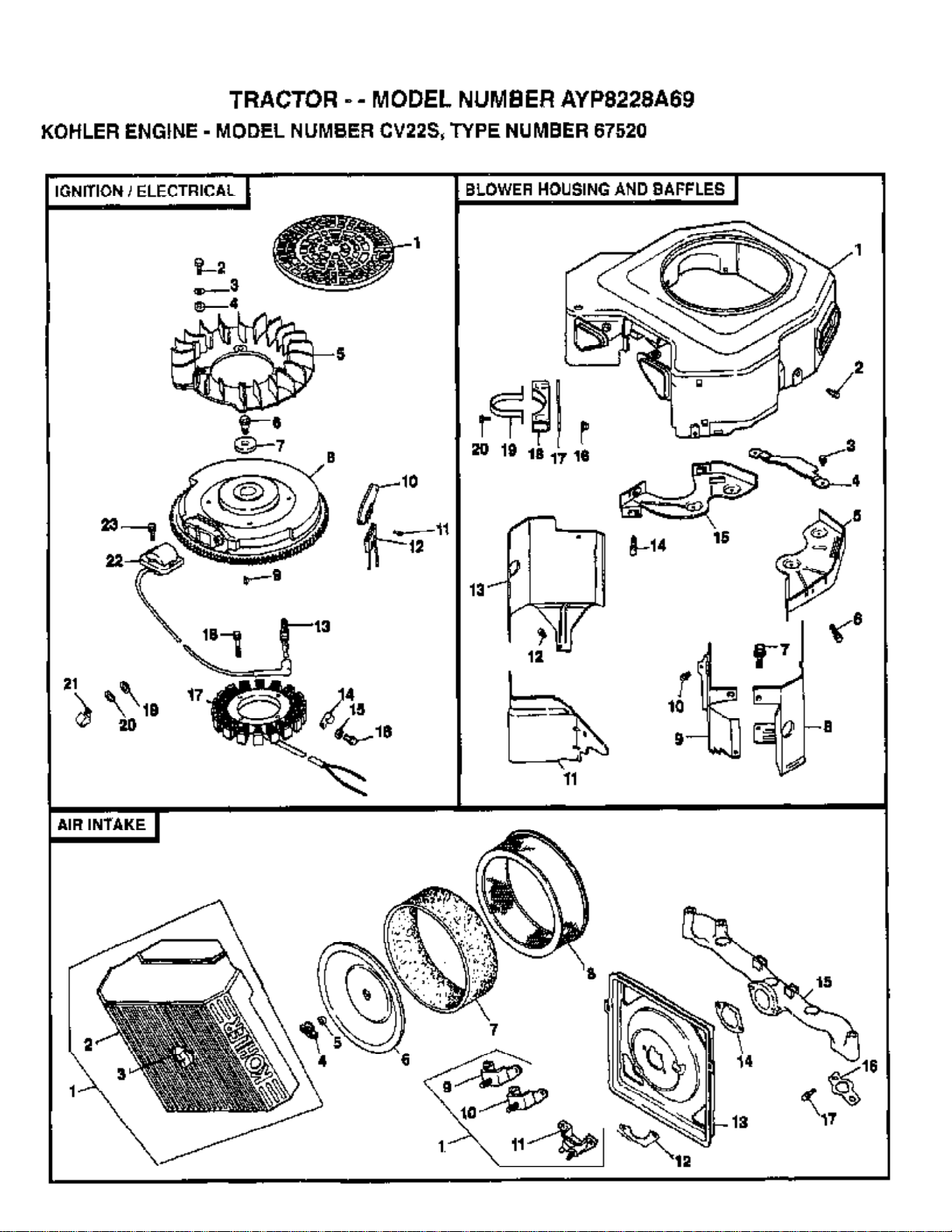

AYP8228A69 (1996) Page 17 of 39
KOHLER ENGINE
Ref # Part Number Qty Description
1 24-162-17 SCREEN, GRASS
2 M-0403025 SCREW
3 X-25-92 WASHER
4 24-112-04 SPACER
5 24-157-03 FAN
6 M-0639016 SCREW
7 12-112-01 SCREW
8 24-025-04 FLYWHEEL ASSEMBLY
9 X-42-15 KEY
10 25-403-03 RECTIFIER-REGULATOR
11 24-086-18 SCREW
12 236602 CONNECTOR
13 12-132-02 SPARK PLUG
14 48-154-02 CLIP
15 12-468-03 WASHER
16 12-086-14 SCREW
17 24-085-01 STATOR
18 M-0548025 SCREW
19 X-25-63 WASHER, PLAIN 1/4
20 X-25-92 WASHER
21 235173 CLIP
22 24-584-01 MODULE
23 SM-0545020 SCREW
24-176-12 HARNESS
25-518-28 LEAD
24-113-18 DECAL
1 24-027-20 HOUSING
2 M-0545016 SCREW
3 M-0645016 SCREW
4 24-314-05 SCREW
5 24-146-02 GUARD
6 M-0545020 PLATE
7 M-0551016 SCREW
8 24-063-20 SCREW
9 24-063-14 BAFFLE
10 M-0545010 SCREW, MOUNTING
11 24-063-23 BAFFLE
12 M-0545016 SCREW
13 24-063-30 BAFFLE
14 M-0645016 SCREW
15 24-146-08 PLATE
16 24-100-02 NUT
17 24-112-12 SPACER
18 24-126-44 BRACKET, BREATHER SEPARATOR
19 24-445-02 STRAP, BREATHER SEPARATOR
20 24-086-27 SPREW
24-100-01 NUT
24-100-02 NUT
25-139-16 PLUG
1 24-743-05 KIT, AIR CLEANER COVER
2 24-096-24 COVER, AIR CLEANER
3 25-341-02 KNOB
4 12-100-01 WING NUT
5 24-032-03 SEAL
6 24-096-01 COVER
7 24-083-02 ELEMENT
8 24-083-03 ELEMENT
9 24-126-21 BRACKET
AYP8228A69 (1996) Page 18 of 39
KOHLER ENGINE
Ref # Part Number Qty Description
10 24-126-43 BRACKET
11 24-109-06 CUP
12 24-041-13 GASKET
13 24-094-14 BASE
14 24-041-14 GASKET
15 24-164-06 MANIFOLD
16 24-041-01 GASKET
17 M-0519055 SCREW
12-113-53 DECAL
AYP8228A69 (1996) Page 19 of 39
KOHLER ENGINE
AYP8228A69 (1996) Page 20 of 39
KOHLER ENGINE
Ref # Part Number Qty Description
1 M-0839070 SCREW
2 M-0839080 SCREW
3 24-096-05 COVER
4 25-098-03 STARTER
5 12-468-01 WASHER
6 12-755-54 KIT, DRIVE END
7 12-227-06 CAP
8 45-170-03 ARMATURE
9 82-755-28 KIT BRUSH
10 12-227-11 CAP
11 12-086-25 BOLT
1 24-199-07 OIL PAN ASSEMBLY
2 X-75-32 PLUG
3 24-136-01 NIPPLE, OIL FILTER
4 12-050-01 FILTER, OIL
5 52-099-06 OIL PRESSURE SWITCH
6 52-032-08 SEAL, OIL
7 24-086-17 SCREW
8 24-086-16 SCREW
9 X-75-10 PLUG
10 24-153-08 O-RING
11 12-144-02 SHAFT
12 52-448-02 TAB
13 24-043-12 KIT, GOVERNOR GEAR WITH PIN
14 12-380-01 PIN
15 M-0645025 SCREW
16 M-0631005 WASHER
17 24-393-08 OIL PUMP ASSEMBLY
18 24-123-05 TUBE
19 25-162-07 SCREEN
1 SM-0642025 SCREW, GOVERNOR ARM
2 24-090-14 LEVER
3 M-0641060 NUT
4 24-089-01 SPRING
5 25-158-08 BUSHING
6 24-079-04 LINKAGE
7 25-158-11 BUSHING
8 24-126-13 BRACKET
9 24-089-03 SPRING
10 M-0547050 LOCKNUT
11 M-0545016 SCREW
12 M-0446030 NUT
13 M-0645016 SCREW
14 12-237-01 CLAMP, CABLE
15 M-0545016 SCREW
16 24-090-07 LEVER
17 24-468-01 WASHER
18 24-090-13 LEVER
19 24-090-05 LEVER
20 24-079-05 LINKAGE
21 SM-0545020 SCREW
22 41-468-03 WASHER
23 M-0403025 SCREW
24 24-089-18 SPRING
AYP8228A69 (1996) Page 21 of 39
KOHLER ENGINE
AYP8228A69 (1996) Page 22 of 39
KOHLER ENGINE
Ref # Part Number Qty Description

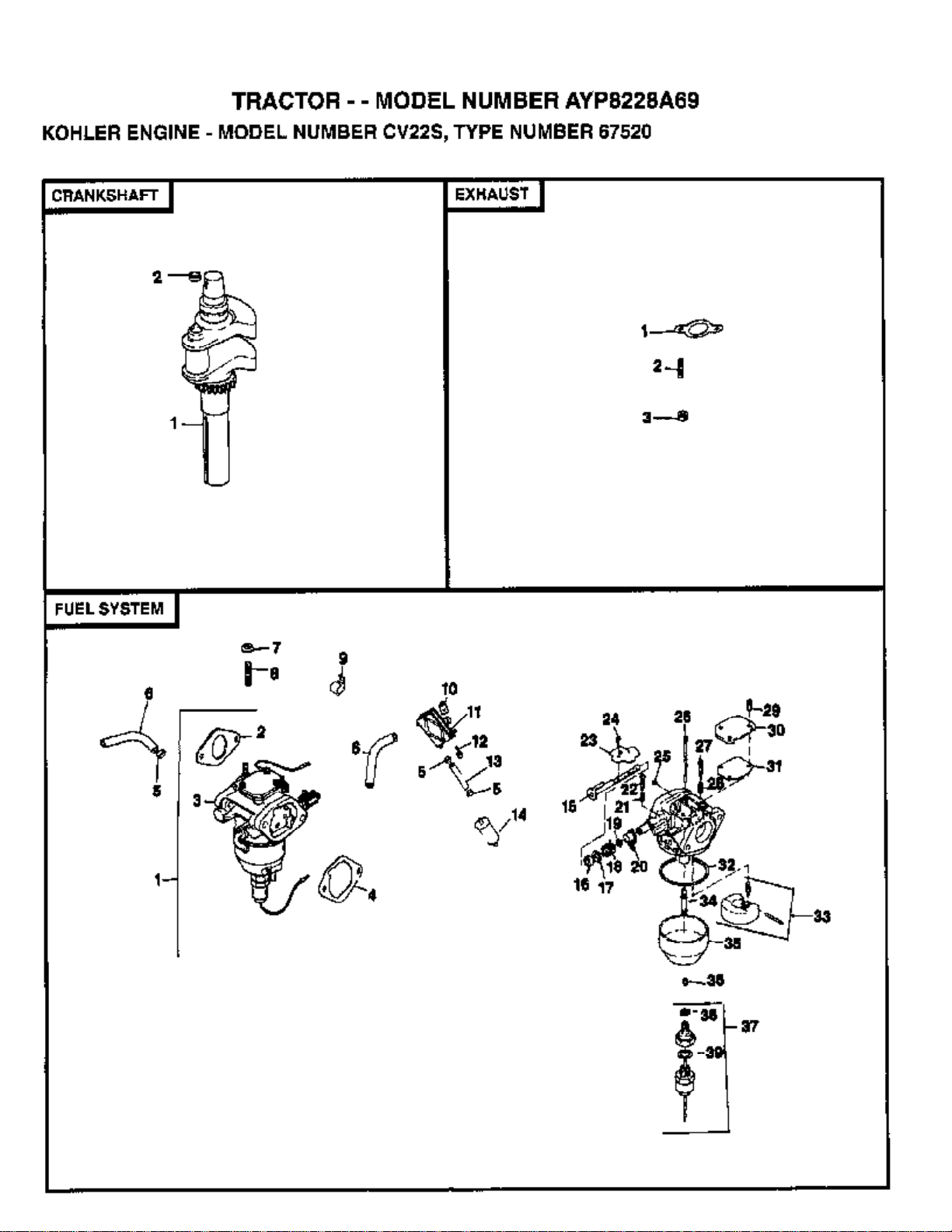

1 24-853-19 KIT, CARBURETOR WITH GASKET
2 24-041-15 GASKET
3 24-053-19 CARBURETOR ASSEMBLY
4 24-041-14 GASKET
5 X-426-9 CLAMP, HOSE
6 24-353-03 LINE
7 M-0641060 NUT
8 M-0629095 STUD
9 47-154-01 CLIP
10 24-100-01 NUT
11 24-393-04 PUMP
12 24-086-12 SCREW
13 25-353-03 LINE
14 25-050-03 FILTER FUEL
15 24-144-15 SHAFT
16 24-468-05 WASHER
17 24-241-01 COLLAR
18 24-089-22 SPRING
19 24-141-04 RING
20 24-090-10 LEVER
21 24-089-24 SPRING
22 24-086-19 SCREW
23 24-146-13 CHOKE PLATE
24 24-086-20 SCREW
25 24-337-27 JET, AIR BLEED
26 24-337-11 JET, SLOW
27 24-086-22 SCREW
28 24-089-23 SPRING
29 24-086-21 SCREW
30 24-096-13 COVER
31 24-041-18 GASKET
32 24-041-19 GASKET
33 24-757-05 KIT, FLOAT REPAIR
34 24-369-01 NOZZLE
35 24-234-01 CHAMBER
36 24-337-20 JET, MAIN
37 24-755-15 KET, SOLENOID VALVE
38 24-041-21 GASKET
39 24-041-20 GASKET
24-041-15 GASKET
24-757-06 KIT, CARBURETOR REPAIR
24-755-72 KIT, HIGH ALTITUDE
24-755-73 KIT, HIGH ALTITUDE
1 24-014-72 CRANKSHAFT
2 52-139-09 PLUG, CUP
1 24-041-02 GASKET
2 M-0829033 STUD. EXHAUST MANIFOLD
3 M-0841080 NUT
24-522-16 SHORT BLOCK
24-755-03 GASKET SET
24-782-05 MINIBLOCK
AYP8228A69 (1996) Page 23 of 39

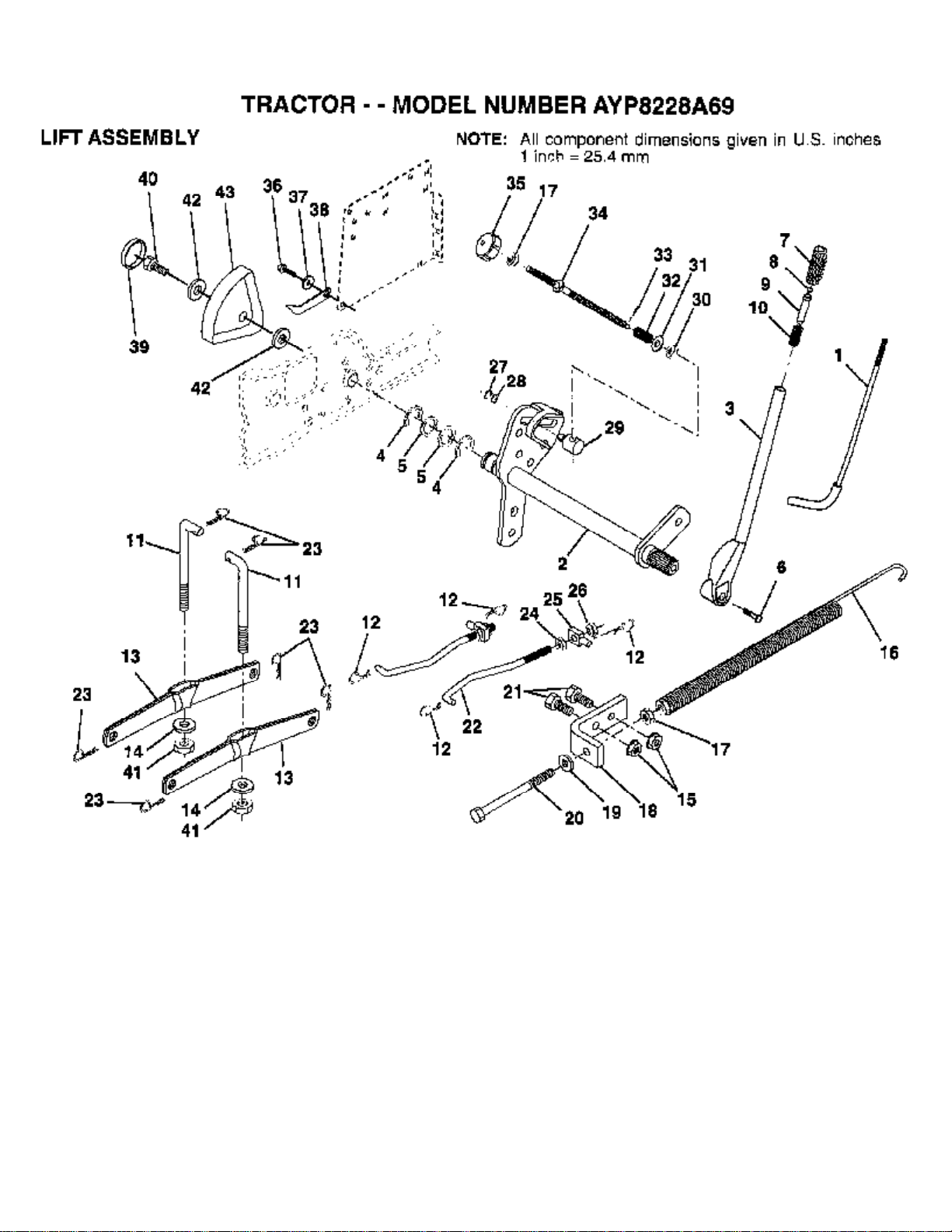

LIFT
AYP8228A69 (1996) Page 24 of 39
LIFT
Ref # Part Number Qty Description
1 121006X LEVER ROD LT
2 145542 SHAFT.LIFT.VGT.95
3 121002X SUB= 123096X
4 12000022 E-RING
5 19292016 WASHER
6 74780624 "BOLT,HEX"
7 125631X GRIP HANDLE
8 122365X SUB= 125925X
9 122364X SUB= 125925X
10 2876H SPRING T
11 146704 LINK.LIFT.MWR.VGT
12 3146R RETAINER.SPRING
13 139868 ARM SUSP REAR
14 140302 BEARING PVT LH
15 73680600 SUB= 73690600
16 674A247 SUB= 918674A247
17 73350600 NUT
18 143363 BRACKET SPRING AS
19 19131316 WASHER
20 5328J BOLT-ADJ SPRING T
21 74760616 BOLT
22 127218 LINK.FRONT
23 4939M SUB= 85902
24 73350800 NUT
25 130171 TRUNION
26 73800800 NUT.LK.W/WSH.1/2.
27 12000037 KLIP RING
28 19151216 WASHER
29 110810X TRUNION LT
30 110807X NUT T
31 19131016 WASHER
32 137150 SPRING.COMP.INF.H
33 76020308 SUB= 3145
34 137167 ROD.ADJ.LIFT
35 138057 KNOB INF 3/8-16
36 17490612 SCREW
37 120529X WASHER T
38 123933X505 POINTER HGT IND
39 123935X "PLUG,HOLE"
40 17490512 SCREW
41 73540600 NUT.CROWNLOCK.3/8
42 19112410 WASHER
43 123934X HEIGHT INDICATOR
AYP8228A69 (1996) Page 25 of 39
MOWER DECK
AYP8228A69 (1996) Page 26 of 39
MOWER DECK
Ref # Part Number Qty Description
1 136457 DECK ASM MWR 50VT
2 73680500 SUB= 73690500
3 72110506 SUB= 72270506
4 7631J RUNNER-LH M
5 138457 BRKT.ASM.SW.44/50
6 4939M SUB= 85902
7 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 137380 "BLADE.50"" HD"
12 129895 BEARING.BALL
13 137553 SHAFT.ASM.W/BRNG
14 137152 HOUSING.MAND.44.V
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 106735X ROD-HINGE T
18 19111016 WASHER
19 105304X CAP-SLEEVE LT
20 123713X SPRING TORSION
21 137607 BRKT DEFLECTOR
22 110452X NUT PUSH M
24 136320 "RUNNER RH 50"" DK"
25 19111216 WASHER M
27 19131316 WASHER
28 132823 SUB= 532132823
29 73800600 NUT
30 138776 SUB= 157722
31 137266 SUB= 139729
32 129861 SUB= 153535
33 129963 WASHER
34 72140610 BOLT.3/8-14X1.25
35 72110610 BOLT RDHD 3/8-16
35 72110616 BOLT
36 72110608 BOLT D
37 137166 STIFFENER.ARM.IDL
38 137554 SUB= 918137554
39 131494 FLAT IDLER PULLEY
40 136572 "PULLEY.DRIVEN.44"""
42 72140506 BOLT
43 136460 "ARM.IDLER.SEC.44"""
44 122052X SPACER RETAINER
45 73680600 SUB= 73690600
46 74760628 BOLT
47 137200 "COVER.MAND.RH.44"""
48 137729 SCREW.1/4-20X5/8
49 136574 COVER.MANDREL.LH
50 137272 ARM.IDLER.PRIMARY
51 137273 "SPRING.SEC.44""VEN"
52 139245 PULLEY.IDLER.VGRO
53 137789 SHIELD.IDLER.44.V
54 139573 BELT V PRIM 50
55 144959 BELT-V.SEC.46.KEL
56 138687 SPRING.EXT.DECK.
57 136577 BAR.ASM.GUAGE.WHL
58 133957 WHEEL GAGE DONUT
59 137644 BOLT.SHOULDER
60 139031 PIN.CLEVIS
AYP8228A69 (1996) Page 27 of 39
MOWER DECK
Ref # Part Number Qty Description
61 136573 BRACKET.GUAGE.WHL
62 133943 HARDENED WASHER
63 72110612 BOLT.3/8-16X1.50
64 19121414 WASHER
65 102403X IDLER-FLAT T
66 139622 SUB= 918139622
67 73930600 LOCKNUT
94 74760616 BOLT
95 132274 SUB= 532132274
96 132273 SUB= 532132273
97 19171416 WASHER
98 132264 SUB= 532132264
99 72110614 BOLT
143651 MANDREL SERV ASM
141051 "DECK.MWR.SERV.50"""
AYP8228A69 (1996) Page 28 of 39
PUMP ASSEMBLY
AYP8228A69 (1996) Page 29 of 39
PUMP ASSEMBLY
Ref # Part Number Qty Description
1 144569 SHAFT.PUMP.50158
2 122716X RETAINIANG RING-(2003016)
3 122745X BALL BEARING
4 122715X SPACER
5 122700X SEAL LIP
6 122699X RING.RET.2003052
8 122767X CRADLE BEARING (2003023)
12 122717X SEAL.9008000-0126
13 122748X TRUNION ARM (2003005)
14 122749X GUIDE.2000015.HYD
15 144571 KIT.HSG.2513035.
17 122770X SUB= 142936
19 144572 KIT.CENT.2513006
21 122722X LIP SEAL-9008000-0127
22 144573 SHAFT.MOT.2003034
23 142978 WASHER.2003017
25 127148X "SWASHPLATE,VARIAB"
32 142938 BLOCK.CLYN.70079.
37 122786X PIN
38 122718X GASKET.20030600
42 144578 KIT.VALVE.2510050
43 144578 KIT.VALVE.2510050
44 144579 KIT.RELI.2510011.
47 122752X SCREW9007314-0808
53 127153X "KIT,BYPASS VALVE"
60 142977 SPRING.2003014.
62 144581 0RING.90041011340
63 144582 KIT.CHARG.2513027
64 144583 GEROTOR.J1041008
67 144584 SCREW.CAP.50095.
144576 PUMP.BD-10L-118
AYP8228A69 (1996) Page 30 of 39
SCHEMATIC
AYP8228A69 (1996) Page 31 of 39
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
AYP8228A69 (1996) Page 32 of 39

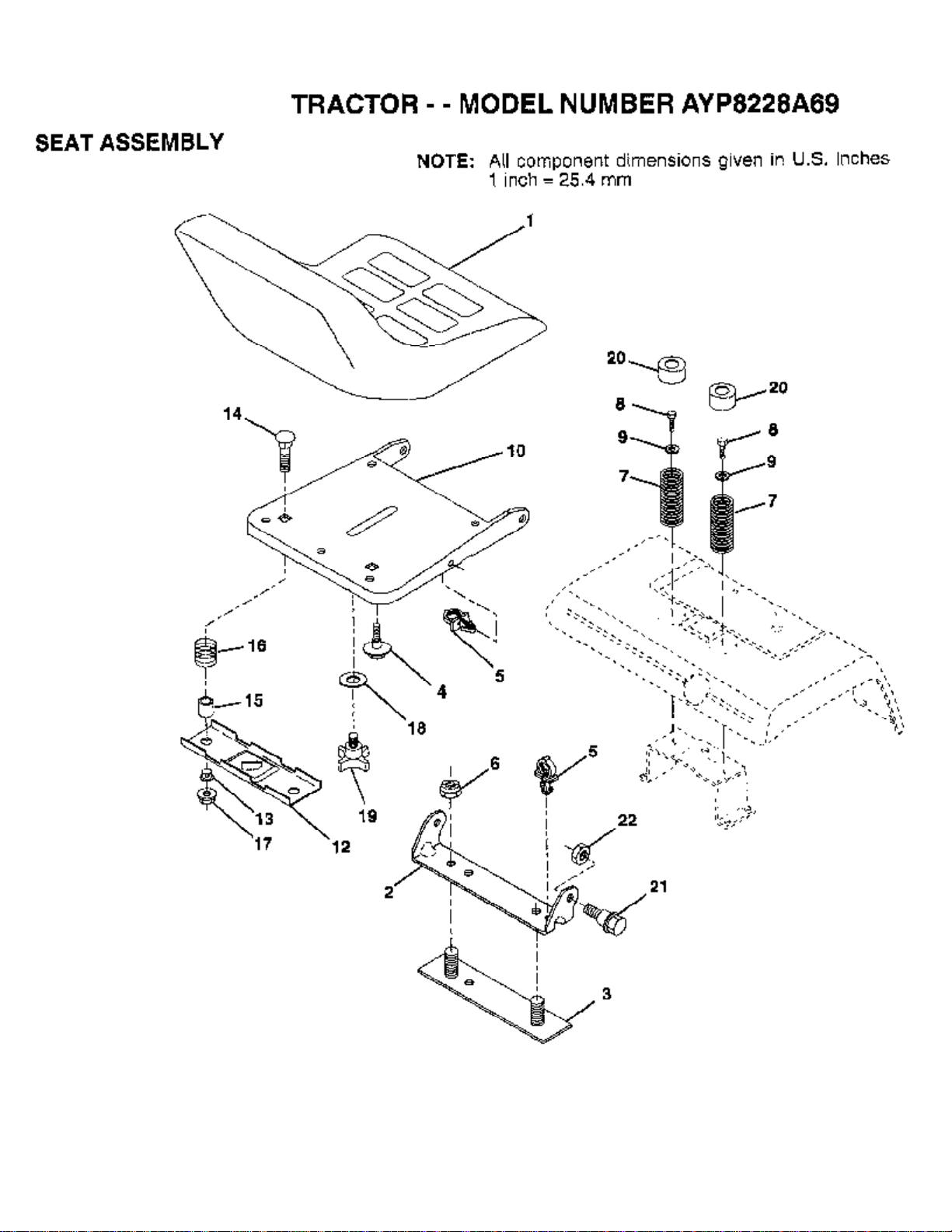

SEAT
AYP8228A69 (1996) Page 33 of 39
SEAT
Ref # Part Number Qty Description
1 127440 SUB= 140121
2 140551 BRACKET PVT SEAT
3 140675 STRAP ASM FENDER
4 127018X "BOLT,SHOULDER"
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490508 SCREW LT
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 121249X SPACER SPLIT
16 123740X SPRING COMPRESSED
17 123976X SUB= 73900400
18 19171912 WASHER
19 120068X "KNOB 1/2"" YT"
20 124238X CAP SPRING
21 139888 BOLT.SHLD.5/16-18
22 73680500 SUB= 73690500
AYP8228A69 (1996) Page 34 of 39
STEERING
AYP8228A69 (1996) Page 35 of 39
STEERING
Ref # Part Number Qty Description
1 121472X SUB= 150546
2 137094 SUB= 532137094
3 6855M ZERK M
4 136960 SPINDLE.ASM.LH
5 136959 SUB= 918136959
6 6266H WASHER .T
7 121748X WASHER
8 12000029 RING
9 121232X CAP
10 74781044 BOLT
11 136518 SPACER BEARING
12 73901000 "NUT-LOC,FLANGE LT"
13 121749X WASHER
14 10040600 LOCKWASHER
15 73610600 SUB= 7810H
16 145103 SHAFT.STEER.VGT
17 137347 ROD.ASM.TIE.BALL
18 137155 DRAGLINK.BALL.JOI
19 146611 SUB= 144673
21 100711L ADAPTER LT
22 1554J SUB= 155108
23 17431008 SUB= 98000165
24 19133808 WASHER T
25 74780616 BOLT
26 126805X "INSERT,STR WHEEL"
27 3366R COL. SRTG. BEAR.
28 17490612 SCREW
29 104239X "FLANGE GT, BEAR."
30 12000034 KLIP RING
31 138136 BUSHING.NYLINER.
32 19111610 WASHER
33 10040500 LOCKWASHER
34 74760512 BOLT
35 138059 GEAR.ASM.SECTOR.
36 137156 SUB= 137347
37 73360600 NUT
38 109850X JOINT.RH
39 73700600 NUT
40 109851X JOINT.LH
AYP8228A69 (1996) Page 36 of 39
TRANSAXLE
AYP8228A69 (1996) Page 37 of 39
TRANSAXLE
Ref # Part Number Qty Description
1 142874 HOUSING LH 70086
2 142875 HOUSING RH 70088
16 142876 SHAFT BRAKE 62877
20 142877 AXLE MTG 70087
21 142878 WASHER 44805
22 142879 WASHER 44806
33 142929 YOKE.BRAKE.62589
35 142880 ARM BRAKE 50214
36 142882 PUCK PLATE 44134
37 142883 PUCK BRAKE 44132
38 142884 WASHER HYD 44130
39 142885 SUB= 144607
40 142886 SUB= 144608
41 142887 PIN BRAKE 44127
42 142888 KEY HI PRO 44143
43 142889 SPACER 50259
45 142890 DISC BRAKE 44090
46 142891 BOLT 1/4-20 44276
47 142892 BOLT 1/4-20 44433
49 142893 DIFFERENTIAL62834
63 142894 PIN DOWL 44757
64 142896 GEAR R14-38 44775
65 142897 PINION DRIV 70051
67 142898 SHAFT-44779
68 142899 O RING 44781
69 142900 WASHER 44795
70 142901 WASHER 44794
71 142902 BOLT 5/16 44827
72 142903 NUT HXLK 43064
73 142904 BOLT 5/16 44841
74 142905 SCREW 5/16 45089
75 142906 WASHER DIF 44880
76 142907 BOLT SHOULD 44785
77 142907 BOLT SHOULD 44785
78 142909 SEAL.OIL.44761
81 142910 BOLT 5/16 43084
82 142911 BOLT 5/16 44820
89 142912 FILTER SPIN 50037
91 142913 SUB= 144576
95 142914 PLUG.9005110-5600
99 142915 SUB= 142904
103 142916 WASHER.50169
104 142917 CAP.VENT.70109
106 142918 O-RING.ASM.70110
108 142919 ARM.CONTROL.45007
109 142920 SCREW.SET.50018.
110 142921 FILTER.HEAD.50207
111 142922 HOSE.5/16.50208.
113 142923 FITTING.SAE.50210
116 142924 FITTING.SAE.50213
117 142925 FITTING.SAE.50249
118 142926 FITTING.MAL.50251
119 142927 FITTING.FEM.50250
121 142928 RING.RET.2003016.
AYP8228A69 (1996) Page 38 of 39
WHEELS AND TIRES
AYP8228A69 (1996) Page 39 of 39
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106230X SUB= 122075X
4 8134H TUBE.16X6.5/7.5-8
5 106228X427 "RIM ASM 8"" FRT"
6 6856M ZERK FITTING M
7 9040H "FLANGE, BEARING"
8 106277X427 "RIM ASM 12"" REAR"
9 105588X SUB= 122077X
10 7154J TUBE.23X8/10-12
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
