Page 1
AYP7143C79 (1997) Page 1 of 47
BRIGGS AND STRATTON ENGINE
Page 2
AYP7143C79 (1997) Page 2 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 496412 CYLINDER ASSY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 495858 HEAD, CYLINDER
7 272614 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 281246 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12A 271997 GASKET, CRANKCASE COVER .005"
12B 271996 GASKET, CRANKCASE COVER .009"
13 94728 SCREW, CYLINDER HEAD
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 495860 PISTON ASSY, STANDARD SIZE
25A 495977 PISTON ASSY .010" OVERSIZE
25B 495978 PISTON ASSY .020" OVERSIZE
25C 495979 PISTON ASSY .030" OVERSIZE
26 495854 RING SET, PISTON, STANDARD SIZE
26A 495852 RING SET, PISTON, .010" OVERSIZE
26B 495851 RING SET, PISTON, .020" OVERSIZE
26C 495855 RING SET, PISTON, .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28A 391286 PIN ASSEMBLY, PISTON .005" OVER
29 494504 ROD ASSY, CONNECTING
29A 495490 ROD ASSY, CONNECTING
32 94695 SCREW
32A 94648 SCREW
33 495856 VALVE, EXHAUST
34 495857 VALVE, INTAKE
35 262811 SPRING, VALVE
37 224502 GUARD, FLYWHEEL
40 224641 RETAINER, VALVE SPRING
45 262411 TAPPET, VALVE
46 96884 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272569 GASKET, CARBURETOR
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
117 231858 JET, NEEDLE VALVE
118 495932 VALVE, NEEDLE
121 497535 CARBURETOR OVERHAUL KIT
Page 3
AYP7143C79 (1997) Page 3 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
123 94616 SCREW, ELBOW MOUNTING
125 498051 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 231859 NOZZLE, CARBURETOR
147 231985 PILOT, JET
164 214047 ELBOW, CARBURETOR
166 94555 STUD, ROCKER ARM
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 94627 SCREW, SEMS 3/4"
192 492160 SCREW ASSY, ROCKER ARM
201 262767 LINK, GOVERNOR
209 260695 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94729 SCREW, SEMS, HEX HEAD
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
238 262836 CAP, VALVE
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94704 SCREW, AIR CLEANER
284A 94073 SCREW, HEX HEAD
294 810068 SCREW, SET
304 496281 HOUSING, BLOWER
305 94786 SCREW
306 224696 SHIELD CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
309 497595 MOTOR, STARTING, 12 VOLT
310 497602 BOLT, THRU
311 497608 BRUSH SET
333 495859 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 491055 PLUG, SPARK
346 93705 SUB= 69485
356 497708 WIRE ASSY
356A 497671 WIRE, STOP
356B 494705 WIRE, STOP
358 495993 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 224948 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 497606 DRIVE, STARTER
Page 4
AYP7143C79 (1997) Page 4 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
523 495230 CAP AND DIPSTICK, OIL FILLER
524 68838 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 63080 NLA
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 98970 WASHER, THROTTLE SHAFT
635 280872 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
653 93585 SCREW, HEX HEAD
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
718 230192 PIN, DOWEL
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 225170 RETAINER, WIRE
729A 281390 CLIP, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 REFER TO IMAGE
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
868 494435 SEAL ASSEMBLY, VALVE
868A 272610 GASKET, VALVE
871 262835 BUSHING, GUIDE (INTAKE & EXHAUST)
872 281104 COVER, AIR CLEANER
875 495862 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
947 497157 SOLENOID
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 281355 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 496758 LABEL KIT
1022 272475 GASKET, COVER
1023 224552 COVER, ROCKER ARM
1026 494432 ROD, PUSH, INTAKE
Page 5
AYP7143C79 (1997) Page 5 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1026A 495136 ROD, PUSH, EXHAUST
1029 224554 ARM, ROCKER
1033 495992 VALVE OVERHAUL KIT
1034 495248 GUIDE ASSEMBLY, PUSH ROD
1044 94673 SCREW, SHOULDER, HEX HEAD
1045 231828 EXTENSION, CRANKSHAFT
1054 270723 TIE, CABLE
1058 272623 MANUAL, OWNER'S
1090 REFER TO IMAGE
Page 6
AYP7143C79 (1997) Page 6 of 47
BRIGGS AND STRATTON ENGINE
Page 7
AYP7143C79 (1997) Page 7 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 496412 CYLINDER ASSY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 495858 HEAD, CYLINDER
7 272614 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 281246 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12A 271997 GASKET, CRANKCASE COVER .005"
12B 271996 GASKET, CRANKCASE COVER .009"
13 94728 SCREW, CYLINDER HEAD
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 495860 PISTON ASSY, STANDARD SIZE
25A 495977 PISTON ASSY .010" OVERSIZE
25B 495978 PISTON ASSY .020" OVERSIZE
25C 495979 PISTON ASSY .030" OVERSIZE
26 495854 RING SET, PISTON, STANDARD SIZE
26A 495852 RING SET, PISTON, .010" OVERSIZE
26B 495851 RING SET, PISTON, .020" OVERSIZE
26C 495855 RING SET, PISTON, .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28A 391286 PIN ASSEMBLY, PISTON .005" OVER
29 494504 ROD ASSY, CONNECTING
29A 495490 ROD ASSY, CONNECTING
32 94695 SCREW
32A 94648 SCREW
33 495856 VALVE, EXHAUST
34 495857 VALVE, INTAKE
35 262811 SPRING, VALVE
37 224502 GUARD, FLYWHEEL
40 224641 RETAINER, VALVE SPRING
45 262411 TAPPET, VALVE
46 96884 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272569 GASKET, CARBURETOR
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
117 231858 JET, NEEDLE VALVE
118 495932 VALVE, NEEDLE
121 497535 CARBURETOR OVERHAUL KIT
Page 8
AYP7143C79 (1997) Page 8 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
123 94616 SCREW, ELBOW MOUNTING
125 498051 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 231859 NOZZLE, CARBURETOR
147 231985 PILOT, JET
164 214047 ELBOW, CARBURETOR
166 94555 STUD, ROCKER ARM
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 94627 SCREW, SEMS 3/4"
192 492160 SCREW ASSY, ROCKER ARM
201 262767 LINK, GOVERNOR
209 260695 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94729 SCREW, SEMS, HEX HEAD
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
238 262836 CAP, VALVE
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94704 SCREW, AIR CLEANER
284A 94073 SCREW, HEX HEAD
294 810068 SCREW, SET
304 496281 HOUSING, BLOWER
305 94786 SCREW
306 224696 SHIELD CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
309 497595 MOTOR, STARTING, 12 VOLT
310 497602 BOLT, THRU
311 497608 BRUSH SET
333 495859 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 491055 PLUG, SPARK
346 93705 SUB= 69485
356 497708 WIRE ASSY
356A 497671 WIRE, STOP
356B 494705 WIRE, STOP
358 495993 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 224948 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 497606 DRIVE, STARTER
Page 9
AYP7143C79 (1997) Page 9 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
523 495230 CAP AND DIPSTICK, OIL FILLER
524 68838 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 63080 NLA
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 98970 WASHER, THROTTLE SHAFT
635 280872 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
653 93585 SCREW, HEX HEAD
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
718 230192 PIN, DOWEL
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 225170 RETAINER, WIRE
729A 281390 CLIP, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 REFER TO IMAGE
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
868 494435 SEAL ASSEMBLY, VALVE
868A 272610 GASKET, VALVE
871 262835 BUSHING, GUIDE (INTAKE & EXHAUST)
872 281104 COVER, AIR CLEANER
875 495862 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
947 497157 SOLENOID
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 281355 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 496758 LABEL KIT
1022 272475 GASKET, COVER
1023 224552 COVER, ROCKER ARM
1026 494432 ROD, PUSH, INTAKE
Page 10
AYP7143C79 (1997) Page 10 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1026A 495136 ROD, PUSH, EXHAUST
1029 224554 ARM, ROCKER
1033 495992 VALVE OVERHAUL KIT
1034 495248 GUIDE ASSEMBLY, PUSH ROD
1044 94673 SCREW, SHOULDER, HEX HEAD
1045 231828 EXTENSION, CRANKSHAFT
1054 270723 TIE, CABLE
1058 272623 MANUAL, OWNER'S
1090 REFER TO IMAGE
Page 11
AYP7143C79 (1997) Page 11 of 47
BRIGGS AND STRATTON ENGINE
Page 12
AYP7143C79 (1997) Page 12 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 496412 CYLINDER ASSY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 495858 HEAD, CYLINDER
7 272614 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 281246 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12A 271997 GASKET, CRANKCASE COVER .005"
12B 271996 GASKET, CRANKCASE COVER .009"
13 94728 SCREW, CYLINDER HEAD
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 495860 PISTON ASSY, STANDARD SIZE
25A 495977 PISTON ASSY .010" OVERSIZE
25B 495978 PISTON ASSY .020" OVERSIZE
25C 495979 PISTON ASSY .030" OVERSIZE
26 495854 RING SET, PISTON, STANDARD SIZE
26A 495852 RING SET, PISTON, .010" OVERSIZE
26B 495851 RING SET, PISTON, .020" OVERSIZE
26C 495855 RING SET, PISTON, .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28A 391286 PIN ASSEMBLY, PISTON .005" OVER
29 494504 ROD ASSY, CONNECTING
29A 495490 ROD ASSY, CONNECTING
32 94695 SCREW
32A 94648 SCREW
33 495856 VALVE, EXHAUST
34 495857 VALVE, INTAKE
35 262811 SPRING, VALVE
37 224502 GUARD, FLYWHEEL
40 224641 RETAINER, VALVE SPRING
45 262411 TAPPET, VALVE
46 96884 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272569 GASKET, CARBURETOR
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
117 231858 JET, NEEDLE VALVE
118 495932 VALVE, NEEDLE
121 497535 CARBURETOR OVERHAUL KIT
Page 13
AYP7143C79 (1997) Page 13 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
123 94616 SCREW, ELBOW MOUNTING
125 498051 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 231859 NOZZLE, CARBURETOR
147 231985 PILOT, JET
164 214047 ELBOW, CARBURETOR
166 94555 STUD, ROCKER ARM
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 94627 SCREW, SEMS 3/4"
192 492160 SCREW ASSY, ROCKER ARM
201 262767 LINK, GOVERNOR
209 260695 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94729 SCREW, SEMS, HEX HEAD
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
238 262836 CAP, VALVE
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94704 SCREW, AIR CLEANER
284A 94073 SCREW, HEX HEAD
294 810068 SCREW, SET
304 496281 HOUSING, BLOWER
305 94786 SCREW
306 224696 SHIELD CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
309 497595 MOTOR, STARTING, 12 VOLT
310 497602 BOLT, THRU
311 497608 BRUSH SET
333 495859 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 491055 PLUG, SPARK
346 93705 SUB= 69485
356 497708 WIRE ASSY
356A 497671 WIRE, STOP
356B 494705 WIRE, STOP
358 495993 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 224948 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 497606 DRIVE, STARTER
Page 14
AYP7143C79 (1997) Page 14 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
523 495230 CAP AND DIPSTICK, OIL FILLER
524 68838 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 63080 NLA
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 98970 WASHER, THROTTLE SHAFT
635 280872 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
653 93585 SCREW, HEX HEAD
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
718 230192 PIN, DOWEL
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 225170 RETAINER, WIRE
729A 281390 CLIP, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 REFER TO IMAGE
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
868 494435 SEAL ASSEMBLY, VALVE
868A 272610 GASKET, VALVE
871 262835 BUSHING, GUIDE (INTAKE & EXHAUST)
872 281104 COVER, AIR CLEANER
875 495862 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
947 497157 SOLENOID
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 281355 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 496758 LABEL KIT
1022 272475 GASKET, COVER
1023 224552 COVER, ROCKER ARM
1026 494432 ROD, PUSH, INTAKE
Page 15
AYP7143C79 (1997) Page 15 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1026A 495136 ROD, PUSH, EXHAUST
1029 224554 ARM, ROCKER
1033 495992 VALVE OVERHAUL KIT
1034 495248 GUIDE ASSEMBLY, PUSH ROD
1044 94673 SCREW, SHOULDER, HEX HEAD
1045 231828 EXTENSION, CRANKSHAFT
1054 270723 TIE, CABLE
1058 272623 MANUAL, OWNER'S
1090 REFER TO IMAGE
Page 16
AYP7143C79 (1997) Page 16 of 47
BRIGGS AND STRATTON ENGINE
Page 17
AYP7143C79 (1997) Page 17 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1 496412 CYLINDER ASSY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 495858 HEAD, CYLINDER
7 272614 GASKET, CYLINDER HEAD
8 495735 BREATHER ASSY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 281246 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
12A 271997 GASKET, CRANKCASE COVER .005"
12B 271996 GASKET, CRANKCASE COVER .009"
13 94728 SCREW, CYLINDER HEAD
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 495860 PISTON ASSY, STANDARD SIZE
25A 495977 PISTON ASSY .010" OVERSIZE
25B 495978 PISTON ASSY .020" OVERSIZE
25C 495979 PISTON ASSY .030" OVERSIZE
26 495854 RING SET, PISTON, STANDARD SIZE
26A 495852 RING SET, PISTON, .010" OVERSIZE
26B 495851 RING SET, PISTON, .020" OVERSIZE
26C 495855 RING SET, PISTON, .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
28A 391286 PIN ASSEMBLY, PISTON .005" OVER
29 494504 ROD ASSY, CONNECTING
29A 495490 ROD ASSY, CONNECTING
32 94695 SCREW
32A 94648 SCREW
33 495856 VALVE, EXHAUST
34 495857 VALVE, INTAKE
35 262811 SPRING, VALVE
37 224502 GUARD, FLYWHEEL
40 224641 RETAINER, VALVE SPRING
45 262411 TAPPET, VALVE
46 96884 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272569 GASKET, CARBURETOR
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 94626 SCREW, SEMS
93 281346 BUSHING, THROTTLE SHAFT
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
108 224540 VALVE, CHOKE
117 231858 JET, NEEDLE VALVE
118 495932 VALVE, NEEDLE
121 497535 CARBURETOR OVERHAUL KIT
Page 18
AYP7143C79 (1997) Page 18 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
123 94616 SCREW, ELBOW MOUNTING
125 498051 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 495931 SHAFT & LEVER, CHOKE
142 231859 NOZZLE, CARBURETOR
147 231985 PILOT, JET
164 214047 ELBOW, CARBURETOR
166 94555 STUD, ROCKER ARM
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 94627 SCREW, SEMS 3/4"
192 492160 SCREW ASSY, ROCKER ARM
201 262767 LINK, GOVERNOR
209 260695 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 495611 PLATE, GOVERNOR CONTROL
224 94729 SCREW, SEMS, HEX HEAD
225 495157 CRANK, GOVERNOR, 1/4" DIAMETER
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
238 262836 CAP, VALVE
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94704 SCREW, AIR CLEANER
284A 94073 SCREW, HEX HEAD
294 810068 SCREW, SET
304 496281 HOUSING, BLOWER
305 94786 SCREW
306 224696 SHIELD CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
309 497595 MOTOR, STARTING, 12 VOLT
310 497602 BOLT, THRU
311 497608 BRUSH SET
333 495859 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 491055 PLUG, SPARK
346 93705 SUB= 69485
356 497708 WIRE ASSY
356A 497671 WIRE, STOP
356B 494705 WIRE, STOP
358 495993 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 224948 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 497606 DRIVE, STARTER
Page 19
AYP7143C79 (1997) Page 19 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
523 495230 CAP AND DIPSTICK, OIL FILLER
524 68838 SEAL, FILLER TUBE
525 496113 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 497603 ARMATURE, STARTER
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 493496 ELBOW, FUEL PIPE
614 93306 COTTER, HAIR PIN
615 63080 NLA
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 98970 WASHER, THROTTLE SHAFT
635 280872 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
653 93585 SCREW, HEX HEAD
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
718 230192 PIN, DOWEL
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94951 SCREW, HEX HEAD
729 225170 RETAINER, WIRE
729A 281390 CLIP, WIRE
741 262932 GEAR, TIMING
757 213998 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 94593 SCREW, COUNTERWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 REFER TO IMAGE
803 497604 HOUSING, STARTER
842 270920 SEAL, OIL FILLER CAP
847 496415 P/N CONFLICT - CHECK WITH SUPPLIER
851 493880 TERMINAL, IGNITION CABLE
868 494435 SEAL ASSEMBLY, VALVE
868A 272610 GASKET, VALVE
871 262835 BUSHING, GUIDE (INTAKE & EXHAUST)
872 281104 COVER, AIR CLEANER
875 495862 BODY, AIR CLEANER
877 393456 DIODE & CONNECTOR ASSY
947 497157 SOLENOID
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 495933 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 281355 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 496758 LABEL KIT
1022 272475 GASKET, COVER
1023 224552 COVER, ROCKER ARM
1026 494432 ROD, PUSH, INTAKE
Page 20
AYP7143C79 (1997) Page 20 of 47
BRIGGS AND STRATTON ENGINE
Ref # Part Number Qty Description
1026A 495136 ROD, PUSH, EXHAUST
1029 224554 ARM, ROCKER
1033 495992 VALVE OVERHAUL KIT
1034 495248 GUIDE ASSEMBLY, PUSH ROD
1044 94673 SCREW, SHOULDER, HEX HEAD
1045 231828 EXTENSION, CRANKSHAFT
1054 270723 TIE, CABLE
1058 272623 MANUAL, OWNER'S
1090 REFER TO IMAGE
Page 21
AYP7143C79 (1997) Page 21 of 47
CHASSIS AND ENCLOSURES
Page 22
AYP7143C79 (1997) Page 22 of 47
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 159530 CHASSIS ASM
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 155272 BUMPER-HOOD/DASH
6 155924X011 SADDLE-SILKSCREEN
8 126471X "CLIP,INSULATOR"
9 147627X011 DASH.SILKSCREENED
10 72140608 SUB= 72110608
11 155927 "PANEL-DASH,LH"
12 145660 CLIP.TINNERMAN
13 155934X010 SUB= 169117X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 139394X505 SUB= 159639X505
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 157373 GRILLE-MS428
29 140273 LENS GRILLE
30 109872X505 FENDER
31 136619 BRKT FENDER
33 105476X505 FOOTREST LH
34 105475X505 FOOTREST RH
35 72110606 BOLT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
51 73800400 NUT
52 19091416 WASHER
53 144697 BRACKET.GRILLE.LH
54 17030814 SUB= 91817030814
55 144696 BRACKET.GRILLE.RH
57 74780412 SUB= 74780414
58 150127 AIR DUCT
71 73680400 SUB= 73690400
140 158418 BRKT SUSPENSION
145 156524 "ROD POVOT,CHASSIS"
147 74760412 BOLT LT
5479J PLUG BUTTON T
Page 23
AYP7143C79 (1997) Page 23 of 47
DECALS
Page 24
AYP7143C79 (1997) Page 24 of 47
DECALS
Ref # Part Number Qty Description
1 156867 "DECAL DASH,OPER."
2 146606 DECAL.INS.HD.14.5
3 272991 DECAL, ENGINE
4 157002 "DECAL DANGER,FEND"
5 4900J DECAL T
6 145005 DECAL.BATRY.3-3908
7 127521 NLA
8 146676 DECAL.HD.RH.WIZAR
9 146677 DECAL.HD.LH.WIZAR
10 136832 DECAL
14 146678 DECAL.INS.STRG.WL
15 141505 DECAL CHASSIS WIZ
16 141517 DECAL DECK WIZ +
138311 DECAL HANDLE LIFT
160532 MANUAL.O.7143C79
Page 25
AYP7143C79 (1997) Page 25 of 47
DRIVE
Page 26
AYP7143C79 (1997) Page 26 of 47
DRIVE
Ref # Part Number Qty Description
1 930-054A TRANSAXLE, PEERLESS
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
7 130802 SUB= 162240
8 131679 SHIFT ROD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74490544 BOLT.HX.FLG.5/16
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 154777 SUB= 165692
42 19131312 WASHER
47 127783 SUB= 139245
48 154604 BELLCRANK ASM
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
54 2751R CLIP T
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
70 134683 KEEPER BELT ENG
72 19132012 WASHER
74 137057 SPACER AXLE
Page 27
AYP7143C79 (1997) Page 27 of 47
DRIVE
Ref # Part Number Qty Description
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
96 4497H RETAINER M
112 19091210 WASHER LT
116 72110610 BOLT RDHD 3/8-16
113 127285X "STRAP,TORQUE"
118 154774 SPACER-BELLCRANK
121 154419 NYLINER-CLUTCHING
Page 28
AYP7143C79 (1997) Page 28 of 47
ELECTRICAL
Page 29
AYP7143C79 (1997) Page 29 of 47
ELECTRICAL
Ref # Part Number Qty Description
1 144925 SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
6 73220400 SUB= 50675
7 109238X TUBE T
8 156417 "CASE,BATTERY.MECH"
9 109596X HOSE CLAMP T
15 147688 FASTNER.SNAP-IN
16 153664 SWITCH INTERLOCK
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 146147 CABLE.BTRY.6GA.RD
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 140301 SWITCH IGN 4POS
31 124211X NUT IGNITION
32 141226 COVER KEY SWITCH
33 122147X KEY
40 156442 HARNESS-IGNITION
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
48 140844 ADAPTER AMMETER
52 141940 PROTECTION LOOP
70 140422 HARNESS.ENG.DUAL
Page 30
AYP7143C79 (1997) Page 30 of 47
ENGINE
Page 31
AYP7143C79 (1997) Page 31 of 47
ENGINE
Ref # Part Number Qty Description
1 140310 CONTROL THROTTLE
2 17720410 SCREW LT
3 287707-0255-01 ENGINE B&S
4 137352 MUFFLER
13 272293 GASKET ENG 1 313 LD TIN PLATED
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
23 156123 SHIELD-HEAT
29 137180 SUB= 532137180
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
35 17490512 SCREW
37 137040 LINE FUEL
38 CHECK WITH SUPPLIER
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
46 19091416 WASHER
62 10040500 LOCKWASHER
72 71070512 SCREW
78 17490620 SCREW
81 128861 NUT
Page 32
AYP7143C79 (1997) Page 32 of 47
MOWER DECK
Page 33
AYP7143C79 (1997) Page 33 of 47
MOWER DECK
Ref # Part Number Qty Description
1 144393 DECK.WELD.42.
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 134149 "BLADE.42"" MULCHER"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 157722 "SCREW-THD ROLL,WA"
31 129963 WASHER
32 153535 PULLEY.MANDREL.42
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 155066 ROLLER ASM-CAM
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845X900 SUB= 131845
54 133943 HARDENED WASHER
55 155046 ARM-IDLER
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
67 106932X KNOB T(3/8 HOLE)
68 144200 BELT.V.T-PATH
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
Page 34
AYP7143C79 (1997) Page 34 of 47
MOWER DECK
Ref # Part Number Qty Description
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 154809 LEVER ASM-CLUTCH
79 127498 BUSHING
80 153701 SPRING.CLUTCH.MWR
81 73350600 NUT
82 142028 TRUNION ADJ
83 120958X WASHER
84 156084 "KEEPER-BELT,FIXED"
85 72140618 BOLT RDHD 3/8-16
92 73800600 NUT
111 155197 BRACKET.GWHL.LH.
112 155198 BRACKET.GWHL.RH.
113 17490512 SCREW
114 73510500 NUT
115 72110504 SUB= 872110504
116 4898H BOLT M
117 105455X WHEEL.GAGE.BLK.PL
118 73930600 LOCKNUT
119 19121414 WASHER
120 19171512 WASHER
121 143723 BRACKET.EXTRD.GWL
128 153390 WASHER.FELT.
132 19132203 WASHER GT
130794 MANDREL ASM
145411 SUB= 164963
Page 35
AYP7143C79 (1997) Page 35 of 47
MOWER LIFT
Page 36
AYP7143C79 (1997) Page 36 of 47
MOWER LIFT
Ref # Part Number Qty Description
1 159460 WIRE ASM W.SPRING
2 MODELS SHAFT ASM LIFT
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
Page 37
AYP7143C79 (1997) Page 37 of 47
PEERLESS TRANSAXLE
Page 38
AYP7143C79 (1997) Page 38 of 47
PEERLESS TRANSAXLE
Ref # Part Number Qty Description
1 772108A TRANSAXLE COVER
2 780086 BEARING, NEEDLE
3 770102A TRANSAXLE CASE
4 776260 SHAFT, COUNTER
5 776219B OUTPUT SHAFT AND PINION
6 778139 GEAR, OUTPUT
7 778136 GEAR, SPUR, 15 TEETH
8 792136A SHIFT KEY
8A 792047 KEY, WOODRUFF
9 784352 COLLAR, SHIFTER
10 784355 ROD & FORK ASSY, SHIFT
11 778229 GEAR, BEVEL, 42 TEETH
12 778113A BEVEL PINION, INPUT
13 778221 GEAR, BEVEL
14 778068 GEAR, BEVEL, PINION
15 778260 GEAR, RING
17 786139 PIN, DRIVE
18 786102 SPACER, NEUTRAL
20 792077 BALL STEEL, 5/16" DIA.
21 792078 SCREW, 3/8-16 X 3/8"
22 792079 SPRING
23 788061 RING, SEAL
25 792073 SCREW, 1/4-20 X 1-1/4
26 792125 RING RETAINER
27 792035 RING, RETAINER
28 788040 RETAINING RING
29 780072 WASHER THRUST
30 780108 WASHER THRUST
31 780001 WASHER
32 792001 "O" RING
33 788095 SEAL, SQUARE CUT
34 780105A BUSHING, FLANGED
35 780118A BUSHING, FLANGED
36 790003 DISK, BRAKE
37 790007 PLATE BRAKE PAD
38 799021 BRAKE PAD
39 786026 PIN DOWEL
40 792076A WASHER
41 790079 BRAKE LEVER
42 792073 SCREW, 1/4-20 X 1-1/4
42A 792085A SCREW, 1/4-20 X 2-1/4
43 792075 LOCKNUT 5/16-24
44 790025 HOLDER BRAKE PAD
45 786066 SPACER
46 786086 BRKT BRAKE LEVER
47 774690 AXLE
48 774691 AXLE
49 778215 GEAR, SPUR, 37 TEETH
50 778124A GEAR, SPUR, 30 TEETH
51 778123A GEAR, SPUR, 25 TEETH
52 778122A GEAR, SPUR, 22 TEETH
53 778273 GEAR, SPUR, 19T
56 778230 GEAR, SPUR, 12 TEETH
57 778126A GEAR, SPUR, 20 TEETH
58 778127A GEAR, SPUR, 25 TEETH
59 778128A GEAR, SPUR, 28 TEETH
60 778163 GEAR, SPUR, 31 TEETH
63 786071 SPACER
Page 39
AYP7143C79 (1997) Page 39 of 47
PEERLESS TRANSAXLE
Ref # Part Number Qty Description
64 786072 SPACER
65 780109 WASHER, THRUST
66 776135 SHAFT, INPUT
67 776315A SHAFT, BRAKE, 4 KEYED
68 786116A PLUG
69 780051 WASHER THRUST
70 786118 SPACER
71 788069 SEAL SQUARE CUT
72 792165 THREADED PLUG 9/16-18
72A 788091 "O" RING
76 780090 WASHER, THRUST
77 788078A INVERTED RETAINING RING
79 792144 SPRING
81 786081 CHAIN, ROLLER
82 786082 SPROCKET 9T
83 786123 SPROCKET 18T (REV)
90 788067B GREASE BENTONITE, 32 OZ.
103 792166 SCREW
104 792167 LOCKNUT
150 510334 GASKET ELIMINATOR
900 794528A REPLACEMENT TRANSAXLE
Page 40
AYP7143C79 (1997) Page 40 of 47
SCHEMATIC
Page 41
AYP7143C79 (1997) Page 41 of 47
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
Page 42
AYP7143C79 (1997) Page 42 of 47
SEAT ASSEMBLY
Page 43
AYP7143C79 (1997) Page 43 of 47
SEAT ASSEMBLY
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 155925 PAN-SEAT
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 153236 "BOLT,SHOULDER"
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
Page 44
AYP7143C79 (1997) Page 44 of 47

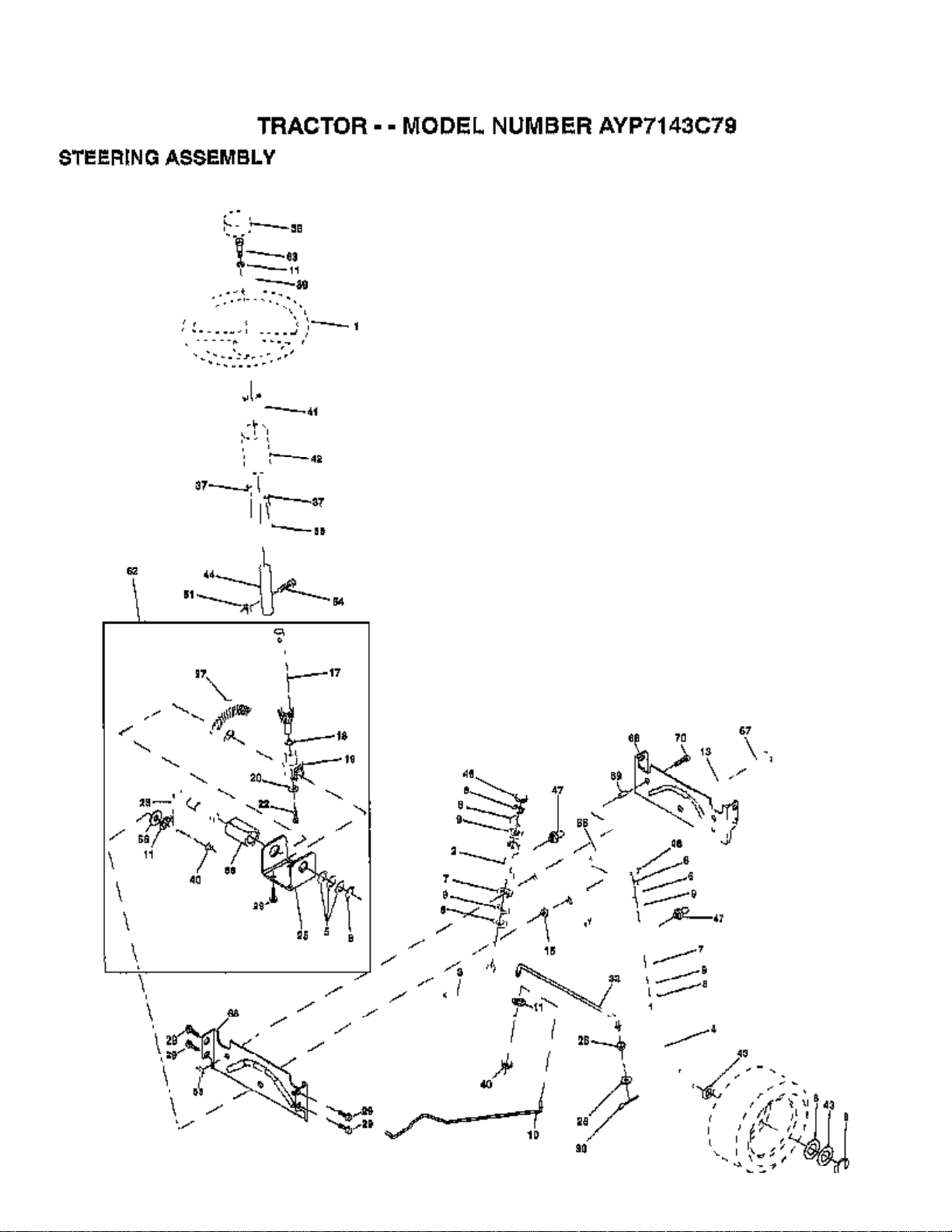

STEERING ASSEMBLY
Page 45
AYP7143C79 (1997) Page 45 of 47
STEERING ASSEMBLY
Ref # Part Number Qty Description
1 140044 WHEEL STR AYP BLK
2 154427 AXLE ASM
3 156483 SPINDLE.ASM.LH
4 157473 "SPINDLE ASM,RH"
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 156438 DRAGLINK-STAMPED
11 10040600 LOCKWASHER
13 154779 BEARING AXLE
15 73901000 "NUT-LOC,FLANGE LT"
17 156546 SHAFT ASM STEERIN
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
22 71200410 SCREW HEX SOC1/423 127501 SUB= 918127501
25 154406 BRKT-STEERING
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 155099 BUSHING.STEERING
37 152927 "SCREW-TT,10-32 FL"
38 140045 CAP STEER AYP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 100711L ADAPTER LT
42 145054 BOOT.STEER.PL
43 121749X WASHER
44 153720 EXT SHAFT STEERIN
46 121232X CAP
47 6855M ZERK M
51 73800500 NUT
53 73680600 SUB= 73690600
54 74780520 BOLT
62 156594 KIT STEERING ASM
63 74780616 BOLT
65 154780 SPACER AXLE
66 154404 "BEARING-ARM,PITMA"
67 74781044 BOLT
68 154429 BRACE AXLE
69 160367 "SPACER BRCAE,AXLE"
70 74780636 BOLT.HEX.3/8-16X2
Page 46
AYP7143C79 (1997) Page 46 of 47
WHEELS AND TIRES
Page 47
AYP7143C79 (1997) Page 47 of 47
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
