Page 1
AYP7124B59 (1995) Page 1 of 37
CHASSIS AND ENCLOSURES
Page 2
AYP7124B59 (1995) Page 2 of 37
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 145501 CHASSIS.WLD.11GA
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
6 145208X014 SUB= 155924X013
8 126471X "CLIP,INSULATOR"
9 140637X011 DASH SILKSCRN 1
10 72140608 SUB= 72110608
11 135464 DASH PANEL LH
13 124031X012 SUB= 155934X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 133956X505 HOOD/GRILL ASM
18 126938X SUB= 532126938
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
29 133805 SUB= 133954
30 109872X505 FENDER
31 136619 BRKT FENDER
33 105476X505 FOOTREST LH
34 105475X505 FOOTREST RH
35 72110606 BOLT
36 108067X PAL NUT LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
45 132257 SUB= 918132257
46 127316X RETAINER
5479J PLUG BUTTON T
Page 3
AYP7124B59 (1995) Page 3 of 37
DECALS
Page 4
AYP7124B59 (1995) Page 4 of 37
DECALS
Ref # Part Number Qty Description
1 138955 DECAL.DASH.INST.
2 138652 DECAL.ENG.272632
3 141506 NAMEPLATE WIZARD
4 133796 DECAL
5 4900J DECAL T
6 141507 DECAL CHASSIS
7 127521 NLA
8 141498 DECAL HOOD RH WIZ
9 141499 DECAL HOOD LH WIZ
10 136832 DECAL
11 141503 DECAL GRILL WIZ
12 141504 DECAL GRILL WIZ
13 140837 DECAL BRAK PARK
14 133870 NLA
138311 DECAL HANDLE LIFT
146085 MANUAL.O.7124A59
Page 5
AYP7124B59 (1995) Page 5 of 37
DRIVE
Page 6
AYP7124B59 (1995) Page 6 of 37
DRIVE
Ref # Part Number Qty Description
1 142594 SUB= 918142594
2 146682 SPRING.BRAKE.RETU
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
7 130802 SUB= 162240
8 131679 SHIFT ROD
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 74550412 BOLT.1/4-28.W/PAT
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140183 TIRE.R.23X9.5-12
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
70 134683 KEEPER BELT ENG
Page 7
AYP7124B59 (1995) Page 7 of 37
DRIVE
Ref # Part Number Qty Description
72 19132012 WASHER
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
100 19111216 WASHER M
112 19091210 WASHER LT
Page 8
AYP7124B59 (1995) Page 8 of 37
ELECTRICAL
Page 9
AYP7124B59 (1995) Page 9 of 37
ELECTRICAL
Ref # Part Number Qty Description
1 144925 SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
6 73220400 SUB= 50675
7 109238X TUBE T
8 129965 SUB= 156417
9 109596X HOSE CLAMP T
15 144935 SCREW.CAP.HEX.NYL
16 145355 NUT.CLIP.FASTNER
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 132202 SUB= 146147
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 144921 SUB= 163088
31 140400 SUB= 145774
32 141226 COVER KEY SWITCH
33 140405 RING RETAIN PTO
34 110712X SWITCH LT
35 108236X BRACKET LT
36 17021008 SCREW
35 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 146057 HARNESS.IGN.DASH.
41 71110412 BOLT.HX.1/4-20
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73800400 NUT
45 140844 ADAPTER AMMETER
49 11151000 LOCKWASHER
70 140413 HARNESS ENG DUAL
Page 10
AYP7124B59 (1995) Page 10 of 37
ENGINE
Page 11
AYP7124B59 (1995) Page 11 of 37
ENGINE
Ref # Part Number Qty Description
1 132759 SUB= 918132759
2 17720410 SCREW LT
3 REFER TO IMAGE
4 137348 MUFFLER
13 125593X SUB= 272293
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
18 136718 SHIELD HEAT
19 105839X RECEPTACLE LT
20 105838X RETAINER LT
21 19091016 WASHER
22 123650X STUD.1/4.TURN
23 128953 HEAT SHIELD
24 17021008 SCREW
29 137180 SUB= 532137180
30 127057X SUB= 532127057
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
37 137040 LINE FUEL
38 REFER TO IMAGE
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
46 19091416 WASHER
62 10040500 LOCKWASHER
72 71070512 SCREW
78 17490620 SCREW
81 73510400 NUT
Page 12
AYP7124B59 (1995) Page 12 of 37
ENGINE/B&S
Page 13
AYP7124B59 (1995) Page 13 of 37
ENGINE/B&S
Ref # Part Number Qty Description
1 490450 CYLINDER ASSEMBLY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 494240 HEAD, CYLINDER
7 271866 GASKET, CYLINDER HEAD
8 391406 BREATHER ASSEMBLY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 280100 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
271997 GASKET, CRANKCASE COVER .005"
271996 GASKET, CRANKCASE COVER .009"
13 94622 SCREW, CYLINDER HEAD 3"
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 394661 PISTON ASSEMBLY, STANDARD
394662 PISTON ASSEMBLY .010" OVERSIZE
394663 PISTON ASSEMBLY .020" OVERSIZE
394664 PISTON ASSEMBLY .030" OVERSIZE
26 391780 RING SET, PISTON, STANDARD
392331 RING SET, PISTON, STANDARD SIZE
391781 RING SET, PISTON .010" OVERSIZE
391782 RING SET, PISTON .020" OVERSIZE
391783 RING SET, PISTON .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
391286 PIN ASSEMBLY, PISTON .005" OVER
29 490348 ROD ASSEMBLY, CONNECTING
490469 ROD ASSEMBLY, CONNECTING .020" UNDERSIZE
CRANKPIN
32 94671 SCREW, CONNECTING ROD
33 262246 VALVE, EXHAUST
34 262247 VALVE, INTAKE
35 65906 SPRING, INTAKE VALVE
36 26828 SPRING, EXHAUST VALVE
37 224502 GUARD, FLYWHEEL
40 221596 RETAINER, INTAKE VALVE
41 292260 RETAINER, EXHAUST VALVE
42 93630 RETAINER, EXHAUST VALVE ROTOCOIL(2)
45 262248 TAPPET-VALVE
46 212897 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272554 GASKET CARB
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 93805 SCREW, SEMS
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
Page 14
AYP7124B59 (1995) Page 14 of 37
ENGINE/B&S
Ref # Part Number Qty Description
108 224540 VALVE, CHOKE
118 494383 VALVE, NEEDLE
121 495799 IN CARBURETOR OVERHAUL KIT
123 94616 SCREW, ELBOW MOUNTING
125 495706 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 494380 SHAFT AND LEVER, CHOKE
142 494537 NOZZLE/JET, CARBURETOR
147 231794 PILOT, JET
164 213819 ELBOW, INTAKE
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 93535 SCREW, HEX HEAD
201 262767 LINK, GOVERNOR
209 260871 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 494887 PLATE, GOVERNOR CONTROL
224 94513 SCREW, SEMS, AIR CLEANER
225 231058 CRANK, GOVERNOR
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94326 SCREW, AIR CLEANER
304 494269 HOUSING, BLOWER
305 94619 SCREW, SEMS, BLOWER, HOUSING MOUNTING
306 224545 SHIELD, CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
308 491490 COVER, CYLINDER HEAD
309 REFER TO IMAGE
309 394805 MOTER AND DRIVE ASSY.
310 94003 BOLT
311 395538 BRUSH ASSEMBLY
333 492341 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 802592 PLUG, SPARK
346 93705 SUB= 69485
356 494328 WIRE, GROUND
358 494241 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
422 223721 CLAMP, OIL FILLER TUBE
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 222562 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 490421 STARTER DRIVE GROUP
523 490327 CAP AND DIPSTICK, OIL FILLER
Page 15
AYP7124B59 (1995) Page 15 of 37
ENGINE/B&S
Ref # Part Number Qty Description
524 68838 SEAL, FILLER TUBE
525 280741 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 390837 ARRMATURE ASSEMBLY
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 494451 FUEL INLET TUBE
614 93306 COTTER, HAIR PIN
615 93307 RETAINER, E-RING
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 281167 WASHER, THROTTLE SHAFT
635 66538 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94627 SCREW, SEMS 3/4"
729 281159 CLIP, LEAD WIRE
729A 224723 RETAINER, WIRE
741 262135 GEAR, TIMING
757 212359 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 93875 SCREW, COUTENWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 395537 END CAP ASS'Y. COMMUTATOR
803 398159 HOUSING ASSEMBLY
842 270920 SEAL, OIL FILLER CAP
847 490474 FILL GROUP, OIL
851 221798 TERMINAL, IGNITION CABLE
869 261463 SEAT, INTAKE VALVE, STANDARD
870 213316 SEAT, EXHAUST VALVE, STANDARD
871 261961 GUIDE, EXHAUST VALVE
231218 GUIDE, INTAKE VALVE
872 281104 COVER, AIR CLEANER
875 494237 BODY, AIR CLEANER
876 490467 PINION SPRING KIT
877 393456 DIODE & CONNECTOR ASSY
896 94288 ROLL PIN
955 94642 SCREW, FUEL BOWL
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 494378 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 280687 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 491255 LABEL KIT
1044 94673 SCREW, SHOULDER, HEX HEAD
Page 16
AYP7124B59 (1995) Page 16 of 37
ENGINE/B&S
Page 17
AYP7124B59 (1995) Page 17 of 37
ENGINE/B&S
Ref # Part Number Qty Description
1 490450 CYLINDER ASSEMBLY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 494240 HEAD, CYLINDER
7 271866 GASKET, CYLINDER HEAD
8 391406 BREATHER ASSEMBLY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 280100 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
271997 GASKET, CRANKCASE COVER .005"
271996 GASKET, CRANKCASE COVER .009"
13 94622 SCREW, CYLINDER HEAD 3"
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 394661 PISTON ASSEMBLY, STANDARD
394662 PISTON ASSEMBLY .010" OVERSIZE
394663 PISTON ASSEMBLY .020" OVERSIZE
394664 PISTON ASSEMBLY .030" OVERSIZE
26 391780 RING SET, PISTON, STANDARD
392331 RING SET, PISTON, STANDARD SIZE
391781 RING SET, PISTON .010" OVERSIZE
391782 RING SET, PISTON .020" OVERSIZE
391783 RING SET, PISTON .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
391286 PIN ASSEMBLY, PISTON .005" OVER
29 490348 ROD ASSEMBLY, CONNECTING
490469 ROD ASSEMBLY, CONNECTING .020" UNDERSIZE
CRANKPIN
32 94671 SCREW, CONNECTING ROD
33 262246 VALVE, EXHAUST
34 262247 VALVE, INTAKE
35 65906 SPRING, INTAKE VALVE
36 26828 SPRING, EXHAUST VALVE
37 224502 GUARD, FLYWHEEL
40 221596 RETAINER, INTAKE VALVE
41 292260 RETAINER, EXHAUST VALVE
42 93630 RETAINER, EXHAUST VALVE ROTOCOIL(2)
45 262248 TAPPET-VALVE
46 212897 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272554 GASKET CARB
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 93805 SCREW, SEMS
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
Page 18
AYP7124B59 (1995) Page 18 of 37
ENGINE/B&S
Ref # Part Number Qty Description
108 224540 VALVE, CHOKE
118 494383 VALVE, NEEDLE
121 495799 IN CARBURETOR OVERHAUL KIT
123 94616 SCREW, ELBOW MOUNTING
125 495706 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 494380 SHAFT AND LEVER, CHOKE
142 494537 NOZZLE/JET, CARBURETOR
147 231794 PILOT, JET
164 213819 ELBOW, INTAKE
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 93535 SCREW, HEX HEAD
201 262767 LINK, GOVERNOR
209 260871 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 494887 PLATE, GOVERNOR CONTROL
224 94513 SCREW, SEMS, AIR CLEANER
225 231058 CRANK, GOVERNOR
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94326 SCREW, AIR CLEANER
304 494269 HOUSING, BLOWER
305 94619 SCREW, SEMS, BLOWER, HOUSING MOUNTING
306 224545 SHIELD, CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
308 491490 COVER, CYLINDER HEAD
309 REFER TO IMAGE
309 394805 MOTER AND DRIVE ASSY.
310 94003 BOLT
311 395538 BRUSH ASSEMBLY
333 492341 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 802592 PLUG, SPARK
346 93705 SUB= 69485
356 494328 WIRE, GROUND
358 494241 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
422 223721 CLAMP, OIL FILLER TUBE
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 222562 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 490421 STARTER DRIVE GROUP
523 490327 CAP AND DIPSTICK, OIL FILLER
Page 19
AYP7124B59 (1995) Page 19 of 37
ENGINE/B&S
Ref # Part Number Qty Description
524 68838 SEAL, FILLER TUBE
525 280741 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 390837 ARRMATURE ASSEMBLY
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 494451 FUEL INLET TUBE
614 93306 COTTER, HAIR PIN
615 93307 RETAINER, E-RING
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 281167 WASHER, THROTTLE SHAFT
635 66538 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94627 SCREW, SEMS 3/4"
729 281159 CLIP, LEAD WIRE
729A 224723 RETAINER, WIRE
741 262135 GEAR, TIMING
757 212359 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 93875 SCREW, COUTENWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 395537 END CAP ASS'Y. COMMUTATOR
803 398159 HOUSING ASSEMBLY
842 270920 SEAL, OIL FILLER CAP
847 490474 FILL GROUP, OIL
851 221798 TERMINAL, IGNITION CABLE
869 261463 SEAT, INTAKE VALVE, STANDARD
870 213316 SEAT, EXHAUST VALVE, STANDARD
871 261961 GUIDE, EXHAUST VALVE
231218 GUIDE, INTAKE VALVE
872 281104 COVER, AIR CLEANER
875 494237 BODY, AIR CLEANER
876 490467 PINION SPRING KIT
877 393456 DIODE & CONNECTOR ASSY
896 94288 ROLL PIN
955 94642 SCREW, FUEL BOWL
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 494378 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 280687 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 491255 LABEL KIT
1044 94673 SCREW, SHOULDER, HEX HEAD
Page 20
AYP7124B59 (1995) Page 20 of 37
ENGINE/B&S
Page 21
AYP7124B59 (1995) Page 21 of 37
ENGINE/B&S
Ref # Part Number Qty Description
1 490450 CYLINDER ASSEMBLY
2 399265 P/N CONFLICT - CHECK WITH SUPPLIER
3 391086 SEAL, OIL
5 494240 HEAD, CYLINDER
7 271866 GASKET, CYLINDER HEAD
8 391406 BREATHER ASSEMBLY
9 27803 GASKET, VALVE COVER
10 94621 SCREW, STEMS
11 280100 TUBE, BREATHER
12 271916 GASKET, CRANKCASE COVER 1/64"
271997 GASKET, CRANKCASE COVER .005"
271996 GASKET, CRANKCASE COVER .009"
13 94622 SCREW, CYLINDER HEAD 3"
15 94239 PLUG, OIL DRAIN
16 495162 CRANKSHAFT
94196 KEY, TIMING GEAR
18 494238 BASE, ENGINE
20 291675 SEAL, OIL
22 94624 SCREW, SEMS, BASE MOUNTING
23 492326 FLYWHEEL & RING GEAR ASSY, MAGNETO
24 222698 KEY, FLYWHEEL
25 394661 PISTON ASSEMBLY, STANDARD
394662 PISTON ASSEMBLY .010" OVERSIZE
394663 PISTON ASSEMBLY .020" OVERSIZE
394664 PISTON ASSEMBLY .030" OVERSIZE
26 391780 RING SET, PISTON, STANDARD
392331 RING SET, PISTON, STANDARD SIZE
391781 RING SET, PISTON .010" OVERSIZE
391782 RING SET, PISTON .020" OVERSIZE
391783 RING SET, PISTON .030" OVERSIZE
27 260924 LOCK, PISTON PIN
28 299691 PIN ASSEMBLY, PISTON, STANDARD
391286 PIN ASSEMBLY, PISTON .005" OVER
29 490348 ROD ASSEMBLY, CONNECTING
490469 ROD ASSEMBLY, CONNECTING .020" UNDERSIZE
CRANKPIN
32 94671 SCREW, CONNECTING ROD
33 262246 VALVE, EXHAUST
34 262247 VALVE, INTAKE
35 65906 SPRING, INTAKE VALVE
36 26828 SPRING, EXHAUST VALVE
37 224502 GUARD, FLYWHEEL
40 221596 RETAINER, INTAKE VALVE
41 292260 RETAINER, EXHAUST VALVE
42 93630 RETAINER, EXHAUST VALVE ROTOCOIL(2)
45 262248 TAPPET-VALVE
46 212897 GEAR, CAM
51 272465 GASKET, CARBURETOR (CARBURETOR TO ELBOW)
52 272554 GASKET CARB
53 94637 STUD, CARBURETOR MOUNTING
75 224061 WASHER, SPRING
78 93805 SCREW, SEMS
95 94098 SCREW, THROTTLE
98 495800 SCREW, IDLE SPEED
104 231789 PIN, FLOAT HINGE
105 231855 VALVE ASSY, INLET NEEDLE
106 231854 INLET VALVE SEAT
Page 22
AYP7124B59 (1995) Page 22 of 37
ENGINE/B&S
Ref # Part Number Qty Description
108 224540 VALVE, CHOKE
118 494383 VALVE, NEEDLE
121 495799 IN CARBURETOR OVERHAUL KIT
123 94616 SCREW, ELBOW MOUNTING
125 495706 CARBURETOR ASSEMBLY
127 REFER TO IMAGE
130 224539 VALVE, THROTTLE
131 494379 SHAFT & LEVER, THROTTLE
133 494381 FLOAT, CARBURETOR
137 281165 GASKET, FLOAT BOWL
138 281164 WASHER, FLOAT BOWL SCREW
141 494380 SHAFT AND LEVER, CHOKE
142 494537 NOZZLE/JET, CARBURETOR
147 231794 PILOT, JET
164 213819 ELBOW, INTAKE
171 281051 P/N CONFLICT - CHECK WITH SUPPLIER
187 393815 HOSE (CUT TO SUIT)
188 93535 SCREW, HEX HEAD
201 262767 LINK, GOVERNOR
209 260871 SPRING, GOVERNOR
216 262766 LINK, CHOKE
219 490815 GOVERNOR GEAR
222 494887 PLATE, GOVERNOR CONTROL
224 94513 SCREW, SEMS, AIR CLEANER
225 231058 CRANK, GOVERNOR
227 493935 LEVER ASSY, GOVERNOR
230 94742 WASHER, GOVERNOR CRANK, 1/4" I.D.
232 262785 SPRING, GOVERNOR LINK
240 394358 FILTER, FUEL
265 221535 CLAMP
284 94326 SCREW, AIR CLEANER
304 494269 HOUSING, BLOWER
305 94619 SCREW, SEMS, BLOWER, HOUSING MOUNTING
306 224545 SHIELD, CYLINDER
307 94623 SCREW, SEMS, CYLINDER SHIELD MTG.
308 491490 COVER, CYLINDER HEAD
309 REFER TO IMAGE
309 394805 MOTER AND DRIVE ASSY.
310 94003 BOLT
311 395538 BRUSH ASSEMBLY
333 492341 ARMATURE, MAGNETO
334 93381 SCREW, SEM, ARMATURE MOUNTING
337 802592 PLUG, SPARK
346 93705 SUB= 69485
356 494328 WIRE, GROUND
358 494241 GASKET SET
363 19203 PULLER, FLYWHEEL
383 89838 WRENCH SPARK PLUG
422 223721 CLAMP, OIL FILLER TUBE
423 94073 SCREW, HEX HEAD
445 493909 CARTRIDGE, AIR CLEANER
455 222561 CUP, SCREEN MOUNTING
467 493903 KNOB, AIR CLEANER
468 222562 SCREEN, FLUSH ROTATING
474 393474 STATOR, ALTERNATOR, DUAL CIRCUIT
482 93621 SCREW, SEMS
510 490421 STARTER DRIVE GROUP
523 490327 CAP AND DIPSTICK, OIL FILLER
Page 23
AYP7124B59 (1995) Page 23 of 37
ENGINE/B&S
Ref # Part Number Qty Description
524 68838 SEAL, FILLER TUBE
525 280741 TUBE, OIL FILLER
535 272403 ELEMENT, AIR CLEANER
537 281106 O-RING, AIR CLEANER
544 390837 ARRMATURE ASSEMBLY
552 231597 BUSHING, GOVERNOR CRANK, 1/4" I.D.
562 92613 BOLT, GOVERNOR LEVER
592 231082 NUT, HEX
601 93053 CLAMP, HOSE, GREEN
611 494451 FUEL INLET TUBE
614 93306 COTTER, HAIR PIN
615 93307 RETAINER, E-RING
618 262803 SPRING, CHOKE RETURN
634 281168 SEAL, CHOKE SHAFT
634A 491323 SEAL, GOVERNOR
634B 281167 WASHER, THROTTLE SHAFT
635 66538 ELBOW, SPARK PLUG
646 224546 BRACE, AIR CLEANER
657 93496 SCREW, SEMS
663 94620 SCREW, HEX HEAD
668 280848 SPACER
726 392134 GEAR, RING
727 490324 COVER, STARTER
728 94627 SCREW, SEMS 3/4"
729 281159 CLIP, LEAD WIRE
729A 224723 RETAINER, WIRE
741 262135 GEAR, TIMING
757 212359 LINK, COUNTERWEIGHT
758 399891 COUNTERWEIGHT ASSY
759 298909 PIN ASSY, PISTON, STD
761 93875 SCREW, COUTENWEIGHT
783 280104 GEAR, STARTER
801 394856 CAP, DRIVE
802 395537 END CAP ASS'Y. COMMUTATOR
803 398159 HOUSING ASSEMBLY
842 270920 SEAL, OIL FILLER CAP
847 490474 FILL GROUP, OIL
851 221798 TERMINAL, IGNITION CABLE
869 261463 SEAT, INTAKE VALVE, STANDARD
870 213316 SEAT, EXHAUST VALVE, STANDARD
871 261961 GUIDE, EXHAUST VALVE
231218 GUIDE, INTAKE VALVE
872 281104 COVER, AIR CLEANER
875 494237 BODY, AIR CLEANER
876 490467 PINION SPRING KIT
877 393456 DIODE & CONNECTOR ASSY
896 94288 ROLL PIN
955 94642 SCREW, FUEL BOWL
965 94108 LOCKNUT, AIR CLEANER MOUNTING
975 494378 BOWL ASSEMBLY, CARBURETOR
977 494385 CARBURETOR GASKET KIT
987 281166 SEAL, THROTTLE SHAFT
1005 280687 FAN, FLYWHEEL
1006 224413 RETAINER, FAN
1019 491255 LABEL KIT
1044 94673 SCREW, SHOULDER, HEX HEAD
Page 24
AYP7124B59 (1995) Page 24 of 37
MOWER DECK
Page 25
AYP7124B59 (1995) Page 25 of 37
MOWER DECK
Ref # Part Number Qty Description
1 144393 DECK.WELD.42.
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 134149 "BLADE.42"" MULCHER"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
67 106932X KNOB T(3/8 HOLE)
68 144200 BELT.V.T-PATH
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
Page 26
AYP7124B59 (1995) Page 26 of 37
MOWER DECK
Ref # Part Number Qty Description
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140334 SUB= 154810
79 127498 BUSHING
80 128759 SUB= 918128759
81 73350600 NUT
82 142028 TRUNION ADJ
83 120958X WASHER
84 144394 SUB= 156084
85 72140620 BOLT
92 73800600 NUT
111 140353 SUB= 155197
112 132262 SUB= 155198
13 17490512 SCREW
114 73510500 NUT
115 72110504 SUB= 872110504
116 4898H BOLT M
117 105455X WHEEL.GAGE.BLK.PL
118 73930600 LOCKNUT
119 19121414 WASHER
120 19171512 WASHER
121 143723 BRACKET.EXTRD.GWL
130794 MANDREL ASM
145411 SUB= 164963
Page 27
AYP7124B59 (1995) Page 27 of 37
MOWER LIFT
Page 28
AYP7124B59 (1995) Page 28 of 37
MOWER LIFT
Ref # Part Number Qty Description
1 136973 WIRE ASM
2 122507X SUB= 145117
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
Page 29
AYP7124B59 (1995) Page 29 of 37

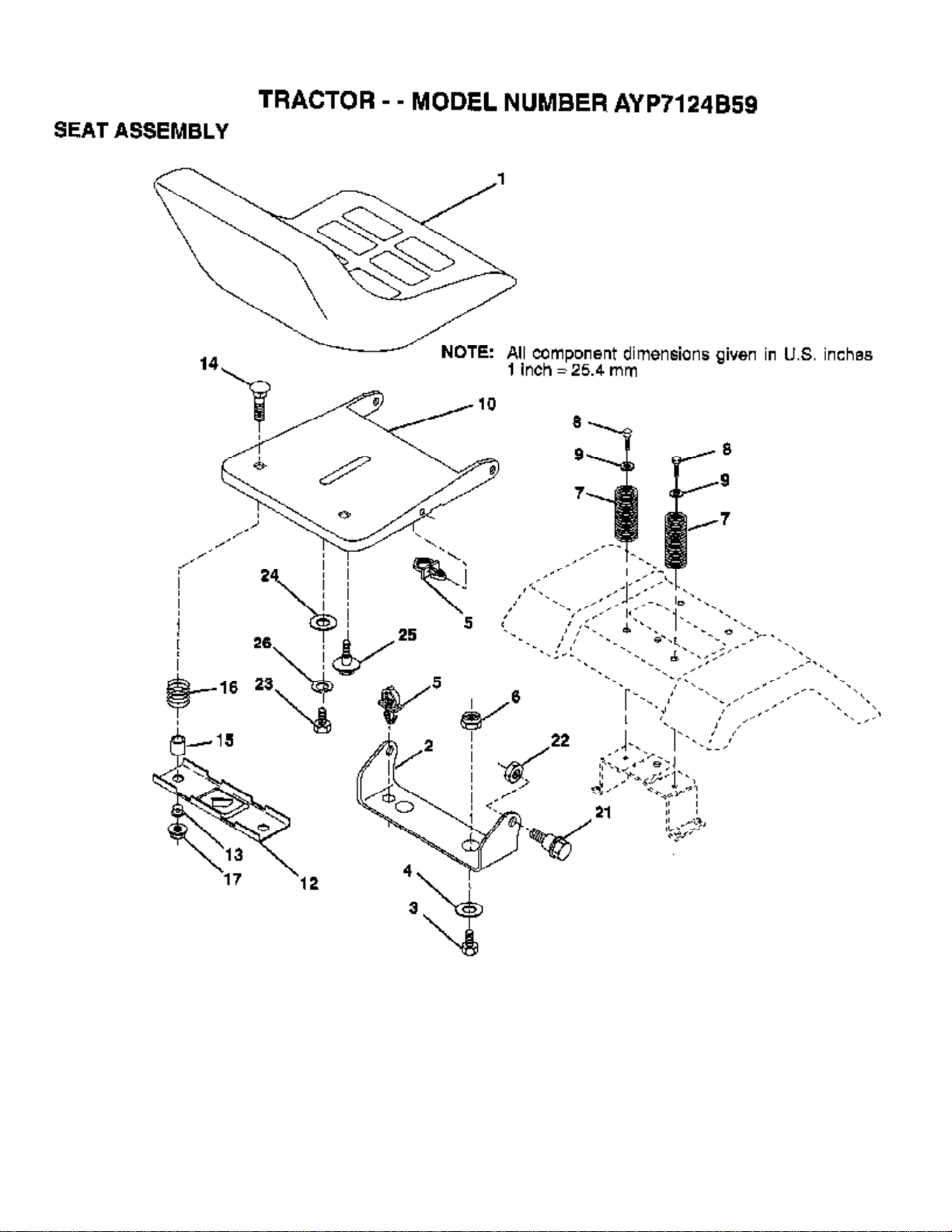

SEAT
Page 30
AYP7124B59 (1995) Page 30 of 37
SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
Page 31
AYP7124B59 (1995) Page 31 of 37
STEERING
Page 32
AYP7124B59 (1995) Page 32 of 37
STEERING
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 132614 SHAFT ASM
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 132196 SUB= 155106
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 124418X "TUBE, STR SHAFT"
43 121749X WASHER
46 121232X CAP
47 6855M ZERK M
Page 33
AYP7124B59 (1995) Page 33 of 37
TRANSAXLE
Page 34
AYP7124B59 (1995) Page 34 of 37
TRANSAXLE
Ref # Part Number Qty Description
1 5305D HOUSING, UPPER
2 1919 SCREW
3 5112 BALL, DETENT
4 3626 SPRING, DETENT
5 3623 SCREW, SET
6 4731 SHIFTER ASSEMBLY
7 5024 BOOT, SHIFTER
58 3847 LOCKNUT 5/16-24
9 5416 SEAL, OIL
10 1106 RING, RETAINING
11 4689 ASSY, KIT, SHIM .625 SHAFT
12 5415 BEARING, FLANGE
13 3876 WASHER, PLAIN .632 X 1.38 X .046
14 1746 KEY, WOODRUFF, #9
15 4551 ASSEMBLY, KIT, INPUT SHAFT
16 3590 PINION, BEVEL, 14 TEETH
17 3624 RING, RETAINING
18 3625 CHAIN, 24 PITCHES
19 1542 BEARING, FLANGE
20 5402 GEAR, SPUR, 14 TEETH
21 5303 COLLAR, CLUTCH
22 4758 ASSEMBLY, KIT, CLUTCH KEYS
23 5131 SCREW TAPPING WITH SEALER
24 5403 SHAFT, INTERMEDIATE
25 1375 KEY, WOODRUFF, #61
26 3627 RING, RETAINING
27 3830 SPROCKET, 18 TEETH
28 3841 SPACER
29 5365 GEAR, SPUR, 37 TEETH
30 3867 GEAR, SPUR, 30 TEETH
31 3783 GEAR, SPUR, 25 TEETH
32 5026 SPACER 1.133 X 1.50 X .750
33 3869 GEAR, SPUR, 22 TEETH
34 3724 SCREW TAPPING
35 3628 WASHER, PLAIN .640 X 1.37 X .061
36 1423 WASHER, PLAIN .632 X 1.00 X .026
37 3422 SPACER .630 X 1.00 X .169
38 4286 ASSY GEAR COMB 12&35 TEETH
39 3967 SHAFT, IDLER
40 3901 SPACER .635 X .875 X .755
41 3645 SPROCKET, 9 TEETH
42 3853 GEAR, BEVEL, 42 TEETH
43 4691 ASSY, KIT, SHIM .750 SHAFT
44 3882 SHAFT, DRIVE
45 5364 GEAR SPUR, 12 TEETH
46 3866 GEAR, SPUR, 20 TEETH
47 3719 GEAR, SPUR, 25 TEETH
48 3683 GEAR, SPUR, 31 TEETH
49 3684 SPACER .781 X 1.00 X .750
50 3907 PUCK, FRICTION
51 1145 WASHER, PLAIN .632 X 1.00 X .060
52 5130 WASHER, NEOPRENE
53 3184 WASHER, PLAIN .758 X 1.25 X .031
54 3880 AXLE LEFT HAND
55 3780 GEAR, MITER, 15 TEETH
56 3656 RING, RETAINING
57 3839 GEAR, SPUR, 32 TEETH
58 3919 SHAFT, CROSS
Page 35
AYP7124B59 (1995) Page 35 of 37
TRANSAXLE
Ref # Part Number Qty Description
59 3781 GEAR, MITER, 15 TEETH
60 3881 AXLE, R.H.
61 5304E HOUSING, LOWER
62 3920 PUCK, FRICTION
63 3276 DISC, BRAKE
64 3758 SPACER
65 3916 JAW, BRAKE
66 3843 PIN, DOWEL
67 5120 SCREW, SELF-TAPPING
68 5285 LEVER ACTUATING
69 3760 WASHER, PLAIN .321 X 1.00 X .055
70 3917 BRACKET, ANTI-ROTATION
71 4300 GREASE
Page 36
AYP7124B59 (1995) Page 36 of 37
WHEELS/TIRES
Page 37
AYP7124B59 (1995) Page 37 of 37
WHEELS/TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
Loading...
