AYP AT138A Parts List

AT138A (1999 & Before) Page 1 of 2

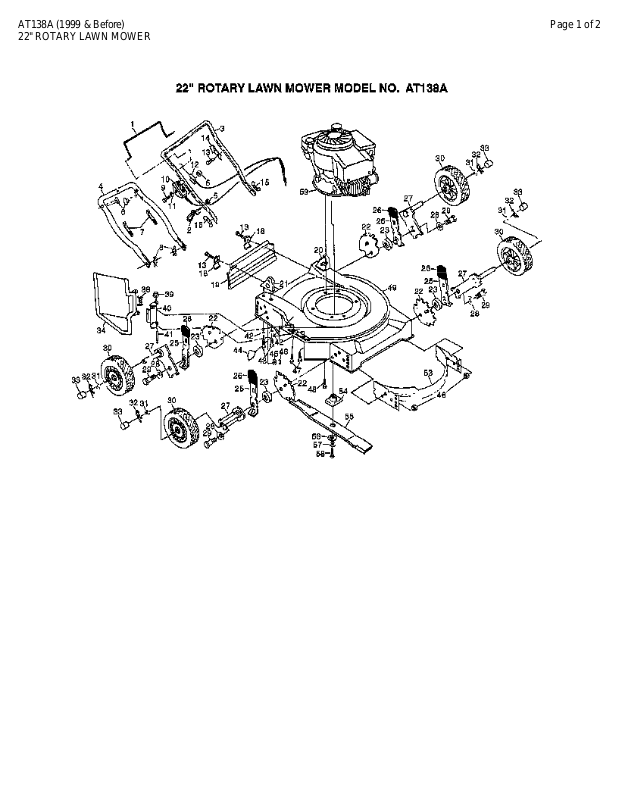

22" ROTARY LAWN MOWER

AT138A (1999 & Before) Page 2 of 2
22" ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 86902 CONTROL BAR PM
2 132001 ROPE GUIDE
3 132649X479 SUB= 160223X479
4 84676X479 SUB= 151516X479
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 51793 HAIRPIN COTTER

9 86055 SUB= 144929
10 700583 "CONTROL, THROTTLE"
11 85723 WASHER PM
12 130861 "CABLE,ENG ZONE CO"
13 750097 TAPPING SCREW
14 850733X004 "BRKT,UPSTOP"
15 128638 "NUT,WING PM"
18 87584X004 "BRKT,DEFL PM"
19 128797 SUB= 140540
20 701971X419 SUB= 150959
21 701969X419 SUB= 150959
22 700328X007 BRACKET.WHL.ADJ.9
23 84920 SUB= 146630
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 85021X004 AXLE ARM
28 62335 "WASHER, BELLEVIL."
29 84921 SUB= 142748
30 800220 WHEEL.ASM
31 52160 WASHER
32 85179 RETAINER CLIP PM
33 800090 HUB CAP-PLASTIC
34 851750 SUB= 532851750
38 851855 "SPRING,TORSION"
39 83731 PUSH ON SPEED NUT
40 851852X004 "BRKT,HSG"
41 851854 "ROD,HINGE "
42 59289 STEEL WASHER
43 55187 SCREW
44 107339X DECAL HYT
45 61537 SUB= 19132012
46 751592 LOCKNUT PM
47 851856 SCREW
48 850998 SCREW
49 701492 KIT.HSG.22SD PUSH
53 700929X479 BAFFLE.FRT/REAR
54 850977 BLADE ADAPTOR
55 850973 "BLADE.22"""
56 851074 "WASHER,HARDEN"
57 850263 LOCKWASHER
58 851084 SCREW
59 CHECK WITH SUPPLIER

700714 NLA
702581 MANUAL.P.AT138A
GCK2200 SUB= GCK3200A
MK1000 "KIT, MULCHER 22"""
