AP62CR (1999 & Before) Page 1 of 5
GEAR CASE ASSEMBLY
AP62CR (1999 & Before) Page 2 of 5
GEAR CASE ASSEMBLY
Ref # Part Number Qty Description
1 53838 SUB= 73510400
2 85178 SUB= 85177X004
3 86613 SHIFTER ASM PM
4 57072 SEAL
5 57388 DRIVE LOK PIN
6 48032 CASE HALF KIT PM
7 77881 BEARING
8 77039 SUB= 81585X004
9 79946 DRIVE SHFT KIT PM
10 57079 THRUST WASHER
11 75144 NLA
12 87822 GROOVE PIN PM
13 86447 PLUG PM
14 83659 SUB= 133804
15 75424 SUB= 750436X
16 750355 SUB= 6066J
17 53753 E-RING
18 83684 SQUARE KEY
19 83720 WORM SHAFT
20 65692 WOODRUFF KEY
21 83680 WORM
22 50950 SUB= 2276J
23 86012 DRV SHAFT TUBE PM
24 65692 WOODRUFF KEY
25 57076 WOODRUFF KEY
26 54338 SUB= 74760444
27 83632 SUB= 137090
28 68038 SUB= 73850400
29 75192 SPRING
30 83681 PULLEY.DRIVE.LM
31 74976 RETAINER RING
32 83700 CABLE CLAMP
33 54562 SCREW
AP62CR (1999 & Before) Page 3 of 5
LAWN MOWER
AP62CR (1999 & Before) Page 4 of 5
LAWN MOWER
Ref # Part Number Qty Description
1 87025 CONTROL DRIVE PM
2 48029 SUB= 79953
3 48030 SUB= 87025
4 103246X SUB= 103111X479
5 84683 SUB= 84684X479
6 101632X GRIP COMFORT PM
7 103094X CONTROL BAIL
8 86874 SUB= 84047
9 78186 SCREW
10 74189 NUT
11 103818X CABLE ASSY PM
12 85724 SCREW PM
13 107246X THROTTLE CNTRL PM
14 54138 SUB= 74760432
15 85723 WASHER PM
16 63601 SUB= 73800400
17 63688 SUB= 136376
18 103672X ROPER GUIDE PM
19 58714 SUB= 131959
20 85827 CABLE CLIP PM
21 51793 HAIRPIN COTTER
22 83691 V-BELT.LM.DRIVE
23 87945 SUB= 85535
24 81281 HANDLE LEVER
25 62363 SPRING - LEVER
26 88473 NLA
27 103510X SUB= 150959
28 103511X SUB= 150959
29 75680 SUB= 88145
30 81254 SUB= 75430X004
31 81276 SCREW
32 70385 CABLE CLIP
33 63640 COTTER PIN
34 75442 REAR DEFLECTOR
35 55187 SCREW
36 59289 STEEL WASHER
37 103095X SUB= 133759X007
38 103096X SUB= 133757X007
39 84920 SUB= 146630
40 88348 WASHER PM
41 77865 SUB= 532132800
42 84888 SUB= 700331X004
43 82987 SUB= 82986X004
44 62335 "WASHER, BELLEVIL."
45 84921 SUB= 142748
46 107708X WHEEL & TIRE PM
47 52160 WASHER
48 55015 CLIP.RETAINER
49 77400 HUB CAP
50 85284 REAR BAFFLE PM
51 74400 SUB= 73800600
52 62333 WASHER
53 107707X SUB= 702245
54 53753 E-RING
55 74507 PINION.10.TEETH
56 76401 DUST COVER
57 48098 SUB= 48175
58 48097 SUB= 48174
AP62CR (1999 & Before) Page 5 of 5
LAWN MOWER
Ref # Part Number Qty Description
59 76125 HEX BOLT
60 83629 BELT SNUBBER
61 61528 SUB= 74100412
62 48039 SUB= 48282
63 75449 SPEED NUT
64 103524X "BLADE 22"" PM"
65 82626 SUB= 74940620
66 850263 LOCKWASHER
67 107250X SUB= 851026
68 84942 WASHER.FLAT.3/8
69 107393X DRIVE COVER PM
70 75725 SCREW
71 69411 SCREW
72 85285 SUB= 132352X479
73 63601 SUB= 73800400
74 111003X HOUSING M
75 53490 NUT
76 100945R DISCHARGE GRD PM
77 674A260 SUB= 800767
78 674A261 SUB= 800769
79 59349 PAL NUT PM
80 103673X HINGE ROD PM
81 100958L SPRING-TORSION PM
82 53847 SUB= 19091214
83 107531X DECAL PM
84 107536X NLA
85 107240X NLA
86 107709X NLA
87 84596 ENGINE.PULLEY.FWG
88 59708 SCREW
89 87677 HI PRO KEY PM
90 63124 SUB= 73690500
91 85463 DECAL-DANGER PM

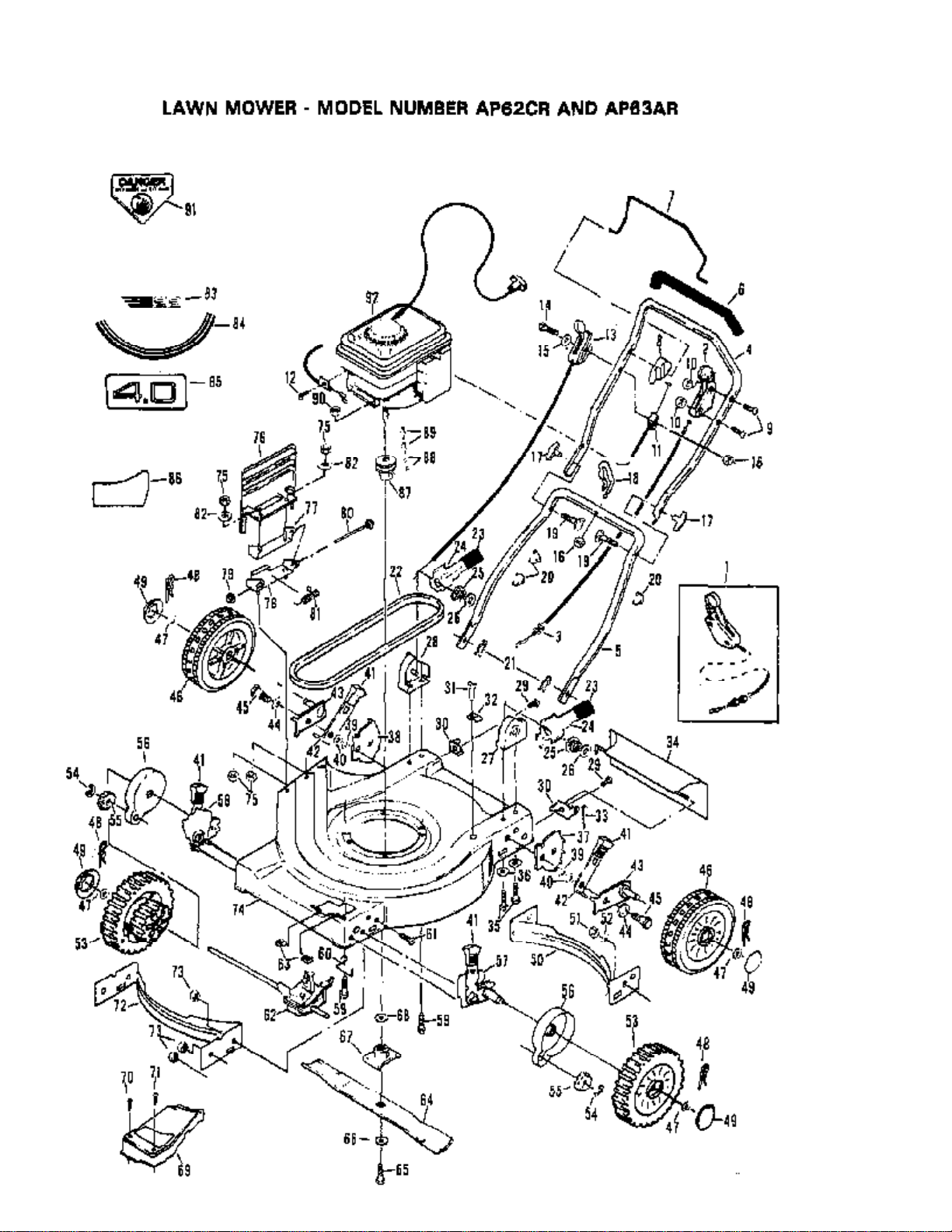

92 REFER TO IMAGE
850163 OWNERS MANUAL
