AN2C679A (1999 & Before) Page 1 of 5

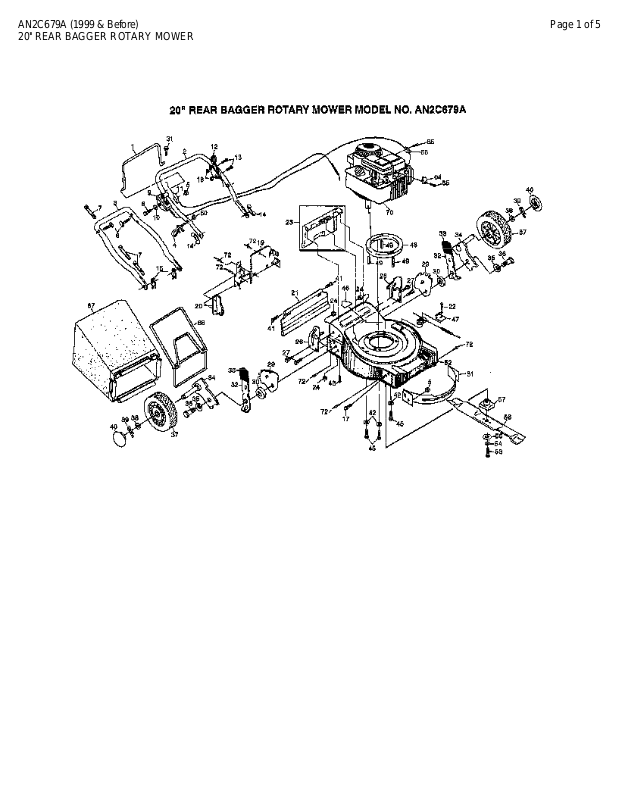

20'' REAR BAGGER ROTARY MOWER
Page 2
AN2C679A (1999 & Before) Page 2 of 5
20'' REAR BAGGER ROTARY MOWER
Ref # Part Number Qty Description
1 132570 CONTROL BAR
2 132670X479 SUB= 154480X479
3 134081X479 SUB= 151590X479
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 85692 SUB= 74250434
9 851462 CONTROL THROTTLE
10 85723 WASHER PM
11 130861 "CABLE,ENG ZONE CO"
12 700401 CONTROL.DRIVE
13 750029 SCREW
14 128638 "NUT,WING PM"
15 51793 HAIRPIN COTTER
16 74189 NUT
17 74100412 SCREW
19 700356X479 PLATE.BACK.20RD
20 700363X479 BAFFLE.SIDE
21 133259 SUB= 140657
22 85768 "SCREW, HEX PM"
23 48257 "KIT, REAR DOOR PM"
24 751592 LOCKNUT PM
25 700913X419 SUB= 150956
26 700915X419 SUB= 150956
27 55187 SCREW
29 700375 SUB= 700325X007
30 84920 SUB= 146630
31 851552 "SCREW,PAN HD"
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 85021X004 AXLE ARM
35 62335 "WASHER, BELLEVIL."
36 84921 SUB= 142748
37 850690 WHEEL &TIRE ASSY
38 52160 WASHER
39 85179 RETAINER CLIP PM
40 77400 HUB CAP
41 88652 HINGE SCREW
42 53998 SUB= 19131216
43 54583 SCREW
45 850999 SCREW
46 107339X DECAL HYT
47 88615 BRKT DRV COV
48 850988 ENGINE SPACER
49 850987 SUB= 850988
50 73510400 NUT
51 132198X479 SUB= 144961
52 701899 KIT.HSG.20RD.FWBD
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 850972 BLADE.STAND.20INC
57 851514 ADAPTOR.BLADE.LM
64 213146 CABLE CLAMP
65 83816 SCREW PM
66 850472 "CLIP,CABLE"
67 135200 GRASSBAG.PM.
Page 3
AN2C679A (1999 & Before) Page 3 of 5
20'' REAR BAGGER ROTARY MOWER
Ref # Part Number Qty Description
68 133413 CATCHER FRAME
70 CHECK WITH SUPPLIER
72 128415 BLIND RIVET
700480 "MANUAL,OP"
701948 MANUAL.P.AN2C679A
133414 HOUSING DECAL
MA36 CLIPPING DEFL
MK20FRD "KIT, MULCHER 20"""
Page 4
AN2C679A (1999 & Before) Page 4 of 5
20'' REAR BAGGER ROTARY MOWER
Page 5
AN2C679A (1999 & Before) Page 5 of 5
20'' REAR BAGGER ROTARY MOWER
Ref # Part Number Qty Description
1 750097 TAPPING SCREW
2 111925X COVER.DRIVE
3 4802 SUB= 19070818
4 851980 DRIVE PAWL
5 88043 PULLEY PM
6 12000030 RETAINING RING ST
7 54583 SCREW
8 851947X004 "CLUTCH,FRAME"
9 50962 LOCKNUT
10 88065X004 SUB= 702631X004
11 88067 SPACER PM
12 750253 LOCKNUT
13 72070504 CARRIAGE BOLT
14 74350424 BOLT 1/4-20-1 1/2
15 88069 SPACER PM
16 48160 IDLER ASSY
17 88576 IDLER SPACER
18 88517 SHOULDER BOLT
19 88516 IDLER PULLEY
20 87877 KNOB PM
21 700339 SUB= 151228
22 700340 SUB= 151226
23 88118 WASHER PM
24 88080 DUST SHROUD PM
25 67725 WASHER FLUT
26 88446 BUSHING.HEX
27 850957 WHEEL&TIRE ASSY
28 52160 WASHER
29 85179 RETAINER CLIP PM
30 77400 HUB CAP
31 12000057 SUB= 12000058
32 137054 PINION.GEAR
33 63601 SUB= 73800400
34 700537 SHAFT.DRIVE.17.81
35 88082 DRIVE PULLEY PM
36 111924X SUB= TH3H340
852000 "DECAL,CLEAN UNDER"
850428 DECAL DR CVR
