AYP AN2A351A Parts List

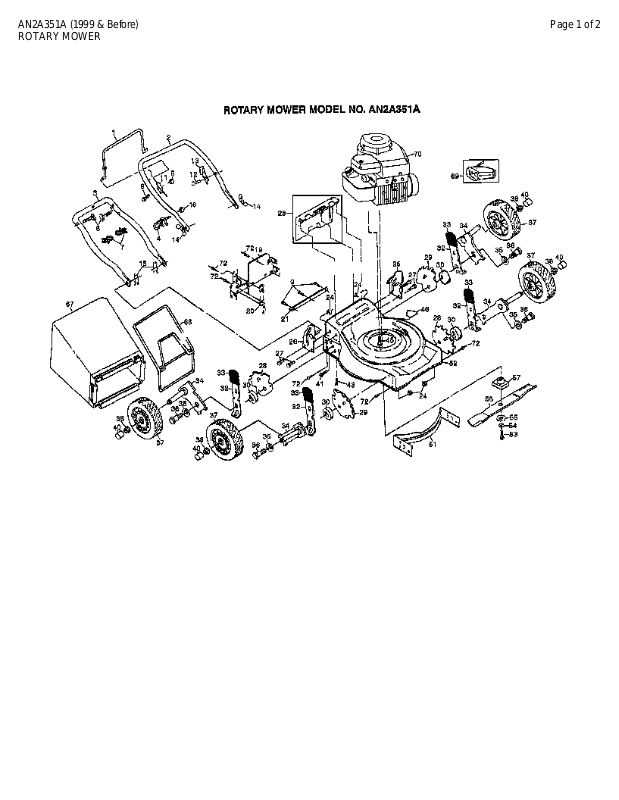

AN2A351A (1999 & Before) Page 1 of 2
ROTARY MOWER

AN2A351A (1999 & Before) Page 2 of 2
ROTARY MOWER

Ref # Part Number Qty Description

1 86902 CONTROL BAR PM
2 132649X479 SUB= 160223X479
3 151516X479 LOWER HANDLE
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 151517 SUB= 7192J
8 74350424 BOLT 1/4-20-1 1/2

9 146694 SCREW.1/4-20.38
11 130861 "CABLE,ENG ZONE CO"
12 750097 TAPPING SCREW
13 850733X004 "BRKT,UPSTOP"
14 128638 "NUT,WING PM"
15 51793 HAIRPIN COTTER
16 73510400 NUT
19 145854X479 PLATE.BACK.PNT.
20 700363X479 BAFFLE.SIDE
21 146143X479 GUARD.FOOT.REAR.
23 147613 KIT.DOOR.RR.20STL
24 54178 SUB= 73220600
25 151589X479 BRACKET.HDL.LH.
26 151588X479 BRACKET.HDL.RH.
27 150078 SCREW.HXWS.5/16
28 700327X007 BRACKET.ADJ.9.RH
29 700326X007 BRACKET.ADJ.9.LH
30 146630 SPACER.HEIGHT.ADJ
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 145935X004 ARM.AXLE.ASM.BZP.
35 62335 "WASHER, BELLEVIL."
36 151611 BOLT.SHLD.W/PATCH
37 700263 WHEEL ASM
38 83923 HEX FLANGE LOCKNT
40 800090 HUB CAP-PLASTIC
41 88652 HINGE SCREW
43 54583 SCREW
45 150406 BOLT.ENG.3/8-16
46 145494 DECAL.DANGER.CUTF
51 701640X479 BAFFLE.FRONT
52 152025 HOUSING.ASSY
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 145106 BLADE.20.MULCH.AY
57 850977 BLADE ADAPTOR
67 147270 GRASSBAG.170A1.GE
68 750532 FRAME.CATCHER.ASM
69 MA36 CLIPPING DEFL
70 CHECK WITH SUPPLIER
72 128415 BLIND RIVET

152023 MANUAL.OP.AN2A351
152024 OWN.M.AN2A351AM
