AYP AG22H42STA Parts List

AG22H42STA (2004) Page 1 of 23

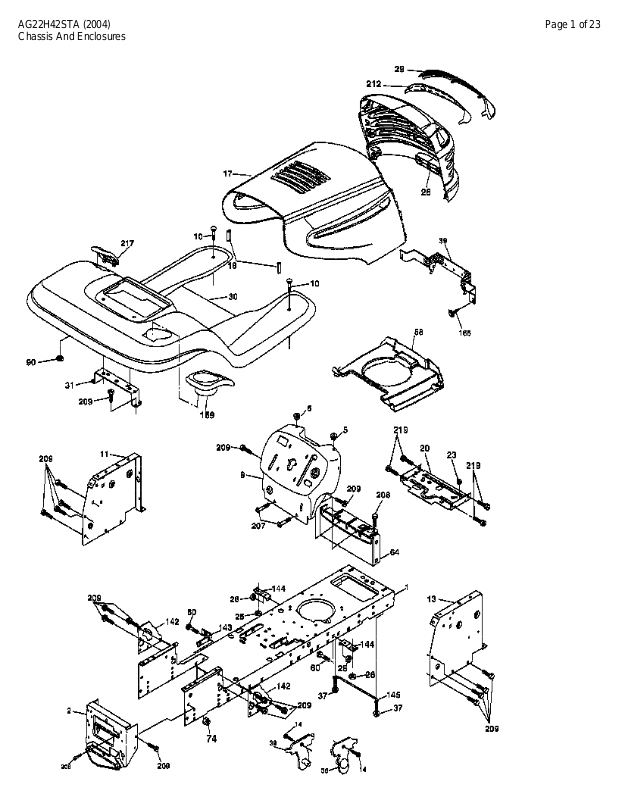

Chassis And Enclosures

AG22H42STA (2004) Page 2 of 23
Chassis And Enclosures

Ref # Part Number Qty Description

1 174619 Chassis
2 176554 Drawbar
5 155272 Bumper Hood/Dash

9 168337X012 Dash P/L
10 72140608 Bolt Carriage 3/8-16 x 1
11 174996 Panel Dash Lh
13 175255 Panel Dash Rh
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 183394X505 Hood
18 126938X Bumper Hood
20 180679 Plate Battery
23 124028X Bushing
26 73800600 Nut Lock Hex W/Ins 3/8-16 unc
28 183826 Grille/Lens Asm (Includes Key Nos. 29 and 212)
29 183824X599 Lens Grille
30 179131X505 Fender Footrest STLT Pnt
31 139976 Bracket Fender
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
39 174714 Bracket Pivot
58 184462 Duct Air
60 72140606 Bolt RDHD Sqnk 3/8-16 unc x 3/4
64 154798 Dash Lower STLT
74 73680600 Nut Crownlock 3/8-16 unc
90 124346X Nut Self Thd Wsh - HD 1/4 Zinc

142 175702 Plate Reinforcement STLT
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Footrest Step-thru
145 156524 Rod Pivot Chassis/Hood
159 179950X428 Cupholder
166 171875 Screw Hwhd Hi-Lo #13-16 x 3/4
206 170165 Bolt Shoulder 5/16-18
207 17670508 Screw Thdrol 5/16-18 x 1/2
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
212 183823 Insert Lens Refl.
217 179132X428 Console Fuel Window
219 17000512 Screw 5/16-18 x 3/4

AG22H42STA (2004) Page 3 of 23
Decals

AG22H42STA (2004) Page 4 of 23
Decals

Ref # Part Number Qty Description

1 156811 Decal Oper

3 189824 Decal Hood LH

4 189826 Decal Chassis

5 189489 Decal HP Engine

7 190468 Decal Replacement Parts

8 179128 Decal Deck "B" 42"

9 186209 Decal Fender Logo
10 157141 Decal Fender Danger
11 186210 Decal Ins Strg Whl
12 173587 Decal Fend Reflector Rh
13 173589 Decal Fend Reflector Lh
14 160396 Decal V-Belt Schematic
16 189823 Decal Hood Rh
20 145005 Decal Bat Dan/Psn

166960 Decal By Pass Lt Hydro
184310X428 Pad Footrest LH
184311X428 Pad Footrest RH
138311 Decal Handle Lft Height Adjust
190650 Manual Owner's (English)
190651 Manual Owner's (Spanish)

AG22H42STA (2004) Page 5 of 23
Electrical

AG22H42STA (2004) Page 6 of 23
Electrical

Ref # Part Number Qty Description

1 144927 Battery

2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4

8 7603J Tray Battery
10 145211 Bolt Btr frt 1/4-20 x 7.5 zinc
11 150109 Holddown battery
12 145769 Nut Push Nylon 1/4
16 176138 Switch Interlock
21 183759 Harness Socket Light
22 4152J Bulb, Light # 1156
24 4799J Cable Battery
25 146148 Cable Battery 6 Ga. Red w/16 wire
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable Ground 21" Blk 6 Ga.
29 121305X Switch Plunger Nc Gray
30 175566 Switch Ign
33 140401 Key Ign Molded Generic
40 179720 Harness Ign
41 71110408 Bolt Fin Hex 1/4-20 unc x 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
45 121433X Ammeter Rectangular
52 141940 Protection Loop
55 17490508 Screw Thdrol 5/16-18 x 1/2

AG22H42STA (2004) Page 7 of 23
Engine
