AYP A103BR Parts List

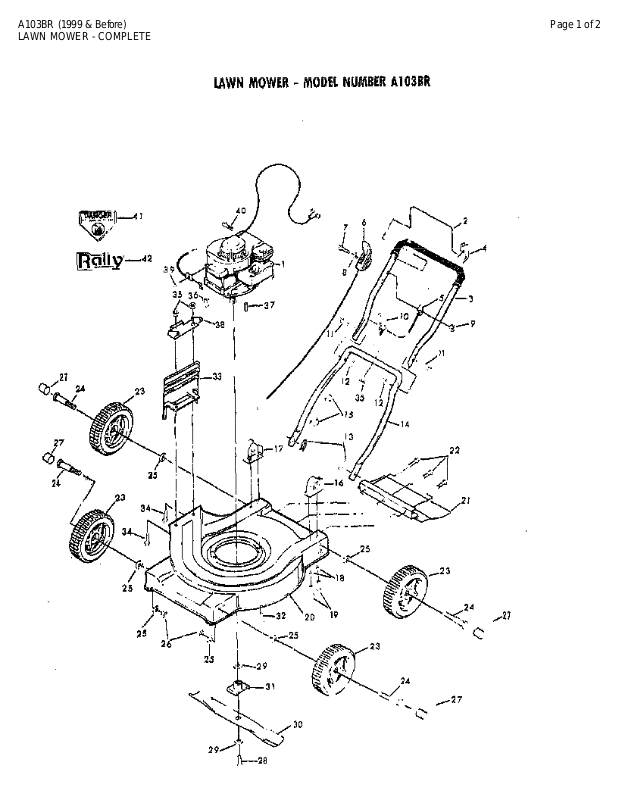

A103BR (1999 & Before) Page 1 of 2 LAWN MOWER - COMPLETE
A103BR (1999 & Before) Page 2 of 2 LAWN MOWER - COMPLETE
Ref # Part Number Qty Description
1 CHECK WITH SUPPLIER 2 86902 CONTROL BAR PM 3 111301X UPPER HANDLE PM 4 107771X "UP STOP PM, BAIL" 5 107954X CABLE ASM PM 6 107244X SUB= 107245X 7 54138 SUB= 74760432 8 85723 WASHER PM
9 63601 SUB= 73800400 10 103672X ROPER GUIDE PM 11 53089 SUB= 74760528 12 63124 SUB= 73690500 13 51793 HAIRPIN COTTER 14 84683 SUB= 84684X479 15 85827 CABLE CLIP PM 16 103510X SUB= 150959 17 103511X SUB= 150959 18 59289 STEEL WASHER 19 55187 SCREW 20 800212 MOWER HOUSING 21 8259J REAR SKIRT M 22 81276 SCREW 23 800060 WHEEL&TIRE 24 67609 AXLE BOLT 25 74316 WASHER PM 26 62336 SUB= 73800600 27 800090 HUB CAP-PLASTIC 28 82626 SUB= 74940620 29 84942 WASHER.FLAT.3/8 30 103523X "BLADE 20""" 31 111496X ADAPTER PM 32 60946 SUB= 74780520 33 100945R DISCHARGE GRD PM 34 57968 SUB= 74760412 35 63601 SUB= 73800400 36 63124 SUB= 73690500 37 CHECK WITH SUPPLIER 38 673H446 SUB= 800769 39 111123X SCREW PM 40 83816 SCREW PM 41 85463 DECAL-DANGER PM 41 800123 OWNERS MANUAL
